Please read the enclosed operating instructions carefully and retain this
booklet for future reference.
We have carefully engineered your Bottled Water Dispenser to give you
years of service and trouble free operation.
IMPORTANT SAFEGUARDS
• For use with 10-25 liter water bottles and most water filtration
systems , (not included).
• Never use this dispenser with water that is unsafe to drink or is
from an unknown source.
• Never use any other liquid in the dispenser other than known
and microbiologically safe bottled water.
• Never allow children to dispense hot water without proper and
direct supervision.
• This water dispenser is equipped with a grounded power cord
plug for your safety. It must be plugged into a grounded outlet.
Do not use an extension cord with your water dispenser.
• Keep your water dispenser in a dry place away from direct sunlight.
• Never put anything flammable close to the dispenser.
• Leave a minimum of 2” (5 cm) space around the back and sides of the
dispenser for proper ventilation.
• Always install your water dispenser on a level floor. Wait for three
minutes before restarting machine after shutting down.
• Always unplug the water dispenser before servicing or cleaning.
• Regular cleaning of your water dispenser is required for your warranty.
Please follow cleanin g instructions outlined in this manual and clean
the dispenser every 4 months.
To avoid water overflow when cleaning
your dispenser, always remove the
bottle support funnel before pouring
water cleaning solution into the reservoir.
Never turn the dispenser upside down or tilt more than 45
degrees. If unit has been resting on its side for an extended
period of time, place the water dispenser in the upright
position for approximately 12 hours before turning it on.
OPERATING INSTRUCTIONS
Initial Product Cleaning Procedure
As with most new appliances, it is recommended to
clean the reservoir prior to first time use.
IMPORTANT: To avoid water overflow while cleaning the dispenser,
always remove the bottle support funnel before pouring water or
cleaning solution into the reservoir.
1. Press all dispensing buttons until water no longer comes out.
2. Drain the reservoirs from the drain valve on the back of the unit. (in hot &
cold unit only)
3. Rinse again with clean water.
4. Place bottle support funnel back on top of dispenser.
INSTALLING THE WATER BOTTLE
IMPORTANT: Always wash your hands first! Clean the top (neck) of the bottle
with a clean cloth and do not touch the part of the unit that the water touches.
Make sure the unit is unplugged and power switch is in the OFF position.
The water bottle can be purchased from your local retailer.
1. Remove the protective cap from the end of the water bottle unless the bottle
has a puncturable cap or sticker.
2. Lift and turn the bottle upside down, placing it securely on the bottle support
funnel
3. Press and hold all dispenser buttons until water flows from the dispenser.
Drain about 0.3 gal / 1 L of water before initial use. This does not need to be
repeated with replacement bottles.
4. Plug in the water dispenser.
5. Set the power switch at the rear of the dispenser to the ON position
6. Ready-to-dispense indicator lights will come on when water reaches
optimum temperatures and is ready for use.
.
Do not switch on the hot water until water runs out from
the red tap
1. Make sure the unit is unplugged and power switch is
turned off.
2. Remove the bottle support funnel, saturate a clean cloth with water
dispenser cleaner or vinegar and wipe the inside of the reservoir.
3. Pour water dispenser cleaner or a mixture of 0.3 gal / 1 L of vinegar
with 0.3 gal / 1 L of hot water into the reservoir and wait 20 minutes.
4 5

IMPORTANT NOTICE ABOUT LEAKING BOTTLES
If you find that your dispenser is leaking, check the water bottle first !
Almost all 10-25 liter water bottles are recycled, and handled extensively
during cleaning, filling, and shipping. As a result they are very prone to
developing pin holes or small cracks that can cause an overflow (or leak)
when placed on top of a water dispenser.
In almost all cases, there is nothing wrong with your water
dispenser. If you are experiencing a leak, this simple test
will allow you to determine whether your water bottle or
dispenser is the source of the problem.
1. Unplug the unit, turn off power switch and remove the water bottle.
2. a) Remove the bottle support funnel and check the
water level inside the reservoir – it should be at roughly
three-quarters full.
b) Please add or drain a few glasses of water to achieve
the required fill level. Water level should be
approximately 3/4” – 1” BELOW VENT TUBE
3. Let the water sit for approximately 2 hours. If the
dispenser does not leak, it is the bottle that is leaking
due to a small crack or pinhole.
Please contact your water supplier for a replacement
bottle.
2.a
Vent Tube
Water Level
2.b
1.
CHILDPROOF SAFETY FEATURE - IN HOT & COLD MODEL ONLY
To prevent hot water from accidentally harming a child, the hot water
dispenser button has a safety switch on it. Available in some models only
DANGER: The hot water is heated to approximately 194˚ F / 90˚ C.
Temperatures above 125˚ F / 52˚ C can cause severe burns from scalding.
DO NOT ALLOW CHILDREN TO USE THE HOT WATER DISPENSING
BUTTON WITHOUT PROPER AND DIRECT SUPERVISION.
ADJUSTING THE TEMPERATURE (COLD WATER ONLY)
By turning the thermostat at the back of the unit, the
temperature can be adjusted. If the water dispenser is
not dispensing water, there could be a possible ice build
up due to the thermostat being set too cold. If this
happens, unplug the dispenser overnight and then reset
the thermostat. The thermostat knob is behind the OK
tested sticker at the back of the machine. Remove the
sticker and turn the knob clockwise to make the water
colder and anti clockwise to make it warmer.
O
Please note that the cold water thermostat has been factory adjusted to 11 C.
Avoid adjusting the thermostat unless required.
OK
TESTED
R
E
M
R
A
W
ENSURE THAT THE DISPENSER IS POWERED OFF AND THERE IS WATER
IN THE HOT TANK BEFORE PRESSING THE RESET BUTTON ON
THE MANUAL SAFETY THERMOSTAT.
Reset Thermostat
HOT WATER TEMPERATURE – IN HOT & COLD MODELS ONLY
The temperature of the hot water in the dispenser maintained
by a preset automatic thermostat set at 85 °C and cannot be
adjusted manually by user.
There is also a manual reset safety thermostat set at 95 °C.
If there is no water in the hot tank and the hot water switch is
turned on by mistake, the manual safety button on the safety
thermostat will trip. In such an event, the reset button needs to
be preset as shown in picture (lower one on the tank) needs
to be pressed as shown in the picture.
DISPENSING WATER
1. Place a glass under the tap for water, press the lever until the desired
amount of water is dispensed.
oo
2. Plain water temperature will be around 4 C to 6 C lower compared to
bottle water temperature.
6 7

Vacuum or sweep away the dust from the
condenser coils at the back of the dispenser.
For best results, you can purchase a brush
designed specifically for this purpose from your
local appliance store. This will improve cooling
and efficiency.
CLEANING THE CONDENSER
IMPORTANT!
Turn power switch to the OFF position and unplug the
dispenser before performing this procedure. Dispense hot water until
temperature drops to a safe level to avoidthe risk of scalding.
1. Remove the water bottle.
2. Press all dispensing buttons until water no longer comes out.
3. Place a bucket beneath the drain outlet on the back of the dispenser.
4. Remove the cap and plug from the drain valve (in hot & cold model only)
and let the water flow into the bucket.
Replace the cap and plug. A screwdriver or coin can be used to help loosen
the drain cap. Collect the water in a container, not the drip tray.
5. Replace the water bottle.
Drain the reservoirs before and after cleaning,
when going on long vacations or if not using the
dispenser for long periods of time.
DRAINING THE RESERVOIRS
Drain
valve
LED FUNCTION INDICATORS
To remove, take the grill off the tray and firmly lift the tray up, dislodging
it from the guides. Drain and clean.
The drip tray should be emptied and cleaned
regularly to remove spotting and any mineral
deposits. Clean with water dispenser cleaning
solution or a mild soap and water. For tough
deposits, add vinegar and let it soak until the
deposits come loose. Then wash, rinse and
dry thoroughly.
To replace, put the grill back on the tray and slide the tray onto the guides.
The outside of the dispenser can be wiped clean with water dispenser
cleaning solution or a mild soap and water. Never use harsh chemicals or
abrasive cleaners. Rinse thoroughly with clean water and then dry surfaces.
CLEANING THE OUTSIDE OF THE WATER DISPENSER
CLEANING THE DRIP TRAY
CLEANING AND MAINTENANCE
Like most appliances, your new water dispenser requires periodic maintenance
to operate efficiently. Your water dispenser must be cleaned every 4 months.
Please note that as per your warranty, routine maintenance of the dispenser
is required. Failure to maintain the water dispenser will void your warranty.
IMPORTANT: Make sure you turn the power switch to the OFF position and
unplug the dispenser before performing any of the following cleaning
procedures.
CLEANING YOUR WATER DISPENSER
8 9
Heater is in operation
The hot water has reached
its op t im u m temperature and
is ready for dispensing
The cold water compressor
is in operation
Blue/
Green
Yellow “ON”
“ON”
“ON”
For Hot & Cold model For Normal & Cold model
The cold water has reached
its op t im u m temperature and
is ready for dispensing
The cold water compressor is
in operation
Power on
LED STATUS
Red

Puncturing Tube
Funnel
Top Cover
Tank Ring
Divider
Cold Thermostat
Main Lead
Switch Green- Cold
Switch Red- Hot
Handle
Filter
Back Plate Upper
Top Plate
Drain Set
Drain Pipe
Condenser
Side Panel Left/Right
Compressor
Condenser Rubber
Bottom Plate
Plastic Feet
Compressor OLP
Compressor Relay
Front Lower
Drip Tray
Drip Tray Jali
Front Upper
Tap Blue - Cold
Tap White - Normal
Tap Red - Hot
Hot tank
0
Heating Thermostat 85 C Auto
0
Heating Thermostat 95 C Manual
Tap Connector
Front Upper Cover
LED PCB
Insulation Foam
Insulation Foam
Storage Tank
Steam Pipe
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
S.No. Description
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
4
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
Qty. S.No. Description Qty.
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
2
1
4
1
Specifications subject to change without notice.
MODEL - Atlantis Big Plus (M-30)
PARTS NAME
10 11

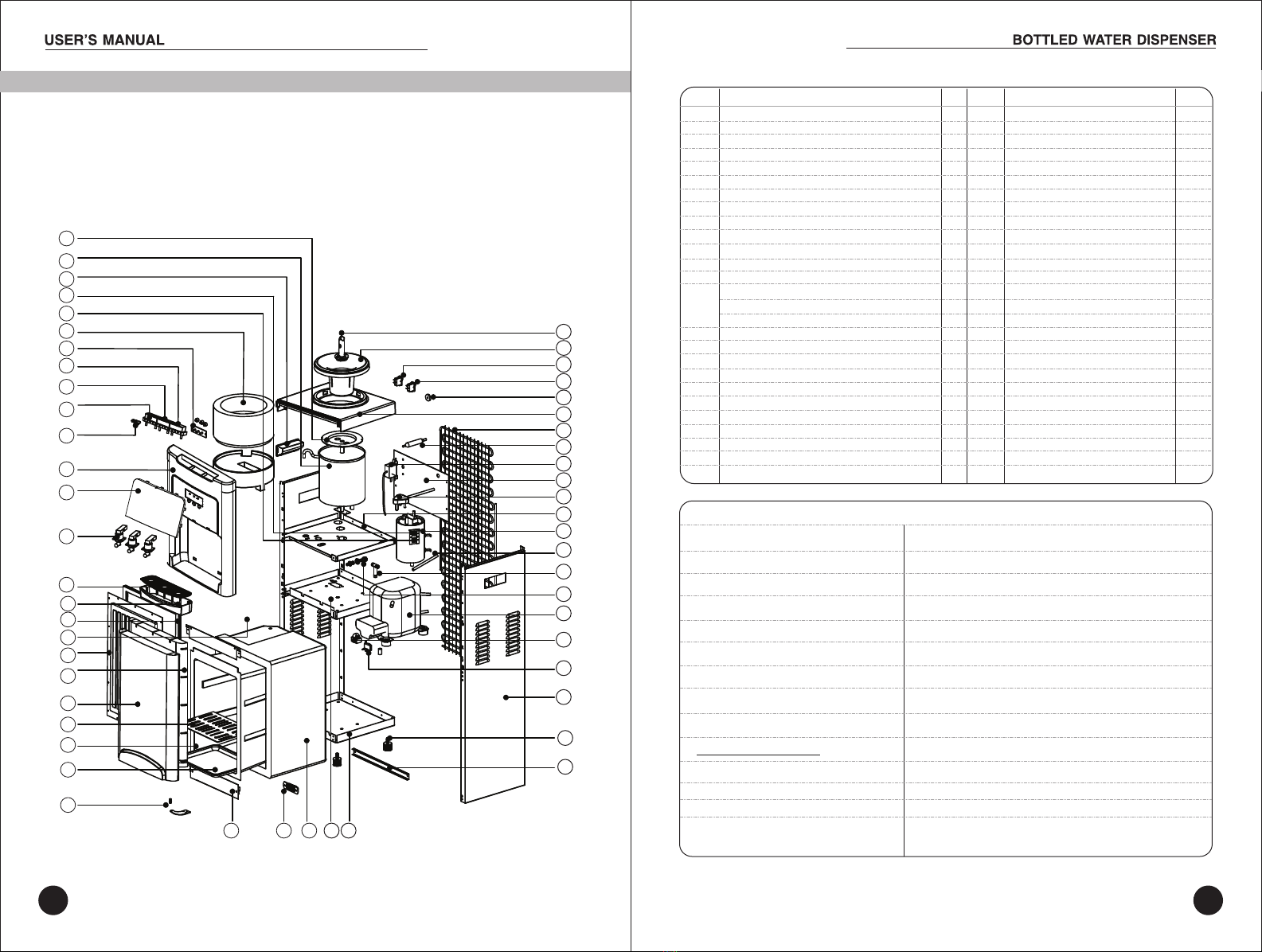

EXPLODED VIEW OF MACHINE
PARTS IDENTIFICATIONS
No. of Faucets
Cold Storage Capacity
Power Source
Power Cold (Max.)
Power Hot
Refrigerant
Cooling Capacity
Heating Capacity
Condenser
Models available:
TECHNICAL SPECIFICATIONS (BIG Plus)
3
8.0 Liters
220V/1P/50Hz
120 Watts
500 Watts
R 134 a (CFC Free)
5 Liters/hr
0
<_ 90 C, 5 Liters/hr
Static
Hot, Normal & Cold
Hot, Normal & Cold
Hot, Normal & Cold
RO Purifier Compatible
Floor Standing
Storage Cabinet
Cooling Cabinet

Puncturing Tube
Funnel
Top Cover
Tank Ring
Divider
Cold Thermostat
Main Lead
Switch Green- Cold
Switch Red- Hot
Side Handle
Back Plate Upper
Top Plate
Drain Set
Drain Pipe
Fan Cooled Condenser
Back Plate Lower Jumbo
Motor
Condenser Plate
Side Panel Left/Right
Compressor
Bottom Plate
Condenser Rubber
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
S.No. Description
Plastic Feet
Compressor OLP
Compressor Relay
Front Lower
Motor Stand
Drip Tray
Drip Tray Jali
Front Upper
Tap Blue - Cold
Tap White - Normal
Tap Red - Hot
Hot tank
o
Heating Thermostat 85 C Auto
o
Heating Thermostat 95 C Manual
Tap Connector
Front Upper Cover
LED (PCB)
Insulation Foam
Insulation Foam
Storage Tank
Steam Pipe
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
1
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
2
1
1
4
4
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
1
1
Qty. S.No. Description Qty.
No. of Faucets
Cold Storage Capacity
Power Source
Power Cold (Max.)
Power Hot
Refrigerant
Cooling Capacity
Heating Capacity
Condenser
Models available:
Floor Standing
TECHNICAL SPECIFICATIONS (JUMBO Plus)
3
8.0 Liters
220V/1P/50Hz
150 Watts
500 Watts
R 134 a (CFC Free)
10 Liters/hr
0
<_ 90 C, 5 Liters/hr
Fan Cooled
Hot, Normal & Cold
Specifications subject to change without notice.
PARTS NAME
12 13

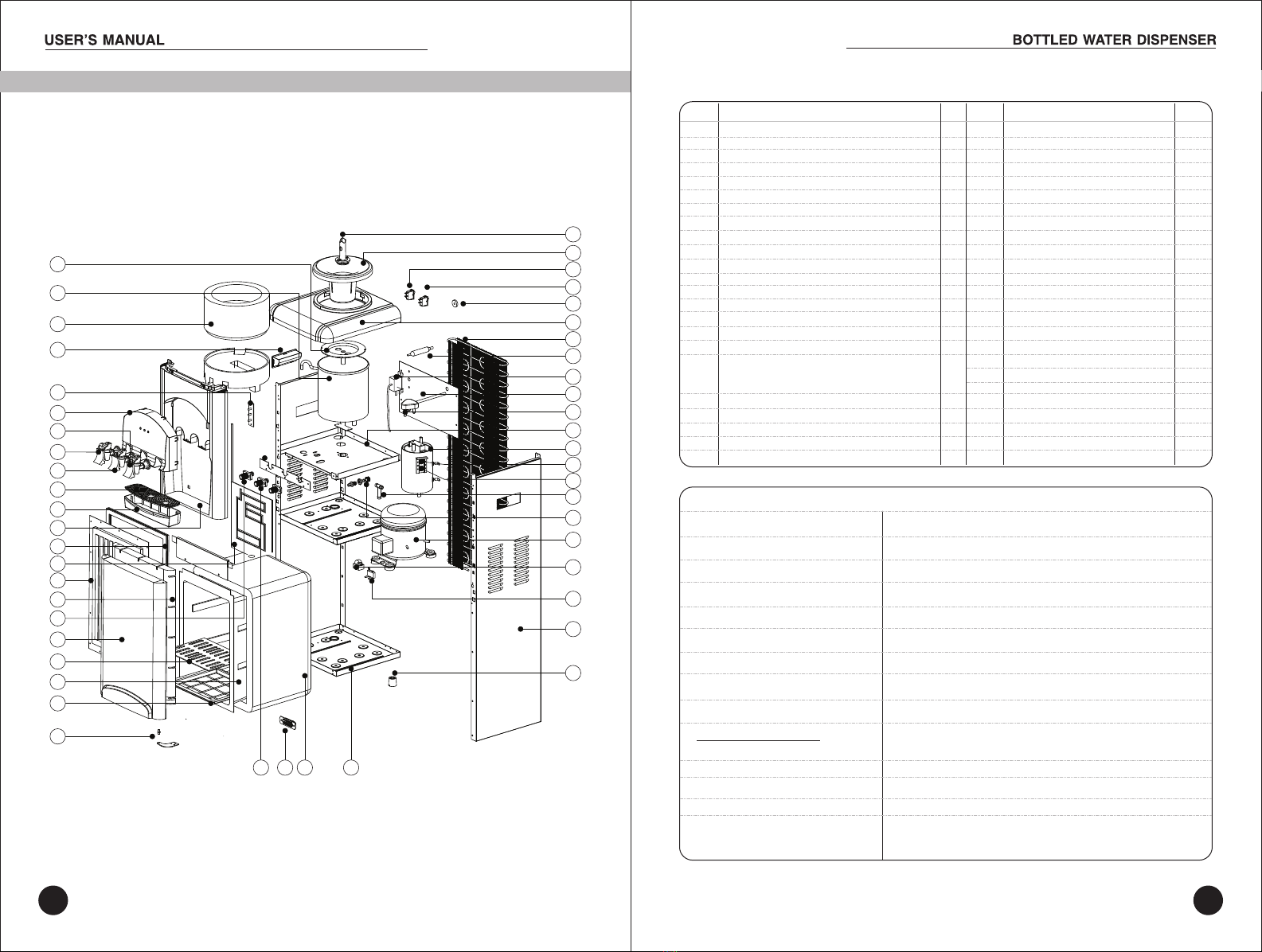

EXPLODED VIEW OF MACHINE
MODEL- Atlantis Jumbo Plus (M-30)
PARTS IDENTIFICATIONS

20 19
24 23 22 21
18
17
16
15
14
13
11
12
10
09
08
07
06
05
04
03
02
01
38
37
36
35
34
33
31
32
27
28
29
30
26
25
MODEL - Atlantis Super
No. of Faucets
Water Storage Capacity
Power Source
Power Cold (Max.)
Power Hot
Refrigerant
Cooling Capacity
Heating Capacity
Condenser
Models available:
Floor Standing
TECHNICAL SPECIFICATIONS (SUPER)
3
17 Liters
220V/1P/50Hz
150 Watts
500 Watts
R 134 a (CFC Free)
10 Liters/hr
0
<_ 90 C, 5 Liters/hr
Fan Cooled
Specifications subject to change without notice.
Funnel Cover
Funnel Close
Top Cover
Main Lead
Back Plate Upper
Sensor Tube
Switch Green- Cold
Switch Red- Hot
Switch Red- RO
Cold Thermostat
Top Plate
Cold Drain Pipe
Hot Drain Pipe
Hot Tank
Back Plate Lower
RO. Plate
Compressor
Side Panel Left/Right
Fan Cooled Condenser
Motor Stand
Motor
Leg
o
Heating Thermostat 95 C Manual
o
Heating Thermostat 85 C Auto
Front Lower
Front Upper
Drip Tray
Drip Tray Jali
Tap Blue- Cold
Tap Red - Hot
Tap White - Normal
LED
Display
Tap Connector
Tap Connector Strip
Storage Tank
Storage Tank Cover
SS Coil
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
1
S.No. Description Qty. S.No. Description Qty.
PARTS IDENTIFICATIONS
PARTS NAME
14 15

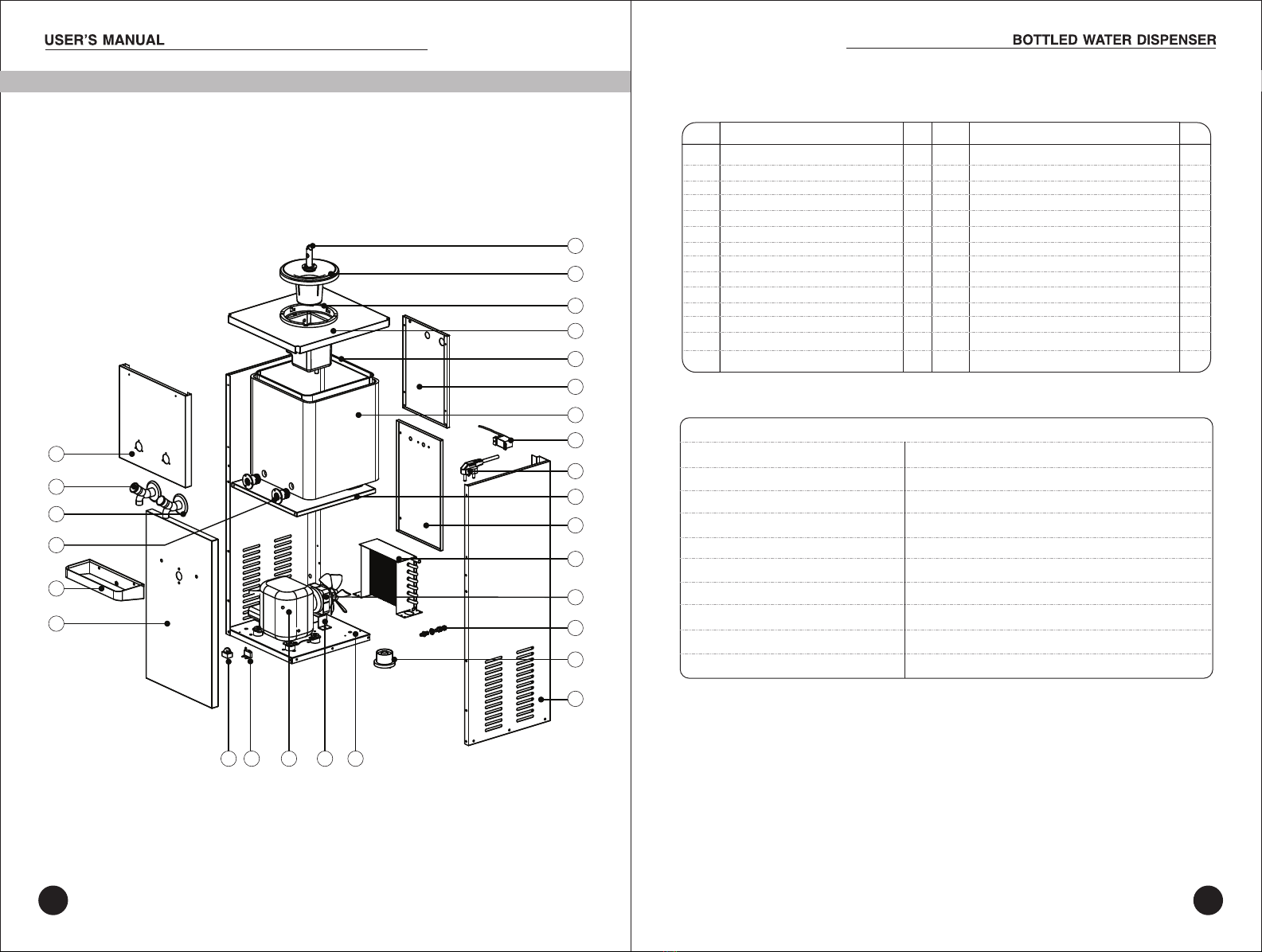

EXPLODED VIEW OF MACHINE
Hot, Normal & Cold
RO Purifier Compatible

Specifications subject to change without notice.
MODEL - Atlantis Frosty
No. of Faucets
Cold Storage Capacity
Power Source
Power Cold (Max.)
Power Hot
Refrigerant
Cooling Capacity
Heating Capacity
Condenser
Models available:
Floor Standing
TECHNICAL SPECIFICATIONS (FROSTY)
2
3.5 Liters
220V/1P/50Hz
120 Watts
500 Watts
R 134 a (CFC Free)
5 Liters/hr
0
<_ 90 C, 5 Liters/hr
Static
Hot & Cold \ Normal & Cold
Puncturing Tube
Funnel
Top Cover
Divider
Cold Thermostat
Main Lead
Switch Green- Cold
Switch Red- Hot
Handle
Back Plate Upper
Top Plate
Drain Set
Drain Pipe
Condenser
Side Panel Left/Right
Compressor
Bottom Plate
Plastic Feet
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
S.No. Description
Compressor Relay
Compressor OLP
Front Lower
Front Upper
Drip Tray
Drip Tray Jali
Tap Blue - Cold
Tap Red - Hot
Hot tank
o
Heating Thermostat 85 C Auto
o
Heating Thermostat 95 C Manual
LED PCB
Thermocol Base Cold Tank
Thermocol Round Cold Tank
Tap Connector
Steam Pipe
Storage Tank
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
1
1
1
1
1
1
1
2
1
1
1
1
1
2
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
2
1
1
Qty. S.No. Description Qty.
17
16
15
14
13
12
10
11
09
08
07
06
05
04
03
02
01
20
35
34
33
32
30
31
26
27
28
29
25
24
23
22
21
19 18
PARTS NAME
16 17
EXPLODED VIEW OF MACHINE
PARTS IDENTIFICATIONS

MODEL - Atlantis Blue (M-24)
PARTS NAME
18 19
EXPLODED VIEW OF MACHINE
Puncturing Tube
Funnel
Switch Red - Hot
Switch Green - Cold
Top Cover
Filter
Condenser
Cold Thermostate
Back Plate
Main Lead
Top Plate
Hot Tank
0
Heating Thermostate 95 c Auto
0
Heating Thermostate 85 c Manual
Drain Set
Condenser Rubber
Compressor
Relay OLP
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
S.No. Description
Relay
Side Panel Left/Right
Plastic Feet
Bottom Plate
Front Lower- Floor Standing
Drip Tray
Drip Tray Jali
Front Upper
Tap - Cold
Tap - Hot
LED PCB
Tap Connector
Tap Connector Strip 2 Type
Thermocol Base & Round
Side Handle
Storage Tank Cold
Divider
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
1
1
1
1
1
1
1
1
1
1
1
2
1
1
2
1
1
Qty. S.No. Description Qty.
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
Specifications subject to change without notice.
PARTS IDENTIFICATIONS
No. of Faucets
Cold Storage Capacity
Power Source
Power Cold (Max.)
Power Hot
Refrigerant
Cooling Capacity
Heating Capacity
Condenser
TECHNICAL SPECIFICATIONS (BLUE)
2
3.5 Liters
220V/1P/50Hz
110 Watts
500 Watts
R 134 a (CFC Free)
2.5 Liters/hr
0
<_ 90 C, 5 Liters/hr
Static
Hot & Cold / Normal & Cold
Hot & Cold / Normal & Cold
Hot & Cold / Normal & Cold
Hot & Cold / Normal & Cold
RO Purifier Compatible
Models available:
Floor Standing
Storage Cabinet
Cooling Cabinet
Table Top

01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
2526
27
28
39
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Specifications subject to change without notice.
No. of Faucets
Cold Storage Capacity
Power Source
Power Cold (Max.)
Power Hot
Refrigerant
Cooling Capacity
Heating Capacity
Condenser
Models available:
TECHNICAL SPECIFICATIONS (Xtra)
3
4.0 Liters
220V/1P/50Hz
110 Watts
500 Watts
R 134 a (CFC Free)
3 Liters/hr
0
<_ 90 C, 5 Liters/hr
Static
PARTS NAME
Qty.
Description
S.No. S.No. Description Qty.
Puncturing Tube
Funnel
Switch Red - Hot
Switch Green - Cold
Condenser Rubber
Top Cover
Condenser
Filter
Cold Thermostat
Back plate
Main Lead
Top Plate
Hot Tank
o
Heating Thermostat 85 c Auto
o
Heating Thermostat 95 c Manual
Tee Pipe
Drain Set
Compressor, relay Cover, Rubber
Grommet, Grommet Sleeve, Relay Cover
Clip
Relay
Relay OLP
Side Panel Left/Right
Plastic Feet
Bottom Plate
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Cabinet Thermocol
Thermostat Cover
Tap Connector Straight
Door Hinge/Door Axle
Cabinet Bottom Tray
Cabinet Housing
Cabinet Middle Tray
Front Lower-Cooling Cabinet
Tap Connector Taper
Door Thermocol
Door Liner
Cooling Plate
Door gasket
Front Upper
Drip Tray
Drip Tray Jali
Tap White - Normal
Tap Red - Hot
Tap Blue - Cold
Tap Cover
LED PCB
Side Handle
Thermocol Base & Round
Storage Tank Cold
Divider
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
2
1
1
1
1
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
Floor Standing
Storage Cabinet
Cooling Cabinet
Table Top
MODEL - Atlantis Xtra (M-26)
EXPLODED VIEW OF MACHINE
PARTS IDENTIFICATIONS
20 21
Hot, Normal & Cold
Hot, Normal & Cold
Hot, Normal & Cold
Hot, Normal & Cold
RO Purifier Compatible

PARTS NAME
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
2526
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
Qty.
Description
S.No. S.No. Description Qty.
Puncturing Tube
Funnel
Switch Red - Hot
Switch Green - Cold
Condenser Rubber
Top Cover
Condenser
Filter
Cold Thermostat
Back Plate
Main Lead
Top Plate
Hot Tank
Silicon Pipe tank Inlet U
Silicon Pipe Cold Water Outlet
Silicon Pipe Water Outlet
T Pipe
Drain Set
Compressor with Accessories
Relay 36 no.
Relay OLP 36 no.
Side Panel Left/Right
Rubber Feet
U Channel
Bottom Plate
Middle Plate
Cabinet Thermocol
01
02
03
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
Thermostat Cover
Cabinet Strip Lower/Upper
Door Hinge/Door Axle
Cabinet Bottom Tray
Cabinet
Cabinet Middle Tray
Front Lower
Door Thermocol
Door Liner
Cooling Plate
Door Gasket
Drip Tray
Drip Tray Jali
Tap M28
Transparent Dispay
Front Upper
Child Lock
Pusher left
Pusher Middle
Pusher Right
LED PCB
Thermocol Base & Round
o
Heating Thermostat 90 c
o
Heating Thermostat 86 c Auto
Side Handle
Storage Tank
Divider
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
4
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
3
1
1
1
3
1
1
1
1
1
1
2
1
1
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
22 23
EXPLODED VIEW OF MACHINE
PARTS IDENTIFICATIONS
MODEL- Atlantis Prime
Specifications subject to change without notice.
No. of Faucets
Cold Storage Capacity
Power Source
Power Cold (Max.)
Power Hot
Refrigerant
Cooling Capacity
Heating Capacity
Condenser
Models available:
TECHNICAL SPECIFICATIONS (PRIME)
3
3.5 Liters
220V/1P/50Hz
110 Watts
500 Watts
R 134 a (CFC Free)
3 Liters/hr
0
<_ 90 C, 5 Liters/hr
Static
Floor Standing
Storage Cabinet
Cooling Cabinet
Table Top
Hot, Normal & Cold
Hot, Normal & Cold
Hot, Normal & Cold
Hot, Normal & Cold

MODEL - Atlantis Water Cooler
16
15
14
13
11
12
10
09
08
07
06
05
04
03
02
01
20 19 18 17 21
27
26
25
24
23
22
No. of Faucets
Cold Storage Capacity
Power Source
Power Cold (Max.)
Power Hot
Refrigerant
Cooling Capacity
Heating Capacity
Condenser
TECHNICAL SPECIFICATIONS (WATER COOLER)
2
20 Liters
220V/1P/50Hz
150 Watts
NA
R 134 a (CFC Free)
10 Liters/hr
NA
Fan Cooled
Puncturing Tube
Funnel
Storage Tank Plastic
Top Cover
Storage Tank
Back Plate Upper
Storage Tank Insulation
Thermostat
Main Lead
Tank Plate
Back Plate Lower
Condenser Fan Cool
Motor
Drain Set
01
02
03
04
05
06
07
08
09
10
11
12
13
14
S.No. Description
Leg
Side Panel Left/Right
Bottom Plate
Motor Stand
Compressor
Compressor Relay
Compressor OLP
Front Panel Lower
Drip Tray
Tap Connector
Tap Cold
Tap Normal
Front Panel Upper
15
16
17
18
19
20
21
22
23
24
25
26
27
1
1
1
1
1
1
1
1
1
2
1
1
1
1
4
2
1
1
1
1
1
1
1
2
1
1
1
Qty. S.No. Description Qty.
PARTS NAME
24 25
EXPLODED VIEW OF MACHINE
PARTS IDENTIFICATIONS

FREQUENTLY ASKED QUESTIONS
Q . WHY IS MY WATER DISPENSER LEAKING?
A: If you are experiencing a leak with your water dispenser please do the
following to see if the water bottle or the dispenser is leaking.
A.: Water dispensers feature a “puncturing tube” as part of the bottle support
funnel, providing added convenience for water bottle installation. Depending
on the water bottle supplier, a small opening may or may not be present in the
bottle cap for this specific purpose. If the puncturing tab is not present, the
entire bottle cap must then be removed to eliminate possible damage to the
puncturing tube. If the opening is present, remove the protective seal prior to
installing the bottle.
ATTENTION: Do not return this product to the store. For questions on
operation, assembly or parts, please contact us at authorised service centre.
1. Unplug the unit, turn off power switch and remove the bottle.
2. Remove the bottle support funnel and check the water level inside the
reservoir – it should be at roughly three-quarters full.
Water level should be approximately 3/4” – 1” BELOW VENT TUBE.
3. Let water sit for 2 hours. If the dispenser does not leak, it is the bottle
that is leaking due to a small crack or pinhole and it needs to be replaced.
If the dispenser is leaking, please contact authorized service centre.
A.: As with most new appliances such as coffee makers and kettles, there is
often a plastic taste upon initial start-up of the unit. To remove this taste,
simply follow the cleaning instructions outlined in Initial Product Cleaning
Procedure (pg.5)
Q: WHAT IS THE SPIKE THAT GOES INTO THE BOTTLE?
TROUBLESHOOTING TIPS
Q.: WHY DO I GET A PLASTIC TASTE FROM MY DISPENSER?
Q.: WHAT DO THE READY-TO-DISPENSE INDICATOR LIGHTS MEAN?
A.: When illuminated, they mean the following:
Water dispenser
or dispensing tap
is leaking
Small pin hole or crack in the bottle,
(common with recycled water
bottles).
Drain cap and silicone seal are
not secure.
Water was poured directly into bottle
support funnel and overflowed.
Water is not hot or
cold enough
All the water in the tank has been
used.
The unit is unplugged.
The circuit breaker in your home is
tripped or the fuse has blown.
Power switch not turned ON at
back of unit.
Temperature manual thermostat
tripped.
Water dispenser
is not dispensing
water
Empty water bottle.
Possible ice build up due to
thermostat set too cold.
Water dispenser
is noisy
Bottle making a gurgling noise as it
fills the tank.
Conduct water bottle leak test
as outlined in manual.
Ensure seal is secure in drain
plug an d tighten drain cap.
Drain by pressing dispenser buttons.
Replace with full bottle and wait 30
minutes for the water to heat or cool.
Plug it into the outlet.
Reset the breaker or replace the fuse.
Turn switch to the ON position.
Rotate knob using screwdriver
clockwise to increase cooling and
anti clockwise decrease cooling.
Replace with full bottle.
Make sure the dispenser is on an even
surface that can support its full weight.
Unplug overnight, then reset. Reduce
thermostat setting.
Possible Cause
Problem Suggested Solution
Hot water
Cold water
Thermostat needs to be adjusted
for colder water.
Press the reset button on manual
thermostat. (as shown in the diagram
page 5)
27
26
Heater is in operation
The hot water has reached
its op t im u m temperature and
is ready for dispensing
The cold water compressor
is in operation
Blue/
Green
Yellow “ON”
“ON”
“ON”
For Hot & Cold model For Normal & Cold model
The cold water has reached
its op t im u m temperature and
is ready for dispensing
The cold water compressor is
in operation
Power on
LED STATUS
Red
DISPOSAL OF MACHINE:
AercomplengthelifecycleWaterDispensersshouldbetreatedaspere-waste
managementrules.
Consumerorbulkconsumershouldchannelizee-wastegeneratedbythemto
authorizedcolleconcentreorregistereddismantlerorrecycler.
BulkConsumershouldmaintainrecordsofe-wastegeneratedbythem.
Consumershallensurethatewasteisnotbeingdroopedingarbagebin
containingwastedesnedfordisposal.
This is normal.
Water dispenser is uneven.

1. This warranty card has 2 parts. Kindly ensure that the Merchant fills both parts
correctly.
2. Part A is the customer’s copy. It should be retained by you for your record.
3. Part B must be torn and mailed to the company’s address (mentioned there itself.).
4. In the event of a defect developing in the product, contact the Merchant./ company
for obtaining warranty service by informing defect, model & serial no. and date of
purchase.
5. On receiving your complaint, trained technician will call on you promptly. In the
unlikely event of the technician deciding that the product requires attention at
customer care center, kindly arrange to deliver the machine to the customer care
center for further action.
WARRANTY CARD
This product is covered under a one year warranty to be free from defects in
workmanship and material under normal use and service for a period of 12 months from
the date of purchase.
1. The guarantee extended herein is limited to the repair and/or replacement of defective
part’s, and the manufacturer would not be responsible for any consequential
liability/damage/loss arising due to such defects.
2. Warranty card duly filled in and stamped by the dealer, along with a copy of the invoice
should be produced for any warranty claims. All expenses incurred in sending and
collecting the unit or part thereof from the authorized service center will be payable by
the customer
3.T his warranty does not cover accessories such as mains cord, relay, funnel and plastic
parts.
4. The warranty is void if :
a) It is found that the unit has been subject to unauthorized installation or repair.
b) The voltage of the power supply is not within the specified limited (230 V 50Hz +10%)
_
c) Damage is caused during transit, due to accident, flood, fire, other natural hazards,
neglect or misuse.
5. Any liquid except water is used in the container.
6. The defective parts must be sent to the company, freight prepaid and insured, for the
company’s examination and satisfaction that they are defective. Return freight and
insurance on such repaired/replacement parts plus any excise duty and taxes/levies will
be extra.
7. Failure/deterioration of any part/assembly arising, in the company’s opinion by reasons
of shifting to another location, accident, alteration, abuse/misuse, substitution of original
part’s with unauthorized part’s or any damage caused by fire/flood etc, or exposure to
weather conditions, are not covered under this warranty.
8. This warranty will continue to be in force for the term herein specified irrespective of
any replacement parts which may be provided under warranty and such replacement
parts shall not carry any fresh warranty.
Serial No.
Dealer Name & Address
Tel :
Model No. :
Date of Purchase :
Customer Name & Address
Tel :
Customer’s Signature Dealer’s Signature & Stamp
WARRANTY INSTRUCTIONS FOR USER
CUSTOMER DETAILS
29
28

31
30
