AudioCodes MEDIAPACK VERSION 6.2 How to use

SIPCPEReleaseNotes
Version6.2
December2010
Document#:LTRT‐26901
MediaPackTMMediaGateways
MediantTMMediaGateways
Multi‐ServiceBusinessGateways

Version 6.2 3 December 2010
SIP Release Notes Contents
Table of Contents
1What's New in Release 6.2................................................................................. 9
1.1Supported Hardware Platforms ..............................................................................10
1.1.1New Hardware Platforms ........................................................................................ 10
1.1.1.1MediaPack 1xx ........................................................................................ 10
1.1.1.2Mediant 600 ............................................................................................. 10
1.1.1.3Mediant 800 MSBG ................................................................................. 10
1.1.1.4Mediant 1000........................................................................................... 11
1.1.1.5Mediant 1000 MSBG ............................................................................... 11
1.1.1.6Mediant 2000........................................................................................... 11
1.1.1.7Mediant 3000........................................................................................... 11
1.1.2Existing Hardware Platforms................................................................................... 12
1.1.2.1MediaPack 1xx ........................................................................................ 12
1.1.2.2Mediant 600 ............................................................................................. 12
1.1.2.3Mediant 800 MSBG ................................................................................. 13
1.1.2.4Mediant 1000 MSBG ............................................................................... 14
1.1.2.5Mediant 1000........................................................................................... 16
1.1.2.6Mediant 2000........................................................................................... 16
1.1.2.7Mediant 3000........................................................................................... 17
1.1.3Hardware Platforms Not Supported........................................................................ 17
1.2SIP New Features ..................................................................................................18
1.2.1SIP General New Features ..................................................................................... 18
1.2.2SIP Gateway New Features.................................................................................... 27
1.2.3SIP SAS New Features........................................................................................... 52
1.3Session Border Controller New Features...............................................................54
1.4Media New Features ..............................................................................................63
1.5PSTN New Features ..............................................................................................65
1.6Networking New Features
......................................................................................67
1.7Data-Router New Features ....................................................................................72
1.8Security New Features ...........................................................................................75
1.9Infrastructure New Features...................................................................................76
1.10Management and Provisioning New Features .......................................................77
1.10.1Web New Features ................................................................................................. 77
1.10.2SNMP New Features .............................................................................................. 79
1.10.3CLI New Features ................................................................................................... 80
1.10.4SSH New Features ................................................................................................. 81
1.10.5Utilities New Features ............................................................................................. 83
1.11New Parameters.....................................................................................................84
1.11.1SIP New Parameters .............................................................................................. 84
1.11.1.1SIP General Parameters ......................................................................... 84
1.11.1.2SIP Gateway Parameters ........................................................................ 86
1.11.1.3SIP SAS Parameters ............................................................................... 92
1.11.2SBC New Parameters............................................................................................. 93
1.11.3Media New Parameters .......................................................................................... 95
1.11.4PSTN New Parameters........................................................................................... 96
1.11.5Networking New Parameters .................................................................................. 99
1.11.6Management and Provisioning New Parameters ................................................. 101
1.12Modified Parameters ............................................................................................102
1.12.1SIP Parameters..................................................................................................... 102
1.12.1.1SIP General Parameters ....................................................................... 102
1.12.1.2SIP Gateway Parameters ...................................................................... 104
1.12.1.3SIP SAS Parameters ............................................................................. 111
1.12.2SBC Parameters ................................................................................................... 112

SIP Release Notes 4 Document #: LTRT-26901
CPE SIP Products
1.12.3Networking Parameters ........................................................................................ 113
1.13Obsolete Parameters ...........................................................................................114
2Supported Features........................................................................................ 115
2.1SIP Gateway Features .........................................................................................115
2.1.1Supported SIP Features ....................................................................................... 115
2.1.2SIP Compliance Tables ........................................................................................ 119
2.1.2.1SIP Functions ........................................................................................ 119
2.1.2.2SIP Methods .......................................................................................... 119
2.1.2.3SIP Headers .......................................................................................... 120
2.1.2.4SDP Headers......................................................................................... 122
2.1.2.5SIP Responses...................................................................................... 122
2.2Supported PSTN-SIP Interworking Features .......................................................127
2.3Supported IP Media Features ..............................................................................129
2.4Supported Data-Router Features
.........................................................................130
2.4.1LAN Switching....................................................................................................... 130
2.4.2Routing.................................................................................................................. 130
2.4.3Data Security......................................................................................................... 132
2.4.4Supported RFC's................................................................................................... 133
2.5DSP Firmware Templates (Voice Codecs)...........................................................134
2.5.1MediaPack 1xx...................................................................................................... 134
2.5.2Mediant 600 and Mediant 1000 ............................................................................ 135
2.5.3Mediant 800 MSBG............................................................................................... 138
2.5.4Mediant 1000 MSBG............................................................................................. 139
2.5.5Mediant 2000 ........................................................................................................ 142
2.5.6Mediant 3000 ........................................................................................................ 143
2.5.6.1DSP Template Mix Feature for Mediant 3000 ....................................... 145
3Known Constraints......................................................................................... 147
3.1SIP Constraints ....................................................................................................147
3.2Media Constraints ................................................................................................149
3.3PSTN Constraints.................................................................................................153
3.3.1DS3 Constraints.................................................................................................... 154
3.3.2SDH Constraints ................................................................................................... 155
3.3.3SS7 Constraints .................................................................................................... 156
3.4IP Media Constraints ............................................................................................158
3.5Networking Constraints ........................................................................................160
3.6Security Constraints .............................................................................................161
3.7High Availability Constraints
.................................................................................162
3.8Infrastructure Constraints .....................................................................................164
3.9Management Constraints .....................................................................................166
3.9.1Web Constraints.................................................................................................... 166
3.9.2SNMP Constraints................................................................................................. 171
3.9.3CLI Constraints ..................................................................................................... 174
4Resolved Constraints..................................................................................... 175
4.1SIP Resolved Constraints ....................................................................................175
4.2Web Resolved Constraints
...................................................................................176

Version 6.2 5 December 2010
SIP Release Notes Contents
List of Tables
Table 1-1: Available Mediant 800 MSBG Models................................................................................. 11
Table 1-2: Mediant 1000 MSBG Voice I/O Module Hardware Revision Compatibility List ................... 15
Table 1-3: New SIP General Parameters for Release 6.2..................................................................... 84
Table 1-4: New SIP Gateway Parameters for Release 6.2 ................................................................... 86
Table 1-5: New SIP SAS Parameter for Release 6.2 ............................................................................ 92
Table 1-6: New SBC Parameters for Release 6.2................................................................................. 93
Table 1-7: New Media Parameters for Release 6.2 .............................................................................. 95
Table 1-8: New PSTN Parameters for Release 6.2............................................................................... 96
Table 1-9: New Networking Parameters for Release 6.2 ...................................................................... 99
Table 1-10: New Management and Provisioning Parameter for Release 6.2 ..................................... 101
Table 1-11: Modified SIP General Parameters for Release 6.2 .......................................................... 102
Table 1-12: Modified SIP Gateway Parameters for Release 6.2......................................................... 104
Table 1-13: Modified SIP SAS Parameters for Release 6.2................................................................ 111
Table 1-14: Modified SBC Parameter for Release 6.2 ........................................................................ 112
Table 1-15: Modified Networking Parameter for Release 6.2 ............................................................. 113
Table 1-16: Obsolete Parameters........................................................................................................ 114
Table 2-1: Supported IETF RFC’s ....................................................................................................... 116
Table 2-2: Supported SIP Functions.................................................................................................... 119
Table 2-3: Supported SIP Methods ..................................................................................................... 119
Table 2-4: Supported SIP Headers...................................................................................................... 120
Table 2-5: Supported SDP Headers.................................................................................................... 122
Table 2-6: Supported 1xx SIP Responses .......................................................................................... 123
Table 2-7: Supported 2xx SIP Responses .......................................................................................... 123
Table 2-8: Supported 3xx SIP Responses .......................................................................................... 123
Table 2-9: Supported 4xx SIP Responses .......................................................................................... 124
Table 2-10: Supported 5xx SIP Responses ........................................................................................ 126
Table 2-11: Supported 6xx SIP Responses ........................................................................................ 126
Table 2-12: DSP Firmware Templates for MediaPack Series............................................................. 134
Table 2-13: DSP Firmware Templates for Mediant 600 and Mediant 1000 Analog (FXS/FXO)
Interfaces ............................................................................................................................................. 135
Table 2-14: DSP Firmware Templates for Mediant 600 and Mediant 1000 Digital Interfaces ............ 136
Table 2-15: DSP Firmware Templates for Mediant 1000 MPM Module.............................................. 137
Table 2-16: DSP Firmware Capabilities............................................................................................... 138
Table 2-17: DSP Firmware Templates for Mediant 1000 MSBG Analog (FXS/FXO) Interfaces ........ 139
Table 2-18: DSP Firmware Templates for Mediant 1000 MSBG Digital Interfaces ............................ 140
Table 2-19: DSP Firmware Templates for Mediant 1000 MSBG MPM Module .................................. 141
Table 2-20: DSP Firmware Templates for Mediant 2000 .................................................................... 142
Table 2-21: DSP Firmware Templates for Mediant 3000 .................................................................... 143
Table 2-22: DSP Firmware Templates for Mediant 3000 16E1/21T1 ................................................. 144
Table 2-23: Template Mix Feature Channel Capacity ......................................................................... 145

SIP Release Notes 6 Document #: LTRT-26901
CPE SIP Products
Reader’s Notes

Version 6.2 7 December 2010
SIP Release Notes Notices
Notice
This document describes the Release 6.2 of AudioCodes products – MP-1xx, Mediant 600,
Mediant 800 MSBG, Mediant 1000 MSBG, Mediant 1000, Mediant 2000, and Mediant 3000.
Information contained in this document is believed to be accurate and reliable at the time of
printing. However, due to ongoing product improvements and revisions, AudioCodes cannot
guarantee accuracy of printed material after the Date Published nor can it accept responsibility
for errors or omissions. Updates to this document and other documents as well as software
files can be downloaded by registered customers at http://www.audiocodes.com/downloads.
© Copyright 2010 AudioCodes Ltd. All rights reserved.
This document is subject to change without notice.
Date Published: December-16-2010
Trademarks
AudioCodes, AC, AudioCoded, Ardito, CTI2, CTI², CTI Squared, HD VoIP, HD VoIP
Sounds Better, InTouch, IPmedia, Mediant, MediaPack, NetCoder, Netrake, Nuera, Open
Solutions Network, OSN, Stretto, TrunkPack, VMAS, VoicePacketizer, VoIPerfect,
VoIPerfectHD, What’s Inside Matters, Your Gateway To VoIP and 3GX are trademarks or
registered trademarks of AudioCodes Limited. All other products or trademarks are property
of their respective owners. Product specifications are subject to change without notice.
WEEE EU Directive
Pursuant to the WEEE EU Directive, electronic and electrical waste must not be disposed
of with unsorted waste. Please contact your local recycling authority for disposal of this
product.
Customer Support
Customer technical support and service are provided by AudioCodes’ Distributors,
Partners, and Resellers from whom the product was purchased. For Customer support for
products purchased directly from AudioCodes, contact [e-mail].
Abbreviations and Terminology
Each abbreviation, unless widely used, is spelled out in full when first used.

SIP Release Notes 8 Document #: LTRT-26901
CPE SIP Products
Related Documentation
Document Name
Product Reference Manual for SIP Gateways and Media Servers
MP-11x & MP-124 SIP Installation Manual
Mediant 600 SIP Installation Manual
Mediant 800 MSBG SIP Installation Manual
Mediant 1000 MSBG SIP Installation Manual
Mediant 1000 SIP Installation Manual
Mediant 2000 SIP Installation Manual
Mediant 3000 SIP Installation Manual
MP-11x & MP-124 SIP User’s Manual
Mediant 600 & Mediant 1000 SIP User’s Manual
Mediant 800 SIP User’s Manual
Mediant 1000 MSBG SIP User’s Manual
Mediant 2000 SIP User’s Manual
Mediant 3000 SIP User’s Manual
MSBG Series CLI Reference Guide
Note: Throughout this manual, unless otherwise specified, the term device refers to
the AudioCodes product.

Version 6.2 9 December 2010
SIP Release Notes 1. What's New in Release 6.2
1 What's New in Release 6.2
This document describes the software and hardware release of Version 6.2 and is
applicable to the following AudioCodes products:
MediaPack 1xx series (MP-11x and MP-124)
Mediant 600
Mediant 800 MSBG
Mediant 1000 MSBG
Mediant 1000
Mediant 2000
Mediant 3000 series (Mediant 3000/TP-6310, Mediant 3000 HA/TP-6310, Mediant
3000/TP-8410, and Mediant 3000 HA/TP-8410)
Throughout this document, a table is used to indicate the product(s) and management
protocol(s) that are now also applicable to the feature. Only marked check boxes indicate
applicability. For example, the table below indicates that the feature is applicable to Mediant
1000 only and for the Web interface management protocol.
Product
MP-11x MP-124
Mediant 600 Mediant 1000
Mediant 800 MSBG Mediant 1000 MSBG
Mediant 2000 -
Mediant 3000/TP-6310 Mediant 3000 HA/TP-6310
Mediant 3000/TP-8410 Mediant 3000 HA/TP-8410
Management Protocol
Web INI SNMP EMS CLI
Note: This Release Notes describes only features that are new to the specified
devices. These features may already be supported on other devices (from
previous releases). Therefore, in the table matrix used to indicate product
applicability, only the products for which the feature is now supported are
marked. To check whether the feature is already supported on other devices,
refer to previous Release Notes or the User’s Manual.
Note: Some of the features described in this document are available on the device
only if the relevant software license key has been purchased from
AudioCodes and installed on the device. For a list of available software
license keys that can be purchased, please consult your AudioCodes sales
representative.
Note: For Mediant 800 MSBG and Mediant 1000 MSBG, open source software may
have been added and/or amended for this product. For further information,
please visit our website at: http://audiocodes.com/support or contact your
AudioCodes sales representative.

SIP Release Notes 10 Document #: LTRT-26901
CPE SIP Products
1.1 Supported Hardware Platforms
This section describes the supported hardware platforms in Release 6.2
1.1.1 New Hardware Platforms
This section describes the new hardware platforms introduced in Release 6.2.
1.1.1.1 MediaPack 1xx
No new hardware platforms.
1.1.1.2 Mediant 600
No new hardware platforms.
1.1.1.3 Mediant 800 MSBG
The Mediant 800 MSBG supports the following new hardware platforms in Release 6.2:
Optional WAN Interfaces:
•Symmetric High-Speed Digital Subscriber Line (SHDSL): Single SHDSL port with
the following specifications:
♦Four SHDSL WAN ports housed on a single R-J45 connector
♦Conforms to ITU G.991.2 Annexes A, B, E, F and G SHDSL
♦Up to 5,696 Kbps over a single wire pair
♦Up to 22,784 Kbps over four wire pairs bonding, according to SHDSL.bis
(ITU G.991.2 Annexes F, G)
♦EFM and ATM support
♦Wetting current support on the CPE side, according to G991.2
♦Supports both Central Office (CO) and CPE (wetting current on CO -
excluded)
♦TC-PAM 16/32 Line Code
•T1 WAN DSU/CSU:
♦IP over High-level Data Link Control (HDLC) and Point-to-Point Protocol
(PPP) encapsulations
♦PPP password authentication protocol (PAP) and challenge-handshake
authentication protocol (CHAP) authentication
♦Multiple IP interfaces on the T1 WAN interface
E1/T1 copper wire line

Version 6.2 11 December 2010
SIP Release Notes 1. What's New in Release 6.2
The available customer-ordered hardware configurations are listed in the table below:
Table 1-1: Available Mediant 800 MSBG Models
Model FXS FXO BRI
LAN
GbE/FE
T1/E1 WAN Power
over
Ethernet
OSN
Server
(CPU)
New:
MP800-8S-12L-P 8 - -
12 (4/8) - GbE 120W -
MP800-1ET-2L - - -
12 (4/8) 1 2 x T1 120W -
MP800-1ET-12L-P-2T - - -
12 (4/8) 1 GbE 120W -
MP800-12S-12L-P-X1 12 - - 12 (4/8) - GbE 120W Atom
MP800-12O-12L-P-X1 - 12 - 12 (4/8) - GbE 120W Atom
Existing:
MP800-12S-12L-P 12 - - 12 (4/8) - GbE 120W -
MP800-4O-2L-X1 - 4 - 2 (2/0) - GbE - Atom
MP800-4S8O-2L-X1 4 8 - 2 (2/0) - GbE - Atom
MP800-4S4O-12L-P-
X1 4 4 - 12 (4/8) - GbE 50XW Atom
MP800-4B-12L-P - - 4
12 (4/8) - GbE 120W -
MP800-4B-12L-P-X1 - - 4
12 (4/8) - GbE 120W Atom
1.1.1.4 Mediant 1000
No new hardware platforms.
1.1.1.5 Mediant 1000 MSBG
No new hardware platforms.
1.1.1.6 Mediant 2000
No new hardware platforms.
1.1.1.7 Mediant 3000
No new hardware platforms.

SIP Release Notes 12 Document #: LTRT-26901
CPE SIP Products
1.1.2 Existing Hardware Platforms
This section describes existing hardware platforms from the previous release that are also
supported in Release 6.2.
1.1.2.1 MediaPack 1xx
This release supports the following existing hardware platforms:

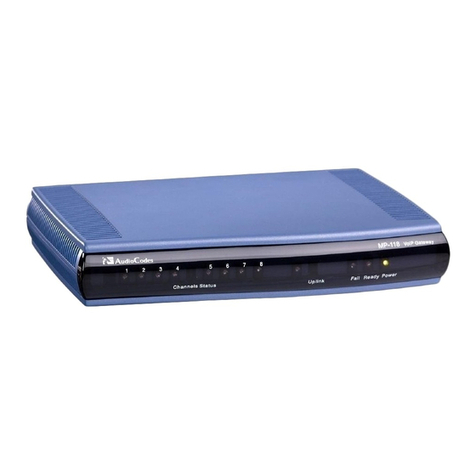

MP-11x combined FXS/FXO devices:
•MP-114/FXS+FXO providing 2 FXS ports and 2 FXO ports
•MP-118/FXS+FXO providing 4 FXS ports and 4 FXO ports
MP-11x/FXO devices:
•MP-118/FXO providing 8 analog FXO interfaces
•MP-114/FXO providing 4 analog FXO interfaces
MP-11x/FXS devices:
•MP-118/FXS providing 8 analog FXS interfaces
•MP-114/FXS providing 4 analog FXS interfaces
•MP-112/FXS providing 2 analog FXS interfaces
MP-124/FXS providing 24 analog FXS interfaces
MP-124 with AC Power
MP-124 with DC power
1.1.2.2 Mediant 600
This release supports the following existing hardware platforms:
Up to 2 FXS modules (up to 8 FXS interfaces - RJ-11 ports)
Up to 2 FXO modules (up to 8 FXO interfaces - RJ-11 ports)
Up to 2 Digital TRUNKS modules (1 or 2 E1/T1/J1 PRI spans, including fractional
E1/T1 - RJ-48c ports)
Up to 2 BRI modules (4 to 8 ISDN Basic Rate Interfaces - RJ-45 ports, 4 ports per
module)
These interfaces are available in one of the following configurations:
1 x E1/T1 port (also Fractional E1/T1)
2 x E1/T1 ports
4 x BRI ports (supporting up to 8 voice calls)
8 x BRI ports (supporting up to 16 voice calls)
4 x BRI ports and 1 x E1/T1 port
4 x BRI ports and 4 x FXS ports
4 x BRI ports and 4 x FXO ports
4 x FXS ports and 1 x E1/T1 port
4 x FXO ports and 1 x E1/T1 port

Version 6.2 13 December 2010
SIP Release Notes 1. What's New in Release 6.2
1.1.2.3 Mediant 800 MSBG
This release supports the following existing hardware platforms:
Analog telephony interfaces, offering only FXS or only FXO interfaces, or a
combination thereof. For a list of available hardware configurations and models, refer
to Table 1-1.
Optional, analog Lifeline on FXS Port 1, maintaining PSTN connectivity upon power
failure. For the combined FXS/FXO configuration, one Lifeline is available; for the 12-
FXS configuration, up to three Lifelines are available.
One set of ISDN Basic Rate Interface (BRI) interfaces, providing four RJ-45 BRI S/T
ports (supporting up to 8 voice channels) for connecting ISDN terminal equipment
such as ISDN telephones. Each BRI port can be configured either as termination
equipment/user side (TE) or network termination/network side (NT). Up to eight TE
devices can be connected per BRI S/T port, by using an ISDN S-bus that provides
eight ISDN ports.
Optional, Open Solutions Network (OSN) server platform for hosting third-party
applications such as IP PBX, based on the following:
•CPU: Intel™ Atom 1.6 GHz processor (Intel Atom N270)
•Memory: 1 GB (or 2 GB for devices with 12 FXO ports)
•Hard disk drive (HDD): SATA with minimum of 20 GB
•OSN ports (on rear panel) includes the following:
♦Three USB ports (Standard-A type) for connecting computer peripherals
(e.g., mouse and keyboard)
♦15-pin DB-type VGA port for connecting a monitor
•OSN LEDs (on front panel) for hard disk drive (HDD) and link activity
•Operating System – Microsoft Windows and Linux distributions (for certified
support, please contact AudioCodes)
Single WAN port (10/100/1000Base-T copper).
Twelve Ethernet LAN ports, supporting half- and full-duplex modes, auto-negotiation,
and straight or crossover cable detection:
•Up to four RJ-45 10/100/1000Base-T (Gigabit) ports
•Eight RJ-45 10/100Base-TX (Fast Ethernet) ports
Power-over-Ethernet (PoE) supported on all LAN ports, complying with IEEE 802.3af-
2003. The maximum wattage per port is 15.4W, providing a total wattage of 120W for
all ports.
Front-panel LEDs providing operating status of FXS/FXO interfaces, LAN interfaces,
WAN interface, PoE, OSN, and power supply.
Three-prong AC supply entry for AC power (standard electrical outlet) - single,
universal 90-260 VAC.
Protective earthing screws for grounding.
Desktop or 19-inch rack mounting (using external mounting brackets).

SIP Release Notes 14 Document #: LTRT-26901
CPE SIP Products
1.1.2.4 Mediant 1000 MSBG
This release supports the following existing hardware platforms:
Mediant 1000 and Mediant 1000B chassis. The Mediant 1000B chassis is based on
the incumbent Mediant 1000 chassis, but designed to support Advanced Mezzanine
Card (AMC/AdvancedMC) form-factor modules. This chassis provides eight AMC slots
on its rear panel for housing single and mid-sized AMC modules. This chassis hosts
the CRMX module (instead of the CMX) for supporting both VoIP Gateway and MSBG
data-routing functionalities. The Mediant 1000B also provides support for the regular
Mediant 1000 telephony modules (i.e., FXS, FXO, and digital PSTN).
Note: The AMC chassis slots must only be housed with AMC modules approved
and homologated by AudioCodes – ensure not to use these slots for AMC
modules and configurations that have not been approved.
CRMX module, providing three LAN 10/100/1000Base-T ports and one WAN port in
one of the following configurations (customer ordered):
•CRMX-C module: RJ-45 port (4-twisted pair copper cabling) providing 1 Gigabit
Ethernet (GbE) interface for connection to the Internet
•CRMX-S module: 1000Base-SX optical fiber port (multi-mode fiber)
•CRMS-L module: 1000Base-LX optical fiber port (single-mode fiber)
•CRMX-T: RJ-48c (2-twisted pairs copper cabling) Data Service Unit/Channel
Service Unit (DSU/CSU) T1 WAN port, for connecting to a T1 line
•CRMX-SD module: Symmetric High-Speed Digital Subscriber Line (SHDSL). This
module provides 3 LAN ports and 1 SHDSL port. The SHDSL port has 4 wire-
pairs, and therefore, supports 4 SHDSL ports on a single physical connector.
SHDSL port specifications:
♦Conforms to ITU G.991.2 Annexes A, B, E, F and G SHDSL
♦Up to 5,696 Kbps over a single wire pair
♦Up to 22,784 Kbps over four wire pairs bonding, according to SHDSL.bis
(ITU G.991.2 Annexes F, G)
♦EFM and ATM support
♦Wetting current support on the CPE side, according to G991.2
♦Supports both Central Office (CO) and CPE (wetting current on CO -
excluded)
♦TC-PAM 16/32 Line Code
Up to 6 FXS modules, where each module provides four RJ-11 ports. Therefore, the
device can support up to 24 FXS interfaces (six modules * 4 ports per module).
Up to 6 FXO modules, where each module provides four RJ-11 ports. Therefore, the
device can support up to 24 FXO ground- or loop-start signaling interfaces (six
modules * 4 ports per module).
Up to 4 Digital E1/T1 TRUNKS modules (1 or 2 E1/T1/J1 PRI spans per module - RJ-
48c ports).
Up to 5 BRI modules (up to 20 ISDN Basic Rate Interface interfaces - 4 ports per
module).
Up to 3 Media Processing modules (MPM), for media processing such as
announcements and conferencing

Version 6.2 15 December 2010
SIP Release Notes 1. What's New in Release 6.2
Open Solutions Network (OSN) server platform, available in one of the following
models:
•OSN Ver. 1 (OSN1), based on Intel™ Celeron™ 600 MHz processor (for third-
party applications such as IP PBX)
•OSN Ver. 2 (OSN2), based on Intel™ Pentium™ M 1.4 GHz processor (for third-
party applications such as IP PBX):
♦Integrated BroadSoft PacketSmart agent
•OSN Ver 3 (OSN3) – supported only on the Mediant 1000B chassis, offering a
high performance CPU, targeted for customer’s requiring applications:
♦CPU: Intel® Core™ 2 Duo 1.5 GHz processors L7400 with Intel 3100
Chipset (64-bit)
♦RAM Memory: 2 G or 4 G DDR2 with ECC
♦Storage: Single or Dual hard-disk drive of 80 G SATA
♦Bus/Chipset: 64 Bit
♦L2 Cache: 2 M
♦Interfaces: Gigabit Ethernet, supporting automatic detection and switching
between 10Base-T, 100Base-TX and 1000Base-T data transmission (Auto-
Negotiation). Auto-wire switching for crossed cables is also supported (Auto-
MDI/X); USB 2.0 via Connection Module; RS-232 COM
1.1.2.4.1 Module Hardware Revision Compatibility List
The Voice I/O module Hardware Revisions that are compatible with the Mediant 1000
MSBG chassis is listed in the table below:
Table 1-2: Mediant 1000 MSBG Voice I/O Module Hardware Revision Compatibility List
Item No. Description H/W Revision
FASB00334 M1K-SMX-1A1V1 Quad FXS w/ Life-Line Module C08
FASB00335 M1K-SMX-1A1V1 Dual FXS w/ Life-Line Module C08
FASB00398 M1K TMX-1A1V1 Dual trunks w/ life-line module C08
FASB00399 M1K TMX-1A1V1 Single trunks w/ life-line module C08
FASB00510 M1K-OMX-S 4 Indoor Ports With GS Rev.A1 C05
FASB00511 M1K-CFMX-1 Conference Module Rev A1v1 C06
FASB00520 M1K-OMX-S 4 Outdoor Ports W/O GS Rev. A1 C04
FASB00582 M1K-BMX-4A1 C03
GTPM00046 M1K-VM-2FXS P03
GTPM00050 M1K-VM-1SPAN P03
GTPM00052 M1K-VM-2SPAN P03
GTPM00056 M1K-VM-4FXS P03
GTPM00125 M1K-VM-4FXO-LS P02
GTPM00126 M1K-VM-4FXO-GS/LS P02
GTPM00127 M1K-M-CONF P02
GTPM00174 M1K-VM-4BRI P02

SIP Release Notes 16 Document #: LTRT-26901
CPE SIP Products
Item No. Description H/W Revision
FASU00587 CRMX-T (LAN 1, 2, 3, Dual T1 WAN DSU/CSU Trunk) P1.2
FASU00557 CRMX-L (LAN 1, 2, 3, GE WAN 1000Base-LX) P1.5
FASU00556 CRMX-C (LAN 1, 2, 3, GE WAN copper Ethernet) P2
FASU00557 CRMX-S (LAN 1, 2, 3, GE WAN 1000Base-SX) P1.5
FASU00636 CRMX-SD (LAN 1, 2, 3, SHDSL WAN) No Revision
Constraint
1.1.2.5 Mediant 1000
This release supports the following existing hardware platforms:
Up to 6 FXS modules (up to 24 FXS interfaces - RJ-11 ports, 4 ports per module)
Up to 6 FXO modules (up to 24 FXO interfaces, Ground-Start or Loop-Start signaling -
RJ-11 ports, 4 ports per module)
Up to 4 Digital TRUNKS modules (1, 2, or 4 E1/T1/J1 PRI spans - RJ-48c ports)
Up to 5 BRI modules (up to 20 ISDN Basic Rate Interface channels - 4 ports per
module)
Up to 3 Media Processing modules (MPM - for media processing such as
announcements and conferencing)
OSN1 - Open Solutions Network Ver. 1, Intel™ Celeron™ 600 MHz, for third-party
applications such as IP PBX
OSN2 - Open Solutions Network Ver. 2, Intel™ Pentium™ M 1.4 GHz, for third-party
applications such as IP PBX
The Mediant 1000 can be deployed with a combination of the modules listed above.
1.1.2.6 Mediant 2000
Mediant 2000 1U-chassis, hosting a TP-1610 cPCI blade supporting up to 16 E1/T1 spans.

Version 6.2 17 December 2010
SIP Release Notes 1. What's New in Release 6.2
1.1.2.7 Mediant 3000
This release supports the following existing hardware platforms:
Mediant 3000 hosting a single TP-6310 blade, providing SONET/SDH or T3 PSTN
interfaces.
Mediant 3000 hosting two TP-6310 blades for 1+1 HA, providing SONET/SDH or T3
PSTN interfaces.
Mediant 3000 hosting a single TP-8410 blade, providing 16 E1/ 21 T1 PSTN
interfaces.
Mediant 3000 hosting a single TP-8410 blade, providing up to 63 E1/ 84 T1 PSTN
interfaces.
Mediant 3000 hosting two TP-8410 blades for 1+1 High Availability (HA), providing up
to 16 E1/ 21 T1 PSTN interfaces.
Mediant 3000 hosting two TP-8410 blades for 1+1 HA, providing up to 63 E1/ 84 T1
PSTN interfaces.
Mediant 3000 hosting a single TP-8410 blade providing 16 E1/ 21 T1 PSTN interfaces
with an integrated CPU (Intel Pentium) blade (M3K-ICPU-1), hosting third-party
applications (such as SS7 GWC).
Mediant 3000 hosting a single TP-8410 blade providing up to 63 E1/ 84 T1 PSTN
interfaces with an integrated CPU (Intel Pentium) blade (M3K-ICPU-1), hosting third-
party applications (such as SS7 GWC).
1.1.3 Hardware Platforms Not Supported
The following hardware platforms are not supported in Release 6.2:
IPmedia 2000
IPmedia 3000

SIP Release Notes 18 Document #: LTRT-26901
CPE SIP Products
1.2 SIP New Features
This section lists the new SIP features in Release 6.2.
1.2.1 SIP General New Features
The device supports the following new SIP general (Gateway and SBC applications)
features:
1. Maximum SIP Message Size:
Product
MP-11x MP-124
Mediant 600 Mediant 1000
Mediant 800 MSBG Mediant 1000 MSBG
Mediant 2000
Mediant 3000/TP-6310 Mediant 3000 HA/TP-6310
Mediant 3000/TP-8410 Mediant 3000 HA/TP-8410
Management Protocol
Web INI SNMP EMS CLI
This feature supports the configuration of the maximum size for each SIP message.
This allows the user to limit the size of the SIP message that is sent over the network.
The device rejects messages exceeding this user-defined size. The maximum SIP
message size is defined using the new parameter, MaxSIPMessageLength. The
maximum size can range between 1 and 50 Kbytes.
2. Time Limit for Receipt of SIP Messages:
Product
MP-11x MP-124
Mediant 600 Mediant 1000
Mediant 800 MSBG Mediant 1000 MSBG
Mediant 2000
Mediant 3000/TP-6310 Mediant 3000 HA/TP-6310
Mediant 3000/TP-8410 Mediant 3000 HA/TP-8410
Management Protocol
Web INI SNMP EMS CLI
This feature provides a 30-second period (limit) for the receipt of a complete SIP
message on the device’s TCP socket. For example, if the device receives a SIP
message whose SIP Content-Length header is larger than the actual message body,
the TCP socket remains open and waits for the rest of the message body to arrive.
During this time, no other messages are accepted by the socket. However, if the
remaining message body does not arrive within 30 seconds, the device terminates the
session on the socket in order to allow new messages to arrive.

Version 6.2 19 December 2010
SIP Release Notes 1. What's New in Release 6.2
3. SDP Offer/Answer Negotiation upon Modified Session:
Product
MP-11x MP-124
Mediant 600 Mediant 1000
Mediant 800 MSBG Mediant 1000 MSBG
Mediant 2000
Mediant 3000/TP-6310 Mediant 3000 HA/TP-6310
Mediant 3000/TP-8410 Mediant 3000 HA/TP-8410
Management Protocol
Web INI SNMP EMS CLI
This feature enables the flexibility of ignoring a new SDP re-offer (from the media
negotiation perspective) in certain scenarios (such as session expires). According to
RFC 3264, once an SDP session is established, a new SDP offer is considered a new
offer only when the SDP origin value is incremented. In scenarios such as session
expires, SDP negotiation is irrelevant and thus, the origin field is not changed.
Even though some SIP devices don’t follow this behavior and don’t increment the
origin value even in scenarios where they want to re-negotiate, the device up till now
re-negotiated regardless of the origin field value. Since this caused problems in certain
scenarios, this feature resolves this by assuming that the remote party operates
according to RFC 3264, and in cases where the origin field is not incremented, the
device does not re-negotiate SDP capabilities.
This feature offers the following options:
•The device negotiates any new SDP re-offer, regardless of the origin field
(default).
•The device negotiates only an SDP re-offer with an incremented origin field.
This feature is configured using the new parameter, EnableSDPVersionNegotiation.

SIP Release Notes 20 Document #: LTRT-26901
CPE SIP Products
4. SIP Secure Connection Vulnerability:
Product
MP-11x MP-124
Mediant 600 Mediant 1000
Mediant 800 MSBG Mediant 1000 MSBG
Mediant 2000
Mediant 3000/TP-6310 Mediant 3000 HA/TP-6310
Mediant 3000/TP-8410 Mediant 3000 HA/TP-8410
Management Protocol
Web INI SNMP EMS CLI
This feature provides support for securing the device’s resources against SIP spam
and invalid SIP messages:
•Securing memory resources:
♦Socket Resource Abuse: Connections that are established without
subsequent data transmission are released (after one minute), allowing the
establishment of new connections.
♦Established Connection Flood: The device detects and subsequently
discards any flood of “false” connections (which typically prevents
establishment of new legitimate connections). The device effectively
manages its socket resources, releasing unused sockets for required
connections.
•CPU:
♦Loop-Amplification Scenario: The device prevents routing between its
interfaces. The attacker needs to convince the device to re-write a request to
a location, which resolves to the device itself. This can be done if the routing
is according to the SIP Request-URI header and the address specified is the
device’s IP address. This results in the server over loading itself. Another
method for creating loops is through a SIP proxy to which the device routes
and this proxy routes it back to the device.
For MSBG products, the SBCMaxForwardsLimit parameter is used to limit
the SIP Max-Forwards header value.
♦Malformed SIP Requests: Malformed SIP message requests are typically
sent to cause false, expensive SIP parsing, thereby wasting CPU resources.
The device’s parsing has been significantly improved to detect malformed
messages and to reject such messages in early parsing stages.
•SIP Vulnerabilities:
♦General Parser Errors: Parser errors (invalid SIP messages) do not cause
loss of service.
♦SIP Content-Length header greater than the message’s body: This can
cause delayed or no service by causing a TCP to wait for that body to arrive.
- TCP: maximum message length is dictated.
- UDP: Content-Length is validated with the packet size. If the packet size is
not as declared in the Content-Length header, only the actual body size is
validated and the Content-Length header is ignored.
♦Invalid Content-Length header: The device ignores such messages.
♦Null characters are allowed only in the SIP message’s body according to the
SIP ABNF. The device rejects messages that arrive with null characters in
the headers part of the message. This ensures that the device doesn’t
forward invalid messages that can be harmful to the internal network.
