Audion Elektro VMS 43 User manual

AUDION ELEKTRO®
Audionvac Digital
VMS 43-53-93-113-133-133L
VMS 43 t-m 133L ENG Rev14
MANUAL

2
All rights reserved. Nothing from this edition is allowed to e copied and/or made pu lic y means of print, photo copy or any other way
without previous written permission of AUDION ELEKTRO.
AUDION ELEKTRO reserves the right to change spare parts and/or specifications without previous notice. Contents of this manual can
also e changed without previous warning.
AUDION ELEKTRO cannot e hold responsi le for eventual damage caused y specifications deviating from the standard model.
Although extreme care has een exercised during writing this manual, AUDION ELEKTRO will not accept any lia ility for eventual errors
in this manual and/or for the consequences of (mis)interpretation of the contents.
AUDION ELEKTRO is not responsi le for damage or pro lems which result from the use of other than the original spare parts.
If this manual has not een supplied with instructions for certain repairs, adjustments and maintenance, you should contact your dealer of
AUDION ELEKTRO.

3
Contents
1 Precautions .................................................................................................................................. 5
1.1 Explanation of the clip arts ............................................................................................... 5
1.2 Prohibitions ......................................................................................................................... 6
2 Installation .................................................................................................................................... 7
2.1 Description of the workplace ........................................................................................... 7
2.2 Checking the oil level ........................................................................................................ 7
2.3 Taking into use .................................................................................................................. 8
3 Progra ing ................................................................................................................................ 9
3.1 Description of the progra cycle for digital ti e control ........................................... 10
3.2 Set / change function values ......................................................................................... 11
4 Maintenance ............................................................................................................................... 12
4.1 Regular aintenance ...................................................................................................... 13
4.2 Maintenance of the seal bar .......................................................................................... 14
4.2.1 Re oving the seal bar ............................................................................................ 14
4.2.2 Replacing the PTFE ................................................................................................ 14
4.2.3 Replacing the seal wire .......................................................................................... 14
4.3 Maintenance of the vacuu pu p ............................................................................... 15
4.4 Silicone rubber of the pressing bar ............................................................................... 15
4.5 Lid rubber .......................................................................................................................... 15
5 Proble solving ......................................................................................................................... 16
6 To discard the AUDIONVAC ................................................................................................... 17
7 Conditions of guarantee ........................................................................................................... 17
7.1 Liability .............................................................................................................................. 17
7.2 Guarantee ......................................................................................................................... 17
8 Reco ended spare parts ..................................................................................................... 18
9 Technical specifications ........................................................................................................... 24
10 Pneu atic diagra ................................................................................................................... 26
11 Electrical diagra s and index sheets .................................................................................... 27
12 Exploded view achine............................................................................................................ 56
13 Exploded view seal bar ............................................................................................................ 62
14 Vacuu pu p ............................................................................................................................ 63

4
INTRODUCTION
With the purchase of this vacuum chamber machine you will be able to pack a great variety of
products. To use the vacuum chamber machines Audion made sure that all the machines, from the
smallest to the biggest model, fulfill the greatest demands. Besides the superior quality of the
machines they are all very easy to handle.
The machines are qualified for sealing Polyethylene PE), Polypropylene PP),
Polyethylene/Polyamide PEPA) or combinations of all the above. We recommend to use the
proper materials for the Audionvac machines only.
The manual consists of two parts. In the first part, the user manual, all important information will be
discussed like safety precautions or programming the machine. Also maintenance and possible
solutions for eventual problems are discussed. The final section of the first part will discuss the
guarantee and liability. In the second part, the technical part, all technical data, the pneumatic
diagram, the electrical diagram and the exploded views will be discussed.
Make sure, during unpacking, all data on the identification plate are right Fig. 1.1) and record the
information you found on the identification plate in figure 1.1
Fig. 1.1: identification plate
The Audionvac is packed in a box. We advise you to store the box so you can transport the
Audionvac, if necessary, safely in the future.
While unpacking the machine, use the following list to check if everything is present:
• Bottle of oil 250 ml
• Filler plates 2x)
• Mains cable
• Allan key for oil plug
• Panel tool 2x)
Read manual first Pack later

5
PART I: USER MANUAL
1 Precautions
1.1 Explanation o the clip arts
BREAK CONTACT BETWEEN PLUG AND SOCKET
The socket
Identification plate with Voltage V), Frequency Hz) and Consumption W)
OK O.K.
Fluid
Long period
Do not continue, this is dangerous
Contact Audion Elektro BV or your dealer
Watch out!
Reparation/ Maintenance
Audion Elektro BV
Symbol for your Audionvac machine
Temperature meter with boundary conditions
Empty
Oil replacement
Gas-spring of the lid
The oil level
Vacuum meter
Tension of the springs

6
1.2 Prohibitions
Never pack live material.
Don’t pack in a clean room environment.
Don’t use in an explosive environment.
Don’t pack in a medical sterile environment.
Don’t pack pharmaceutical and / or therapeutically products.
Don’t use gas-mixtures containing higher concentrations than 25% of oxygen (O2)
because danger of explosions.
The pressure unit of the gas bottle if the machine is gas fit mustn’t
be higher than 1 bar. A higher pressure can damage the machine.
The pressure from the compressor if external sealing pressure must be applicable
mustn’t be higher than 1 Bar. A higher pressure can damage the machine.
Only dry compressed air may be used for the external seal pressure.
Don’t pack poisonous corrosive or irritating substances.
Don’t pack poisonous suffocating or irritating gasses.
Don’t pack (dangerously) stuffy products.
Don’t pack explosive materials.

7
2 Installation
2.1 Description o the workplace
Whenever the model is a table model place it on a firm and stable table. Place the model on the
ground in a well ventilated and luminated space when you’re dealing with a floor model. Make sure
the Audionvac isn’t exposed to sunshine, extreme temperatures, humidity, dust or sand.
The Audionvac mustn’t be exposed to mechanical shocks and vibrations. Always leave room free
around the machine.
+ = OK ?!
Make sure the voltage, consumption and frequency of the power supply are the same as on the identification panel
2.2 Checking the oil level
Make sure the Audionvac is in the OFF position. If necessary switch the main switch to the OFF
position see fig. 3.1) before one can start with the process of connecting the power supply.
In order to be able to check the oil level the machine must be at a flat underground, well leveled.
The oil level glass figure 2.2b) has been mounted in one of the sides of the machine, or in the
backside of the machine. The oil level must lie between the signs: “MIN” and “MAX”. For the
machines the rule is that the oil reservoir must be filled until 80%. An exception is the VMS43
from which the oil reservoir must be filled only until 60%. A little less oil is better than a bit more.
In practice this means that the oil in the oil reservoir mustn’t be higher than 2mm above the
measurement point in the middle of the measurement-glass.
=
When the oil reservoir is empty it must e filled with oil first
To replace the oil or to fill the oil reservoir you do the following:
Replacing the oil
Filling oil reservoir
− Turn off the machine.
− Loosen the oil drain plug (figure 2.2c) and drain
the oil.
− In case the oil drain plug is behind de back
plate, remove the back plate.
− When there is no oil drain plug present, the oil
level glass functions as drain plug (figure 2.2b).
− Mount the oil drain plug again.
− or further instructions see: “filling oil reservoir”
− Turn off the machine.
− Unscrew oil filling plug (figure 2.2a) above the oil
level glass.
− In case the oil-filling plug is behind de back plate,
remove the back plate.
− Pour in new oil and let the oil level stabilize after
every little bit.
− Repeat this until the oil level has reached the right
level (look at the oil level glass).
− Screw the oil-filling plug back on.
− Mount the back plate again.
Machine with corresponding oil:
VMS43
VMS53/
VMS93/ VMS113/
VMS123/ VMS133/ VMS133L/
VMS153/ VMS153V/ VMS163/
VMS163B/ VMS173
VMS193/ VMS223/ VMS233/
VMS333/ VMS253/ VMS263/
VMS283/ VMS503/ VMS883/
VM203/ VM303/ VM243/ VM273
Shell Vitrea 22 Shell Vitrea 32 Shell Vitrea 100
Aral Motanol GM 22 Aral Motanol GM 32 Aral Motanol GM 100
BP Energol CS 22 BP Energol CS 32 BP Energol CS 100
Texaco Regal R+O 22 Texaco Regal R+O 32

8
Hint: It is easier to drain the oil when it is warm. When possible keep the machine running for a
few minutes before the draining of the oil. The oil will become warm then.
Figure 2.2a: oil filling plug Figure 2.2 : oil level glass Figure 2.2c: oil draining plug
(lower plug only at VMS 43/53) and draining plug (only VMS 43/53) (VMS 113/133)
2.3 Taking into use
0-30°C
The surrounding temperature must lie etween 0-30 degrees Celsius
Put the plug in a socket which has an earth connection and is fused max. 16 Amp - 230V). See
electrical diagrams and index sheets, in case of other voltages.
After the Audionvac has been connected to the mains voltage the machine can be taken into use.
Turn on the main switch. Check the direction which the pump is turning when the machine is
connected to a three phase power source.
With the insert plates the product can be placed on right level see figure 2.3).
The insert plates reduce the volume of the vacuum chamber; which means a shorter vacuuming
time. Now the proper amount of insert plates is in the machine you can put the bag in the chamber.
Put the opening of the bag over the seal bar see figure 2.3 for an explanation of the proper way).
Adjust the vacuuming and sealing time. see chapter 3). Close the lid. After the vacuuming and
sealing process the lid will automatically open.
When the machine is not eing used for a longer period, shut off the power supply
Check the vacuum and the produced seal. Adjust the vacuuming time into a longer period when
the vacuum is too low; and vice versa. When the seal is not strong enough adjust the sealing time
into a longer period. When the seal looks melted or when the bag tears where the seal is the
sealing time has been too long. The right sealing time has to be found by trial and error. The
material and the thickness of the material determine the sealing time.
Figure 2.3: drawing and details of ag in cham er
1: Vacuum bag
2: Insert plates
3: Gas nozzle
4: Seal bar

9
3 Programming
The digital control is implemented with a function program that can be set with different function
values per cycle to be able to pack different products). A program cycle is the complete program
of set functions vacuum and seal) that the machine runs through to package a product.
The control panel is implemented standard with a conditioning program for the regular
maintenance of the pump and two STOP keys for complete function interruption or for only active
function interruption. There are also a number of built-in service programs. Contact the supplier or
Audion Elektro B.V. for more information about these functions.
The value of the functions can be set for a certain time period.
The vacuum function can be set to whole seconds with a maximum of 99 seconds.
The seal function can be set with an interval of 0.1 seconds and a maximum of 6.0 seconds.

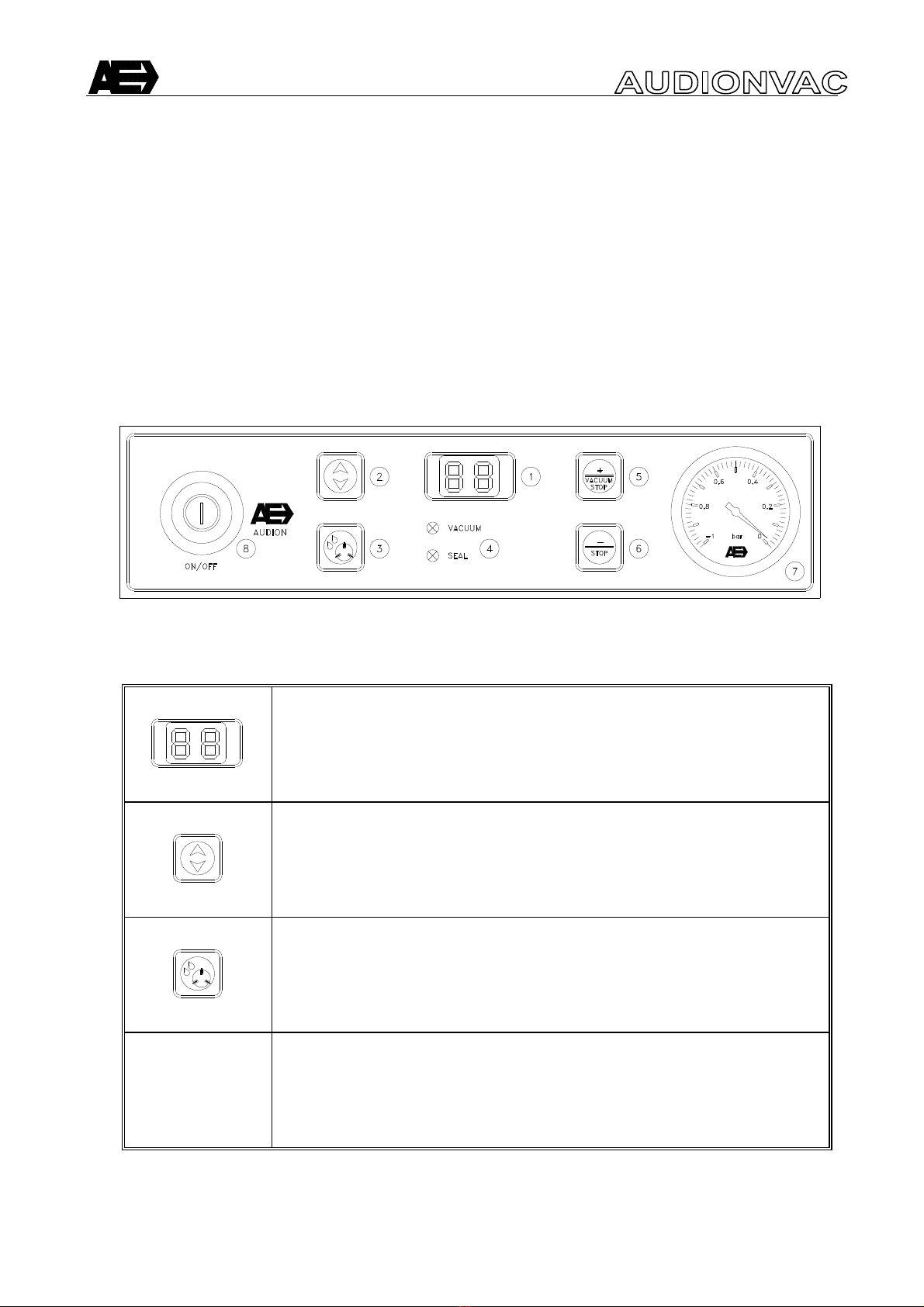

Figure 3.1: Control panel
DISPLAY (1):
THIS DISPLAY SHOWS THE STATUS OF THE ACTIVE FUNCTION
DURING THE RUN OF THE PROGRAM CYCLE OR THE SET VALUE
OF THE SELECTED FUNCTION WHEN MACHINE IS NOT RUNNING.
Function selection key (2):
Select function vacuum or seal) for viewing or changing function
values. The function is selected if the function light is on in front of the
function description under the display.
Conditioning programmer key (3):
Start the conditioning program for pump duration 15 minutes)
see § 4.4.
VACUUM
SEAL
Process display (4):
This display shows what process is active at the moment.

10
FUNCTION DURING CYCLE (5):
INTERRUPTION OF THE VACUUM FUNCTION DURING THE
PROGRAM CYCLE. THE CYCLE IMMEDIATELY CONTINUES WITH
THE NEXT FUNCTION.
GENERAL FUNCTION:
INCREMENT THE VALUE OF THE SELECTED FUNCTION.
Function during cycle (6):
Terminates the program cycle completely. The cycle immediately
switches into the ventilation function.
General function:
Decrement the value of the selected function.
Vacuum meter (7):
The vacuum meter shows the percentage of vacuum inside the
chamber. The maximum level of vacuum is about 99.95 percent. The
vacuum meter will show ‘-1’ The minimum level of vacuum will be when
the pressure outside the chamber is the same as inside the chamber.
The vacuum meter will show ‘0’
ON/OFF switch (8):
3.1 Description o the program cycle or digital time control
1) Functions vacuum and sealing) are set with the correct values see § 3.2 for settings).
2) Close the lid.
3) Vacuum function: The machine starts to vacuum the chamber.
The light in front of [VACUUM] goes on.
Display: decrementing time per second starting at the time set
max. 99 sec.). Vacuum meter starts increasing to the left.
4) Sealing function: Once the vacuum function is finished, the sealing function starts to
seal
the vacuum bag s). The light in front of [SEAL] goes on.
Display: decrementing time per 0.1 second starting at the time set
max. 6.0 sec.). The reading on the vacuum meter stays the same.
5) Ventilating function: After ending the seal function the ventilating function starts ventilating
the chamber to 1 atmosphere/ATO and the lid opens. There are no
longer any lights on in front of the functions. Display: lines moving up
and down until the lid is opened. The vacuum meter runs back to the
right to zero and the lid opens automatically.
6) The product is packed and ready to remove.

11
3.2 Set / change unction values
The following steps must be followed to change the function values for vacuum and/or seal:
1) Press the FUNCTION SELECT Key [▲▼] to select the required function. The function light will
light up when the function is selected.
2) Press the [+ / STOP VACUUM] or [- / STOP] keys for incrementing or decrementing the
function values respectively. It takes 0.5 seconds before the value begins to change.
3) After changing the value s) the machine must run through the cycle once see previous page)
to record the values.
4) Vacuum function
The vacuum function value can be incremented or decremented per second with a maximum of
99 seconds and a minimum of 2 seconds.
5) If while changing the vacuum function setting the [+ / STOP VACUUM] or [- / STOP] key is
held down then the first 5 seconds will be incremented or decremented per second. Then
intervals of 10 seconds will appear. If the key is released then the settings can be changed
again per second.
6) Sealing function
The seal function setting can be increased or decreased with a maximum of 6.0 sec. and a
minimum of 0.5 sec.
7) If while changing the vacuum function setting the [+ / STOP VACUUM] or [- / STOP] key is
held down then the first 0.5 seconds will be incremented or decremented per 0.1 second. Then
intervals of 1.0 second will appear. If the key is released then the settings can be changed
again per 0.1 second
8) Service programs control panel
The control panel is also equipped with a number of service programs that can be useful during
regular maintenance or repairs. The conditioning program for the pump is the most used
service program see explanation on page 17).
Contact the supplier or Audion Elektro B.V. for more information about the use of other service
programs.
After switching to the user mode the display could read “oil”. This means that the operating hours
counter is turned on and the set number of operating hours has elapsed. The hour counter is
turned off by default but the client supplier can use it as a reminder for regular maintenance
activities.
When “oil” is displayed the machine can be still be used as usual but it is advisable to either turn
off the hour counter or to reset it.
Contact the supplier or Audion Elektro B.V. for more information about setting or turning off the
operating hours counter.

12
4 Maintenance
The Audionvac is a relatively simple machine which needs very little maintenance. There are a few
reparations you can do by yourself. For all the other reparations please contact your dealer or
Audion Elektro BV. The schedule mentioned in § 4.1 is for normal use of the machine. When the
machine is being used intensively or under extreme circumstances it is necessary to do more
frequent maintenance.
+ +
When fluid enters the machine take socket out and call Audion Elektro BV.
To keep the machine in optimal condition there is a fully automatic conditioning program.
This program makes sure the oil doesn’t get contaminated with moisture or other watery liquids.
Also corrosion as a result of too much water is being prevented by this way. It is recommended to
condition the machine for at least one time a week.
Spare Parts Original
Only use original parts recommended y Audion Elektro BV.

13
4.1 Regular maintenance
Daily maintenance
Vacuum chamber and insert
plates
Clean the lid, insert plates and chamber with a damp cloth.
Treat the rubber strip in the lid with talk powder. Warning! The
transparent lid should never be treated with synthetic cleaner as
it weakens the material
Vacuum pump Run the conditioning program “§ 4.3” after you cleaned the
machine
Weekly maintenance
Seal bar Check the condition. Repair if necessary
Rubber strip on the lid Check the condition; replace if necessary
Oil reservoir Check the oil level; replenish if necessary see § 2.2)
Half year maintenance
Oil reservoir and oil filter Change the oil and, when it is there, the oil filter see § 2.2)
One year maintenance
Vacuum hose and pipes Check the condition. Repair if necessary because a leak means
vacuum loss
Silicone rubber of the press
bar
Check the condition. A bad rubber can lead to a bad seal.
Replace if necessary
Oil exhaust filter in the pump Check the condition. Replace if necessary.
Warning:
If oil
spray is at any time visible, replace the oil exhaust filter
immediately. Do not wait until the 5-year maintenance check.
This prevents damage to the pump.
Springs on the lid Check the condition. Look for corrosion. Replace if necessary
Five year maintenance
Gas springs on the lid If these have not been replaced, they should be now. If the
machine has been exposed to aggressive materials, then the
spring should be replaced more often.
Oil filter in the vacuum pump If these have not been replaced, they should be now.
Electrical wiring Let you dealer check these and repair if necessary

14
4.2 Maintenance o the seal bar
The maintenance of the seal bar consists of:
− Cleaning the PTFE and controlling the PTFE for burned places.
− Check the seal wire and replace when necessary
4.2.1 Removing the seal bar
− Switch off the machine.
− Pull the seal bar out of the machine. see figure 4.1)
4.2.2 Replacing the PTFE
When the PTFE is worn out, has burned marks or
wrinkled it must be replaced.
− Remove the seal bar as in § 4.2.1) and carefully remove the PTFE.
− Check the seal wire. When it is damaged directly replace it see § 4.2.3)
− Remove all grease from the seal bar.
− Cut apiece of PTFE tape to length and place it evenly on the sealing bar. Rub the PTFE tape
until the sealing wire can be seen clearly trough the tape. Cut off the ends of tape.
4.2.3 Replacing the seal wire
− Remove the seal bar and PT E (fig. 4.1.1).
− Loosen the screws at both sides of the seal bar (fig. 4.1.2) and remove the seal
wire(s).
− Remove the old PT E and clean the seal bar (fig. 4.1.3).
− Cut the new seal wire with an extra 15 cm length.
− Place the seal wire in the clamp on the sealing bar and tighten the screws
(fig. 4.1.4).
− Put the sealing bar in a bench vice, with the sealing wire facing down and
tighten the sealing wire (fig. 4.1.5).
− Stick the other end of the sealing wire into the clamp and tighten the clamp
enough to hold the wire. irst, use pliers to tighten the sealing wire, then use a
wrench to tighten the screws of the clamp. The end of the sealing wire that stick
out must be cut off (fig. 4.1.6).
− Cut a piece of PT E tape with a length of the seal bar + 5 cm.
− Place the new PT E over the seal bar (fig. 4.1.7).
− Put the seal bar back into the machine.
Figure 4.1.1
Figure 4.1.2
Figure 4.1.3
Figure 4.1.4 Figure 4.1.5 Figure 4.1.6 Figure 4.1.7
Figure 4.1: seal ar
Holder

15
4.3 Maintenance o the vacuum pump
In case of irregular or intensive operating you will have to “condition” the machine. When a vacuum
pump doesn’t reach the ideal temperature there is a chance the vacuumed air contains water
which leads to condensation inside the pump. Water in the pump can lead to corrosion, which can
be very harmful for then pump. In case of intensive use there is a chance of too much humidity in
the pump too.
Conditioning program:
The program lasts 15 minutes and it is advisable to run it at least once a week. Turn on the
machine, press the key [conditioning program], and close the lid. The program runs
automatically. During the program the display will display moving lines.
The program can be interrupted at any time using the [STOP] key. It is however important for the
sake of good maintenance that the program completes a full 15 minute cycle and therefore
advisable only to interrupt the cycle for something urgent.
It is also advisable to run the program before using the machine for the first time, after the machine
has been stationary for a lengthy period of time, and especially prior to changing oil.
4.4 Silicone rubber o the pressing bar
When the silicone rubber has been damaged it has to be replaced. A damaged rubber results in a
bad seal.
− Take the rubber out of the pressing bar.
− Cut the new rubber as long as the old rubber.
− Push the new rubber into the pressure.
4.5 Lid rubber
The lid rubber prevents leaking of the chamber. The rubber should only be cleaned with a damp
towel. Synthetic detergents could have the rubber being dried out. Regularly treat the rubber with
talcum powder. When the lid rubber is in a bad condition it should be replaced.
− Pull the rubber out of the lid.
− Cut the new rubber as long as the old rubber. Cutting
straight prevents leaking.
− Push the new rubber into the lid
start in the middle of the backside).
Never turn over the machine. This can damage the pump.
Floor
Figure 4.2: S
ilicone ru er of the
pressing ar

16
5 Problem solving
+ ? = + +
For questions please disconnect the power and contact your dealer or Audion Elektro BV.
Proble
m
Possible cause
Solution
The machine does not work  The plug is not inserted in the
wall socket
 The fuse in the wall socket is
melted
 Internal error
 Insert the plug in the socket
 Replace the melted cartridge
WARNING:
 To prevent fire and/or other irreparable
damage, replace fuses with fuses of
the same type and ampere
The vacuum bag has not sealed
correctly
 The vacuum bag has not
been placed correctly over
the sealing beam
 The sealing time is too high
or too low
 The silicone rubber in the
counter beam is damaged or
worn out
 The PTFE tape is damaged
 The opening of the vacuum
bag is obstructed
 Place the vacuum bag tightly and
evenly over the sealing beam Make
sure the opening of the vacuum bag is
always inside the vacuum chamber
 Adjust the sealing time higher or lower
as needed
 Replace the silicone rubber
 Replace the PTFE tape
 Clear the opening of the vacuum bag
of any obstructions and make sure it
remains clear when filling
The lid does not open automatically  The gas damper is not
working
 Contact your dealer or
Audion Elektro B V
Vacuum pump makes a lot of noise  Pump rotates the wrong way
 No oil in the pump
 Pump is defect
 Please connect the pump according to
schedule
 Fill the pump with oil
 Contact your dealer or
Audion Elektro B V
The vacuum is insufficient  The vacuum time is too short
 There is not enough oil in the
vacuum pump
 The ventilation opening on
the back of the vacuum
chamber is sealed off by a
vacuum bag
 The lid rubber strip is worn
out
 The oil is dirty and needs
replacing
 Lengthen the vacuum time
 Check the oil level and replenish oil as
needed In order for the vacuum pump
to work correctly, the pump must be
filled with the right type of oil Contact
your dealer
 Place the vacuum bag closer to the
sealing beam
 Replace the lid rubber strip
 Replace the oil with the prescribed oil
type
Insufficient vacuum in the package  Vacuum bag is of a
substandard quality
 The product has hard
protuberances
 The space between the
sealing beam and the counter
beam is too small (this space
should be at least 5 mm)
 Use a higher quality vacuum bag
 Inspect the product and remove any
parts sticking out
 Loosen the safety screws on the
sealing beam and push the sealing
beam into the lowest position
Retighten the screws
Machine vacuums too slowly  The suction filter of the pump
is clogged
 Contact your dealer or
Audion Elektro B V

17
6 To discard the AUDIONVAC
In accordance with the directive 2002/96/CE, the logo below indicates that the equipment
concerned is not to be disposed of as ordinary waste at the end of its useable life.
The equipment is to be delivered to a suitable depot that will dispose of the equipment in a proper
way in accordance with the legislation on this subject, or to the supplier of new equipment in case
of replacement.
The owner of the equipment is responsible for proper disposal of the equipment.
For further information we advise you to contact your local waste facility.
Appropriate disposal of Waste of Electric and Electronic Equipment prevents unnecessary
pollution of the environment and negative influence on general health.
7 Conditions o guarantee
For official conditions, we refer to Dutch version.
7.1 Liability
1) We exclude any liability as far as it has not been arranged by law.
2) Our liability will never exceed the amount of the order.
3) Subject to the general valid regulations of the law, we are not obliged to any compensation
of damage of which kind ever, directly or indirectly, under which company damage, to
movables and immovables or to persons, both to the opposite party as to third parties.
4) In no way we are liable for damage arisen from or caused by the supplied or by the
unsuitability of this for the purpose for which the opposite party has purchased the
machine.
7.2 Guarantee
1) With due observance of the restrictions stated hereafter, we allow 12 months of guarantee
to the products supplied by us. This guarantee is restricted to the occurring manufacture
errors and does not imply interruptions caused by any form of wear spare parts subject to
use.
2) To spare parts or enclosures obtained from third persons we do not give longer guarantee
than this third supplier does.
3) Guarantee expires if the opposite party and/or third parties associated make improper use
of the supplied.
4) Guarantee also expires if the opposite party and/or third parties associated execute
activities and/or modifications to the supplied.
5) In case we replace spare parts to fulfill our guarantee engagement, the spare parts
replaced become property of AUDION ELEKTRO.
6) In case the opposite party does not come up completely, partially or does not come up in
time to the obligations arisen from the engagement closed between the parties, we are not
obliged to guarantee as long as the situation continues.

18
PART 2: TECHNICAL MANUAL
8 Recommended spare parts
S are arts list for VMS 43
Description Size / Specification Part num ers Quantity per
machine
PTFE tape 0.33 m 160-1416621 -
Seal wire (DS 3.5mm width) 0.43 m 160-1416111 -
Seal wire (CS 1.1mm width) 0.43 m 160-1416121 -
Seal wire (8mm width) 0.43 m 160-1416136 -
Silicone ru er 0.28 m 160-1431311 -
Lid ru er (lip 5.5mm) 1.40 m 160-1431326 -
Seal ar (dou le seal) net seal length 270mm 160-1411152 1
Seal ar (cut-off seal) net seal length 270mm 160-1411153 1
Seal ar (8mm seal) net seal length 270mm 160-1411154 1
Seal cylinder 160-1397116 2
Mem rane for seal cylinder 80mm dia. 160-2042516 2
Gas spring 370N 160-1921311 1
Micro switch 160-2011576 1
Valve lock (seal & de-vac) 160-1391150 1
PCB digital 1 program 160-1341147 1
Panel complete (consists of parts with *) 160-2011317 1
Panel holder + panel sheet * 160-2011327 1
Main switch * 160-1331117 1
Vacuum meter * 40mm dia. 160-1921216 1
Panel opening tool 160-1441226 2
Main fuse 10A 160-1343125 2
Exhaust filter 160-2050271 1
110V-1P-60Hz 230V-1P-50Hz
Control transformer 160-1334116 160-1334115 1
Seal transformer 10V 500VA 160-1334127 160-1334128 1
Vacuum pump 4m3/h 0.1KW 160-1541246 160-1541241 1
Seal ar configuration

19
S are arts list for VMS 53
Description Size / Specification Part num ers Quantity per machine
PTFE tape 0.33 m 160-1416621 -
Seal wire (DS 3.5mm width) 0.43 m 160-1416111 -
Seal wire (CS 1.1mm width) 0.43 m 160-1416121 -
Seal wire (8mm width) 0.43 m 160-1416136 -
Silicone ru er 0.28 m 160-1431311 -
Lid ru er (lip 5.5mm) 1.40 m 160-1431326 -
Seal ar (dou le seal) net seal length 270mm 160-1411152 1
Seal ar (cut-off seal) net seal length 270mm 160-1411153 1
Seal ar (8mm seal) net seal length 270mm 160-1411154 1
Seal cylinder 160-1397116 2
Mem rane for seal cylinder 80mm dia. 160-2042516 2
Gas spring 370N 160-1921311 1
Micro switch 160-2011576 1
Valve lock (seal & de-vac) 160-1391138 1
PCB digital 1 program 160-1341147 1
Panel complete (consists of parts with *) 160-2011317 1
Panel holder + panel sheet * 160-2011327 1
Main switch * 160-1331117 1
Vacuum meter * 40mm dia. 160-1921216 1
Panel opening tool 160-1441226 2
Exhaust filter 160-2050273 1
110V-1P-60Hz 230V-1P-50Hz
Main fuse
15A 160-1343145 - 2
10A - 160-1343125 2
Control transformer 160-1334116 160-1334115 1
Seal transformer 10V 500VA 160-1334127 160-1334128 1
Vacuum pump
8m3/h 0.45KW 160-1542421 - 1
8m3/h 0.35KW - 160-1542411 1
Seal ar configuration

20
S are arts list for VMS 93
Description Size / Specification Part num ers Quantity per machine
PTFE tape 0.40 m 160-1416621 -
Seal wire (DS 3.5mm width) 0.50 m 160-1416111 -
Seal wire (CS 1.1mm width) 0.50 m 160-1416121 -
Seal wire (8mm width) 0.50 m 160-1416136 -
Silicone ru er 0.35 m 160-1431311 -
Lid ru er (lip 5.5mm) 1.75 m 160-1431326 -
Seal ar (dou le seal) net seal length
340mm 160-1411227 1
Seal ar (cut-off seal) net seal length
340mm 160-1411237 1
Seal ar (8mm seal) net seal length
340mm 160-1411726 1
Seal cylinder 160-1397119 2
Mem rane for seal cylinder 80mm dia. 160-2042516 2
Gas spring 370N 160-1921311 2
Micro switch 160-2011576 1
Valve lock (seal & de-vac) 160-1391146 1
PCB digital 1 program 160-1341147 1
Panel complete (consists of parts with *) 160-2011317 1
Panel holder + panel sheet * 160-2011327 1
Main switch * 160-1331117 1
Vacuum meter * 40mm dia. 160-1921216 1
Panel opening tool 160-1441226 2
Exhaust filter 160-2050273 1
110V-1P-60Hz 230V-1P-50Hz
Main fuse
15A 160-1343145 - 2
10A - 160-1343125 2
Control transformer 160-1334116 160-1334115 1
Seal transformer 10V 500VA 160-1334127 160-1334128 1
Vacuum pump
8m3/h 0.35kw 160-1542421 - 1
8m3/h 0.45kw - 160-1542411 1
Seal ar configuration
