Titan T200/2 User manual

Operating Instructions
T200/2
Strapping head
for plastic strap
Important! Please do not throw away
these instructions! The customer
undertakes to make these operating
instructions available and
comprehensible to all operating and
service personnel.
B 010 - GB 22/10

T200/2 2
Table of contents
Page
1. Manufacturer's data ....................................................................................................3
2. General.........................................................................................................................4
3. Safety instructions......................................................................................................6
4. Phases of life cycle of the strapping head ................................................................8
5. Technical data...........................................................................................................12
5.1. Measurements and fitting dimensions T200/2 ....................................................13
6. Components..............................................................................................................14
6.1. Tensioning and transport system .......................................................................15
6.2. Sealing unit ........................................................................................................16
7. Operation / settings...................................................................................................17
7.1. Description of components.................................................................................17
7.2. Pushbuttons.......................................................................................................18
7.3. Strap insertion....................................................................................................19
7.4. Strap width setting..............................................................................................20
7.5. Feed adjustment ................................................................................................23
7.6. Setting the strap tension.....................................................................................23
8. Maintenance ..............................................................................................................24
9. Trouble shooting - remedies ....................................................................................25
10. Declaration of incorporation ....................................Fehler! Textmarke nicht definiert.
B 010 - GB 22/10

T200/2 3
1. Manufacturer's data
TITAN Umreifungstechnik GmbH & Co. KG
Berliner Straße 51 –55
58332 Schwelm
Deutschland
Tel.: [phone]
Fax: [phone]
E-Mail: [e-mail]
Web: www.titan-schwelm.de
B 010 - GB 22/10

T200/2 4
2. General
Thank you very much for your confidence in the technology of TITAN
Umreifungstechnik GmbH & Co. KG
Purchasing the strapping head T200/2 means that you acquired an economic and solid
product. The operating manual will help you to get familiar with the intended use of the
strapping head. The operating instructions comprise important information on how to use the
T200/2 safely, competently and economically.
Observing the instructions helps to avert danger, to reduce repairs and downtimes and
improves the reliability and durability of the strapping head. The operating instructions must
be available at the operating site of the strapping head T200/2.
All persons working with the strapping head T200/2 must read the instructions carefully and
observe them at any time. In particular this work includes operation, trouble-shooting and
maintenance.
Explanatory notes on the warning and instruction symbols:
Caution!
Is used in case of risks threatening life and health.
Attention!
Is used in case of risks which may cause damage to objects.
Note!
Is used for general notes and such notes whose disregard may
result in faults in the course of operations.
The item numbers (…) and designations used in these operating instructions refer to
the spare parts list or documentation on the electrical system.
Copyright © TITAN Umreifungstechnik GmbH & Co.KG 2011 all rights reserved.
The contents of this document must not be duplicated, handed to third parties, published or saved in any form,
neither fully nor partly, without prior written permission by TITAN Umreifungstechnik GmbH & Co.KG.
is a registered trademark of TITAN Umreifungstechnik GmbH & Co.KG.
B 010 - GB 22/10

T200/2 5
Intended use
This strapping head T200/2 is designed for installation into different strapping
machines. The intended use of the T200/2 is the bundling, stacking and securing of
packages by means of plastic strap.
The strapping head must be operated in closed, dry rooms only. The admissible
ambient temperature for operation of the strapping head is +5°C bis +40°C.
Any other use beyond that is not considered intended. TITAN Umreifungstechnik
GmbH & Co.KG cannot be held liable for risks and damages originating from that.
Unintended use!
Do not use strapping material for hoisting of loads! The strapping head must only
be used as described above under "Intended use".
The strapping head T200/2 fulfils the German and European safety requirements and
conforms to the EC-directives (please refer to the Declaration of Incorporation).
B 010 - GB 22/10

T200/2 6
3. Safety instructions
Read the operating instructions before using the strapping head.
Read the instructions carefully.
Unauthorized persons are not allowed to use the strapping head.
All safety instructions and warnings must be strictly observed. In
particular we refer to the EC machine directives.
Prior to first use of the strapping head the operators must be
instructed carefully and made familiar with the handling of the unit.
The strapping head must be operated in closed and dry rooms
only.
The admissible ambient temperature for operation of the strapping
head is +5°C to +40°C.
Do not place any containers with liquids on top of the strapping
head. No liquid must ingress the strapping head.
Before starting the operation neither persons nor objects must be
in the operating area of the strapping head.
Check protective equipment, covers and sheathing of the strapping
head before start. They must neither be loose nor removed.
Do not reach into the strap channel area or under the package
during the strapping operation. Caution! Danger of squeezing!
B 010 - GB 22/10

T200/2 7
Prior to any cleaning and / or trouble shooting the strapping head
must be put out of operation and disconnected from the power
supply.
Caution! Strap may tear! Do not stand in alignment to the strap.
Consider the strong noise development during longer operations.
Protect your health.
Only use original TITAN spare parts! The use of spare parts
other than TITAN excludes guarantee adjustments and liability.
In automatic mode no squeezing points must occur between the
indeed equipment (e.g. roller conveyors) and the movable
strapping head.
We do not accept any liability for modifications of the
strapping head by the customer. Furthermore, our
warranty/guarantee and these operating instructions become
void.
B 010 - GB 22/10

T200/2 8
4. Phases of life cycle of the strapping head
Transport:
Use a hoisting gear for transporting the strapping head.
For carrying the strapping head is provided with T-nuts (see picture). Eye bolts for load
pick-up can be screwed in these T-nuts.
Attention! Do not stand underneath the load during lifting and
deposit. Advise persons standing in the danger zone to leave it.
Minimum carrying capacity 75 kg.
B 010 - GB 22/10

T200/2 9
Assembly:
Assembly of the strapping head must be carried out by qualified
technical personnel only.
Anchoring / Fixing:
The measurements and fitting dimensions of the T200/2 (page 13) are mandatory for
assembly. All measurements required for assembly are provided there.
The strapping head must be fixed at the provided fixing points.
The way of assembly depends on the type of strapping machine into which the
strapping head will be installed.
Before final fixing of the strapping head all transitions at the strap guide channels must
be aligned.
Assembly of the machine:
Electrical wiring of the strapping head must be carried out by qualified technical
personal acc. to the electric circuit diagram.
Laying of the supply cables and connection in the control console/cabinet is carried out
by the customer.
Cabling and cable connection (strapping head –control console/cabinet) in accordance
with the circuit diagram.
Caution! Danger of squeezing when assembling the strapping
head!
Attention!
After complete assembly the strapping head must be carefully
checked for proper fixing. Check all fastening bolts for tightness
and retighten, if required.
B 010 - GB 22/10

T200/2 10
Start-up:
The strapping head must be put into service by qualified technical
personnel only.
Settings, programming:
Settings and programming of the strapping head must be carried
out by qualified technical personnel only.
Operation, modes of operation:
Manual mode:
In manual mode individual actions for testing and trouble-shooting can be performed.
Furthermore, the manual mode serves to move the strapping head to its home position.
Caution!
Danger of squeezing at the strap guides and the counter plate
during touch control of the cam gear.
Automatic mode:
Automatic processing of all movements
In automatic mode it must be observed that no squeezing points
occur between the indeed equipment (e.g. roller conveyors) and
the movable strapping head.
B 010 - GB 22/10

T200/2 11
Cleaning, maintenance, repairs:
Maintenance must be carried out by qualified technical personnel
only.
Attention!
Prior to any maintenance the strapping head must be disconnected
from the power supply.
Attention!
Wear protective glasses when cleaning the strapping head with
compressed air.
Putting out of service, dismounting:
Caution!
Danger of squeezing when dismounting and depositing the
strapping head.
Attention!
Do not stand underneath the load during lifting and deposit. Advise
persons standing in the danger zone to leave it.
Minimum carrying capacity 75 kg.
Waste disposal:
If packing material must be disposed of, take it to the relevant
recycling container.
Should the strapping head have to be disposed of at the end of its service life, separate
plastic material, steel and aluminium and dispose of such materials separately Likewise
motors and electrical components such as control unit, switches and cables must be
disposed of separately. Take such materials to the appropriate waste disposal.
B 010 - GB 22/10

T200/2 12
5. Technical data
Strap quality: quality for automatic units, PP and PET
Strap width: 9, 12 and 16 mm
Strap thickness: 0.6 –0.9 mm (observe strap guide channel size)
Strap tensions: 200 N –2500 N adjustable,
depending on strap quality
When using the narrow counter plate:
200 N –1200 N adjustable,
depending on strap quality
Kind of joint: friction weld joint
Weight: approx. 60 kg
Dimensions: l 560 x w 215 x h 430 mm
Kind of drive: 4 high-performance DC motors with
permanent magnets
Strap feeding speed: approx. 3.2 m/s
Power supply: 24 V DC
Power consumption: 25 A
Output: 600 W
Noise pressure level: approx. 85 dB (A)
B 010 - GB 22/15

T200/2 13

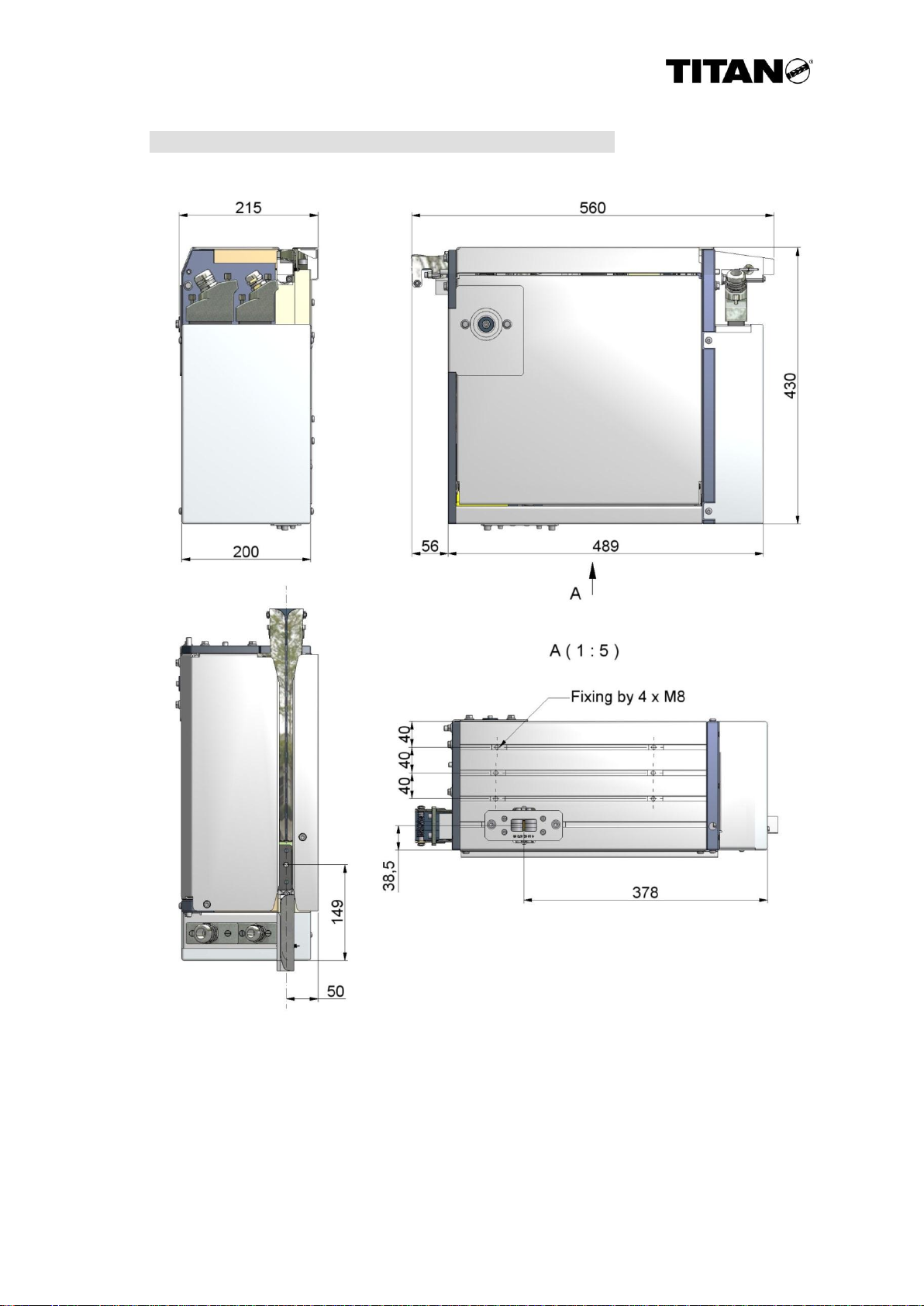

5.1. Measurements and fitting dimensions T200/2
B 010 - GB 22/10

T200/2 14
1
2
3
4.1
4.2
5
6
6. Components
1
Casing
2
Head channel
3
Tensioning and transport system
4.1
Pushbutton insertion of strap
4.2
Pushbutton touch control cam gear
5
Group of dies
6
Sealing unit including cam gear
B 010 - GB 22/10

T200/2 15
4
1
3
2
4
1
3
2
5
6.1. Tensioning and transport system
1
Proximity switch S4 strap
tensioning
2
Tensioning motor M3
3
Feed adjustment
4
Transport motor M1
1
Tension wheel
2
Counter wheel
3
Transport wheel
4
Counter wheel
5
Roller guide
B 010 - GB 22/10

T200/2 16
2
3
4
5
6
1
1
2
3
4
6.2. Sealing unit
1
Counter plate
2
Proximity switch S1
strap stop switch
3
Sealing motor M4
4
Cam shaft
5
Cam gear motor M2
6
Spring package
1
Die guide
2
Proximity switch S2
zero position
3
Belt drive cam gear
4
Proximity switch S3
cam gear position
B 010 - GB 22/10

T200/2 17
7. Operation / settings
7.1. Description of components
The T200/2 consists of the following components:
Tensioning and transport system:
The transport system feeds the strap through the strap guide channel around the
package and back to the strapping head. There the strap end activates the strap
stop switch. During the strap retraction the strap is tightened around the package
and tensioned according to the preset tension.
Sealing unit:
The sealing unit is controlled by the cam gear. It clamps the strap ends, cuts the
strap and forms the friction weld joint.
Friction welding unit:
The sealing motor generates the movement of the oscillator which provides the
required heat for joint forming. During the friction movement the straps are
pressed together and thus heat-sealed.
Strap guides:
The strap guides are the connection between the strapping head and the strap
guide channel which leads the strap around the package.
Attention!
Prior to any adjustments or settings the strapping head must
be put out of operation and disconnected from the power
supply.
B 010 - GB 22/10

T200/2 18
Pushbutton "Strap
insertion"
Push button "touch
control cam gear"

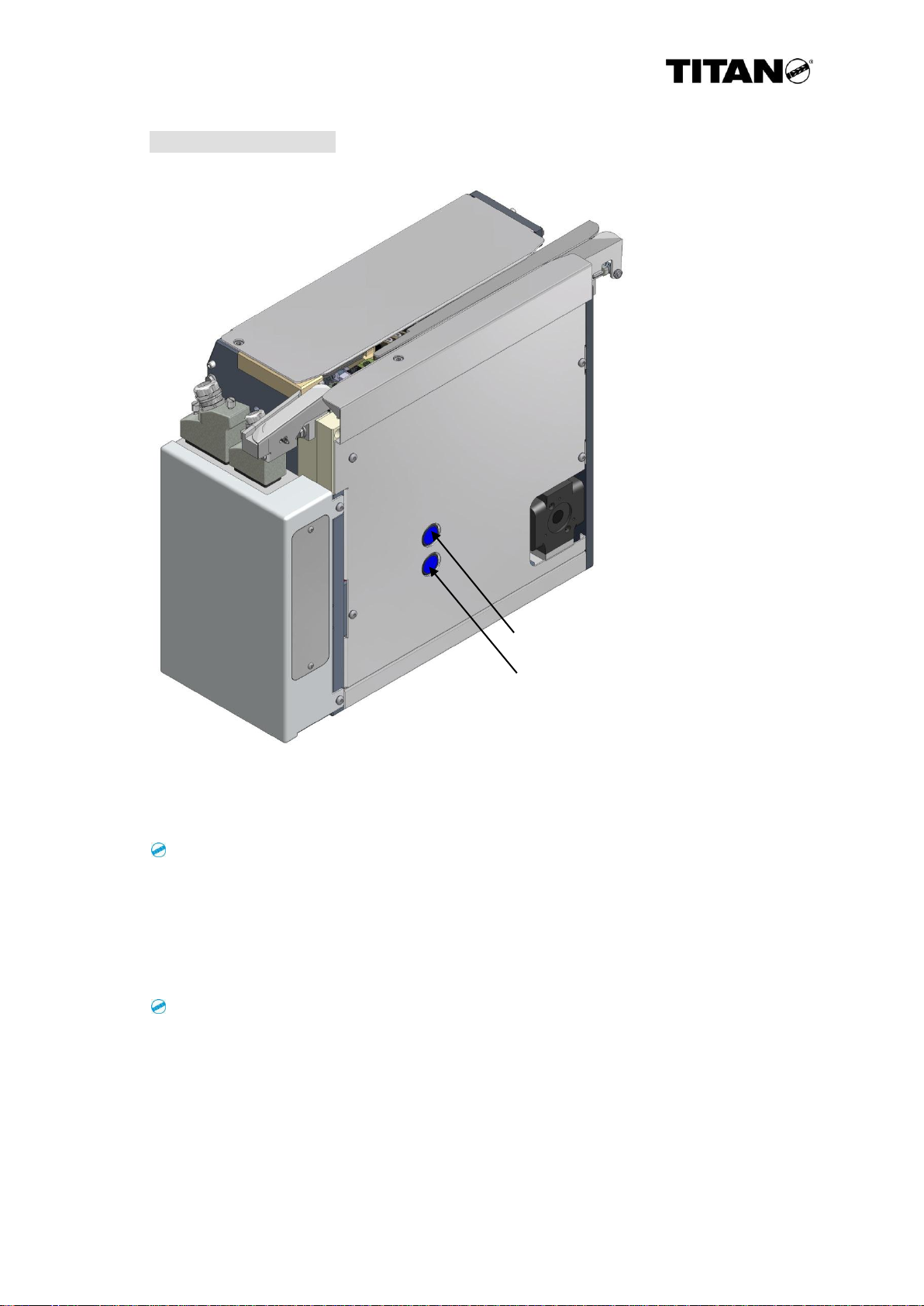

7.2. Pushbuttons
Pushbutton "touch control cam gear":
The push-button "touch control cam gear" is used for gradual touch control of the
cam gear in manual mode. The cam shaft turns to the subsequent position
following a touch of the push-button.
Pushbutton "strap insertion":
When actuating the push-button "strap insertion" the function relating to the cam
gear position is performed. The main function is the manual activation of the strap
transport motor for strap insertion.
B 010 - GB 22/10

T200/2 19
7.3. Strap insertion
Attention!
Before insertion of the strap it must be observed that the cam gear
is in basic position. This is shown by the fact that the counter plate
and the head channel are closed. Otherwise strap insertion is not
possible.
Push the strap as shown in the below figure into the strapping head. The strap is
fed-in by pressing the push-button "strap insertion".
Wear protective gloves because the strap may slide through
the hand!
B 010 - GB 22/10

T200/2 20
A
A
A

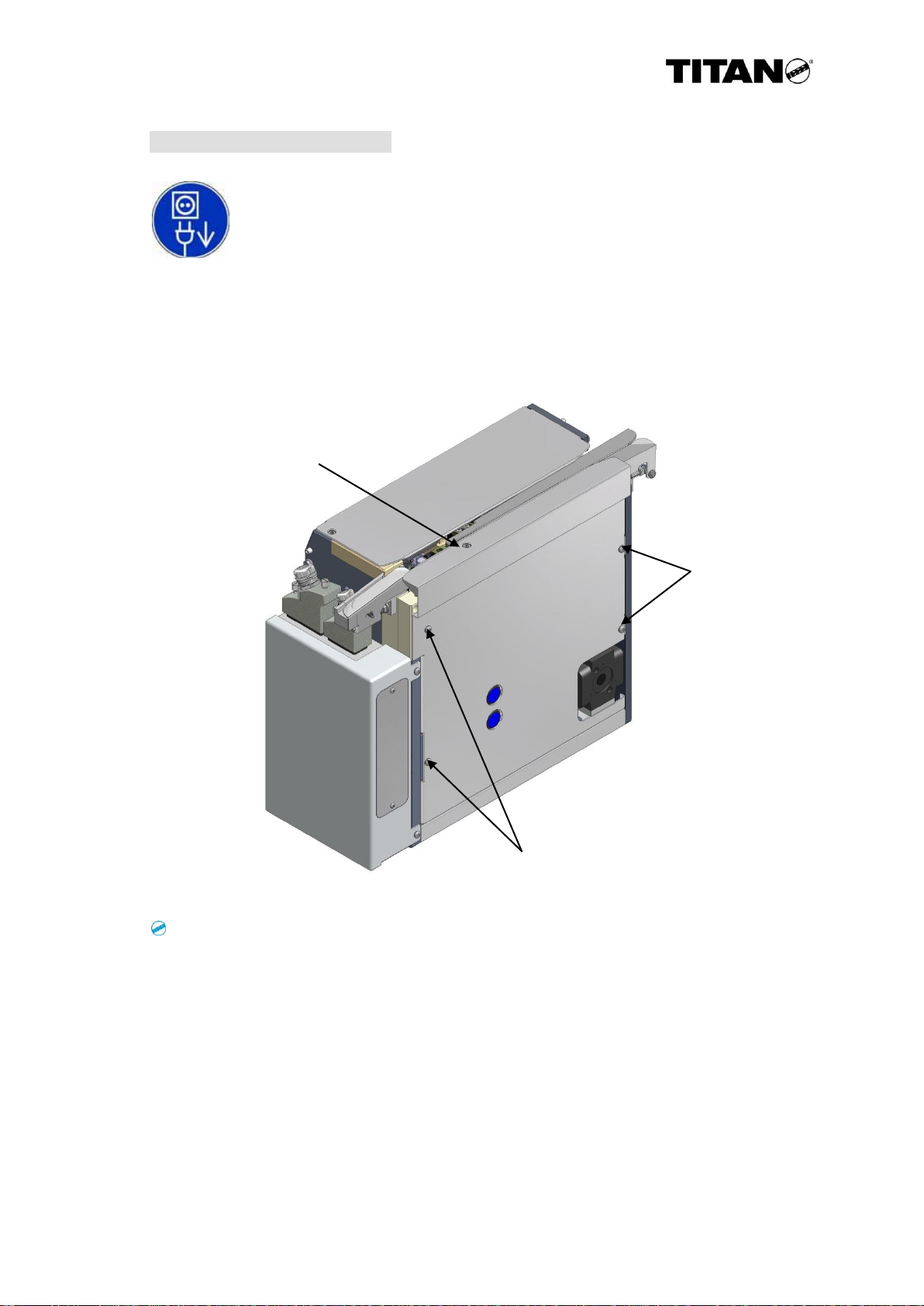

7.4. Strap width setting
Attention!
Prior to any settings or adjustments the strapping head must be
disconnected from the power supply.
The strapping head T200/2 can process strap of 9, 12 and 16 mm width. Therefore it is
required to adjust or modify the strapping head according to the respective strap width.
First, remove the 5 screws (A) and the front cover plate.
B 010 - GB 22/10
