Audiovox MEDIABRIDGE Troubleshooting guide

for select Toyota/Lexus/Scion vehicles
Installation Guide/User manual

2
Copyrights and Trademarks
Copyright 2012 Audiovox Electronics Corporation
The Audiovox and Audiovox Driven by DICE Electronics logos are trademarks of
Audiovox Electronics Corporation
iPod and iPhone are trademarks of Apple, Inc.
All Trademarks and Logos are the property of their respective owners.
All rights reserved.
Printed in the U.S.A.

3
Warning and safety
Product registration
MediaBridge kit content
Identify your audio system
DIP Switch overview
DIP Switch settings
Supported iPod models
Note to Installer
Connection diagram
Installation
iPod content browsing
Charging
iPod locked/unlocked settings and features
Basic operation
Operating the MediaBridge unit from select radios
Controlling the MediaBridge iPod source
Controlling the MediaBridge USB memory source
Repeat and random settings
Controlling the MediaBridge SIRIUS source
%OXHWRRWK0$7FRQ¿JXUDWLRQ
Pairing MediaBridge with cell phone via BT
Answering / Making a phone call
Playing music through MediaBridge via BT
Accessing the auxiliary input
Internet Radio Application support
Controlling Internet Radio Apps
Text display from the Internet Radio App
Terminating the Internet Radio App
Firmware update
Troubleshooting
Warranty
..........................................................4
..........................................................5
...................................................6
...............................................7
........................................................8
..........................................................9
.................................................10
..............................................................11
.......................................................12
......................................................................13
...................................................14
........................................................................14
..................15
..............................................................16
........17
...........................20
.............21
..............................................22
......................23
...........................................24
.......................25
.......................................25
........................25
.............................................26
.....................................27
..........................................28
............................29
....................................30
................................................................31
.................................................................32
.............................................................................35
Table of Contents

4
Please read these instructions carefully before proceeding. Failure to follow instructions may result in
LPSURSHURSHUDWLRQRULQMXU\1HLWKHU$XGLRYR[(OHFWURQLFV&RUSRUDWLRQQRU$SSOH,QFLWVUHJLRQDORI¿FHV
distributors or resellers take any responsibility for any damage or injury as a result of using the integration kit.
 Do not open, disassemble or alter the interface in any way.
 Do not insert anything into the casing.
 Do not cut or try to alter cables in any way and always use the correct connections.
 Only operate unit when stationary or ask passengers to operate it for you.
 Do not allow the Apple iPod/iPhone to distract you from driving.
 Exercise good judgement and keep your eyes on the road at all times.
 Do not expose unit to extreme temperatures, humidity or shock.
 .HHSWKHXQLWDQGL3RGL3KRQHDZD\IURPÀXLGV
 Keep away from children! - Interface components may contain small parts, can be broken or
disassembled and components may become loose from vibration and heat. Small components and
packaging materials may be a choking hazard when handled by children.
Warning and safety!

5
Thank you for purchasing this integration kit. Please review this booklet before operating the unit. This
interface was designed and manufactured to seamlessly integrate with your vehicle’s factory audio system.
:HUHFRPPHQGUHJLVWHULQJ\RXU$XGLRYR[SURGXFWVR\RXFDQUHFHLYHQHZVDERXWLPSRUWDQW¿UPZDUHXSGDWHV
and have unlimited access to our online support system.
To register your Audiovox product, please complete the following steps:
1. Visit http://www.audiovoxproducts.com
2. Look up and save the serial number of the product.
3. Complete the product registration form.
4. Submit the form.
5. Save the registration sheet in a safe place for future reference.
If you are unable to complete the registration via internet, please call Audiovox at 1-800-645-4994.
Congratulations on your purchase!
Product registration
3ULRUWRLQVWDOODWLRQPDNHVXUHWKHPRGXOH¶V¿UPZDUHLVXSWRGDWHWRHQVXUHFRPSDWLELOLW\
ZLWKWKHODWHVWIHDWXUHVDQGHQKDQFHPHQWV3OHDVHUHIHUWRSDJHWRXSGDWH¿UPZDUH

6
MediaBridge kit content
MediaBridge module User manual MediaBridge
connector
Optional accessories (sold separately):
For more accessories, visit www.audiovoxproducts.com
for select Toyota/Lexus/Scion vehicles
Installation Guide/User manual
Cradle
(A-DCR-150-USB)
Microphone USB
extension

7

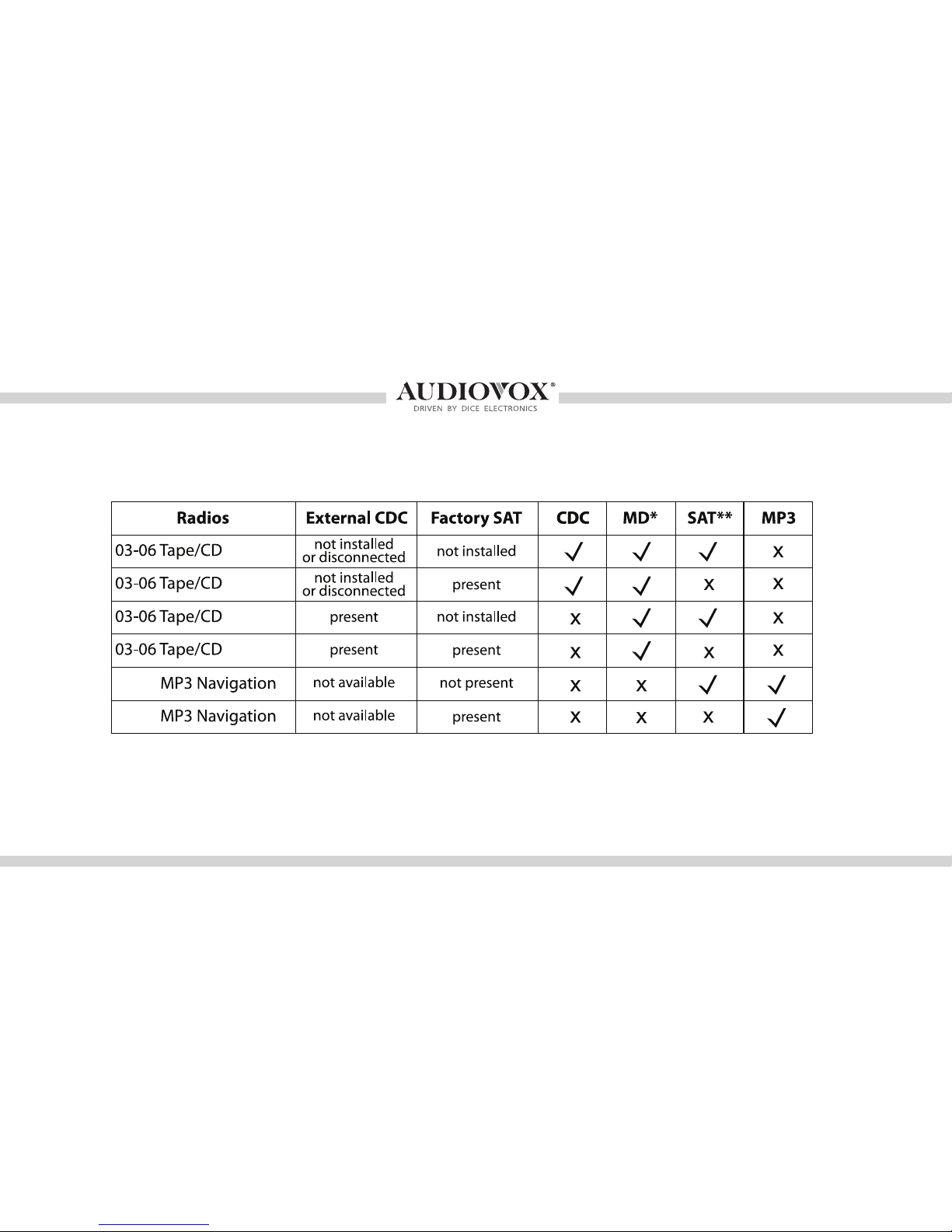

Identify your audio system
6HOHFWWKHHPXODWLRQWKDWEHVWVXLWV\RXUYHKLFOH7KHIROORZLQJFKDUWLGHQWL¿HVWKHUHFRPPHQGHGHPXODWLRQ
for the listed radios. Note that your vehicle may support more than one type of emulation.
* Not all radios support MD mode. If an external MD changer is present, it must be disconnected.
** Scrolling text function is available in Satellite emulation, please see page 23 for details.
Note: Years and feature sets listed are shown as a guideline only and do not guarantee compatibility or limit
applicability.
06-11
06-11

8

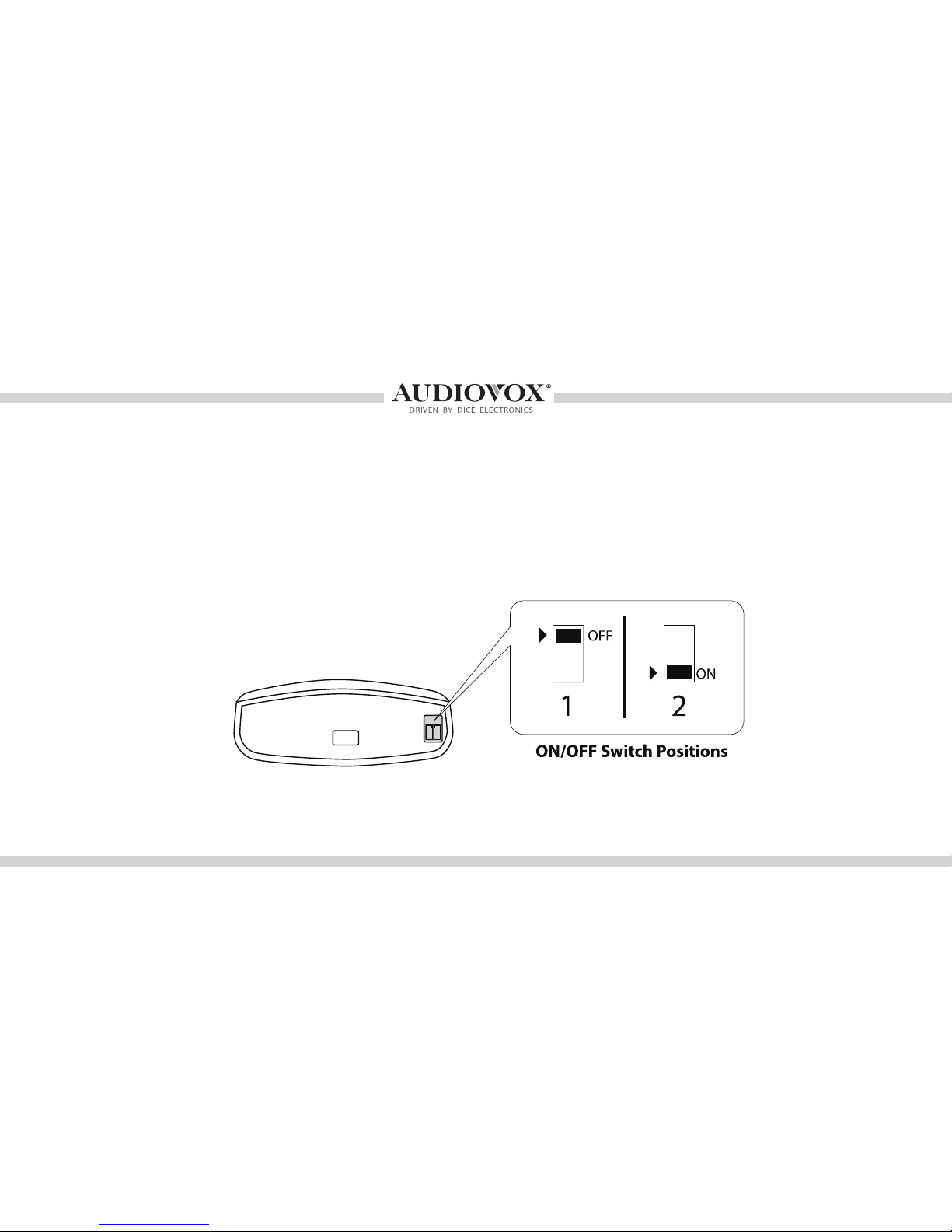

DIP switches overview
7KHFRQ¿JXUDWLRQVZLWFKHVORFDWHGRQWKH0HGLD%ULGJHPRGXOHDUHXVHGWRVHWYDULRXVRSHUDWLRQPRGHVRIWKH
interface. Incorrect DIP switch settings may cause the interface to not work properly or to not operate at all.
Disconnect the vehicle harness from the module and set the ignition to the off position for 60 seconds
after changing the switches then reconnect the module!
MediaBridge Module

9
7KHIROORZLQJ',3VZLWFKVHWWLQJVDUHXVHGWRFRQ¿JXUHWKH0HGLD%ULGJHPRGXOHWRLQWHUIDFHZLWK
the various vehicle radios. Before installation, set the DIP switch to the position shown for the
corresponding radios.
DIP switch settings
&DUFRQ¿JXUDWLRQVZLWFKHV
Use to retain factory SIRIUS/
XM module, or on radios with
integrated satellite tuner. Also
for radios that do not support
SAT mode. External CDC
(trunk or glove box) must be
disconnected.
CD changer (CDC)
OFF OFF
Mini DISC (MD)
Use with early model
year radios with external
MD changer support. MD
text is available only on a
selected few radios, typically
navigation models.
ON
OFF
Satellite (SAT)
Use this setting for best user
experience. Only available on
SAT capable radios. To enable
use of the SIRIUS Connect
tuner, SAT emulation must
be used. Available on selected
North American radios only.
ON ON
MP3
Use with late model radios
where factory Sirius/XM
module is present (integrated)
and CDC emulation is not
supported (i.e. no text).
OFF
ON

10
6XSSRUWHGL3RGPRGHOVDQGÀUPZDUHYHUVLRQUHTXLUHPHQWV
Model Model
1G nano 160 GB classic
iPod 5G 5G nano
2G nano 3G touch
iPod classic iPhone 4
3G nano
4G touch
iPod touch
6G nano
iPhone
iPhone 3G
4G nano
120 GB classic
2G touch
iPhone 3GS
Firmware / OS Version Firmware / OS Version
1.3.1 2.0.4
1.3 1.0.2
1.1.3 iOS 5
1.1.2 iOS 5
1.1.3
iOS 5
iOS 3.1.3
1.2
iOS 3.1.3
iOS 4.2.1
1.0.4
2.0.1
iOS 4.2.1
iOS 5
iPhone 4S iOS 5

11
Attention Installer! Please read the following!
Audiovox strongly recommends that the unit be installed in an easily accessible place!
DO NOT PLACE IT BEHIND THE RADIO AND DO NOT HIDE UNDER CARPET!
Whether the unit is professionally or self installed, put the module where you, the end user can get to it easily
in the future. (Have the installer show you where the interface module is installed.)
Installing the module behind the radio will PDNHLWGLI¿FXOWWR
 Add possible future upgrades, changing software, adding new features, improving operation;
 Access the AUX input on the module to attach any audio device;
 Access the DIP switches located on the module;
 Remove the unit in case of failure.
MAKE SURE THAT THE MODULE IS IN AN ACCESSIBLE PLACE!

12

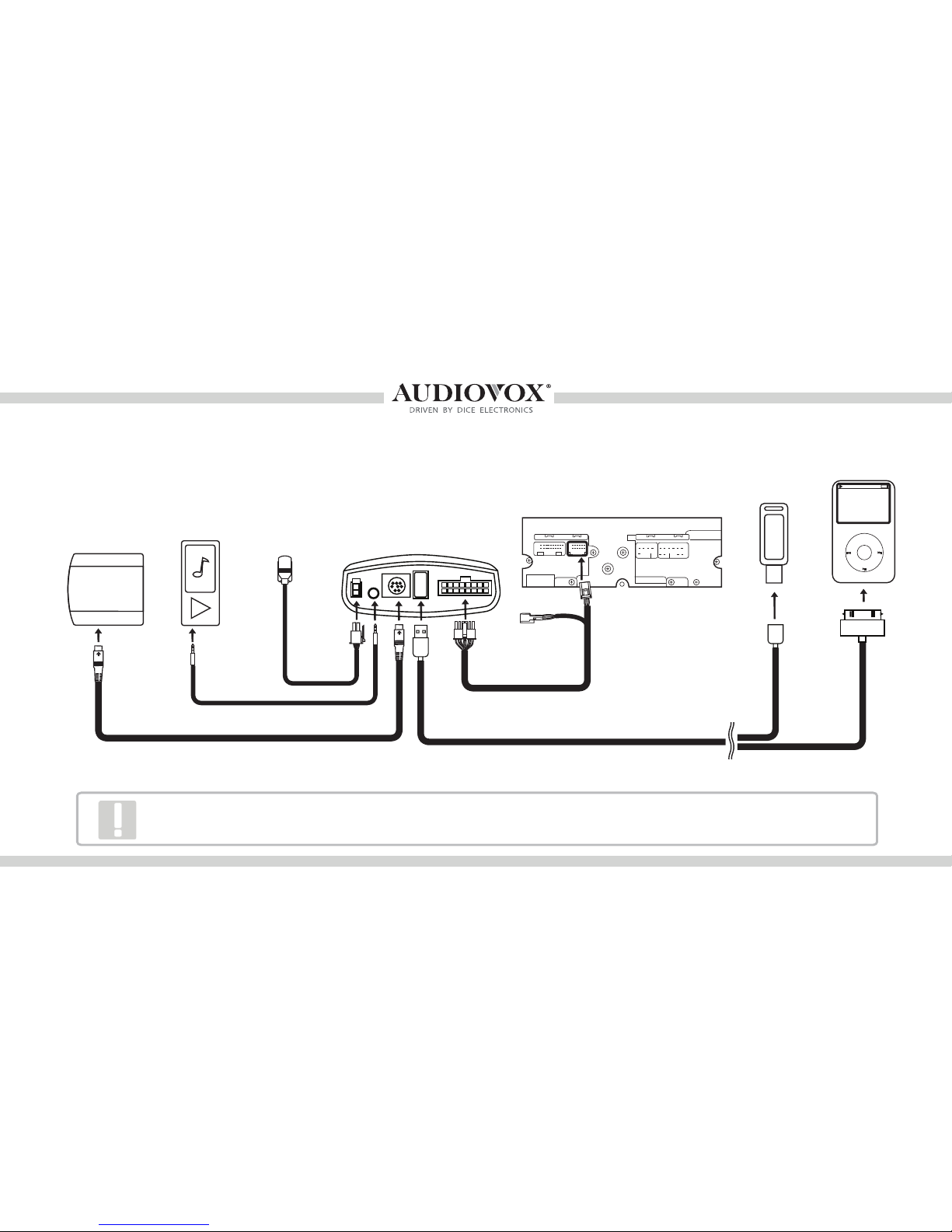

Connection diagram
MENU
Sirius SC-C1 SAT tuner
AUX audio device
Microphone MediaBridge module
Toyota radio with small connector
USB thumb drive
iPod
cable receptacle*
MediaBridge vehicle connector
AUX connector
Sirius SC-C1 factory cable USB cable or iPod docking cable
*If factory harness present, connect to receptacle.
Do not connect an iPod dock cable under any circumstance to the SIRIUS module connector! Improper
connection can cause permanent damage to iPod/SIRIUS module.

13

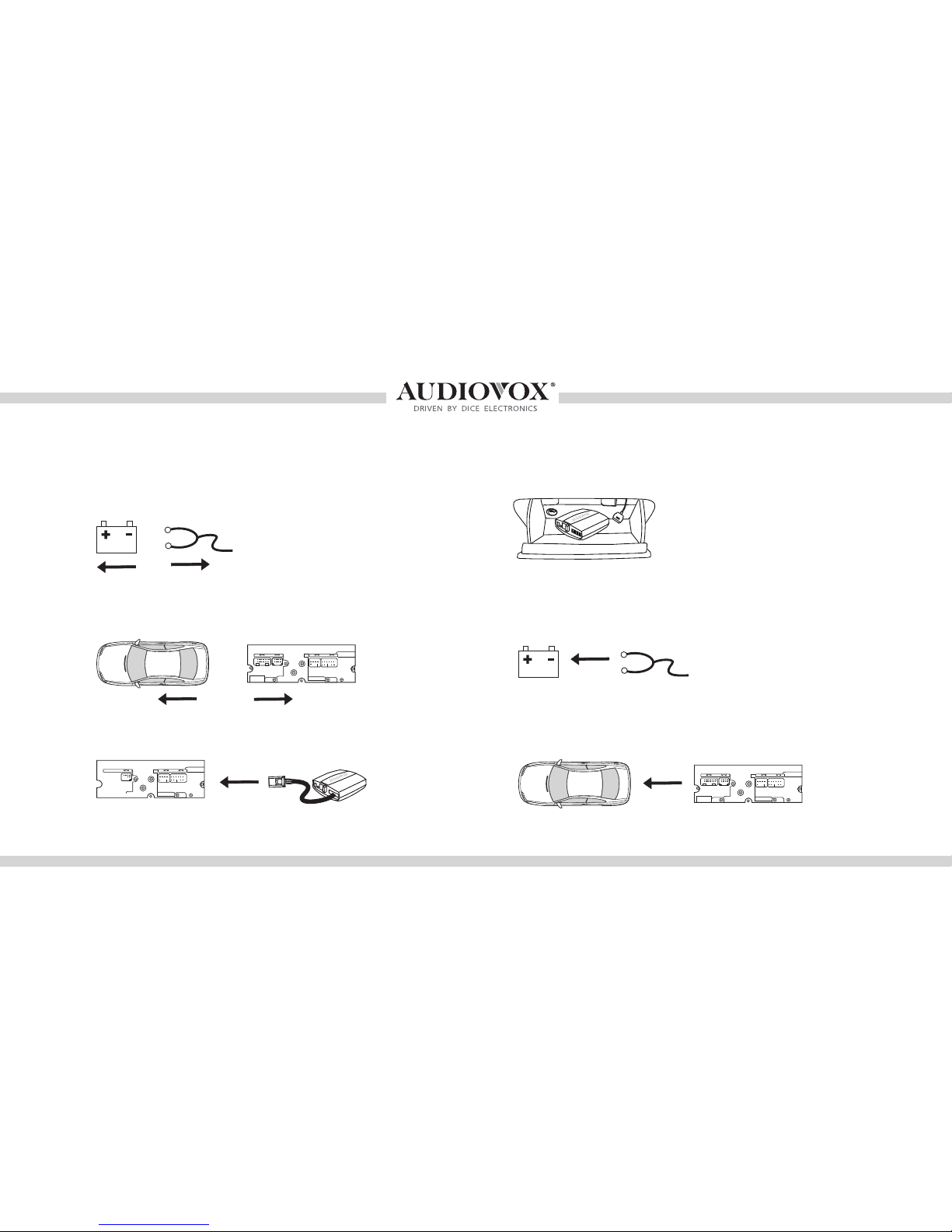

Installation
1. Verify compatibility.
2. Disconnect battery.
3. Remove radio from car.
4. Install MediaBridge cable.
5. Route kit to glovebox or other accessible location.
6. Connect battery and test.
7. Complete install by re-installing radio.

14
By default, the interface creates a Playlist having a name that is the same
DVWKHQDPHRIWKHL3RG7KLV3OD\OLVWLVWKHYHU\¿UVWRQWKHOLVWRI3OD\OLVWV
shown while browsing in Playlist mode. This Playlist contains all the songs
on the iPod. Once a Playlist is selected an Artist may be selected within
that Playlist using the Artist Mode. Albums by the selected Artist within
the selected Playlist may be selected in Album Mode. “ALL ARTIST” and
“ALL ALBUM” designate all available content in those categories.

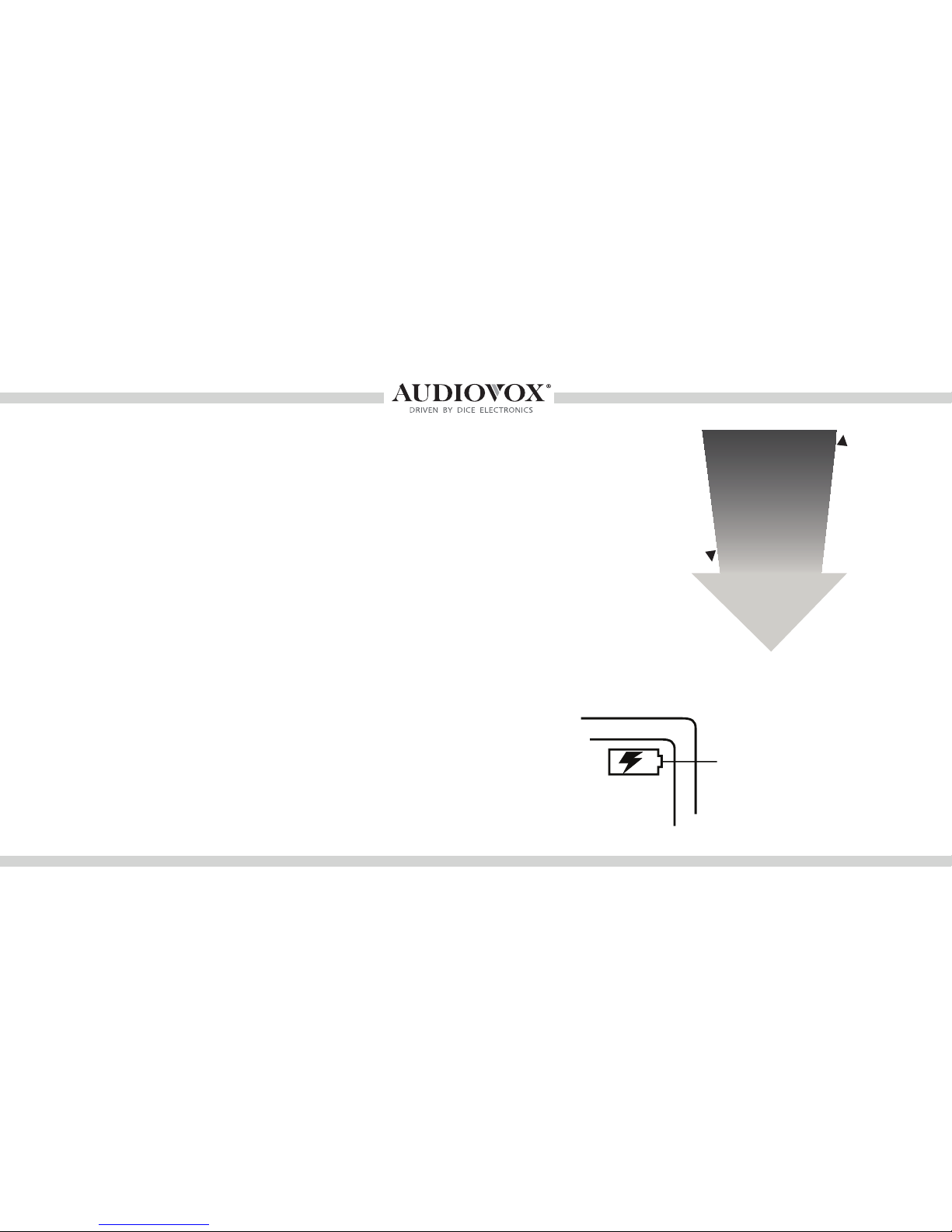

The interface automatically charges the battery of the iPod when
connected and your vehicle ignition key is in the ACC/ON position.
Charging may be shown by an
icon that appears on the upper
right corner of the iPod screen.
May vary by model.
Less browsable content
More browsable content
iPod content browsing
Charging
Playlist
Artist
Album
Song

15

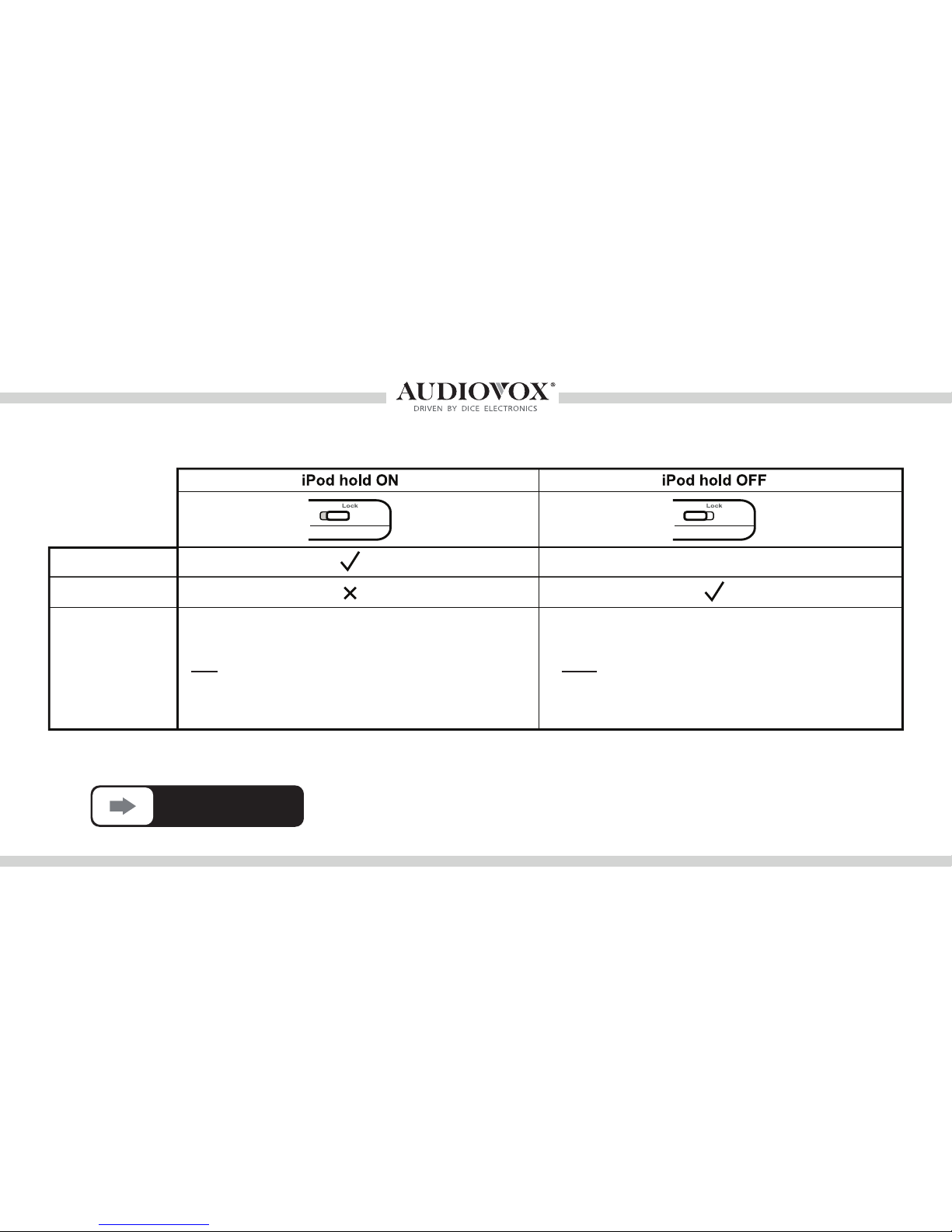

iPod locked/unlocked settings and features
Radio control Limited
iPod control
For iPod touch and iPhone, when the screen is not active (as shown on the left), the
iPod/iPhone is locked (Press the power button to lock the iPhone/iPod Touch).
Before connecting the iPod to the
MediaBridge module, turn the hold switch
ON to fully control and browse the songs
from the radio. The iPod is locked in this
state.
Note: Setting the iPod’s hold switch must be done prior to connecting it to the dock cable.
iPod nano 6th generation will always be in locked mode since it does not have a lock switch.
Before connecting the iPod to the
MediaBridge module, turn the hold switch
OFF to fully control and browse the songs
from iPod. Browsing capabilities are
limited from the radio.
slide to unlock

16

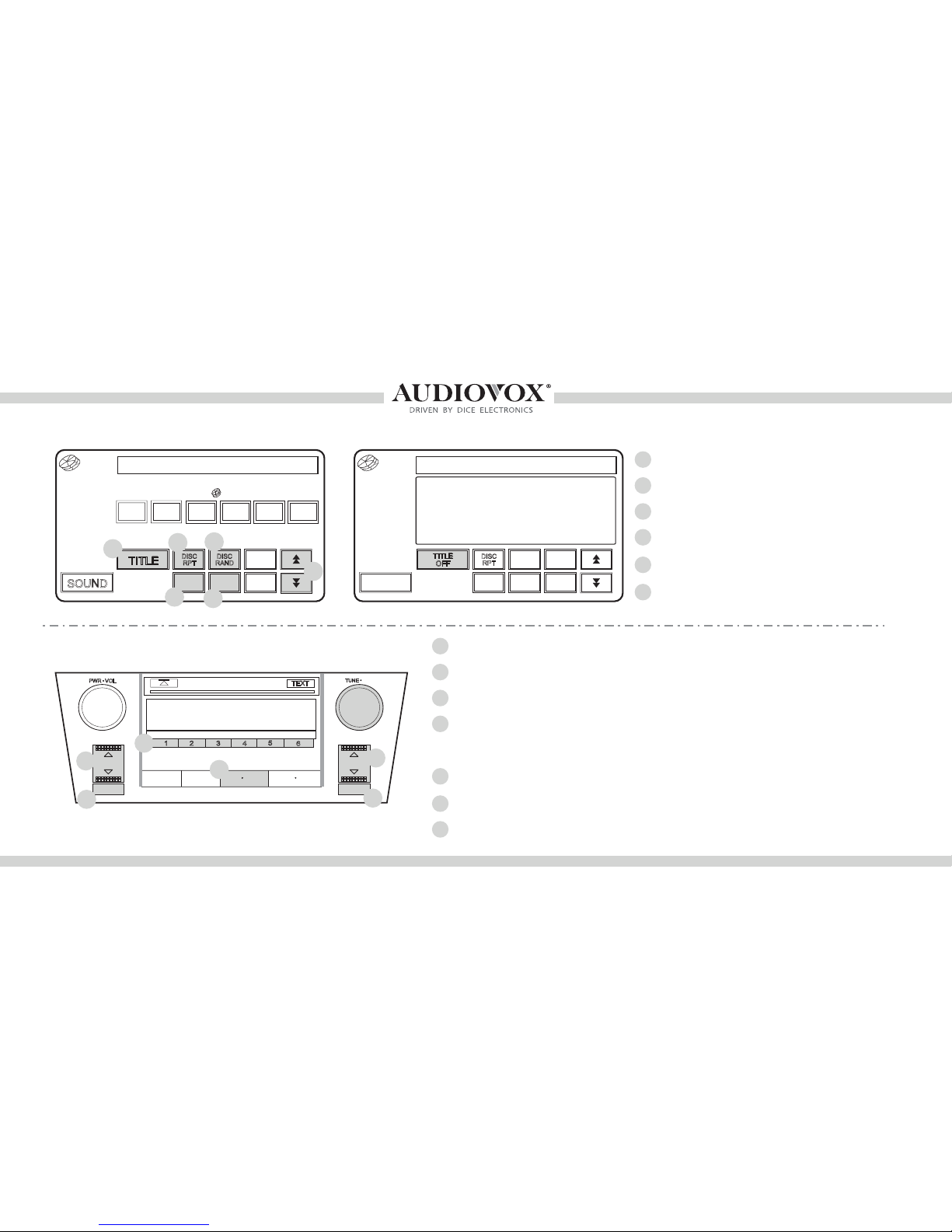

Basic operation
Accessing MediaBridge as the audio source:
Much like the radio’s AM/FM tuner, satellite radio or CD audio sources, the MediaBridge is integrated to be
part of the vehicle’s audio system. To access the MediaBridge source, press the SAT (for SAT emulation) or
DISC (for CDC/MD/MP3 emulation) button on the radio. Pressing this button repeatedly will cycle through
sources present in the vehicle.
MediaBridge source selection:
The MediaBridge adds additional audio sources including USB iPod/Memory, SIRIUS Satellite Radio*,
Bluetooth and Auxiliary audio input. To cycle between these sources, use the SEEK/TRACK/TUNE buttons
ZLWKLQWKH¿UVWVHFRQGVRIDFFHVVLQJWKH0HGLD%ULGJHDVWKHDXGLRVRXUFHZKLOHLQ35(6(7',SC 1.
*This source require additional parts/accessories/service from Audiovox and/or third parties.
MediaBridge Interface settings: ZLWKLQ¿UVWVHFRQGVRIDFFHVVLQJWKH0HGLD%ULGJHDVWKHDXGLRVRXUFH
Select DISC/PRESET 1 to apply settings and resume audio playback.
Select DISC/PRESET 3 to change default volume level; use track up/down to adjust between Min and Max.
Select DISC/PRESET 4 to enable/disable scrolling text. (SAT emulation only)
Select DISC/PRESET 6 toYLHZ0HGLD%ULGJHVHULDOQXPEHUDQG¿UPZDUHYHUVLRQ
DISC 2 and 5 have no settings available.

17
Operating the MediaBridge from select Toyota, Lexus and Scion radios
CD1 Album * Artist
DISC
56
2
34
1
7
8
7
24
56
1
3
7
2
4
5
6
1
3
MP3 emulation CDC/MD emulation (without Navigation)
Radio source selector (CD/AUX/MediaBridge)
Press to change TRACK.
Turn to change TRACK.
Browse modes (iPod/USB), PRESETS (SIRIUS), Sound
adjustments (AUX), BluetRRWK0$7FRQ¿JXUDWLRQ
Press RPT short to repeat one, long to repeat all.
3UHVV5$1'VKRUWWRVKXIÀHVRQJVORQJWRVKXIÀHDOEXPV
Source indicator
Radio source selector (CD/MediaBridge)
Press to change TRACK.
Browse modes (iPod/USB), PRESETS (SIRIUS), Sound adjustments
$8;%OXHWRRWK0$7FRQ¿JXUDWLRQ
Press to RW or FFW.
3UHVV5$1'VKRUWWRVKXIÀHVRQJVORQJWRVKXIÀHDOEXPV
Press RPT short to repeat one, long to repeat all.
Arrow shows if additional information is available. Hold TEXT button
for more information.
3UHVVWKH7(;7EXWWRQWRF\FOHEHWZHHQGLVSOD\¿HOGV
7
2
4
5
6
1
3
8

18
DISC 1 TRACK 99 1' 24"
DISC
RPT
DISC
RPT
DISC
RAND
DISC
SCAN
RPT RAND SCAN
SOUND
DISC 1 TRACK 99 1' 24"
DISC
DISC
RAND
DISC
SCAN
RPT RAND SCAN
SOUND
1 2 3 4 5 6
DISC
TRACK
Playlist Name
PLAYLIST
TITLE
TITLE
OFF
12
3
4
5
6
SAT1 Album * Artist
FILE
SCAN TEXT
FM1 FM2 AM SAT DISC AUX
2
5
4
1
6
7
3
CDC/MD emulation (with Navigation)
SAT emulation (without Navigation)
CD2
CHANGER CD2 CHANGER
DISC
Radio source selector (AM/SAT/MediaBridge)
Press to change TRACK.
Turn to change TRACK.
Browse modes (iPod/USB), PRESETS (SIRIUS), Sound adjustments (AUX),
BluetRRWK0$7FRQ¿JXUDWLRQ
8VH6FDQWRHQDEOH6KXIÀHDQG5HSHDW
3UHVVWKH7(;7EXWWRQWRWRJJOHEHWZHHQDYDLODEOH7(;7¿HOGV
Press the TYPE button to engage/disengage RW or FFW.
7
2
4
5
6
1
3
Press TITLE to toggle between screens.
Press DISC RPT to Repeat All.
Press RPT to Repeat One.
3UHVV',6&5$1'WRVKXIÀH$OEXPV
3UHVV5$1'WR6KXIÀH6RQJV
Press to change TRACK.
2
4
5
6
1
3
TYPE
FOLDER

19
SAT1 USB MEMORY CH001
1PRESET
PRESET
PRESET
SOUND TEXT TYPE
LOAD
VOL
12
4&&,t53ACK AM/SAT FM TA1&t%*4$ SCAN TUNE
3 456
TYPE TYPE
SEEK
TYPE
SCAN
PRESET
PRESET
PRESET
2
3
4
5
6
ROOT
DISPLAY
INFO
CLIMATE
MENU
DEST
MAP
AUDIO
12
3
4
5
SAT emulation (with Navigation)
Radio source selector (AM/SAT/MediaBridge)
Press to change TRACK.
Browse modes (iPod/USB), PRESETS (SIRIUS), Sound
DGMXVWPHQWV$8;%OXHWRRWK0$7FRQ¿JXUDWLRQ
Press to enable Random.
Press the TEXT button to toggle between available TEXT
¿HOGV
2
4
5
1
3
Note: Depending on operating mode, PRESET buttons will have
different labels.

20
Controlling the MediaBridge iPod source
Use PRESET 1-6 (DISC 1-6) to enter browsing modes (SONG,
PLAYLIST, ARTIST, ALBUM, PODCAST and AUDIO BOOK).
 Within each mode, use the SEEK/TRACK/TUNE buttons
to browse the items available.
Note: if the iPod is unlocked, radio control will be limited to Songs, Playlists, and
Albums. Text display will also be limited to show only current song information.
TIP: In CDC/MP3/MD emulation, selecting DISCS is done by using the DISC +/-
buttons.
PRESET/DISC 1
PRESET/DISC 2
PRESET/DISC 3
PRESET/DISC 4
PRESET/DISC 5
PRESET/DISC 6
CHANGE SONGS
SEEK TRACK
SEEK TRACK
SEEK TRACK
SEEK TRACK
SEEK TRACK
SEEK TRACK
CHANGE PLAYLIST
CHANGE ARTIST
CHANGE ALBUM
CHANGE PODCAST
CHANGE AUDIO BOOK
Icon legends
Press button Press button repeatedly
Press and hold button Turn dial
