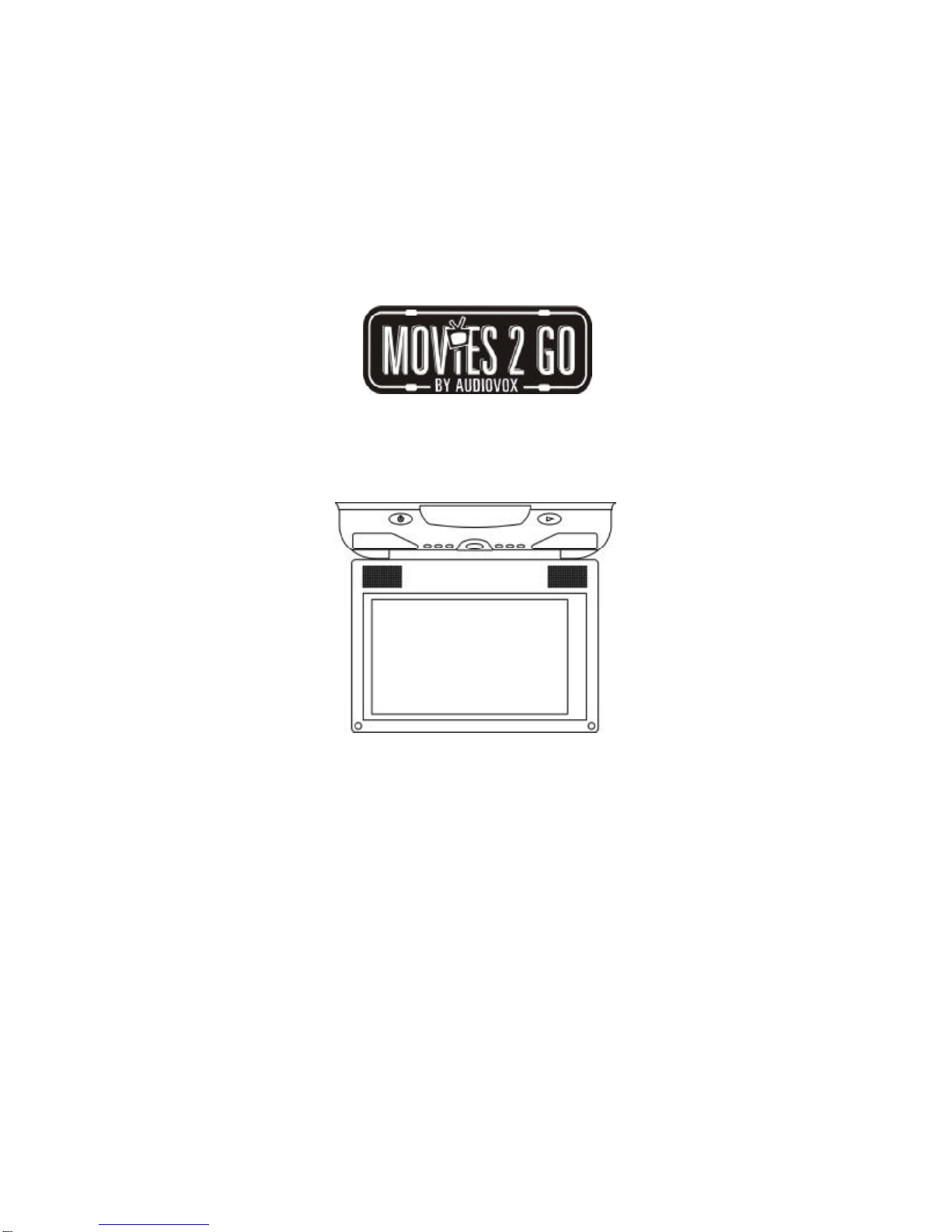

Audiovox MMD 70 Quick start guide

MMD70
7" LCD MONITOR&DVDPLAYER
Owners and Installation Manual

2
Note:
This Productincorporates copyrightprotection technologythat is pro-
tectedbymethod claims ofcertain patents and other intellectual prop-
erty rights owned byMacrovision Corporation and other rights owners.
Useofthis copyrightprotectiontechnologymust beauthorizedby
MacrovisionCorporation,andisintendedforhomeandotherlimitedview-
inguses only unless authorizedby MacrovisionCorporation. Reverse
engineeringor disassemblyis prohibited.
Warnings
Do not use any solvents or cleaning materials when cleaning the video monitor.
Do not use any abrasive cleaners, they may scratch the screen.
Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the lowest position.
Remember to leave the dome light switch in the off or auto positions when the vehicle
is unattended, as the dome lights, if left on, can drain the vehicle’s battery.
Do not put pressure on the screen.
Licensed under one or more of the following patents,
Patent NOS. 5,775,762 and 5,927,784

3
AnLCDpanel and/or videomonitormaybeinstalled in amotor vehicle
and visible to the driver ifthe LCD panelor videomonitor is used for
vehicle information, system control, rear or side observationor
navigation.If the LCDpanelor video monitor is usedfortelevision
reception, video or DVD play, the LCDpanel or video monitor must be
installedsothat these featureswill onlyfunction when the vehicle is in
park”orwhenthevehicle’s parkingbrake isapplied.
AnLCD panelor video monitor used for television reception, videoor
DVDplay thatoperateswhenthevehicleis ingear or whentheparking
brakeis not appliedmust be installedtothe rearofthe driver’sseat
where itwill notbevisible, directly or indirectly, to theoperator of the
motor vehicle.
Important Notice

4
A.Introduction
Thankyou for selectingthe MMD70. The main features include a 7"
Wide Screen(16:9AspectRatio)LiquidCrystal Display (LCD)monitor
and abuilt-inDVD player. The unit applies the latest state ofthe art
electronics. Theunit is constructedto provideyearsof reliable,
trouble-free service. Please read theentire instruction manual sup-
plied with this product prior to operation. The documentation will as-
sistyouininstallingthesystemproperly to obtainthebest equipment
performance. Pleasestore this manual forlater use.
B. Cautions and Warnings
1. Installation
Ensure thatthe MMD70 isinstalled in accordance with theinstruc-
tions and illustrations provided in this manual.
2. Object and Liquid
Do not push objects ofany kind into the unit through openings; do
notspill or sprayliquid ofany kind on orin the system (this may
result in a fire or electric shock). Toensure proper ventilation and
properoperation,nevercover or blocktheslots and openings with
a cloth or other material.
3.Disassembly
Do not attempt to disassemble the cabinet. There is ariskofelec-
tricshock and/orexposure to LaserRadiation. Contact qualified
service personnel ifyour system is in need of repair.
4.Cleaning Unit
When cleaning, makesurethe systemis unplugged fromthepower
source.Do not useliquid cleanersor aerosol cleaners.Use a
clothlightlydampenedwith water forcleaning the exteriorof the
systemonly.

5
5. Disc
Do not use irregularlyshaped discs such asheart orstar-shaped
discs as theymay cause the unittomalfunction.Donotstickpaper,
tapeor glue on the disc. Do not expose thedisc to direct sunlight
or heat sources such as hot air ducts. Do not touch the surface of
disc.Handlethe discbyits edge. Cleanthediscby wiping thedisc
from thecenter outwith acleaning cloth. Removethe disc from
theunit andstoreitinitscaseafterplaying.Someplaybackopera-
tions of discs may be intentionallyfixedbysoftwareproducers.
Since this unit plays discs accordingto the disc contents the soft-
wareproducersdesigned,some playbackfeaturesmay notbe
available. Also refer to the instructions supplied with the discs.
*Note: Please don’tusediscof8cmfor theunit’sshortage.
C. CONTENTS
1. 7”LCD Monitor & DVD Player Combo
2.A/VAdapter Cable
3. Power/Domelight Harness
4. Hardware Package
4 pcs M3.5 x18mm Panhead Philips MachinesScrews
2pcs RubberPlugs

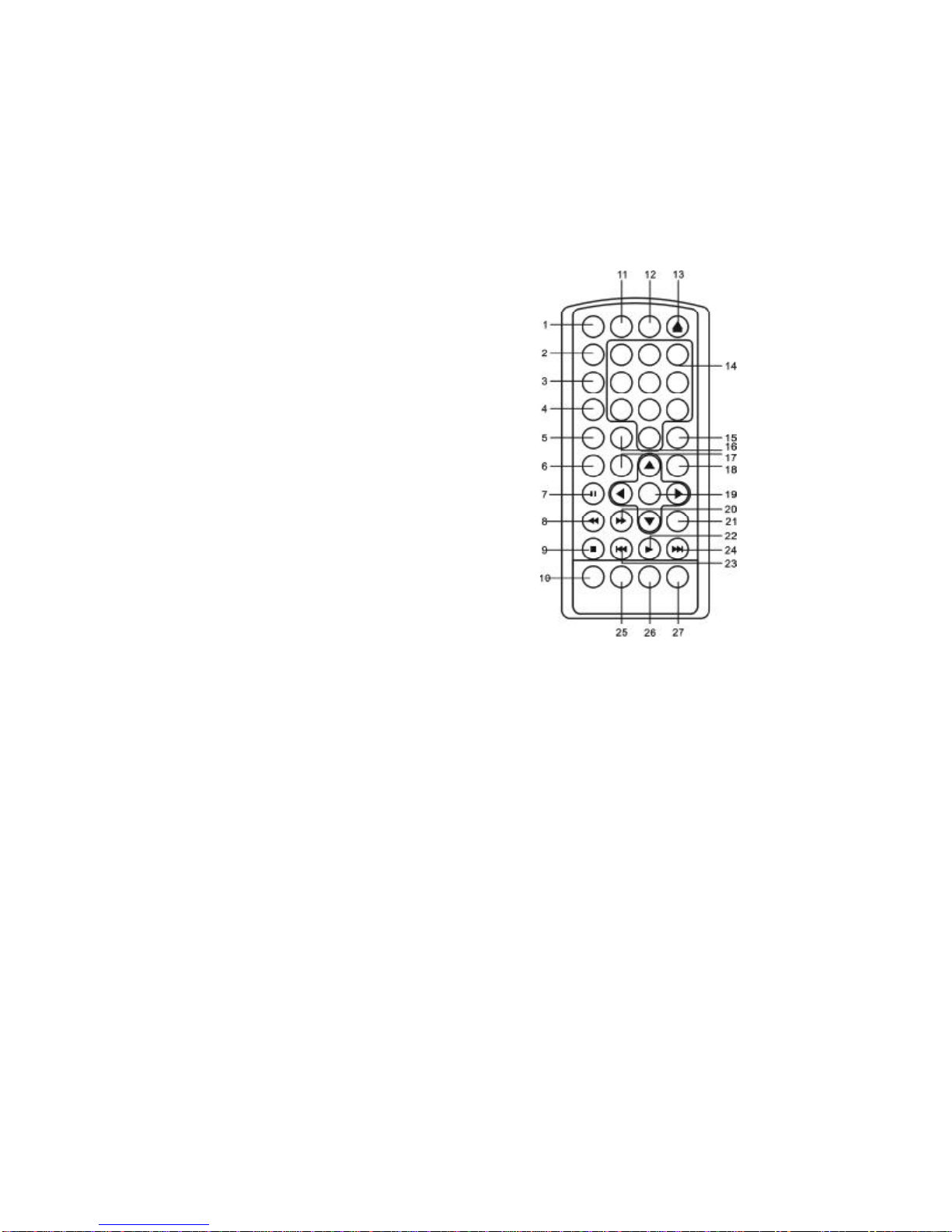

5. Remote Control
6.Mounting Plate
7. InstructionManual

6
TOOLSREQUIRED:
#2Philips Screwdriver
#1Philips Screwdriver
Utilityor Razor Knife or Shears
WireStrippers
Upholstery hooktool (for removal ofpanels as necessary)
ElectricalTape
MaskingTape
Multimeter (toverify 12 voltDC andcontinuity:Donotuse atestlight
or logic probe)
Marker pen –to markheadliner
Scribe(to marktrim ringifused)
Misc.electrical connectors(toconnect tovehicle power source).
Requirements will varyfrom vehicle to vehicle.
3
1. 2.
3.
5. 4.
D. INSTALLATION AND POWERING
Figure1
(X 4) (X 2)

7
GENERAL INSTALLATIONAPPROACH:
1)Decide upon system configuration and options that will be installed
(i.e.: what components, VCP,Tuner,RF Modulator/externalamp,
remoteheadphones, DVD, etc.).
2)Reviewall manuals to become familiar withelectrical requirements
and hookups.
3)Decideupon mounting locations of all componentsandmethodof
mounting.
4)Prep the vehicle by removing anyinteriortrim necessary to gain ac-
cess to vehicle'swiring as well asall areas whereinterconnecting
wire harnesseswillneed to belocated.Ifany access holes need to
be cut intothevehicle(headliner,other trim components etc.), this
should be done nowas well.
5)Route the wiring harnesses throughout the vehicleas necessary.
(Refer to theWiringDiagrams on page10 of this manual as wellas
the wiringinstructions for the individual components and accessory
options being installed).Besure thatall wiring isprotected from
sharpedges and is routed in such amannerthatitwill notbe pinched
whenall components andinterior trim arefully installed. Be sure to
leaveenoughslack inthewiringateachcomponenttoallowworking
room.
6)Remove allA/V system components fromtheirpackaging and place
them looselyin the vehicle at their respective locations.
7)Connectallcomponents together(electrically)and verifyproper op-
erationof all system functions.Note:This is bestdoneBEFORE
components have been permanentlymounted.
8)Afterverifyingproper operation ofthe system,proceed tomounteach
ofthecomponents.
9)When all components are mounted, recheckfunction ofentire sys-
tem againto ensure that no wiring was pinched or connected im-
properlyduringfinal installation.

8
Notes :TheMMD70 video system is only intended foran overhead,
drop downinstallation.Itisnotintended forseat back or any other
type of mounting. Thehinging mechanismis designedfor horizontal,
drop down use only.
VEHICLE PREPARATION:
1)Locateanaccessorypowersource (+12v whenkeyisin theACC.
and run positions, and 0v when key is off). Generally, thiswire can
be found at the ignition switch or fuse-box.
2)The mountingmethod and location will vary from vehicle to vehicle,
so this manual will only focuson the installation ofthevideo monitor
and related consoleaccessories.
3)Generally,the bestlocationforthevideomonitor iswherethevehicle's
factory domelight isinstalled. The monitorshouldbelocated in
suchamannerthatitcan be comfortablyviewed byrearseatpassen-
gers. NEVER INSTALL THE MONITOR IN A PLACE WITHIN THE
DRIVER'SVIEW.THISISNOTONLYDANGEROUS,BUT ITIS
ALSO ILLEGAL.
4)Once the mounting locationof the monitor has been determined,
there maybe additional preparation worknecessary, dependingon
the vehiclestructure and installation method.Someof the steps
thatmaybe required are:
A)Removal ofthe vehicle's dome light.
B)The headliner may need to be trimmed.

9
MOUNTING THE MMD70
Figure2
NOTE: Two ofthemountingholesarelocated under the domelight cov-
ers.

10
1)Make the connections to the vehicle with the 5 pin wiring harness.
2)Connect the 5pin harnessto the matingconnector onthe Video
Monitor.
3)Connect powerharnessto vehicle's electrical systembytapping
into an accessoryhot line.
4)Verifyallfunctions ofthesystem beforefinal mountingofthefinished
assembly.
NOTE: AVCPorother A/VComponent can be connected tothe
video monitorsystem using an RCAA/V cable.This secondhar-
nesswould plug intotheAV1inputs or AUXjack.
A/V Source Definitions :
1 =Built-in DVD
2 =AV1 input ( VCP,Game, DVD, etc )
3 =AV2 Input ( VCP,Game, DVD, etc )
Figure3
MMD70
(RED)
(BLACK)
