Owner/Installation Manual

Important Notices
Installationofoverheadproductsrequirescarefulplanningandpreparation. Be
extremely careful when working on a vehicle with side curtain air bags. Do not
routewiresnearanyportion oftheside curtainairbag assemblies. Thisincludes
any anchor points inA, B, C or D pillars of the vehicle. Routing wires in these
areasorrunningwires bythe sidecurtainairbagscan preventthe sidecurtainair
bagfrom fully deploying whichcanresult in personal injurytovehicleoccupants.
If you have any questions regarding wire routing in a vehicle, please contact
AudiovoxTechnicalSupportat1-800-225-6074.
Whenconnectingpowerand groundinamobilevideo installationensure thatthe
ACC wire is fused at the point where it is connected to the vehicle ACC wiring.
Failure to do so can result in damage to the vehicle if a short circuit develops
betweenthe vehicle connectionpointandthe mobile videoproduct.
AnLCDpanel and/orvideomonitormaybe installedinamotorvehicleandvisible
to the driver if the LCD panel or video monitor is used for vehicle information,
system control, rear or side observation or navigation. If the LCD panel or video
monitorisusedfortelevisionreception,videoorDVDplay,theLCDpanelorvideo
monitor must be installed so that these features will only function when the ve-
hicle is in "park" or when the vehicle's parking brake is applied.
An LCD panel or video monitor used for television reception, video or DVD play
thatoperates whenthevehicle isingear orwhenthe parkingbrakeis notapplied
mustbe installedtothe rearofthe driver'sseatwhere itwillnot bevisible,directly
orindirectly,to the operator of the motorvehicle.
Licensedunder one or more ofthefollowingpatents,
PatentNOS. 5,775,762 and5,927,784
2

3
NOTE:
This product incorporates copyright protection technology that is protected by
methodclaimsofcertain patents and other intellectual property rights owned by
MacrovisionCorporationandotherrights owners.Use ofthis copyrightprotection
technologymustbeauthorized by Macrovision Corporation , and is intended for
homeandotherlimited viewinguses only,unlessauthorizedbyMacrovisionCor-
poration.Reverse engineeringordisassembly isprohibited.
Warnings
Donotuse any solventsorcleaningmaterialswhencleaning the video monitor.
Do not use any abrasive cleaners, they may scratch the screen.
Use only a lightly dampened lint free cloth to wipe the screen if it is dirty.
Lock the LCD screen in the fully closed position when not in use.
Before putting on headphones always adjust the volume setting to the lowest
position.
Remember to leave the dome light switch in the off or auto positions when the
vehicle is unattended, as the dome lights, if left on, can drain the vehicle’s bat-
tery.
Do not put pressure on the screen.

4
A. Introduction
Thank you for selecting the MMD100. The main features include a
10" Wide Screen (16:9 Aspect Ratio) Liquid Crystal Display (LCD)
monitor and a built-in DVD player. The unit applies the latest state of
the art electronics. The unit is constructed to provide years of reli-
able, trouble-free service. Please read the entire instruction manual
supplied with this product prior to operation. The documentation will
assist you in installing the system properly to obtain the best equip-
ment performance. Please store this manual for later use.
B. Cautions and Warnings
1. Installation
Ensure that the MMD100 is installed in accordance with the in-
structions and illustrations provided in this manual.
2. Objects and Liquids
Do not push objects of any kind into the unit through openings; do
not spill or spray liquid of any kind on or in the system (this may
result in a fire or electric shock). To ensure proper ventilation and
properoperation,nevercoverorblocktheventilationslotsandopen-
ings
3.Disassembly
Do not attempt to disassemble the cabinet. There is a risk of elec-
tric shock and/or exposure to Laser Radiation. Contact qualified
service personnel if your system is in need of repair.
4. Cleaning Unit
Whencleaning, make surethesystemis unplugged fromthepower
source. Do not use liquid cleaners or aerosol cleaners. Use a
cloth lightly dampened with water for cleaning the exterior of the
system only.

5
5. Disc
Do not use irregularly shaped discs such as heart or star-shaped
discs as they may cause the unit to malfunction. Do not stick pa-
per, tape or glue on the disc. Do not expose the disc to direct sun-
light or heat sources such as hot air ducts. Do not touch the sur-
face of disc. Handle the disc by its edge. Clean the disc by wiping
the disc from the center out with a cleaning cloth. Remove the disc
from the unit and store it in its case after playing. Some playback
operations of discs may be intentionally fixed by software produc-
ers. Since this unit plays discs according to the disc contents the
software producers designed, some playback features may not be
available. Also refer to the instructions supplied with the discs.
C. CONTENTS
1. 10” LCD Monitor & DVD Player Combo
2. A/VAdapter Cable
3. Hardware Package
4 pcs M4 x 8 mm Machine Screws
4 pcs M2.6 x 10 mm Screws

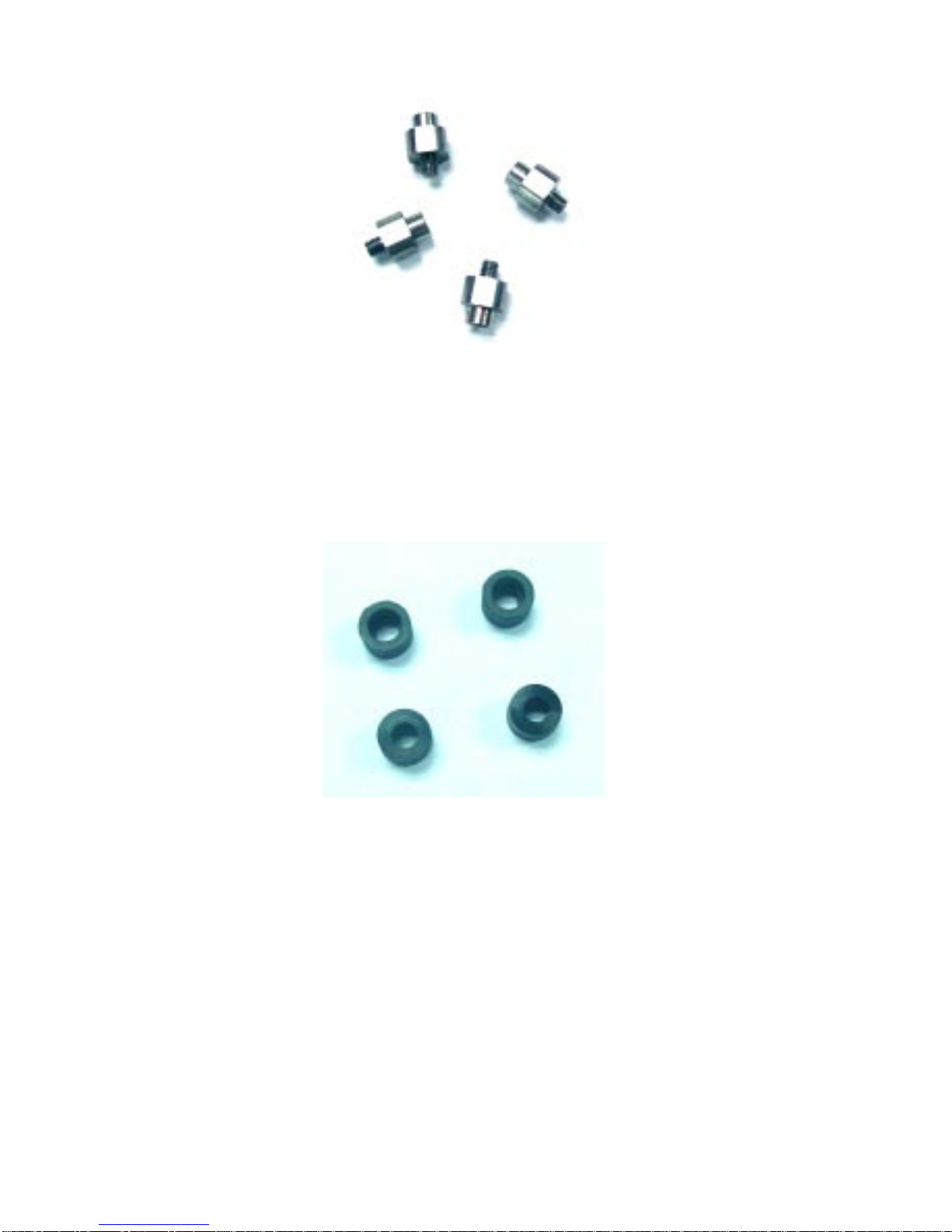

4 pcs Post Extension
4 Rubber Spacers for Post Extensions
4. Remote Control
5.MountingPlate
6.Trim Ring
7.Owner/InstallationManual

6
TOOLS REQUIRED:
#2 Phillips Screwdriver
#1 Phillips Screwdriver
Utility or Razor Knife or Shears
Wire Strippers
Upholstery hook tool (for removal of panels as necessary)
Electrical Tape
MaskingTape
Multimeter(toverify12 volt DC and continuity: Do not use a test light
or logic probe)
Marker pen – to mark headliner
Scribe (to mark trim ring if used)
Misc. electrical connectors (to connect to vehicle power source).
Requirements will vary from vehicle to vehicle.
GENERAL INSTALLATION APPROACH:
1) Decide upon system configuration and options that will be installed
(i.e.:whatcomponents, VCP,Tuner, RF Modulator/external amp, re-
mote headphones, DVD, etc.).
2) Review all manuals to become familiar with electrical requirements
and hook ups.
3) Decide upon mounting locations of all components and method of
mounting.
4) Prep the vehicle by removing any interior trim necessary to gain ac-
cess to vehicle's wiring as well as all areas where interconnecting
wire harnesses will need to be located. If any access holes need to
be cut into the vehicle (headliner, other trim components etc.), this
should be done now as well.
D. Installation and Powering

7
5) Route the wiring harnesses throughout the vehicle as necessary.
(Refer to the Wiring Diagrams on page 10 of this manual as well as
the wiring instructions for the individual components and accessory
options being installed). Be sure that all wiring is protected from
sharpedges and is routed in suchamannerthat it will not bepinched
when all components and interior trim are fully installed. Be sure to
leaveenoughslackinthewiringateachcomponenttoallowworking
room.
Note: If the vehicle is equipped with Side CurtainAir Bags, do not
run wires in the vacinity of the Side CurtainAir Bags.
6) Remove allA/V system components from their packaging and place
them loosely in the vehicle at their respective locations.
7) Connect all components together (electrically) and verify proper op-
eration of all system functions. Note: This is best done BEFORE
components have been permanently mounted.
8) Afterverifying properoperationof thesystem,proceed tomounteach
of the components.
9) Whenall components are mounted, recheck the entiresystem again
to ensure that no wiring was pinched or connected improperly dur-
ingfinalinstallation.

8
Note: The MMD100 video system is only intended for an overhead,
dropdown installation.Itisnot intendedforseat back oranyother
type of mounting. The hinging mechanism is designed for hori-
zontal, drop down use only.
VEHICLE PREPARATION:
1) Locate an accessory power source (+12v when key is in the ACC.
and run positions, and 0v when key is off). Generally, this wire can
be found at the ignition switch or fuse-box.
2) The mounting method and location will vary from vehicle to vehicle,
so this manual will only focus on the installation of the video monitor
and related console accessories.
3) Generally,thebestlocationforthevideomonitoriswherethevehicle's
factory dome light is installed. The monitor should be located in
such a manner that it can be comfortably viewed by rear seat pas-
sengers. NEVERINSTALLTHEMONITORINAPLACEWITHINTHE
DRIVER'S VIEW. THIS IS NOT ONLY DANGEROUS, BUT IT IS
ALSOILLEGAL.
4) Once the mounting location of the monitor has been determined,
there may be additional preparation work necessary, depending on
the vehicle structure and installation method. Some of the steps
that may be required are:
A) Removal of the vehicle's dome light.
B) The headliner may need to be trimmed.

9

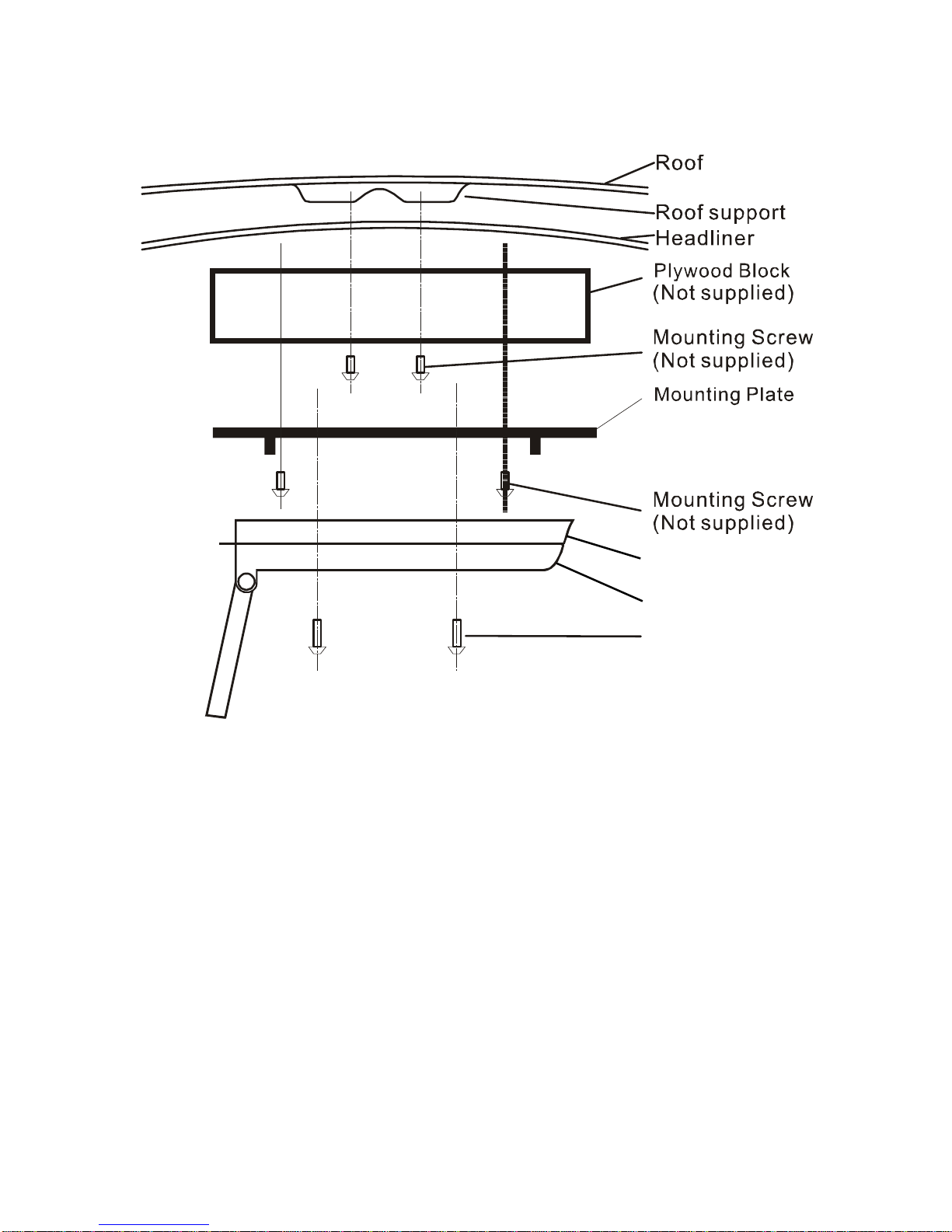

Figure 1
MOUNTING THE MMD100
M4 8mm ¡Á
TrimRing
M48mm
VideoUnit
Trim Ring Installation
The Trim Ring Installation is accomplished using the four (4) 2.6X10mm
screws supplied. Please refer to the Figure 2.

10
1. Place the MMD100 on a soft surface with the rubber gasket
facing up. Use care to avoid scratching the unit’s exterior sur-
face.
2. Take off the rubber ring.

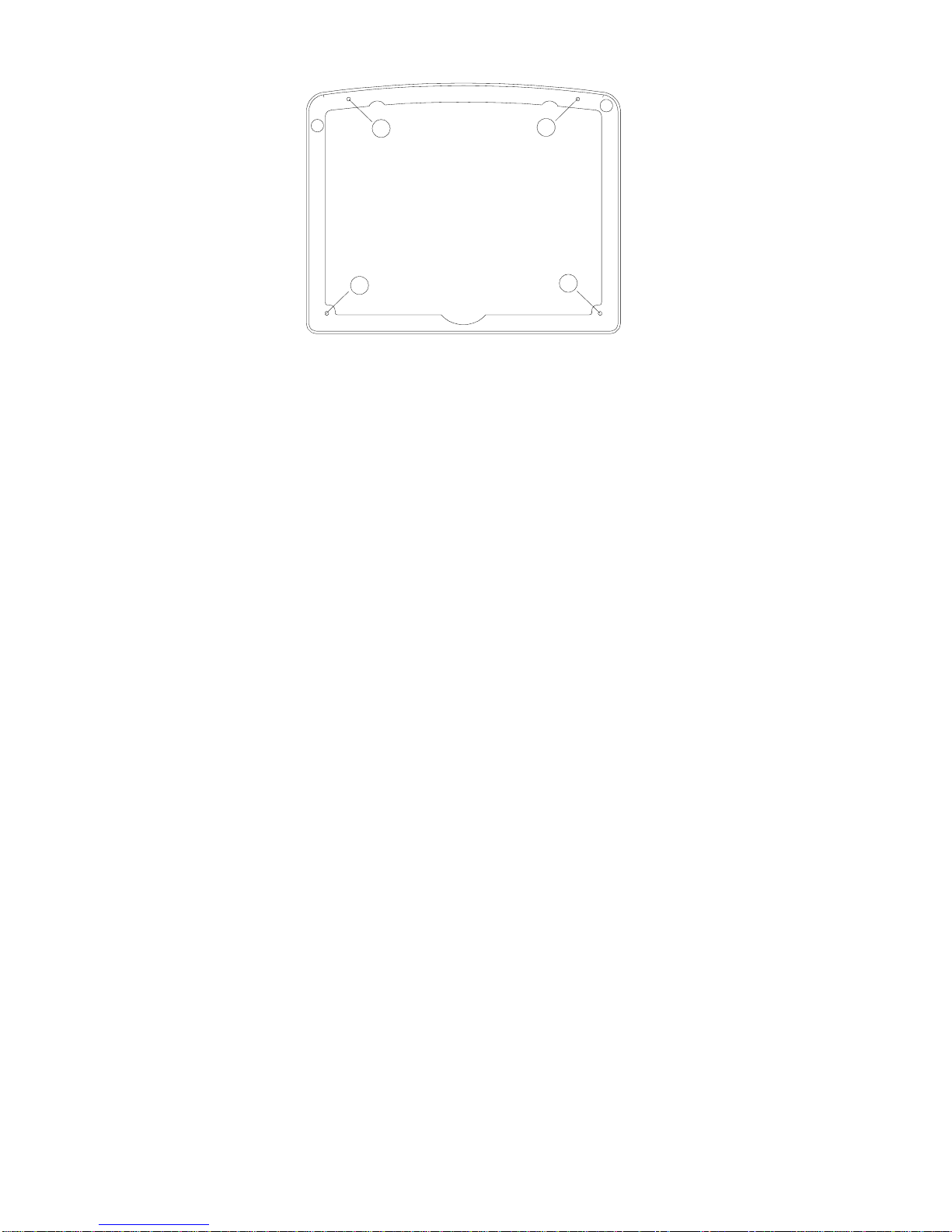

3. Place the trim ring on the unit and note the location of the four
mounting screws.
4. Attach the trim ring to the unit using the longer four (4) 2.6 X
10mm screws supplied.
5. Attach the four (4) post extensions to the bracket (Figure 3).
A
AA
A
Figure 2

11
6. Attach the four (4) rubber spacers on the post extensions (Fig-
ure 4).
7. Refer to the Owner/Install Manual for the MMD100 to complete
theinstallation.
Figure 3
Figure 4

12
MMD100
1) Make the connections to the vehicle with the 5 pin wiring harness.
2) Connect the 5 pin harness to the mating connector on the Video
Monitor.
3) Connect power harness to vehicle's electrical system by tapping
into an accessory hot line.
4) Verify allfunctionsofthesystembeforefinalmountingof the finished
assembly.
NOTE: A VCP or other A/V Component can be connected to the
video monitor system using an RCA A/V cable. This second har-
ness would plug into the AV1 inputs or AUX jack.
A/V Source Definitions :
1 =Built-inDVD
2 =AV1 input ( VCP, DVD, etc )
3 =AV2 Input ( VCP, Game, DVD, etc )
Figure 5
Y
A
ntenna

13

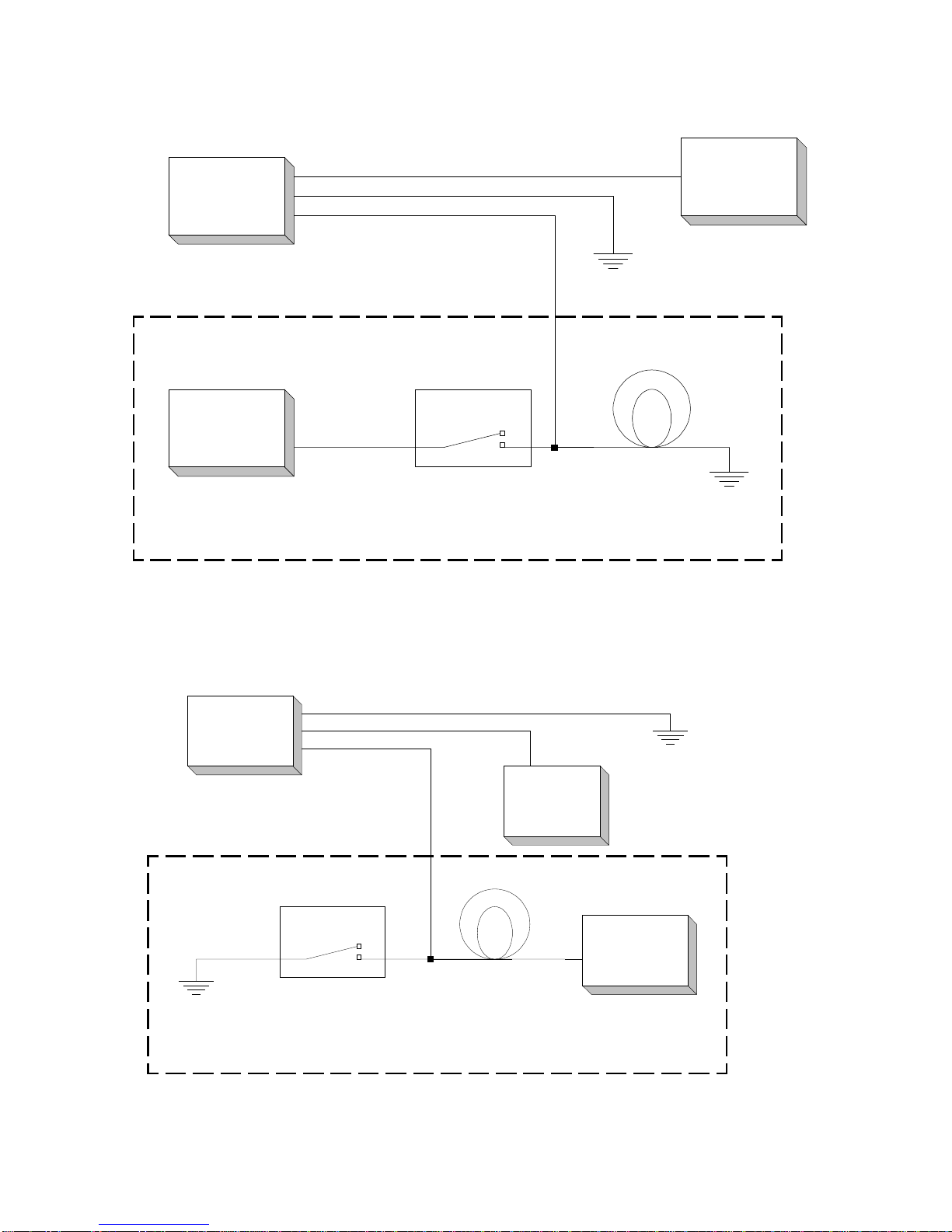

CONNECTING THE DOME LIGHTS
The dome lights in the video monitor require three connections to the
vehicle's wiring. There are two common types of dome light circuits
used, positive or negative switched. Positive systems supply voltage to
the interior lights to turn them on, negative switched systems apply
ground to illuminate the bulbs. To determine which system you have
you must locate the wires at the dome light. On a positive switched
system, with all the doors closed and the lights out, both wires at the
dome light will rest at ground. When the light is activated, one of these
wires will switch to +12V DC. This is the vehicle's switching wire. On a
negative switched system, with all the doors closed and the lights out,
both wires at the dome light will rest at + 12V DC. When the light is
activated, one of these wires will switch to ground. This is the switching
wire.
For positive systems, connect the violet / brown (Lamp auto) wire to the
vehicle's switched wire. Then connect the red / black (lamp on) wire to
a fused constant 12 volt source and the black / red (lamp common) wire
to a good ground. Positive systems are commonly found on Ford ve-
hicles.
For negative systems, connect the violet / brown (Lamp auto) wire to
the vehicle's switched wire. Then connect the red / black (lamp on) wire
to a good ground and the black / red (lamp common) wire to fused con-
stant 12 volt source. Negative systems are commonly found on Gen-
eral Motors and import vehicles.
Note:
Some vehicles which incorporate transistorized control of the dome
light circuit, such as the 1999 Dodge Caravan, may require that the
violet / brown (Lamp auto) wire be connected to the door pin switch
wire, as the additional current draw of the Monitor's lights may not be
supported by the output of the vehicles body control computer.

14
Red / black - Lamp on
Black / red - Lamp common
Violet / brown - Lamp Auto
To 3 pin
connector
onMonitor
To
constant
+12vdc
To
constant
+12vdc FactoryDoorajar
switchorBody
Controlcomputer
Factory Dome light circuit
Positive Switched Dome lighting
Negative Switched Dome lighting
To 3 pin
connector
To
constant
To
constant
FactoryDoorajar
switchorBody
Factory Dome light circuit
Red / black - Lamp on
Black / red - Lamp common
Violet / brown - Lamp Auto
Figure 6
Figure 7

15
1) Headphone Jack
2)AV 2In
3) SD Card Slot
4) Auto/Off/On Dome Light Switch
5) Power Button
6) Picture
7) Volume -
8) Volume +
9) FM Modulator Switch
10) Press Button
11) Dome Lights
12) IR Sensor and Infrared Transmitter
13) Stop Button
14) Reverse Scan Button
15) Forward Scan Button
16) Eject button
17) Play button
18) Disc Insertion Slot
E. Controls, Indicators, and Connectors

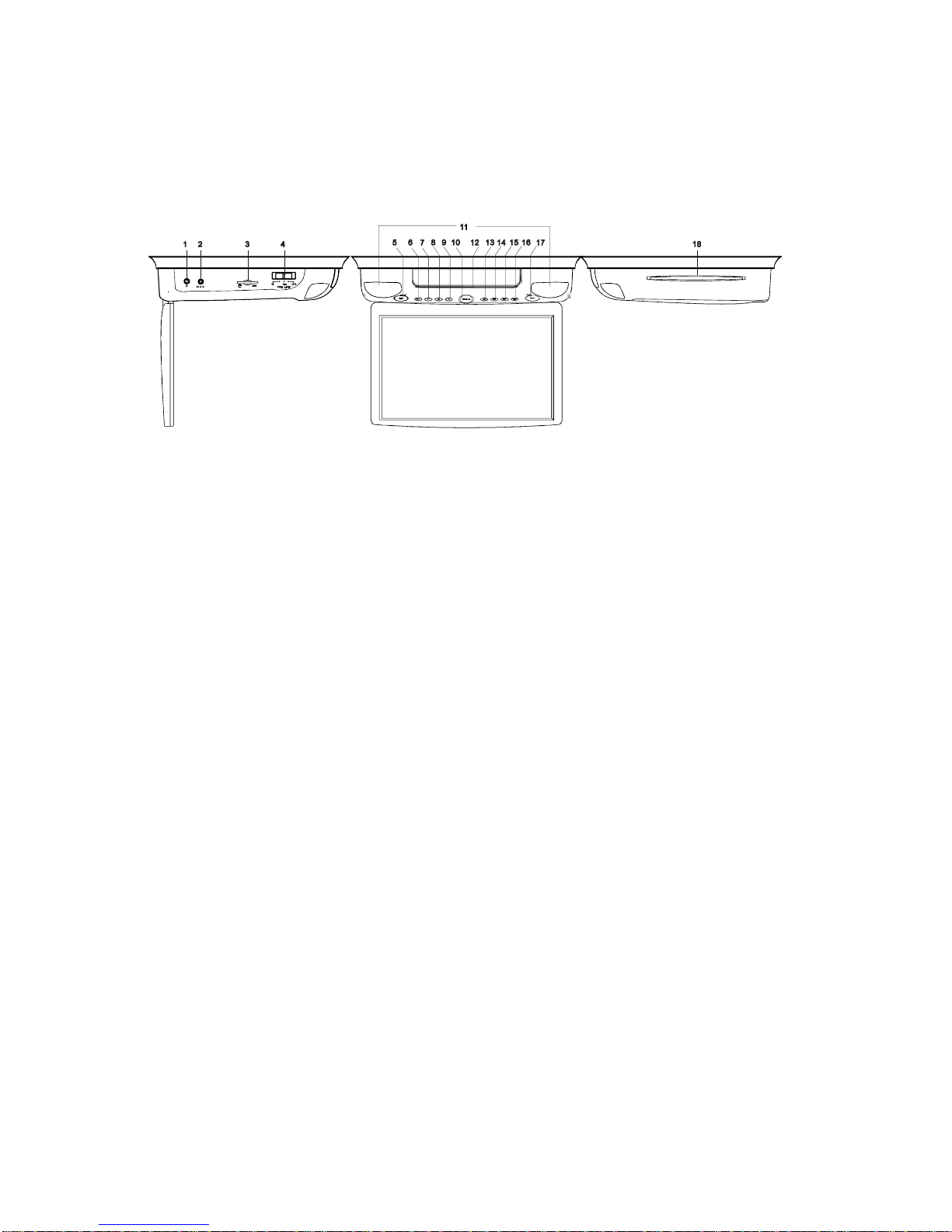

1. Unit View (Refer to Figure 5)
Figure 8

16
2. Remote Control View (Refer to Figure 9)
1) DVD/AUX Button
2) Power Button
3) Display Button
4) AngleButton
5) Subtitle Button
6) Repeat Button
7) A-BButton
8) Menubutton
9) Slow Button
10) DVD/SD Button
11) Skip+ Button
12) Skip- Button
13) Stop Button
14) Wide Button
15) Picture Button
16) Volume -
17) Zoom Button
18) Eject Button
19) Numeric Buttons
20) AudioButton
21) Setup Button
22) Up/Down/Left/FF/Right /REW/ Enter Buttons
23) Return Button
24) PlayButton
25) Pause Button
26) FMButton
27) Volume +
F. Loading and Playing a Disc
a. Turn the power on by pressing the power button on the unit or the
remote control. Select DVD using the DVD/AUX button on the re-
mote.
b. Place a disc into the disc insertion slot with the label side facing up.
c. Playback will start automatically.
d. Press the PRESS button to open the LCD Screen, then pivot the
LCD Screen for a good viewing angle.
Figure 9
1
2
3
4
5
6
7
8
9
10
11
12
13
14
23
22
21
20
19
18
17
16
15
24
25
27
26

17
POWER
PLAY
SLOW
PAUSE
STOP
FORWARD
REVERSE
UP/DOWN/LEFT /RIGHT
ENTER
NUMBERS
RETURN
MENU
REPEAT
A-B
DISPLAY
ANGLE
SUBTITLE
AUDIO
ZOOM
SETUP
DVD/AUX
EJECT
VOLUME-
VOLUME+
SKIP-
SKIP+
DVD/SD
Turn the unit on/off
Start Playback
Play at 1/2,1/4,1/8, or 1/16 normal speed
Still Picture
(1 time) Stop at the present playing point /
(2 times) Stop playing
Scan forward at 2, 4, 8, 16, or 32 times nor-
mal speed
Scan backward at 2, 4, 8, 16, or 32 times
normal speed
Usedfor Menu Navigation
Confirm item or setting
Select item or password setting
Not used in this model
Display the root menu of the disc
Repeat playback of a title, chapter, or track
Repeat a specific portion from point A to
point B of the disc
Display discinformation (title,chapter,track,
time, etc.)
Change the angle on a scene
Select the subtitle language and turn it on/
off
Select the audio language
Enlarge an image to 2 ,3, or 4 times the
original size
Display the setup menu to select and set
items, and exit the setup menu.
Source selection DVD, AV1, AV2
Eject disc
Brightness/Contrast/Tint/Color
Reduce volume/Lower picture setting
Increase volume/Raise picture setting
Previous chapter/track
Next chapter/track
Source selection DVD, SD
G. BASIC OPERATION

18
H. Setup
Press ‘SETUP’ to display the Main screen of the Setup Menu. Press
‘SETUP’againto exit the Setup Menu and theunit willresumeit’slast
playback mode.
1) Press “SETUP”, the ‘General Setup Page’ will be displayed.
a).Select ‘TV Display’ using the S/Tbutton, and then press XX to
enter the submenu. Select the TV display mode on the screen using
S/T, and press ENTER to confirm the setting. Press WW to return.
* Normal/PS: When the player is connected to a normal TV, and a wide
picture is shown on the full screen.
* Normal/LB: When the player is connected to a normal TV, and a wide
picture is shown on the screen with a black strip at both the top and
bottom of the screen.
* Wide: When the player is connected to a wide screen TV, a wide
picture is shown on the full screen.

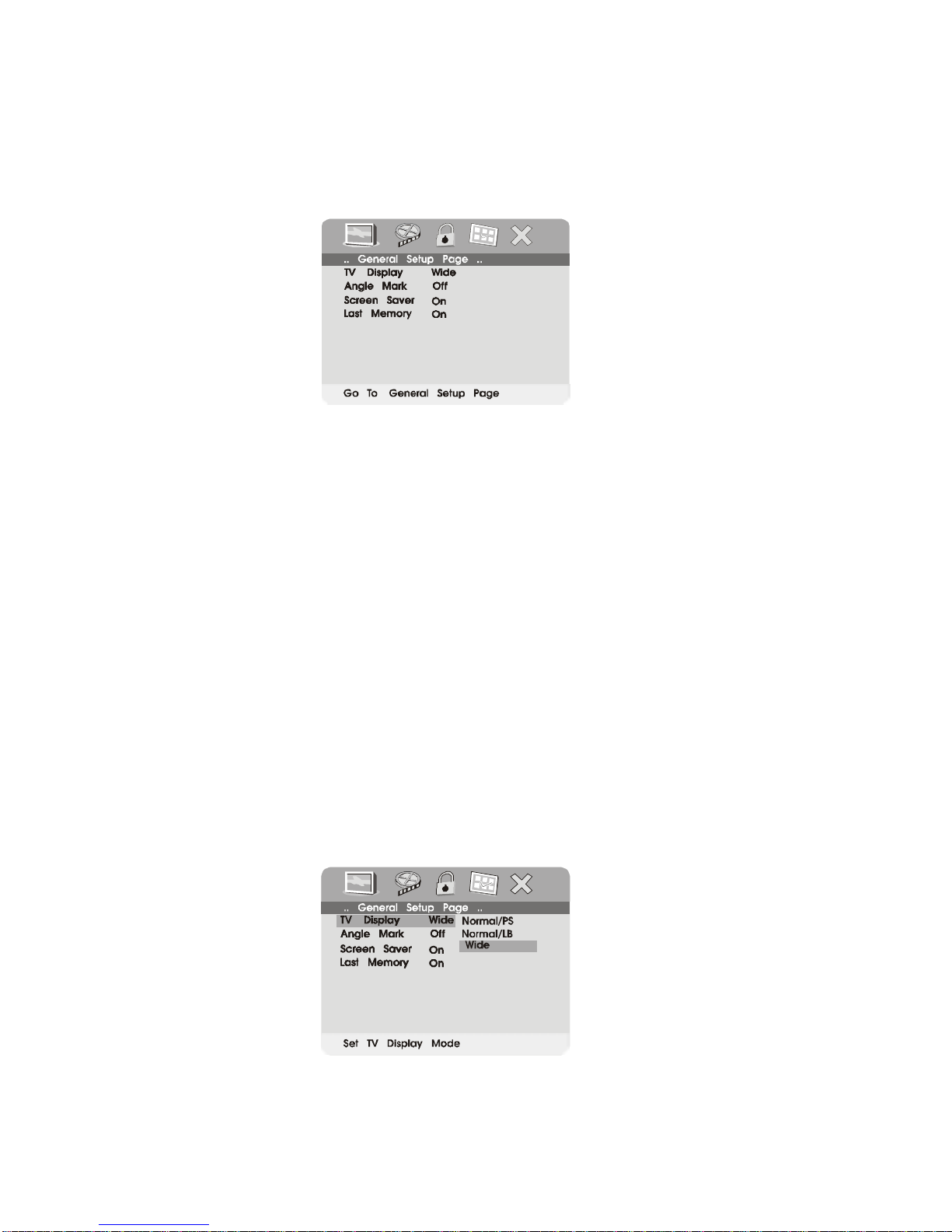

Main Setup Menu Screen
TV Display Screen Display

19
b).Select ‘Angle Mark’ using the S/Tbutton, and then press the XX
button to enter the submenu. Choose Angle Mark on or off using the
S/Tbutton and then press ENTER to confirm the setting. Press the
WW button to return.

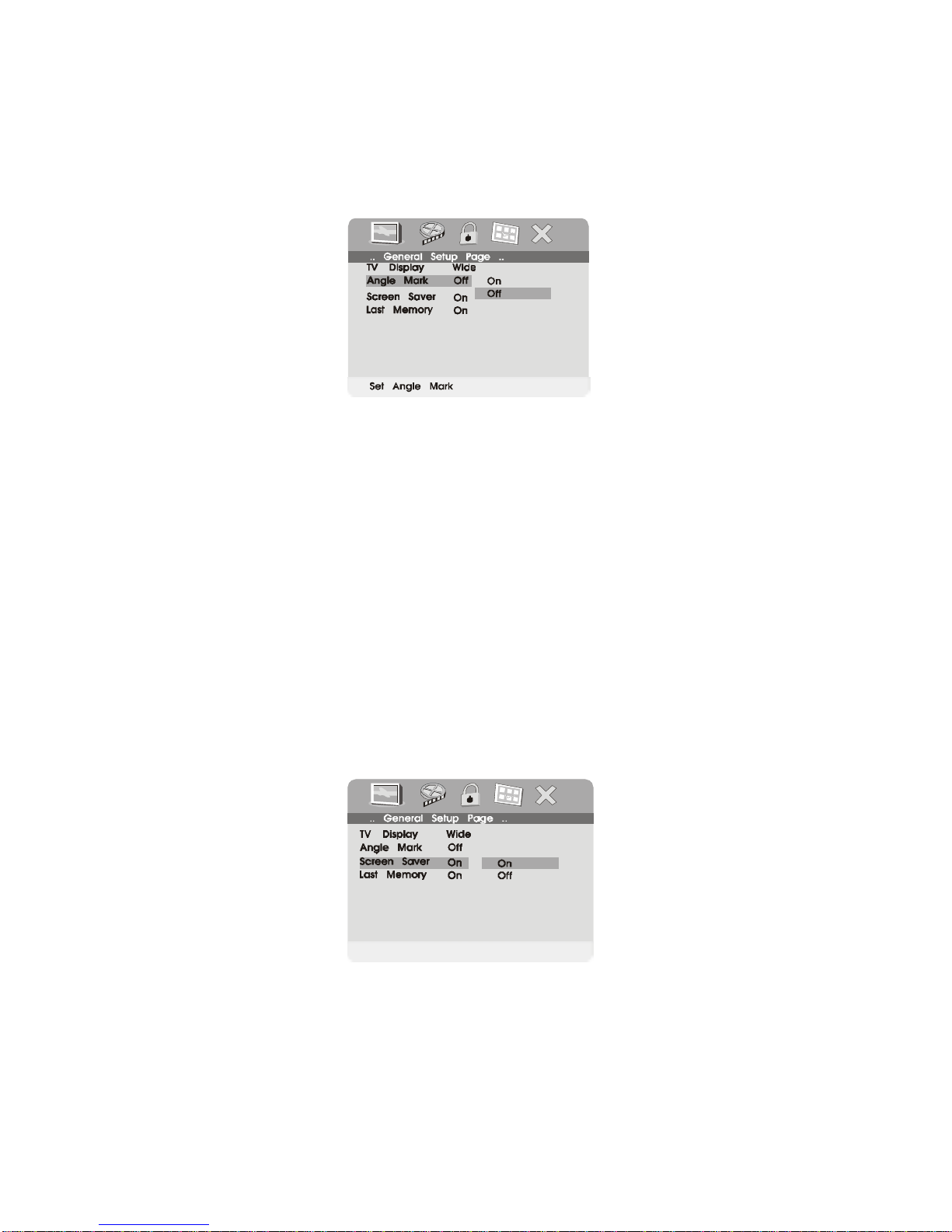

Angle Mark Screen Display
* On: The screen will show the angle mark icon. (*If an angle option is
available).
* Off: The screen will not display the Angle Mark
NOTE: Not all discs contain above features. The above features are
disc dependent.
d).Select ‘Screen Saver’using the S/Tbutton, and then press the XX
button to enter the submenu. Choose Screen Saver on or off using
the S/Tbutton and then press ENTER to confirm the setting. Press
the WW button to return.
Screen Saver Screen Display
*On: Enables screen saver
*Off: Disables screen saver
*NOTE: The DVD player will enter the Screen Saver mode after ap-
proximately three minutes if the same image remains on the screen.
Set Screen Saver

20
e). Select ‘Last Memory’ using the S/Tbutton and then press the
XX button to enter the submenu. Choose Last Memory on or off
using the S/Tbutton and then press ENTER to confirm the set-
ting. Press the WW button to return.

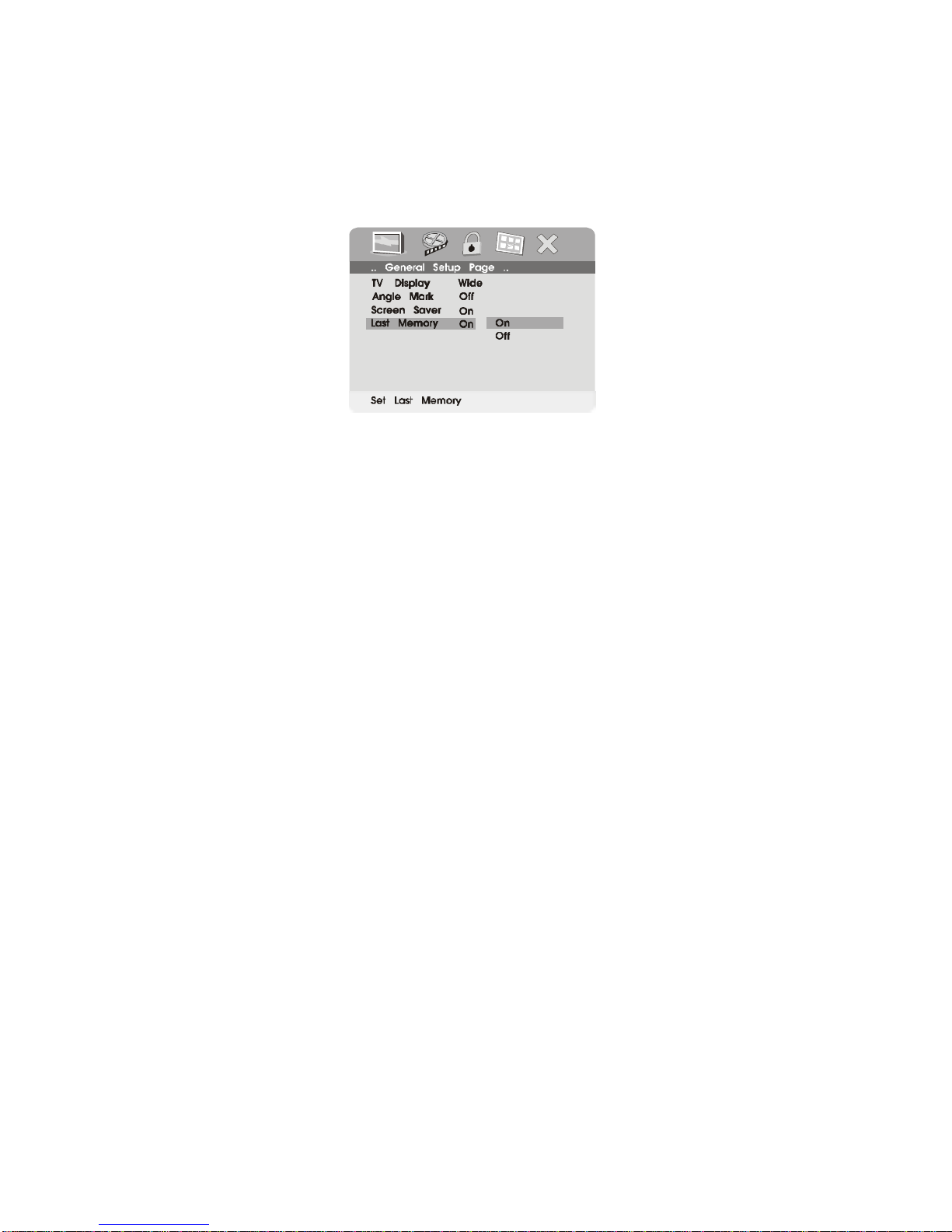

Last Memory Screen Display
*On: The unit will return to the last position on the disc when
power is cycled, but not if disc is ejected.
*Off: The unit will not return to the last position on the disc.
