Audiovox VOH702 User manual

92+
32:(5
92/80( &+$11(/
6(/( &7
$87 2
352
6(1 625
79 9 9
6
+HDGSKRQH +HDGSKRQH9LGHR$XGL R /$XGL R 5
$X[
21 2)) $872
6&5( (1
02'(

-2-
Important Notice
It is unlawful in most jurisdictions for a person to drive a
motor vehicle which is equipped with a television viewer
or screen that is located in the motor vehicle at any point
forward of the back of the driver’s seat, or that is visible,
directly or indirectly, to the driver while operating the
vehicle. In the interest of safety, the VOH702 should
never be installed where it will be visible, directly or
indirectly, by the operator of the motor vehicle.
Please note that the state of Rhode Island forbids the
installation of such a device in a motor vehicle.
Television Reception
This entertainment system is designed primarily for
viewing pre-recorded movies or playing video games.
Television reception in a moving vehicle will be
limited and in some areas will not be possible due to
weak and variable signal strength. Television
viewing in a stationary vehicle will result in an
improvement, but may still be marginal due to
strength. The quality of the picture will not be
consistent with home TV reception. Reception may
be affected by the weather and distance from the TV
station. A weak signal may cause the picture to roll,
be snowy, or cause some color loss.

-3-
Congratulations on your purchase of the Audiovox
VOH702 drop down TV/Video monitor. The VOH702
has been designed to give you and your family many
years of video entertainment in the mobile environment.
Please read the directions that follow to familiarize
yourself with the product and to ensure that you obtain
the best results from your equipment. Please note:
Installation options vary, see the individual owner’s
manuals for each component in your system to obtain
a full understanding of each component’s operation.
Safety Precaution
For safety reasons, when changing video tapes it is
recommended that the vehicle is not in motion, and that
you do not allow children to unfasten seat belts to
change tapes or make adjustments to the system.
System adjustments can be accomplished using the
remote control unit, while seat belts remain fastened.
Enjoy your Audiovox entertainment system but
remember- safety of all passengers remains the
number one priority.
FEATURES
•7” TFT (Thin Film Transistor) Active Matrix LCD
(Liquid Crystal Display) Monitor
•OSD (On Screen Display) for control of Picture
Quality and Functions
•Screen Mode 16:9 or 4:3
•Full Function Remote Control
•Television Tuner
•Plug in RF Transmitter for wireless RF Headphones
•Remote Sensor eye
•Four Audio / Video Sources
•Headphone / Speaker Amplifier
•Two Headphone Jacks for Wired Headphones
•Built-In Dome lights
•Back-lit Controls for Low Light Operation

FRONT PANEL FEATURE
Figure 1
-4-
32:(5
92/80( &+$11(/
6(/(&7
$872
352
6(162 5
79 9 9
6
+HDGSKRQH +HDGSKRQH9LGHR$XGLR /$XGLR 5
$X[
21 2)) $872
6&5((1
02'(













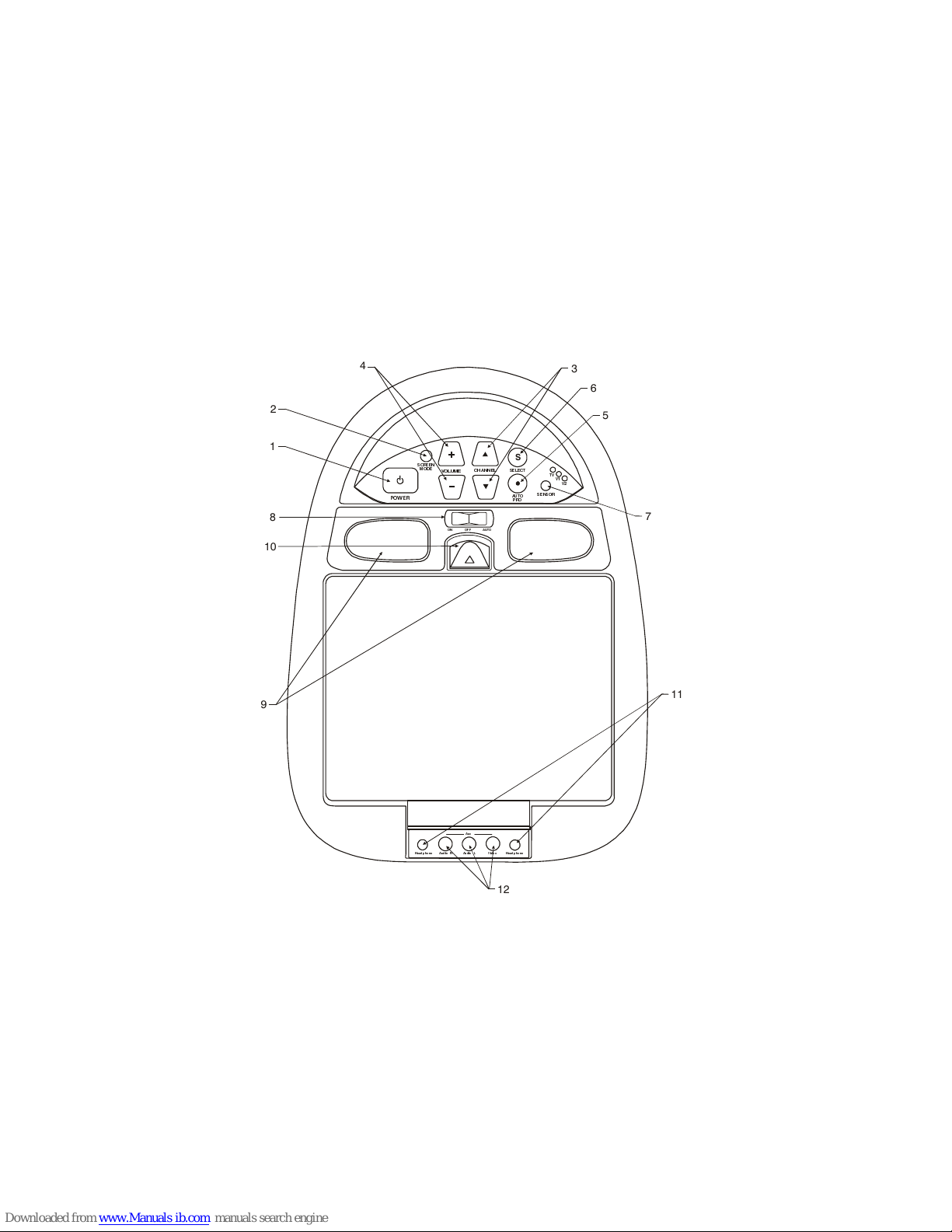

FRONT PANEL FEATURES – See Figure 1
1. Power Button- (Bright red when system is ON, dim
when system is OFF)
2. Screen Mode- Used to select screen 16:9 or 4:3.
3. Channel Up/Down- Changes the TV channel
4. Volume Up/Down- Controls volume to headphone
jacks and external speakers if connected.
5. Auto Pro Switch- Auto Program used to program
local channels into TV memory. Press when vehicle
is in a new location.
6. Source Select- Used to select one of the three A/V
sources. The fourth source is plugged into the RCA
jacks on the rear of the unit. V2 must be selected
once something is plugged into the external jacks it
over rides the previous source on V2.

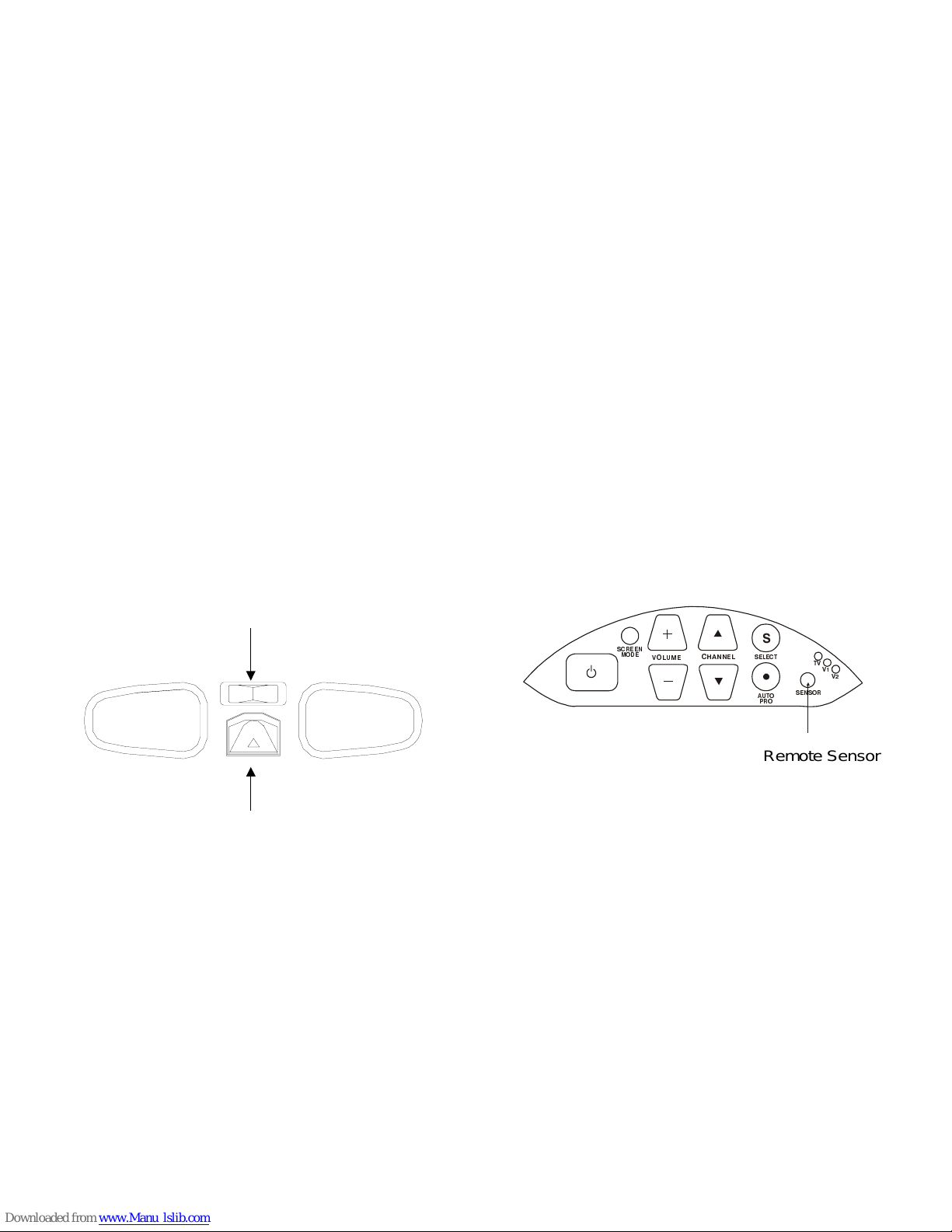

7. Sensor Eye- Allows the remote control to operate the
VOH702’s OSD system (On Screen Display), volume
to wired headphone jacks (and optional external
speakers), and for control of Video Cassette Player
and other accessories.
8. Three Position Dome Light-
•Auto- Will automatically switch on the dome lights in
conjunction with the vehicle’s interior illumination.
For the automatic position, shift the switch to the
right.
•OFF- The dome lights will be off in the middle
position.
•ON- The switch must be in the left position for the
dome lights to turn on.
9. Dome Lights- Provide additional interior illumination
10. Screen Release- Slides in the direction of the arrow
to release the drop down screen.
11. Headphones Jacks- Allows plug-in of two wired
headphones with 1/8” stereo plug.
12. Auxillary A/V Stereo Input- Allows plug-in of
Camcorder, game, portable DVD player or other A/V
source with RCA type output connectors. V2 must be
selected. Plugging into this input over rides the
previous source on V2.
-5-

REMOTE CONTROL OPERATION
-6-
BATTERY INSTALLATION
Before attempting to operate your Remote Control,
install the batteries as described below.
1) Turn the remote control face down. Press down
on the ridged area of the battery cover, and slide
it off.
2) Install two “AAA” batteries as shown. Make sure
that proper polarity (+ or -) is observed.
3) Slide the cover back until it clicks into position.
The remote control will operate the VOH702,
Audiovox Televisions and Video Cassette Players.
It is not a universal remote control and will not
control equipment from other manufacturers.
If a universal remote control is used with the
VOH702, choose the remote control encoding
scheme for Action Televisions when programming
the remote.
1
2
3
4
5
6
8
9
10
11
12
14
13
16
15

-7-
Remote Controlled TV Functions
1. POWER ON/OFF
Press this button to turn the VOH702 on. The
channel number or current video source will be
displayed on screen, and the picture will appear in
a few seconds. Press the button again to turn the
VOH702 off.
2. DIRECT ACCESS (0-9) BUTTONS
Use these buttons to make a direct channel
selection. The channel number chosen will be
displayed on the screen for about 4 seconds. The
direct access is carried out with 0-9 keys (0-99CH).
The “1__” key will not function as it is only used for
cable channels above 99.
3. CHANNEL UP/DOWN BUTTONS
Use these buttons to advance to the next higher or
lower channel. See also: SKIP/SEARCH BUTTON.
4. VOLUME UP/DOWN BUTTONS
Use these buttons to raise or lower the volume
level of the headphone jacks or external speaker if
installed. They are also used to make adjustments
In picture select mode.
Note: These buttons will not affect the volume of
wireless headphones or a wired RF modulator.
When using these devices the volume must be
adjusted with the headphone volume control or with
your radio’s volume control. (See page 11,
Headphones, or page 12, Wired FM Modulator).
5. PICTURE SELECT BUTTON
Each time this button is pressed, the screen picture
adjustment display cycles through “adjustment
bars” for CONTRAST, BRIGHTNESS, COLOR, and
TINT. Once the desired adjustment bar is
displayed, use the VOLUME UP/DOWN buttons to
adjust the setting. The display will automatically
turn off if no adjustments are made within 6
seconds, or if any other button is depressed.
6. MUTE BUTTON
Press this button to shut off the sound at the
headphone stations. The screen will display the
volume adjustment bar for 6 seconds, indicating
that the sound has been turned off. Pressing the
button again restores sound to the previously set
level. The mute feature may also be released by
pressing the VOLUME UP/DOWN buttons.
7. TV / VIDEO BUTTON
Any video equipment connected to the
AUDIO/VIDEO inputs can be used with the TV by
pressing this button. Each time the button is
pressed, the Audio/Video source will change in the
following sequence VIDEO1, VIDEO2, and TV.

-8-
8. AUTO MEMORY BUTTON
When the AUTO MEMORY BUTTON is depressed,
all channels in TV mode are searched and tuned; all
channels with video signals detected are
automatically stored. Please refer to page 2 for
more information on TV reception.
9. SKIP/SEARCH BUTTON
This button selects between SKIP and SEARCH
mode. In “SKIP mode” the TV only stops on
channels that are programmed into memory when
the CHANNEL UP/DOWN buttons are used. When
the SKIP is turned off, the TV will only stop on all
active channels.
10. ERASE/WRITE BUTTON
When tuned to a channel press this button to store
or erase the channel from memory. The stored
channel numbers are displayed in “GREEN” on the
screen, and the non-stored channels are in “RED”.
When skip mode is on, the VOH702 will tune to
only the stored channels when using the CHANNEL
UP/DOWN buttons.
REMOTE CONTROLLED VCP FUNCTIONS
These features can only be used with an Audiovox Video
Cassette Player, if this option was installed with your
video package.
11. POWER BUTTON
This button is used to turn the VCP on and off.
12. “REW” REWIND BUTTON
If this button is pushed while the tape is stopped, the
tape will rewind. If this button is pushed while the
tape is playing, the VCP will go into rewind search
mode. For more information consult the Audiovox
VCP owner’s manual.
13. PLAY BUTTON
Press this button to activate play mode while a tape is
loaded into the VCP. This button may also be used to
disengage search and pause modes. For more
information, consult the VCP owner’s manual.
14. “FFWD” FAST FORWARD BUTTON
If this button is pushed while the tape is stopped, tape
will fast forward. If this button is pressed while the
tape is playing, the VCP will go into fast forward
search mode. For more information on the search
feature of the VCP, consult the VCP owner’s manual.
15. REPLAY BUTTON
Pressing this button will rewind the tape and
immediately begin playback when the tape is fully
rewound.
16. STOP BUTTON
Press this button to stop the tape.

-9-
CHANNEL TUNING SETUP
In order to easily access all available channels, it may
be necessary to perform channel auto-programming
whenever the vehicle’s geographic location has
changed, i.e. city to city, weak signal area.
1. Press the AUTO MEMORY button on the remote
control unit or the AUTO PROGRAM button on the
flip down video unit. You will see the TV cycle
through all it’s channels. The built-in
microprocessor will automatically note each
channel that is actively broadcasting in your area.
2. (A) To tune only strong clear channels with the
CHANNEL UP/DOWN buttons, press the
SKIP/SEARCH button on the Remote Control Unit
until “SKIP MODE ON” is displayed on the bottom
of the screen. The TV will now tune only to strong
active channels when the UP or DOWN buttons
are used on the monitor or the remote control.
(B) To tune to weak or marginal channels with the
CHANNEL UP/DOWN buttons, press the
SKIP/SEARCH button on the Remote Control Unit
until “SKIP MODE OFF” is displayed on the bottom
of the screen. Tune to the desired channel using
the CHANNEL UP/DOWN buttons or go directly to
the channel by using the 0-9 buttons on the Remote
Control.
3. To ERASE a channel, press the ERASE/WRITE
button on the Remote Control Unit until “MANUAL
MEMORY XX ERASE” is displayed on screen. To
STORE a channel, press the button until the
MANUAL MEMORY XX ADD is displayed on
screen.
Note: Please refer to page 2 for more information on
TV reception.
TURNING THE VOH702 ON OR OFF
1. Sliding the screen release lock forward will unlock
the LCD screen and it will drop down slightly.
(Pivot the screen downward until a comfortable
viewing angle is reached). After the unit has been
turned on and displaying a picture, adjustment to
the viewing angle can be made by pivoting the
screen to optimize the picture quality. The internal
friction detent will hold the screen in position while
the system is in use.
2. Pressing the power button on the pod or remote will
alternately turn the system on or off. When in use
the internal back lighting will illuminate the controls.
3. Remember to turn the unit off and pivot the LCD to
the locked position when not in use.

-10-
OPERATION
Overhead Dome Lights
The lights integrated into the VOH702 are controlled by
a three position slide switch. Sliding the switch to the
on position will turn the lights on. The off position will
prevent the lights from turning on at all times, and the
auto position will allow the lights to turn on and off with
the vehicle’s interior lighting. Do not leave the vehicle
unattended with the dome light switch in the on position,
as this could result in a discharged battery.
The switch is shown in the center position. See page 5
for more details.
Light Switch
Screen Release
Remote Sensor
The VOH702 incorporates an infrared sensor, which
relays the signals from the remote control to allow the
VOH702 and VCP to be controlled simply by pointing
it’s remote control at the remote sensor. This provides
control of auxiliary equipment such as an Audiovox
Video Cassette Player. The infrared sensor can relay
signals from any manufacturer’s remote control to it’s
respective component connected to the Video 1 and 2
inputs, such as a DVD player. In this case you must
use the remote control supplied with the DVD player.

32:(5
92/80( &+$11(/
6(/(&7
$872
352
6(1625
79 9 9
6
6&5((1
02'(
Remote Sensor

-11-
External Auxiliary A/V Stereo Inputs (Aux
Video 2)
These inputs are provided to facilitate the temporary
connection of optional audio/video equipment, such as
a camcorder or video game system. To play a source
with these inputs, an RCA patch cord is required to
connect the audio / video signals to their respective
j
acks. Mono audio sources will require the use of an
RCA Y-cable (P/N 0892165) to connect to both right
and left inputs, if patch cords are installed into the
AUX inputs, the AUX INPUT 2 will be temporarily
bypassed. Once the connections have been made,
turn the VOH702 on and press the source button on
the VOH702 or the TV / Video button on the remote
control until “Video 2” is displayed on the screen. The
unit will now play the audio and video signals from the
accessory connected. The remote control will not
operate the accessory components.
VOH702 Jack Panel
OPTIONAL ACCESSORIES
Wired Headphones
There are two 1/8” headphone jacks on the VOH702
that can be used with any standard stereo
headphones. These jacks are controlled by the
volume up/down buttons on the VOH702 or the
remote control.
Wireless Headphones
The VOH702 includes a RF transmitter
(P/N WTXRF01) for use with optional Audiovox
wireless headphones. Tuning the headphone switch
on, and wearing them activates the internal micro
switch, (which includes a tuning knob to tune into the
preset frequency on the RF transmitter), which will
activate the internal RF receiver and the volume can
be adjusted separately with the controls on the
headset. See the documentation accompanying your
Audiovox wireless headphones.

-12-
Wired FM Modulator (P/N 0190730)
Your video system may be equipped with an RF
modulator, that allows you to listen to the VOH702’s
audio signal by tuning your vehicle’s radio to the
selected frequency, (88.7 or 89.1- check with your
installer) and tuning on the remote mounted RF
modulator switch. (In most cases this toggle switch
will be located underneath the driver’s side of the
dash, check with your installer for the exact location.)
Whenever the RF modulator is on, broadcast radio
reception will be poor. Turning the remote mounted
toggle switch off will allow for normal radio reception.
Video Output
The VOH702 provides a video output for an optional
video monitor(s). This output will provide a video
signal that duplicates the signal displayed by the
VOH702 to an additional monitor or video display.
Please see your installer for more information.
Audiovox Video Cassette Player (Aux
Video 1)
In most installations a VCP will be connected to the
“Video 1” input. To view a video cassette, turn the
AVP7000/ AVP7285 on and press the source button
on its control panel or the TV/Video button on the
remote control unit until “Video 1” is displayed on the
screen. The VCP may also be operated with the
remote or the buttons on its face. Inserting a tape
into the VCP will turn it on and automatically activate
the play mode. If a rewound tape had been loaded
into the VCP, prior to its activation press play on the
VCP or the remote control to view the tape. For
more information see the owner’s manual
accompanying your VCP.

TYPICAL SYSTEM CONNECTIONS
-13-
<HOORZ9LGHR,Q
:KLWH$XGLR,Q/HIW
5HG$XGLR,Q5LJKW
+HDGSKRQH
<HOORZ9LGHRRXW
5HG$XGLR2XW5
:KLWH$XGLR2XW/
+HDGSKRQH
9
9&3
9
'9'
:KLWH5&$$XGLR/HIW
5HG5&$$XGLR5LJKW
<H O O RZ  5 & $ 9 L G H R
3,1
3RZHU
&RQQHFWRU
3,1,5
&RQQHFWRU
$FFHVVRU\
+DUQHVV
$QWHQQD
3,1²$XGLR/2XW*UH\
3,1²$XGLR*1'%ODFN
3,1²$XGLR52XW*UHHQ
3,1²3RZHU5HG
3,1²3RZHU*1'%ODFN
3,1²'RPH/LJKW$XWR*UH\
3,1²/LJKW*1'%ODFN
3,1²'RPH/LJKW%5HG
7ZR 'RPH /LJKW·V
FRQQHFWLRQ
6SHDNHU RU +HDGSKRQH
FRQQHFWLRQ
7R )0 7UDQVPLWWHU

-14-
Specifications
LCD Brightness 300 nits (min)
Resolution 1440 x 234
Pixels 336,960
Operation Temperature -10 ~ 65º C
Storage Temperature -40 ~ 85º C
Video Display System NTSC
Audio Output 0.6W @ 16•
Current Draw 1.5A
Weight 2.9 Lbs
Overall Dimensions 2 x 8.6 x 11.8 Inch
(H x W x D)
Troubleshooting
PROBLEM SOLUTION
Poor TV Reception •Perform auto programming of
the tuner
•Verify antenna condition.
•NOTE: Due to the nature of TV
signals, vehicle motion,
direction the vehicle is facing,
distance from the transmitter,
nearby surroundings and
weather may adversely affect
TV reception. These
conditions may result in the
following: picture roll, “snowy”
picture, or momentary loss of
color. Please refer to page 2
for more information on TV
reception.
Poor radio reception (FM
modulator installed) •Check the condition of the
vehicle’s radio antenna.
•Verify that the antenna is fully
raised
•If a wired RF modulator has
been installed, verify that it’s
switch is turned to the off
position
IR sensor inoperative •Verify that the batteries in the
remote are fresh
•Verify that the remote eye is
not obstructed.
•Verify that the infrared
transmitter is affixed over the
sensor eye of the component
to be controlled

© Copyright 2000 Audiovox Corp. 150 Marcus Blvd. Hauppauge, NY 11788 128-6036
