Audiovox VE640 - VE - 640 User manual

-1-
ON/OFF
FM/AM
A/V
AUDIOVOX
CH 1
VE-640
Low Profile Television
6.4” LCD Drop Down Under Counter TV / Video Monitor
Installation and Operation Manual
nMulti-Function Remote Control
nBuilt-In Telephone Mode
nCable Ready 125 Channel Tuner
nInternal Stereo Speakers
nUnder Cabinet Mounting
n A/V Input
FEATURES
TV
TEL CH 2 CH 3
SET
SEEK CH
VOL
TV
FM/AM
AM
PM
CH 1
CH 2
CH 3

-2-
VE640 Low Profile Television
6.4” LCD Drop Down Under Counter TV / Video Monitor
Addendum to the
InstallationandOperationManual
ADDENDUM 128-6181

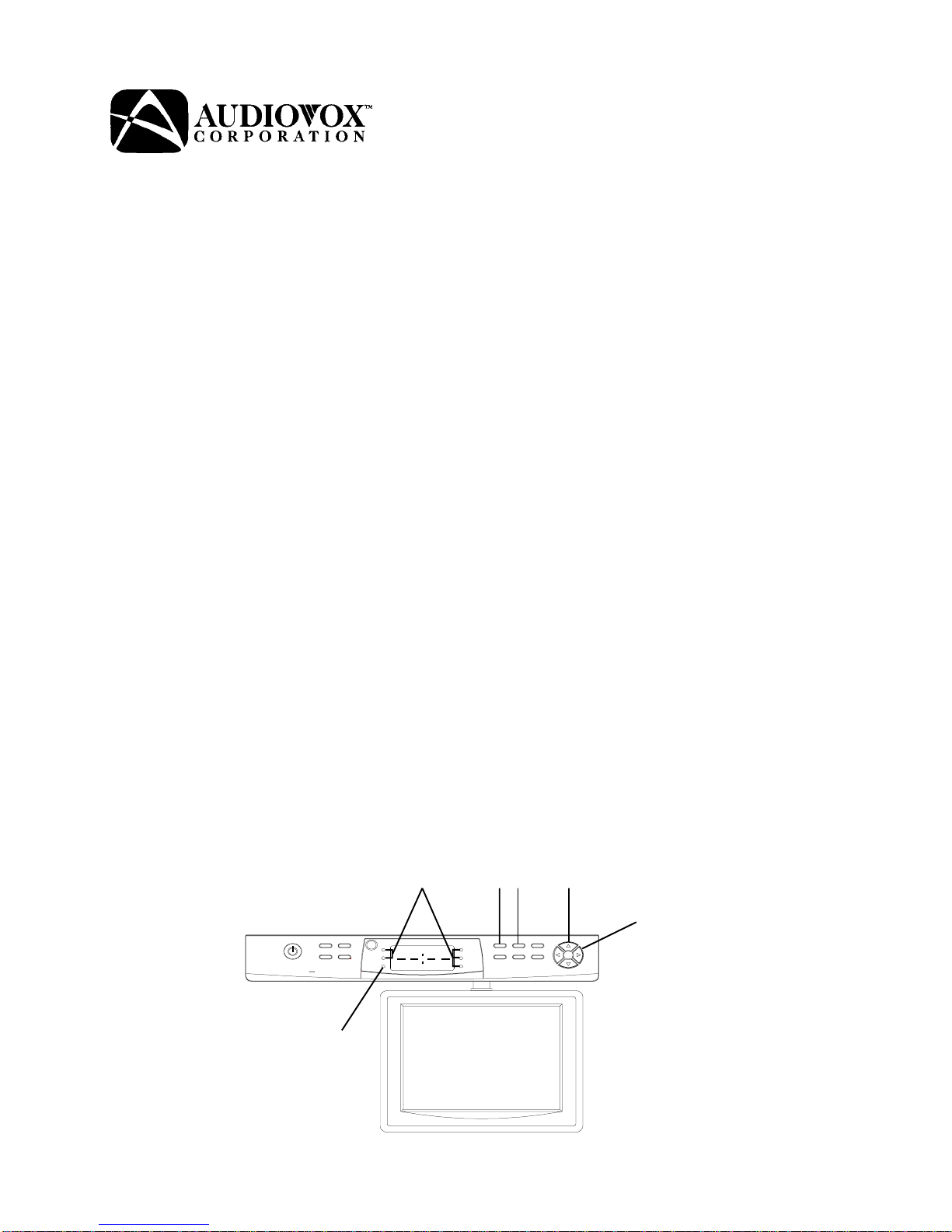

SETTING and ACTIVATING ALARM
NOTE: The VE640 must be turned “OFF” when performing the following procedure.
1) Press the SET button (1) twice to enter the alarm mode. The five LED indicators (2) on either
side of the LCD-Display will begin flashing. A preset time will be displayed with the minutes
portionblinking(AlarmACTIVATEDmode).
NOTE: If a series of dashes appear (- - : - - , Alarm DEACTIVATED mode) press the SEEK UP▲▲
▲▲
▲ button
(3) once to switch to the Alarm ACTIVATED mode.
2) Press the CHANNEL up/down buttons (4) to set the desired hour/minute. When setting the hour
check the AM/PM indicator (6) to assure the proper setting.
3) Press the VOLUME up/down buttons (5) to toggle between the hours and the minutes
4) Press the SET button (1) three times to return to the time display on the LCD panel. The alarm
is now set and activated.
The purpose of this Addendum is to replace the “SETTING ALARM” procedure found in the Operation
section of the VE-640 Operation and Installation Manual (Pg. 13).
DEACTIVATING ALARM
1) Press the SET button (1) twice to enter the alarm mode.
2) Press the SEEK UP▲▲
▲▲
▲ button (3) once. The set time will disappear from the LCD-Display and a
series of dashes will appear (- - : - - , Alarm DEACTIVATED mode).
3) Press the SET button three times to return to the time display on the LCD panel. The alarm is
now deactivated.
NOTE: The set time will be stored in memory and can be reactivated whenever desired by performing
steps 1-3 of the DEACTIVATING ALARM procedure.
Once the alarm is set it will sound each day at the same time as long as it is activated. To deactivate the alarm
performthefollowingprocedure.
2134
5
6
▲▲
▲▲
▲▼▼
▼▼
▼
SEEK C H
CH1 CH2 CH3
SET VOL
ON/OFF
TV FM/AM
A/V TEL
TV
FM/AM
AM
PM
CH1
CH2
CH3

-3-
IMPORTANT SAFETY INFORMATION
1) Unplug the unit before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
2) Use only Audiovox approved accessories.
3) Do not install this video product where it is likely to be exposed to water.
4) Do not obstruct the slots and openings in the cabinet. They are provided for ventilation and are
necessary to ensure reliable operation of the TV and to protect it from overheating. This TV should
never be placed near or over a radiator or heat register.
5) Do not overload electrical outlets or use extension cords as this can result in a risk of fire or electric
shock.
6) Neverpushobjects of any kind into this TVthroughopenings as they may touch dangerous voltage
points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind
on the TV.
7) Do not attempt to service this TV yourself as opening or removing covers may expose you
to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
8) Unplugthis TV from theoutlet and refer servicingto qualified service personnelunder the following
conditions:
a) If the TV has been exposed to water.
b) If the TV does not operate normally when following the operating instructions.
c) If the TV has been dropped or the cabinet has been damaged.

-4-
3a
A
B
C
D
E
F
INCLUDED IN THIS KIT
1 VE-640Television
2 Remote Control Unit (PN 136C2037)
3 AC Power Cord (PN 136B2038)
4 Mountingtemplate
5 Hardware Bag (PN 1501395)
A 3/4” Mounting screws (4)
B 1-1/4” Mounting screws (4)
C 1-1/2” Mounting screws (4)
D 3/4” Spacer (4)
E 1/2” Spacer (4)
F 1/4” Spacer (4)
G Self Adhesive Wire mounting clip (1) (Not Shown)
6 AMAntenna
7 FMDipoleAntenna
TOOLS REQUIRED
Philips Head Screwdriver
Centerpunch
1/8” Drill Bit
Electric Drill
AdhesiveTape
3a
3
3a
4
1
123
456
7890
A/N
TV/CA
CLR
FM/AM
SEEK
MUTE
TEL
PWR
ENT
VOL
VOL
CH CH
2
TV
5
..
..
.
..
7
6
3a
1
AV

-5-
1) Choose an appropriate mounting location underneath a cabinet or shelf. Close proximity to an
electricaloutletanda TV antenna or cable connection will facilitate a neat,easyinstallation. Do
not mount the VE-640 above a range or oven. Be sure that the location chosen will provide
adequate access to the electrical connectors on the rear of the unit before continuing.
2) If the location chosen has bottom edge molding it may be necessary to use the mounting
spacers provided to effectively lower the VE-640’s below or even with the molding. Measure
thedistance betweenthebottomofthemoldingandthe bottomofthe cabinet.Forlarger moldings
choosea combination of spacers which willallow the VE-640 to be securedto the bottom of the
cabinet.
3) Measurethethickness of the bottom of the cabinet or shelf and the spacers chosen. Select the
shortest screw length which will secure the VE-640 to the bottom of the kitchen-cabinet.
4) Cut out the template supplied and tape it in place onto the cabinet surface to be drilled. Center
punch the four holes indicated on the template and remove the template.
5) Carefully drill four 1/8” holes at the locations marked above. Place the screws selected
through the VE-640 and then through the spacers (if required from the bottom-up).
NOTE: To facilitate wiring, connect all wires to the rear of the unit before attaching to the
cabinet.
6) Position the VE-640 and screw it in place using the selected screws. Do not overtighten.
8) Connect your TV antenna or cable system to the antenna connector on the rear of the VE-640.
9) Plug the AC wire into the AC input connector on the rear of the VE-640 and then into the wall.
10) If using the speaker phone feature, plug the VE-640 into a phone jack.
11) Attach the FM Dipole Antenna to the FM Antenna screws.
12) Route the wires safely away from heat and moisture sources and secure them in place, using
the self adhesive wire mounting clip provided.
UNDER CABINET INSTALLATION
Cabinet or
Shelf
Bottom
Edge
Molding
FRONT VIEW SIDE VIEW
3/4”orless Spacers
Spacers

-6-
1) REMOTE INFRARED SENSOR-This sensor
receives infrared signals from the hand held
remote control unit.
2) TVINDICATOR-Whenilluminated, the VE640
is in television mode.
3) FM/AM INDICATOR-When illuminated, the
VE640 is set to receive AM or FM radio
broadcast.
4) AM/PMINDICATOR-Whenilluminated
indicates PM, not illuminated indicates- AM.
5) LCD-DISPLAY-Displays the channel number,
FM/AM frequencies, the time of day and
AuxillaryInput(AU).
6) CH 1 INDICATOR-When illuminated,
the VE-640 is tuned to the preset channel 1.
7) CH 2 INDICATOR-When illuminated, the
VE-640 is tuned to the preset channel 2.
8) CH 3 INDICATOR-When illuminated, the
VE-640 is tuned to the preset channel 3.
9) SET-Press this button to set the time,
alarm, and the FM/AM broadcast.
10) SEEK UP BUTTON-Press this button for
the next higher available channel with
sufficient signal strength.
11) SEEK DOWN BUTTON-Press this
button for the next lower available channel
with sufficient signal strength.
12) UP&DOWN CH-BUTTONS-Press these
buttons to increase or decrease the channel
to view a specific channel.
13) UP & DOWN (VOL) BUTTON-Press
these buttons to increase, or decrease the
volumelevel.
FRONT PANEL CONTROLS
14) CH3-BUTTON-Press this button to view
the third user programmed channel.
15) CH2-BUTTON-Press this button
to view the second user programmed
channel.
16) CH1-BUTTON-Press this button to view
the first user programmed channel.
17) LCD-SCREEN-Displays video signals.
18) Microphone- For hands-free speaker phone
operation.
19) TELEPHONE BUTTON (TEL)-Pressing this
button allows the user to answer an
incoming call.(The VE-640 contains hands
free speakerphone).
20) AUDIO-VIDEO BUTTON (AV)-Press this
button to view an external A/V source that is
plugged into the rear A/V jacks.
21) CONTRAST CONTROL- This control
(located on the side of the LCD) adjusts the
picture contrast.
22) COLOR CONTROL- This control (located
on the side of the LCD) adjusts the color
level of the picture.
23) BRIGHTNESS CONTROL-This control
(located on the side of the LCD) adjusts the
brightness of the picture.
24) ON/OFF BUTTON-Press this button to turn
the VE-640 ON and OFF.
25) TV BUTTON-Press this button to have the
VE-640 to switch back to TV mode.
26) FM/AM BUTTON- Allows user to set the
VE-640 to receive AM or FM radio
broadcasts.

-7-
REAR PANEL CONNECTIONS
2)75OHMANTENNA CONNECTOR
Allows the VE-640 to be connected
toa75ohmexternalcoaxialantenna.
3) AUDIOINPUT-RIGHT-Connectto rightaudio
outputfrom external A/Vsource.
4) AUDIOINPUT-LEFT-Connecttoleft
audiooutput from external A/V source.
5) VIDEOINPUT-Connectto thevideo outputfrom
externalA/V source.
6) TELEPHONEJACK-ConnecttoTelco jack for
speakerphone.
7) AMANTENNA-AllowstheVE-640to be connected
toan external antennafor the receptionofAM
broadcastsignals.
8) POWERINPUT-Connect to AC line cord
supplied with the VE-640.
BATTERY INSTALLATION
1) Turn the Remote Control face down. Place a finger, or coin in the open slot, slide battery holder out.
2) Install the CR2025 battery into its proper slot.
3) Slide the cover back until it clicks.
1) FM ANTENNA- Allows the VE-640 to be
connectedtoanexternalantennaforthe
receptionof FM broadcast signals.
AUDIO-IN VIDEO-IN
AM-ANT. FM-ANT.
TV-ANT.

-8-
1. POWER ON/OFF (PWR)
Press this button to turn the TV on. Press the button again to turn the TV off.
2. NUMERICAL BUTTONS (1- 9, 0)
Usethesebuttons to makeadirectchannel selection. The channelnumberchosenwillbe displayed
on the front panel of the VE-640. Channel selection is carried out using the 0-9 keys.
3. CHANNEL UP/DOWN BUTTONS (CH)
Use these buttons to advance to the next higher or lower channel.
4. VOLUME UP/DOWN BUTTONS (VOL)
Use these buttons to increase or decrease the volume.
5. FM/AM BUTTON (FM/AM)
Each time this button is pressed, the VE-640 will alternate between AM and FM stereo.
6. MUTE BUTTON (MUTE) Indicated by 6 flashing LED’s on front panel.
Press this button to remove all sound. Pressing the button again restores sound to the previously
setlevel.Themute feature may also be released by pressing the VOLUMEUP/DOWNBUTTONS.
7. CLEAR BUTTON (CLR)
Press this button to erase an incorrect channel entry.
8. TELEPHONE BUTTON (TEL)
Press this button to answer your telephone from your VE-640.
9. SEEK BUTTONS (SEEK)
Tunes the VE-640 to next station of sufficient signal strength.
10. ENTER (ENT)
Pressing the enter button (ENT) will cause the channel change to occur immediately.
11. TV-Select TV function.
1
123
456
7890
A/N
TV/CA
CLR
FM/AM
SEEK
MUTE
TEL
PWR
ENT
VOL
VOL
CH CH
2
4
3
5
6
7
8
9NOTE: The remote
control has a magnet
on the rear of the
control for easy
storage on a metal
surface. (Do not store
on oven or range).
10 11
A/V
TV

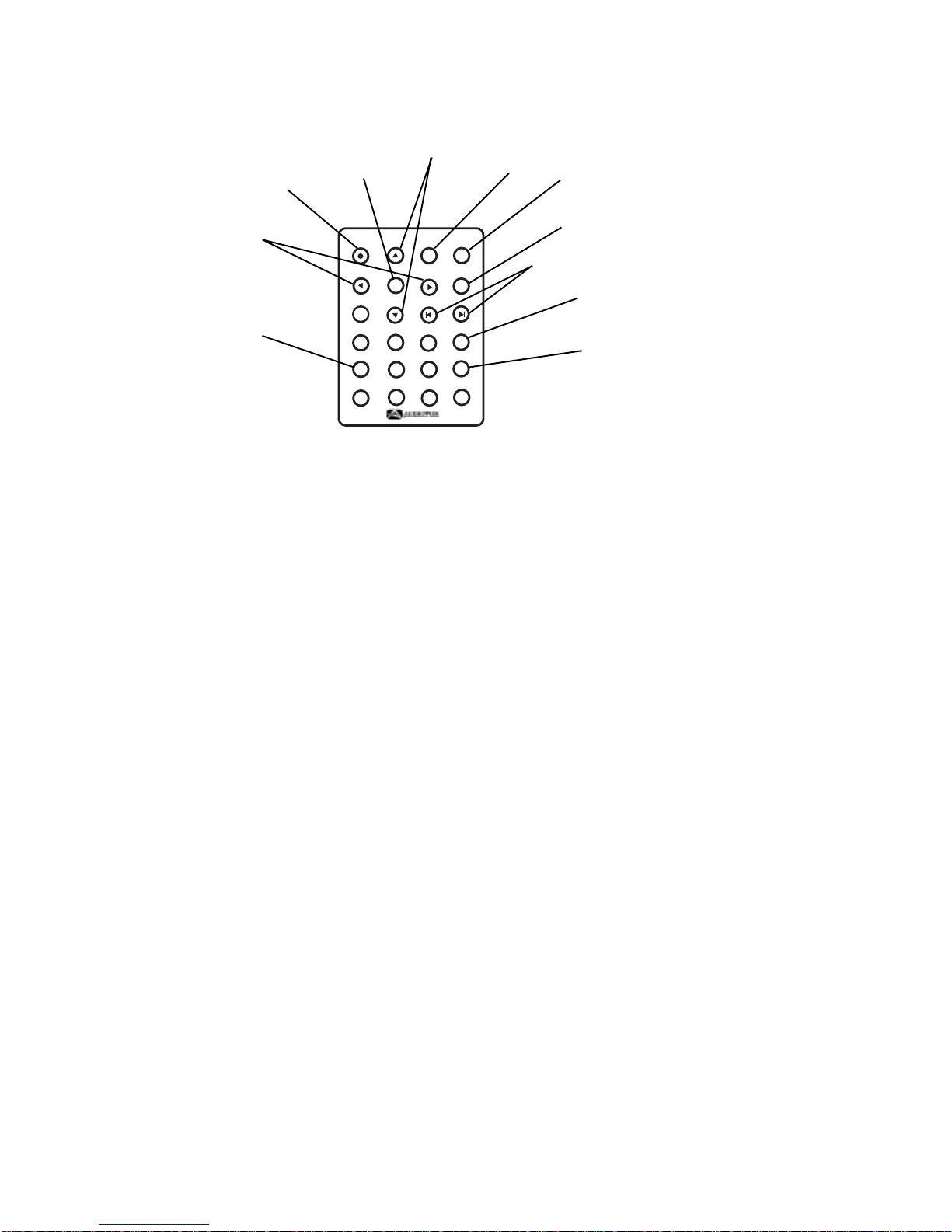

REMOTE CONTROL FUNCTIONS

-9-
NOTE:All settings will be performed with the VE-640 turned off.
1) Press the SET button and the minutes will flash.
2) Use the channel up and down button to set the minutes.
3) Press the volume up/down buttons to toggle between the hour and minutes.
4) Use the channel up and down buttons to set the hour. (Check AM/PM indicator)
5) Press the ON/OFF button to confirm time setting.
SETTING ALARM
1) Press the SET button twice and VE-640 is in alarm mode
indicated by five flashing LED’s.
2) Use the channel up and down button to set the minutes.
3) Press the volume up/down buttons to toggle between the hour and the minutes.
4) Use the channel up and down button to set the hour. (Check AM/PM indicator)
5) Press the SET button three times to return to the time display on the LCD panel. The alarm is
now set.
SETTING THE ALARM TONES
1) Press the SET button twice (power off)
2) Press the SEEK button down once to hear the alarm tone.
3) Pressing channels 1, 2, or 3 will select different tone.
4) While the alarm is sounding set the alarm volume by pressing the volume up/volume down
buttons.
5) Press the SET button to select this tone and volume combination.
6) When the alarm sounds, press the set button to turn it off.
SETTING THE CABLE TV MODE
1) Press the SET button three times to enter the cable configuration mode. AIR appears on the
display. (Pressing channel 1 button switches from broadcast TV (VHF or UHF) to cable TV).
2) Press the channel 1 button, and switch to cable. CABL will appear on the LCD.
3) Press the SET again to display the cable system mode (Standard, IRC, HRC).
When the desired mode is reached, press the SET button to confirm.
4) Press the channel 1 button to select the cable mode (STD/IRC/HRC).
OPERATION
TURNING THE VE-640 ON/OFF
1) Press the ON/OFF button to turn the unit on.
2) Press the ON/OFF button again to turn the unit off.
CHANNEL TUNING SET UP
In addition to normal broadcast reception of VHF and UHF channels, if you are a Cable TV subscriber,
your new TV is capable of receiving many unscrambled Cable channels without the use of a converter
box. When set to Broadcast TV it receives CH2-CH69. When set to one of the CATV modes (STD,
HRC, or IRC) it receives CH1-CH125. NOTE: Most cable companies broadcast in STD Mode.
POSITIONING THE SCREEN
Pivot the screen forward until a comfortable viewing angle is reached. The screen may also be rotated
from side to side. Do not force the screen beyond its rotational limit . The VE-640 is now ready for use.
Pressingthe power button on the TVor the remote will turn thesystem on or off. Remember to turnthe
unit off and pivot the screen to the closed position when not in use.
SETTING THE TIME

-10-
OPERATION CONTINUED
SETTING THE PRESETS (FOR AM AND FM RADIO OR TV MODES)
1) Tune to the desired channel.
2) Press the set button and the display flashes.
3) Select desired Preset (Channel 1, 2, or 3) and the LED adjacent to the preset will illuminate to
confirm selection.
Problem Solution
Poor Reception Verify Tuner setting matches Antenna / Cable broadcast
system.
Remote control will not function Verify that the sensor on the VE-640 is not obstructed.
Verify that the infrared LED on the transmitter is not
obstructed.
Check the condition of the remote control batteries.
Black and White Reception Verify Tuner setting matches Antenna / Cable broadcast
system.Try other system types with the TV/CATV
BUTTON of the remote control.
No picture on screen IfunitisinAUXMODEandthereisnovideosignalpresent,
the screen will be blank. Press the TV button to display
the picture.

-11-
TECHNICAL SPECIFICATIONS
Illumination: CCFL Edge Lit Tube
Backlighting Life Expectancy: 10,000 Hrs.
Pixels: 224,640
Resolution: 960 x 234
Power Supply: 120 VAC 60 Hz, 22 Watts
Operating Temperature: 0° - 40° C
Frequency Range: AM 520 kHz-1710 kHz
FM87.5MHz-108MHz
Channels: (2- 69) VHF/UHF 125 CABLE TV
TV System: NTSC
Audio Output: 1.2 W/4 Ohms (2 Speakers)
Body Size: 11-3/4”W x 11 “D x 2”H (Closed)
11-3/4”W x 11 “ D x 7-5/8”H (Open)
Screen: TFT, Active Matrix LCD 6.4” Diagonally Measured
Weight: 4. 85 lbs

-12-
AUDIOVOX ELECTRONICS CORP. (the Company) warrants to the original retail purchaser of this product that should
this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within
90 days from the date of original purchase, such defect(s) will be repaired or replaced with reconditioned product (at
the Company's option) without charge for parts and repair labor.
To obtain repair or replacement within the terms of this Warranty, the product is to be delivered with proof of warranty
coverage(e.g.dated bill ofsale),specificationofdefect(s),transportationprepaid,totheCompanyat theaddressshown
below.
This Warranty does not extend to the elimination of externally generated static or noise, to correction of antenna
problems, to costs incurred for installation, removal or reinstallation of the product, or to damage to tapes, discs,
speakers, accessories, or electrical systems.
This Warranty does not apply to any product or part thereof which, in the opinion of the Company, has suffered or been
damaged through alteration, improper installation, mishandling, misuse, neglect, accident, or by removal or deface-
ment of the factory serial number/bar code label(s). THE EXTENT OF THE COMPANY'S LIABILITY UNDER THIS
WARRANTYISLIMITEDTOTHEREPAIRORREPLACEMENTPROVIDEDABOVE AND,INNOEVENT,SHALLTHE
COMPANY'SLIABILITY EXCEEDTHE PURCHASEPRICE PAIDBY PURCHASERFOR THEPRODUCT.
This Warranty is in lieu of all other express warranties or liabilities. ANY IMPLIED WARRANTIES, INCLUDING ANY
IMPLIEDWARRANTYOFMERCHANTABILITY,SHALLBELIMITEDTOTHEDURATIONOFTHISWRITTENWARRANTY.
ANYACTION FORBREACH OFANY WARRANTYHEREUNDER INCLUDING ANY IMPLIED WARRANTY OF MER-
CHANTABILITYMUSTBEBROUGHTWITHINAPERIODOF30MONTHSFROMDATEOFORIGINALPURCHASE. IN
NOCASESHALLTHECOMPANYBELIABLEFORANYCONSEQUENTIALORINCIDENTALDAMAGESFORBREACH
OF THIS OR ANY OTHER WARRANTY, EXPRESS OR IMPLIED, WHATSOEVER. No person or representative is
authorized to assume for the Company any liability other than expressed herein in connection with the sale of this
product.
Some states do not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental
or consequential damage so the above limitations or exclusions may not apply to you. This Warranty gives you specific
legal rights and you may also have other rights which vary from state to state.
90 DAY LIMITED WARRANTY
Applies to Audiovox Video Products
U.S.A.: AUDIOVOX ELECTRONICS CORPORATION,150MARCUSBLVD.,HAUPPAUGE, NEWYORK 11788 l1-800-645-4994
CANADA : CALL1-800-645-4994FORLOCATION OF WARRANTYSTATIONSERVINGYOURAREA
128-5556C

-13- 128-6124
© Copyright 2001 Audiovox Corp. 150 Marcus Blvd. Hauppauge, NY 11788
