AUMA SA 48.1 SAR 25.1 User manual

Multi-turn actuators
SA 25.1 –SA 48.1
SAR 25.1 –SAR 30.1
with actuator controls
AM 02.1
Assembly, operation, commissioningOperation instructions

Read operation instructions first.
●Observe safety instructions.
●These operation instructions are part of the product.
●Retain operation instructions during product life.
●Pass on instructions to any subsequent user or owner of the product.
Purpose of the document:
This document contains information for installation, commissioning, operation and maintenance staff.It is intended
to support device installation and commissioning.
Reference documents:
Reference documents can be downloaded from the Internet (www.auma.com) or ordered directly from AUMA
(refer to <Addresses>).
Table of contents Page
51. Safety instructions................................................................................................................. 51.1. Basic information on safety 51.2. Range of application 61.3. Warnings and notes 61.4. References and symbols
82. Identification........................................................................................................................... 82.1. Name plate 112.2. Short description
123. Transport, storage and packaging........................................................................................ 123.1. Transport 133.2. Storage 133.3. Packaging
144. Assembly................................................................................................................................ 144.1. Mounting position 144.2. Handwheel fitting 154.3. Multi-turn actuator: mount to valve/gearbox 154.3.1. Output drive type A 164.3.1.1. Stem nut: finish machining 174.3.1.2. Multi-turn actuator (with output drive type A):mount to valve 184.3.2. Output drive types B and E 184.3.2.1. Multi-turn actuator with output drive types B:mount to valve/gearbox 194.4. Accessories for assembly 194.4.1. Stem protection tube for rising valve stem
215. Electrical connection............................................................................................................. 215.1. Basic information 235.2. Connection with control box 245.3. Electrical connection of actuator controls 245.3.1. Electrical connection S/SH (AUMA plug/socket connector) 255.3.1.1. Terminal compartment : open 265.3.1.2. Cable connection 275.3.1.3. Terminal compartment : close 285.4. Electrical connection of actuator
2
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
Table of contents AM 02.1

295.4.1. Motor connection 295.4.1.1. Motor connection compartment: open 295.4.1.2. Motor cables: connect 305.4.1.3. Motor connection compartment: close 315.4.2. S/SH electrical connection (AUMA plug/socket connector) 315.4.2.1. Terminal compartment: open 325.4.2.2. Cable connection 335.4.2.3. Terminal compartment: close 345.5. Accessories for electrical connection 345.5.1. Actuator controls on wall bracket 355.5.2. Parking frame 365.5.3. DS intermediate frame for double sealing 365.5.4. External earth connection
376. Operation................................................................................................................................ 376.1. Manual operation 376.1.1. Engage manual operation 386.1.2. Manual operation: disengage 386.2. Motor operation 386.2.1. Local operation 396.2.2. Actuator operation from remote
407. Indications.............................................................................................................................. 407.1. Indication lights 407.2. Optional indications 407.2.1. Mechanical position indication via indicator mark
428. Signals (output signals)......................................................................................................... 428.1. Feedback signals via output contacts (binary) 428.2. Feedback signals (analogue)
439. Commissioning (basic settings)........................................................................................... 439.1. Heat-up time for low temperature version 439.2. Switch compartment: open 449.3. Torque switching: set 449.4. Limit switching: set 459.4.1. End position CLOSED (black section): set 459.4.2. End position OPEN (white section): set 469.5. Test run 469.5.1. Direction of rotation at mechanical position indicator: check 469.5.2. Direction of rotation at hollow shaft/stem: check 479.5.3. Limit switching: check 479.6. Switch compartment: close
4910. Commissioning (optional equipment settings)................................................................... 4910.1. Potentiometer 4910.1.1. Potentiometer: set 4910.2. RWG electronic position transmitter 5010.2.1. Measuring range: set 5010.3. EWG 01.1 electronic position transmitter 5110.3.1. Measuring range: set 5210.3.2. Current values :adjust 5310.3.3. LED end position signalling: switch on/off
3
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
AM 02.1 Table of contents

5310.4. Intermediate positions: set 5410.4.1. Running direction CLOSE (black section): set 5410.4.2. Running direction OPEN (white section): set 5410.5. Mechanical position indicator: set
5611. Commissioning –controls settings..................................................................................... 5611.1. Actuator controls: open 5611.2. Type of seating: set 5711.3. Push-to-run operation or self-retaining: set 5811.4. Running indication (blinker transmitter):activate/deactivate 5811.5. Torque fault in collective fault signal: activate/deactivate 5811.6. LEDs for torque fault, phase failure, motor protection 5911.7. Positioner 5911.7.1. Input ranges (signal type) for setpoint and actual value 6011.7.2. Behaviour on loss of signal (actuator reaction) 6111.7.3. Adjustment in end positions 6311.7.4. Sensitivity setting 6411.8. EMERGENCY command (EMERGENCY - OPEN/EMERGENCY - CLOSE) 6411.9. Actuator controls: close 6511.10. PTC tripping device (option): test
6612. Corrective action.................................................................................................................... 6612.1. Faults during commissioning 6612.2. Fuses 6612.2.1. Fuses within the actuator controls 6812.2.2. Fuses within the control box 6912.2.3. Motor protection (thermal monitoring)
7013. Servicing and maintenance................................................................................................... 7013.1. Preventive measures for servicing and safe operation 7113.2. Maintenance 7113.3. Disposal and recycling
7214. Technical data......................................................................................................................... 7214.1. Technical data Multi-turn actuators 7414.2. Technical data Actuator controls 7714.3. Technical data Control box
7915. Spare parts............................................................................................................................. 7915.1. Multi-turn actuators SA 25.1 –SA 48.1/SAR 25.1 –SAR 30.1 8115.2. Actuator controls AM 01.1/AM 02.1 8315.3. Wall bracket 8515.4. Control cabinet for switchgear
8716. Certificates.............................................................................................................................. 8716.1. EU Declaration of Incorporation / Declaration of Conformity
88Index........................................................................................................................................
90Addresses...............................................................................................................................
4
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
Table of contents AM 02.1

1. Safety instructions
1.1. Basic information on safety
Standards/directives Our products are designed and manufactured in compliance with recognised
standards and directives.This is certified in a Declaration of Incorporation and an
EU Declaration of Conformity.
The end user or the contractor must ensure that all legal requirements, directives,
guidelines, national regulations and recommendations with respect to assembly,
electrical connection, commissioning and operation are met at the place of installation.
Safetyinstructions/warn-
ings All personnel working with this device must be familiar with the safety and warning
instructions in this manual and observe the instructions given. Safety instructions
and warning signs on the device must be observed to avoid personal injury or property
damage.
Qualification of staff Assembly, electrical connection, commissioning, operation, and maintenance must
be carried out by suitably qualified personnel authorised by the end user or contractor
of the plant only.
Prior to working on this product, the staff must have thoroughly read and understood
these instructions and, furthermore, know and observe officially recognised rules
regarding occupational health and safety.
Commissioning Prior to commissioning, it is important to check that all settings meet the requirements
of the application. Incorrect settings might present a danger to the application, e.g.
cause damage to the valve or the installation.The manufacturer will not be held
liable for any consequential damage.Such risk lies entirely with the user.
Operation Prerequisites for safe and smooth operation:
●Correct transport, proper storage, mounting and installation, as well as careful
commissioning.
●Only operate the device if it is in perfect condition while observing these instruc-
tions.
●Immediately report any faults and damage and allow for corrective measures.
●Observe recognised rules for occupational health and safety.
●Observe national regulations.
●During operation,the housingwarmsup andsurfacetemperatures> 60°C may
occur.To prevent possible burns, we recommend checking the surface temper-
ature using an appropriate thermometer and wearing protective gloves, if re-
quired, prior to working on the device.
Protective measures The end user or the contractor are responsible for implementing required protective
measures on site, such as enclosures, barriers, or personal protective equipment
for the staff.
Maintenance To ensure safe device operation, the maintenance instructions included in this manual
must be observed.
Any device modification requires prior written consent of the manufacturer.
1.2. Range of application
AUMA multi-turn actuators are designed for the operation of industrial valves, e.g.
globe valves, gate valves, butterfly valves, and ball valves.
Other applications require explicit (written) confirmation by the manufacturer.
The following applications are not permitted, e.g.:
●Industrial trucks according to EN ISO 3691
●Lifting appliances according to EN 14502
●Passenger lifts according to DIN 15306 and 15309
●Service lifts according to EN 81-1/A1
5
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
AM 02.1 Safety instructions

●Escalators
●Continuous duty
●Buried service
●Continuous submersion (observe enclosure protection)
●Potentially explosive areas
●Radiation exposed areas in nuclear power plants
No liability can be assumed for inappropriate or unintended use.
Observance of these operation instructions is considered as part of the device's
designated use.
Information These operation instructions are only valid for the "clockwise closing" standard
version, i.e.driven shaft turns clockwise to close the valve.
1.3. Warnings and notes
The following warnings draw special attention to safety-relevant procedures in these
operation instructions, each marked by the appropriate signal word (DANGER,
WARNING, CAUTION, NOTICE).
Indicates an imminently hazardous situation with a high level of risk. Failure
to observe this warning could result in death or serious injury.
Indicates a potentially hazardous situation with a medium level of risk.Failure
to observe this warning could result in death or serious injury.
Indicates a potentially hazardous situation with a low level of risk. Failure to
observe this warning could result in minor or moderate injury. May also be
used with property damage.
Potentially hazardous situation. Failure to observe this warning could result
in property damage. Is not used for personal injury.
Arrangement and typographic structure of the warnings
Type of hazard and respective source!
Potential consequence(s) in case of non-observance (option)
→Measures to avoid the danger
→Further measure(s)
Safety alert symbol warns of a potential personal injury hazard.
The signal word (here: DANGER) indicates the level of hazard.
1.4. References and symbols
The following references and symbols are used in these instructions:
Information The term Information preceding the text indicates important notes and information.
Symbol for CLOSED (valve closed)
Symbol for OPEN (valve open)
Important information before the next step.This symbol indicates what is required
for the next step or what has to be prepared or observed.
6
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
Safety instructions AM 02.1

< > Reference to other sections
Terms in brackets shown above refer to other sections of the document which provide
further information on this topic.These terms are either listed in the index, a heading
or in the table of contents and may easily be located.
7
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
AM 02.1 Safety instructions

2. Identification
2.1. Name plate
Figure 1: Arrangement of name plates
[1] Actuator name plate
[2] Actuator controls name plate
[3] Motor name plate
[4] Additional plate, e.g. KKS plate (Power Plant Classification System)
Actuator name plate
Figure 2: Actuator name plate (example)
(= manufacturer logo); (= CE mark)
[1] Name of manufacturer
[2] Address of manufacturer
[3] Type designation
[4] Order number
[5] Serial number
[6] Speed
[7] Torque range in direction CLOSE
[8] Torque range in direction OPEN
[9] Type of lubricant
[10] Permissible ambient temperature
[11] Can be assigned as an option upon customer request
[12] Enclosure protection
[13] Data Matrix code
8
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
Identification AM 02.1

Actuator controls name plate
Figure 3: Actuator controls name plate
(= manufacturer logo); (= CE mark)
[1] Type designation
[2] Order number
[3] Serial number
[4] Actuator terminal plan
[5] Actuator controls terminal plan
[6] Mains voltage
[7] AUMA power class for switchgear
[8] Permissible ambient temperature
[9] Enclosure protection
[10] Control
[11] Data Matrix code
Motor name plate
Figure 4: Motor name plate (example)
(= manufacturer logo); (= CE mark)
[1] Motor type
[2] Motor article number
[3] Serial number
[4] Current type, mains voltage
[5] Rated power
[6] Rated current
[7] Type of duty
[8] Enclosure protection
[9] Motor protection (temperature protection)
[10] Insulation class
[11] Speed
[12] Power factor cos phi
[13] Mains frequency
[14] Data Matrix code
9
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
AM 02.1 Identification

Descriptions referring to name plate indications
Type designation Figure 5:Type designation (example)
1. Type and size of actuator
2. Flange size
Type and size
These instructions apply to the following devices types and sizes:
●Type SA = Multi-turn actuators for open-close duty
Sizes: 25.1, 30.1, 35.1, 40.1, 48.1
●Type SAR= Multi-turn actuators for modulating duty
Sizes: 25.1, 30.1
●Type AM = AUMA MATIC actuator controls
Size: 02.1
Order number The product can be identified using this number and the technical data as well as
order-related data pertaining to the device can be requested.
Please always state this number for any product inquiries.
On the Internet at http://www.auma.com > Service & Support >myAUMA, we offer
a service allowing authorised users to download order-related documents such as
wiring diagramsand technical data(both in Germanand English), inspectioncertificate
and the operation instructions when entering the order number.
Actuator serial number Table 1:
Description of serial number (with example 0516MD12345)
MD123451605
Positions 1+2: Assembly in week = week 0505
Positions 3+4:Year of manufacture = 201616
Internal number for unambiguous product identificationMD12345
AUMA power class for
switchgear The switchgear used in the actuator controls (reversing contactors/thyristors) are
classified according to AUMA power classes (e.g.A1, B1, ....).The power class
defines the max. permissible rated power (of the motor) the switchgear has been
designed for.The rated power (nominal power) of the actuator motor is indicated in
kW on the motor name plate.For the assignment of the AUMA power classes to the
nominal power of the motor types, refer to the separate electrical data sheets.
For switchgear without assignment to any power classes, the actuator controls name
plate does not indicate the power class but the max. rated power in kW.
Data Matrix code Whenregistered as authoriseduser,you mayuse our AUMA Assistant App to scan
the Data Matrix code and directly access the order-related product documents without
having to enter order number or serial number.
Figure 6: Link to AUMA Assistant App:
For further Service & Support, software/apps/...refer to www.auma.com.
10
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
Identification AM 02.1

Control Table 2:
Control examples (indications on actuator controls name plate)
DescriptionInput signal
Control voltage 24V DC for OPEN-CLOSE control via digital inputs (OPEN,
STOP, CLOSE)
24 V DC
Control voltage 48V DC OPEN-CLOSE control via digital inputs (OPEN,
STOP, CLOSE)
48 V DC
Control voltage 60V DC OPEN-CLOSE control via digital inputs (OPEN,
STOP, CLOSE)
60 V DC
Control voltage 115V AC for OPEN-CLOSE control via digital inputs (OPEN,
STOP, CLOSE)
115 V AC
2.2. Short description
Multi-turn actuator Definition in compliance with EN 15714-2/EN ISO 5210:
A multi-turn actuator is an actuator which transmits torque to a valve for at least one
full revolution.It is capable of withstanding thrust.
AUMA multi-turn actuators SA 25.1 –SA 48.1/SAR 25.1 –SAR 30.1 are driven by
an electric motor and are capable of withstanding thrust in combination with output
drive type A.For manual operation, a handwheel is provided.Switching off in end
positions may be either by limit or torque seating.Actuator controls are required to
operate or process the actuator signals.
Actuator controls The AM 02.1 actuator controls are used to operate actuators and are supplied ready
for use.The controls may be mounted directly to the actuator or separately on a wall
bracket.For high nominal motor currents of the actuator, the switchgear of the actuator
controls additionally require a control box.The functions of the actuator controls
include standard valve control in OPEN-CLOSE duty, position indications and different
signals right through to position control (option).
Local controls Operation (via push-buttons), setting and indication can be performed directly at the
actuator controls (contents of these instructions).
11
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
AM 02.1 Identification

3. Transport, storage and packaging
3.1. Transport
For transport to place of installation, use sturdy packaging.
Hovering load!
Risk of death or serious injury.
→Do NOT stand below hovering load.
→Attach ropes or hooks for the purpose of lifting by hoist only to housing and NOT
to handwheel.
→Actuators mounted on valves: Attach ropes or hooks for the purpose of lifting
by hoist to valve and NOT to actuator.
→Actuatorsmounted togearboxes:Attach ropesor hooksforthe purposeof lifting
by hoist only to the gearbox using eyebolts and NOT to the actuator.
→Actuators mounted to controls: Attach ropes or hooks for the purpose of lifting
by hoist only to the actuator and NOT to the controls.
→Respect total weight of combination (actuator, actuator controls, gearbox, valve)
→Secure load against falling down, sliding or tilting.
→Perform lift trial at low height to eliminate any potential danger e.g.by tilting.

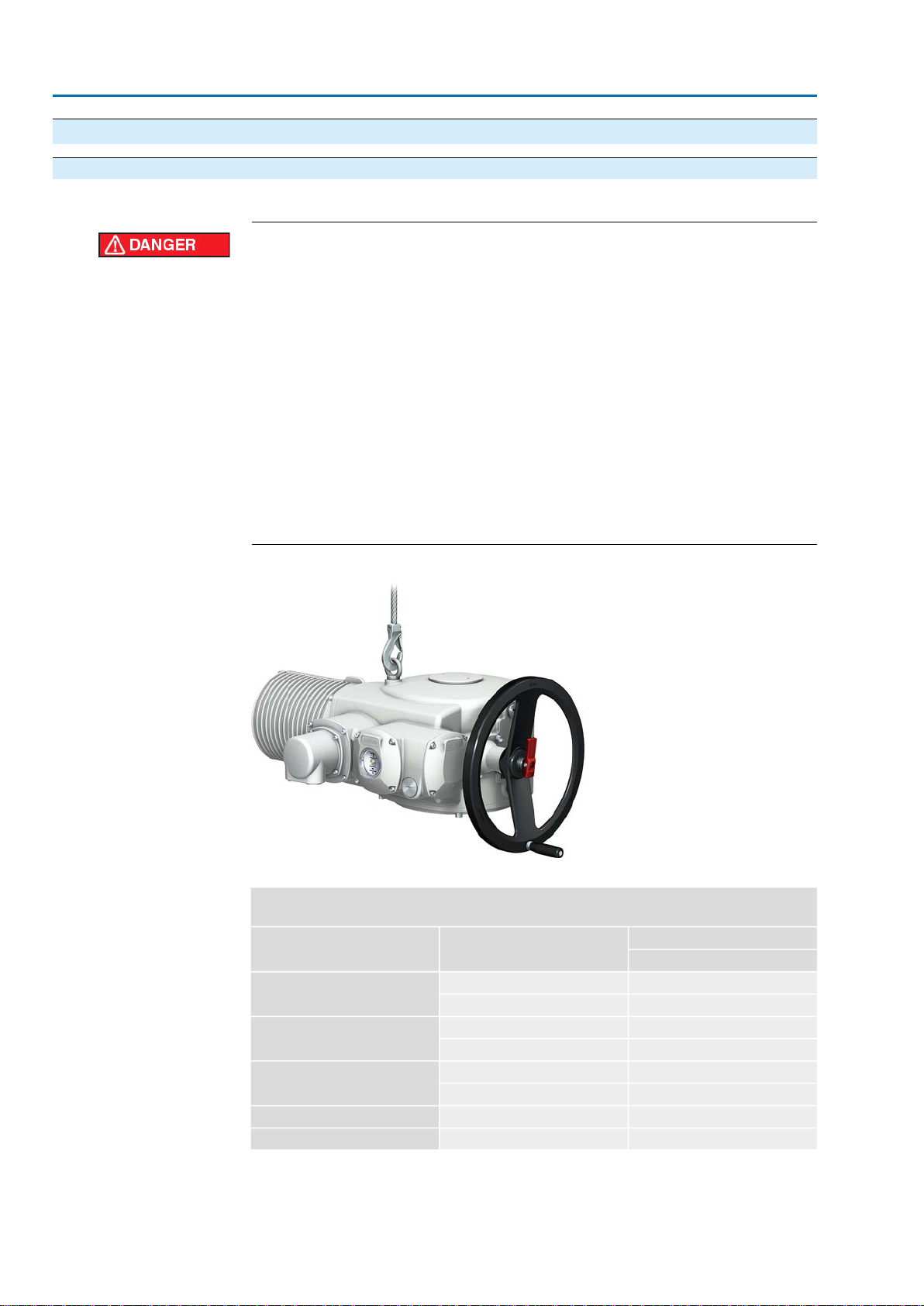

Figure 7: Example: Lifting the actuator
Table 3:
Weights for multi-turn actuators SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
with 3-phase AC motors
Weight2) Motor type1) Type designation
Actuator approx. [kg]
150AD... 90-...SA 25.1/
SAR 25.1 160AD... 132-...
190AD... 112-...SA 30.1/
SAR 30.1 260AD... 160-...
410AD... 132-...SA 35.1
425AD... 160-...
510AD... 160-...SA 40.1
750AD... 180-...SA 48.1
Refer to motor name plate1) Indicated weight includes AUMA NORM multi-turn actuator with 3-phase AC motor, electrical con-
nection in standard version, output drive type B1 and handwheel.For other output drive types, heed
additional weights.
2)
12
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
Transport, storage and packaging AM 02.1

Table 4:
Weights for output drive type A 25.2 –A 40.2
[kg]Flange sizeType designation
41F 25.2A 25.2
68F 30.2A 30.2
129F 35.2A 35.2
207F 40.2A 40.2
Table 5:
Weights for output drive type AF 25.2 –AF 40.2
[kg]Flange sizeType designation
61F 25.2AF 25.2
103F 30.2AF 30.2
180F 35.2AF 35.2
320F 40.2AF 40.2
3.2. Storage
Danger of corrosion due to inappropriate storage!
→Store in a well-ventilated, dry room.
→Protect against floor dampness by storage on a shelf or on a wooden pallet.
→Cover to protect against dust and dirt.
→Apply suitable corrosion protection agent to uncoated surfaces.
Damage due to excessively low storage temperatures!
→AUMA MATIC actuator controls may NOT be stored below –40 °C
Long-term storage For long-term storage (more than 6 months), observe the following points:
1. Prior to storage:
Protect uncoated surfaces, in particular the output drive parts and mounting
surface, with long-term corrosion protection agent.
2. At an interval of approx. 6 months:
Check for corrosion.If first signs of corrosion show, apply new corrosion protec-
tion.
3.3. Packaging
Our products are protected by special packaging for transport when leaving the
factory.The packaging consists of environmentally friendly materials which can easily
be separated and recycled.We use the following packaging materials: wood,
cardboard, paper, and PE foil.For the disposal of the packaging material, we
recommend recycling and collection centres.
13
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
AM 02.1 Transport, storage and packaging

4. Assembly
4.1. Mounting position
The product described in this document can be operated without restriction in any
mounting position.
4.2. Handwheel fitting
Information For transportreason, handwheelswith adiameter of 400mm andlarger are supplied
separately within the scope of delivery.
Damage at the change-over mechanism due to incorrect assembly!
→Only pivot change-over lever manually.
→Do NOT use extensions as lever for operation.
→First engage manual operation correctly, then mount handwheel.

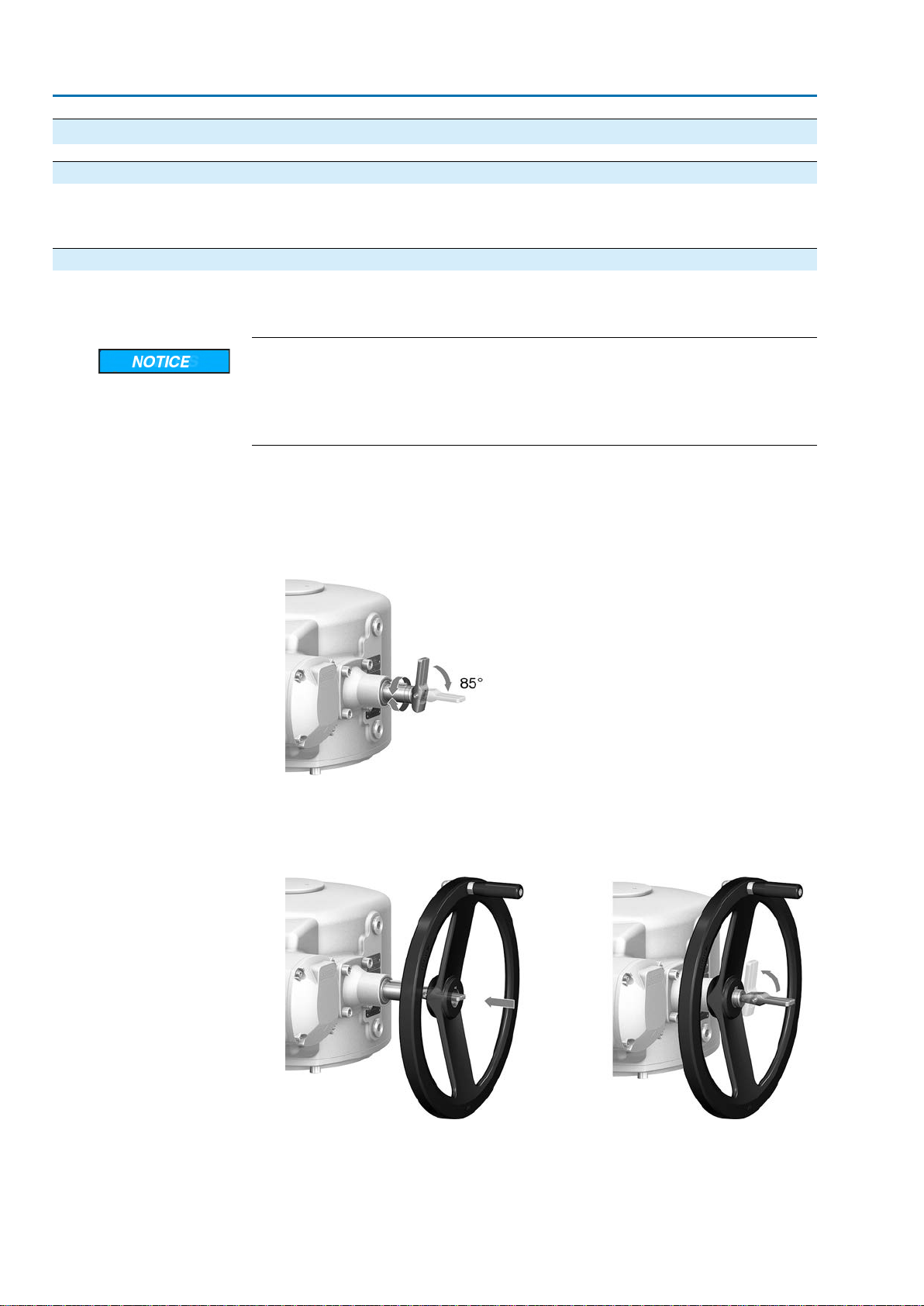

1. Manually lift the red change-over lever while slightly turning the shaft back and
forth until manual operation engages.
➥Manual operation is properly engaged if the change-over lever can be shifted
by approx. 85°.
Figure 8:
2. Push handwheel over the red change-over lever then onto the shaft.
Figure 9:
3. Release change-over lever (should snap back into initial position by spring ac-
tion, if necessary, push it back manually).
14
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
Assembly AM 02.1

4. Secure handwheel using the retaining ring supplied.
Figure 10:
4.3. Multi-turn actuator: mount to valve/gearbox
Danger of corrosion due to damage to paint finish and condensation!
→Touch up damage to paint finish after work on the device.
→After mounting, connect the device immediately to electrical mains to ensure
that heater minimises condensation.
4.3.1. Output drive type A
Application ●Output drive for rising, non-rotating valve stem
●Capable of withstanding thrust
Design Output mounting flange [1] with axial bearing stem nut [2] form one unit.Torque is
transmitted to valve stem [3] via stem nut [2].
Figure 11: Design of output drive type A
[1] Output mounting flange
[2] Stem nut with dog coupling
[3] Valve stem
15
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
AM 02.1 Assembly

4.3.1.1. Stem nut: finish machining
✔This working step is only required if stem nut is supplied unbored or with pilot
bore.
Figure 12: Output drive type A
[1] Stem nut
[2] Axial needle roller bearing
[2.1] Axial bearing washer
[2.2] Axial needle roller and cage assembly
[3] Spigot ring
1. Remove spigot ring [3] from output drive.
2. Remove stem nut [1] together with axial needle roller bearings [2].
3. Remove axial bearing washers [2.1] and axial needle roller and cage assemblies
[2.2] from stem nut [1].
Information: For output drive types A from size 35.2 and larger: Record the
order of axial bearing washers [2.1].
4. Drill and bore stem nut [1] and cut thread.
Information: When fixing in the chuck, make sure stem nut runs true!
5. Clean the machined stem nut [1].
6. Apply sufficient Lithium soap EP multi-purpose grease to axial needle roller and
cage assemblies [2.2] and axial bearing washers [2.1], ensuring that all hollow
spaces are filled with grease.
7. Place greased axial needle roller and cage assemblies [2.2] and axial bearing
washers [2.1] onto stem nut [1].
Information: For output drive types A from size 35.2:Observe correct order of
axial bearing washers [2.1].
8. Re-insert stem nut [1] with bearings [2] into output drive.
Information: Ensure that dogs or splines are placed correctly in the keyway of
the hollow shaft.
9. Screw in spigot ring [3] until it is firm against the shoulder.
16
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
Assembly AM 02.1

4.3.1.2. Multi-turn actuator (with output drive type A): mount to valve
Figure 13: Assembly of output drive type A
[1] Valve stem
[2] Output drive type A
[3] Screws to actuator
[4] Valve flange
[5] Screws to output drive
1. If the output drive type A is already mounted to the multi-turn actuator:Loosen
screws [3] and remove output drive type A [2].
2. Check if the flange of output drive type A matches the valve flange [4].
3. Apply a small quantity of grease to the valve stem [1].
4. Place output drive type A on valve stem and turn until it is flush on the valve
flange.
5. Turn output drive type A until alignment of the fixing holes.
6. Screw in fastening screws [5], however do not completely tighten.
7. Fit multi-turn actuator on the valve stem so that the stem nut dogs engage into
the output drive sleeve.
➥The flanges are flush with each other if properly engaged.
8. Adjust multi-turn actuator until alignment of the fixing holes.
9. Fasten multi-turn actuator with screws [3].
10. Fasten screws [3] crosswise with a torque according to table.
Table 6:
Tightening torques for screws
Tightening torque [Nm]Threads
Strength class
A2-808.8
200214M16
392431M20
1,4221,489M30
2,4812,594M36
11. Turn multi-turn actuator with handwheel in direction OPEN until valve flange
and output drive A are firmly placed together.
12. Tighten fastening screws [5] between valve and output drive type A crosswise
applying a torque according to table.
17
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
AM 02.1 Assembly

4.3.2. Output drive types B and E
Application ●For rotating, non-rising valve stem
●Not capable of withstanding thrust
Design For output drive types B/B1/B2, the connection to the valve or the gearbox is made
by directly placing the multi-turn actuator hollow shaft onto the input shaft of the valve
or gearbox.
For output drive types B3/B4/E, the connection is made via output drive sleeve which
is inserted into the bore of the hollow shaft of the multi-turn actuator and fixed by a
retaining ring.
When exchanging the output drive sleeve, later retrofitting to a different output drive
type is possible
Figure 14: Output drive type B
[1] Multi-turn actuator flange
[2] For output drive types B/B1/B2 hollow shaft with keyway
[2]* For output drive types B3/B4/E, an output drive sleeve is fitted into the hollow
shaft
[3] Gearbox/valve shaft with parallel key
Information Spigot at valve flanges should be loose fit.
4.3.2.1. Multi-turn actuator with output drive types B: mount to valve/gearbox
Figure 15: Mounting output drive types B
[1] Multi-turn actuator
[2] Valve/gearbox
[3] Valve/gearbox shaft
1. Check if mounting flanges fit together.
18
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
Assembly AM 02.1

2. Check if output drive of multi-turn actuator [1] matches the output drive of
valve/gearbox or valve/gearbox valve shaft [2/3].
3. Apply a small quantity of grease to the valve or gearbox shaft [3].
4. Fit multi-turn actuator [1].
Information: Ensure that the spigot fits uniformly in the recess and that the
mounting faces are in complete contact.
5. Fasten multi-turn actuator with screws according to table.
Information: We recommend applying liquid thread sealing material to the
screws to avoid contact corrosion.
6. Fasten screws crosswise to a torque according to table.
Table 7:
Tightening torques for screws
Tightening torque [Nm]Threads
Strength class
A2-808.8
200214M16
392431M20
1,4221,489M30
2,4812,594M36
4.4. Accessories for assembly
4.4.1. Stem protection tube for rising valve stem
Figure 16: Assembly of the stem protection tube
[1] Protective cap for stem protection tube (fitted)
[1]* Option for size 25.1: Protective cap made of steel (screwed)
[1]** Option from size 30.1: Protective cap made of steel (welded)
[2] Stem protection tube
[3] V-seal
1. Seal all threads with hemp,Teflon tape, or thread sealing material.
19
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
AM 02.1 Assembly

2. Screw stem protection tube [2] into thread and tighten it firmly.
Information: For stem protection tubes made of two or more segments, all
parts have to be thoroughly screwed together.
Figure 17: Protection tube made of segments with threaded sleeves (SA
25.1/30.1: >900 mm)
[2] Segment of stem protection tube
[3] V-seal
[4] Threaded sleeve
3. Push down the sealing ring [3] onto the housing.
Information: For mounting segments, push down seals of segments down to
the sleeve (connecting piece).
4. Check whether protective cap [1] for stem protection tube is available, in perfect
condition and tightly placed on or screwed to the tube.
Risk of bending or oscillation of protection tubes exceeding a length of 2 m!
Risk of damage at stem and/or protection tube.
→Secure protection tubes exceeding 2 m by an appropriate support.
20
SA 25.1 –SA 48.1 / SAR 25.1 –SAR 30.1
Assembly AM 02.1
