USER INSTRUCTIONS

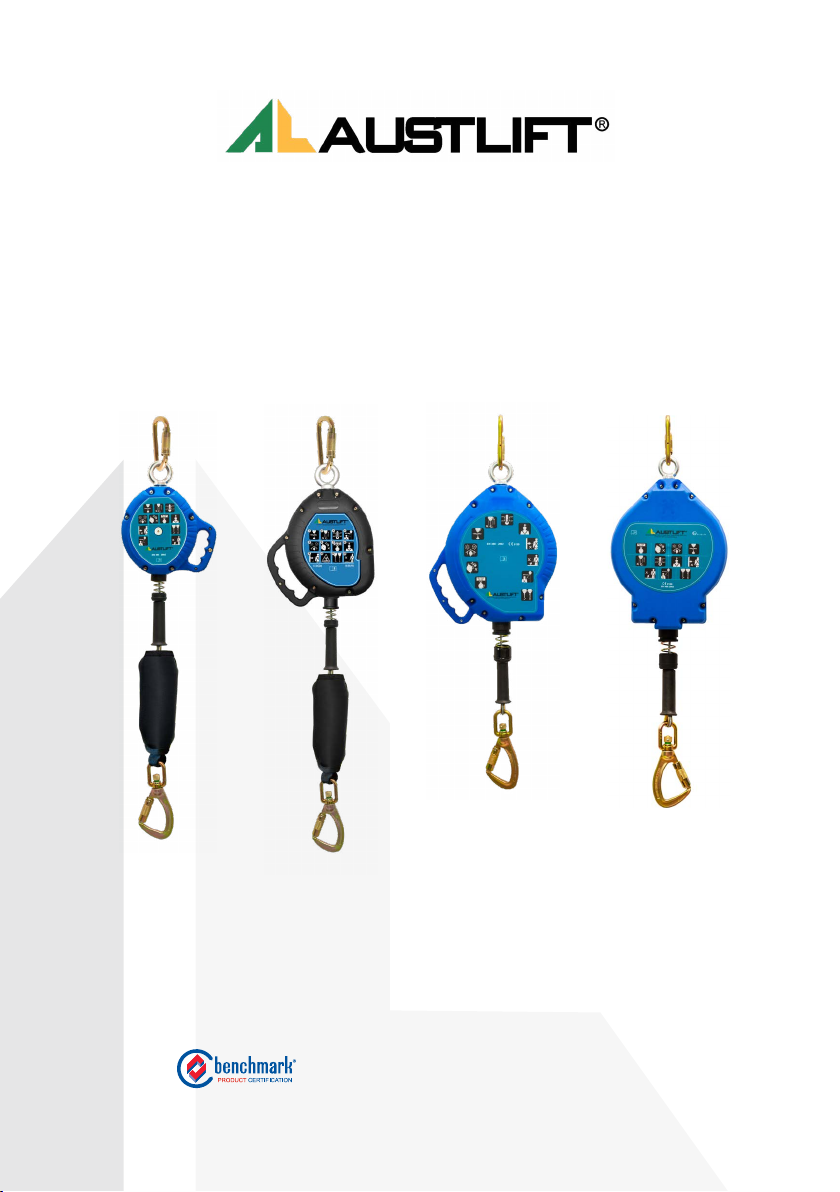

Retractable Fall Arrester
This equipment is intended for use by people who
have received proper training and are competent.
PC. 915207, 915210, 915220, 915230
AS 1891.3:2020 (BMP No. 739186)

915207
2
Do not skip this instrucon manual. Read the instrucon manual carefully before using the
equipment. If failed in doing so it may cause serious Injury or Death.
Note: The user is advised to keep the user instrucons document for the life of the product.
Manufacturer :
Cercaon Body Ongoing :
Assessment Body :
43 Frank St, Wetherill Park, NSW 2164 02 9757 2277
SATRA Technology Europe Ltd, Bracetown Business Park,
Clonee, Dublin D15 YN2P Ireland (Noed Body 2777)
SGS Fimko Oy, P.O. Box 30 (Särkiniemene 3), 00211
HELSINKI, Finland (Noed Body 0598)
The Retractable Fall Arrester for horizontal usage is classed as a Personal Protecve Equipment
(PPE) by the European PPE Regulaon (EU) 2016/425 and has been shown to comply with this
Regulaon through the Harmonized European Standard EN 360:2002 & VG11 RFU # 11.060
This Retractable Fall Arrester for horizontal usage is designed to minimise the risk of/provide
protecon against the danger of falling from heights. However, always remember that no item
of PPE can provide full protecon and care must always be taken while carrying out the risk
related acvity.
Please consult AS/NZS 1891.4 for selecon, use, maintenance and training requirements.
• Self-Retracng Lanyard: Austli 915220 and 915230 retractable lanyards are suitable for
applicaons where the unit is mounted overhead, the line will remain generally vercal during
use keeping it taught and liming free fall to less than 0.6m (600mm).
• Self-Retracng Lanyard with Sharp Edge: Austli 915207 and 915210 retractable lanyards with
sharp edge (SE) are suitable for applicaons where the lifeline remains generally horizontal
during use and possible free fall is limited to less than 1.5m. Sharp Edge (SE) retractable’s have
an addional shock absorbing element at the user aachment point to assist with absorbing
the impact over the edge and reducing the force on the user to below 6kN and removing the
addional force that may cause the cable or webbing to shear. Sharp Edge units are approved
for vercal and horizontal use.
SAFETY INFORMATION
This Retractable Fall Arrester can be used as a part of a fall arrest system or as a part of a restraint
system. If using as a part of fall arrest system, a suitable anchor point (above the user’s head, at
least 12kN) shall be used. Aachments to the anchor points and other equipment shall be made
using Karabiners to EN362 with a minimum 6kN gate strength or ANSI.
The equipment is to be used specically in vercal as well as horizontal condion if it is Sharp
Edge (SE) marked.
• Material of the Lanyard:
for wire rope block - 4.8mm Galvanized steel wire.
for webbing block - 25mm polyester texle webbing.
POSSIBLE USAGE

915207 3
PERFORMANCE AND LIMITATIONS OF USE
The equipment has been tested in accordance with EN 360:2002 & as per VG11 RFU # 11.060
and has achieved the following performance levels:
EN 360:2002 test Result/Comment
Clause 4.1
Design & Ergonomics
Achieves required performance as stated in EN
360:2002 (PASS).
Lanyard free from sharp or excessively abrasive
surface (PASS).
No unnecessary features which add signicantly to
overall mass ( Pass).
Clause 4.2
Materials & Construcon
Lanyard end terminated with a loop, for connecon
to harness and fall arrest system (PASS).
Lanyard meets stac strength requirement (PASS).
Clause 4.3
Locking aer Condioning(EN 364:1993)
Aer condioning, it locks & remains locked unl
released with 5 kg Max. (PASS)
Clause 4.4
Stac Strength(EN 364:1993)
12kN sustained for 3 minutes without release
(Wire) (PASS). 15kN sustained for 3 minutes
without release (Webbing) (PASS).
Clause 4.5
Dynamic Performance(EN 364:1993)
When tested with the test mass of 100 kg,
The Arrest force <6.00 kN, Arrest distance <2.00 m
(PASS).
Clause 4.7
Corrosion Resistance (EN 364:1993)
Corrosion test in accordance with ISO 9227:1990-
24 hours (PASS).
AS PER VG11 RFU # 11.060 Result/Comment
1. Dynamic Performance:
a. Perpendicular to the edge
b. Lateral oset of 1.5 mtr
100 Kg mass held
Breaking force <6kN
Breaking distance less than 2 mtr
2. Dynamic Strength
a. Perpendicular to the edge
b. Lateral oset of 1.5 mtr
100 Kg mass held
3. Stac Strength aer each Dynamic
Strength test
f=3kN (Cable) 4.5 kN (Texle) 3 mints

915207
4
• Inspect the system thoroughly before use, ensure the locking mechanism is working correctly
and the cable is retracng fully.
• Ensure the cable is in good condion and free of any defects.
• Inspect the anchor points to ensure they are sll secure and able to sustain the loads required
in the event of a drop load being applied.
• Ensure the load that needs to be secured has a suitable connecon point to connect the Load
arrestor to.
INSPECTION BEFORE USE
SPECIFICATIONS
915207 915210
915230915220
UNIT: MM

915207 5
HOW TO USE
Now Connect the hook at aachment end of Retractable to the dorsal aachment of
your full body harness. User is now safe to move in normal speed.
In the event of a fall, Retractable block locks and also minimizes the impact forces on
the body of user, both in vercal and horizontal direcon.
STEP 2:
Connect the anchorage eye of Retractable Block to a suitable anchorage point situated
either above the user’s head or in horizontal direcon using karabiners (EN 362 with
6kN gate strength or ANSI) & Ensure karabiner is locked.
STEP 1:
1. Ensure the medical condion of the user does not aect his safety in normal and emergency
use.
2. The equipment shall only be used by a person trained and competent in its safe use.
3. A rescue plan shall be in place to deal with any emergencies that could arise during the work.
4. Do not make any alteraons or addions to the equipment without the manufacturer’s prior
wrien consent. Any repair shall only be carried out by personnel trained by the manufacturer
& duly authorised by the manufacturer.
5. The equipment shall not be used outside its limitaon, or for any purpose other than that for
which it is intended.
WARNING
• The Retractable Fall Arrester should be the personnel property of the user.
• Ensure that the Retractable Fall Arrester is compable with other items when assembled into
a system.
• Usage with other un-compable items may be dangerous & hazardous as the safe funcon of
one item may be aected or interferes with the safe funcon of another.
• The user should carry out a pre-use check of the Retractable Fall Arrester, to ensure that it is in
a serviceable condion and operates correctly before it is used.
• The pre-use check shall involve checking of any wear or abrasion on wire ropes/webbing and
sign of corrosion if any on metal parts or any breakage of the casing.
• Withdraw from use immediately if there is any doubt about its safe condion or if it has already
arrested a fall, the equipment shall not be used again unl conrmed in wring by a competent
person that it is acceptable to do so.
• Ensure that the strength of the anchor device is greater than 12kN or min 15kN single anchor
point as per AS/NZS 5532 standard.
• Use karabiner conforming to EN 362 with minimum gate strength of 6kn or ANSI for connecng
to the anchor points.
ADVICE & INFORMATION

915207
6
• It is advisable to use the dorsal aachment D-Ring of the harness for connecon to the
Retractable Fall Arrester.
• However if it is not possible for any reason, the chest aachment element may also be used.
• It is essenal to verify that a minimum 4ms height of free space is available below the user’s
feet & the ground level at the work place, so that in case of a fall, there will be no collision with
the ground or other obstacle in the fall path.
• Following condions may be hazardous & may aect the performance of Retractable Fall
Arrester:
(a) Extreme temperature
(b) Trailing or looping of Lanyards over sharp edges.
(c) Extreme acidic or basic environments.
(d) Abrasive or sharp edged structures which can damage the equipment.
(e) Pendulum falls.
• Ensure that manufacturer’s packing is used during transportaon to prevent damage. In case
original packing in not available, use polybag which is sealed to prevent moisture.
• It is essenal for the safety of the user that if the product is resold outside the original country
of desnaon, the reseller shall provide instrucon for use, for maintenance, for periodic
examinaon and for repair in the language of the country is which product in to be used.
• This is advised that Annual inspecon should be done by competent person & if any discrepancy
is found in product, service will be done at authorized service center only.
ADDITIONAL INFORMATION AS PER VG 11
• It is possible to use a horizontal retractable type fall arrester over an edge type A (Sharp Edge
Units)
• It is recommended to avoid the loading of the retractable type fall arrester over edges.
• The retractable type fall arrester marked with edge symbol was also tested also for horizontal
use and a drop over a Type A edge has been successfully tested.(Sharp Edge Approved)
• Type A edge denion: A steel edge with a radius of r = 0.5 mm and without burrs was used
for the test. Due to this test, the equipment may be used over similar edges, as can be found
e.g. at rolled steel proles, at wooden beams or at a clad, rounded roof parapet. However,
the following shall be considered when the equipment is used in a horizontal or transverse
arrangement and a risk of a fall from a height over an edge exists:
1. If the risk assessment carried out before the start of the work shows that the edge is very
“cung” and / or “free of burrs” (such as in case of an unclad roof parapet, a rusty steel girder
or a concrete edge)
- relevant measures shall be taken before the start of the work to prevent a drop over the edge
or, before the start of work, an edge protecon shall be mounted or
- the manufacturer shall be contacted.
2. The anchor point should only be situated at the same height as the edge at which a fall might
occur or above the edge.

915207 7
• In case of minor soiling, wipe the equipment with coon cloth or so brush. Do not use any
abrasive material. For intensive cleaning wash in water at a temperature between 250C to
500C using a neutral detergent. It should be allowed to dry by itself and be kept away from
open re or any other source of heat, Avoid direct sunlight.
• Store in cool dry place, preferably away from moisture, direct sunlight, extra acidic or basic
condions & sharp edges.
INSTRUCTION FOR MAINTENANCE
When not in use, store the equipment in a well-venlated area away from extremes of
temperature. Never place heavy items on top of it. If the product is wet, allow it to dry fully
before placing it into storage.
STORAGE AND TRANSPORT
All AUSTLIFT products bear 1-year warranty against manufacturing defects, applicable on
Unused AUSTLIFT products, from the date of purchase. However, AUSTLIFT shall not be liable for
any accident or damage while the product is in use.
WARRANTY
The esmated product lifespan of this product is 10 years from the date of manufacturing. The
following factors can reduce the lifespan of the product : intense use, contact with chemical
substances, specially aggressive environment, extreme temperature exposure, UV exposure,
abrasion, cuts, violent impacts, bad use or maintenance.
LIFESPAN
3. Allow adequate clearance of minimum 4 meters below, in order to avoid collision with the
adjacent structures or the ground in the event of a fall.
4. To aenuate a drop ending in a pendulum movement, the working area or lateral movements
to both sides of the centre axis shall be limited to a maximum of 1.50 m. In other cases, no
individual anchor points, but, eg., type C or type D anchor devices in accordance with EN
795:2012 shall be used.
a. The Retractable Fall Arrester Block can also be used with Type C anchor device.
b. The deecon of the anchor device shall be taken into account when determining the
clearance required below the feet of the user. To that eect, the indicaons specied in the
instrucons for use of the anchor device shall be considered.
c. Care must be taken to avoid collision with any obstrucon in the event of a fall.
d. It is advised that, for the event of a fall over the edge, special pre-planned rescue measures
must be taken under the guidance of a well-trained and competent personnel.

915207
8
• Do not make any alteraons or addions to the equipment without the manufacturer’s prior
wrien consent. Any repair shall only be carried out in accordance with manufacturer’s
procedures.
• The equipment shall not be used outside its limitaons or for any purpose other than Load
arrest.
• It is recommended to regularly check fastening and/or adjustment element during use.
• Care must be taken to avoid any dangers that may arise by the use of combinaons of items of
equipment in which the safe funcon of anyone is aected by/or interferences with the safe
funcon of others.
• In case of any doubt arising about the safety of the equipment, it should be replaced
immediately on consultaon with an expert. Withdraw from use any equipment that has
been used to arrest a load & return it to the manufacturer or competent repair centre for
servicing & retest. Do not use again unl conrmed in wring by a competent person that it
is acceptable to do so.
• It is essenal for safety that the anchor device or anchor point should always be posioned
and the work carried out in such a way, as to minimise potenal load arrest distance.
• If the product is re-sold outside the original country of desnaon, the reseller shall provide
instrucons for use, for maintenance & periodic examinaon and for repair in the language of
country in which the product is to be re-sold.
MAINTENANCE
This informaon on the product is based upon technical data that AUSTLIFT obtained under
laboratory condions and believes to be reliable. AUSTLIFT does not guarantee results and takes
no liability or obligaon in connecon with this informaon. As condions of end use are beyond
our control it is the user’s responsibility to determine the hazard levels and the use of proper
personal protecve equipment. Persons having technical experse should undertake evaluaon
under their own specic end-use condions, at their own discreon and risk. Please ensure that
this informaon is only to check that the product selected is suitable for the intended use. Any
product that is damaged, torn, worn or punctured should be immediately disconnued from
usage .
DISCLAIMER

915207 9
The Retractable Fall Arrester is
marked with:
(i) Idencaon of the manufacturer
(ii) Standards that the product
complies with
(iii) BMP cercaon number
(iv) Product Ref. No.
(v) Wire Rope Length
(vi) Unique Serial Number (USN) :
XXXXXXXXXX
(vii) Month & Year of Manufacture
1. To be used by person weighing upto than 140 kgs.
2. Once the wire rope has been reeled out, do not
leave it suddenly to retract inside on its own, let it
go inside gradually by guiding it slowly inside.
3. Use between temperature range of -30°C to + 50°C.
4. Ensure that the max angle between the vercal &
the lanyard is 40°.
5. Keep away from sunlight or heavy rains when not
in use.
6. Do not aempt repair unless trained by the
manufacturer.
7. Ensure that the anchorage point has strength of
min 12kN as per EN 795, or min 15kN single anchor
point as per AS/NZS 5532 standard.
8. Connect the lanyard to the suitable fall arrest
anchor point.
9. Can be used for horizontal applicaons.
10. Units marked with this symbol can be used where
a user may fall over the edge of the work surface,
the unit in this applicaon is limited to 100kg user.
11. Ensure that wire rope has no cuts or abrasion
marks before use.
12. Do not use a unit laying at on its side in a horizontal
applicaon, this may impede the way the wire or
webbing coils back into the unit, prevenng the
unit from funconing correctly, special brackets are
available for use in this applicaon.
140kg Max
o
50C
o
-30C
o
122F
o
-22F
Min 12kN
EN 795
o
40 max
r>0.5mm
910 11 12
8
7
6
5
4
23
1
AS/NZS 1891.3:2020
BMP No. 739186
INSTRUCTION FOR MAINTENANCE

INSPECTION LOG
DATE COMMENTS/DEFECTS SIGNATURE
Product Type :
Serial No. :
Year of Mnf. :
User Name:

915207, 915210, 915220, 915230
Retractable Fall Arrester
Distributed by:
NSW Oce
43 Frank Street, Wetherill Park, NSW 2164
02 9757 2277
WA Oce
42 Mulgul Road, Malaga, WA 6090
08 9248 6674
QLD Oce
7 Durbell Street, Acacia Ridge, QLD 4110
07 3272 0777
VIC Oce
475 Dohertys Road, Truganina, VIC 3029
03 9314 5525
