Autel MaxiTPMS TS508WF User manual

i
Trademarks
Autel®, MaxiSys®, MaxiDAS®, MaxiScan®, MaxiRecorder®, MaxiTPMS®, and
MaxiCheck®are trademarks of Autel Intelligent Technology Corp., Ltd.,
registered in China, the United States and other countries. All other marks are
trademarks or registered trademarks of their respective holders.
Copyright Information
No part of this manual may be reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronic, mechanical, photocopying,
recording, or otherwise, without the prior written permission of Autel.
Disclaimer of Warranties and Limitation of Liabilities
All information, specifications and illustrations in this manual are based on the
latest information available at the time of printing.
Autel reserves the right to make changes at any time without notice. While
information of this manual has been carefully checked for accuracy, no guarantee
is given for the completeness and accuracy of the contents, including but not
limited to the product specifications, functions, and illustrations.
Autel will not be liable for any direct damages or for any special, incidental, or
indirect damages or for any economic consequential damages (including lost
profits).
IMPORTANT
Before operating or maintaining this unit, please read this manual carefully,
paying extra attention to the safety warnings and precautions.
For Services and Support:
http://pro.autel.com
www.autel.com
www.maxitpms.com
1-855-288-3587/1-855-AUTELUS (North America)
0086-755-22672493/86532091 (China)
[email protected]
For details, please refer to the Service and Support section in this manual.

ii
Safety Information
For your own safety and the safety of others, and to prevent damage to the
device and vehicles upon which it is used, it is important that the safety
instructions herein presented throughoutthis manual be readand understood
by all persons operating, or coming into contact with, the device.
There are various procedures, techniques, tools, and parts for servicing
vehicles, as well as in the skill of the person doing the work. Because of the
vast number of test applications and variations in the products that can be
tested with this equipment, we cannot possibly anticipate or provide advice
or safety messages to cover every circumstance. It is the automotive
technician’s responsibility to be knowledgeable of the system being tested. It
is crucial to use proper service methods and test procedures. It is essential
to perform tests in an appropriate and acceptable manner that does not
endanger your safety, the safety of others in the work area, the device being
used, or the vehicle being tested.
Before using the device, always refer to and follow the safety messages and
applicable test procedures provided by the manufacturer of the vehicle or
equipment being tested. Use the device only as described in this manual.
Read, understand, and follow all safety messages and instructions in this
manual.
Safety Messages
Safety messages are provided to help prevent personal injury and equipment
damage. All safety messages are introduced by a signal word indicating the
hazard level.
DANGER
Indicates an imminently hazardous situation that, if not avoided, will result in
death or serious injury to the operator or to bystanders.
WARNING
Indicates a potentially hazardous situation that, if not avoided, could
result in death or serious injury to the operator or to bystanders.

iii
Safety Instructions
To prevent personal injury or damage to vehicles and/or the scan tool, read
this instruction manual first and observe the following safety precautions at a
minimum whenever working on a vehicle:
Always perform diagnosis or service in a safe environment.
Wear safety eye protection that meets ANSI standards.
Keep clothing, hair, hands, tools, test equipment, etc. away from all
moving or hot engine parts.
Operate the vehicle in a well-ventilated work area: Exhaust gases are
poisonous.
Put blocks in front of the drive wheels and never leave the vehicle
unattended while running tests.
Use extreme caution when working around the ignition coil, distributor
cap, ignition wires and spark plugs. These components create
hazardous voltages when the engine is running.
Keep a fire extinguisher suitable for gasoline / chemical / electrical fires
nearby.
Put the transmission in PARK (for automatic transmission) or NEUTRAL
(for manual transmission) and make sure the parking brake is engaged.
Always turn the ignition off before connecting/disconnecting the OBD II
Cable to/from the TPMS tool; otherwise it may cause the Malfunction
Indicator Light (MIL) to turn on.
Refer to the user’s manual for the vehicle being serviced and adhere to
all diagnostic procedures and precautions. Otherwise personal injury or
unneeded repairs may result.
Keep the TPMS tool dry, clean, free from oil, water and grease. Use a
mild detergent on a clean cloth to clean the outside of the TPMS tool
when necessary.

iv
CONTENTS
1USING THIS MANUAL .................................................................................1
CONVENTIONS.................................................................................................1
2TOOL INFORMATION..................................................................................3
FUNCTIONAL DESCRIPTION ...............................................................................3
SPECIFICATIONS ..............................................................................................4
ACCESSORIES INCLUDED..................................................................................5
ICONS.............................................................................................................5
KEYBOARD......................................................................................................5
BATTERY CHARGING........................................................................................6
3TPMS QUICK MODE....................................................................................8
VEHICLE IDENTIFICATION ..................................................................................8
SCAN SENSOR ..............................................................................................10
PROGRAM SENSOR........................................................................................12
RELEARN PROCEDURE...................................................................................20
SENSOR INFORMATION...................................................................................21
4TPMS ADVANCED MODE.........................................................................23
VEHICLE IDENTIFICATION ................................................................................23
TPMS DIAGNOSE..........................................................................................25
PROGRAM SENSOR........................................................................................31
POSITION RELEARN .......................................................................................43
INFORMATION................................................................................................49
TIRE TYPE/PRESSURE SELECTION ..................................................................51
5MISCELLANEOUS .....................................................................................54
TOOLKIT.......................................................................................................54
LATEST TEST ................................................................................................55
REVIEW DATA ...............................................................................................55
MY DEVICE ...................................................................................................55
PRINT...........................................................................................................71
PRODUCT TROUBLESHOOTING ........................................................................72
6COMPLIANCE INFORMATION..................................................................74

v
7WARRANTY AND SERVICE......................................................................76
LIMITED ONE YEAR WARRANTY.......................................................................76
SERVICE AND SUPPORT..................................................................................77

1
1 Using This Manual
This manual contains device usage instructions.
Some illustrations shown in this manual may contain modules and optional
equipment that are not included in your system. Contact your sales
representative for availability of other modules and optional tools or
accessories.
Conventions
The following conventions are used.
Bold Text
Bold text is used to highlight selectable items such as buttons and menu
options.
Example:
Tap OK.
Notes and Important Messages
Notes
A NOTE provides helpful information such as additional explanations, tips,
and comments.
Example:
NOTE
New batteries reach full capacity after approximately 3 to 5 charging and
discharging cycles.

2
Important
IMPORTANT indicates a situation which, if not avoided, may result in damage
to the test equipment or vehicle.
Example:
IMPORTANT
Keep the cable away from heat, oil, sharp edges and moving parts. Replace
damaged cables immediately.
Hyperlink
Hyperlinks or links that take you to other related articles, procedures, and
illustrations are active in electronic documents. Blue italic text indicates a
selectable hyperlink and blue underlined text indicates a website link or an
email address link.
Illustrations
Illustrations used in this manual are samples, and the actual testing screen
may vary for each vehicle being tested. Observe the menu titles and on-
screen instructions to make correct option selection.

3
2 Tool Information
Functional Description
Figure 2-1 MaxiTPMS TS508WF
1. SENSOR SLOT –holds the MX-Sensor to be programmed.
2. LCD DISPLAY –displays the menus and test screens.
3. N BUTTON –cancels a selection (or action) from a menu or return
to previous menu.
4. UP SCROLL BUTTON –moves up through menu and submenu
items in menu mode. When more than one set of data are retrieved, use

4
this button to move up to previous screens for additional data. It is also
used to view previous trouble code when viewing DTCs.
5. LEFT SCROLL BUTTON –when scrolling through a screen of data
or text, moves to previous character and views additional information on
previous screens, if recorded data content covers more than one screen.
6. DOWN SCROLL BUTTON –moves down through menu and
submenu items in menu mode. When more than one set of data are
retrieved, use this button to move down to next screens for additional
data. It is also used to view next trouble code when viewing DTCs.
7. HELP BUTTON –provides help information.
8. POWER BUTTON –long press the button to turn on/off the tool; or,
short press the button to return to Home screen.
9. RIGHT SCROLL BUTTON –when scrolling through a screen of data
or text, moves to next character and view additional information on next
screens, if recorded data content covers more than one screen.
10. TEST BUTTON –commences a TPMS Test or confirms selections
on screen.
11. Y BUTTON –confirms a selection (or action) from a menu.
12. USB PORT –connects the TPMS tool to PC for software update, data
printing or battery charging.
13. OBD II CONNECTOR –connects the TPMS tool to the vehicle’s Data
Link Connector (DLC).
NOTE
Figures and illustrations, product’s characteristics and functions, and
included accessories in this User Manual are provided for reference only and
may differ from actual product. Product design and specifications may be
changed without notice.
Specifications
Table 2-1 Specifications
Item
Description
Display
TFT color display (320 x 240 dpi)

5
Item
Description
Power
4.10 V Li-polymer battery
Operating Temp.
-20°C to 60°C (-4°F to 140°F)
Storage Temp.
-10°C to 45°C (14°F to 113°F)
Dimensions
215 mm (8.46”) / 105 mm (4.13”) / 37 mm (1.46”)
Weight
0.39 kg (0.86 lb.)
Accessories Included
Please refer to the packing list for accessory details.
Icons
1. –green changing internal block indicates battery charging.
2. –indicates there is data stored in the tool.
3. –indicates battery volume.
4. –indicates USB communication with the computer is established.
5. –indicates magnet is required to activate TPMS sensor.
6. –indicates deflation is required to activate TPMS sensor.
7. –indicates wheels will be checked one by one.

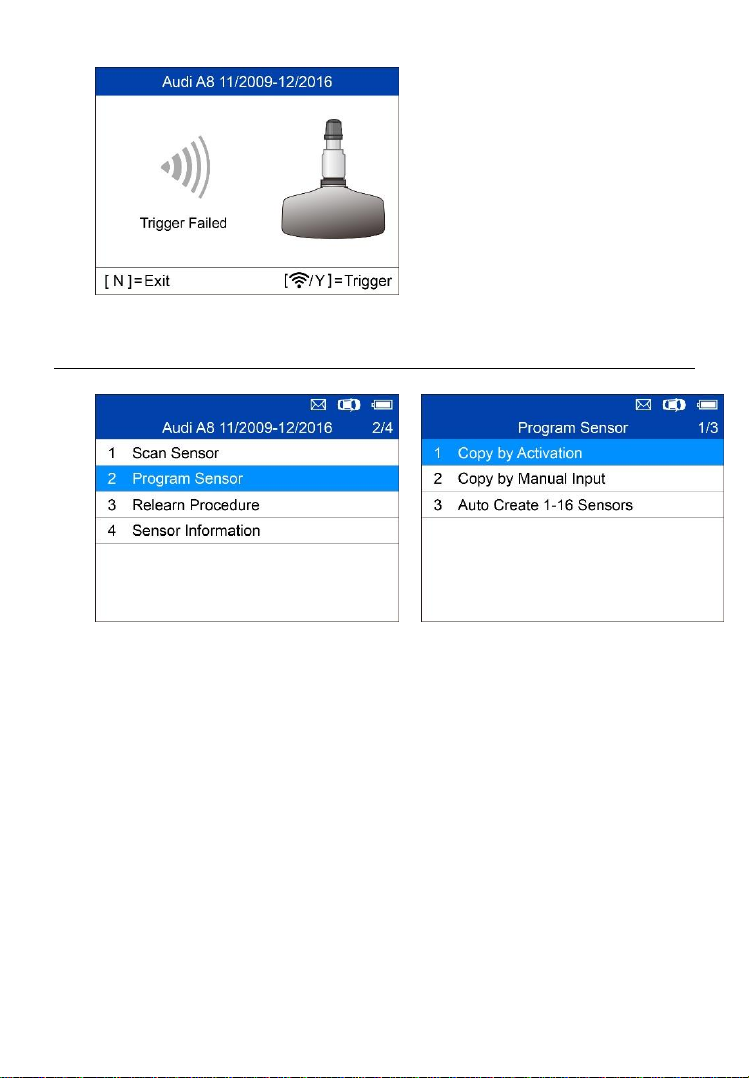

8. –indicates the TPMS tool is sending signals to the tire sensor for
activation and test in activation screen or indicates the sensor
information is read by activation.
9. –indicates the tool communication with the vehicle’s OBD II DLC
is established or indicates the sensor information is read by OBD.
Keyboard
Use a mild nonabrasive detergent and a soft cotton cloth to clean the keypad
and display. No solvents such as alcohol are allowed for device cleaning. Do
not soak the keypad as the keypad is not waterproof.
