Automatic Technology Axess Pro Series 1101 User manual

Axess® Pro Series 1101
Commercial Overhead Door Opener
Featuring TrioCode™Technology
INSTALLATION INSTRUCTIONS | OWNERS COPY
Part # 92641 (Manual) V2.00

2Axess® Pro Series 1101 Owner Installation Instructions
WARNING: It is vital for the safety of persons to follow all
instructions.Failuretocomplywiththeinstallationinstructions
and the safety warnings may result in serious personal injury
and/or property and remote control opener damage. Please
save these instructions for future reference.
Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all
conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of
an Automatic Technology (Australia) Pty Ltd automatic opener. Automatic Technology (Australia) Pty Ltd hereby further
expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any person
as a result whether directly or indirectly from failure to install the Automatic Technology (Australia) automatic opener in
accordance with these installation instructions.
NOTE: A Photo Electric Beam Sensor must be fitted with
this opener. Failure to comply will void the warranty and may
cause serious personal injury and/or property damage.

Owner Installation Instructions Axess® Pro Series 1101 3
Important Safety Instructions 4
Features 6
Product Description 8
Before Drive Unit Installation 8
Drive Unit Installation 9
Control Board Layout 10

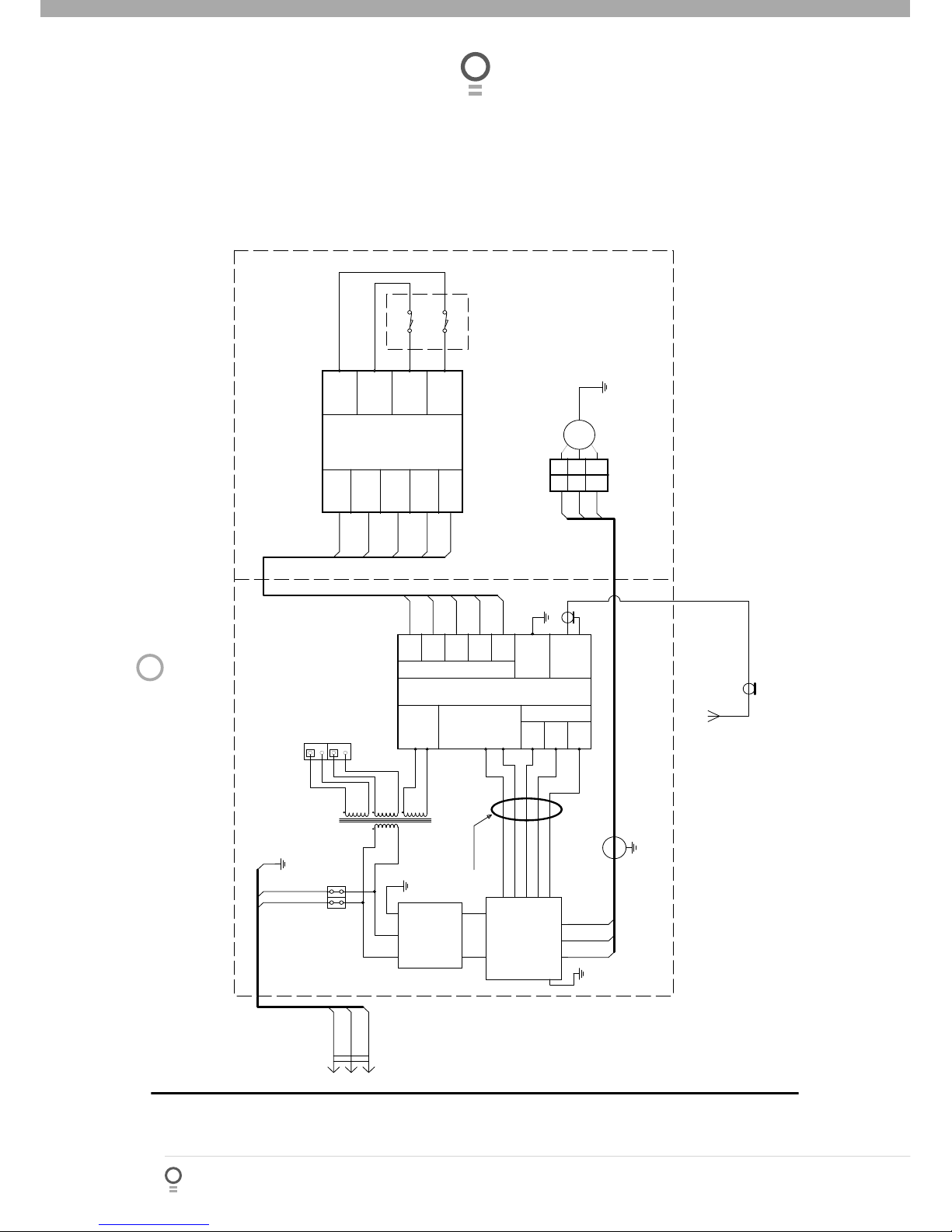

Wiring Diagram 12
Setting Travel Limits 13
Setting Pedestrian Position 15
Setting Operating Speed 15
Description Of Standard Operation 16
Parameter Viewing And Editing 17

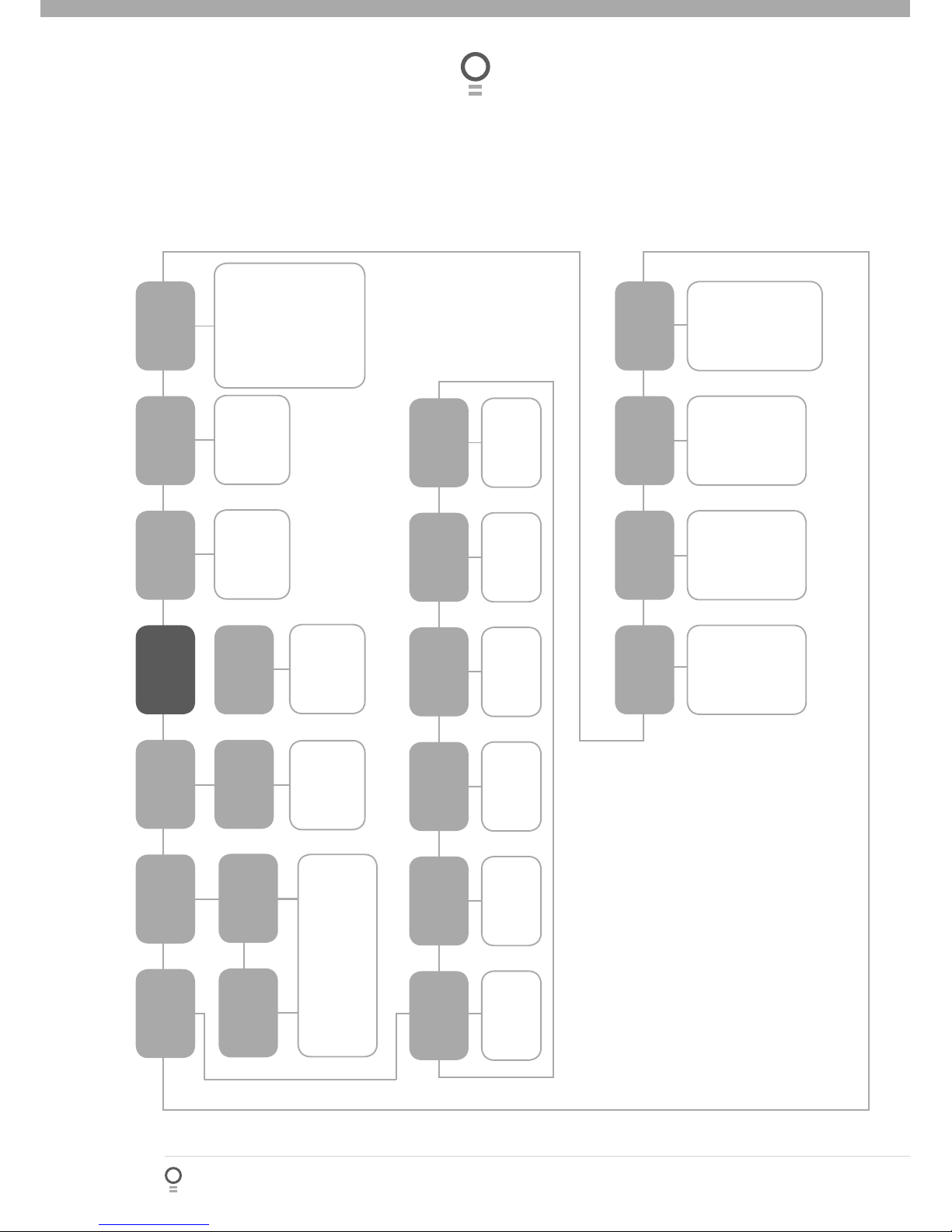

Menu Structure 18
Control Board Adjustments 19
Menu 2 Obstruction Margin 19
Menu 3 Auto-close Times 19
Menu 4 Lock Times 20
Menu 5 Light Times 20
Menu 6 Motor Settings 21
Menu 7 Operating Modes 21
Coding Transmitters 23
Transmitter Edit Procedure 24
Transmitter Management 25
Code Operation (Location Empty) 26
Code Operation (Location Used) 26
Delete Operation 26
Edit Operation 26
Copy Operation 26
Remote Code Set Procedure 27
Diagnostic Tools 28
Menu 8.1 Test Inputs 28
Menu 8.2 Test Tx’ers 28
Menu 8.3 Display History 28
Menu 8.4 Memory Usage 29
Menu 8.5 Service Counter 29
Menu 8.6 Counters 29
Menu 8.7 Installation 29
Memory Tools 30
Menu 9.1 Clr Control 30
Menu 9.2 Clr Tx’ers 30
Accessories Installation 30
Solenoid Or Magnetic Lock 30
Courtesy Light 30
PE Beams 31
Troubleshooting 32
System Specifications 33
Parts List 34
Warranty And Exclusion Of Liability 38
Axess® Pro Series 1101
Commercial Overhead Garage Door Opener

4Axess® Pro Series 1101 Owner Installation Instructions
For Safety protection, a Photo Electric Beam must be fitted with this opener. Failure to
comply will void the warranty and may result in serious personal injury and/or property
damage.
DO NOT operate the opener unless the door is in full view and free from objects such
as cars and children/people. Make sure that the door has finished moving before
entering or leaving the driveway.
DO NOT operate the opener when children/people are near the door. Children
must be supervised near the door at all times when the opener is in use. Serious
personal injury and/or property damage can result from failure to follow this
warning.
DO NOT allow children to operate the opener. Serious personal
injury and/or property damage can result from failure to follow this
warning.
Make sure that the Safety Obstruction detection system is working
correctly, and is tested every month. Test as per the Installation
Instructions Manual. Adjust if necessary and recheck. Failure to
follow this rule could result in serious personal injury and/
or property damage. This test must be repeated at regular
intervals and the necessary adjustments made as required.
If using a key switch or keypad or any device that can
operate the opener, make sure it is out of reach of
children and that the doorway is in full view at all
times.
Make sure that transmitters are kept out of reach
of children. Warning - It is vital for the safety of
people to follow all instructions.
WARNING: It is vital for the safety of people to follow
all instructions. Failure to comply with the following
Safety instructions may result in serious personal
injury and/or property damage.
Important Safety Instructions

Owner Installation Instructions Axess® Pro Series 1101 5
The opener is not showerproof - it should not be immersed in water or sprayed directly by a
hose or other water carrying device.
The door must be well balanced and in good working order. A faulty door must be
repaired by a qualified technician prior to opener installation.
Remove or disengage all locks and mechanisms prior to installation of the opener.
Keep hands and loose clothing clear of the door and opener at all times.
When using Auto-Close mode a photo electric beam must be fitted correctly
and tested for operation at regular intervals. Extreme caution is recommended
when using Auto-Close mode. All safety rules above must be followed.
In order for the opener to SENSE an object obstructing the doorway,
some force must be exerted on the object. As a result the object, door
and/or person may suffer damage or injury.
Make sure that the door is fully open before driving into or out
of the driveway. And make sure the door is fully closed before
leaving the driveway.
The opener is not intended for use by young children or
infirm persons without adequate supervision. Children
should be supervised to ensure that they do not play with
the transmitters or the opener.
Frequently examine the installation, in particular
guides and mountings for signs of wear, damage
or imbalance. DO NOT use if repair or adjustment
is needed since a fault in the installation or an
incorrectly balanced door may cause injury.
Important Safety Instructions
Please read this installation instruction manual before
attempting to install or use the opener. Failure to
comply with the instructions may result in serious
injury and/or property damage.

6Axess® Pro Series 1101 Owner Installation Instructions
Thank you for purchasing the Axess® Pro Series 1101
Commercial Overhead Door Opener. This opener is
designed to suit commercial heavy duty panel or sectional
doors. The components and materials used in this
opener are of the latest technology and highest
quality. Listed below are some of the many
features.
Operation
To operate the door opener, simply activate one of the integrated controller’s
inputs by using TrioCode™ handheld transmitter, keypad or other devices
including key switches, swipe cards, and loop detectors. In response, the door
will then open, stop or close as requested. The opener can also be configured to
close automatically using one of several Auto-Close modes.
Operator Console
Incorporated into the integrated controller is a simple to use operator console which
consists of several buttons and a display. The console offers a user friendly menu
system that greatly simplifies installation, adjustment and status indication. Features
include editing transmitter storage and names, setting various parameters, selecting
specialised operating modes and performing system diagnostics.
Status Indication
The status of the door opener can be determined at anytime by observing the console’s screen.
When the MAIN SCREEN is displayed, the current position of the door or the result of the last movement
can be found. The display will also show the count down progress of the Auto-Close timers. Any active
input will also be displayed along with the state of various features such as periodic service.
TrioCode™ Code Hopping Technology
Every time a TrioCode™ transmitter is used, a new security code is randomly generated from over 4.29 billion
possibilities. This greatly enhances the security of the system and makes “code grabbing” a thing of the
past.
These transmitters also overcome interference issues by simultaneously sending a signal over three slightly
different frequencies. Even if two of the three signals are jammed, the system will still work.
Features

Owner Installation Instructions Axess® Pro Series 1101 7
Security Code Store
The opener uses state of the art technology in storing your selected transmitter
codes. Up to 511 different transmitters can be stored in the opener’s memory with
the facility to assign a 11 character name to each transmitter.
Remote Limits Positioning
During installation, a hand held transmitter can be used when setting the door travel
limits. This allows the installer to closely observe and control the movement of the door
from any position rather than having to be within arms reach of the console.
Controlling Lock And Lights
The controller has dedicated outputs for operating an electric lock and warning or courtesy
lights. The timing of these outputs can be adjusted to suit your needs.
Extensive Operating Modes Via Control Inputs And Remote Control
The integrated controller can be configured to operate in many different ways via its 7 control and safety
inputs. These include P.E, OPEN, STOP, CLOSE, OSC, SWIPE and PEDESTRIAN. Remote control operation is
provided with each transmitter’s button being able to be configured to operate one of OSC, PEDESTRIAN,
SWIPE, CLOSE, OPEN, STOP, LIGHT or VACATION functions. The controllers functionality is further enhanced
by 4 Auto-Close modes, 3 P.E response modes and 2 pedestrian response modes. For details refer to relevant
sections.
Manual Operation
The opener is equipped with a unique manual operation device. If power to the opener is disrupted for any
reason, the shuttle can be disengaged and the door can move manually. When power is restored, simply re-
engage the shuttle to resume automatic operation.

8Axess® Pro Series 1101 Owner Installation Instructions
Product Description
The Axess® Pro Series 1101 Overhead Door
Opener consists of a drive unit with integrated logic
controller, aluminium channel and photo electric
beam sensors.
Logic Controller
Housed alongside the drive motor and gearbox is
a set of inverter and intelligent logic controller with
menu driven LCD display. The controller offers a range
of trigger inputs and door operation parameters. A
standard 240V AC power outlet is required to power
this model.
Mechanical Drive Unit
The drive unit consists of a powerful three phase motor,
rugged cast aluminium gearbox and position encoder.
The aluminium track has a channel for running cables for
PE Beams etc.
01
fig
Before Drive Unit Installation
The Axess® Pro Series 1101 Overhead Door Opener is
designed to operate most commercial heavy duty and
heavy residential overhead doors. The doors must be in
good working condition and travel freely in the guides.
Initial Check
Before commencing installation check the following:
1. The door moves freely for the full travel in both
directions.
2. The mounting must be solid construction (concrete,
brick or steel). It must be able to withstand the full
force applied to the door.
3. There is a 240V 10 Amp power point located within
one metre of drive unit.
4. Photo-electric Beams must be installed. They should
be located as close to the door as practicable.
02
fig

Owner Installation Instructions Axess® Pro Series 1101 9
Drive Unit Installation
Drive Unit Pre-assembly
The drive unit and track assembly are supplied as two
separate parts. The drive sprocket is part of the track
assembly.
1. To connect track to the drive unit, remove the front
cover.
2. Disconnect the trolley from the chain index (Fig. 02).
3. Loosen tension on the chain. Do not disconnect the
chain.
4. Locate the sprocket keyway with keyway on the
Reducer and slide it in place until the face of
sprocket boss sits against the shoulder on drive shaft
of the reducer.
NOTE: The whole track has to slide with the sprocket.
It can be knocked on with a mallet or “helped” with a
screwdriver.
5. Once the sprocket is in position, lock cap head
screw.
6. Secure the track to drive unit using M8 x 14 Hex
Head screws.
7. Tighten the chain and lock it with lock nuts.
Mounting The Drive Unit
1. Determine the centre of the door and mark this point
on the wall above (Fig. 03).
2. Raise the door to the open position (Fig. 04).
3. Rest the opener on a support above the top edge
of the door to allow for a 25mm gap between the
shuttle and the door.
4. Mark the position of the bracket on the wall above
the door (Fig. 05).
5. Secure the bracket in place with loxins or appropriate
fasteners.
6. Secure the opener to the ceiling above drive unit
mounting holes, with perforated angle or similar (not
supplied). Do not lock the screws at this stage.
7. The door bracket comes in two parts. The top plate
is placed over the bottom plate and uses 4 mounting
holes for extra strength. Mount the door bracket to
the centre line of the door (Fig. 06), using M6 or
equivalent screws (not supplied) Alternatively it can
be welded on steel doors.
NOTE: If in doubt about the strength of the door,
reinforcement may need to be added to the frame or
panel where necessary. Damage to the door panel may
occur if the bracket is installed incorrectly on a panel
with insufficient strength. The door opener warranty
does not cover damage caused by the opener to the
door and/or door panel.
8. Assemble the bent and straight arms with screws,
plain and spring washer and nuts supplied in the
accessory pack (Fig. 07).
9. Connect the assembled arm to the door bracket and
the trolley by clevis pin and spring clip.
NOTE: The shuttle must be in disengage position.
Always use both the bent & straight arms. If installing
on a door with bad wave action, lengthening the arm
even further will assist the door operation by reducing
the wave action.
03
fig
05
fig
06
fig
LEVEL
TRACK
DOOR
04
fig
07
fig

10 Axess® Pro Series 1101 Owner Installation Instructions
24VDC output for powering accessories 3A(max)
Drive unit connections
Com Terminal for light or lock interface relay drive
Light interface relay drive
Lock interface relay drive
V+ PE Beam power
PE Input Terminal
V- PE Beam Power
COM terminal for inputs terminals 11-16
OPN N/O input terminal
STP N/O input terminal
CLS N/O input terminal
OSC N/O input terminal
SWP N/O input terminal
PED N/O input terminal
Console Exit Button
Console Previous Button
Console Down/Close Button
Console Up/Open Button
Console SET Button
Console Next Button
Antenna Connector
Console Display
Motor Speed Control Connector
Programmer Interface Connector
3 Ampere 240 Volt Fuse
Motor Control Connector
24V AC Power Supply Input Terminal
01
03
02
04
05
06
07
08
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
Control Board Layout
28
29

Owner Installation Instructions Axess® Pro Series 1101 11
+ − 1 2 3 4 5 V+ LGT LCK V+ IN V−
24VDC DRIVE UNIT P.E BEAM
COM
OPN
STP
CLS
OSC
SWP
PED
RELAY OUTPUTS
01
03
02
08
09
10
11
12
13
14
16
17
18
19
20
23
24
25
29
21
22
26
28
15
04
05
06
07
27
08
fig
Control Board Layout

12 Axess® Pro Series 1101 Owner Installation Instructions
Wiring Diagram
U3 ACB03
D R I V E U N I T
1 2 3 4 5
PWR OPN CLS
M O T O R
24Vac (J2)
J4 24V/0.25A
GRN/YELL BLUE BROWN
BROWN BLUE
GRN/YELL
U1 6ET3
BROWN
BLUE RED
RED
GRN/YELL
U2 FM50-201-OC
BLUE
BLUE BLUE
BROWN
FREQ (J13)
+ -
J1
J2
J3 12V/2A
CONTROL UNIT
220V,50Hz
DRIVE UNIT
PDE 1.03
M
R S T
1 2 3
3phase 1/2HP ATA-MOTOR 240V (DELTA)
S2(OPN) S1(CLS)
1 2 3 4
3 4 1 5 2
LIMITS
YELLOW YELLOW
123
ORANGE RED YELLOW BROWN RED
RED BLUE GREEN BLACK YEL
RED BLUE GREEN BLACK YELLOW
BLACK BLACK RED RED
INVERTER
L1
L2
T1
T2
T3
12V 5 REV 4 FWD 3
E
MVI 9
0V 10
LINE
LOAD
EMI-Filter
A1
N1
E
A2
N2
1 2 3
U4
FERRITE CORE
EARTH (J1)
ANT (J16)
A1
GRN/YELL
T1
BROWN
BROWN
09
fig

Owner Installation Instructions Axess® Pro Series 1101 13
Setting Travel Limits
CAUTION: Cables which have a Green/Yellow
coloured insulation are for earthing purposes
only. Never use these cables for any other
purpose.
This section shows how to set the travel limits. The
procedure can be partly completed using a transmitter.
In order to use a transmitter, it must first have at least
one of its buttons coded to the controller. The function
assigned to the transmitter’s buttons is of no concern
here as the buttons are temporally assigned to OPEN,
CLOSE and SET.
NOTE: The limit setting procedure can be aborted at
anytime by pressing EXIT.
Installing Antenna
If the installation requires remote transmitters, an
external antenna is required. Mount the antenna as
high as possible for optimal reception. Do not cut the
coaxial cable.
Powering up
Connect to power. The controller will go through a
startup sequence displaying the STARTUP SCREEN
which indicates the controller type and firmware
version (Fig. 10).
After a short delay, the MAIN SCREEN will be
displayed. If this is the first time the controller has
been used, the MAIN SCREEN should indicate that the
limits are not set. If the display shows that an input is
active, rectify the situation before continuing with the
procedure for setting the travel limits for the door (Fig.
11).
NOTE: Door should be moved manually to the half
open position.

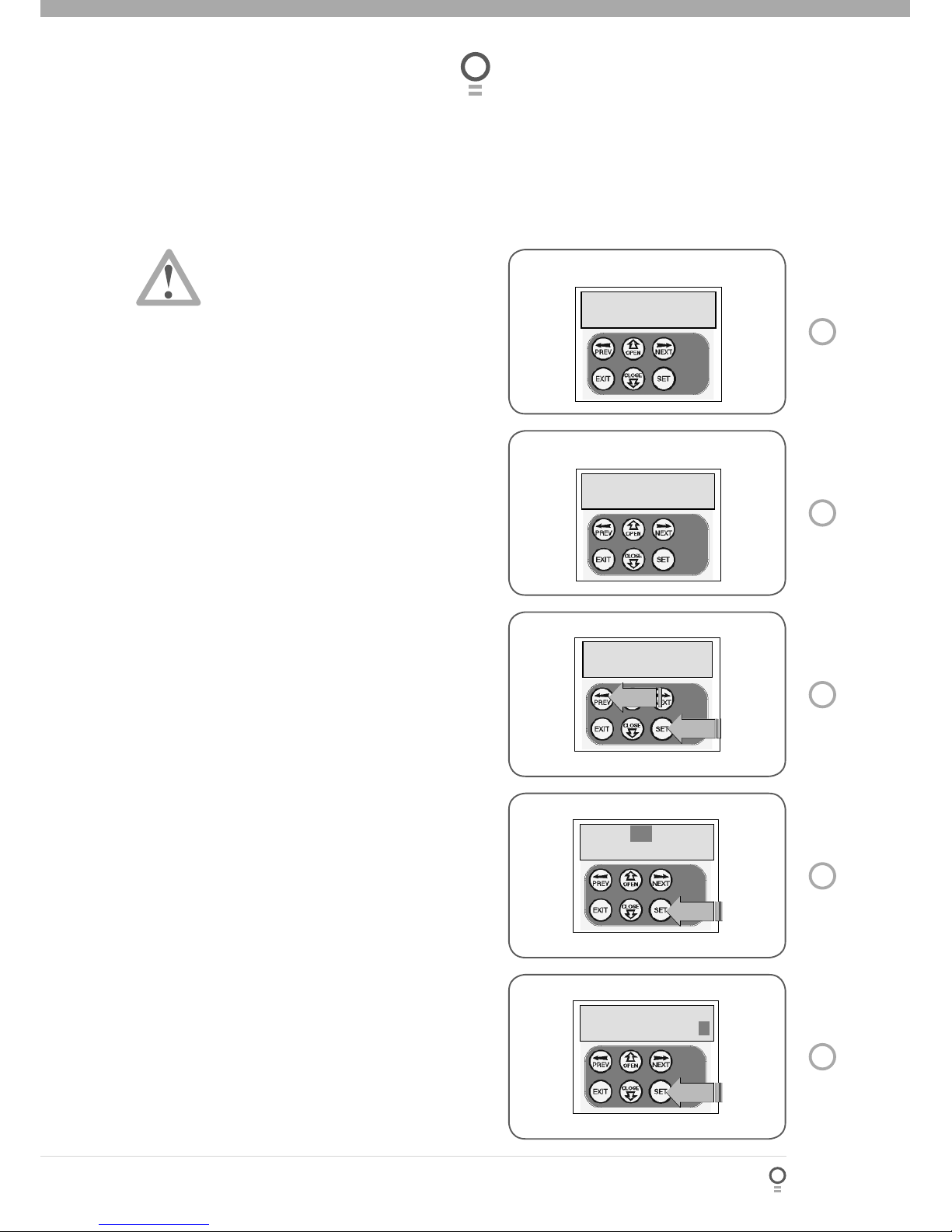

Step 1. Navigating to “Set Door Travel”
Menu
1. Press PREV to navigate to the Menu 10.
2. Press SET to display MENU 10.1 (Fig. 12).
3. Press SET again to enter the limit setting procedure
(Fig. 13).
Step 2. Selecting The Axess® Model
Number
By selecting the model number, the controller will be
loaded with the correct settings for motor encoder and
speed ramping
Press OPEN or CLOSE until “Select Axess®
MODEL 1101” is displayed (Fig. 14).
Press SET to continue
1.
2.
AXESS PRO
Firmware #.##
10
fig
12
fig
13
fig
Limits Not Set!
Press<-->to Acess Menus
MENU 10.1
Set Door Travel
11
fig
Press SET TO
Start Setup
Select AXESS
MODEL 1101
14
fig

14 Axess® Pro Series 1101 Owner Installation Instructions
Step 3. Setting Close Travel Limit

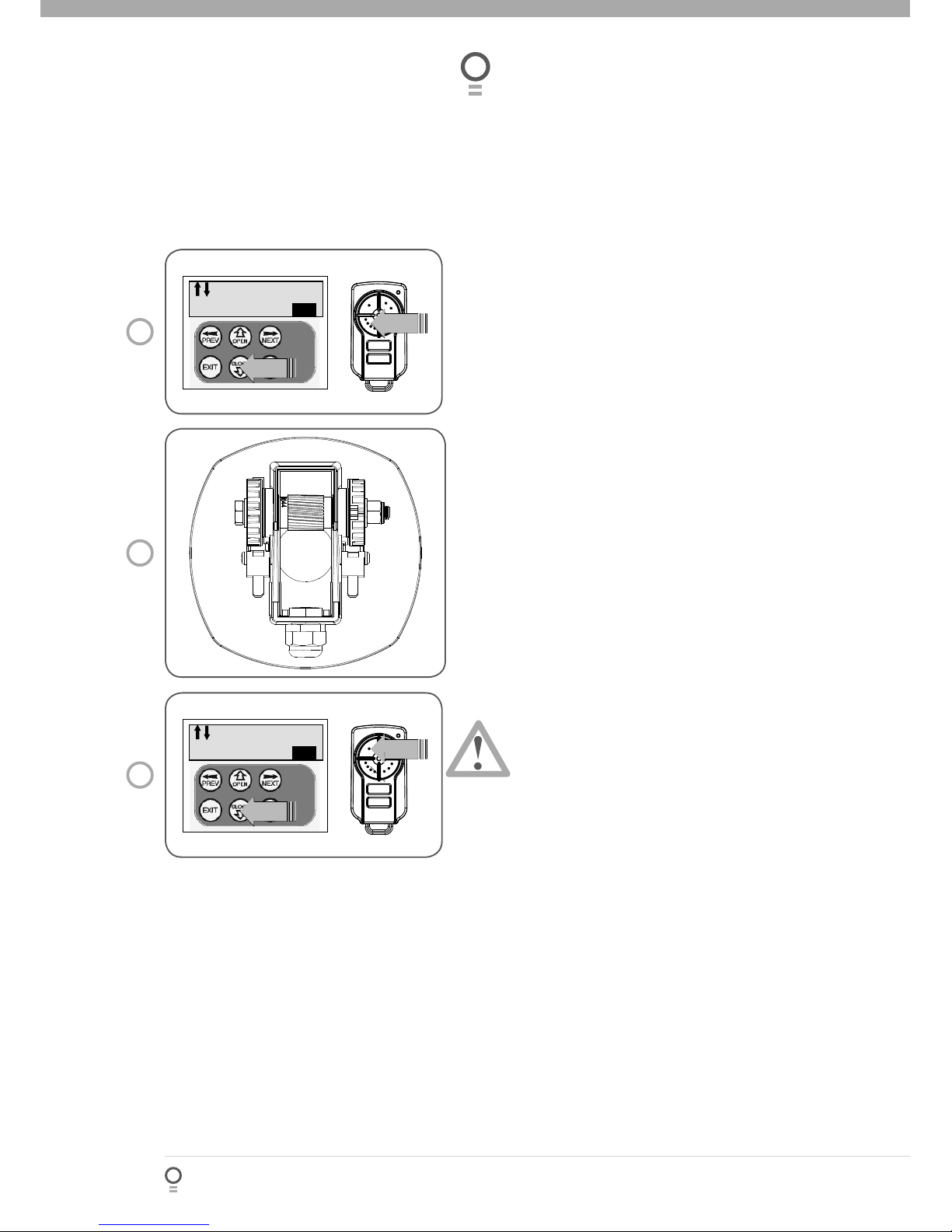

1. Press CLOSE to move the door to the desired CLOSE
LIMIT. (Or Press button 4 on transmitter) (Fig. 15).
2. Rotate the red CLOSE limit cam until the switch is
activated (Fig. 16).
NOTE: If the limit cam engages before the door reaches
the required position, adjust the cam back to allow for
additional door travel.
3. Press SET to record the CLOSE LIMIT. (Or press
button 2 on Transmitter).
NOTE: Limit will not be accepted unless the door is
driven in the close direction.
Step 4. Setting Open Travel Limit
1. Press OPEN to move the door to the desired OPEN
LIMIT. (Or Press button 1 on transmitter) (Fig. 17).
2. Rotate the green OPEN limit cam until the switch is
activated.
NOTE: If the limit cam engages before the door reaches
the required position, adjust the cam back to allow for
additional door travel.
3. Press SET to record the OPEN LIMIT. (Or press button
2 on Transmitter).
NOTE: Limit will not be accepted unless the door is
driven in the open direction.
WARNING: If tightening the cam retaining bolt,
use two spanners and DO NOT over tighten. It
requires no more than a quarter turn of the
spanner.
Automatic Limit Adjustment And Load
Profile
After a brief pause the controller will automatically close
and open the door several times to learn the normal
load profile of the door and the normal travel times.
When the setup is complete, the MAIN SCREEN will be
displayed with the door shown to be closed. The door
can now be used.
NOTE: Do not press transmitter during the limit
adjustment process.
Errors During Setting Of Travel Limit
During the above procedure many error checks are
preformed. If an error is detected, a message will be
displayed indicating the error.
Setting Travel Limits
OR
ES
To CLS Limit
Adjust, SET
15
fig
16
fig
OR
ES
To OPN Limit
Adjust, SET
17
fig

Owner Installation Instructions Axess® Pro Series 1101 15
Pedestrian Access Position
After completing the travel limit set procedure, the
Pedestrian Access Position is automatically set to a
position which is in the middle of the door travel. The
position can be manually set by following the SETTING
PEDESTRIAN POSITION procedure below.
NOTE: Before setting the Pedestrian Access Position,
the door must be in the fully closed position. As with
the Setting Travel Limit procedure, a transmitter can
be used to complete the pedestrian position setting
procedure.
Step 1. Navigating to “Set Pedestrian
Menu”
Press PREV to navigate to Menu 10.
Press SET - MENU 10.1 is displayed.
Press NEXT to go to MENU 10.2.
Press SET to enter Set Pedestrian procedure (Fig.
18).
Step 2. Setting Pedestrian Position
Press OPEN to move the door to the desired
pedestrian access position. (Or press button 1 on
transmitter) (Fig. 19).
Press SET to record position. (Or press button 2 on
transmitter).
Step 3. Pedestrian Position Set
The controller will return to the MAIN SCREEN with
the door status shown as being in pedestrian access
mode (Fig. 20).
1.
2.
3.
4.
1.
2.
Setting Pedestrian Position
MENU 10.2
Set Pedestrian
18
fig
20
fig
OR
ES
To Pedestrian
Position, SET
Ped’n Access
Press<-->to Acess Menus
19
fig
The variable frequency inverter converts 240V single
phase power into three phase to run the drive motor.
The other main function is to control the soft start/soft
stop (accelerate/decelerate) speed. The table below
indicates the factory preset and the range.
To change the accelerate/decelerate speed.
Press DSP/FUN button to display F06. ( Fig. 21)
Press DATA/ENT to enter modify mode. Display
should show factory default - 50Hz.
Press ▲or ▼to increase or decrease the
frequency .
Press DATA/ENT to set.
Function FN Unit Range Default
Accel./
Decel.
Speed
6 0.1Hz 30-70Hz 50Hz
1.
2.
3.
4.
Setting Operating Speed
21
fig
50.0

16 Axess® Pro Series 1101 Owner Installation Instructions
This section describes the standard operation
of the control board with the factory set default
values.
Motor Control
The controller drives the motor in the appropriate
direction as instructed by the control inputs. Once
a cycle is started the motor will continue to travel
until:
1. The controller is instructed to stop by a
control input.
2. The motor’s travel limit is reached.
3. A motor is obstructed, overloaded or stalls.
When the control inputs instruct the control board
to change the motor direction, the controller turns
off the motor, waits for the motor to stop and then
starts the motor in the other direction.
Motor Obstruction Detection
This feature is only enabled if an encoder if fitted
to the opener and the encoder option is selected
during the travel limit setup.
If a motor is obstructed while opening, the motor
is stopped. If a motor is obstructed while closing,
the motor is stopped and then reversed to the
open position. Obstruction detection is achieved
by monitoring the motor’s speed and comparing
it to the “normal” speed profile. If the speed of
the motor falls below the “normal” MARGIN RPM
setting, then the motor is said to be obstructed. In
addition to the normal motor obstruction detection,
motor overload, stall detection and excessive travel
time detection is provided to protect the door and
opener.
Motor Speed Control (VFD is required)
The motor’s speed is controlled using a frequency
output connected to a VFD or inverter. When a
motor is started, its speed is ramped up to the
selected open/close speed % parameter and then
ramped down as the travel limit is approached so
as to come to a gentle stop.
Lock Release Output
The lock can be installed to the door and
connected via the addition of a light relay module
which connects across V+ and LCK terminals
on the control board. The lock release output is
configured to pulse for 0.5 seconds at the start of
each cycle. The output is turned on at the same
time the motor is started.
Description Of Standard Operation
Courtesy Light
With the addition of a light relay module which connects
across V+ and LGT terminals on the control board, the
control board will control a courtesy light. The light is
normally used to illuminate the driveway etc. The light
will be turned on each time the door is activated (day
or night) and automatically turned off 1 minute after the
drive cycle has finished. The light can also be activated
and deactivated by pressing a transmitter button
assigned to the LGT function.
Open/Stop/Close (OSC) Input
(Activated by OSC terminal with N/O switch or by
transmitter button with OSC function assigned)
If the door is stopped, the OSC input will cause the door
to move in the opposite direction to that last travelled.
If the door is moving, the OSC input will cause the door
to stop.
Pedestrian Access (PED) Function
(Activated by PED terminal with N/O switch or by
transmitter button with PED Function assigned).
The pedestrian access operation partly opens the
door, allowing pedestrian access but preventing
vehicle access. The position the door is driven to is
automatically set to halfway during setting of the travel
limits, but can be manually adjusted. Pedestrian access
mode is entered when the input is activated and the
door is in the closed position. If the door is not in the
pedestrian access mode, the PED input will stop the
door if moving, or close the door, if stopped. While in
pedestrian access mode, the pedestrian access position
temporarily becomes the open limit for the door. The
PED input then acts with an OSC type function. The
pedestrian access mode is exited when the door is
closed or when another input is activated.
Close (CLS) Input
(Activated by CLS terminal with N/O switch, by
transmitter button with CLS function assigned or by
console’s CLOSE button). Activating the CLS input will
cause the door to close. Holding the input active will
prevent opening.
Swipe (SWP) Input
(Activated by SWP terminal with N/O switch or by
transmitter button with SWP function assigned).
Activating the SWP input will cause the door to be
opened. If the terminal input is held, it will prevent the
door being closed. The swipe input also effects P.E
TRIGGERED AUTO-CLOSE.

Owner Installation Instructions Axess® Pro Series 1101 17
Open (OPN) Input
(Activated by OPN terminal with N/O switch, by
transmitter button with OPN function assigned or by
console’s OPEN button). Activating the OPN input will
cause the door to open. Holding the input will prevent
closing.
NOTE: To activate open input by using N/C switch,
change OPN I/P N/C Operation to ON (menu 7.9).
Stop (STP) Input
(Activated by STP terminal with N/O switch, by
transmitter button with STP function assigned or by
console’s EXIT button). Activating the STP input while
the door is moving will cause the door to be stopped.
If the STP terminal is held it will prevent the door from
being moved.
NOTE: To activate stop input by using N/C switch,
change STP I/P N/C Operation to ON (menu 7.10).
Photoelectric Safety Beam (P.E) Input
(Activated by PE terminal with N/C switch) When
the P.E input is active, the door is prevented from
being closed. If the P.E input is triggered while the
door is closing, the controller will stop the motors
and then open the door. The P.E input has no
effect while the door is opening.
Vacation Mode
The controller supports a vacation mode where
remote control access is disabled. The mode is
activated by pressing a transmitter button with the
VAC function assigned until the console displays
that vacation mode is enabled (approx. 5 seconds).
When activated any transmitter button which is
assigned VAC will be ignored. To turn the Vacation
mode off simple press a transmitter button with
the VAC function assigned (Only requires a brief
activation.) Vacation mode can also be turned on
or off manually by editing the VACATION MODE
parameter.
Parameter Viewing And Editing
This section illustrates how to locate, view and adjust
parameters.
Locating Parameters
Refer to MENU STRUCTURE on Page 18 or
the preceding section for CONTROL BOARD
ADJUSTMENTS. Locate the required parameter and
note the MENU number. “AFTER CYCLE LIGHT TIME”
(Fig. 22) will be used as an example.
Changing Setting
Press NEXT/PREV to navigate to the required
menu.
Press SET to show sub menu.
Press NEXT/PREV to go to the required sub menu.
Press SET to enter edit mode (Fig. 23).
Press UP/DOWN to change the parameter setting.
Holding the button down causes the parameter’s
value to change rapidly. The longer the button is
held the faster the value changes.
Press SET to SAVE setting.
Reload Default Setting
Press NEXT/PREV buttons to display LOAD
DEFAULT screen.
Press SET to load the default value.
Return To Menu
If the parameter’s value is not to be changed, press
EXIT to return to the sub menu. Press EXIT again to
return to the MAIN SCREEN.
1.
2.
3.
4.
5.
6.
1.
2.
1:After Cycle
Time (Sec) 60
22
fig
23
fig
1:After Cycle
Time (Sec) 60
0

18 Axess® Pro Series 1101 Owner Installation Instructions
Menu Structure
Menu 8
Diagnostics
Menu 9
Memory tools
Menu 10
Travel limits
Menu 1
Code
transmitter
Menu 2
Obstruct
margins
Menu 3
Auto-Close
times
Main Screen
Door status &
information
Menu 10.1
Set door
travel
Menu 10.2
Set pedestrian
Code/edit
transmitter
procedure.
See page 23
Parameter list
1. CLS margin
2.OPN margin
See page 19
Parameter list 1. STD Auto-Close 2. P.E. Auto-Close 3. Ped’n Auto-Close 4. P.E Ped’n Auto- Close 5. Auto-Close after close obstruction See page 19
Travel limit set
up procedure.
See page 13
Ped’n position
set up
procedure.
See page 15
Menu 9.1
CLR control?
Menu 9.2
CLR Tx’ers?
Memory reset/reload default
settings see page 30
Menu 8.1
Test inputs
Menu 8.2
Test tx’ers
Menu 8.3
Display history
Menu 8.5
Service counter
Menu 8.6
Counters
Menu 8.4
Memory Usage
Control input
status display.
See page 28
Transmitter
testing
See page 28
Event history
display
See page 28
Periodic service
cycle counter
See page 29
Cycle and
event counter
See page 29
Memory usage
See page 29
NOTES 1. Move Left/Right using PREV/NEXT Buttons. 2. Move Up/Down using EXIT/SET Buttons. 3. System will automatically return to the main
screen after 30 secs if a menu screen is displayed and no buttons are pressed.
4. Pressing EXIT when in MENU 1 - MENU 10
will return to MAIN SCREEN.
Menu 5
Light times
Menu 6
Motor settings
Menu 7
Operating
modes
Menu 4
Lock times
Parameter list 1. PE input response 2. PED input response 3. Remote code enable 4. Activity report ETC See page 21
Parameter list 1. Full speed % 2. Min speed % 3. Cycle timeout See page 21
Parameter list 1. On after cycle time 2. On before OPN time 3. On before CLS time See page 20
Parameter list 1. Open lock time 2. Close lock time 3. Pre-OPN lock time. 4. Pre-CLS lock time. See page 20

Owner Installation Instructions Axess® Pro Series 1101 19
The opener’s standard operation can be altered by
editing various parameters. This section describes the
parameters and the effect they have. Use the VIEWING
AND EDITING PARAMETER PROCEDURE on Page 17
to make changes.
Control Board Adjustments
Menu 2. Obstruction Margins
The obstruction margins are used to alter the
sensitivity of the controller to obstructions.
Increasing the value increases the allowable
variation between the “normal” force profile
and the actual force.
Parameter Min Max Default Step Unit Menu No.
CLS MARGIN Sets the obstruction detection
margin for close cycles
0.0 250 100 10 - 2.1
OPN MARGIN Sets the obstruction detection
margin for open cycles
0.0 250 100 10 - 2.2
Menu 3. Auto-Close Times
The Auto-Close modes automatically close the door
after it has been operated. To implement this, the
controller starts a timer once the door has reached its
desired open position. The timer then counts down
and when it expires, the controller starts to close the
door. Details about the four Auto-Close modes follow.
Automatic Technology strongly recommend using a PE
Beam for added safety.
Standard Auto-Close
This mode is selected by entering a non-zero time for
the STD Auto-Close parameter. When selected the
door will Auto-Close after being fully opened (except
when the door has reversed to the open position
after a motor obstruction or overload). Countdown
is suspended by: the P.E, OPN or SWP input being
active. The countdown is aborted if the STP input is
activated. If the door is already open and the OPN or
the SWP input is activated, then the countdown will
start.
P.E triggered Auto-Close
This mode is selected by entering a non-zero time for
the “P.E Auto-Close” parameter. This mode is used
to Auto-Close the door but only after a vehicle has
passed through the doorway and triggered the P.E
input. The swipe input can be used to clear the P.E
triggered status so that the P.E input must be
activated again before the countdown will start.
As with the other P.E modes the STP input will
abort countdown and the OPN and SWP inputs
will restart the countdown if the door is OPEN.
Pedestrian access Auto-Close
This mode is selected by entering a non-zero
time for the “Ped’n A/C” parameter. When
selected the door will Auto-Close after being
opened for pedestrian access unless it was
following a reverse from an obstruction.
P.E triggered pedestrian Auto-Close
This mode is selected by entering a non-zero
time for the “P.E Ped’n A/C” parameter.
This mode is the same as the P.E triggered
Auto-Close mode but it only operates during
pedestrian access. As the SWP input is not
available during pedestrian access, the PED
input can be configured to act in a SWP mode
by setting the “PED I/P = PED SWIPE MODE”
parameter to ON.
Auto-Close after obstruction
Two parameters are provided to enable the Auto-
Close feature to be activated after obstructions.
Normally the Auto-Close feature is not enabled
after obstructions for safety reasons. A P.E beam
must be used for these features to be activated.
Parameter Min Max Default Step Unit Menu No.
STD AUTO-CLOSE TIME
Sets and enables the standard Auto-Close time.
0.0 300.0 0.0 1.0 Sec 3
P.E AUTO-CLOSE TIME Sets and enables the P.E
triggered Auto-Close time.
0.0 60.0 0.0 1.0 Sec 3
PEDESTRIAN AUTO-CLOSE TIME Sets and
enables the Pedestrian Auto-Close time.
0.0 60.0 0.0 1.0 Sec 3
P.E PEDESTRIAN AUTO-CLOSE TIME Sets and
enables the PE Pedestrian Auto-Close time.
0.0 60.0 0.0 1.0 Sec 3
AUTO-CLOSE AFTER CLOSE OBSTRUCTION
Enables Auto-Close feature after close
obstructions
Off On Off 3
AUTO-CLOSE AFTER OPEN OBSTRUCTION
Enables Auto-Close feature after open
obstructions
Off On Off 3

20 Axess® Pro Series 1101 Owner Installation Instructions
Menu 4. Lock Times
With the addition of a relay module connected to the control board, the electric lock can be controlled. Lock
output can be programmed for both hold and pulse operation and can also be programmed to activate prior
to the door motor starting. The operation of the lock can be programmed to behave differently on open cycles
to that on close cycles.
Control Board Adjustments
Parameter Min Max Default Step Unit Menu No.
OPEN LOCK TIME Set the time the lock is
activated for on open cycles
0.0 Hold 0.5 0.1 Sec 4
CLOSE LOCK TIME Set the time the lock is
activated for on close cycles
0.0 Hold 0.5 0.1 Sec 4
PRE-OPEN LOCK TIME
Time the lock is activated for prior to opening
0.0 25.5 0.0 0.1 Sec 4
PRE-CLOSE LOCK TIME
Time the lock is activated for prior to closing
0.0 25.5 0.0 0.1 Sec 4
Menu 5. Light Times
With the addition of a relay module connected to the control board, a light can be controlled. The time the
light stays on is controlled by two timers. The first times the length of time the light is activated for prior to a
drive cycle. This is used to warn that door movement is pending. The second times how long the light remains
on after a cycle. The parameters are shown below.
Parameter Min Max Default Step Unit Menu No.
ON AFTER CYCLE LIGHT TIME
Time light remains on for after a cycle
0 255 60 1 Sec 5
ON BEFORE OPEN CYCLE LIGHT TIME
Minimum time light is activated for prior to
opening
0 25.5 0 0.1 Sec 5
ON BEFORE CLOSE CYCLE LIGHT TIME
Minimum time light is activated for prior to
closing
0 25.5 0 0.1 Sec 5
