Automatic Technology Axess Pro Series User manual

Axess®Pro Series 3100
Industrial Roller Shutter Opener
Featuring TrioCode™Technology
INSTALLATION INSTRUCTIONS | OWNERS COPY
Technical Document
Installation Manual
v1.11
14 Dec 2011
English
Part # 13296 (Manual)

2Axess® Pro Series 3100 Owner Installation Instructions
Automatic Technology (Australia) Pty Ltd to the extent that such may be lawfully excluded hereby expressly disclaims all
conditions or warranties, statutory or otherwise which may be implied by laws as conditions or warranties of purchase of an
Automatic Technology (Australia) Pty Ltd industrial roller shutter opener. Automatic Technology (Australia) Pty Ltd hereby
further expressly excludes all or any liability for any injury, damage, cost, expense or claim whatsoever suffered by any
person as a result whether directly or indirectly from failure to install the Automatic Technology (Australia) industrial roller
shutter opener in accordance with these installation instructions.
WARNING: Electrical wiring must be in compliance with
your local building and electrical codes.
WARNING: It is vital for the safety of persons to follow all
instructions.Failuretocomplywiththeinstallationinstructions
and the safety warnings may result in serious personal injury
and/or property and remote control opener damage. Please
save these instructions for future reference.
NOTE: For full automatic operation a Photo Electric Beam
Sensor must be fitted to the logic console with this opener.
Failure to comply will void the warranty and may cause
serious personal injury and/or property damage.

Owner Installation Instructions Axess® Pro Series 3100 3
Axess®Pro Series 3100
1-Phase 240Vac Industrial Roller Shutter Opener
Important Safety Instructions 4
Features 6
Package Contents 8
Controllers Input And Output 9

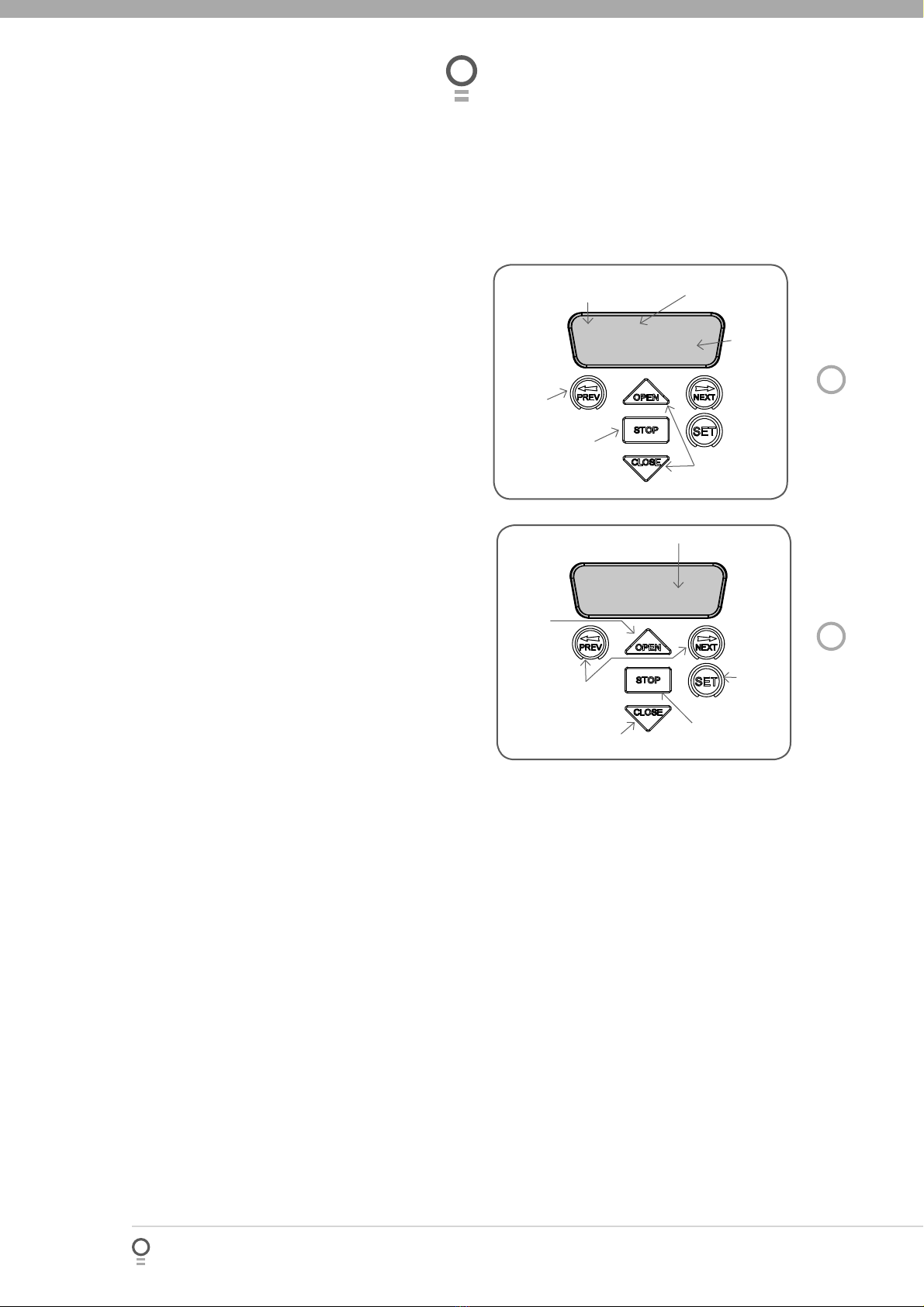

Operating Controls 10
Before Drive Unit Installation 11
Installation 12
Manual Console 13

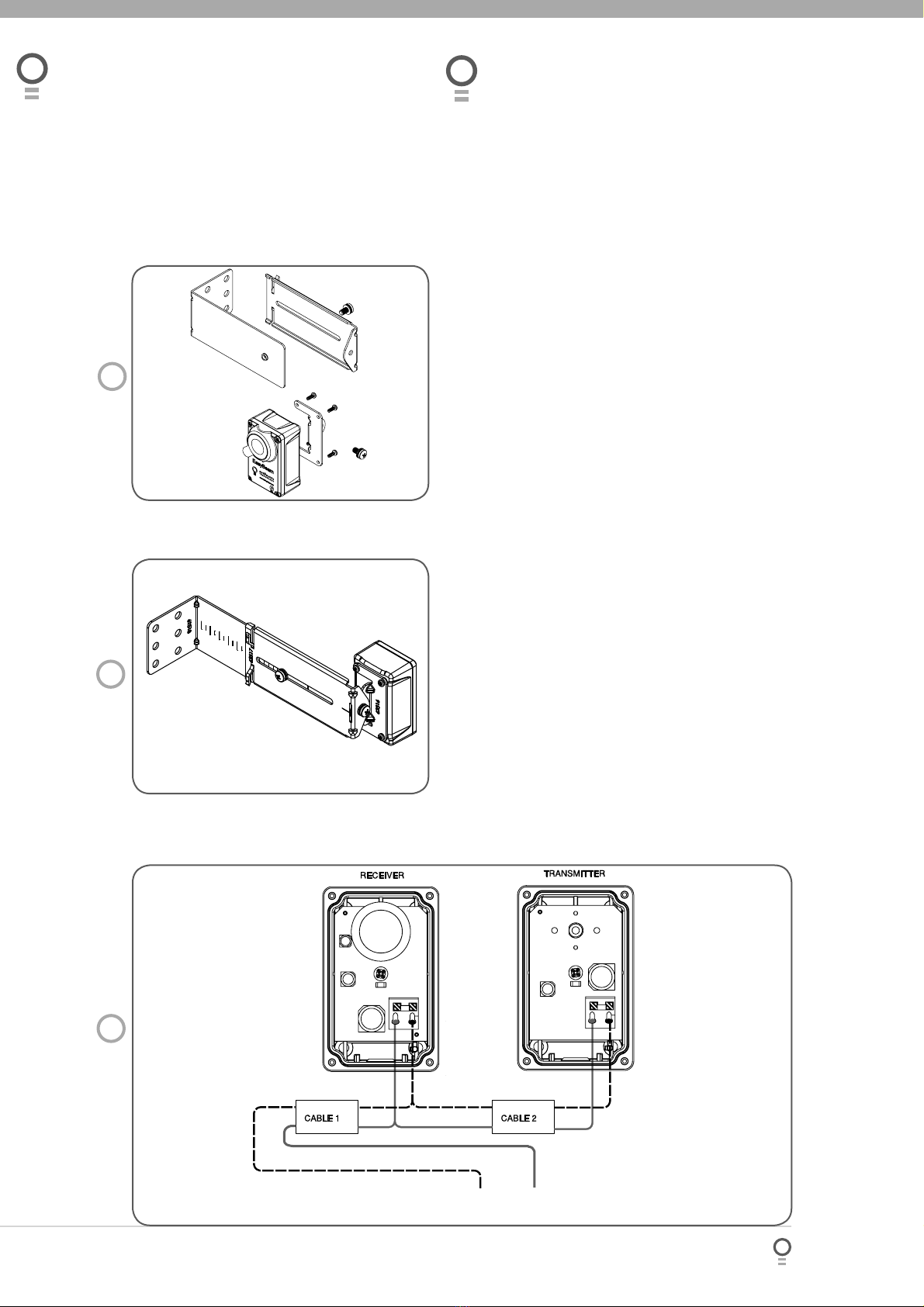

EasyBeam™ Installation 14

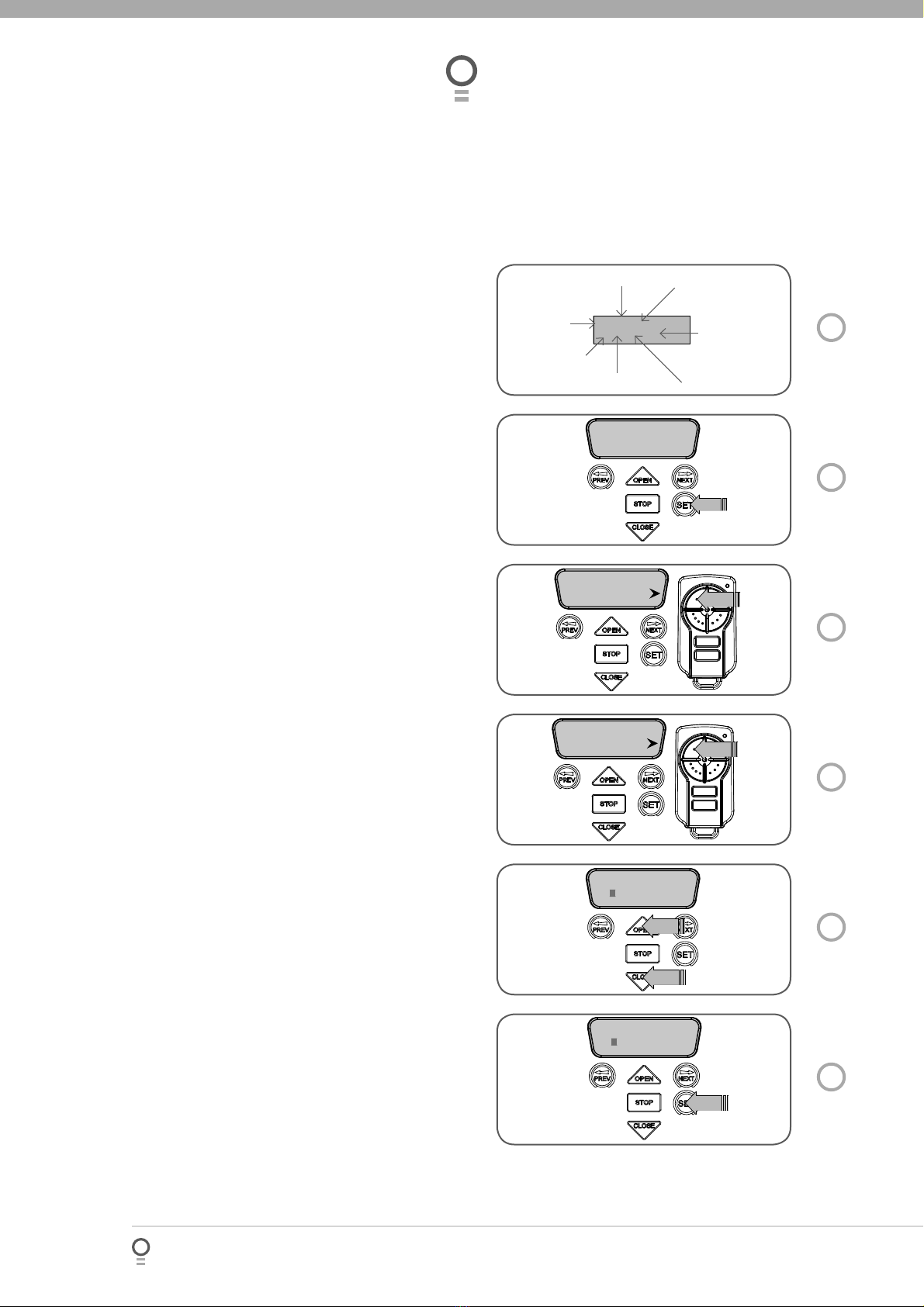

Viewing And Editing Parameters 15
Setting Limits with Logic Console 16
Setting Limits: Via Transmitter 17

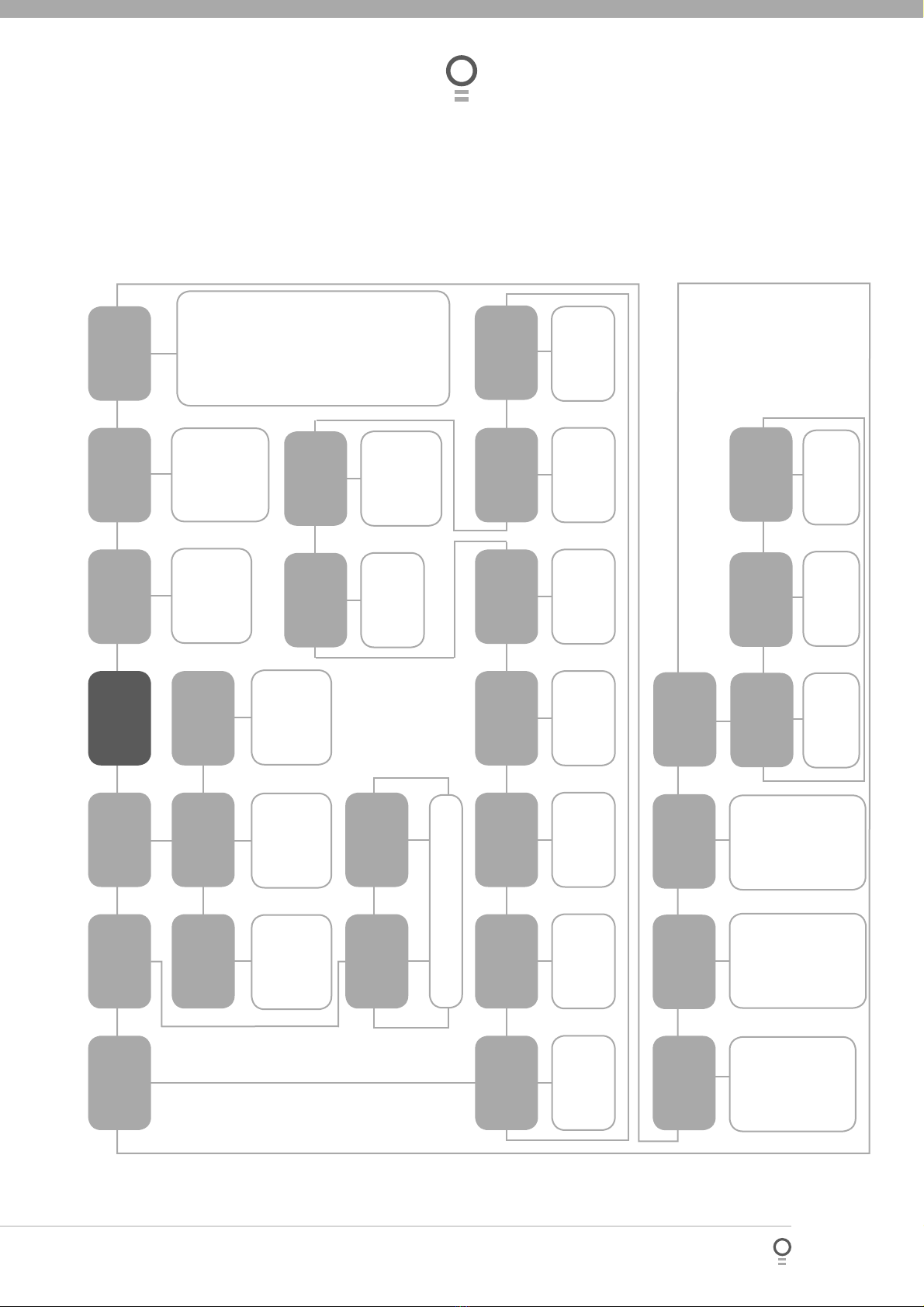

Menu Structure 18
Coding Transmitters 19
Transmitter Editing 20
Transmitter Management 22
Remotely Coding Transmitters 24
Setting Pedestrian Position 25
Reprofiling The Shutter Travel 25
Control Board Adjustments 26
Current Trips 26
Auto-Close Times 26
Light Times 27
Motor Settings 28
Time Clock 32
Diagnostic Tools 34
Memory Tools 36
Specifications 37
Troubleshooting 38
Maintenance 39
Spare Parts 40
Warranty 41

4Axess® Pro Series 3100 Owner Installation Instructions
Thank you for purchasing the Axess® Pro Series 3100
Industrial Roller Shutter Opener. This opener is designed
to suit heavy duty rolling shutters. The components and
materialsusedinthisopener are of the latest technology
and highest quality. Listed below are some of the
many features.
Operation
To operate the opener, simply activate one of the integrated controller’s inputs
by using a TrioCode™ handheld transmitter, keypad or other device including
key switches, swipe cards, and loop detectors. In response, the shutter will then
open, stop or close as requested. The opener can also be configured to close
automatically using one of several Auto-Close modes.
Logic Console
Incorporated into the integrated controller is a simple to use operator console
which consists of several buttons and a display. The console offers a user friendly
menu system that greatly simplifies installation, adjustment and status indication.
Features include editing transmitter storage and names, setting various parameters,
selecting specialised operating modes and performing system diagnostics.
Status Indication
The status of the opener can be determined at anytime by observing the console’s LCD
screen. When the MAIN SCREEN is displayed, the current position of the shutter or the result of
the last movement can be found. The display will also show the count down progress of the Auto-
Close timers. Any active input will also be displayed along with the state of various features such as
periodic service.
Manual Console
Manual console is simple to use. The status of the door is shown by the LEDs on the manual console.
NOTE: P.E. Beams, transmitters or any other device can not be used with manual console.
TrioCode™ Code Hopping Technology
Every time a TrioCode™ transmitter is used, a new security code is randomly generated from over 4.29
billion possibilities. This greatly enhances the security of the system and makes “code grabbing” a thing of
the past. These transmitters also overcome interference issues by simultaneously sending a signal over three
slightly different frequencies. Even if two of the three signals are jammed, the system will still work.
Features

Owner Installation Instructions Axess® Pro Series 3100 5
Soft-Start Soft-Stop
The opener accelerates slowly at the start of the cycle and deaccelerates just
before reaching the limit. This feature reduces the wear and tear on the shutter.
Security Code Store
The opener uses state of the art technology to store your selected transmitter
codes. Up to 511 different transmitters can be stored in the opener’s memory with
the facility to assign an 11 character name to each transmitter.
Remote Limits Positioning
During installation a hand held transmitter can be used with logic console when setting
the travel limits. This allows the installer to closely observe and control the movement of
the shutter from any position rather than having to be within arms reach of the console.
Controlling Lights
The Auxiliary output can be programmed to operate a light relay module. The light relay module can
control the warning or courtesy light. The timing of these outputs can be adjusted to suit your needs.
Extensive Operating Modes Via Control Inputs And Remote Control
The integrated controller can be configured to operate in many different ways via its 7 control and safety
inputs. These include P.E, FIRE, GPI, OPEN, STOP, CLOSE, and SWIPE. Remote control operation is provided
with each transmitter button being able to be configured to operate one of OSC, PEDESTRIAN, SWIPE,
CLOSE, OPEN, STOP, LIGHT or VACATION functions. The controllers functionality is further enhanced by 4
Auto-Close modes, 3 P.E. response modes and 2 pedestrian response modes. For details refer to relevant
sections of this manual.
Automatic Manual Operation Clutch
The opener is equipped with an automatic clutch. If power to the opener is disrupted for any reason the User
can open or close the shutter manually by using the hand chain. When power is restored simply press the
button on the console or the transmitter to open or close the shutter.

6Axess® Pro Series 3100 Owner Installation Instructions
For Safety protection, a Photo Electric Beam must be fitted with logic console. Failure to comply will void the
warranty and may result in serious personal injury and/or property damage.
DO NOT operate the opener unless the shutter is in full view and free from objects such as cars and children/
people. Make sure that the shutter has finished moving before entering or leaving the driveway.
DO NOT operate the opener when children/people are near the shutter. Children must be supervised near the
shutter at all times when the opener is in use. Serious personal injury and/or property damage can result from
failure to follow this warning.
DO NOT allow children to operate the opener. Any device that can operate the opener, make sure it is out
of reach of children and that the doorway is in full view at all times. Serious personal injury and/or property
damage can result from failure to follow this warning.
DO NOT wear rings, watches, or loose clothing while installing or servicing Axess® Pro Series 3100.
The opener is not intended for use by young children or infirm persons without adequate supervision. Children
should be supervised to ensure that they do not play with the transmitters or the opener.
The opener is not showerproof - it should not be immersed in water or sprayed directly by a hose or other water
carrying device.
Electrical wiring must be compliance with your local building and electrical codes.
The shutter must be well balanced and in good working order. Shutter springs, brackets and their hardware are
under extreme tension and can cause serious personal injury. Do not attempt to adjust them. A faulty shutter
must be repaired by a industrial roller shutter professional prior to opener installation.
Remove or disengage all locks and mechanisms prior to installation of the opener.
Keep hands and loose clothing clear of the shutter and opener at all times.
When using Auto-Close mode, a photo electric beam must be fitted correctly
and tested for operation at regular intervals. Extreme caution is recommended
when using Auto-Close mode. All Safety Instructions above must be
followed.
Make sure that the shutter is fully open before driving into or out of the
driveway. And make sure the shutter is fully closed before leaving the
driveway.
Frequently examine the installation, in particular guides and
mountings for signs of wear, damage or imbalance. DO NOT use
if repair or adjustment is needed since a fault in the installation
or an incorrectly balanced shutter may cause injury.
After installation a full function test of the system and
safety devices must be done.
WARNING: It is vital for the safety of those who install, maintain
or operate the opener to follow all instructions. Failure to comply
with the instructions may result in serious personal injury and/or
property damage. Please read this installation instruction manual
before attempting to install, maintain or use the opener.
Important Safety Instructions

Owner Installation Instructions Axess® Pro Series 3100 7
01
fig
Package Contents
Description Qty
Axess 3100 Power Drive Unit 1
Timing Assembly 1
Logic Console* 1
Manual Console* 1
Communication Cable 1
Output Drive Shaft Assembly 1
Chain 10B (0.625”) 1
Sprocket 14T (0.625”) 1
Mounting Flange 1
Ax30 Fastener Pack 1
TrioCode™ Keyring Transmitters* 2
EasyBeam™ with wires and brackets* 1
Installation Manual 1
Logic Console Transmitters
EasyBeam™
Communication Cable
Timing assembly
Chain 10B
Mounting Flange
Output Drive Shaft
14T Sprocket
Ax30 Fastener Pack
* Not available with some models
Manual Console
Power Drive Unit

8Axess® Pro Series 3100 Owner Installation Instructions

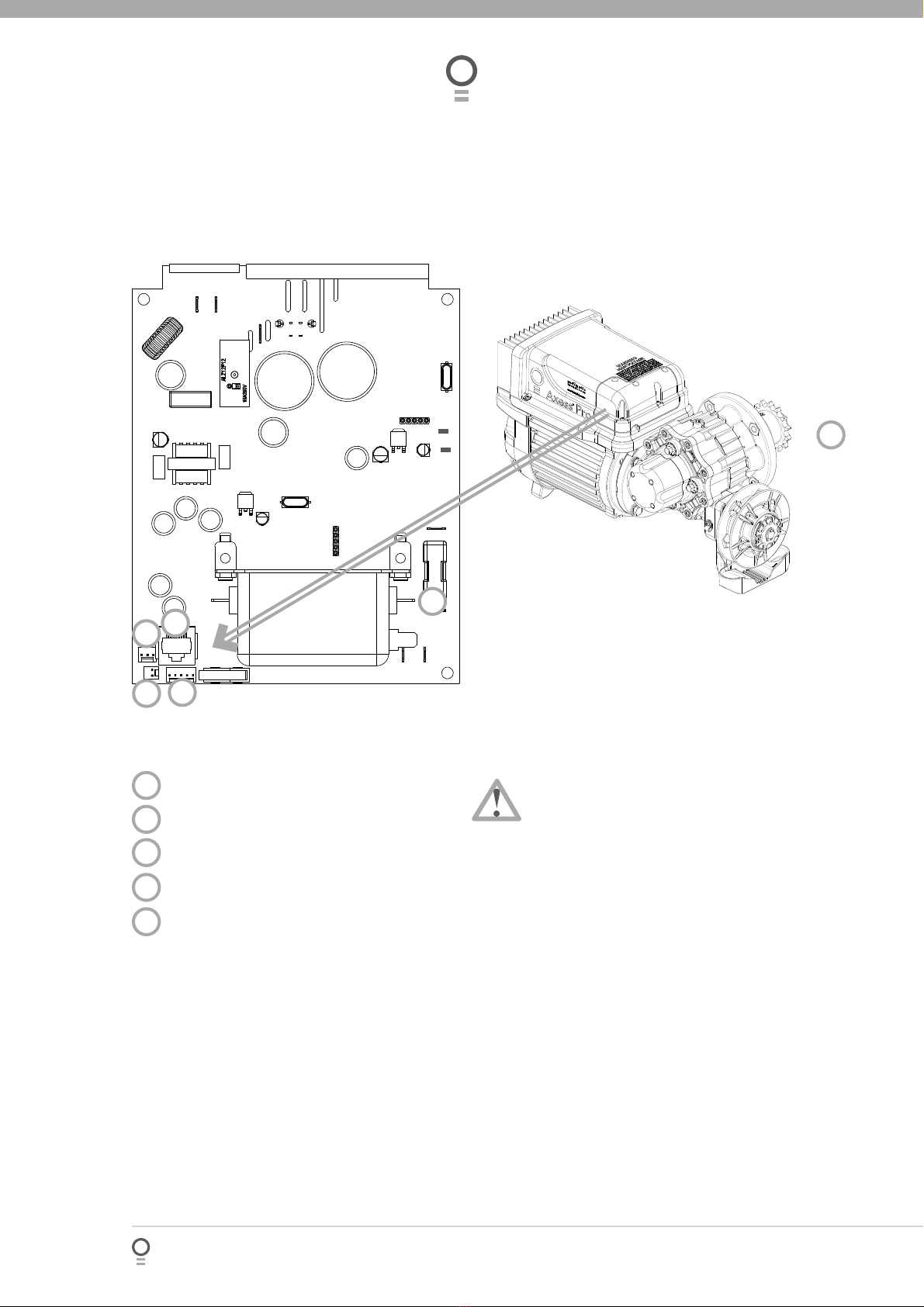

Controller Input And Outputs
Motor identification harness connector
Clutch interlock microswitch connector
Serial interface connector
Position sensor connector
10 Amps slow blow mains fuse
03
04
02
01
05
01
02
03
04
05
02
fig
WARNING! HIGH VOLTAGE!
This unit is not user serviceable.
Disconnect power supply before removing
cover. Please ensure all electrical cables
are secured clear of any moving parts.
Failure to comply may cause electrocution
resulting in serious injury or death.

Owner Installation Instructions Axess® Pro Series 3100 9
09
08
13
07
06 14
12
11 10
Terminal Block ( From Left To Right )
V+ Three Wire P.E. Beams “ + “ Supply
IN3 Three Wire P.E. Beams Trigger Input
V- Common For Two Wire EasyBeam™ and
Three Wire P.E. Beams
IN2 Two Wire EasyBeam™ Input
AUX OUT Receiver’s Auxiliary Output
FIRE Input Terminal (N/O or N/C)
GPI N/O Input Terminal (N/O)
OPN Input Terminal (N/O or N/C)
STP Input Terminal (N/O or N/C)
CLS Input Terminal (N/O)
SWP Input Terminal (N/O)
COM Terminal For Inputs
Programmer PG-3 Input
Console Previous Button
Liquid Crystal Display
Console Next Button
Console Open Button
Console Stop Button
Console Set Button
Console Close Button
RJ45 Connector
06 07
08
09
10
11
12
13
14
03
fig

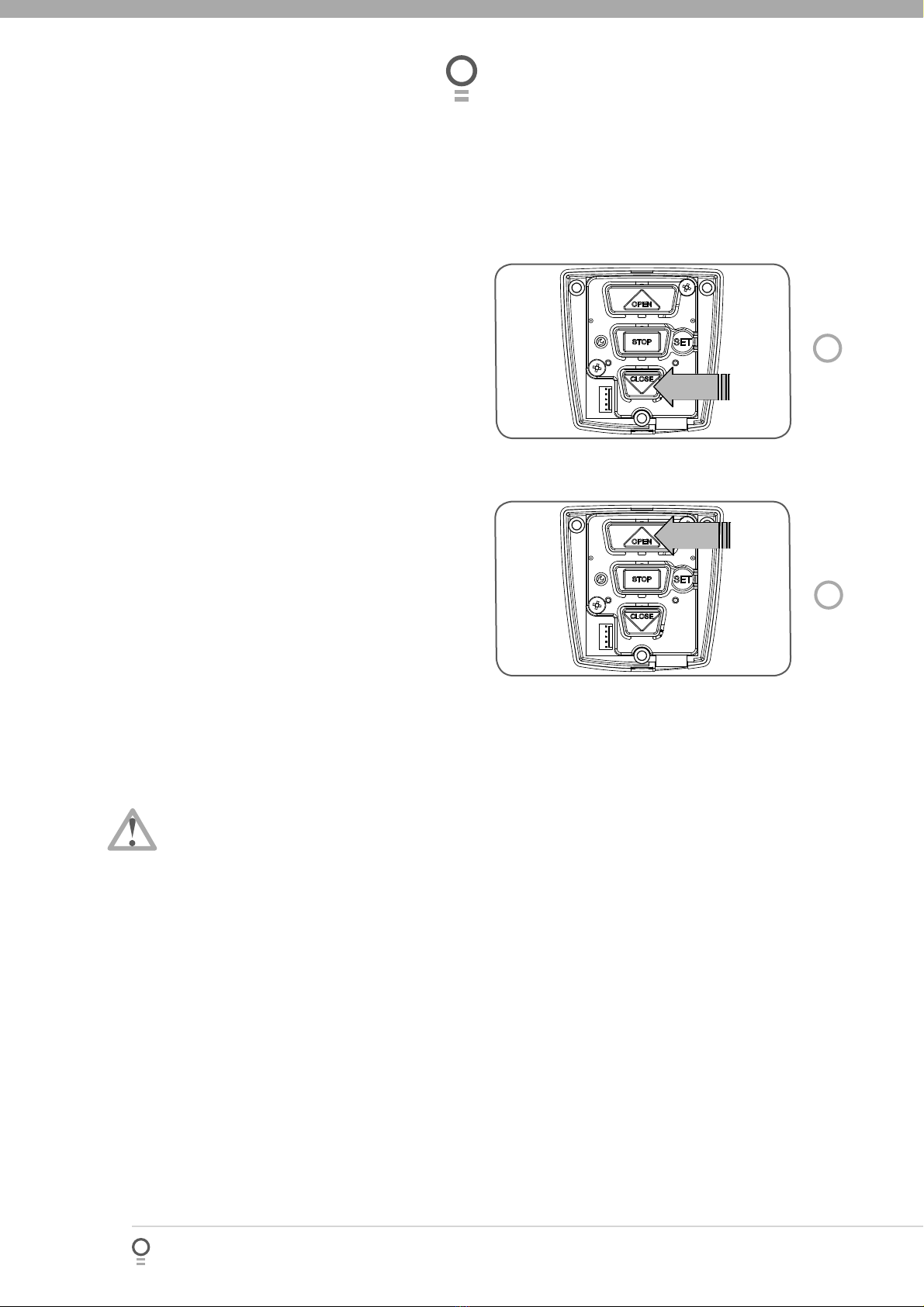

Operating Controls
07
11
12 13
14
15 15
15
Logic Console Manual Console

10 Axess® Pro Series 3100 Owner Installation Instructions
Before Drive Unit Installation
The Axess® Pro Series 3100 is designed to operate
most industrial heavy duty roller shutters. The shutter
must be in good working condition and travel freely in
the guides.
Step 1 - Initial Check
Before commencing installation, check the following:
The shutter moves freely for the full travel in both
directions.
The mounting must be a solid construction (concrete,
brick or steel) and must be able to withstand the full
driving force applied to the shutter.

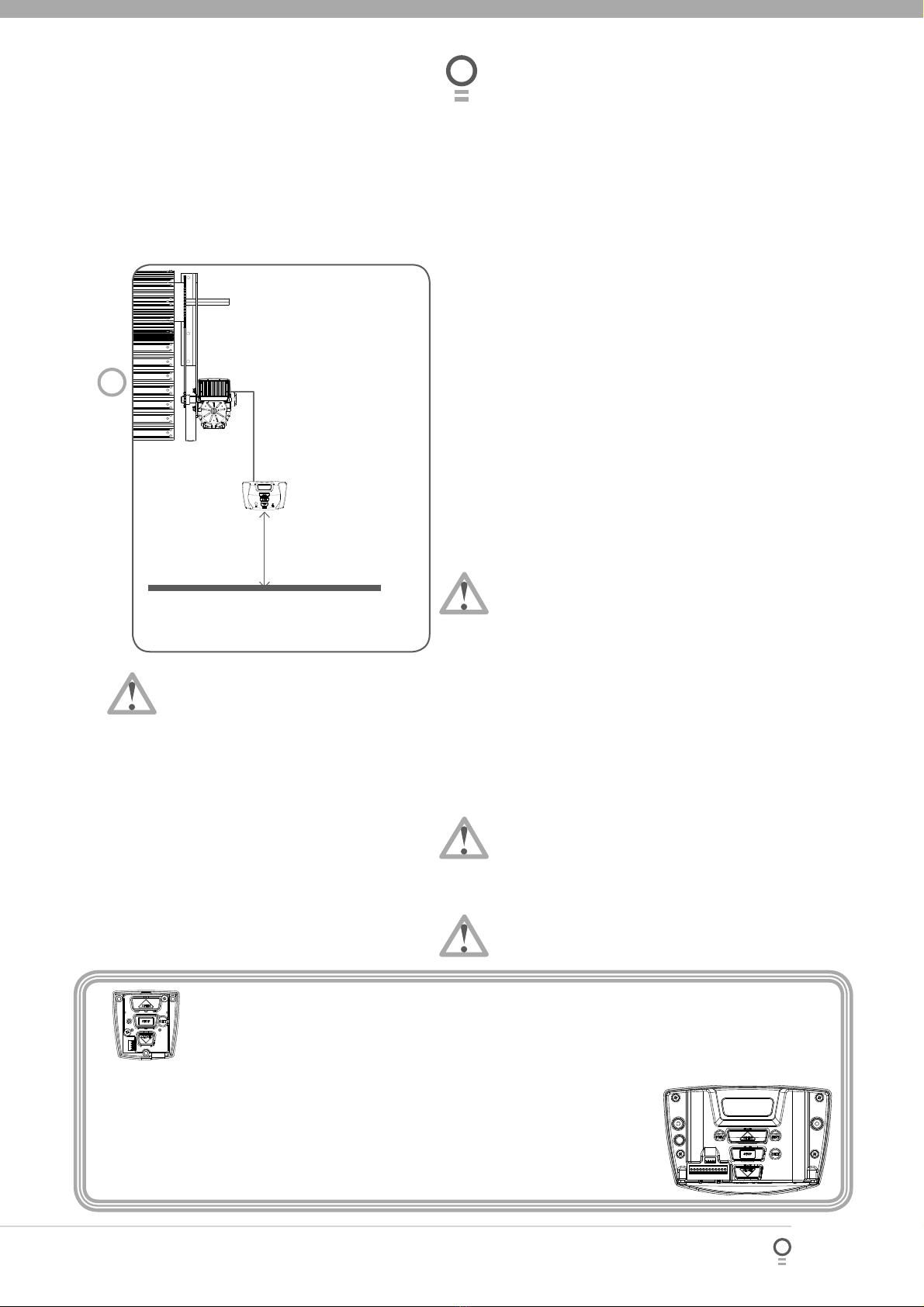

There is a 240V 10 Amp power point located within
one metre of the drive unit.
For full automatic operation an EasyBeam™ must be
fitted to the logic console. The EasyBeam™ should
be positioned as close to the shutter as practicable.
Selecting the installation location

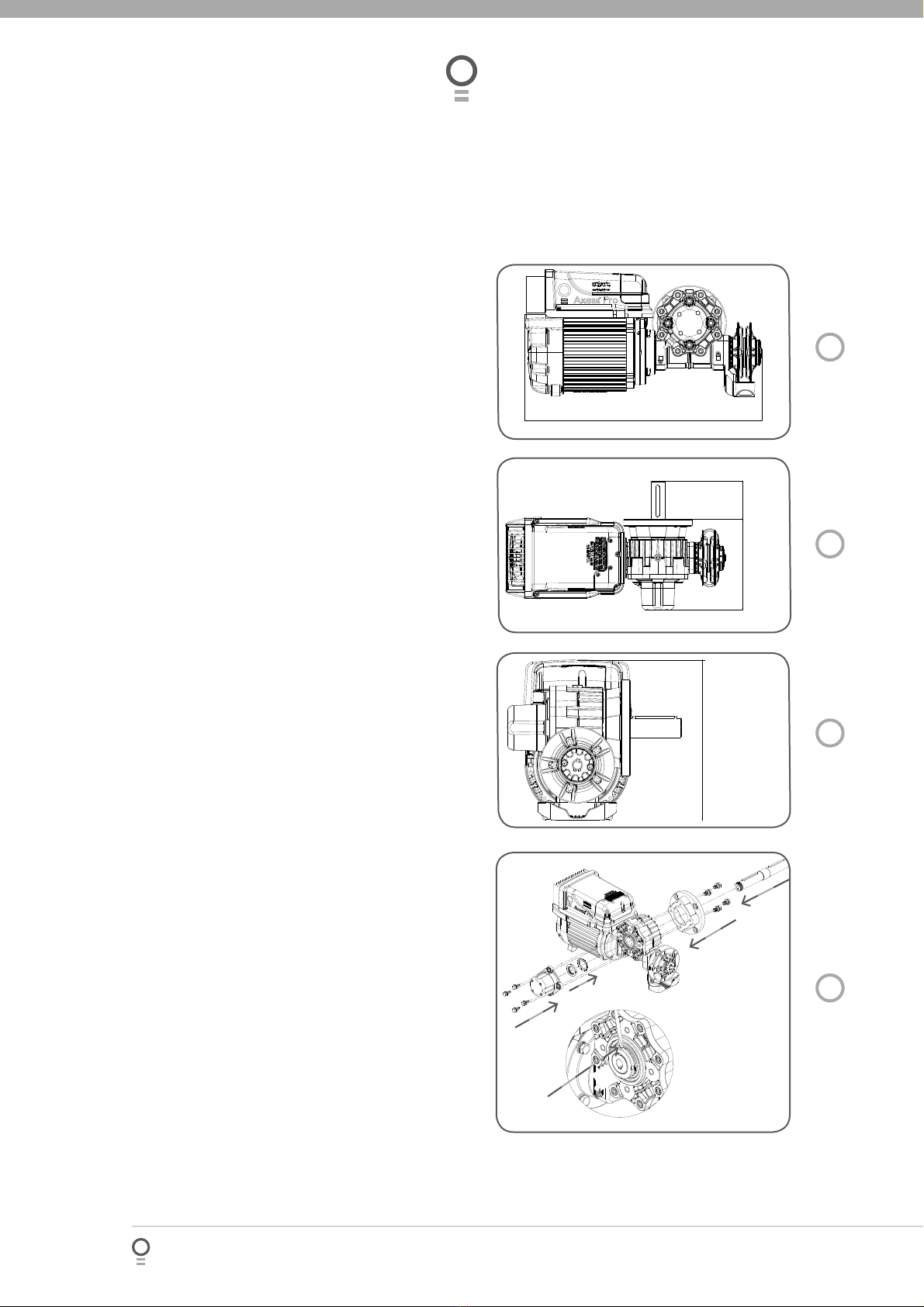

Overall dimensions of the opener are shown in Fig. 04-
06. When selecting the installation location, consider the
following:
Minimum distance between the shutter drum and
mounting plate needs to be more than 15mm and
less than 100mm.
Minimum distance between the drive unit and the
imposing structure is 10mm.
The overhead clearance needs to be at least
150mm.
Step 2 - Drive Unit Pre-assembly
The opener can be installed on either the right- or left hand
side of the shutter (when viewed from inside the building).
The timing assembly, mounting flange and drive shaft
needs to be assembled according to the installation side.
Assembling the opener for RIGHT- HAND installation is
explained below. For LEFT-HAND side installation, assemble
the parts from the other end.
Assemble the mounting flange with four M8x20
bolts and washers to the opener (Fig. 07)
Insert the output drive shaft into the gearbox,
thread side first as shown in Fig. 07.
Secure the output drive shaft with the lock washer
and lock nut.
Finger tighten the lock nut* then lock it by securing
the position of the lock nut by bending one tooth
of the lock washer into the slot on the lock nut (Fig.
07).
Line up the shaft of the timing assembly with the
keyway on the back of the drive shaft. Push and
secure the timing assembly with bolts ensuring the
cable gland is facing the motor.
NOTE: The drive unit is not designed to be mounted
upside down. Gearbox damage will result.
* Finger tighten to lock nut, this will remove any
movement in the output shaft. Excessive tightening to
lock nut may cause damage to output shaft bearing.
1.
2.
3.
4.
•
•
•
1.
2.
3.
4.
5.
1
2
3
5
4
04
fig
05
fig
06
fig
07
fig
495mm
85mm
200mm
260mm

Owner Installation Instructions Axess® Pro Series 3100 11
Installation
08
fig
NOTE: 5 metres of
communication cable is
supplied with the opener.
WARNING! Do not turn the power on
to the opener before connecting either
console.
Floor
1.5 metre from floor
Step 3 - Mounting The Drive Unit
Open the shutter about one metre from the floor.
Raise the drive unit to the required height by using a
suitable lifter or use chain block connected to a secure
beam above the shutter axle.
Position opener and secure with four M12x30
screws.
Mount drive sprocket on shaft in line with shutter
drive gear. Tighten the grub screw on the sprocket
with M4 hex key.
Shorten drive chain as required and fit around drive
gears.
Feed manual chain through guide and over the
clutch pulley.
Shorten the manual chain as required and fix ends
to make a loop.
NOTE: Ensure that hand chain is not twisted when
making a loop.
WARNING! Do not turn the power on to the
opener before connecting either console.
Step 4 - Installing The Logic Or Manual
Console
Remove the main cover.
Affix the logic or manual console at a height of 1.5
metres within sight of the shutter. Make sure that
the position of the logic or manual console is out
of reach of children and convenient to the customer
(Fig. 08).
Connect the network cable from the opener to the
logic or manual console unit.
WARNING! For full automatic operation a
Photo Electric Beam Sensor must be fitted with
logic console. Failure to comply will void the
warranty and may cause serious personal injury
and/or property damage.
WARNING! Ensure that network cable is affixed
properly and away from the moving parts of
the shutter and opener.
1.
2.
3.
4.
5.
1.
2.
3.
For setup with Manual Console, continue to page 12
For setup with Logic Console, skip to page 13
to install PE Beams
-OR-
-OR-

12 Axess® Pro Series 3100 Owner Installation Instructions
Manual Console
PRESS
09
fig
PRESS
10
fig
The manual console has open, close, stop and set push
buttons. The status of the door is indicated by the LED lights.
The manual console only supports Safety Close mode. In
this mode, the user must press and hold the close button to
close the door. The door can be opened by pressing the
open button once.
NOTE: PE Beams, transmitters or any other device to
control the operation of the shutter is not supported by
the manual console.
Step 5.1 - Setting Travel Limits With Manual
Console
Turn on the power to the opener. After a short delay
blue close LED will start to flash.
Press and hold the CLOSE button (Fig. 09)- the
shutter should start closing.
If the shutter opens, release the CLOSE button
and press the STOP button once to change the
motor’s direction. Press and hold the CLOSE
button until close position of the shutter is
reached.
If the shutter overshoots, press the OPEN button
to move the shutter in the open direction.
When the shutter is at the desired close position, press
the SET button to record the close limit position. The
green open LED will start to flash.
Press and hold the OPEN button (Fig. 10) to open
the shutter. When the shutter is at the desired open
position, release the OPEN button
If the shutter overshoots, press the CLOSE button
to move the shutter in the CLOSE direction.
WARNING! Once the next step is performed, the
shutter will automatically close and open to calculate
travel time settings. Keep persons and objects clear of
the shutter.
Press the SET button to store the open limit. The
shutter will now automatically close and open to
calculate the travel time settings.
Replace the main cover. The opener can now be
operated with the OPEN or CLOSE buttons on the
manual console.
Step 5.2 - Clearing Travel Limits With Manual
Console
Turn power to the opener off.
Press and hold the SET Button.
Turn power on while holding the SET button.
Continue to hold until all LED’s are off.
Repeat Steps 5.1 to set travel limit positions.
1.
2.
•
•
3.
4.
•
5.
6.
1.
2.
3.
4.

Owner Installation Instructions Axess® Pro Series 3100 13
BLACK/WHITE
BLACK/WHITE
BLACK/WHITE
WHITE
WHITE
WHITE
11
fig
12
fig
13
fig
EasyBeam™ Installation
NOTE: Photo Electric (PE) Beams can not be used with
manual console.
Step 6.1 - Fitting the EasyBeam™
Attach the mounting bracket (4) to the adjustment
bracket (3) with the pan head screw (6) (supplied).
(Fig. 11)
Attach the bracket (2) to the EasyBeam™ transmitter
with four taptite screws (m3x5) and attach the other
side to the adjustment bracket (3) with the pan head
screw (6) . (Fig. 12)
Repeat steps a and b to assemble the EasyBeam™
receiver.
Locate the EasyBeam™ in a strategic location in the
doorway. Automatic Technology recommends that the
sensor is placed 100mm above the floor level and as close
as possible to the shutter opening. Connect as per the
wiring diagram (Fig. 13).
Step 6.2 - Alignment
Power up the Axess®Pro Series 3300 with the
EasyBeam™ connected. The green LED on the
transmitter should turn ON to indicate power is
present.
If the receiver is connected to power and the red LED
is flashing while the green LED on the transmitter is
on, the transmitter and receiver are not aligned.
Make horizontal and/or vertical adjustment on the
transmitter and/or receiver until the red LED on the
receiver turns on, indicating alignment. Approaching
to the alignment is indicated by fast flashes on the
red receiver LED.
1.
2.
3.
1.
2.
3.
1
2
3
4
6
6
V– IN2

14 Axess® Pro Series 3100 Owner Installation Instructions
Viewing & Editing Logic Console
This section illustrates how to locate, view and
adjust parameters in the logic console unit.
Locating parameters
Refer to MENU STRUCTURE on Page 15 or the preceding
section for CONTROL BOARD ADJUSTMENTS. Locate
the required parameter and note the MENU number. The
example used in (Fig. 14) displays Menu 2.2 “100% O/L
Time”
Changing Settings
Press NEXT/PREV to navigate to the required
menu.
Press SET to show the sub-menu.
Press NEXT/PREV to go to the required sub-menu.
Press OPEN/CLOSE to change the parameter
setting.
Holding the button down causes the
parameter’s value to change rapidly.
The longer the button is held, the faster the
value changes.
Press SET to SAVE the setting.
Reload Default Setting
Press NEXT/PREV buttons to display the LOAD
DEFAULT screen.
Press SET to load the default value.
Return To Menu
If the parameter’s value is not to be changed, press
STOP to return to the sub menu. Press STOP again to
return to the MAIN SCREEN.
1.
2.
3.
4.
•
•
5.
1.
2.
14
fig
2: 100% O/L Time
(sec) 10
15
fig
(sec) 1∆
2: 100% O/L Time
Parameter name
Parameter
value
Displays next
parameter
in list
Parameter number in sub menu
Displays
previous
parameter in list
Returns back to menu
Enter Edit Mode
View Mode (No cursor)
Edit Mode (Cursor shown)
Increase
value
Displays “Load
Default?” screen,
giving option of
loading default value
Exits back to View Mode
Decrease
value
Saves new
value

Owner Installation Instructions Axess® Pro Series 3100 15
To Desired
CLOSE Limit,
SET
To Desired
OPEN Limit, SET
17
fig
16
fig
Setting Limits via Logic Console
Step 7 - Setting Travel Limits
Turn on the power to the opener. The controller will
go through a start up sequence.
After a short delay the MAIN SCREEN (Fig. 16) will
be displayed. If this is the first time the Axess® Pro
Series 3300 is being used, the MAIN SCREEN should
enter into limit set mode and the blue close LED
will be flashing. If the display shows that an input is
active, then rectify the situation before continuing
with the procedure for setting the travel limits. Press
and hold the CLOSE button - the shutter should start
closing.
If the shutter opens, release the CLOSE
button and press the STOP button once
to change the motor’s direction. Press and
hold the CLOSE button until close position
of the shutter is reached.
If the shutter overshoots, press the OPEN
button to move the shutter in the open
direction.
When the shutter is at the desired close position, press
the SET button to record the close limit position. The
display will change and the green open LED will start
to flash (Fig. 17).
Press and hold the OPEN button to open the shutter.
When the shutter is at the desired open position,
release the OPEN button
If the shutter overshoots, press the CLOSE
button to move the shutter in the CLOSE
direction.
WARNING! Once the next step is performed, the
shutter will automatically close and open to calculate
travel time settings. Keep persons and objects clear of
the shutter.
Press the SET button to store the open limit. The
shutter will now automatically close and open to
calculate the travel time settings. After this, If PE Beams
are installed, the opener can be operated with the
OPEN or CLOSE button on the logic console or from
the transmitter. Otherwise, the controller will be loaded
with “Safety Close Mode.” (Page 28)
1.
2.
»
»
3.
4.
»
5.

16 Axess® Pro Series 3100 Owner Installation Instructions
Setting Limits via Transmitter
18
fig
Button 1
(Inch Open)
Button 4
(Inch Close)
Button 2
(Set)
MENU 1
Code Transmitter
PR E S S
19
fig
Coding Button
In order to use a transmitter to set the limits, it must first
have at least one of its buttons coded to the logic console.
The function assigned to the transmitter’s buttons is of
no concern here as the buttons are temporally assigned
to OPEN, CLOSE and SET (Fig. 19).
Step 8.1 - Code A Transmitter For Limit Setting
Press NEXT to navigate to Menu 1.
Press SET to enter the code set procedure (Fig.
18).
Step 8.2 - Storing Transmitter Code
The logic console will prompt to press one of the
transmitter’s button.
Press the transmitter button you wish to use to
operate the opener (e.g. button 1) .
Press the same transmitter button again as prompted
by the display.
Press the SET button to store the transmitter.
Step 8.3 - Navigating To “Set Door Travel
Menu”
Press PREV to navigate to Menu 10.
Press SET to display MENU 10.1.
Press SET two times to enter the limit setting
procedure. The close blue LED will start to flash.
Step 8.4 - Setting Limits Via Transmitter
Press and hold Button 4 on the transmitter to close
the shutter.
If the shutter opens, release button 4 and press
the STOP button once on the logic console to
change the direction of the motor. Then press
and hold Button 4 on the transmitter to close
the shutter.
If the shutter is closed too far, press Button 1 to
“inch” the shutter towards open.
When happy with the close limit position, press
Button 2 to store this in the memory. The open
green LED will starts to flash. Press Button 1 to open
the shutter.
If the shutter is opened too far, press Button 4
to “inch” the shutter closed.
WARNING: The shutter will automatically close
and open once the next step is performed.
Ensure that no persons or objects are in the
path of the shutter.
When you are happy with the open limit position,
press Button 2 on the transmitter to store into
memory. The shutter will now automatically close and
open to calculate the travel times and other settings.
After this, if PE Beams are installed, then the opener
can be operated with the OPEN or CLOSE button on
the logic console or from the transmitter. Otherwise,
the controller will be loaded with “Safety Close Mode”.
(Page 28)
1.
2.
1.
2.
3.
4.
1.
2.
3.
1.
•
•
2.
•
3.
4.

Owner Installation Instructions Axess® Pro Series 3100 17
Logic Console Menu Structure
Menu 8
Diagnostics
Menu 9
Memory tools
Menu 10
Setup Travel
Menu 1
Code
transmitter
Menu 2
Current
Trips
Menu 3
Auto-Close
times
Main Screen
Shutter status
& information
Menu 10.2
Re-profile
Travel
Menu 10.3
Set pedestrian
Code/edit
transmitter
procedure.
See page 18
Parameter list
1. Full load bus
AMPS
2. 100% O/L
time
See page 25
Parameter list 1. STD Auto-Close 2. P.E. Beams Auto-Close 3. Ped’n Auto- Close 4. P.E. Ped’n Auto- Close 5.A/C After CLS Obst 6.A/C After OPN Obst 7.A/C After PWR up See page 25
Re-profile the
shutter travel
See page 24
Ped’n position
set up
procedure.
See page 24
Menu 9.1
CLR control?
Menu 9.2
CLR Tx’ers?
Memory reset see page 35
Menu 8.1
Test inputs
Menu 8.2
Test tx’ers
Menu 8.3
Display history
Menu 8.5
Service counter
Menu 8.8
Parameters
Menu 8.4
Memory Usage
Control input
status display.
See page 33
Transmitter
testing
See page 33
Event history
display
See page 33
Periodic service
cycle counter
See page 34
View
Parameters
See page 34
Memory usage
See page 33
Parameter list 1. Open speed frequency 2. Close speed frequency See page 27
See page 27
NOTES
1. Press PREV/NEXT buttons move to Left/Right. 2. Press OPEN/CLOSE buttons to change setting. 3. Press SET button to save changes. 4. Press STOP to return to
MENU without saving changes. 5. System will automatically return to the main screen after 30 secs if a menu screen is displayed and no buttons are pressed.
Menu 5
Motor settings
Menu 6
Operating
Modes
Menu 4
Light / Lock
times
Menu 10.1
Setup
Limits
Travel limit set
up procedure.
See page 16
Menu 8.9
Version Info
Firmware
Version Info
See page 34
Menu 7
Time Clock
Modes
Menu 7.1
Set Time/Date
Menu 7.2
View Programs
Menu 7.3
Settings
Set time/date
See page 31
View/Edit
programs
See page 31
Settings
See page 32
Light Parameter list 1. On after cycle time 2. On before open time 3. On before close time
See page 26
Menu 8.6
Event counter
Menu 8.7
Install Data
Cycle and
event counter.
See page 34
1. Open, Ped
position.
2.Open Close
times
See page 34
Menu structure

18 Axess® Pro Series 3100 Owner Installation Instructions
Coding Transmitter
The Axess®Pro Series 3100 can store 511 transmitters in
its memory. Each transmitter can be allocated an alpha-
numeric ID label up to eleven characters in length and
each button can be assigned to one of several control
functions. The settings for a transmitter are represented in
Fig. 20. It shows the transmitter’s store number, ID label
or serial number and the functions assigned to each of
the four buttons. To toggle between ID/SN display, press
UP/DOWN with the cursor on the ID/SN indicator. The
procedures below code, delete, replace, edit and copy
transmitter records.
Step 9 - Coding Transmitter Button
Navigating To Menu 1 “Code Transmitter”
Press NEXT to navigate to Menu 1 (Fig. 21).
Press SET to enter the code set procedure.
Storing Transmitter Code
The logic console will prompt to press one of the
transmitter’s buttons.
Press the transmitter button you wish to use to
operate the opener (e.g. button 1) (Fig. 22) .
Press the same transmitter button again as prompted
by the display (Fig. 23).
Selecting Function Of The Button
The logic console will now show the transmitter’s record,
with a cursor on the field for the button being coded
(Fig. 24). Use OPEN/CLOSE to select the function for
the button.
Available functions:
OSC (Open/Stop/Close)
PED (Pedestrian access)
SWP (Swipe)
CLS (Close)
OPN (Open)
STP (Stop)
LGT (Courtesy Light)
VAC (Vacation Mode)
AUX (Auxiliary )
OFF (No action)
NOTE: OSC will change to OS and CLS (Close) function
is not available in the case where PE Beams are not
installed.
Press SET to save the settings or STOP to abort without
saving (Fig. 25).
Returning To Main Screen
The “Code Transmitter” menu will now be shown. Press
STOP to return to the MAIN SCREEN and test the
transmitter.
NOTE: To edit the other settings, refer to transmitter
edit procedure.
1.
2.
1.
2.
3.
 )$ .AME3.
/3#0%$,'46!#
22
fig
MENU 1
Code Transmitter
PR E S S
23
fig
24
fig
25
fig
# 1 [No Name]
OSC OFF OFF OFF
C
PRESS
# 1 [No Name]
OSC OFF OFF OFF
C
PRESS
PRESS
Press Tx’er
Again! View
PR E S S
21
fig
Press Tx’er
Button! List
PR E S S
20
fig
I.D label/Serial number
Button 4 function
Button 3 function
Button 2 function
Button 1 function
Store number
ID/SN display indicator

Owner Installation Instructions Axess® Pro Series 3100 19
14 IDA B SMITH
OSC PED LGT VAC
PRESS
D
PRESS
14 IDA B SMITH
OSC PED LGT VAC
PRESS
4
MENU 1
Code Transmitter
PR E S S
28
fig
27
fig
26
fig
Transmitter Editing
Display Transmitter Record
Using one of the methods below, you can display the
required transmitters details.
Navigating To “Edit Transmitter” Menu
Press NEXT to navigate to Menu 1 (Fig. 26) .
Press SET to enter the transmitter edit procedure.
Press NEXT to enter transmitter list and edit mode.
Editing Button Function Field
Press NEXT or PREV to move the cursor to the left
or right and between the top and bottom lines to
select the desired field.
Press OPEN or CLOSE to change the displayed value
(Fig. 27). The available functions are shown below.
Selecting OFF will prevent the opener responding to
that button.
Available functions
OSC (Open/Stop/Close)
PED (Pedestrian access)
SWP (Swipe)
CLS (Close)
OPN (Open)
STP (Stop)
LGT (Courtesy Light)
VAC (Vacation Mode)
AUX (Auxiliary )
OFF (No action)
NOTE: OSC will change to OS and CLS (Close) function
is not available in the case where PE Beams are not
installed.
Press SET to save changes or press NEXT or PREV to
move to the next field.
The example in (Fig. 28) shows that PED is
assigned to the transmitter button two.
The transmitter in the example is transmitter
number 14 which has the ID label AB Smith.
NOTE: If all button functions are set to OFF, when SET
is pressed, the opener will prompt to confirm if the
transmitter is to be deleted. Press SET to delete or STOP
to continue editing.
1.
2.
3.
1.
2.
3.
•
•

20 Axess® Pro Series 3100 Owner Installation Instructions
Editing The Store Location
This feature is only available when coding the first button
of a new transmitter.
Press NEXT or PREV to move the cursor over Store
No. (Fig. 29)
Press UP or DOWN to select new Store No.
Press SET to confirm or NEXT/PREV to move to
the next field.
This is useful when managing transmitters using a scheme
which ties the store location to the transmitter’s owner.
Selection Of ID or Serial Number Display
Press NEXT to navigate to Menu 1 ”Code
Transmitter” (Fig. 30).
Press SET to enter the transmitter edit procedure.
Press NEXT to enter transmitter list and edit mode.
Press NEXT/PREV to move the cursor over the ID
field.
Press NEXT to reveal the Serial Number (Fig. 31).
The serial number display is provided for additional
means of identification. The transmitter in this example
has serial number 12345.
Editing A Character Field
Press NEXT or PREV to move the cursor. (Fig. 32)
Press UP or DOWN to scroll through and select
a new character.
Press NEXT or PREV to move the cursor to the next
character.
Repeat step 2.
Press SET to record changes.
The second line of the display shows a list of available
characters with the current value indicated at the cursor
position (Fig. 33).
1.
2.
3.
1.
2.
3.
4.
5.
1.
2.
3.
4.
5.
Transmitter Editing
14 IDB B SMITH
56789 AB CDEFGHIJ
B
PRESS
14 IDB B SMITH
56789 AB CDEFGHIJ
B
PRESS
14 ID[No Name]
OSC PED LGT VAC
14
PRESS
MENU 1
Code Transmitter
PR E S S
14 SN 12345
OSC PED LGT VAC
SN
PRESS
32
fig
33
fig
29
fig
30
fig
31
fig
