Model:
A7BOTTLELESS
Self Cleaning
Water Dispenser Bottleless
A7BOTTLELESSBLK

DIRECTORY
SAFETY PRECAUTIONS
GETTING STARTED
TROUBLE SHOOTING
MACHINE INSTALLATION
WATER PURIFIER
8
6
2
1
7
9

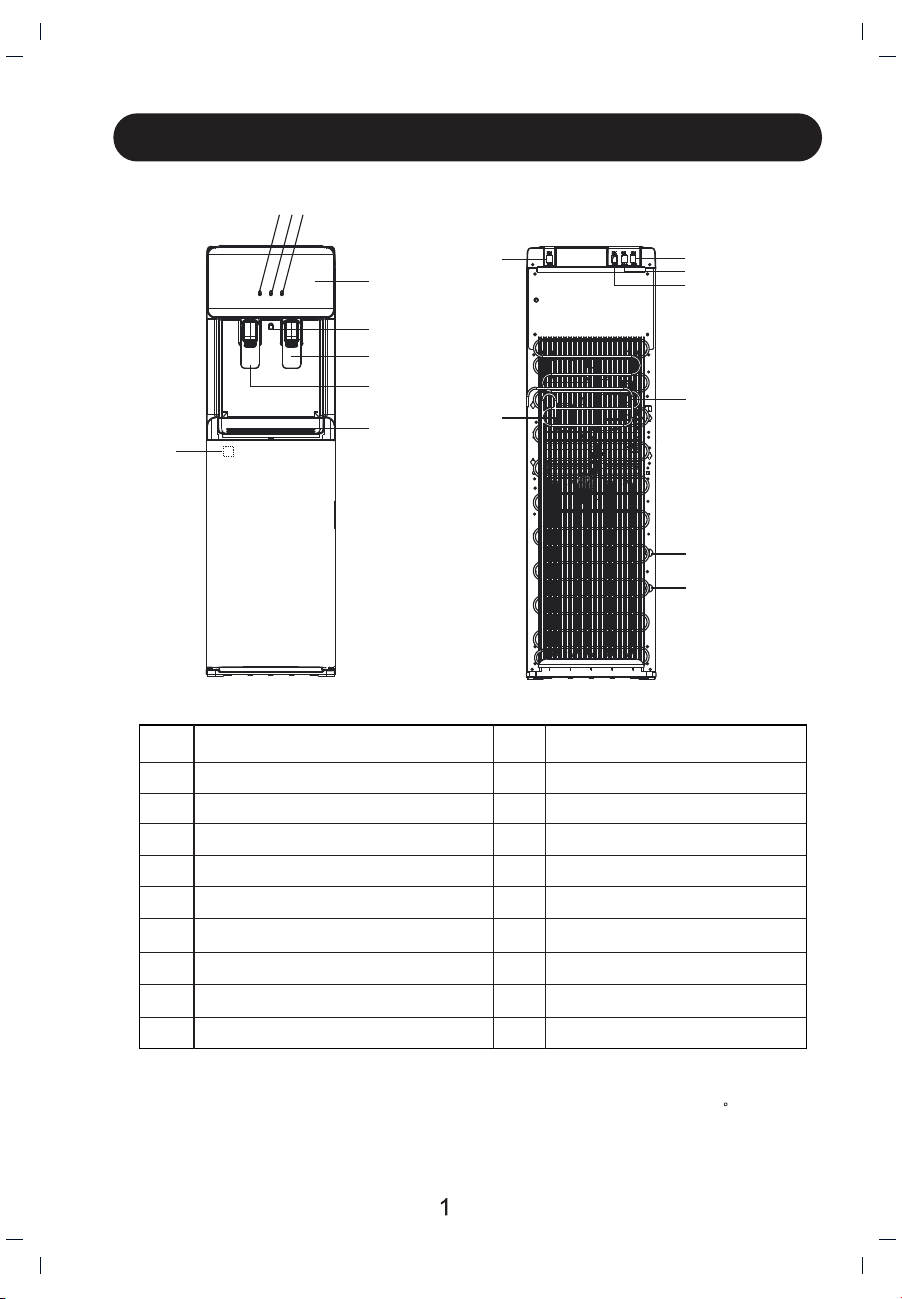

A: PART NAME
Please use the product in a place with temperature of 39-100 F and
relative humidity level.
NOTE:
1 2 3
4
6
7
8
9
10 11
12
13
NO. PART NAME NO. PART NAME
Cooling Pilot Lamp
Heating Pilot Lamp
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
Water Collector
Cooling Switch
Heating Switch
Night Light Switch
Hot Tank
Refrigeration Compressor
Water Inlet
Ozone Switch
Ozone and Power Indicator Lamp
Front Shell Decorative Panel
14
15
16
17
5
Night Light
Tap of Cold Water
Tap of Hot Water Outlet of Hot Water
Filter Reset Switch

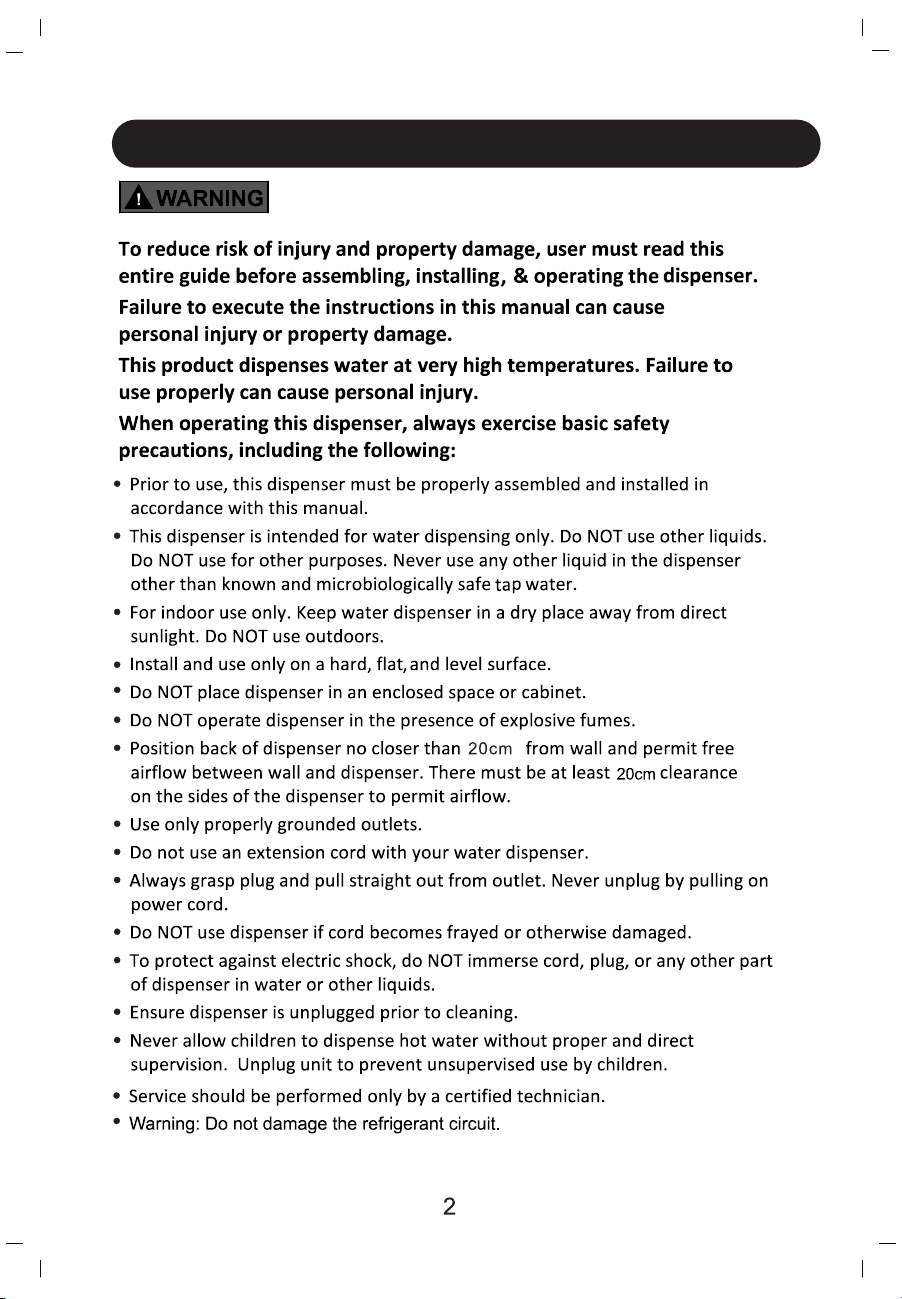

B: SAFETY PRECAUTIONS

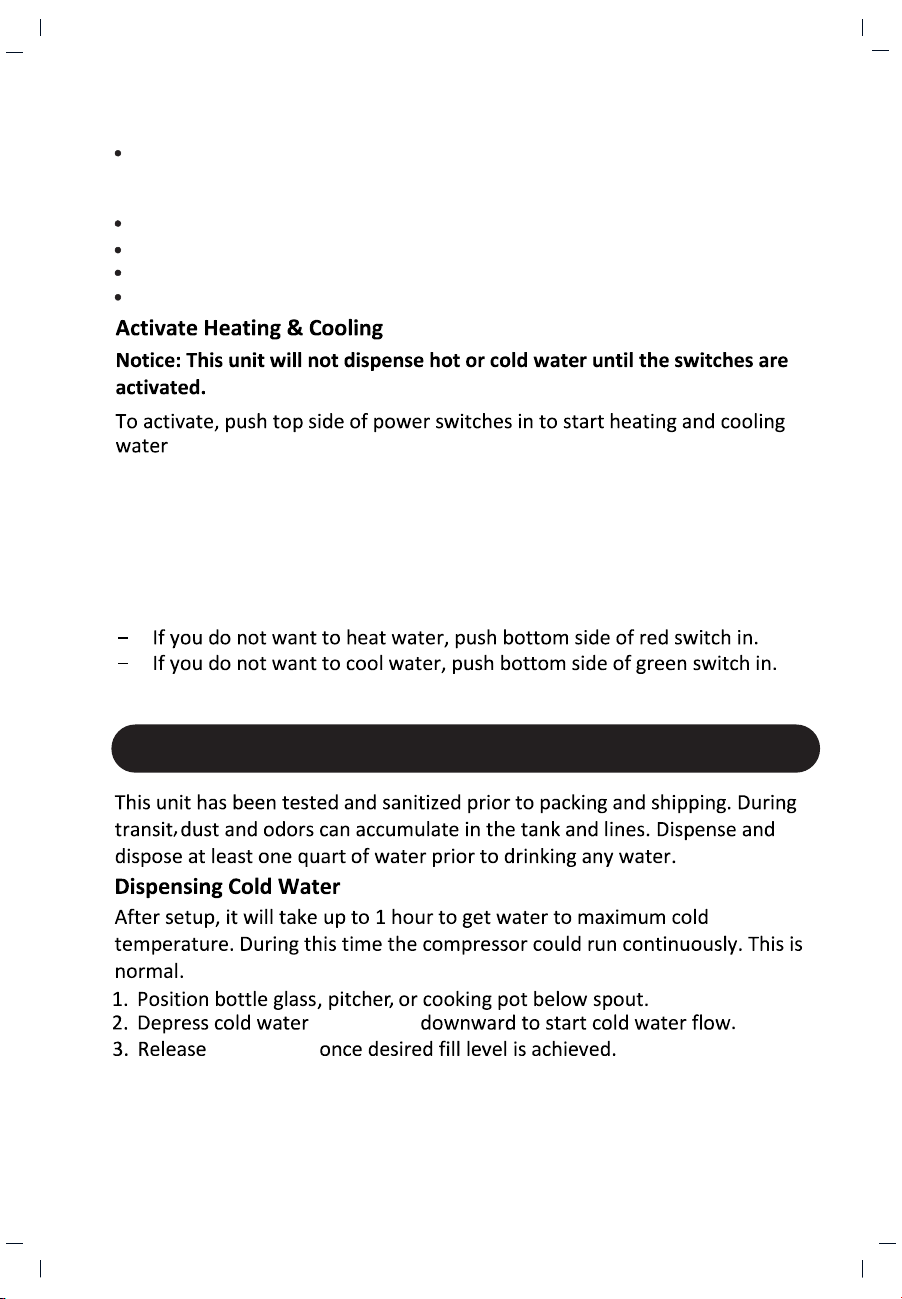

C: GETTING STARTED
1. Open the top of the packing case, take out the top foam and its accessories.
2. Put the accessories aside.
This appliance can be used by children aged from 8 years and above if they
have been given supervision or instrucon concerning use of the appliance
in a safe way and if they understand the hazards involved. Cleaning and user
maintenance shall not be made by children unless they are older than 8 and
supervised. Keep the appliance and its cord out of reach of children aged
less than 8 years.
Appliances can be used by persons with reduced physical, sensory, or mental
cappsbilies or lack of experience and knowledge if they have been given
supervision or instrucon concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the appliance.
This appliance is intended to be used in household and similar applicaons
such as: kitchen areas in shops, offices, and other working environments,
hotels, motels, and other residenal type environments, bed and breakfast
type environments, catering, and similar non-retail applicaons.
Do not store explosive substances such as aerosol cans with a flammable
propellant in this appliance.
If the supply cord is damaged, it must be replaced by a special cord assembly
avaiable from the manufacturer or its service agent.
Never turn the machine upside down or lean it more than 45 .
Thermostat has been adjusted. No need to adjust it by yourself. When the
machine is below the freezing point and blocked by ice, the cooling switch be
turned off for 4 hours before turning it on again to connue its operaon.
This machine should not be turned on unl 3 minutes aer turning off the
power switch.

3. Unpack the product, install the drip tray.

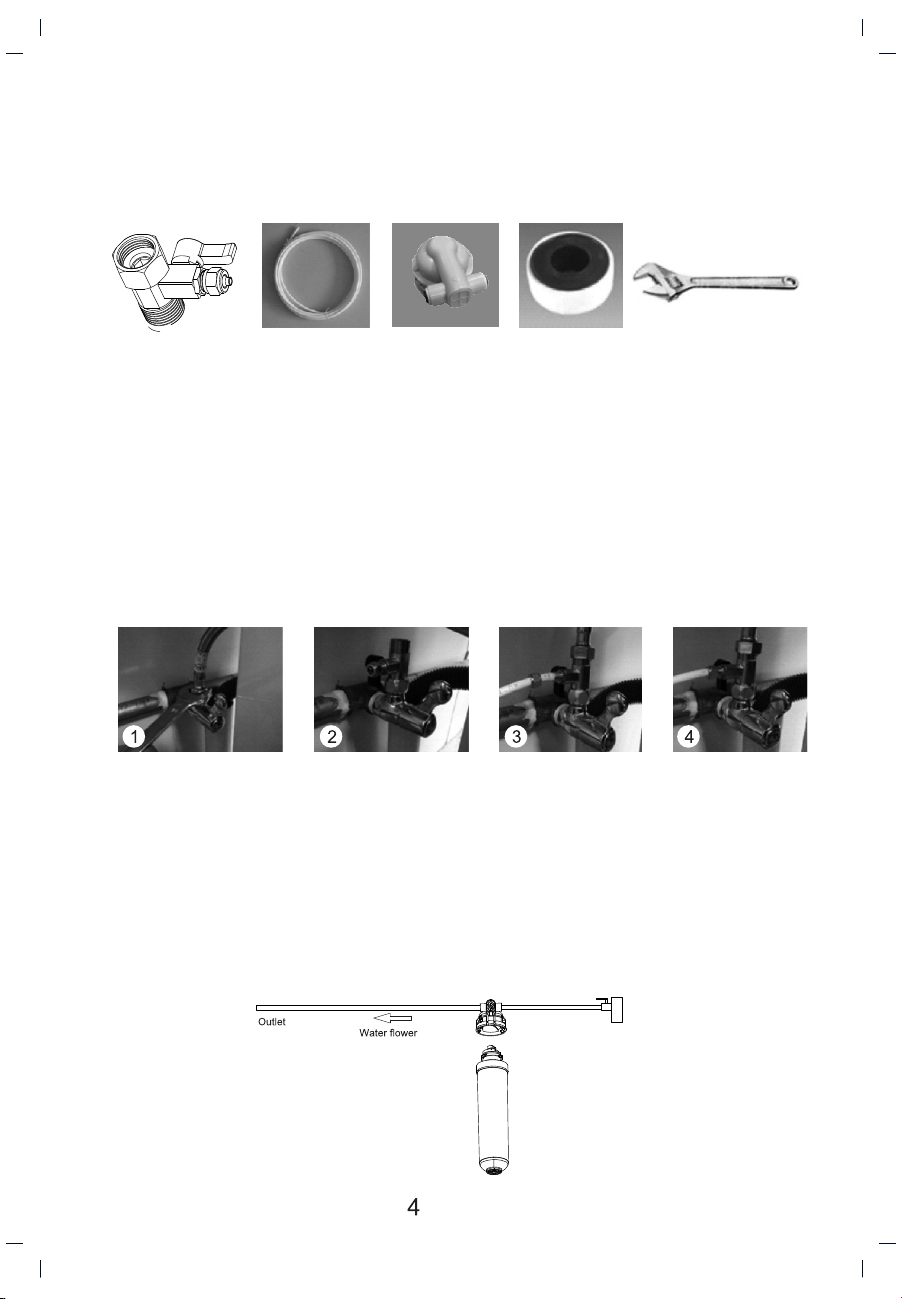

4. Take out the quick joint adapter with valve and install it on the water pipe.
Intall the adapter:
Adapter with Valve PE pipe (3m) Extra Filter Flushing
Adapter
Tape and Tools (not included)
1. Disconnect the current cold water supply line, as in figure 1.
2. Connect the adapter with valve to the cold water supply line, as in figure 2.
3. Connect the nut on the side of the metal adapter and insert the PE pipe
through the nut. Sck the PE pipe over the side part of the adapter where
the nut was originally, as in figure 3.
4. Screw the nut ghtly into place keeping the PE pipe securely connected to
the adapter with valve, as in figure 4.
5. Note: Do not connect this water line to hot water supply line.
Filter Flushing Instrucons Prior to the First Use
1. Before connecng the other end of the PE tubing to the back of the water
cooler, connect it to the provided A4 System filter flushing adapter into the
le inlet hole in the direcon of the arrow on the adapter.
2. Twist the replacement filter into this A4 System filter flushing adapter unl
it is in place.
Inlet

3. Hold this filter with A4 System filter flushing adapter over a sink and turn on
the valve near the water source. Let water to flow out of the filter and A4
System filter flushing adapter for 5 minutes to flush the new filter.
4. Shut off the valve at the water source.
Finishing the Water Cooler Installaon
1. Remove the end of the PE tube from the A4 System filter flushing adapter by
pressing on the blue ring and pulling out the PE tube.
2. Twist out the filter from the A4 system filter flushing adapter.
3. Remove the plug from the water inlet hole by pressing on the grey ring
behind the plug. Push the open end of the PE tubing to the water inlet hole
in the back of the water cooler.
Make sure it is ght and secure.
4. Twist the filter into the A4 system built into the water cooler cabinet.
5. Turn back on the valve from the water source.
6. Turn on the valve to the le of the filter in the water cooler cabinet.
7. Flowchart of water generaon
8. Aer installaon of water line and filter, plug the power cord into a grounded
power supply and begin to use machine normally.
Please note, if you wish to skip the Filter Flushing Instrucons Prior to the First
Use, you can do the regular installaon and then just let the water flow from the
cold water spout for approximately 5 minutes to flush out the new filter.
5
Tap water PE pipe
Water inlet
Tap water PE pipe
Water inlet

replacement
The total flow above is for reference only. It is based on normal water use.
The specific cycle for replacement of filters varies with local water quality
and water amount consumed.
function
Reduce Chlorine, Taste and odor, Nominal
particular class I, Lead and Cysts.
Special hints:
Filter replacement cycle
D: TROUBLE SHOOTING
6
No water is coming from the spout.
Make sure to completely depress the push buon controls.
Cold water is not cold.
It takes up to one hour aer setup to dispense cold water.
Make sure the power cord is properly connected to a working outlet.
Make sure the back of the dispenser is at least 20 cm from a wall and there is
free airflow on all 20cm sides of the dispenser.
Make sure green power switch on back of dispenser is ON.
If water sll isn't cold, please ask a service agent for assistance.
Hot water is not hot.
It takes 15-20 minutes aer setup to dispense hot water.
Make sure the power cord is properly connected to a working outlet.
Make sure red power switch on back of dispenser in ON.
Nightlight isn't working.
Make sure the power cord is properly connected to a working outlet.
Make sure nightlight power switch on back of dispenser is ON.
Dispenser is noisy.
Make sure the dispenser is posioned on a level surface.
Small water flow.
Low water pressure.
Check the water inlet.
The filter exceeded it's usage me.
Please contact the manufacturer to replace the filter
6 Months or 1500 gallons

Water leakage.
Pipe not connected properly.
Inspect the adapter to connect the pipe properly.
Water pipe and PE pipe bursng.
Replace the water pipe.
Please allow 15 minutes for the hot water to be heated. During this me
the green heang will be steady. The light will turn off when the pilot lamp
heang process is complete. Please allow 90 minutes for the cold water
to be cooled. During this me the will be steady. green cooling pilot lamp
The light will be turned off when the cooling process is complete. If any
error occurs in the heang or cooling process, the indicator light will blink.
push buon
push buon
E: WATER PURIFIER
7
.
If the appliance is making a soud, there should be leakage. Please check
the PCB on the palte. Repair the machine and dry the PCB, and then
power on agin.

F:CLEANING
1. To avoid accidents, cut off the power supply before operaon according
to the following instrucons.
2. Aenon:
1)
Cleaning must be performed by someone with experience or an
authorized service agent.
2) The dispenser heats water to a temperature of approximately 185 F.
It can cause severe burns. Please operate it carefully.

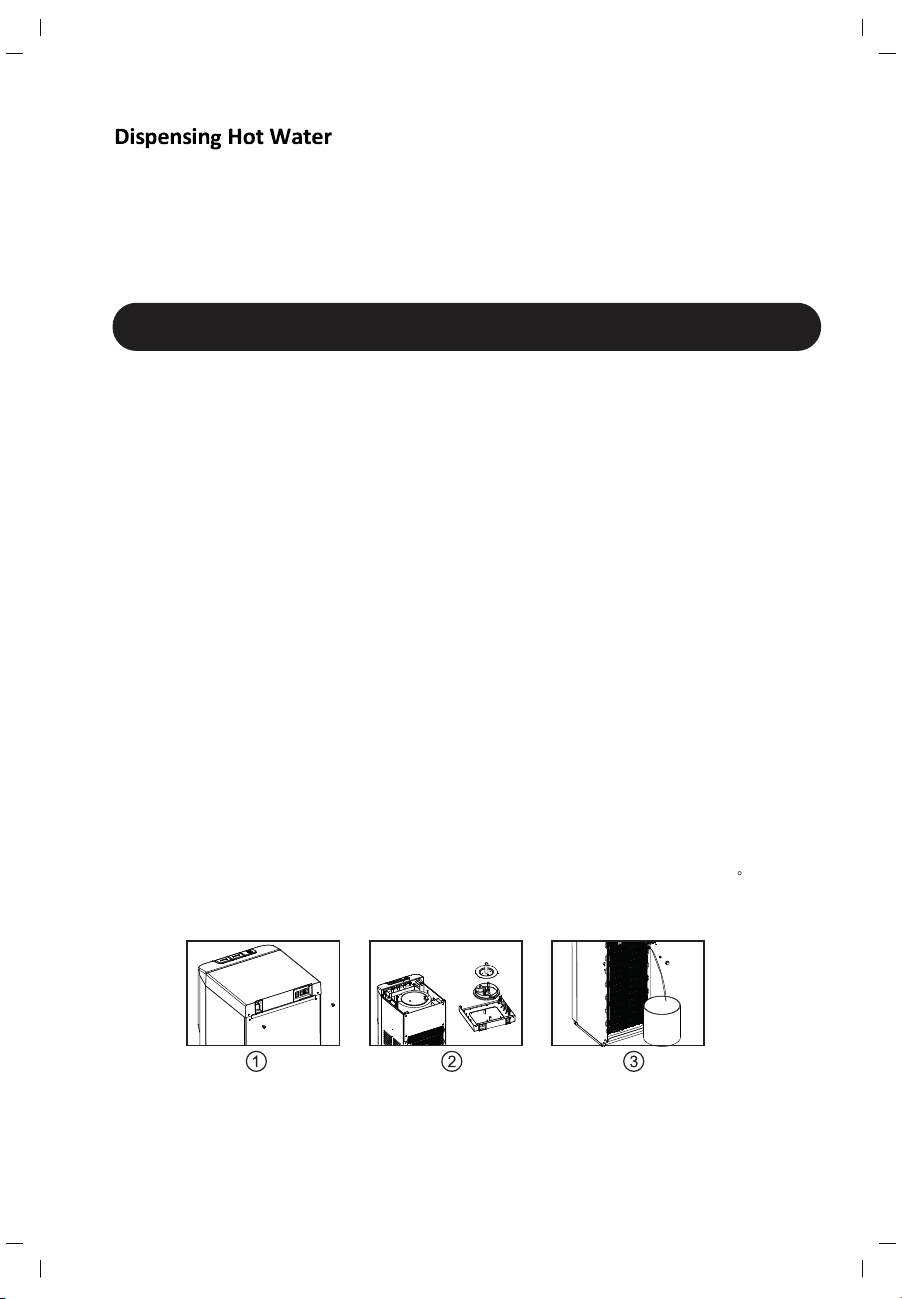

Aer setup, hot water will be available in 15-20 minutes.
1. Posion bole, glass, pitcher, or cooking pot below spout.
2. Slide red buon away from you and depress hot water push buon downward
to start hot water flow.
3. Release push buon once desired fill level is achieved.
8
1)Make sure the power switch in the O(off) posion and unplug the water
dispenser before cleaning.
2)Unscrew the two screws from the back of the unit as in figure 1.
3)Remove the top cover, cold tank cover,
and separator as in figure 2.
4)Fill 2.2 L of pure water into cold tank (the open cylindar that the cover
was removed from) to clean it.
5)Place a large water bucket beneath the outlet of hot water which is in
the back of the water dispenser (part no. 14), then remove the drain
cover and drain the water as in figure 3.
6)Reposion the drain cover, separator, cold tank cover, and top cover
aer draining. Ensure the pipe and wires are connected properly, then
you can use the machine normally.

9
3. Sanizing
4. To Remove Mineral Deposits:
This machine should be sanized with a disinfectant and then cleaned with
water every three months. (See cleaning and draining instrucons.)
Mix 4 L of water with 200 g of citric acid crystals, pung the mixture into the
machine making sure the water can flow out of the hot water tap. Switch on
the power and heat it for about 10 minutes. 30 minutes later, drain the liquid,
then clean it with water two or three mes. Never disassemble by yourself to
avoid damaging machine. Generally this should be done every six months.
5. Maintenance of Filtraon System
CAUTION: The cycle takes 90 minutes to complete. During this me
do not dispense and drink the water. We recommend you do this
during a period when the dispenser will not be in use like overnight
or when staff is away from the office. During the cycle you may smell
some ozone.
6. Acvate Self-Cleaning Funcon
Every week use the self-cleaning feature to sanize tanks and water lines.
To acvate, press in the self-cleaning switch, hold for 5 seconds and release.
The green indicator light on the le will begin blinking, indicang the
cleaning process is underway. Ozone will be produced and injected into the
water system. It will kill bacteria and bio-films typically found in water
dispensers. By the end of the cycle the ozone will convert to harmless oxygen
and be emied into the air.
1) When lifeme of the filter is near its end, either by means of water flow
or by means of 6 months me, the middle and right indicator lights on the
front panel will blink together as a warning to change the filter.
2) Shut off the valve at the water source or the valve in the back of the unit.
3) Twist out the old filter from the A4 system inside the water cooler cabinet.
4) Twist the new filter into the A4 system built into the water cooler cabinet.
5) Turn back on the valve from the water source or the valve to the le of the
filter inside the cabinet.
6) Only replace the filter with a new Avalon filter designed for this water cooler.
Any other type of filter will damage the machine and void any warranty.
7) Aer replacing the filter, press the filter reset buon on the le of the filter
inside the cabinet, unl the blinking lights turn off.
8) Allow water to flow from the cold water spout for approximately 5 minutes
to flush the new filter.
9) Please refer to the addional filter instrucons for further details.

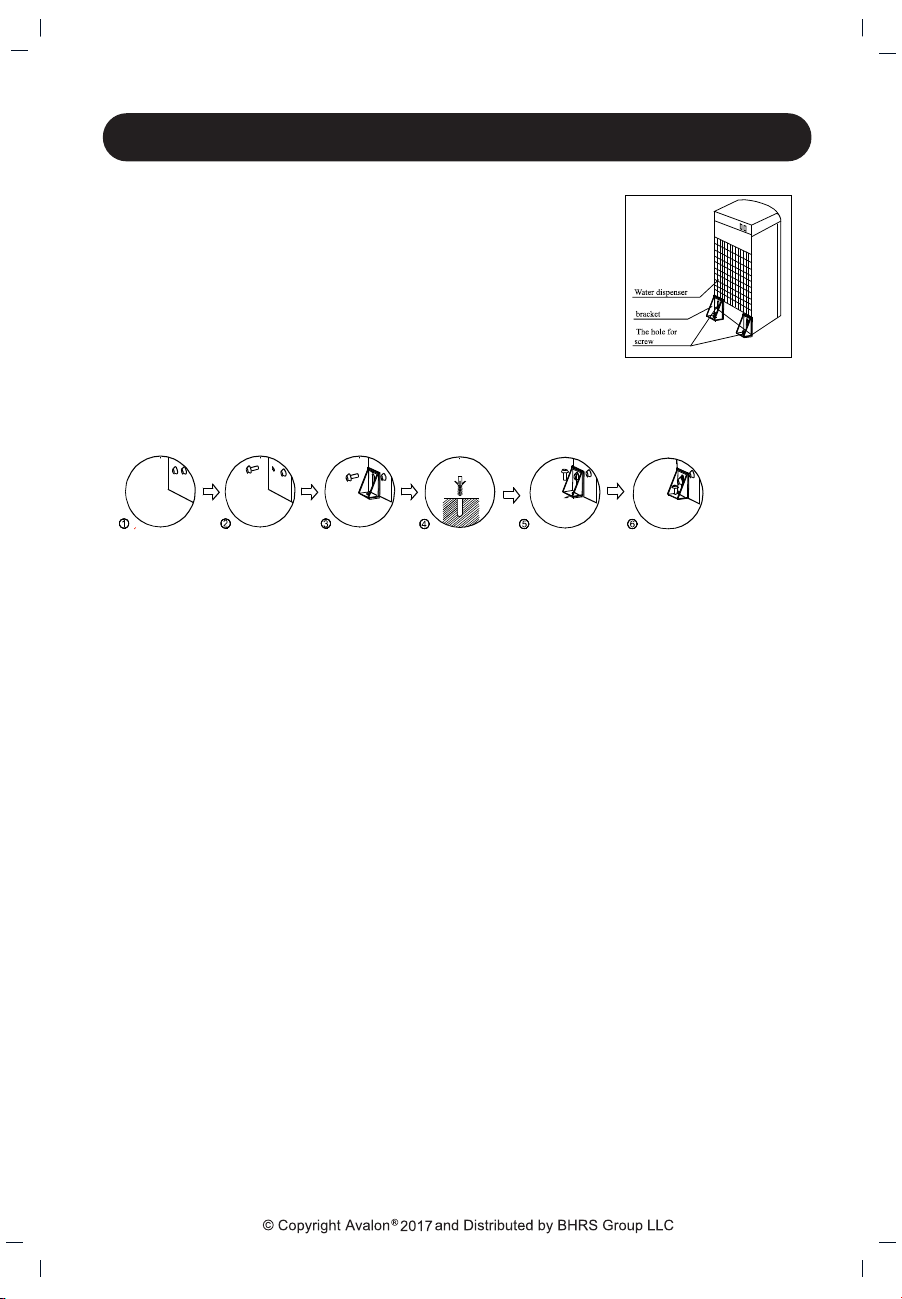

G: MACHINE INSTALLATION
1-2. Loosen the screw of the le or right boom angle
as in the picture below.
3. Use the screw to fix the bracket on the le or right
boom angle of the water dispenser.
4. Make a hole on the floor's surface where the water
dispenser will be installed.
5. Fix the bracket on the floor by screwing ghtly.
6. Tighten the screw.
To prevent the machine from swaying or falling, we have
included an oponal bracket. Please install the bracket
accordingly.
10
If you encounter any issues or have any concerns,
please email us at [e-mail]
or call 1800-256-0695 .
www.avalonproducts.com
Please see our website to learn more about our products
WARNING! To avoid a hazard due to instability of the appliance, it must be
fixed in accordance with the instrucons.
