AVerMedia®
AVerDiGi EB3004 NET/EB3004 NET+
Quick Installation Guide
1
Package Contents
(1) (2)
a
b
(3)
AVerMedia
AVerDiGiEB3004NET
QuickUserGuide
®
(4)
(5)
(6)
(7)
i
If there is any damage, shortage or inappropriate item in the package
contents, please contact with local dealer

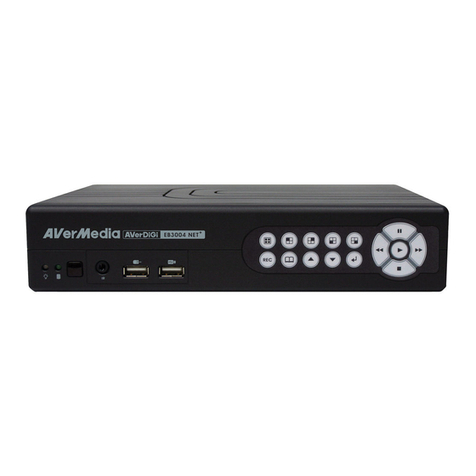

(1) DVR unit
a. EB3004 NET b. EB3004 NET+
(2) Remote Control (Batteries are included)
(3) Quick Installation Guide
(4) Power Adaptor
(5) Power Cord (*The power cord may vary according
to the local electricity system.)
(6) Software CD (Manual is included)
(7) HDD holder (including 8 screws)
WARNING
TO REDUCE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE
WARRANTY VOID FOR ANY UNAUTHORIZED PRODUCT MODIFICATION
P/N: 300AC2SB3-DCD
Nov.2009
A
VerMedia INFORMATION Inc. ©2009

2
Hardware Installation
A. Install the hard disk
Follow the steps to install the hard disk:
1. Loosen all screws
2. Push the cover backward and lift
3. Secure the brackets on the hard disk
4. Connect the end of the SATA cable and the
power connector to the hard disk
5. Secure the hard disk inside the unit then
replace unit cover
6. Push the cover forward and secure the cover
7. You may now connect all the cables. When the power is connected, the Power LED light
turns on

3
B. Connecting Devices
Each time you change the video display output or video system (NTSC/PAL), the power
must be turned off and on to reset the DVR unit.

4
First Time to Use the DVR System
1. Make sure all devices and power cables are well connected.
2. Turn on the DVR unit by connecting the power cable into the power plug.
3. User should see the SYSTEM INITIALIZE windows appear on the surveillance screen. The
system will do hard disk detection automatically.
4. For the first time use hard disk, please format the hard disk. Select HDD FORMAT and press
(YES) to format hard disk. If hard disk is not need to format, press (NO).
5. When is done, HDD FORMAT will show COMPLETE.
SYSTEM INITIALIZE
FW VERSION B3. 01. 01. 00. 01
HDD SIZE 476 , 918MB
HDD FORMAT YES(SELECT)/NO(MENU)
HDD STATUS WAIT . . . .
SYSTEM INITIALIZE
FW VERSION B3. 01. 01. 00. 01
HDD SIZE 476 , 918MB
HDD FORMAT COMPLETE
HDD STATUS WAIT . . . .
6. When hard disk format is done, please adjust the system date and time in order to have the
correct recording date and time.
7. Press to call up the OSD menu, and then, use and to select SYSTEM
→DATE/TIME and press to make a selection.
8. Press and use and to select the DATE FORMAT.
9. And then, adjust the DATE and TIME by using to make a selection and using
and to adjust the date and time.
DATE / TIME SETUP
DATE FORMAT
DATE
TIME
TIME SYNC
TIME ZONE
LAST SYNC TIME
DAYLIGHT SAVING
START
END
OFFSET
YYYY/MM/DD
2009 / 11 / 03
15 : 19 : 09
GMT +08 : 00
2009 / 01 / 01 00 : 00 : 00
2009 / 01 / 01 00 : 00 : 00
2009 / 01 / 01 00 : 00 : 00
00 : 00
FORCE SYNC
10. When is done, the DVR system is ready to record.
11. Press to start recording.

5
Network Setup
Configuring network parameter for internet connection and remote accessing.
NETWORK SETUP
VIDEO PORT
IP MODE
UPGRADE PORT
STREAM SETUP
0080
STATIC
5005
- Use and to go up and down
- Use to make a selection
- Use and buttons to go left and right
1. Press and select
NETWORK
2. Select
IP MODE.
The system provides 3 types of IP setup mode – STATIC, DHCP, and PPPOE.
-STATIC: Assigns a constant IP address for the DVR system.
-DHCP: Assign the IP address by local DHCP server to DVR system.
-PPPOE: Point-to-Point Protocol over Ethernet is a network protocol for encapsulating PPP
frames in Ethernet frames. It is used mainly with ADSL services. If your network is using
ADSL service connecting to internet, and then, select PPPOE mode.
3. Setup the
VIDEO PORT.
A port for the remote connection. Any port can be assigned as a video port, except the ports
already used by the network services. The default video port is 80.
4. Setup the
UPGRADE PORT.
A port for the remote update DVR system firmware. Any port can be assigned as an upgrade
port, except the ports are already used by the network services. The default upgrade port is
5005.

6
Playback the Recorded File
1. Press (play).
2. Use the and buttons to go up and down and select TIME SEARCH, FILE
LIST, or SMART MOTION SEARCH. And then, press to make a selection.
SEARCH METHOD
FILE LIST
SMART MOTION SEARCH
TIME SEARCH
TIME SEARCH (search by date and time):
1. In TIME SEARCH window, the START TIME and END TIME show the date and time from when
the recording begins and ends.
2. Press and use the and buttons to set the SEARCH TIME.
3. After
SEARCH TIME has set, select SEARCH EXECUTIION and press to start
searching.
TIME SEARCH
START TIME: 2009 / 01 / 09 11:36:21
END TIME: 2009 / 01 / 09 11:36:21
SEARCH EXECUTION
SEARCH TIME : 2009 / 01 / 09 11:36:21
4. When the playback file is found, the DVR system will start playback automatically.

7
FILE LIST (search by condition):
1. In FILE LIST window, press and use and buttons to set the date
and time for searching. And then, select the EXECUTION to start searching.
2. The searching result will be list out. Using and buttons to go up and down
and press to make a selection.
FILE LIST
2009/01/09 11:36:21 EXECUTIONMULTITIME SEARCH :
2009/05/09 10:10:00 - 10:37:06
2009/05/09 10:09:10 - 10:09:45
2009/05/09 10:08:21 - 10:08:27
2009/05/09 10:07:26 - 10:08:03
2009/05/09 09:50:30 - 09:59:59
2009/05/09 09:45:07 - 10:45:49
2009/05/09 09:00:00 - 09:43:48
2009/05/09 09:00:00 - 08:37:06
2009/05/09 08:00:00 - 08:59:59
2009/05/09 07:30:31 - 07:59:59 1/7
3. After make a selection, the FILE LIST of each channel will list out. Use and
buttons to the selection and press to make a selection.
EVENT LIST
CH2 NORMAL 14:23:25 - 14:23:33
CH3 NORMAL 14:23:25 - 14:23:33
CH4 NORMAL 14:23:25 - 14:23:33
1/1
2009/11/02
CH1 NORMAL 14:23:25 - 14:23:33
4. The selected event will start to playback.

8
SMART MOTION SEARCH (search by motion event):
1. In SMART MOTION SEARCH window, the START TIME and END TIME show the date and
time from when the recording begins and ends.
SMART MOTION SEARCH
START TIME: 2009 / 11 / 01 11:36:21
END TIME: 2009 / 11 / 02 11:36:21
SEARCH END TIME : 2009 / 11 / 02 11:36:21
CHANNEL : 01
SEARCH AREA
SEARCH EXECUTION
SEARCH START TIME : 2009 / 11 / 01 11:36:21
2. Use and press to set
SEARCH START TIME and SEARCH END
TIME for searching period.
3. Then, Select the CHANNEL that wants to search.
4. And then, select SEARCH AREA to mark an area to search. Use the , , ,
and to move the block and press or to confirm. To exit, press .
SEARCH AREA SETUP SCREEN
5. To start searching, select the SEARCH EXECUTION.
6. After make a selection, the DVR system will start playback automatically.
ÃSpecifications are subject to change without prior notice.
ÃThe information contained herein is to be considered for reference only
