AVGear AVG-FO200 User manual

AVG-FO200
The AVG-FO200 is a professional 4K HDMI /
Audio Fiber Optic Extender which includes a
transmitter and receiver. Both of them have a
HDMI port, an AUDIO port and a fiber port.
Transmit HDMI / DVI and analog audio over
long distances via fiber optic cable (single-mode
fiber or multimode fiber).
Features
Supports HDMI 1.4, support 4Kx2K&
1080p 3D signal
HDCP compliant
High Data Rate: 10.2Gbps
Transmit HDMI / DVI and audio up to
1KM via single-mode fiber, and up to
300M via multimode fiber
The Transmitter has powerful EDID
configuration, 10 types in total (8 for
HDMI and 2 for DVI)
The Transmitter has audio signal
management (embedded HDMI audio
or external stereo audio)
Embedded HDMI audio supports
Dolby(TrueHD) / DTS(HD-Master)
formats, the external stereo audio is
PCM
Firmware upgrade via Micro USB port
Supports hot-plug.

AVG-FO200
PLEASE READ THIS PRODUCT MANUAL CAREFULLY
BEFORE USING THIS PRODUCT.
This manual is only for operation instruction only, and
is not to be used in a maintenance capacity. The
functions described in this version are current as at
September 2016. Any changes of functions and
operational parameters will be updated in future
manual versions. Please refer to your dealer for the
latest product details.
Version 1.0 1/09/16

AVG-FO200
SAFETY OPERATION GUIDE
In order to guarantee the reliable operation of the equipment and safety of the
user, please abide by the following procedures during installation, use and
maintenance:
1. The system must be earthed properly. Please do not use two blade plugs
and ensure the AC power supply ranges from 100v to 240v and from 50Hz
to 60Hz.
2. Do not install the units in an environment where they will be exposed to
extreme hot or cold temperatures.
3. These units will generate heat during operation, please ensure that you allow
adequate ventilation to ensure reliable operation.
4. Please disconnect the units from mains power if they will be left unused for a
long time.
5. Please DO NOT try to open the casing of the equipment, DO NOT attempt to
repair the unit. Opening the unit will void the warranty. There are high
voltage components in the unit and attempting to repair the unit could result
in serious injury.
6. Do not allow the unit to come into contact with any liquid as that could result
in personal injury and product failure.

AVG-FO200
TABLE OF CONTENTS
Introduction..............................................................................................................1
Introduction to the AVG-FO200 ...................................................................1.1
Features.......................................................................................................1.2
What’s in the Box........ ……………………………………………………………………2
Product Appearance of the AVG-FO200 ...............................................................3
Transmitter....................................................................................................3.1
Receiver........................................................................................................3.2
System Connection .................................................................................................4
System Applications.....................................................................................4.1
Usage Precautions....................................................................................... 4.2
Connection Diagram ....................................................................................4.3
Connection Procedure.................................................................................. 4.4
EDID Management....................................................................................... 4.5
Audio Selection............................................................................................4.6
Firmware Update.......................................................................................... 4.7
Specification.............................................................................................................5

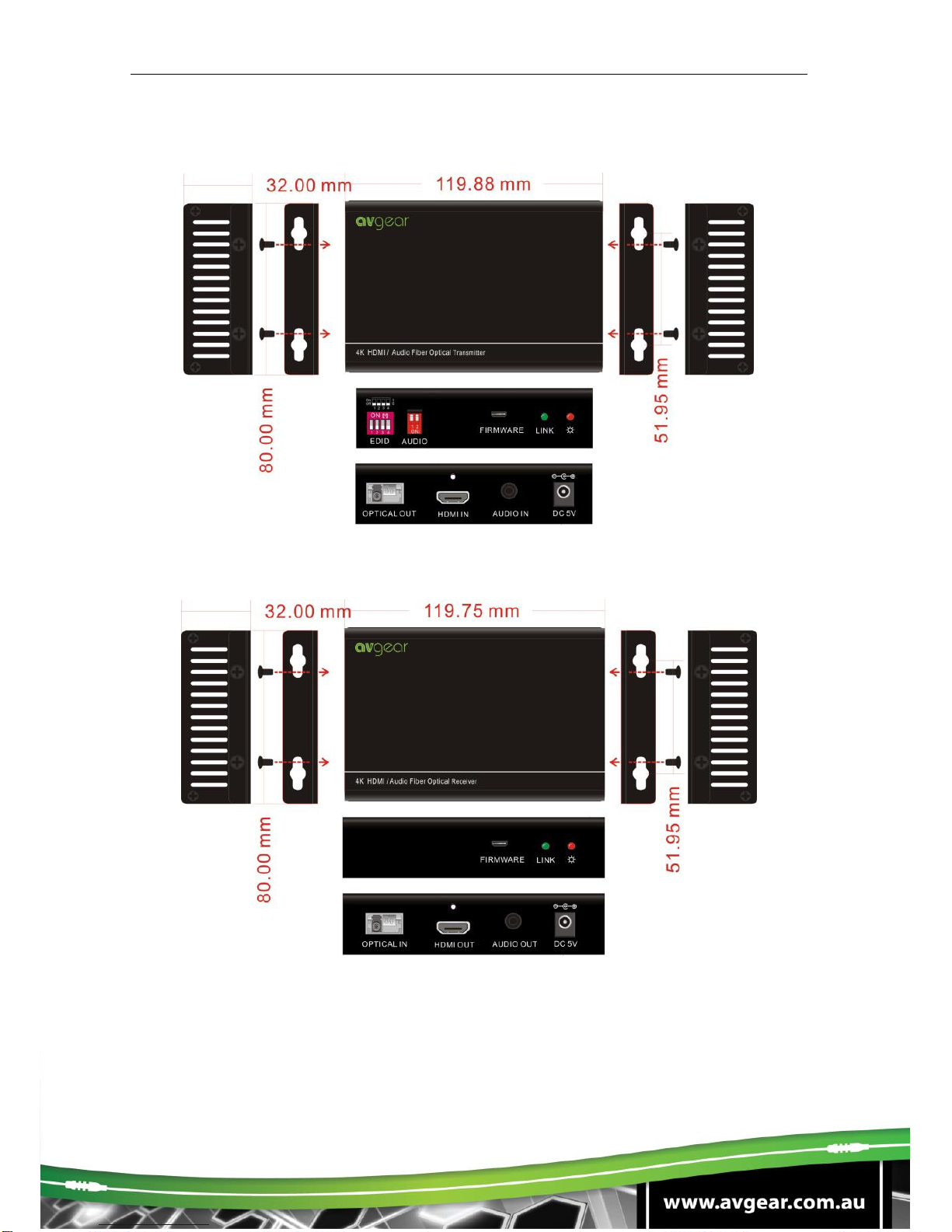

Panel Drawing..........................................................................................................6
Troubleshooting & Maintenance ............................................................................7

AVG-FO200
1. Introduction
1.1. Introduction to the AVG-FO200
The AVG-FO200 is a professional 4K HDMI / Audio Fiber Optic Extender which
includes a transmitter and receiver. Both of them have a HDMI port, an AUDIO port
and a fiber port. Transmit HDMI / DVI and analog audio over long distances via fiber
optic cable (single-mode fiber or multimode fiber).
The Transmitter has powerful EDID management via EDID DIP switches. You also
have control over using embedded HDMI audio or an external audio source via the
audio DIP switches.
1.2. Features
Supports HDMI 1.4, support 4Kx2K& 1080p 3D signal
HDCP compliant
High Data Rate: 10.2Gbps
Transmit HDMI / DVI and audio up to 1KM via single-mode fiber, and up to
300M via multimode fiber
The Transmitter has powerful EDID configuration, 10 types in total (8 for HDMI
and 2 for DVI)
The Transmitter has audio signal management (embedded HDMI audio or
external stereo audio)
Embedded HDMI audio supports Dolby(TrueHD) / DTS(HD-Master) formats,
the external stereo audio is PCM
Firmware upgrade via Micro USB port
Supports hot-plug

AVG-FO200
2. What’s in the Box?
1 x AVG-FO200 (includes Transmitter & Receiver)
8 x Rubber feet
4 x Mounting ears
16 x Mounting ear screws
2 x Power Adapters (DC 5V 1A)
1 x User Manual
Fiber Optic Cable (OPTIONAL)
Note: Please confirm if the product and the accessories are all included, if not, please
contact your dealer.

AVG-FO200
3. Product Appearance of the AVG-FO200
Transmitter
No.
Name
Description
①
EDID DIP
switches
4-pin EDID DIP switches. Change the switches to change
EDID data. Refer to the EDID Management section in this
manual.
②
AUDIO DIP
switches
2-pin AUDIO DIP switches, Refer to Audio Selection in this
manual.
③
Firmware
Micro USB port for updating firmware. After an update,
please power cycle the device.
④
LINK
Illuminates green when there is a HDMI / DVI signal.
⑤
Power
Indicator
Illuminates red when powered on.
⑥
OPTICAL
OUT
Fiber Optic module port. Fiber output port connects to the
OPTICAL IN port of the receiver via a fiber optic cable.
⑦
HDMI IN
HDMI input port, DVI compatible. Connect a HDMI or DVI
source device such as a Blu-ray player.
⑧
AUDIO IN
Stereo audio input port, connect with an external audio
source device if required.
⑨
DC 5V
Connect the supplied DC 5V/1A power supply.
Notes: Pictures shown in this manual are for reference only.

AVG-FO200
Receiver
No.
Name
Description
①
Firmware
Micro USB port for updating firmware. After an update, please
power cycle the device.
②
LINK
Illuminates green when HDMI OUT port is connected to a
display.
③
Power
Indicator
Illuminates red when powered on.
④
OPTICAL IN
Fiber Optic module port. Fiber output port connects to the
OPTICAL OUT port of the transmitter via a fiber optic cable.
⑤
HDMI OUT
HDMI output port, DVI signal compatible. Connect to a display.
⑥
AUDIO OUT
Stereo audio output port, connect to an amplifier if required.
⑦
DC 5V
Connect the supplied DC 5V / 1A power supply.
Notes: Pictures shown in this manual are for reference only.

AVG-FO200
4. System Connection
4.1. System Applications
Reliable performance for long distance transmission and high definition makes the
AVG-FO200 ideal for use in commercial and education installations, digital signage,
large screen displays, conference systems, television broadcast banking and security
institutions etc.
4.2. Usage Precautions
1. The system should be installed in a clean environment with temperature and
humidity maintained to within equipment specifications.
2. All of the power switches, plugs, sockets and power cords should be insulated and
safe.
3. All devices should be connected before power is turned on.
4.3. Connection Diagram
DVD Laptop
HDTV
DC 5V
DC 5V
Transmitter
Receiver
Speaker
HDMI Signal:
Audio Signal:
Optical Signal:

AVG-FO200
4.4. Connection Procedure
Step 1. Connect a HDMI/DVI source (e.g. DVD) to HDMI IN port of the Transmitter
with a HDMI cable.
Step 2. Connect an audio source (e.g. PC) to AUDIO IN port of the Transmitter with
an audio cable.
Step 3. Connect OPTICAL OUT port of the Transmitter to OPTICAL IN port of the
Receiver with a fiber optic cable.
Step 4. Connect a HDMI display (e.g. HDTV) to HDMI OUT port of the Receiver with
a HDMI cable.
Step 5. Connect an audio amplifier to AUDIO OUT port of the Receiver.
Step 6. Connect a DC 5V power supply to the Transmitter and the Receiver.
Note: Please connect the Transmitter with the Receiver via single-mode fiber or OM3
multimode fiber for reliable transmission.
4.5. EDID Management
The Transmitter has a 4-pin EDID DIP switch, “1” stands for “On”, “0” stands for “Off”.
There are 10 types of EDID data in total, 8 types for HDMI and 2 for DVI. Change the
switches to change EDID data referring to the following table:
Signal Source
Switch State (1234)
EDID Data
HDMI
0001
4K 2D stereo audio
0010
4K 2D audio pass through
0011
1080P 2D stereo audio
0100
1080P 2D audio pass through
0101
1080P 3D audio pass through
0110
720 2D stereo audio
0111
720 2D audio pass through
1000
720 3D audio pass through
DVI
1001
1080P 2D stereo audio
1010
720 2D stereo audio
Note:
The factory default state is 1111, the Transmitter will pass through the signal, the input
and output devices will process the signal automatically.

AVG-FO200
4.6. Audio Selection
The Transmitter has a 2-pin AUDIO DIP switch for selecting the audio input between
the embedded HDMI audio and the external audio. “Up”stands for “OFF”, “down”
stands for “ON”. Change “1”switch up for selecting the embedded HDMI audio and
down to select the external input audio in the AUDIO IN port.
Note: The “2”switch is for future use.
4.7. Firmware Update via USB
For future updates, the firmware of the AVG-FO200 can be upgraded via a USB cable.
1) Connect the FIRMWARE port of the AVG-FO200 to a PC.
2) Download the latest upgrade file (.bin file) to your PC.
3) Open the Updata software, the icon looks like the below icon.
Firmware Software
4) When the software has been opened, you will see the interface as below. Please
press the button and select the firmware file, then press the button. It
is now ready to update. Press the Updata button to download.
Configuration interface
When it is finished, a window will open showing the message Update success.
Notes:
1) The COM port number on your PC must be set to 1 to 9.

AVG-FO200
5. Specifications
Module
Spec
Transmitter
Receiver
Input
Input
1 HDMI ,1 Audio
1 Fiber
Input Connector
Female HDMI
3.5mm mini jack
SFP fiber connector
Input Signal
HDMI (DVI compatible),
Stereo audio & PCM
（Channel count：2）
Fiber
Output
Output
1 Fiber
1 HDMI,1 Audio
Output Connector
SFP fiber connector
Female HDMI
3.5mm mini jack
Output Signal
Fiber
HDMI (DVI compatible)
Stereo audio & PCM
（Channel count：2）
General
Fiber module
Single mode fiber optical module
Multimode fiber optical module
Bit depth
8,10,12 bit
Reference Humidity
10% ~ 90%
Operating
Temperature
0℃~45℃
Power adapter supply
(External)
Input: AC 100 ～240V, 50 ～60Hz
Output: DC 5V 1A
HDCP
Compliant with HDCP using DVI and HDMI standards
Standards
HDMI1.4, DVI1.0, HDCP1.4
Cooling
Convection, vents on top and side panels
Power consumption
3.1W (Max)
2.7W (Max)
Dimensions (WxHxD)
120 x 32 x 80mm
120 x 32 x 80mm
Weight
0.24Kg
0.24Kg
Optical fiber module
Optical fiber and
transmission
distance
1KM (Max using Single-mode fiber)
300M (Max, using OM3 Multimode fiber)
Fiber
Supports 4Kx2K
Connector
LC fiber connector
Date rate
10.2Gbps (Max)

AVG-FO200
Support video formats:
Resolution
HDMI
DVI
480I


480P


576I


576P


720P


1080I


1080P


4Kx2K

1080P 3D@60Hz

Note: The AVG-FO200 supports 4k & 3D HDMI signals, please use good quality
HDMI cables compliant with HDMI1.4 for best results.

AVG-FO200
6. Panel Drawing
Transmitter
Receiver

AVG-FO200
7. Troubleshooting & Maintenance
Problem
Causes
Solutions
Colour loss
The connecting cables may
not be connected properly.
Check whether the cables are
connected properly and
working.
No output image
No signal at the input / output
end
Check with another
source/display to see if there
is any signal.
Failed or loose connection
Make sure the connection is
good
Power Indicator
remains off when
powered on
Failed or lose power
connection
Check whether the cable is
connected securely
EDID management
does not work
The HDMI cable/optical fiber is
broken
Change for another HDMI
cable/optical fiber which are in
good working condition.
Audio selection
does not work
The Transmitter is damaged
Send it to authorised dealer for
inspection
If your problem persists after following the above troubleshooting steps, seek further
help from your authorised dealer.
