AVGear AVG-HD120 User manual

AVG-HD120
The AVG-HD120 is a mini-size extender set
consisting of a Transmitter and a Receiver.
HDMI signal is input into the transmitter and
HDBaseT 2.0 technology is used to transmit
high-resolution1080p/4k signal to the receiver
up to 70/40m via a Cat5e/Cat6A cable. The
receiver then outputs the HDMI signal.
Features
Ultrathin design
Supports HDMI 1.4 & HDCP 1.4, able
to transmit signals 4Kx2K@30Hz &
1080p
Transmits a 4Kx2K signal for 5m via
HDMI port, 40m via HDBT port
Transmits a 1080P signal for 10m via
the HDMI port, 70m via the HDBT
port
The Receiver is powered from the
transmitter via 12VDC PoC
technology
Supports unidirectional IR control
Supports HDMI LOOP output
High Bandwidth: 10.2Gbps
Rack mountable

AVG-HD120
PLEASE READ THIS PRODUCT MANUAL CAREFULLY
BEFORE USING THIS PRODUCT.
This manual is only for operation instruction only, and
is not to be used in a maintenance capacity. The
functions described in this version are current as at
March 2016. Any changes of functions and
operational parameters will be updated in future
manual versions. Please refer to your dealer for the
latest product details.
Version 1.0 1/03/16

AVG-HD120
SAFETY OPERATION GUIDE
In order to guarantee the reliable operation of the equipment and safety of the
user, please abide by the following procedures during installation, use and
maintenance:
1. The system must be earthed properly. Please do not use two blade plugs
and ensure the AC power supply ranges from 100v to 240v and from 50Hz
to 60Hz.
2. Do not install the units in an environment where they will be exposed to
extreme hot or cold temperatures.
3. These units will generate heat during operation, please ensure that you allow
adequate ventilation to ensure reliable operation.
4. Please disconnect the units from mains power if they will be left unused for a
long time.
5. Please DO NOT try to open the casing of the equipment, DO NOT attempt to
repair the unit. Opening the unit will void the warranty. There are high
voltage components in the unit and attempting to repair the unit could result
in serious injury.
6. Do not allow the unit to come into contact with any liquid as that could result
in personal injury and product failure.

AVG-HD120
TABLE OF CONTENTS
Introduction..............................................................................................................1
Introduction to the AVG-HD120 ................................................................... 1.1
Features.......................................................................................................1.2
What’s in the Box........ ……………………………………………………………………2
Product Appearance of the AVG-HD120 ...............................................................3
Transmitter....................................................................................................3.1
Receiver........................................................................................................3.2
System Connection .................................................................................................4
Usage Precautions....................................................................................... 4.1
Connection Diagram ....................................................................................4.2
Connection Procedure.................................................................................. 4.3
Application ....................................................................................................4.4
Specification.............................................................................................................5
Panel Drawing..........................................................................................................6
Troubleshooting & Maintenance ............................................................................7

AVG-HD120
1. Introduction
1.1. Introduction to the AVG-HD120
The AVG-HD120 is a mini-size extender set consists of a Transmitter and a Receiver.
HDMI signal is input into the transmitter and HDBaseT 2.0 technology is used to
transmit a high-resolution 1080p/4k signal to the receiver up to 70/40m via a
Cat5e/Cat6A cable. The receiver then outputs the HDMI signal.
Unidirectional IR and PoC power is also transmitted across the Cat5e/Cat6A cable.
1.2. Features
Ultrathin design
Supports HDMI 1.4 & HDCP 1.4, able to transmit signals 4Kx2K@30Hz &
1080p
Transmits a 4Kx2K signal for 5m via the HDMI port, 40m via the HDBT port
Transmits a 1080P signal for 10m via the HDMI port, 70m via the HDBT port
The Receiver is powered from the transmitter via 12VDC PoC technology
Supports unidirectional IR control
Supports HDMI LOOP output
High Bandwidth: 10.2Gbps
Rack mountable

AVG-HD120
2. What’s in the Box
1 x AVG-HD120 (includes Transmitter &
Receiver)
4 x Mounting Brackets
8 x Screws
8 x Rubber Feet
1 x Power Adapter (DC 12V 2A)
1 x IR Emitter
1 x IR Receiver
1 x User Manual
Note: Please confirm if the product and the accessories are all included, if not, please
contact your dealer.

AVG-HD120
3. Product Appearance of the AVG-HD120
3.1. Transmitter
No.
Name
Description
①
Power
Illuminates red when powered on
②
IR OUT
Connect with an IR Emitter to send infrared signal, works with the
IR IN port of the Receiver.
③
HDBT OUT
RJ45 connector with green & yellow indicators. Connect to the
HDBT IN socket on the Receiver via CAT5e/ CAT6A cable,
supports unidirectional PoC.
HDCP compliant indicator
OFF: No HDMI traffic (no picture output)
GREEN: HDMI Traffic contains HDCP.
Blinking GREEN: HDMI Traffic without HDCP
HDBT Link status indicator:
OFF: No Link
YELLOW:Link Successful
Blinking YELLOW: Link Error
④
HDMI
LOOP
Connect with a HDMI display
⑤
HDMI IN
Connect with HDMI source
⑥
DC 12V
Insert a DC 12V 2A power adapter here to power both TX & RX
LINK
HDCP
HDMILOOP
HDBT OUT
IROUTHDMIINDC12V
2
13456

AVG-HD120

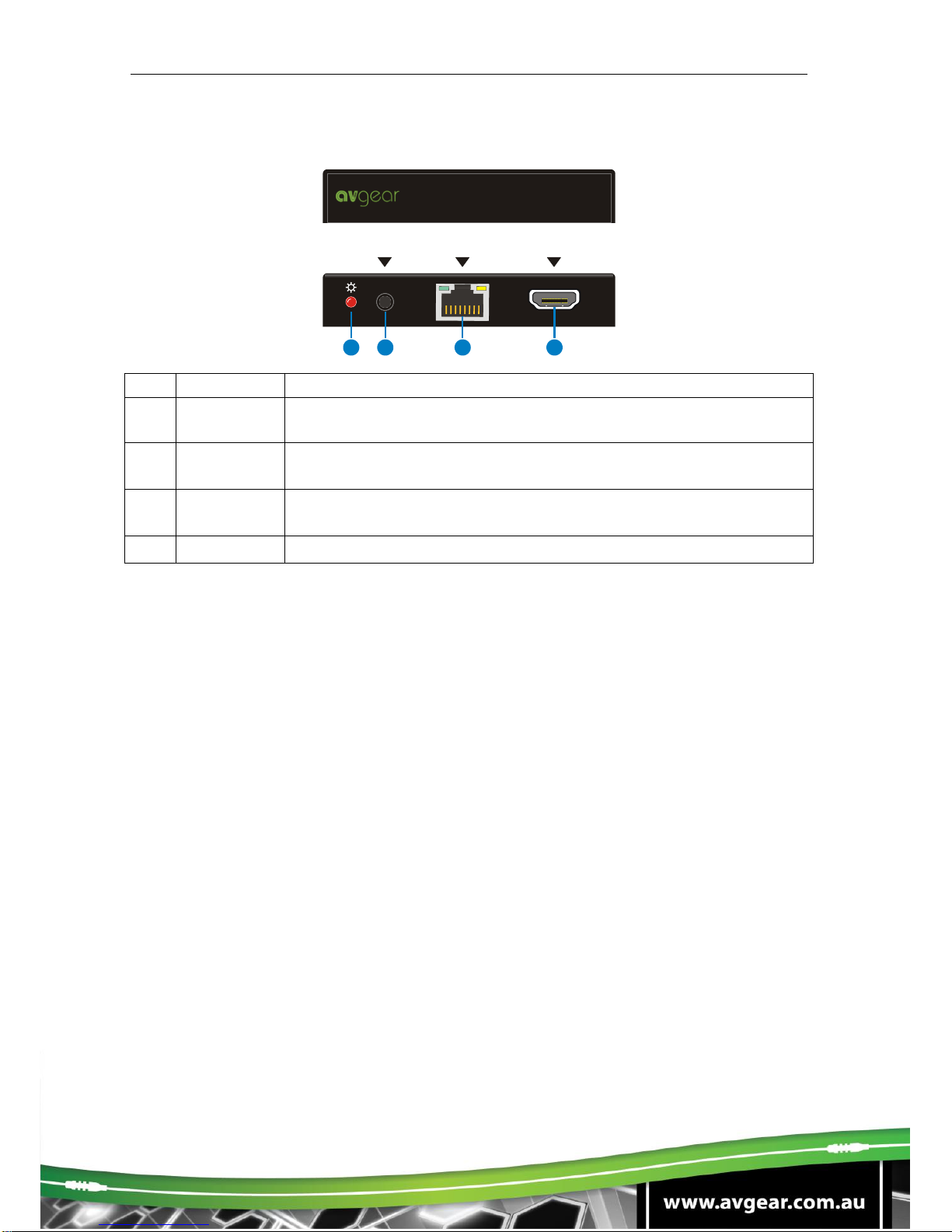

3.2. Receiver
No.
Name
Description
①
Power
indicator
Illuminates red when powered on
②
IR IN
Connect with IR receiver to collect infrared signals, work with the
IR OUT port of the Transmitter.
③
HDBT IN
Connect to the HDBT OUT socket on the Transmitter via CAT5e/
CAT6A cable.
④
HDMI OUT
Connect with HDMI display.
Note: Pictures shown in this manual are only for reference.
LINK
HDCP
1234
HDMIOUT
HDBT IN
IRIN

AVG-HD120
4. System Connection
4.1. System Applications
Robust performance for control and signal transmission makes the AVG-HD120 ideal
in the custom installation industry, IT computer space, signal monitoring, big screen
displays, conference systems, television broadcast, education, banking and security
institutions etc.
4.2. Usage Precautions
1. System should be installed in a clean environment with temperature and humidity
maintained to within equipment specification.
2. All of the power switches, plugs, sockets and power cords should be insulated and
safe.
3. All devices should be connected before power is turned on.
4. Use shielded straight-thru Cat5e/Cat6Acable with TIA/EIA T568B terminations for
best transmission results.
4.3. Connection Diagram
LINK
HDCP
LINK
HDCP
Transmitter
Receiver
HDTV
Blu-ray DVD
CAT5e/ 6 Cable
HDMI Cable
DC 12V
HDMI Cable
Standby
HDTV

AVG-HD120
4.4. Connection Procedure
Step 1. Connect a HDMI source (such as Blu-ray DVD) to HDMI IN port of the
transmitter with a HDMI cable.
Step 2. Connect the HDBT OUT/PoH port of the transmitter to HDBT IN/PoH port of
the receiver through a straight-thru CAT5e/CAT6a cable.
Step 3. Connect a HDMI display (such as HDTV) to HDMI OUT port of the receiver
with a HDMI cable.
Step 4. When using IR control, do the following.
a) Connect an IR receiver to the IR IN port of the Receiver.
b) Connect an IR Emitter to the IR OUT port of Transmitter.
Step 5. Connect a DC12V power adaptor to the power port of the transmitter, the
receiver will be powered via the PoC solution.
