AVGear AVG-HD50 User manual

AVG-HD50
The AVG-HD50 is an ultra-compact extender
set consisting of a Transmitter and a Receiver.
HDMI signal is input into the transmitter and
sent over cat5/6 cable to the receiver. It can
transmit 1080p@60Hz video signals and multi-
channel audio up to 55m.
Features
Ultra-compact design.
HDMI1.4 & HDCP1.4 compliant.
Maximum transmission distance is up
to 55m for 1080p@60Hz.
Built-in EDID to ensure reliable
transmission of the HDMI signal.
Supports bi-directional 5V IR pass-
through.
The receiver can be powered by the
Transmitter via PoC.

AVG-HD50
PLEASE READ THIS PRODUCT MANUAL CAREFULLY
BEFORE USING THIS PRODUCT.
This manual is only for operational instruction only,
and is not to be used in a maintenance capacity. The
functions described in this version are current as at
June 2017. Any changes of functions and operational
parameters will be updated in future manual versions.
Please refer to your dealer for the latest product
details.
Version 1.0 28/06/17

AVG-HD50
SAFETY OPERATION GUIDE
In order to guarantee the reliable operation of the equipment and safety of the
user, please abide by the following procedures during installation, use and
maintenance:
1. Do not install the units in an environment where they will be exposed to
extreme hot or cold temperatures.
2. These units will generate heat during operation, please ensure that you allow
adequate ventilation to ensure reliable operation.
3. Please disconnect the units from mains power if they will be left unused for a
long time.
4. Please DO NOT try to open the casing of the equipment, DO NOT attempt to
repair the unit. Opening the unit will void the warranty. There are high
voltage components in the unit and attempting to repair the unit could result
in serious injury.
5. Do not allow the unit to come into contact with any liquid as that could result
in personal injury and product failure.

AVG-HD50
TABLE OF CONTENTS
Introduction..............................................................................................................1
Introduction to the AVG-HD50 .....................................................................1.1
Features.......................................................................................................1.2
What’s in the Box........ ……………………………………………………………………2
Product Appearance of the AVG-HD50 .................................................................3
Transmitter....................................................................................................3.1
Receiver........................................................................................................3.2
System Connection .................................................................................................4
Usage Precautions....................................................................................... 4.1
Connection Diagram ....................................................................................4.2
Connection Procedure.................................................................................. 4.3
Application ....................................................................................................4.4
Specifications...........................................................................................................5
Troubleshooting & Maintenance ............................................................................6

AVG-HD50
1. Introduction
1.1. Introduction to the AVG-HD50
The AVG-HD50 is an ultra-compact extender set consisting of a Transmitter and a
Receiver. HDMI signal is input into the transmitter and sent over cat5/6 cable to the
receiver. It can transmit 1080p@60Hz video signals and multi-channel audio up to
55m.
Built-in EDID make this product compatible with most displays and source equipment.
Using PoC, the receiver can be powered by the transmitter. In addition, the AVG-HD50
can send and receive IR signals over the same cat cable.
1.2. Features
Ultra-compact design.
HDMI1.4 & HDCP1.4 compliant.
Maximum transmission distance is up to 55m for 1080p@60Hz.
Built-in EDID to ensure reliable transmission of the HDMI signal.
Supports bi-directional 5V IR pass-through.
The receiver can be powered by the Transmitter via PoC.
2. What’s in the Box
1 x AVG-HD50 (includes Transmitter & Receiver)
1 x Power adapter (5V DC 1A)
1 x IR Receiver (5V)
1 x IR Emitter (5V)
2 x Velcro tape
1 x User Manual
Note: Please confirm if the product and the accessories are all included, if not, please
contact your dealer.

AVG-HD50
3. Product Appearance of the AVG-HD50
Transmitter (TX)
No.
Name
Description
①
CAT Out
RJ45 connector with Green & Yellow indicators. Connect to
the Receiver over CATx cable.
The Green indicator lights up when powered on.
The Yellow indicator lights up when it has linked
successfully between Transmitter and Receiver.
②
IR IN
Connect the IR Receiver here
③
IR OUT
Connect the IR Emitter here
④
DC 5V
Micro USB socket. Connect the supplied power adapter here.
⑤
HDMI IN
Connect your HDMI source
⑥
HDMI OUT
HDMI loop out. Optionally you can connect to a display or AV
Receiver.
⑦
Reset
Used to reboot the transmitter
HDMI OUT
HDMI IN
DC 5V
IR OUTIR IN CAT OUT
RESET
1234567

AVG-HD50
Receiver
No.
Name
Description
①
CAT Out
RJ45 connector with Green & Yellow indicators. Connect to
the Transmitter over CATx cable.
The Green indicator lights up when powered on.
The Yellow indicator lights up when it has linked
successfully between Transmitter and Receiver.
②
IR IN
Connect the IR Receiver here
③
IR OUT
Connect the IR Emitter here
④
HDMI OUT
Connect your Display here
⑤
EQ Setting
After your system is connected, press this button 3 to 6 times
to select the best image. If the cable, source device, display or
the resolution is changed you will need to press this button
again to get the best picture.
Note: Pictures shown in this manual are only for reference.
EQ SETTING
IR OUTIR IN CAT IN
12345
HDMI OUT

AVG-HD50
4. System Connection
4.1. System Applications
Robust performance for control and signal transmission makes the AVG-HD50 ideal in
the custom installation industry, IT computer space, signal monitoring, big screen
displays, conference systems, television broadcast, education, banking and security
institutions etc.
4.2. Usage guidelines
1. The system should be installed in a clean environment with temperature and
humidity maintained to within equipment specification.
2. All of the power switches, plugs, sockets and power cords should be insulated and
safe.
3. All devices should be connected before power is turned on.
4. Use straight-thru Cat5e/Cat6A cable with TIA/EIA T568B terminations for best
transmission results.

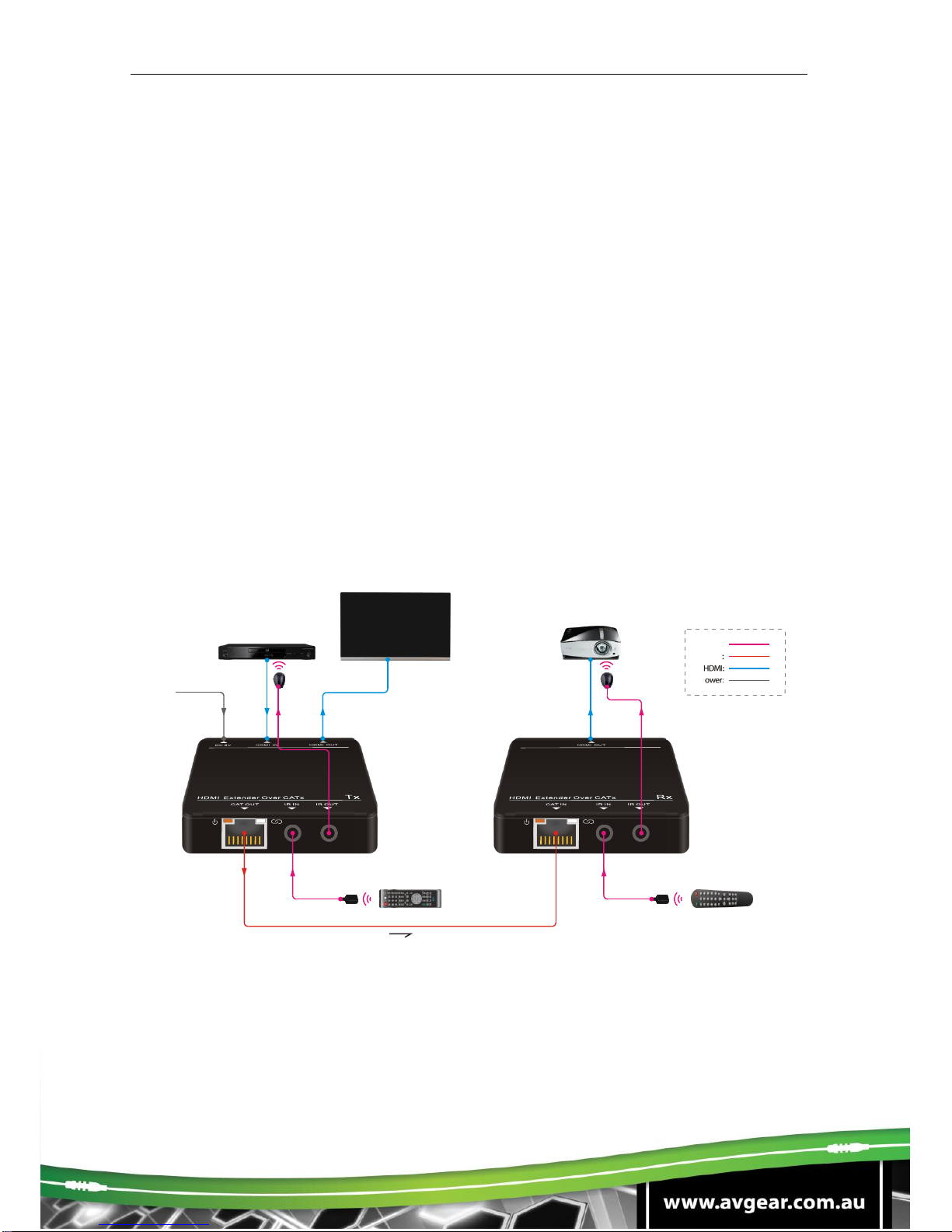

4.3. Connection Diagram
DC 5V
DisplayDVD
IR Emitter
IR Receiver Projector Remote IR Receiver DVD Remote
IR Emitter
Projector
PoC
P:
IR:
Catx
1080P55m

AVG-HD50
4.4. Connection Procedure
Step 1. Connect a HDMI source (such as Blu-ray DVD) to HDMI IN port of the
transmitter with a HDMI cable.
Step 2. Connect the CAT OUT port of the transmitter to CAT IN port of the receiver
through a straight-thru CAT5e/CAT6a cable.
Step 3. Connect a HDMI display (such as HDTV) to HDMI OUT port of the receiver
with a HDMI cable.
Step 4. When using IR control, do the following.
a) Connect an IR receiver to the IR IN port of the Receiver.
b) Connect an IR Emitter to the IR OUT port of Transmitter.
Step 5. Connect the supplied 5V power adaptor to the Micro USB port of the
transmitter.

AVG-HD50
5. Specifications
Transmitter
Receiver
Input
1 x HDMI
1 x HDMI Stream
Input Connector
1 x 19-pin type-A female HDMI
1 x RJ45
Output
1 x HDMI stream
1 x HDMI
Output Connector
1 x RJ45
1 x 19-pin type-A female
HDMI
Control
1 x IR IN; 1 x IR OUT
1 x IR IN; 1 x IR OUT
Control Connector
2 x 3.5mm mini jacks
2 x 3.5mm mini jacks
General
Transmission Distance
1080p@60Hz ≤55m
HDMI Standard
HDMI1.4, HDCP1.4 compliant
EDID Management
Built-in EDID
Power Supply
Input: 100VAC ~ 240VAC, 50/60Hz; Output: 5V DC 1A
Power Consumption
4W (Max)
Work Temperature
-10 ~55℃
Relative Humility
10% - 90%
Dimensions (W*H*D)
66mm x 16.8mm x 66 mm
Weight
Transmitter: 36g; Receiver: 38g;

AVG-HD50
6. Troubleshooting & Maintenance
No image on the display:
Ensure that the display device has been set to the correct input.
Ensure that the HDMI cables used for both the Source/Transmitter and the
Receiver/Display are properly connected and are working. Test the HDMI
cables directly from a source to the display and ensure correct operation.
Ensure that the Cat5e/Cat6a cable has not been damaged and that it has been
terminated correctly with T568B on both ends. A temporary length of
Cat5e/Cat6 can be used for testing to ensure that the devices are compatible
and working properly.
Ensure proper grounding of the power supply.
Known issues with HDMI 1.2 source devices: Older compatibility (HDMI 1.2)
may result in transmission issues.
Colour loss or poor picture quality:
Ensure that the HDMI cables used for both the Source/Transmitter and the
Receiver/Display are properly connected and are high quality. Test the HDMI
cables directly from a source to a display to check picture quality.
Ensure proper grounding of the power supply.
If the static becomes stronger or picture quality becomes worse when
connecting the video connectors, this may be due to improper grounding.
Check the grounding and make sure all the components are properly grounded
to a common ground. Improper grounding may cause damage to the Receiver.
If your problem persists after following the above troubleshooting steps, seek further
help from your authorised dealer.
