AVGear AVG-HD550 User manual

AVG-HD550
Features
▪HDMI signal up to 4K@60Hz 4:2:0.
▪HDMI1.4 and HDCP2.2 compliant.
▪Auto input switching.
▪HDBaseT technology extends HDMI,
USB and RS232 signals up to 100m
over CATx cable.
▪Bi-directional RS232 pass-through
with HDBaseT connection and local
control.
▪CEC control via the Display Button.
▪Ensures display of content protected
media and interoperability with other
HDCP compliant devices.
▪24V PoC, transmitter is powered by
the receiver.
The AVG-HD550 consists of a Wall Plate Transmitter
and a receiver which can transmit HDMI(1080P,
4K@60Hz 4:2:0), RS232 and USB signals up to
100m using a single CATx cable. The Wallplate
features two HDMI inputs and a USB-B port for HID
devices such as a Mouse or keyboard.

AVG-HD550
PLEASE READ THIS PRODUCT MANUAL CAREFULLY
BEFORE USING THIS PRODUCT.
This manual is for operational use only, and not to be
used in a maintenance capacity. The functions
described in this version are current as at October
2018. Any changes of functions and operational
parameters will be updated in future manual versions.
Please refer to your dealer for the latest product
details.
Version 1.0 8/10/18

AVG-HD550
SAFETY OPERATION GUIDE
In order to guarantee the reliable operation of the equipment and safety of the
user, please abide by the following procedures in installation, use and
maintenance:
1. Unpack the equipment carefully and save the original box and packing
material for possible future shipment
2. Follow basic safety precautions to reduce the risk of fire, electrical shock
and injury to persons.
3. Do not dismantle the housing or modify the module. It may result in
electrical shock or burns.
4. Using supplies or parts not meeting the products’ specifications may cause
damage, deterioration or malfunction.
5. Refer all servicing to qualified service personnel.
6. To prevent fire or shock hazard, do not expose the unit to rain, moisture or
install this product near water.
7. Do not put any heavy items on the extension cable in case of extrusion.
8. Do not remove the housing of the device as opening or removing housing
may expose you to dangerous voltage or other hazards.
9. Install the device in a place with adequate ventilation to avoid damage
caused by overheating.
10. Keep the module away from liquids.
11. Spillage into the housing may result in fire, electrical shock, or equipment
damage. If an object or liquid falls or spills on to the housing, unplug the
module immediately.
12. Do not use liquid or aerosol cleaners to clean this unit. Always unplug the
power to the device before cleaning.
13. Unplug the power cord when left unused for a long period of time.
14. Disposal Information: do not burn or mix with general household waste,
please treat as normal electrical wastes.

AVG-HD550
TABLE OF CONTENTS
Introduction ..............................................................................................................1
Introduction to the AVG-HD550....................................................................1.1
Features .......................................................................................................1.2
Package List................……………………………………………………………………2
Product Appearance................................................................................................3
Transmitter Front Panel................................................................................3.1
Transmitter Rear Panel ................................................................................3.2
Receiver Front Panel....................................................................................3.3
Receiver Rear Panel ....................................................................................3.4
System Connection..................................................................................................4
System Application.......................................................................................4.1
Usage Precautions.......................................................................................4.2
Connection Diagram.....................................................................................4.3
Button Control..........................................................................................................5
Signal Switching...........................................................................................5.1
Display Control.............................................................................................5.2
RS232 Control ..........................................................................................................6
RS232 Connection .......................................................................................6.1
Control Software...........................................................................................6.2
RS232 Commands.......................................................................................6.2
Specification.............................................................................................................7
Panel Drawing ..........................................................................................................8
Troubleshooting & Maintenance.............................................................................9

AVG-HD550
1. Introduction
1.1. Introduction to the AVG-HD550
The AVG-HD550 consists of a Wall Plate Transmitter and a receiver which can
transmit HDMI(1080P, 4K@60Hz 4:2:0), RS232 and USB signals up to 100m using a
single CATx cable.
The Wallplate features two HDMI inputs which can be selected by the
SOURCE/AUTO button on the front panel. It also features a Type B USB port to
connect a PC or other USB devices which need to be controlled via a far-end HID
device such as a Mouse or keyboard. The transmitter supports CEC, the DISPLAY
ON/OFF button on the front panel is used to control the far-end display device. The
wallplate is 24V PoC, which allows it to be powered by the receiver. The wallplate
also has 12V DC output for powering other devices.
1.2. Features
▪HDMI signal up to 4K@60Hz 4:2:0.
▪HDMI1.4 and HDCP2.2 compliant.
▪Auto input switching.
▪HDBaseT technology extends HDMI, USB and RS232 signals up to 100m over
CATx cable.
▪Bi-directional RS232 pass-through with HDBaseT connection and local control.
▪CEC control via the Display Button.
▪Ensures display of content protected media and interoperability with other HDCP
compliant devices.
▪24V PoC, transmitter is powered by the receiver.

AVG-HD550
2. Package List
Wallplate
Transmitter
▪1 x Wallplate Transmitter
▪4 x Mounting Screws
▪1 x 2-pin Phoenix plug
▪1 x 3-pin Phoenix plug
Receiver
▪1 x Receiver
▪2 x Mounting Ears plus screws
▪4 x Rubber Feet
▪1 x RS232 Cable (3-pin Phoenix plug to DB9)
▪1 x Power Adaptor (24V DC 1.25A)
▪1 x User Manual
Note: Please confirm if the product and the accessories are all included, if not,
please contact your dealer.

AVG-HD550
3. Product Appearance

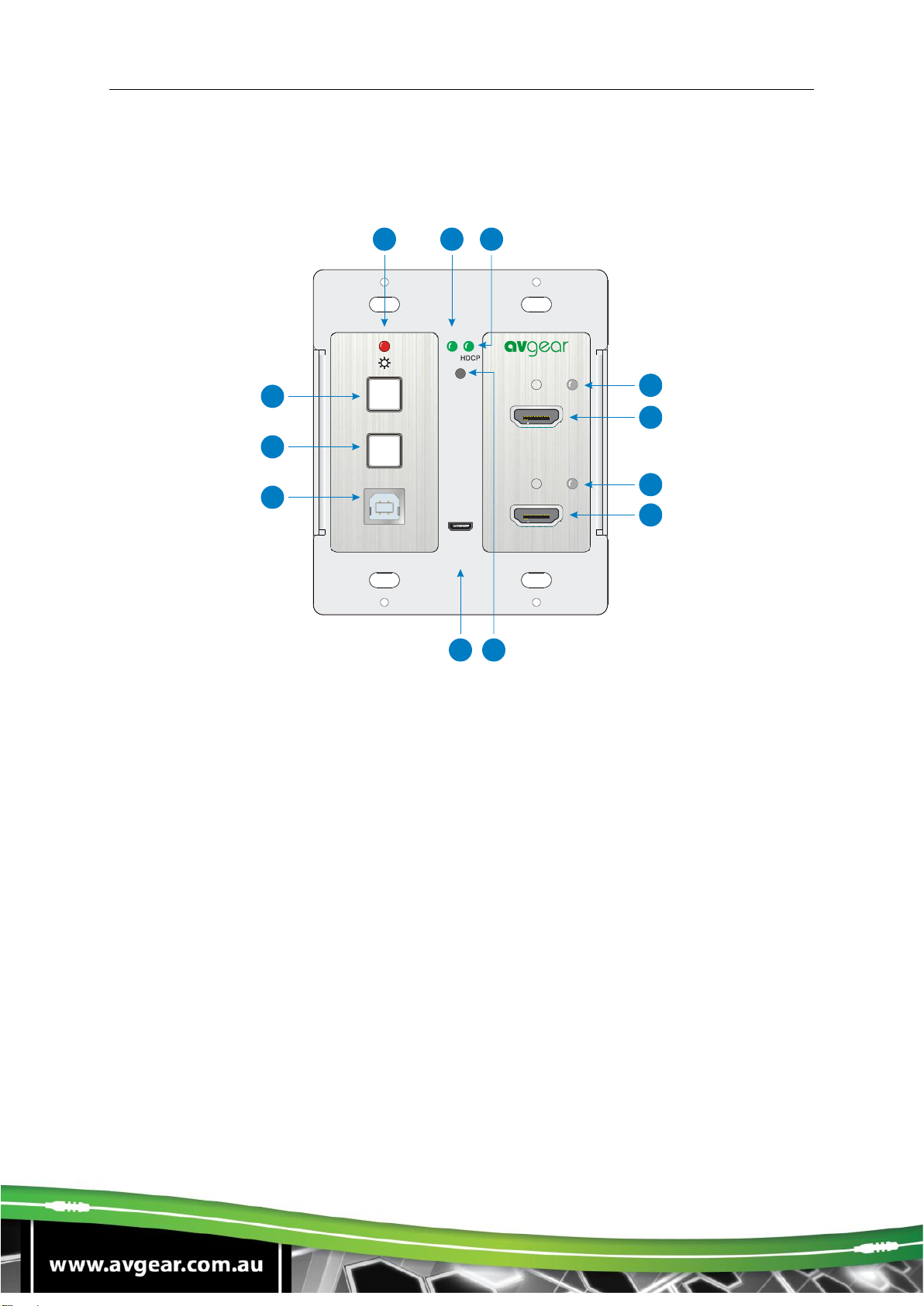

3.1. Transmitter Front Panel
①POWER LED: The LED illuminates red when power is applied.
②LINK LED: The LED illuminates green when the transmitter and the receiver are
successfully connected by a CATx cable.
③HDCP LED:
⚫The LED illuminates green when the HDMI signal is transmitted with HDCP.
⚫The LED blinks green when the HDMI signal is transmitted without HDCP.
⚫The LED turns off when there is no HDMI signal input.
④SOURCE SELECT: Press the button to select the next input source, or press and
hold it for at least 3 seconds to enable auto-switching mode.
⑤DISPLAY ON/OFF: Press the button to turn on/off the display.
⑥TO PC: Type-B USB port to connect a PC or another device that needs to be
controlled.
⑦HDMI IN 1 LED: The LED illuminates orange when the HDMI IN 1 port is
connected to a source device, and it will turn green once the device is selected
as input source.
⑧HDMI IN 1: Type-A HDMI port to connect a HDMI source.
⑨HDMI IN 2 LED: The LED illuminates orange when the HDMI IN 2 port is
LINK
RESET
FIRMWARE
HDMI IN 1
HDMI IN 2
HD550T
TO PC
SOURCE SELECT
DISPLAY ON/OFF
2
13
48
10
12 11
7
9
5
6

AVG-HD550
connected to a source device, and it will turn green once the device is selected
as input source.
⑩HDMI IN 2: Type-A HDMI port to connect a HDMI source.
⑪RESET: Press this button to reboot the wallplate.
⑫FIRMWARE: Micro-USB port for firmware updates.

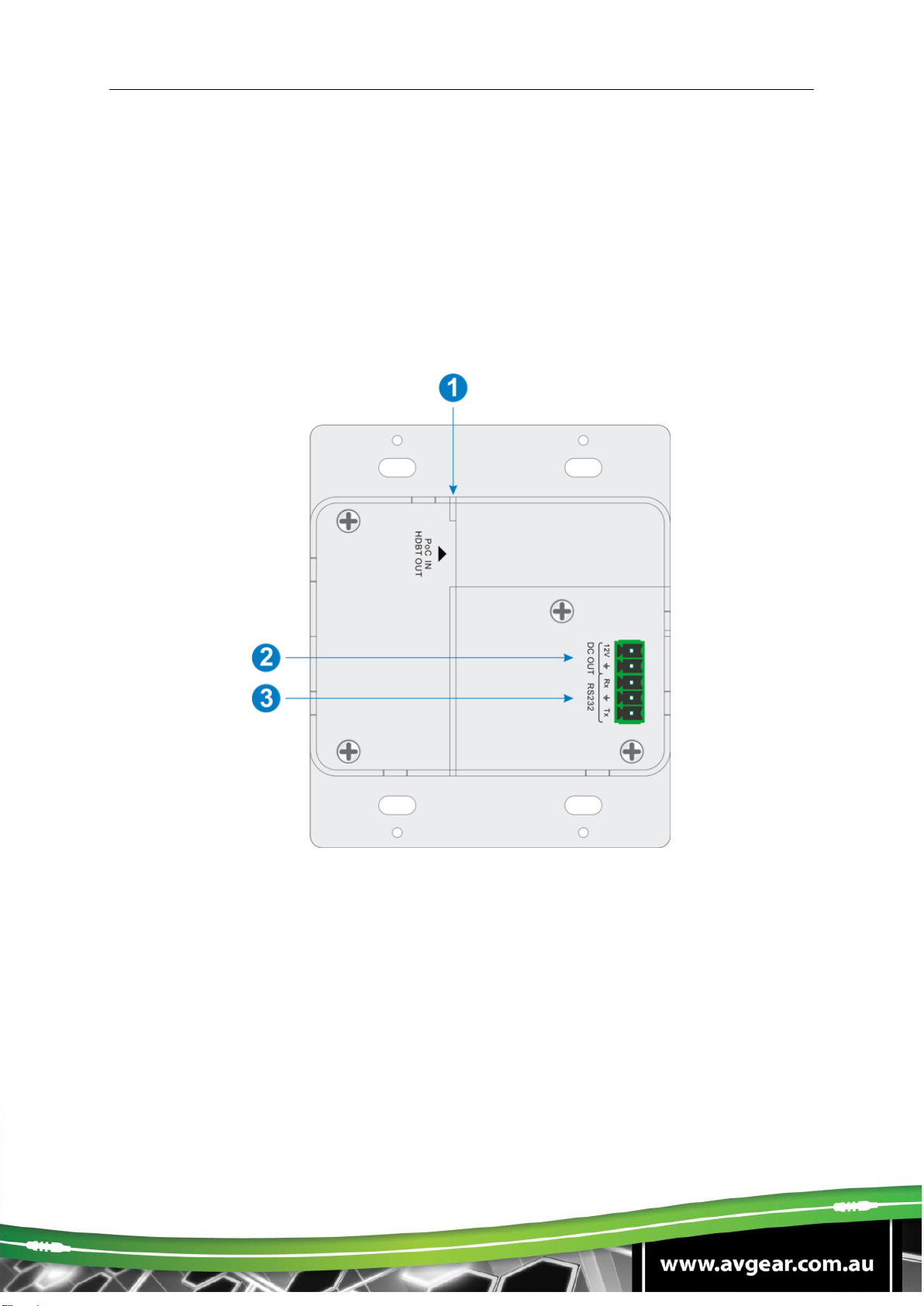

3.2. Transmitter Rear Panel
①HDBT OUT (PoC IN): RJ45 HDBaseT output port to connect to the HDBT IN port
of the receiver by a CATx cable. It supports 24V PoC and can be powered from
receiver.
②DC OUT: 2-pin Phoenix plug to connect a compatible device which needs to be
powered.
③RS232: 3-pin Phoenix plug to connect a control device (such as PC) to send
RS232 commands to control this unit, or to connect a third party device which
needs to be controlled by RS232 pass-through.

AVG-HD550

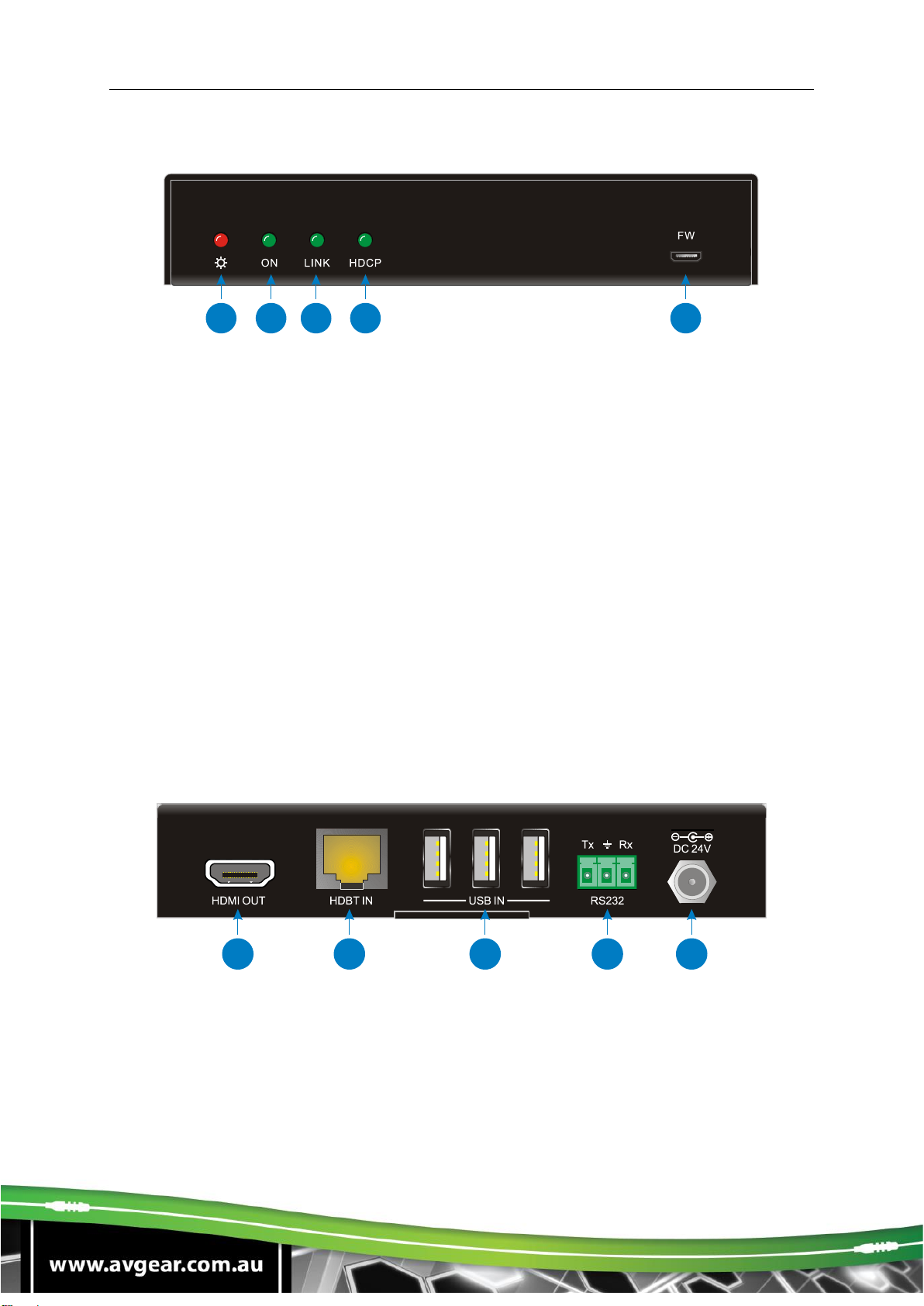

3.3. Receiver Front Panel
①POWER LED: The LED illuminates red when power is applied.
②ON LED: The LED blinks green when the receiver is working.
③LINK: The LED illuminates green when the transmitter and the receiver are
successfully connected by a CATx cable.
④HDCP LED:
⚫The LED illuminates green when the HDMI signal is transmitted with HDCP.
⚫The LED blinks green when the HDMI signal is transmitted without HDCP.
⚫The LED turns off when there is no HDMI signal input.
⑤FW: Micro-USB port for firmware upgrade.
3.4. Receiver Rear Panel
①HDMI OUT: Type-A HDMI to connect a display.
②HDBT IN: RJ45 HDBaseT input port to connect to the HDBT OUT port of the
transmitter by a CATx cable.
③USB IN: Three type-A USB ports to connect HID devices (e.g. mouse, keypad
and so on) to control the device which is connected to the TO PC port of the
transmitter.
12345
12345

AVG-HD550
④RS232: 3-pin Phoenix plug to connect a control device (such as PC), or to
connect a third party device which needs to be control by RS232 pass-through.
⑤DC 24V: Power port to connect the 24V DC power adaptor.
4. System Connection
4.1. System Applications
Reliable performance for control and transmission makes the AVG-HD550 ideal in
the IT computer space, signal monitoring, big screen displays, conference systems,
television broadcast, education, banking and security institutions etc.
4.2. Usage Precautions
1. System should be installed in a clean environment with temperature and humidity
maintained to within equipment specification.
2. All of the power switches, plugs, sockets and power cords should be insulated
and safe.
3. All devices should be connected before power is turned on.

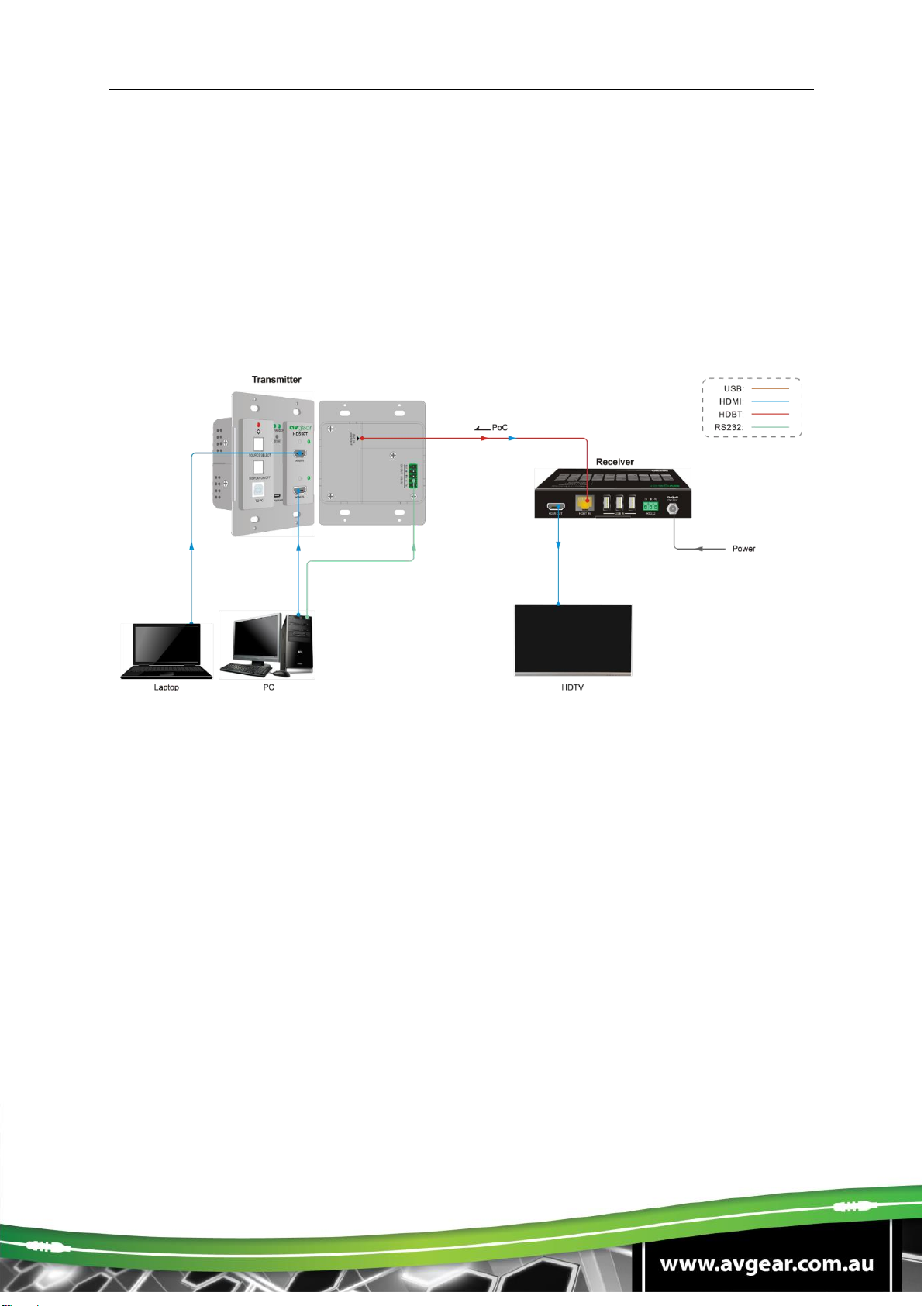

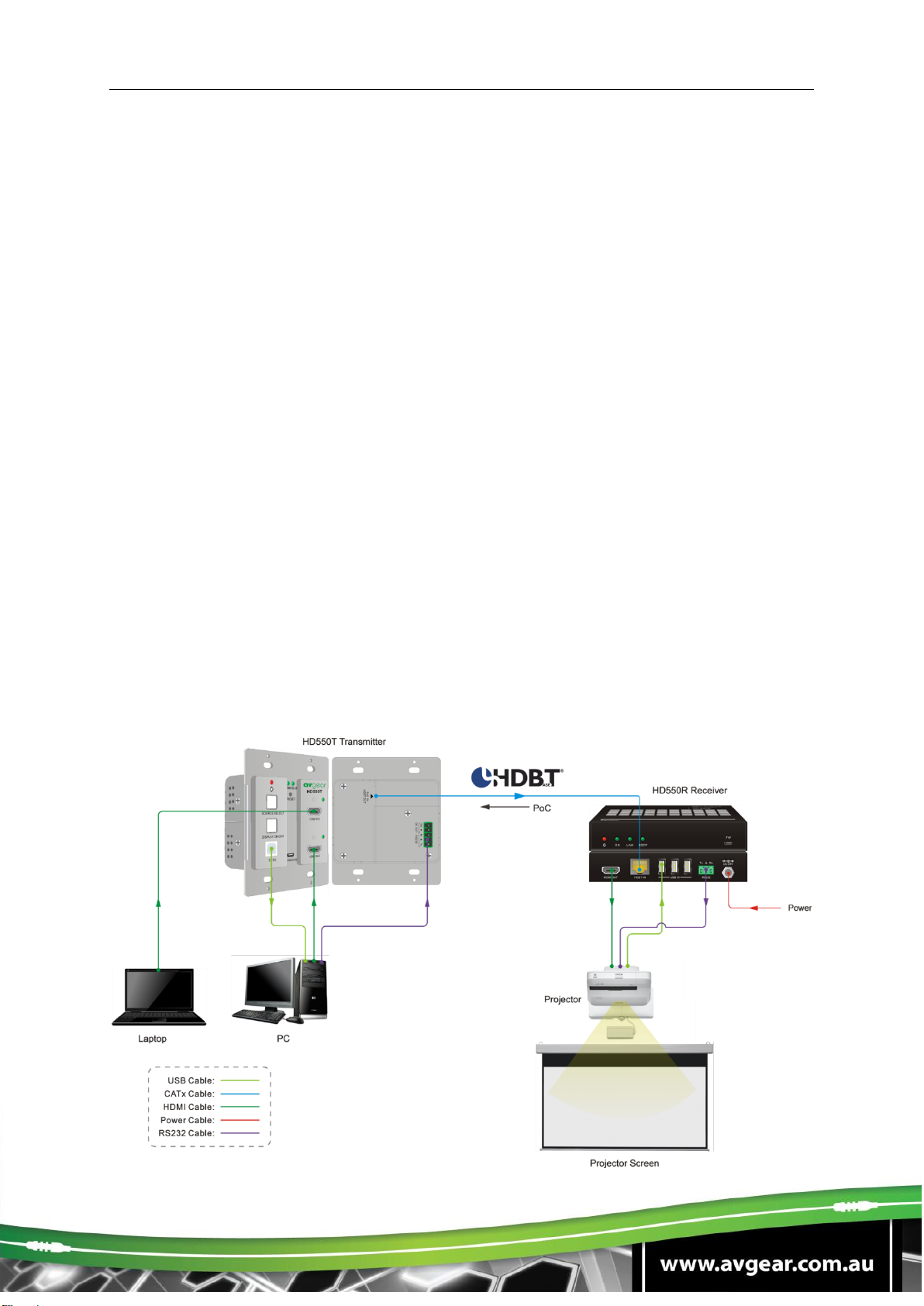

4.3. Connection Diagram

AVG-HD550
5. Button Control
5.1. Signal Switching
1) Press the SOURCE SELECT button to switch to the next source device, the
corresponding input LED will turn green.
2) Press and hold the SOURCE SELECT button for at least 3 seconds to enable
auto-switching mode, and it behaves by following theses principles:
⚫New input:
On detecting a new input signal, the transmitter will automatically switch to this
new signal.
⚫Signal removal
Once removing the current input signal, the transmitter will automatically switch
to another active HDMI input.
⚫Rebooting device
The transmitter can save the last configuration before losing power. If the last
switching mode is auto-switching, the transmitter will automatically enter auto-
switching mode once rebooted, then detect all inputs and memorize their
connection status for future rebooting using. If the last selected input source is
still available, the transmitter will switch to this input. If not, it will switch to the first
available active input source starting at HDMI IN 1.
⚫Exit auto-switching mode
Exit Auto-switch mode by pressing and holding the SOURCE SELECT button for
at least 3 seconds. Once in this mode, the wallplate will not changes inputs
automatically.
5.2. Display Control
1) Press the DISPLAY ON/OFF button to turn on and off the display.
2) The DISPLAY ON/OFF can be customized by sending RS232 commands for
compatibility with various displays.

AVG-HD550
6. RS232 Control
6.1. RS232 Connection
Depending on the RS232 control mode you are using, there are three possible
RS232 connections.
①When you are only controlling the transmitter, connect a control device (e.g. PC)
to the RS232 port of the transmitter, the connection diagram is shown below:

AVG-HD550
②When controlling a far-end third party device from local a control device (e.g.
PC), connect the PC to the RS232 port of the transmitter, and then connect the
third party device (e.g. projector) to the RS232 port of receiver. The connection
diagram is shown below:
③When you want to control a local third party device from the far-end control
device (e.g. PC), connect the PC to the RS232 port of the receiver, and then
connect the third party device to the RS232 port of transmitter. The connection
diagram is shown below:

AVG-HD550
6.2. RS232 Control Software
After connecting all your required input and output devices according to one of the
three methods, the RS232 control software needs to be installed into the control PC
to send RS232 commands.
⚫Installation Copy the control software file to the control PC.
⚫Uninstallation Delete all the control software files in corresponding file path.
Here take the software CommWatch.exe as example.
Double-click the following icon:

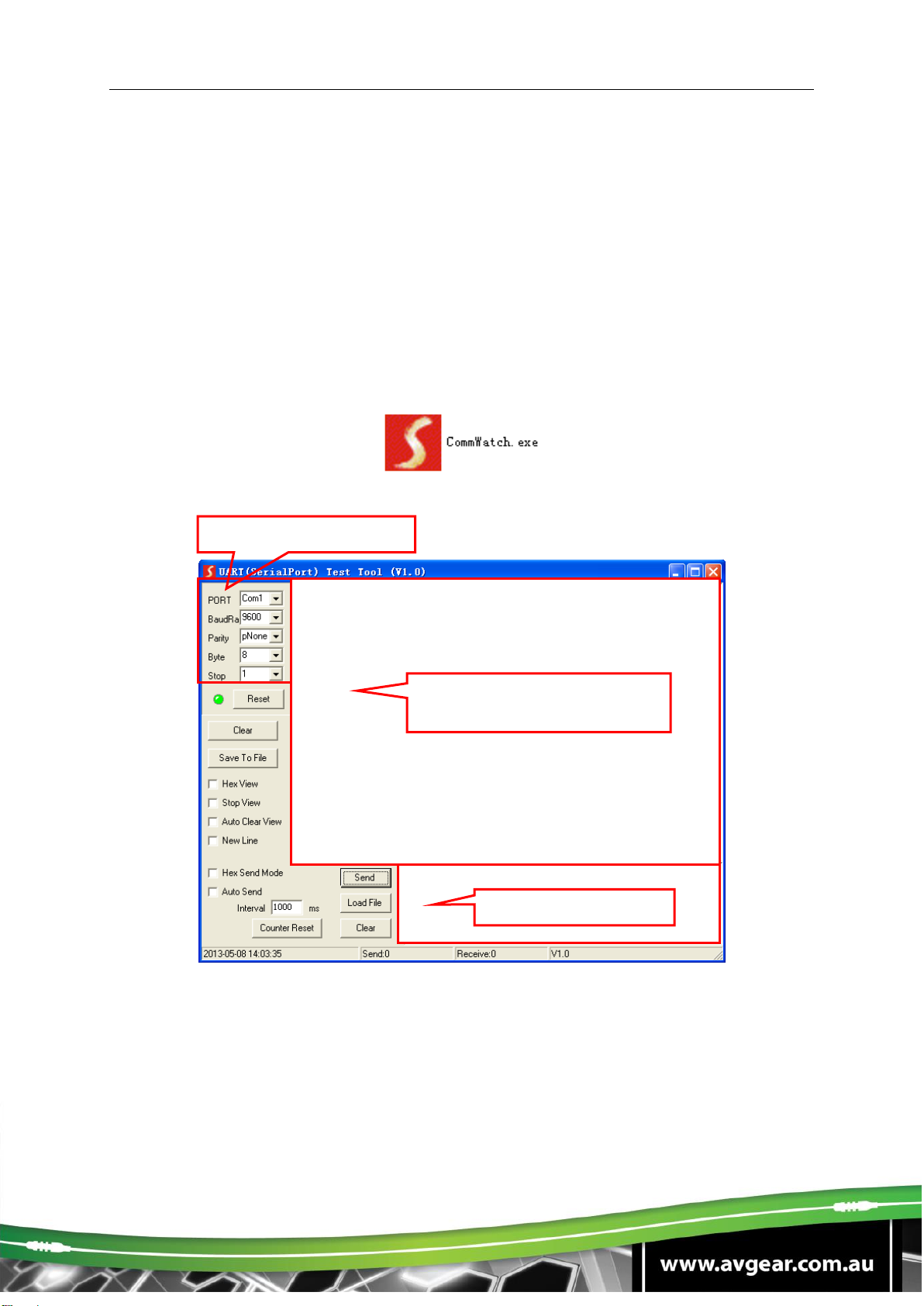

The interface of the control software is shown below:
Parameter
Monitoring area, show the
commands and its feedback
Command sending

AVG-HD550
Set the port number, baud rate, data bit, stop bit and the parity bit correctly, then the
RS232 commands can be sent in Command Sending Area.
Baud rate: Supports 2400, 4800, 9600, 19200, 38400, 57600 and 115200.
Data bit: 8;
Stop bit: 1;
Parity bit: none.
RS232 Command
The transmitter can also be controlled by sending the below commands and using
the first connection method.
Baud rate: 9600
Data bit: 8
Stop bit: 1
Parity bit: none.
Signal Switching
Command
Function
Feedback Example
50701%
Switch to HDMI IN 1 input.
SWITCH TO HDMI1
50702%
Switch to HDMI IN 2 input.
SWITCH TO HDMI2
50710%
Enable auto-switching mode.
AUTO SWITCHING
50711%
Disable auto-switching mode.
MANUAL SWITCHING
50712%
Get the signal switching mode.
AUTO SWITCHING
MANUAL SWITCHING

AVG-HD550
CEC Command
Command
Function
Feedback Example
50730%
Volume up the display
CEC VOLUME INCREASE
50731%
Volume down the display
CEC VOLUME DECREASE
50732%
Mute the display
CEC VOLUME MUTE
50733%
Display ON
CEC DISPLAY ON
50734%
Display OFF
CEC DISPLAY OFF
Note: The display must support CEC.
HDCP Command
Command
Function
Feedback Example
50730%
Get the HDCP mode
HDCP: ON
HDCP: OFF
50713%
Get the HDCP status
HDCP1.4
HDCP2.2
NO HDCP
Button Control User-defined
When the display isn’t compatible with the extender, the DISPLAY ON/OFF button
can be defined to send control commands by following the below command format.
Command
Format
Function
Command Example
/+kb: xxxx
k=0, Set the DISPLAY ON
k=1, Set the DISPLAY OFF
xxxx: ASCII characters
b=0, Baud rate is 2400
b=1, Baud rate is 4800
b=2, Baud rate is 9600
/+02:abc123
Set the DISPLAY ON
to send the ASCII
characters abc123.

AVG-HD550
b=3, Baud rate is 19200
b=4, Baud rate is 38400
b=5, Baud rate is 57600
b=6, Baud rate is 115200
/-kb:xx xx xx xx
k=0, Set the DISPLAY ON
k=1, Set the DISPLAY OFF
xx xx xx xx: HEX characters
b=0, Baud rate is 2400
b=1, Baud rate is 4800
b=2, Baud rate is 9600
b=3, Baud rate is 19200
b=4, Baud rate is 38400
b=5, Baud rate is 57600
b=6, Baud rate is 115200
/-12:30 31 32 33
Set the DISPLAY OFF
to send the HEX
characters 30 31 32
33.
Factory Default
Command
Function
Feedback Example
50617%
Restore factory default
FACTORY RESET
50699%
Get firmware version
VERSION Vx.x.x

AVG-HD550
7. Specification
Transmitter
Input
Input
(2) HDMI
Input Connector
(2) Female type A HDMI
Output
Output
(1) HDBT, (1) TO PC, (1) DC OUT
Output Connector
(1) RJ45, (1) Type-B USB; (1) 2-pin Phoneix plug
Control
Control Port
(1) FIRMWARE, (1) RS232
Control Connector
(1) Micro-USB, (1) 3-pin Phoneix plug
General
Bandwidth
10.2Gbps
HDMI Version
1.4
HDCP Version
2.2
Video Resolution
Up to 4K×2K@60Hz 4:2:0
Transmission Mode
HDBaseT
Transmission Distance
1080P/4K@60Hz ≤ 100m
Power Supply
Powered from the receiver by CATx cable.
Operation Temperature
-10℃~ +55℃
Storage Temperature
-25℃~ +70℃
Relative Humility
10%-90%
Dimension (W*H*D)
89mm x 104.5mm x 44mm
Net Weight
250g

AVG-HD550
Receiver
Input
Input
(1) HDBT, (3) USB
Input Connector
(1) RJ45, (3) Type-A USB
Output
Output
(1) HDMI
Output Connector
(1) Female type A HDMI
Control
Control port
(1) FIRMWARE, (1) RS232
Control Connector
(1) Micro-USB, (1) 3-pin Phoenix plug
General
Bandwidth
10.2Gbps
HDMI Version
1.4
HDCP Version
2.2
Video Resolution
Up to 4K×2K@60Hz 4:2:0
Transmission Mode
HDBaseT
Transmission Distance
1080P/4K@60Hz ≤ 100m
AC Adapter Input Power
100V~240V AC, 50/60Hz
Input Power
24V DC 1.25A
Power Consumption
23W (Maximum with the Transmitter)
Operation Temperature
-10℃~ +55℃
Storage Temperature
-25℃~ +70℃
Relative Humility
10%-90%
Dimension (W*H*D)
136mm x 25.5mm x 95mm
Net Weight
365g

AVG-HD550

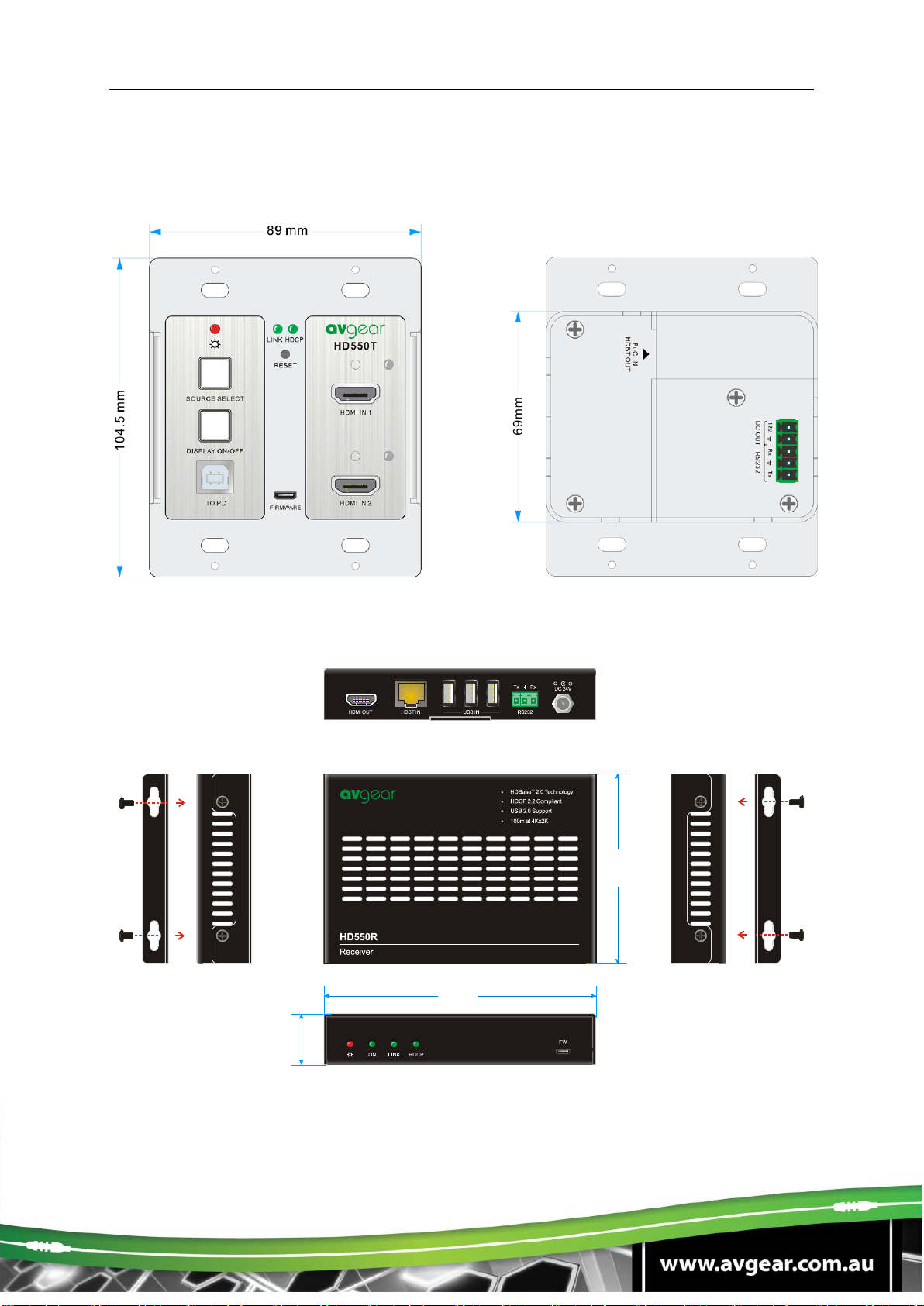

8. Panel Drawing
Transmitter
Receiver
Note: Pictures shown in this manual are for reference only.
136 mm
25.5 mm
95 mm
