Introduction
The Avigilon HD Network Video Recorder is preloaded with the Avigilon Control Center software and is
configured for maximum performance and reliability. The HD Network Video Recorder can be easily integrated
into any existing Avigilon surveillance system, or act as the base of a new site.
Overview
Front View

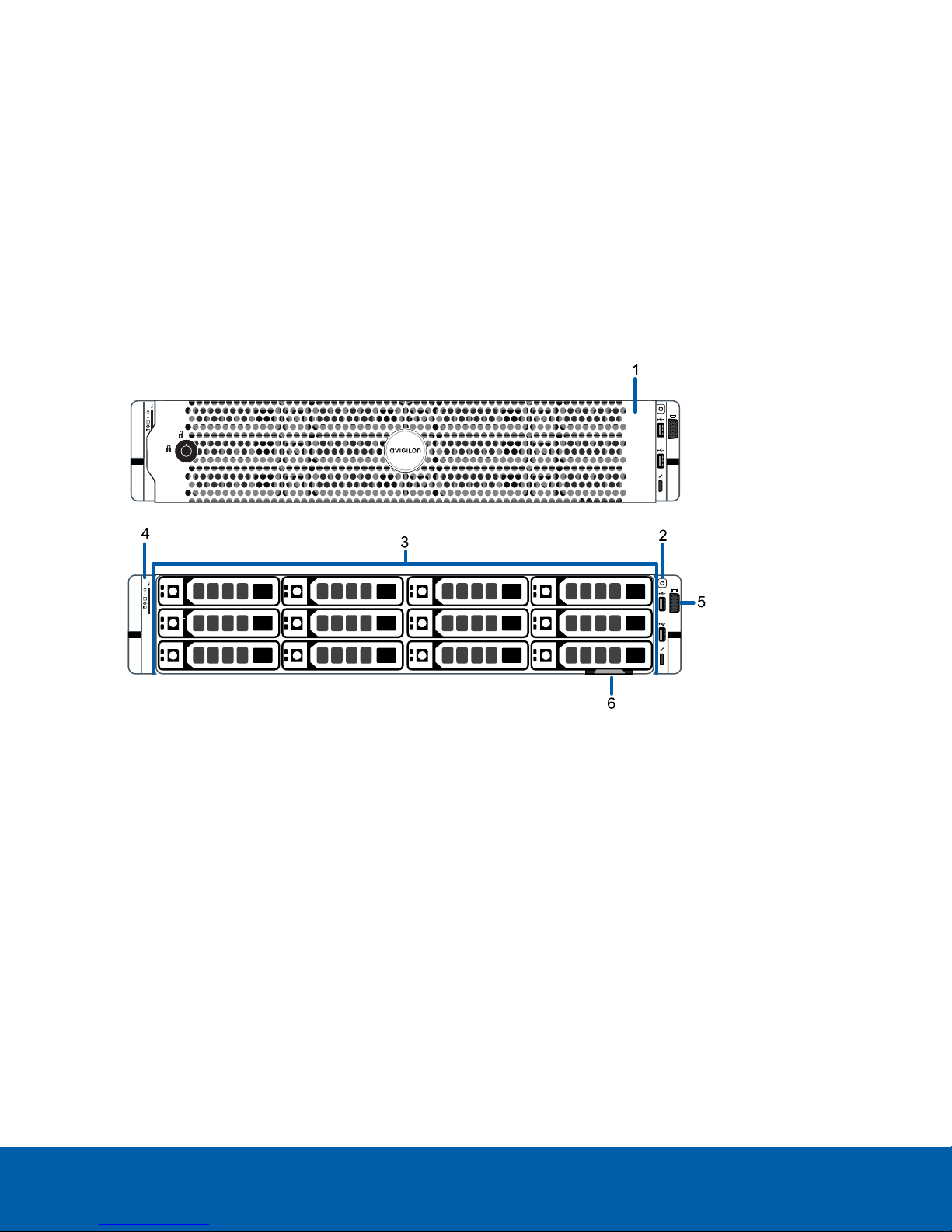

1. Bezel
Protects against unauthorized physical access to the hard drives.
2. Power button
Controls the power supply to the recorder.
3. Hard drives
Provides access to hot-swappable hard drives. There are LED indicators on each hard drive.
Some drives may contain an empty hard drive tray.
4. Diagnostic indicators
Provides information about system operations.
For more information, see LED Indicators on page24.
5. Video connector
Accepts a VGA monitor connection.
Introduction 1

6. Information tag
Provides the product service details and support information.
Back View
1. Out-of-Band Management (OOBM) connector
Accepts an OOBM RJ-45 connection.
2. Serial connector
Accepts connections to serial devices.
3. Video connector
Accepts a VGA monitor connection.
4. USB connectors
Accepts USB connections to external devices.
5. Two(2) SFP+ 10 Gbps and Two(2) RJ-45 1 Gbps Ethernet ports
Accepts Ethernet connections to multiple networks.
6. Power supply
Two hot swappable redundant power supply.
7. Hot-swappable hard drives
Two hot-swappable hard drives that are part of the storage array.
Back View 2

Installation
Package Contents
Ensure the package contains the following:
lAvigilon HD Network Video Recorder
lRack sliding rail assembly kit
lCable management arm assembly kit
lBezel and key
lPower cables (may be provided in a separate box)
Installing the Rack Rails and Cable Management Arm
If the recorder will be kept in a server rack, install the Rack Sliding Rails and the Cable Management Arm
provided in the recorder package. Follow the procedures outlined in the Rack Installation Instructions and the
CMA Installation Instructions provided in the assembly kits.
NOTE: The supplied Rack Sliding Rails are compatible with square and round hole racks.
Connecting Cables
Refer to the diagrams in the Overview section for the location of the different connectors. Make the following
connections as required:
1. Connect a KVM switch or separate keyboard, mouse and monitor to the recorder.
lThe keyboard and mouse can be connected to any USB port on the recorder.
lThe monitor can be connected to any video connector at the front or back of the recorder.
2. Connect the recorder to your network using an Ethernet cable.
3. For out-of-band management access and functionality, connect Ethernet cable to the OOBM connector.
4. Connect a power cable to each power supply at the back of the recorder.
5. Press the power button on the front of the recorder. Check that the recorder LED indicators display the
correct status.
Installing the Bezel
The bezel can be installed on the front of the recorder to help protect the hard drives against unauthorized
access.
Installation 3

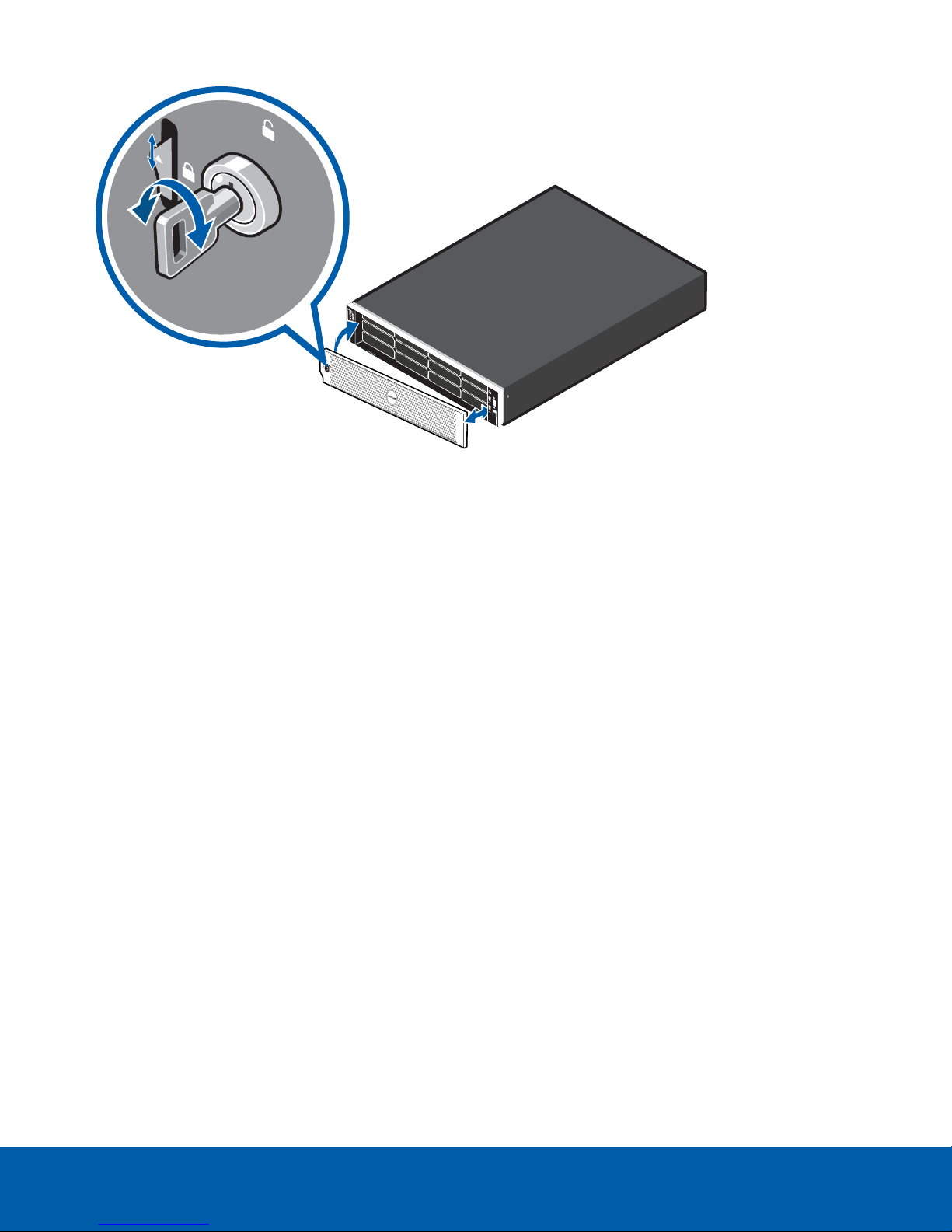

1. Align and insert the right end of the bezel until it clicks into place.
2. Push the left end of the bezel into the front of the unit until it clicks into place.
3. Use the provided key to lock the bezel.
Logging into Windows Server for the First Time
After the recorder powers up, you will need to configure the Windows operating system for the first time
Logging into Windows Server for the First Time 4

1. On the first screen, scroll through the list and select your preferred language.
Figure 1: The language selection screen during initial Windows software set up. (Used with permission from Microsoft.)
2. Select the country/region, preferred app language, and keyboard layout, then click Next.
NOTE: If a language other than English is selected, the server will restart. This is a normal Windows
behavior, please proceed with step 3 once the server has finished restarting.
3. The "MICROSOFT SOFTWARE LICENSE TERMS" for the "MICROSOFT WINDOWS SERVER 2016
STANDARD AND DATACENTER" is displayed. Review the terms then click Accept.
4. On the Customize settings screen, set a password for the local administrator account.
The password must:
lHave a minimum length of 7 characters.
lMeet complexity requirements. See https://technet.microsoft.com/en-ca/library/cc956977.aspx
for details.
You cannot reuse your last 24 passwords.
The password will expire in 42 days.
5. Press Ctrl+Alt+Delete to unlock and input the login password created in the previous step.
6. Once logged in, the recorder will go through initial system setup.
7. The Setup dialog will start configuring the system storage. This process may take up to 5- 10 minutes
depending upon the size of the storage volume.
8. After the storage is configured, Avigilon Control Center End User License Agreement will be displayed.
Review the terms and click Accept.
NOTE: User must click Accept after reviewing the terms otherwise the system will not be configured
properly.
9. The Avigilon Control Center Software will start running automatically and the NVR Analytics Kit will be
configured.
10. Once the setup procedure is complete, the system will restart.
Logging into Windows Server for the First Time 5

Proceed to activate the license for the Avigilon Control Center software on your HD Network Video Recorder.
Activating the Avigilon Control Center™ License
Downgrading to the ACC 5 Software:
The ACC 6 software is pre-installed on the HD Network Video Recorder.
You can use the ACC 6 software or the ACC 5 software.
Do not activate the ACC 6 software if you plan to use the ACC 5 software. See Downgrading to the ACC 5
Software on the next page.
Before you can configure cameras and monitor live or recorded video, you will need to activate the ACC 6
software license provided with your device. If you don't have a license, you will need to purchase one.
Other parts of the ACC system may start while you perform this procedure, but you will not be able to use any of
the features until after license activation is complete.
Licensing the ACC™ 6 Software
The first time you connect to the new appliance with the ACC Client, you must activate a license for the new
ACC software. After the license is activated, you can immediately use the licensed features.
1. Double-click the new recorder name to log in. There is no user name or password set on the recorder.
2. In the top-left corner, click to open the New Task menu, then click .
3. In the site Setup tab, click .
4. In the License Management dialog box, click Add License….
5. In the following dialog box, select one of the following tabs:
lIf you have internet access, select the Automatic tab. Go to Automatic License Activation below.
lIf you do not have internet access, or you plan to keep the system on a private intranet, select the
Manual tab. Go to Manual License Activation below.
Automatic License Activation
In the Automatic tab:
1. In the Enter Product Keys section, enter the license key.
2. In the Activate and License Site section, click Activate now.
Manual License Activation
In the Manual tab:
1. In the Enter Product Keys section, enter the license key.
2. In Generate Activation File section, click Save File….
3. In the Save As window, select where you want to save the .key file that is generated by the system. You
Activating the Avigilon Control Center™ License 6
