Avita MBP75SN User manual

Model: MBP75SN
INSTRUCTION MANUAL
Please read this instruction manual carefully
before using your forehead thermometer
Contents
Introduction .................................................... 1
Important Information Before Use ................... 2
Product Identification ...................................... 3
Description of LCD Display............................. 4
Battery Installation ......................................... 5
System Requirement……………………………..6
Pairing the Thermometer to Your Mobile Device
Overview of Hubble App………………………...7
Switching Between 4 Kinds of Measuring Mode ... 15
Tips for Measuring Human Temperature ...... 16
Measuring Human Temperature ................... 17
Measuring Object/Liquid Temperature .......... 18
Memory Function ......................................... 19
Cleaning and Disinfecting ............................. 20
Error Codes ................................................. 21
Technical Specification................................. 22

Introduction
Utilizing infrared technology, this thermometer takes
temperatures in seconds by measuring heat generated by the
surface skin of the forehead or other objects. This product
conforms to the provisions of the EC directive
MDD(93/42/EEC).Its advantages include:
1. 6 in 1 functions
Human Body/Object/Night Mode Option/Fever Alarm/ 30
User Memory/Backlight
2. Night Mode Option
Switch to Night mode to reduce the interference of buzzer
during your baby sleeping.
3. LED Light for Fever Alarm
This device has the LED light to remind user their readings
are over 37.5°C and plus the beep sound only in Human
Body Mode.
4. 30 User Memory
5. Illuminated Backlight Display
6. One-second Reading
7. Auto power off for power saving
8. Low-battery Indicator
Indications for battery condition and measuring range.
9. Large LCD Display
10.Economic design and convenience:
This is a “Non-contact” medical thermometer that
enables temperature readings, designed for sanitary
conditions, cleanliness, and convenience. Simply move
the thermometer close to the subject's forehead or object
at the distance indicated by the device.
11.Instant Measurement
By using our unique technology, users can get their precise
body temperature instantly and accurate.
12.Bluetooth function.
1
Important Information Before Use
When using this product, please be sure to follow all the notes
listed below. Any action against these notices may cause
injury or affect the accuracy.
1. Do not disassemble, repair, or remodel the thermometer.
2. Be sure to clean the thermometer lens each time after
usage.
3. Avoid direct finger contact with the lens.
4. No modification of this equipment is allowed.
5. It is recommended that user may take 3 temperatures. If
they are different, use the highest reading.
6. Do not expose the thermometer to extreme temperature,
very high humidity, or direct sunlight.
7. Avoid extreme shock or dropping the device.
8. Before the measurement, patients and thermometer should
stay in steady state room condition for at least 30 minutes.
9. Avoid measuring temperature in 30 minutes after exercise,
bathing, or returning from outdoor.
10. To protect the environment, dispose of empty batteries at
appropriate collection sites according to national or local
regulations.
11. Please use the thermometer solely for its intended purpose.
12. There are no absolute body temperature standards. Keep
reliable records of your personal temperature to serve as a
reference for judging a fever.
13. Under any circumstances, the temperature taking result is
ONLY for reference. Before taking any medical action,
please consult your physician.
14. It is recommended calibrate the device every 1 year.
2

Product Identification
1 LED Light
2 Human/Object Button
3 LCD Display
4 Power/Measure Button
5 Memory Button
6 Infrared Sensor
7 Distant Sensor
8 Buzzer
9 Battery Compartment Lid
3
Description of LCD Display
1 4 user profiles
2 Memory symbol
3
Bluetooth symbol (lights up when
thermometer is connected to the
smartphone)
4 Low battery symbol
5 “Forehead temperature” symbol
6 “Object/Liquid temperature” symbol
7 Temperature display (°C/°F)
4

Battery Installation
Low battery warning:
When the battery power becomes low, the low battery symbol
will appear on the display. The thermometer can still be used
during this time, but the batteries should be replaced as soon
as possible. If the batteries run out completely, “Lo” will be
displayed along with the low battery symbol. In this case, the
batteries will need to be replaced before using the
thermometer again.
Replacing the Battery:
1. Gently slide the battery cover back.
2. Carefully remove the old batteries and properly discard.
3. Insert new batteries (Two 1.5V alkaline AAA(LR03) Size)
according to the proper polarity.
4. Slide the battery cover back on.
NOTE: Battery-operated
1. Please properly dispose of the batteries away from small
children and heat.
2. It is recommended to remove the batteries if the unit will not
be used for an extended period of time.
3. Batteries must be disposed of in accordance with local
environmental and institutional policies.
4. Dispose of used batteries in accordance with the applicable
legal regulations. Never dispose of batteries in the normal
household waste.
5
System Requirement
Smartphones/Tablets: Android™ and iOS® only.
System Requirements: iOS® 8.0, Android™ 4.2 or above
For more information, please visit:
https://hubbleconnected.com/requirements
6

Pairing the Thermometer to Your Mobile Device
Download the “Hubble Connect for Smart Nursery” app
1. Go to the Google Play™ Store to search for Hubble
Connect for Smart Nursery.
2. Download the Hubble Connect for Smart Nursery app and I
install it on your Android™ device or
1. Go to the App Store to search for Hubble Connect for Smart
Nursery.
2. Download the Hubble Connect for Smart Nursery app and
install it on your iPhone®/iPad®.
+-
45
Note: If you already have a Smart Nursery App account, please
tap LOGIN, enter your account information and proceed to the
next steps.
7
Launch the set-up wizard and follow the steps to create a user
profile and add the thermometer.
Make sure that the Smart Nursery app is active and that
Bluetooth on your mobile device is activated when pairing is in
progress.
Run the Hubble Connect for Smart Nursery app, tap
SIGNUP and follow the in-app instructions to create your Smart
Nursery Account. By signing up, you agree to our Terms &
Conditions. (Pictures A1 & A2)
A1 A2
Note: If you already have a Smart Nursery app account, please
tap LOGIN, enter your account information and proceed to the
next steps.
8

Tap on the Smart Touchless Forehead Thermometer to enter
thermometer set-up mode. (Picture A3)
A3
Tap Skip to set-up or scroll to review features. (Picture A4)
A4
9
Follow “Step 1”. Make sure that your thermometer is switched on
then press Next. (Picture A5)
A5
Follow “Step 2”. Pair the thermometer with your mobile device
via Bluetooth. (Picture A6)
A6
10

Searching for your device (Picture A7)
A7
Found your device. Please press on “MBP70-XXX”. (Picture
A8)
A8
11
Pairing the thermometer with your smart device. (Picture A9)
A9
You have now successfully paired the thermometer with your
smart device. Tap “Continue” (Picture A10)
A10
12

User guide screen. (Picture A11)
A11
You can now start using the thermometer. (Picture A12)
A12
Note: Your personal health data can only be transmitted
when the app is on. The thermometer switches off
automatically after 60 seconds of non-use.
13
Overview of Hubble App
Overview of the Hubble App
Total of 4
profiles To create and add
the profile
Online Indicates that the
thermometer is
connected to the
smartphone.
Offline Indicates that the
thermometer is
not connected to
the smartphone.
Number of
readings
Indicates the
numbers of
temperature
readings taken
Schedule
Manager
Calendar to
manage doctor
appointments,
reminders and
prescriptions.
Reading Log Can view saved
readings: As
Numbers As
Graphics
Celsius (°C)
and Fahrenheit
(
°
F)
Celsius (°C) and
Fahrenheit (°F)
switchable
14

Switching between 4 Kinds of Measuring Mode
1. Under power on status, you can press the Human/Object
Button to switch different measuring mode. There are 4
kinds of mode which including Human, Object,
Human/Night, and Object/Night Mode (in order).
2. The beep sounds will be off (mute) when your choice in
Human/Night Mode, and Object/Night Mode, and the Moon
symbol will appears on the LCD in both Night Modes.
NOTE:
Each press will comes with a beep sound to ensure the setting
is activated. (Except both Night Modes)
15
Tips for Measuring Human Temperature
Bear in mind that the thermometer needs to have been in the
room in which the measurement is taken for at least 30
minutes before use.
NOTE:
• Attempting to take temperature readings from sites on the
body other than the forehead may produce inaccurate
results.
• The patient should remain still while the reading is being
taken.
• Readings taken while asleep should not be compared
directly to readings taken while awake, as body
temperature while asleep is typically lower.
• Do not take body temperature readings within 30 minutes
of being outdoors, exercising or bathing.
Measuring Human Temperature
Taking a Measurement
1. Press the Measure button to power on the thermometer.
The unit will run a self-test and the LCD will briefly display
all of its symbols during this time. When the device is ready,
‘00’ will appear on the screen, and the thermometer will
beep twice.
2. Select the desired mode by pressing and releasing the
Human/Object button.
Note:
- When taking a patient’s temperature, ensure that the
thermometer is in Human mode; the Human symbol
“ ”will appear on the display.
- If the patient’s skin is covered with hair, sweat, or dirt, clean
the area and wait 10 minutes before taking a measurement.
- Ensure that the thermometer is held firmly during
measurement and that the patient does not move until the
measurement is complete. Movement can impact the
measurement.
16

Measuring Human Temperature
3. Position the thermometer around 0.5-3cm from the center
of the patient's forehead with the sensor aimed between
the eyebrows.
4. Press and release the Measure button.
5. Slowly move the device toward or farther from the
forehead until you have reached the correct distance. (If
the distance is beyond the correct distance, the dash-icon
on the display flashes with beep sound in this sequence
until the correct distance is achieved.)
Note:
When the user presses the measure button, this workflow
begins and they have 20 seconds to capture the temperature.
After 20 seconds, the display turns to stand-by mode.
6. As you hear a short beep means this temperature reading
has been completed and accompany with a back-light.
7. If the temperature measurement is below 37.5°C, a
“Smiling Face” will appear next to the reading. If the
reading is 37.5°C or above, a “Frowning Face” will display
and the orange LED will light up.
8. After about 30 seconds after use, the thermometer will
automatically beep and shut off.
Fever Alarm:
Only in Human Mode and Human/Night Mode
17

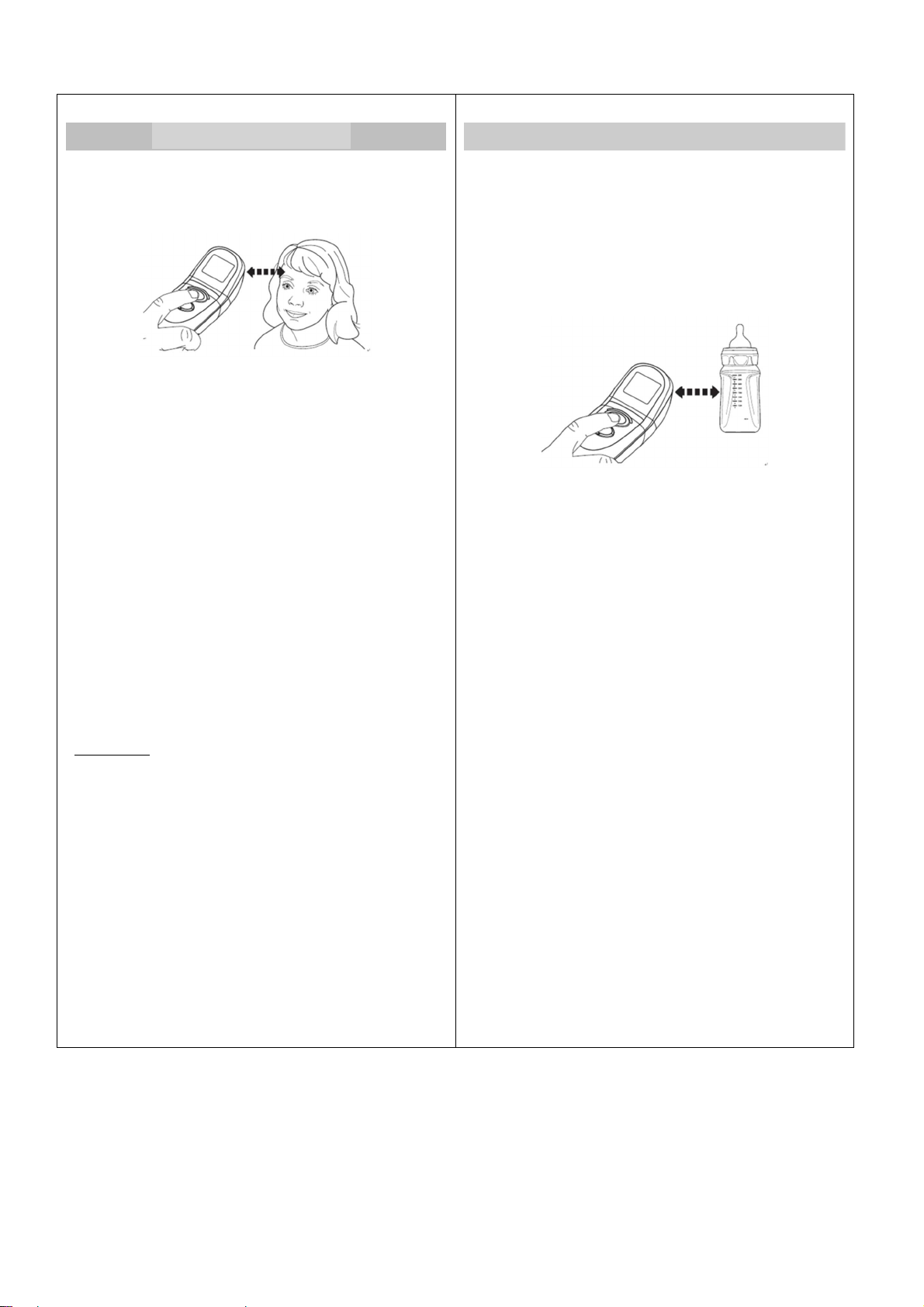

Measuring Object/Liquid Temperature
1. Press the “Measure Button” to turn the thermometer on. All
symbols on the display will momentarily appear.
2. Ensure that the thermometer is in Object Mode; the Object
symbol will be on the display. To alternate between modes
press and release the Human/Object Mode Button until you
see the desired measurement symbol on the display.
3. Position the thermometer around 0.5-3cm from the object.
4. Press and release the “Power & Measure button” and the
temperature reading will be displayed.
5. After about 30 seconds after use, the thermometer will
automatically beep and shut off.
18

Memory Function
Memory Recall:
There is a total of 4 users; each user can store 50 sets of
memory data for recording forehead temperature
measurements.
The current measurement is always stored in the last storage
space. When all storage spaces have been occupied, the
earliest measurement is always deleted from the memory.
Press the Memory Button button to check the memory data.
The LCD screen displays memory number and measured
temperature. Press the Memory Button button repeatedly to go
to the desired memory number.
Press Measure and Memory Button at the same time to return
to standby mode.
Note:
All the readings will be cleared no matter record in Human
mode or Object mode.
Selecting the User Profile (4 Profiles)
Press and hold Memory Button for 2 seconds to select the
desired user profile. Please
repeat the procedure until you have selected the desired user.
19
Cleaning and Disinfecting
For home use device disinfection, 70% Ethanol or Isopropyl
alcohol(available in the pharmacy) can be used.
- Clean the measuring sensor after each use. Use a clean
cloth or cotton bud that can be moistened with 70 % alcohol.
- To clean the entire device, please use a soft cloth slightly
moistened with a mild soapy solution. Under no
circumstances may liquid enter the device. Do not use the
device again until it is completely dry.
20

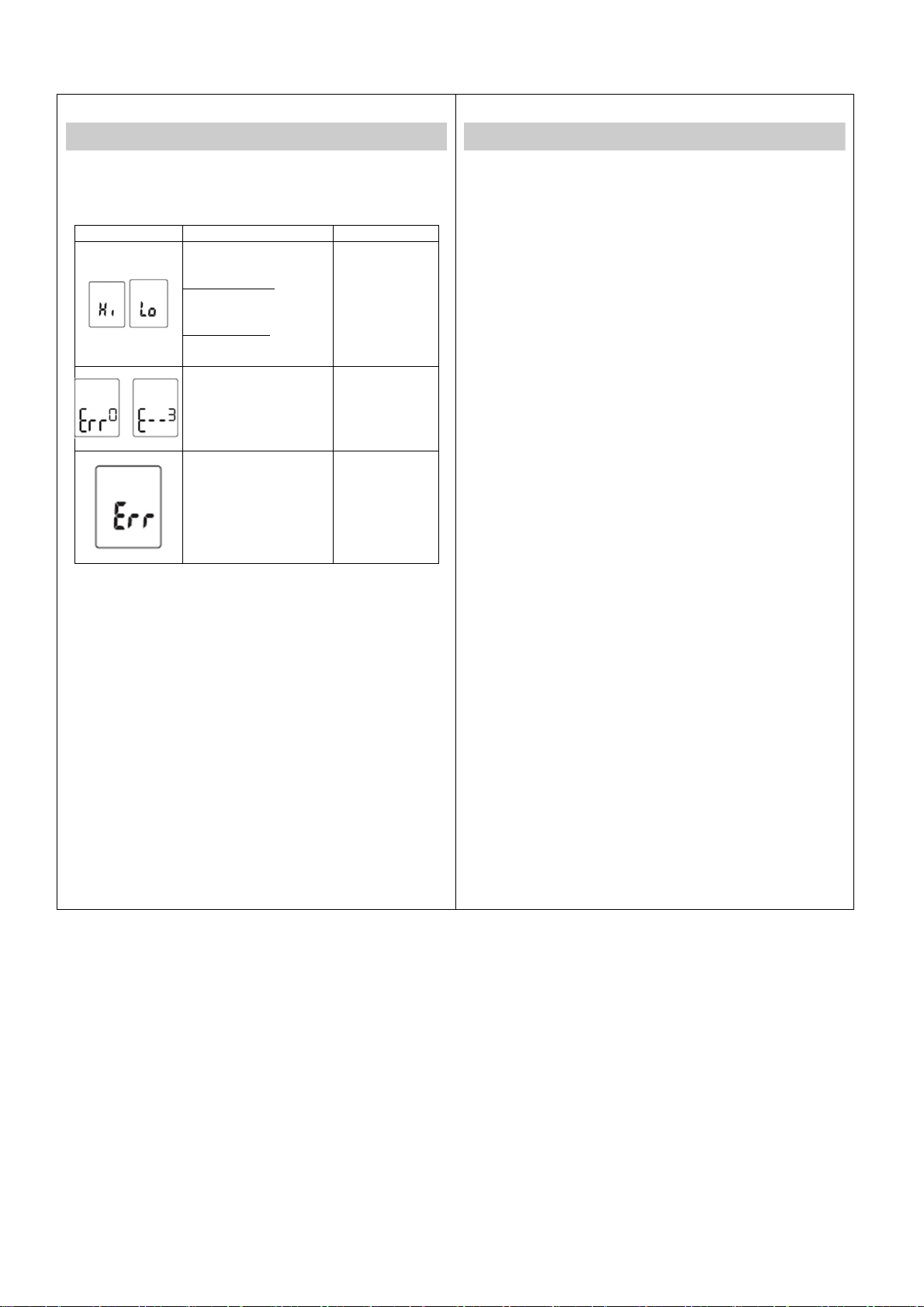

Error Codes
When a malfunction or incorrect temperature measurement
occurs, an error message will appear as described below.
LCD Display
Cause
Solution
The temperature
measured is higher than
1. Human mode:
Higher than 43°C or
lower than 34°C
2. Object mode:
Higher than 99.9°C or
lower than 0.1°C
Follow user
manual for proper
measurement
Hardware problem
Contact customer
service or your
local store
The operating
temperature
is not in the range
15°C~40°C
Operate the
thermometer only
between the
specified
temperature
ranges.
Note.
If there is any other problem, please consult or return the device
to your distributor. Do not try to repair a defective device.
21
Operating the Bluetooth function
• Measuring range :
Human Body : 34°C~43°C
Object : 0.1°C~99.9°C
• Calibration Accuracy:
Human Body :
±0.2°C: from 34 to 43 °C
Object: < 40°C ± 2°C; >= 40°C ± 5%
• Display resolution : 0.1°C
• Measuring site: Forehead
• Reference body site: Ear
• Operating environment :15°C~40°C
with relative humidity up to 95% (non condensing)
• Storage/ Transportation environment: -25 to 55 °C
with relative humidity up to 95% (non condensing)
• Power supply : 2 x 1.5V AAA(LR06) size alkaline batteries
• Weight : approx. 80g (with batteries)
• Dimensions : approx. 147.3x44.7x48.46mm (LxWxH)
• Operation Distance : 0.5-3 cm
22

FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from
that to which the receiver is connected.
-Consult the dealer or an experienced radio/ TV technician for
help.
CAUTION:
Any changes or modifications not expressly approved by the
grantee of this device could void the user's authority to operate
the equipment.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
The equipment complies with FCC RF exposure limits set forth for
an uncontrolled environment.
The equipment must not be co-located or operating in conjunction
with any other antenna or transmitter.
Canada, Industry Canada (IC) Notices
This device complies with Canada licence-exempt RSS
standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device
must accept any interference, including interference that may
cause undesired operation of the device.
Canada, avis d'Industry Canada (IC)
Cet appareil est conforme avec Industrie Canada exemptes de
licence RSS standard(s).
Son fonctionnement est soumis aux deux conditions suivantes :
(1) cet appareil ne doit pas causer d'interférence et (2) cet
appareil doit accepter toute interférence, notamment les
interférences qui peuvent affecter son fonctionnement.
Radio Frequency (RF) Exposure Information
The radiated output power of the Wireless Device is below the
Industry Canada (IC) radio frequency exposure limits. The
Wireless Device should be used in such a manner such that the
potential for human contact during normal operation is minimized.
This device has been evaluated for and shown compliant with the
IC Specific Absorption Rate (“SAR”) limits when operated in
portable exposure conditions.
Informations concernant l'exposition aux fréquences radio (RF)
La puissance de sortie émise par l’appareil de sans fil est
inférieure à la limite d'exposition aux fréquences radio d'Industry
Canada (IC). Utilisez l’appareil de sans fil de façon à minimiser
les contacts humains lors du fonctionnement normal.
Ce dispositif a été évalué pour et démontré conforme à la Taux IC
d'absorption spécifique ("SAR") des limites lorsqu'il est utilisé
dans des conditions d'exposition portatifs.

MDSS GmbH
Schiffgraben 41
30175 Hannover Germany
Manufacture:
AViTA Corporation
9F., No. 78, Sec. 1, Kwang-Fu Rd.,
San-Chung Dist., New Taipei City,
Taiwan(R.O.C)
Made in P.R.C
P-200191
2020-06
