Award CHO83-900 User manual

CHO83-900
Range hood
Instruction Manual

CONTENT
1………………………………………. Notice
2……………………………………….. Installation
3……………………………………….. Notice of installation
4……………………………………….. Safety Warning
5…………………………………………Use
6………………………………………… Maintenance
7………………………………………… Trouble shooting

(1) NOTICE
•Thank you for choosing an Award range hood. Please read the instruction
manual carefully before use.
•The installation work must be undertaken by a qualified and competent
person.
•The manufacturer disclaims all liability for any damage or injury caused
as a result of not following instructions for installation contained in the
following text.
•The range hood operates on 220-240V ~, 50Hz.

(2) INSTALLATION
•When the range hood is located above a gas
appliance, this distance shall be at least 65 cm
between the supporting surface for the
cooking vessels on the hob and the lowest
part of the range hood. See pic 1.
•When installing on wall: drill 3 holes Ø8mm
100mm apart (on a suitable surface that will
hold the weight of the hood) in line with the
hook on the hood.
•Insert expended screws into the holes.
•Fix the hook on the wall, place drilling template on the hook. See pic 2.
•Fit the ducting (Not included with the range hood) to the one way valve,
and run it outdoor. See pic 3.
•Calculate the final height of the U-shaped section, pull out the inside U-
shaped section to a suitable height. (See pic 4). Finally, drill 2 holes
Ø8mm in line with the 2nd plate. Insert expended screws into the holes.
Put the inside U-shaped on the 2nd plate and tighten the two screws (see
pic 4A).
Note: Fix the Canopy with safety screws. See Pic 5. The two safety screw holes
are positioned on the back casing, with diameter of 6mm.
Warning: Failure to install the screws or fixing device in accordance with these
instructions may result in electrical hazards.

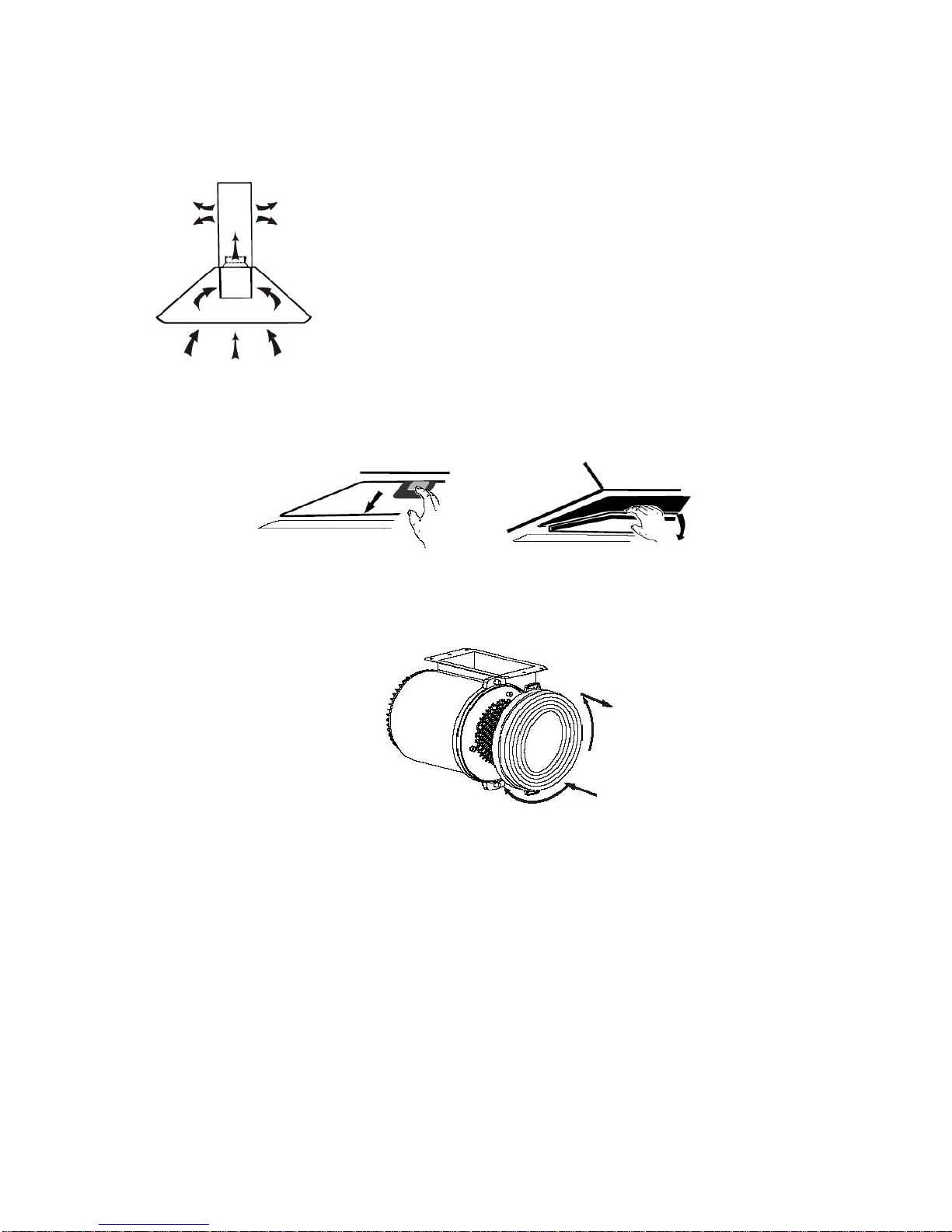

If you do not have an outlet to the outside, the ducting is not required and the
installation is similar to the one shown in the “INSTALLATION (VENT
OUTSIDE)” section
Activated carbon filter can be used to trap odors.
In order to install the activated carbon filter, the metallic anti-grease filter
should be detached first. Press the lock and pull it downward.
Plug the activated carbon filter into the unit and turn it anti-clockwise. Repeat
the same on the other side.
NOTE:
•Make sure the filter is securely locked. Otherwise, it could loosen and
cause damage to the unit.
•When activated carbon filter is attached, the suction power will be
lowered.

(3) NOTICE OF INSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
•Do not install above a cooker with a high level grill.
•Important! Always switch off the electricity supply at the mains during
installation and maintenance.
•The range hood must be installed in accordance with the installation
instructions and all measurements followed.
•Please dispose of the packing material carefully. It may be a risk to
children.
•Pay attention to the sharp edges inside the range hood especially during
installation and cleaning.
•When the range hood is located above a gas appliance, the minimum
distance between the supporting surface for the cooking vessels on the hob
and the lowest part of the range hood that distance must be:
Gas cookers: 65cm
Electric cookers: 65 cm
Coal or oil cookers: 75 cm
•Make sure the ducting has no bends less than 120º as this will reduce the
efficiency of the range hood.
•Warning: Failure to install the screws or fixing device in accordance with
these instructions may result in electrical hazards
•If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
•Warning: Before obtaining access to terminals, all supply circuits must be
disconnected.
•For safety reason, please use only the same size of fixing or mounting
screw which are recommended in this instruction manual.
•When the range hood and appliances supplied with energy other than
electricity are simultaneously in operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5 bar).
•Keep ducting pipe short and straight.
•Do not reduce the size or restrict ducting pipe.
•When using ducting pipe always install the pipe pulled taut to minimize
pressure loss.
•Failure to observe these basic instructions will reduce the performance and
increase noise levels of the range hood.
•Any installation work must be carried out by a qualified electrician or
competent person.
•Do not connect the ducting system of the hood to any existing ventilation
system which is being used for any other appliance, such as warmer tube,
gas tube, hot wind tube.

•The angle of the bend of the expansion pipe should not be less than 120º;
you must direct the pipe horizontally, or, alternatively, the pipe should go
up from the initial point and should be led to an outer wall.
•After the installation, make sure that the range hood is level to avoid
grease collection at on end.
•Ensure the ducting pipe selected for installation complies with relevant
standards and is fire retardant.
(4) SAFETY WARNING
•The range hood is not to be used by persons (including children) with
reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction.
•Children being supervised not to play with the range hood.
•The range hood is for home use only, not suitable for barbecue or
commercial application.
•Please ask a technical person to do the assembling.
•The range hood and its filter mesh should be clean regularly in order to
keep in good working order.
•Before cleaning, please switch the power off at the main supply.
•Clean the range hood according to the instruction manual to keep the
range hood safe from fats that may cause ignition.
•If there is any fault with the range hood, please call an authorised Award
service company to arrange a service.
•Do not try to use the range hood without the grease filters or if the filters
are excessively greasy!
•Do not leave frying pans unattended during use because overheated fats
or oils might catch fire.
•Never leave naked flames under the range hood.
•If the range hood is damaged, do not attempt to use.
•Do not flambé under the range hood.
•Always put lids on pots and pans when cooking.
•When in extraction mode, air in the room is being removed by the range
hood. Please make sure that proper ventilation measures are being
observed. The range hood removes odours from room but not steam.
•There shall be adequate ventilation of the room when the range hood is
used at the same time as appliances burning gas or other fuels.
•Caution: The range hood and its accessible parts can become hot during
operation. Children younger than 8 years old should stay away unless
they are under permanent supervision.

•There is a fire risk if cleaning is not carried out in accordance with the
instructions.
•Regulations concerning the discharge of air have to be fulfilled.
•Clean your range hood periodically by following the method given in the
chapter MAINTENANCE.
•Regarding the details about the method and frequency of cleaning, please
refer to maintenance and cleaning section in the instruction manual.
•Cleaning and user maintenance shall not be made by children without
supervision.

(5) USE
Electronic button
The switch has 4 functions: timer, speed decrease, speed increase and light.
Power on: After you have connected the hood to the mains supply the hood will
enter standby mode and the indicator lights will remain off until a function is
selected.
Press light: the light and the blue indicator light will turn on; press again, the
light and indicator will turn off.
Turn on and Speed control, there are 3 speeds: low, mid and high.
•Press speed increase: the hood begins to work; the related indicator light
will turn on. Hood is on low speed.
•Press again, the related indicator light will turn on; the hood is on mid
speed. Press again, the related indicator light will turn on; the hood is on
high speed.
Turn off and Speed control
•Press speed decrease: the hood will reduce speed. When the hood is on
low speed, press again, the hood and indicator light will turn off.
•Low speed, mid speed and high speed cannot work the same time.
•When hood is on high speed, press the speed decrease, it will turn to a
lower speed; when it is in low speed, press the speed increase, it will turn
to a higher speed.
Timer
When the hood is on, press timer, the indicator light will turn on, the hood
and indicator will automatically turn off 5 minutes later.

(6) MAINTENANCE
The cleaning of the carbon grease filter mesh
•The filter mesh is made of high-density stainless steel. Do not use
corrosive detergent on it.
•Keeping this filter clean will keep the range hood running correctly.
Strictly follow the guidelines below.
•Method 1: Put the mesh into 40-50 c clean water, pour on detergent, and
soak for 2-3 mins. Wear gloves and clean with a soft brush. Do not apply
too much pressure, as the mesh is delicate and will damage easy.
•Method 2: If instructed to do so, it can be put into a dishwasher, set the
temperature at around 60 degrees.
Notice of cleaning range hood
•To protect the main body from corrosion over a long period of time, the
range hood should be cleaned with hot water plus non corrosive
detergent every two months.
•Do not use abrasive detergent as they will damage the body.
•Keep the motor and other electrical parts free from water, as this will
cause damage to the range hood.
•Before cleaning the range hood remember to turn off power
•The carbon filter shouldn’t be exposed to heat.
•Don’t tear open the fixed bar around the carbon filter.
•If the plug or cord is damaged, have a qualified person replace it.

(7) TROUBLE SHOOTING
Fault
Cause
Solution
Light on, but motor does not
work
The flue blocked
Clear the blockage
The capacitor damaged
Replace capacitor
The motor jammed bearing
damaged
Replace motor
Light does not work, motor
does not work
Beside the above mentioned, check the following:
Light damaged
Replace lights
Power cord looses
Connect the wires as per
the electric diagram
Liquid dripping
One way valve and the air
ventilation entrance are not
tightly sealed
Reseal
Leakage from the connection
of U-shaped section and
cover
Take U-shaped section
down and seal
Shake of the body
One way valve damaged and
causes shaking
Replace the one way
valves
The motor is not tightly
hanged
Lock the motor tightly
The body is not tightly
hanged
Fixed the body tightly
Insufficient suction
The distance between the
body and the ducting outlet is
too long
Readjust the distance
Too much ventilation from
open doors or windows
Choose a new place and
reinstall hood
The machine inclines
The fixing screw not tight
enough
Tighten the hanging
screw to return back to
horizontal position
The hanging screw not tight
enough
Tighten the hanging
screw to return back to
horizontal position
