Award PPS6031 User manual

PPS6031
PPS8031
Range Hood
Instruction Manual

1
CONTENT
2……………………………………….…. Notice and Technical data
3………………………………………….. Installation
4-5……………………………………… Notice of installation
5-6……………………………………….. Safety Warning
7………………………………………… Use
7-9……………………………………… Maintenance
10………………………………………… Trouble shooting

2
(1) NOTICE
Thank you for choosing an Award range hood. Please read the
instruction manual carefully before use.
The installation work must be undertaken by a qualified and
competent person.
The manufacturer disclaims all liability for any damage or injury
caused as a result of not following instructions for installation
contained in the following text.
The range hood operates on 220-240V ~, 50Hz.
(2) TECHNICAL DATA
Model No. PPS6031
Rated voltage 220 - 240 V~ 50Hz
Total power 194W
Motor power 190W
Lamp max. 2 x 2W
Model No. PPS8031
Rated voltage 220 - 240 V~ 50Hz
Total power 384W
Motor power 380W
Lamp max. 2 x 2W

3
(3) INSTALLATION
When the range hood is located above a gas
appliance, this distance shall be at least 65 cm
between the supporting surface for the cooking
vessels on the hob and the lowest part of the
range hood.
Make a cut-out in the joinery as follows: wide 490*265(mm) for
52CM and 665*265(mm) for model 70CM. Pic 1. Make sure you
have at least 35mm clearance from the edge of the cut-out to the
joinery.
Remove the filter and remove the screws holding the panel
Use the fixing screw supplied to attach range hood to joinery
Reinstate panel to body and fit filter
Connect ducting to hood outlet
The air must not be discharged into a flue that is used for
exhausting fumes from appliances burning gas or other fuels;
Regulations concerning the discharge of air have to be fulfilled.
The range hoods are intended to be installed over a hob having not
more than 4 hob elements.
The size of cavity:

4
(4) NOTICE OF INSTALLATION
The following rules must be strictly followed to obtain optimal air
extraction:
Do not install above a cooker with a high level grill.
Important! Always switch off the electricity supply at the mains
during installation and maintenance.
The range hood must be installed in accordance with the
installation instructions and all measurements followed.
Please dispose of the packing material carefully. It may be a risk to
children.
Pay attention to the sharp edges inside the range hood especially
during installation and cleaning.
When the range hood is located above a gas appliance, the
minimum distance between the supporting surface for the cooking
vessels on the hob and the lowest part of the range hood that
distance must be:
Gas cookers: 75cm
Electric cookers: 65 cm
Coal or oil cookers: 75 cm
Make sure the ducting has no bends less than 120º as this will
reduce the efficiency of the range hood.
Warning: Failure to install the screws or fixing device in
accordance with these instructions may result in electrical hazards
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
Warning: Before obtaining access to terminals, all supply circuits
must be disconnected.
For safety reason, please use only the same size of fixing or
mounting screw which are recommended in this instruction manual.
When the range hood and appliances supplied with energy other
than electricity are simultaneously in operation, the negative
pressure in the room must not exceed 4 Pa (4 x 10-5 bar).
Keep ducting pipe short and straight.
Do not reduce the size or restrict ducting pipe.
When using ducting pipe always install the pipe pulled taut to
minimize pressure loss.
Failure to observe these basic instructions will reduce the
performance and increase noise levels of the range hood.
Any installation work must be carried out by a qualified electrician
or competent person.

5
Do not connect the ducting system of the range hood to any
existing ventilation system which is being used for any other
appliance, such as warmer tube, gas tube , hot wind tube.
The angle of the bend of the expansion pipe should not be less than
120º; you must direct the pipe horizontally, or, alternatively, the
pipe should go up from the initial point and should be led to an
outer wall.
After the installation, make sure that the range hood is level to
avoid grease collection at an end.
Ensure the ducting pipe selected for installation complies with
relevant standards and is fire retardant.
(5) SAFETY WARNING
The range hood is not to be used by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given
supervision or instruction.
Children should be supervised not to play with the range hood.
The range hood is for home use only, not suitable for barbecue or
commercial application.
Please ask a technical person to do the assembling.
The range hood and its filter mesh should be clean regularly in
order to keep in good working order.
Before cleaning, please switch the power off at the main supply.
Clean the range hood according to the instruction manual to keep
the range hood safe from fats that may cause ignition.
If there is any fault with the range hood, please call an authorised
Award service company to arrange a service.
Do not try to use the range hood without the grease filters or if the
filters are excessively greasy!
Do not leave frying pans unattended during use because overheated
fats or oils might catch fire.
Never leave naked flames under the range hood.
If the range hood is damaged, do not attempt to use.
Do not flambé under the range hood.
Always put lids on pots and pans when cooking.

6
When in extraction mode, air in the room is being removed by the
Range hood. Please make sure that proper ventilation measures are
being observed. The range hood removes odours from room but not
steam.
There shall be adequate ventilation of the room when the range
hood is used at the same time as appliances burning gas or other
fuels.
Caution: The range hood and its accessible parts can become hot
during operation. Children younger than 8 years old should stay
away unless they are under permanent supervision.
There is a fire risk if cleaning is not carried out in accordance with
the instructions
Regulations concerning the discharge of air have to be fulfilled.
Clean your range hood periodically by following the method given
in the chapter MAINTENANCE.
Regarding the details about the method and frequency of cleaning,
please refer to maintenance and cleaning section in the instruction
manual.
Cleaning and user maintenance shall not be made by children
without supervision.

7
(6）USE
Push button
a. Press the button “Stop”, the motor is stopped then.
b. Press the button “Low”, the motor is running at low speed.
c. Press the button “Mid”, the motor is running at medium speed.
d. Press the button “High”, the motor is running at high speed.
e. Press the button “Lamp”, both lamps start shining .Press the button
again; the lamps are switched off then.
(7) MAINTENANCE
Clean the filters as below:
The filter mesh is made of metal. Do not use corrosive detergent on
it.
Keeping this filter clean will keep the appliance running correctly.
Strictly follow the guidelines below.
Method 1: Put the mesh into 40-50 c clean water, pour on detergent,
and soak for 2-3 mins. Wear gloves and clean with a soft brush. Do
not apply too much pressure, as the mesh is delicate and will
damage easy.
Method 2: If instructed to do so, it can be put into a dishwasher, set
the temperature at around 60 degrees.
Clean the range hood as below:
To protect the main body from corrosion over a long period of time,
the range hood should be cleaned with hot water plus non corrosive
detergent every two months.
Do not use abrasive detergent as they will damage the body.
Keep the motor and other electrical parts free from water, as this
will cause damage to the appliance.

8
Before cleaning the appliance remember to turn off power
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
Disassembly and assembly the filter:
Activated carbon filter can be used to trap odors. In order to install
the activated carbon filter, unscrew and take down the front panel.
Then plug the activated carbon filter into the unit and turn it in
anti-clockwise. Repeat the same on the other side.
NOTE:
Make sure the filter is securely locked. Otherwise, it could loosen and
cause damage to the unit. When activated carbon filter attached, the
suction power will be lowered.

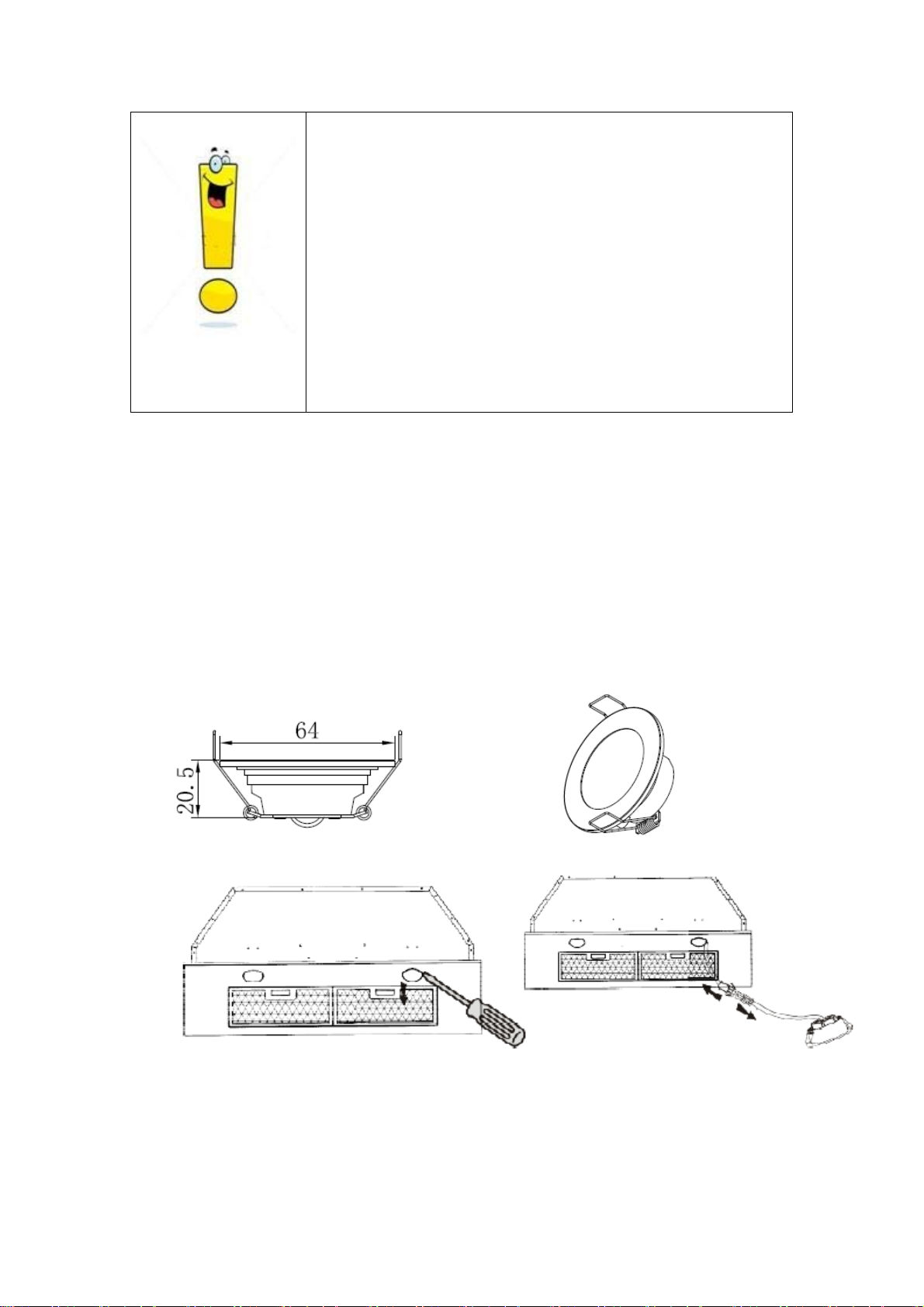

BULB REPLACEMENT

9
Important :
The bulb must be replaced by the
manufacturer, its service agent or similarly
qualified persons.
Always switch off the electricity supply before
carrying out any operations on the appliance.
When handling bulb, make sure it is
completely cool down before any direct
contact to hands.
When handling globes hold with a cloth or
gloves to ensure perspiration does not come
in contact with the globe as this can reduce
the life of the globe.
• Switch the unit off and pull out the plug first.
• Wait until the light bulb is cooled down before replacement.
• Remove the front part with the aid of screwdriver.
• Pull out the LED light carefully and replace with the same type and
rated LED light (2*2W LED light)
• Reinstate the front part to the unit with screwdriver.
• ILCOS D code for this lamp is: DBR-2/65-H-64
– LED modules, self- ballasted – round lamp
– Lamp: 2 x 2 W max.
– Voltage range: AC 220-240V
– Dimensions:
(8) TROUBLE SHOOTING

10
Fault Cause Solution
Light does not work,
but motor works
The bulb damaged Change bulb
Bad contact between bulb and
cap Fix or change
Light panel switch damage Fix or change
Light works, but
motor does not work
Motor bearings damage Change motor
Motor burn out Change motor
Motor control switch damage Fix or change
Bad plug contact outlet Fix or change
Light does not work,
motor does not work
Power cord damaged Change power cord
Switch damage Fix or change
Wind leaves damage Change leaves
Shake of the body
Motor screw loosen Tighten screw
Combination screw loosen Tighten screw
The body fixing to joinery is
lose Tighten
Insufficient suction
Cross-ventilation too strong or
kitchen too closed in
Reduce cross-
ventilation or open the
window
Exhaust pipe too long Adjust the length of
pipe
Air outlet valve not open Check the valve
The outside wind is too strong No the technical
problem
