Award PPS601 User manual

Range Hood
PPS601

WARNINGS
Safety
The appliance is not to be used by persons (including children) who are not
adequately able to use the appliance safely. Children shall not play with the
equipment. The cleaning and maintenance are at user’s expense and shall
not be performed by unsupervised children.












As soon as the equipment is delivered, remove the package immediately.
Should any type of anomaly be found, immediately contact the seller or
an authorized Award service agent.
This equipment is intended for domestic use only.
The warranty does not cover damages caused by an improper installation
or a misuse of the equipment.
Do not attempt to modify this equipment. All repairs should be carried out
by an Award authorized technician. To avoid risks, any alteration of the
equipment is strictly forbidden so is the replacement of the power cable.
When installing the range hood it needs to be installed no less than
650mm above the heat source. If the instructions for installation for
hob specify a greater distance, this has to be taken into account.
Installation of hood has to be such that the unit can easily be isolated
from the power supply by way of isolating switch or plug.
If the power cord is damaged, it shall be replaced by a qualified
personnel in order to avoid risks.
When installing the unit it is important to ensure all penetrations are free
from obstetrical and hazard. Such as electrical cables, pipes and beams
as these may cause serious harm or transmission of noise and vibration.
IMPORTANT: When installing always ensure the power is
disconnected at the mains board prior to connecting.
WARNINGS: Always disconnect Hood from power source prior to
commencing cleaning or maintenance. When cleaning the hood never
use steam or high-pressure devices.
It is forbidden to cook directly on the flame or operate a gas stoves with
without a cooking container on the flame (aspirated flames may damage

WARNINGS








the equipment and the warranty will be cancelled accordingly). The use
of the equipment on a fuel stove is not authorized (wood, coal,…).
Frying under the equipment shall be constantly monitored since oils and
fats being subjected to high temperatures may ignite. Do not flame under
the hood.
CAUTION: accessible parts may become hot when used with cooking
appliances.
Follow the cleaning frequency and filter substitution. The accrual of fat
deposits may provoke fires. Never use the hood without the anti-fat filter.
The equipment shall be installed in accordances with the existing rules on
the ventilation of closed spaces. Technically, the air expelled shall not
pass through the duct used for the discharge of smokes from appliances
using gas or any other fuel (central heating systems, etc...).
Ventilate the environment appropriately in case of a simultaneous
operation of the hood and any other equipment supplied by an energy
source other than electricity so that the hood will not draw gas
compounds.
Attention! There shall be adequate ventilation of the room when the hood
is used at the same time as appliances burning gas or other fuels (not
applicable to appliances that only discharge the air back into the room).
It is necessary to maintain a depressurized environment of maximum 4
Pa (0.04 mbar). Such conditions allow an excellent working of the hood.
In order to achieve such environment a permanent air intake is
necessary in order to avoid air stagnation (it is advised to use a
ventilation grid for this purpose). Windows or doors shall not be used.
The electrical supply of the power network shall be stable and cope with
the indicated electrical standards, see rating label. Should it be not stable
and receive voltage variations in the supply, intensity or frequency such
as armonici, transistor, voltage dips, overloads, electrical storms, etc...,
the hood may show malfunctions or even breakdowns, and the repair
would not be covered by the warranty. In that case, the hood shall
be disconnected and the supply company contacted to solve the supply
problem.

WARNINGS


The hood is a household appliance to extract smoke, it can not be
used as support for objects or utensils.
In the constant effort to to improve our products, we reserve the right to
make enhancement to their technical, functional and aesthetic
characteristics.
Declaration of Conformity CE
This appliance is in compliance with the following European Directives:
Directive EMC 2014/30/EU
Directive LVD 2014/35/EU
Directive ROHS 2011/65/EU
Delegated Regulation ( UE ) nr. 65/2014
Electrical Connection
Before connecting the appliance to the electricity supply, check that the
voltage corresponds to that on the data plate and that the power supply
cable is suitable for the appliance load also stated on the data place.
If the appliance is connected directly to the mains, fit an all-pole
disconnect switch with minimum contact gap of 3 mm, adequate for the
appliance load and complying to regulations.
The plug used must support the maximum power load of the appliance.
- Do not use reducers, adapters or switches for connection to the mains,
since these could overheat and cause burns
- Earth connection is required by law
If the power cable must be replaced, use a cable having identical
characteristics to the original supplied by the manufacturer, suitable for the
load and temperature. This is available from an Award authorized service
agent.

WARNINGS
Important!
The entire installation process is exclusively reserved for qualified
workers, installers or authorized technical service.
Before proceeding with the installation, make sure that all components are in
perfect conditions. Otherwise, contact the vendor and do not proceed with
the installation.
Once installed, imperfections of the equipment such as scratches, impacts,
etc..., will not be covered by under warranty.
Maintenace
Use only a damp doth with neutral liquid detergent.
Do not use wet sponges or cloths, water jets, thinners, solvents,
hydrochloric acid, bleach, alcohol or abrasive substances.
Unplug the appliance or switch off the circuit breaker before carrying out
maintenance operations.
Scrapping
The symbol on the product or on the accompanying paperwork indicates that
the appliance should not be treated as domestic waste, but should be
delivered to a suitable electric and electronic appliance recycling collection
point.
Follow local guidelines when disposing of waste. For more information on the
treatment, re-use and recycling of this product, please contact your local
authority, domestic waste collection service or the shop where the appliance
was purchased.
PLEASE NOTE
DO NOT REMOVE THE PROTECTIVE PLASTIC SHEET FROM THE HOOD UNTIL
THE INSTALLATION IS NOT COMPLETELY FINALIZED

INSTALLATION
Procedure for fixing

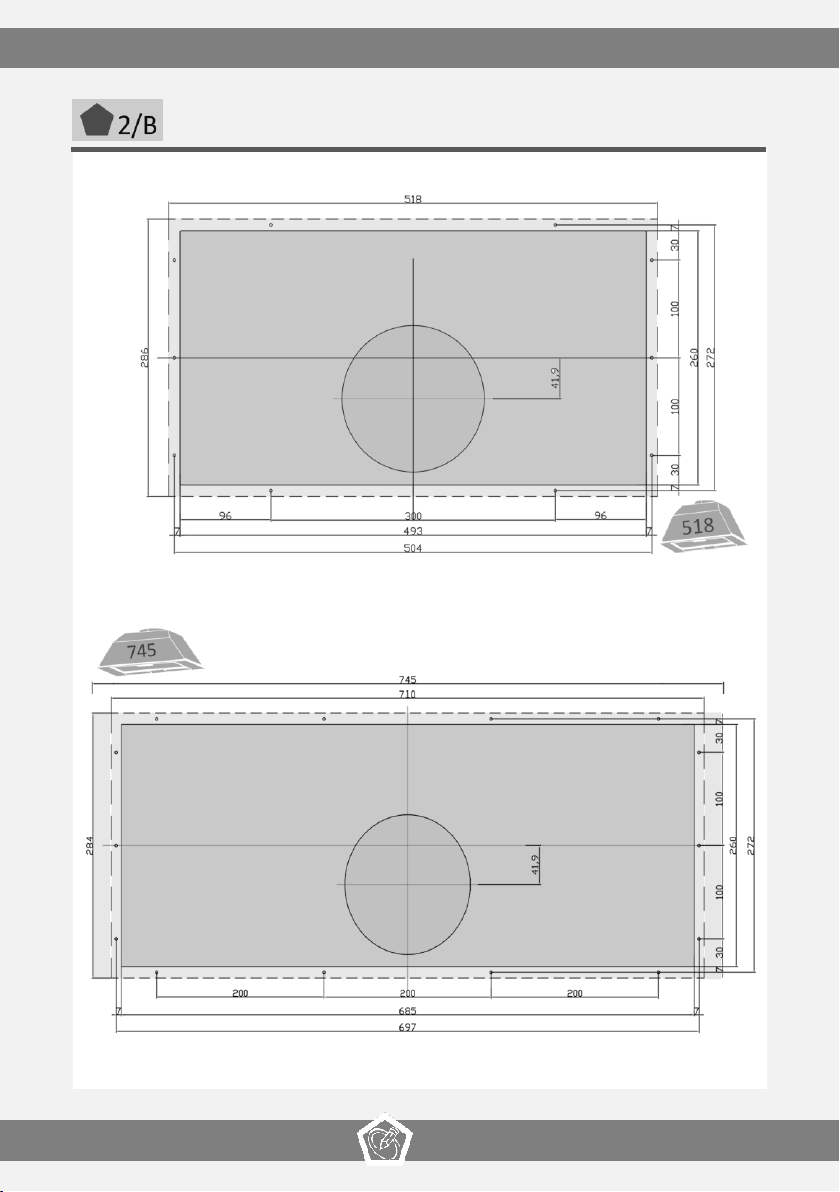

Dimensional Drawings
Follow the directions of the template for drilling

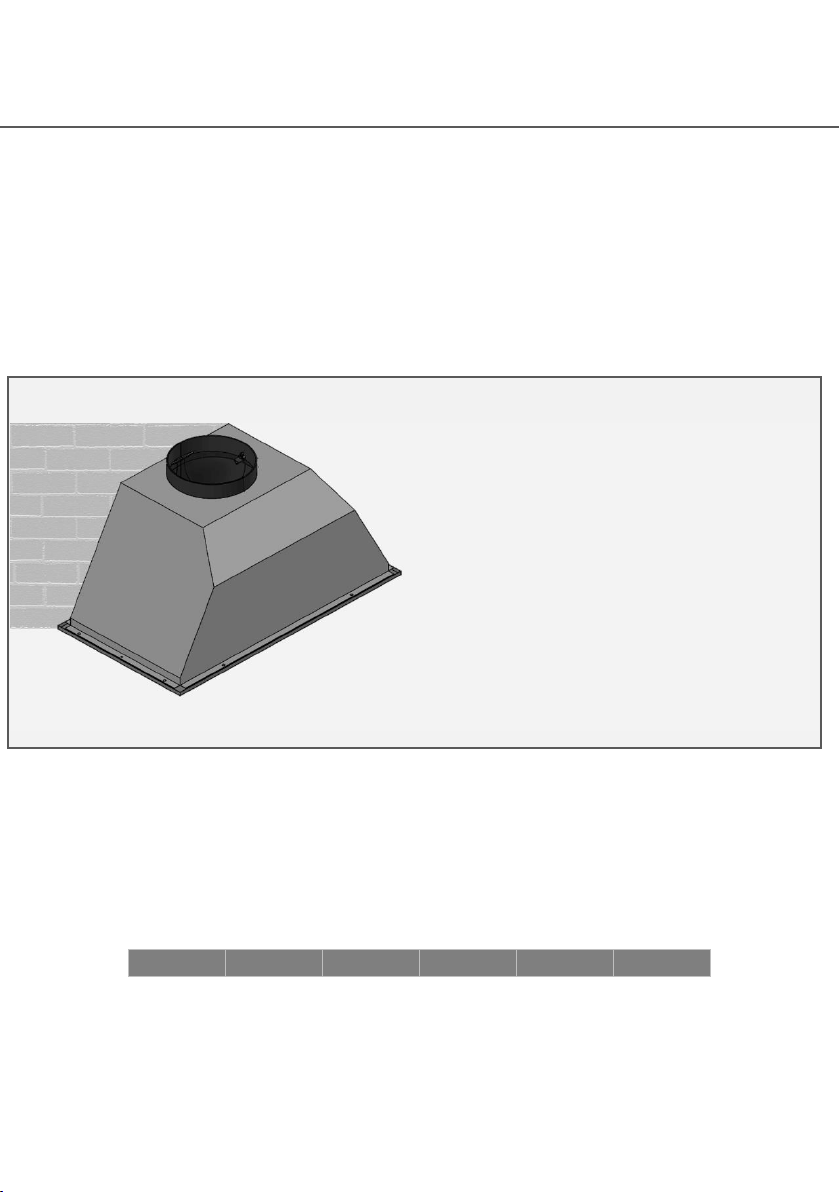

Fix the hood as shown in the scheme
Connecting and fitting
Before connecting the appliance, check the household installation.
Appliance with prefitted power cable: The power cable must only be replaced by a
trained after-sales engineer.
Installing: Do not trap the power cable and do not route it over sharp edges. If the
oven is a built-under type, route the cable on the rear corners of the oven to the
socket.
Electrical Connection
Connect the device to the mains and check the operation:
voltage, see the rating plate
connect adhering strictly to the relevant diagram
1. Brown
2. Blue
3. Yellow and Green

INSTRUCTIONS
Command Switch SLD
Three-speed suction switch
Lighting switch
Suction indicator light
Halogen Lamps Replacement
Disconnect the hood from the mains and wait a few minutes for the lamp to cool.
Follow the instructions in the related design, using gloves.
Filters Replacement
A. ACTIVATED CARBON FILTERS (Only filtering types):
-The filter assembly can not be regenerated and must be replaced at least every
two months.
B. METALLIC ANTI-GREASE FILTERS:
-The filters must be washed at least one a month with hot water and detergent.
-It can also be washed in the dishwasher.
-Open by means of the handle.
Tips for Energy Saving
•Always use the cover corresponding to each pot. When cooking without a lid, the
energy consumption is somewhat greater.
•Use a glass lid to see inside without having to lift it.
•Use containers flatbed. If the base is not flat, the energy consumption is greater.
•For small amounts, use small pans. A large and just filled bowl needs a lot of
energy.
•For cooking, use a little water. Thus, it saves energy and preserves all the vitamins
and minerals in vegetables.

1

2

3

4

5
