Award CS1-903S User manual

1


CS1-903S
RangeHood
InstructionManual







2
VersionNo.:V20200710

Content


1…………………………………..………………………………Safetyinstructions

2…………………………………..………………………………Installation

3…………………………………..………………………………Startusingyourrangehood

4…………………………………..………………………………Troubleshooting

5…………………………………..………………………………Maintenanceandcleaning

6…………………………………..………………………………Environmentprotection
















3

SAFETYINSTRUCTIONS

Thismanualexplainstheproperinstallationanduseofyourrangehood,please
readitcarefullybeforeusingevenifyouarefamiliarwiththeproduct.The
manualshouldbekeptinasafeplaceforfuturereference.
Nevertodo:

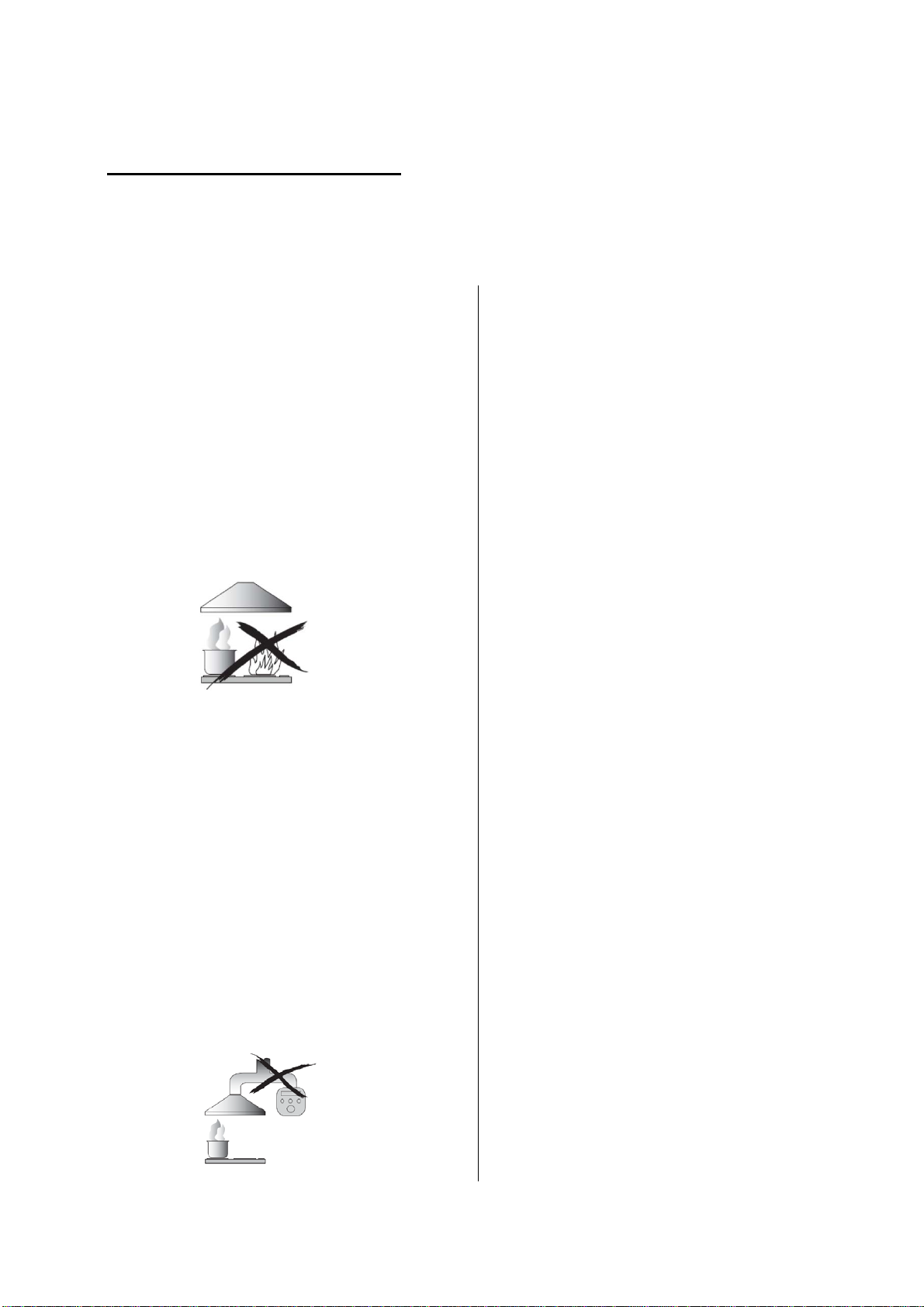

●Do not try to use the range hood
without the grease filters or if the filters
are excessively greasy!
●Do not install above a cooker with a
high level grill.
●Do not leave frying pans unattended
during use because overheated fats or
oils might catch fire.
●Never leave naked flames under the
range hood.
●If the range hood is damaged, do not
attempt to use.
●Do not flambé under the range hood.
●CAUTION: Accessible parts may
become hot when used with cooking
appliances.
●The minimum distance between the
supporting surface for the cooking
vessels on the hob and the lowest part
of the range hood. (When the range
hood is located above a gas appliance,
this distance shall be at least 65 cm)
●The air must not be discharged into a
flue that is used for exhausting fumes
from appliances burning gas or other
fuels.

Alwaystodo:
●Important! Always switch off the
electricity supply at the mains during
installation and maintenance such as
light bulb replacement.
●The range hood must be installed in
accordance with the installation
instructions and all measurements
followed.
●All installation work must be carried
out by a competent qualified
electrician.
●Please dispose of the packing material
carefully. Children are vulnerable to it.
●Pay attention to the sharp edges
inside the range hood especially
during installation and cleaning.
●Make sure the ducting has no bends
sharper than 120 degrees as this will
reduce the efficiency of the range
hood.
●Warning: Failure to install the screws
or fixing device in accordance with
these instructions may result in
electrical hazards.
●Warning: Before obtaining access to
terminals, all supply circuits must be
disconnected.






4
Alwaystodo:
●Always put lids on pots and pans
when cooking on a gas cooker.
●When in extraction mode, air in the
room is being removed by the range
hood. Please make sure that proper
ventilation measures are being
observed. The range hood removes
odours from room but not steam.
●Range hood is for domestic use
only.
●If the supply cord is damaged, it must
be replaced by the manufacturer, its
service agent or similarly qualified
persons in order to avoid a hazard.
●This range hood can be used by
children aged from 8 years and above
and persons with reduced physical,
sensory or mental capabilities or lack
of experience and knowledge if they
have been given supervision or
instruction concerning use of the
range hood in a safe way and
understand the hazards involved.
Children shall not play with the range
hood. Cleaning and user maintenance
shall not be made by children without
supervision.



Alwaystodo:
●Caution: The range hood and its
accessible parts can become hot
during operation. Be careful to avoid
touching the heating elements.
Children younger than 8 years old
should stay away unless they are
under permanent supervision.
●There shall be adequate ventilation of
the room when the range hood is used
at the same time as appliances
burning gas or other fuels.
●There is a fire risk if cleaning is not
carried out in accordance with the
instructions.
●Regulations concerning the discharge
of air have to be fulfilled.
●Clean your range hood periodically by
following the method given in the
chapter MAINTENANCE.
●For safety reason, please use only the
same size of fixing or mounting screw
which are recommended in this
instruction manual.
●Regarding the details about the
method and frequency of cleaning,
please refer to maintenance and
cleaning section in the instruction
manual.
●Cleaning and user maintenance shall
not be made by children without
supervision.
●When the range hood and appliances
supplied with energy other than
electricity are simultaneously in
operation, the negative pressure in the
room must not exceed 4 Pa (4 x 10-5
bar).
●WARNING: Danger of fire: do not
store items on the cooking surfaces.
●Asteam cleaner is not to be used.
●NEVER try to extinguish a fire with
water, but switch off the appliance and
then cover flame e.g. With a lid or a
fire blanket.

5
INSTALLATION(VENTOUTSIDE)
INSTALLATION
If you have an outlet to the outside, your range hood can be connected as below
picture by means of an extraction duct (enamel, aluminium, flexible pipe or non-
flammable material with an interior diameter of 150mm)
1. Before installation, turn the unit off and unplug it from the outlet.

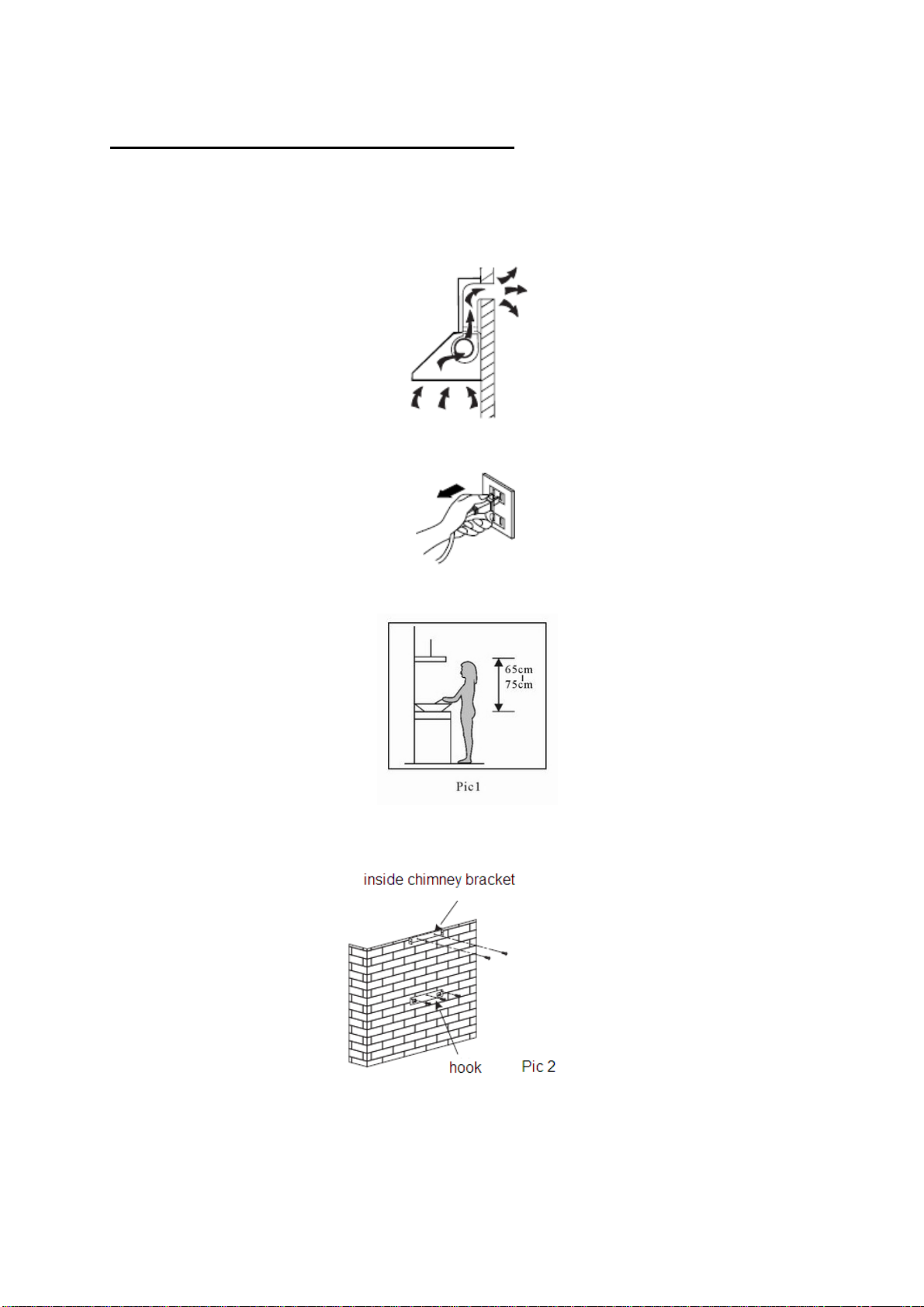

2. The range hood should be placed at a distance of 65~75cm above the cooking
surface for the best effect.
3. Install the hook on a suitable place once the installation height is set, and keep it
level. The fixed position of the inside chimney bracket is the location of chimney. See
pic 2.
4. Install the expansion pipe on the outlet as shown below. Fix the expansion pipe on
the outlet with a cable tie. Note: The expansion pipe is not included with the product.
Then hang the range hood on the hook. See pic 3.

6
Pic 3
5. Fix the outside chimney bracket on the outside chimney with 2pcs ST4*8mm screws,
and be sure that the inside chimney can be adjusted to the required height freely.
Install the chimney on the range hood and lead the expansion pipe to the outside. See
Pic4.
6. Adjust the height of the inside chimney to the position of the inside chimney bracket
and fix on it with 2pcs ST4*8mm screws, after adjusting the position, fix the body with
safety screws. Note: The two safety vents are positioned on the back housing, with a
diameter of 6mm.See Pic4 & 5.

7

HINTSFOREXHAUSTDUCTINSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe always install the pipe pulled taut to minimize
pressure loss.
• Failure to observe these basic instructions will reduce the performance and increase
noise levels of the range hood.
• Any installation work must be carried out by a competent qualified electrician.
•Do not connect the ducting system of the range hood to any existing ventilation
system which is being used for any other appliance, such as warmer tube, gas tube
and hot wind tube.
•The angle of the bend of the expansion pipe should not be less than 120º; you must
direct the pipe horizontally, or, alternatively, the pipe should go up from the initial point
and should be led to an outer wall.

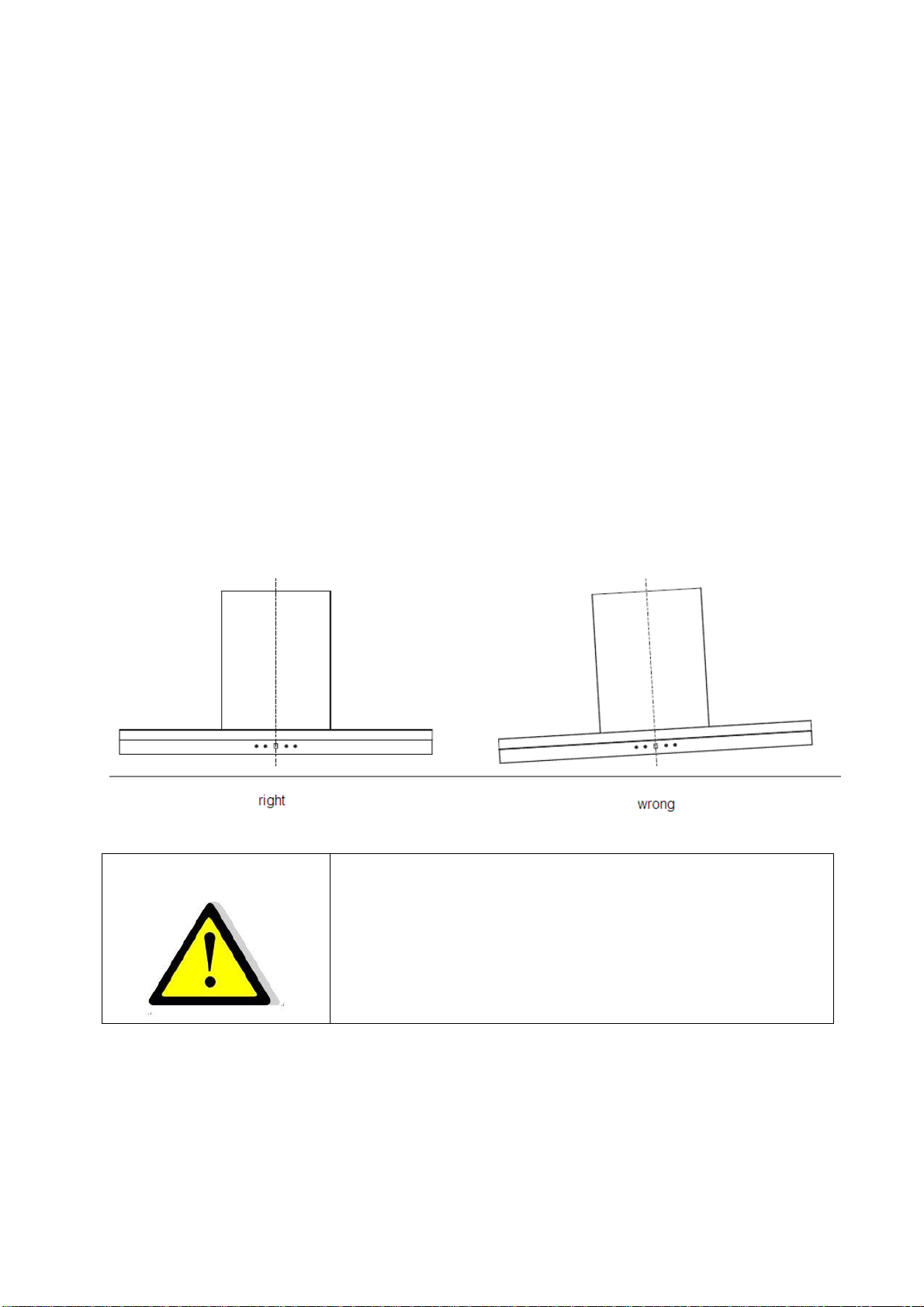

•After the installation, make sure that the range hood is level to avoid grease collection
at one end.
•Ensure the expansion pipe selected for installation complies with relevant standards
and is fire retardant.
WARNING:
For safety reason, please use only the same
size of fixing or mounting screws which are
recommended in this instruction manual.
Failure to install the screws or fixing device in
accordance with these instructions may result
in electrical hazards.

8


StartUsingYourRangehood
TouchcontrolwithLEDdisplay
1. Press the “Power” button, the button controls “on” & “off” of the range hood.
2. Press the button “Speed” time after time, the motor runs as low / mid / high / low /
mid…, the speed runs circularly; and the LED display will indicate as 1-2-3-1-2…
circularly.
3. Press “Lamp” button, the light is on, press this button again, the light is off. Please
note the Lamp is not controlled by the on/off button.
4. When the range hood is working, press the “Timer” button and the range hood will
start counting down for 9 minutes (LED display show 9.8.7.6 etc.) then stops
automatically and the lamp will extinguish. When pressed “Timer” button, the range
hood will go in or go out “Timer” function.

9
TROUBLESHOOTING
Fault PossibleCause Solution
Light on, but motor
does not work
Fan switch turned off Select a fan switch position.
Fan switch failed Contact service center.
Motor failed Contact service center.
Light does not
work, motor does
not work
House fuses blown Reset/Replace fuses.
Mains power cable is loose or
disconnected
Refit mains power cable to
power outlet.
Switch power outlet on.
Oil leakage
One way valve (if fitted) and the
outlet are not tightly sealed Take down the one way valve and seal with sealant.
Leakage from the connection of
chimney and cover Take chimney down and seal.
Lights not working Broken or faulty bulbs Replace blubs as per this
instruction.
Insufficient suction The distance between the range hood and the cook top is
too far
Refit the range hood to the
correct distance.
The Range hood
inclines The fixing screw is not tight enough Tighten the hanging screw and make sure it is level.
NOTE:
Any electrical repairs to this range hood must conform to your local, laws.
Please contact the service center if in any doubt before undertaking any of the
above. Always disconnect the unit from the power source when opening the unit.

MAINTENANCEANDCLEANING
Caution:
• Before maintenance or cleaning is carried out, the
range hood should be disconnected from the mains
power supply. Ensure that the range hood is switched
off at the wall socket and the plug removed.
• External surfaces are susceptible to scratches and abrasions, so please follow the
cleaning instructions to ensure the best possible result is achieved without damage.
GENERAL
Cleaning and maintenance should be carried out when appliances are cold especially
when cleaning. Avoid leaving alkaline or acid substances (lemon juice, vinegar etc.) on
the surfaces.

10
STAINLESS STEEL
The stainless steel must be cleaned regularly (e.g. weekly) to ensure a long life
expectancy. Dry with a clean soft cloth. A specialized stainless steel cleaning fluid may
be used.
NOTE:
Ensure wiping is done along with the grain of the stainless steel to prevent any
unsightly crisscross scratching patterns from appearing.
CONTROL PANEL SURFACE
The inlay control panel can be cleaned using warm soapy water. Ensure the cloth is
clean and well wrung before cleaning. Use a dry soft cloth to remove any excess
moisture left after cleaning.
Important
Using neutral detergents and avoid using harsh cleaning chemicals, strong household
detergents or products containing abrasives, as this will affect the appearance of the
range hood and potentially remove any printing of artwork on the control panel and will
void manufactures warrantee.
GREASE MESH FILTERS
The mesh filters can be cleaned by hand. Soak them for about 3 minute in water with a
mild detergent and then brush gently with a soft brush. Do not apply too much
pressure so as to avoid any damage to it. (Leave to dry naturally out of direct sun light)
Filters should be washed separately to crockery and kitchen utensils. It is advisable
not to use rinse aid.

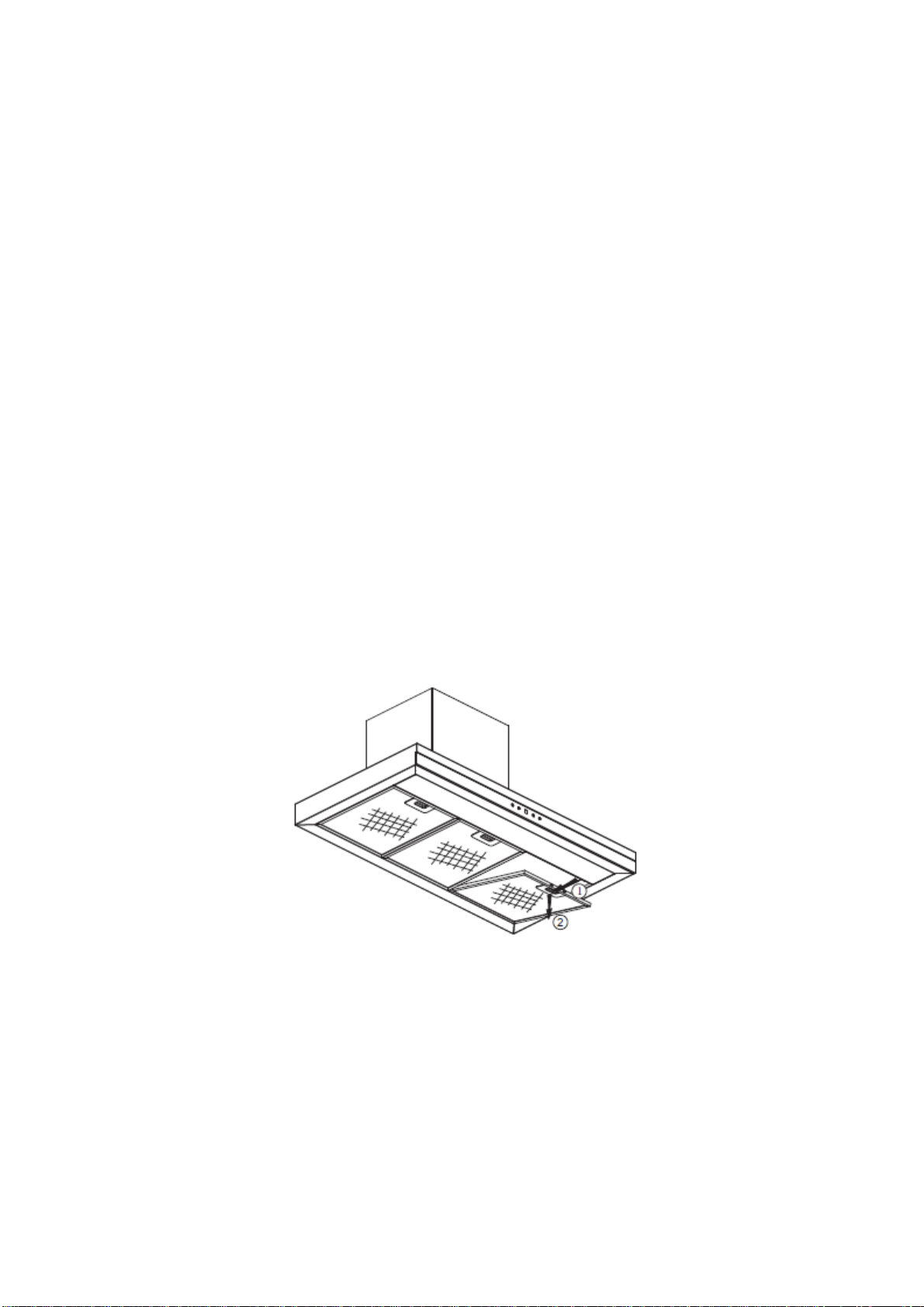

INSTALLING GREASE MESH FILTERS
• To install filters follow these four steps:
- Angle the filter into the slots at the back of the range hood.
- Push the button on the handle of the filter.
- Release the handle once the filter fits into a resting position.
- Repeat to install all filters.

11
CARBON FILTER-not supplied
Activated carbon filter can be used to trap odors. Normally the activated carbon filter
should be changed every 3 to 6 months according to your cooking habits. The
installation procedure of activated carbon filter is as below:
1. Before installing or replacing the carbon filters, disconnect the mains power to the
unit.
2. Press the filter lock and remove the mesh filter.
3. Turn the carbon filter on both sides of the motor anti-clockwise. Replace the
carbon filters with the new carbon filters.
4. Place the mesh filter.
5. Connect the power supply to the wall socket.
NOTE:
Make sure the filter is securely locked. Otherwise, it would loosen and cause
danger.
When activated carbon filter attached, the suction power will be lowered.
BULB REPLACEMENT
Important :
The bulb must be replaced by the manufacturer, its
service agent or similarly qualified persons.
Always switch off the electricity supply before
carrying out any operations on the range hood.
When handling bulb, make sure it has completely
cooled down before any direct contact with hands.
When handling bulbs hold with a cloth or gloves to
ensure perspiration does not come in contact with
the bulb as this can reduce the life of the bulb.
Note:
Before changing the lights, make sure that the range hood is turned off and
unplugged.
Protect against danger when changing lights, by wearing gloves.

12
LED LIGHTS:
Remove the grease filter.

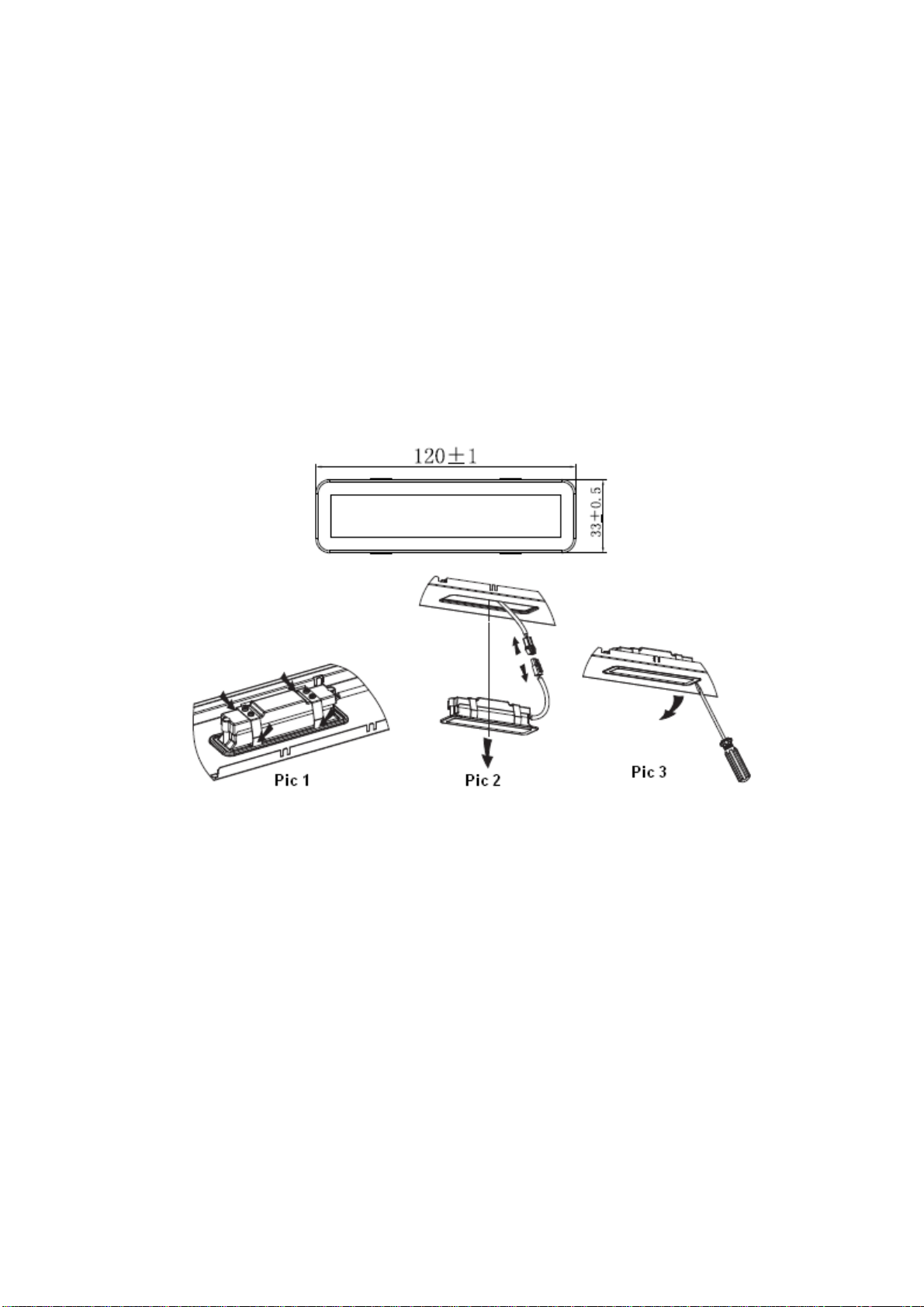

Way 1. Use a tool or the hand to press the spring clip of both sides of LED light to
the inside, until the light is pressed out, see pic 1.Then slightly pull the light
connecting wire out, and dismantle the terminal of the light connecting wire. See
pic 2.
Way 2.Use straight screwdriver to prize up the LED light bottom edge, see pic 3, then slightly
pull out the LED light and light connecting wire. See pic 2.
Apply the reverse procedure to install the light back.
•ILCOS D code for this lamp is: DSS-1.5/65-S-120/33
– LED modules –rectangle lamp
– Max wattage: 2×1.5 W
– Voltage range: DC 12V
– Dimensions:











13
ENVIRONMENTALPROTECTION:

This product is marked with the symbol on the selective sorting of
waste electronic equipment. This means that this product must not
be disposed of with household waste but must be supported by a
system of selective collection in accordance with Directive
2012/19/EU. It will then be recycled or dismantled to minimize
impacts on the environment, electrical and electronic products are
potentially dangerous for the environment and human health due to
the presence of hazardous substances. For more information, please
contact your local or regional authorities.
NOTE:
The following shows how to reduce total environmental impact (e.g. energy use) of the
cooking process).
(1) Install the range hood in a proper place where there is efficient ventilation.
(2) Clean the range hood regularly so as not to block the airway.
(3) Remember to switch off the range hood light after cooking.
(4) Remember to switch off the range hood after cooking.
INFORMATION FOR DISMANTLING
Do not dismantle the range hood in a way which is not shown in the user manual. The
range hood should not be dismantled by user. At the end of life, the range hood
should not be disposed of with household waste. Check with your Local Authority for
recycling advice.

14
AWARDAPPLIANCES(NZ)LTD
WARRANTYSTATEMENT

Pleasecompletethefollowingdetailswhenyouunpacktheproductandretainthiscardwiththepurchase
invoiceorsalesdocket.Verificationofthedateofpurchasewillberequiredshouldserviceunderthe
warrantybesought.

ModelNumber‐…………………………………………………………………
DateofPurchase‐…………………………………………………………………
Retailers/DealersName‐…………………………………………………………………
WARRANTY

ThisproductiscoveredbyaWarrantyinadditiontoallrightsavailabletoyoubystatute.TheWarrantyisfor
aperiodoftwenty‐four(24)monthsfromthedateofpurchase,subjecttotheconditionsbelow.Registering
yourapplianceonlineatwww.awardappliances.co.nzwillqualifyyourpurchaseforanadditionaltwelve(12)
monthswarrantycoveronpartsonly.

TheWarrantycoversrectificationsoffaultsarisingfromdefectivematerials,components,faulty
workmanshiporassembly.TheproductwillberepairedorreplacedatthesolediscretionofAward
Appliances(NZ)Ltd.

ConditionsofWarranty:
1. Thepurchaser/installercarefullyfollowstheinstallationinstructionsprovidedandcomplieswithelectrical,gas,
plumbing,buildingandotherregulationsandcodesofpracticeinNewZealand;
2. Thatthepurchasercarefullyfollowstheinstructionsprovidedintheowner’shandbookrelatingtotheproperuse
andcareoftheproduct;
3. Theproductisnotusedforanypurposeotherthanthedomesticuseforwhichithasbeendesigned.Usefor
commercialpurposesoranyapplicationoutsideofaresidentialdwelling,shallreducethewarrantyperiodtothree
(3)monthsfromdateofpurchase.
4. ThattheproductwaspurchasedandinstalledintheNorthorSouthIslandsofNewZealand

ThisWarrantydoesnotextendto:
(a) Lamps/LED,filters,blockages/restrictions,incorrectdetergents,incorrectorpoorinstallations,incorrectuse.
(b) Backfeedingfromwastedisposalunits,vermin/insectdamageortransitprotectionleftinstalled.
(c) Damagetosurfacecoatingscausedbycleaningormaintenanceusingproductsnotrecommendedbythe
manufacturer;tinfoilonovenbase,leavingabakingsheetortrayonovenbase.
(d) Defectscausedbynormalwearandtear,accident,negligence,alterationormisuse.
(e) Damagecausedbyspill‐overs,lackofmaintenance,orimpact.
(f) Damageorfaultscausedbyincorrectpowersupply,powersurgesorstormdamage.
(g) Anydamageorfaultarisingfrominstallationoftheproduct.
(h) Aproductdismantled,repairedorservicedbyanypersonotherthananauthorisedemployeeorserviceagent
asappointedbyAwardAppliances(NZ)Ltd.
(i) Anyadditionaltravellingcostsbeyond30kmfromanappointedserviceagent.

Ifyouareunabletoestablishthedateofpurchase,orthefaultisnotcoveredbythisWarranty,orifthe
productisfoundtobeinworkingorder,youwillberequiredtobearallservicecharges.Pleasepresentthis
noticetotheserviceperson,togetherwithproofofpurchase.Thewarrantyisnon‐transferable.

Forservicepleasetelephone(03)3480556

AWARDAPPLIANCES(NZ)Ltd
382BlenheimRoadCHRISTCHURCH
Telephone:(03)3480556Email:[e-mail]
www.awardappliances.co.nz


Award2+1yrWarranty11.2019

15
