Axiom AX4CL User manual

AX4CL
High Output Column Array Loudspeaker
USER MANUAL
revision 2021-12-13

2
Watch for these symbols:
The lightning ash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated
“dangerous voltage” within the product’s enclosure, that may be of sucient magnitude to constute a risk of electric shock to
persons.
The exclamaon point within an equilateral triangle is intended to alert the user to the presence of important operang and
maintenance (servicing) instrucons in the literature accompanying the appliance.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instrucons.
2. Keep these instrucons.
3. Heed all warnings.
4. Follow all instrucons.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any venlaon openings. Install in accordance with the manufacturer’s instrucons.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that
produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than
the other. A grounding-type plug has two blades and a third grounding prong. The wide blade or the third prong are provided
for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched, parcularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
11. Only use aachments/accessories specied by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart
is used, use cauon when moving the cart/apparatus combinaon to avoid injury from p-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of me.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such
as power supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Warning: to reduce the risk of re or electric shock, do not expose this apparatus to rain or moisture.
16. Do not expose this equipment to dripping or splashing and ensure that no objects lled with liquids, such as vases, are placed
on the equipment.
17. To completely disconnect this apparatus from the ac mains, disconnect the power supply cord plug from the ac receptacle.
18. The mains plug of the power supply cord shall remain readily operable.
19. This apparatus contains potenally lethal voltages. To prevent electric shock or hazard, do not remove the chassis, input
module or ac input covers. No user serviceable parts inside. Refer servicing to qualied service personnel.
20. The loudspeakers covered by this manual are not intended for high moisture outdoor environments. Moisture can damage
the speaker cone and surround and cause corrosion of electrical contacts and metal parts. Avoid exposing the speakers to
direct moisture.
21. Keep loudspeakers out of extended or intense direct sunlight. The driver suspension will prematurely dry out and nished
surfaces may be degraded by long-term exposure to intense ultra-violet (UV) light.
22. The loudspeakers can generate considerable energy. When placed on a slippery surface such as polished wood or linoleum,
the speaker may move due to its acouscal energy output.
23. Precauons should be taken to assure that the speaker does not fall o a stage or table on which it is placed.
24. The loudspeakers are easily capable of generang sound pressure levels (SPL) sucient to cause permanent hearing damage
to performers, producon crew and audience members. Cauon should be taken to avoid prolonged exposure to SPL in excess
of 90 dB.
This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end
of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate
this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users
should contact either the retailer where they purchased this product, or their local government oce, for details of where and
how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms
and condions of the purchase contract. This product should not be mixed with other commercial wastes for disposal.
CAUTION
To prevent electric shock hazard,
do not connect to main power
supply while grille is removed.

3
DECLARATION OF CONFORMITY
The product is in compliance with:
LVD Direcve 2014/35/EU, RoHS Direcve 2011/65/EU and 2015/863/EU, WEEE Direcve 2012/19/EU.
LIMITED WARRANTY
Proel warrants all materials, workmanship and proper operaon of this product for a period of two years from the original date of purchase. If any
defects are found in the materials or workmanship or if the product fails to funcon properly during the applicable warranty period, the owner
should inform about these defects the dealer or the distributor, providing receipt or invoice of date of purchase and defect detailed descripon.
This warranty does not extend to damage resulng from improper installaon, misuse, neglect or abuse. Proel S.p.A. will verify damage on returned
units, and when the unit has been properly used and warranty is sll valid, then the unit will be replaced or repaired. Proel S.p.A. is not responsible
for any “direct damage” or “indirect damage” caused by product defecveness.
• This unit package has been submied to ISTA 1A integrity tests. We suggest you control the unit condions immediately aer unpacking it.
• If any damage is found, immediately advise the dealer. Keep all unit packaging parts to allow inspecon.
• Proel is not responsible for any damage that occurs during shipment.
• Products are sold “delivered ex warehouse” and shipment is at charge and risk of the buyer.
• Possible damages to unit should be immediately noed to forwarder. Each complaint for package tampered with should be done within eight
days from product receipt.
CONDITIONS OF USE
Proel do not accept any liability for damage caused to third pares due to improper installaon, use of non-original spare parts, lack of
maintenance, tampering or improper use of this product, including disregard of acceptable and applicable safety standards. Proel strongly
recommends that this loudspeaker cabinet be suspended taking into consideraon all current Naonal, Federal, State and Local regulaons. The
product must be installed be qualied personal. Please contact the manufacturer for further informaon.

4
INTRODUCTION

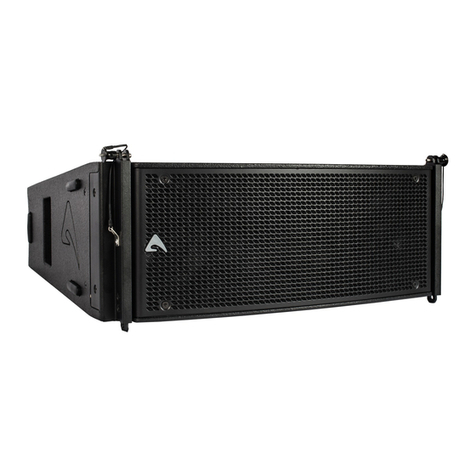

The AX4CL Line Array is a passive system equipped with four 2.5” neodymium transducers with waterproof cones, designed for
portable and permanently installed applicaons where high power and clarity are needed. The aluminum frame box structure
ensures lightweight and strength, while the shape features a back-loaded transmission line design with clean mid-bass reproducon
and natural cardioid behaviour. The wide horizontal dispersion make the system exible and adaptable to many dierent
applicaons.
The AX4CL line array module has been designed to be used as a stand-alone or mulple column system in xed or mobile
installaons, fronill applicaons and low-prole stage monitoring soluons.
TECHNICAL SPECIFICATION
SYSTEM INPUT CONNECTIONS
System’s Acousc Principle
Line Array Element
Short Transmission
Line Back Loading
Connector Type Neutrik® Speakon® NL4 x 2
(1+/1- signal IN & LINK ; 2+/2- thru)
POWER HANDLING
Frequency Response (±3dB) 200 Hz - 16 KHz (Processed) Connuous AES Pink Noise Power 80 W
Nominal Impedance 32 Ω Program Power 160 W
Minimum Impedance 23.7 Ω ENCLOSURE & CONSTRUCTION
Horizontal Coverage Angle 80° (-6 dB) Width 90 mm (3.54")
Sensivity (4V) SPL @ 1m* 91 dB Height (AX16CL) 390 mm (15.4")
Maximum Peak SPL @ 1m 116 dB Depth 154 mm (6.06")
*measured @4 m and scaled @1 m Enclosure Material Aluminum
TRANSDUCERS Paint High resistance, water based paint,
black or white nish
Type
4 x 2.5" (66mm) Neodymium
magnet, full range, 0.8" (20mm)
VC Flying system Aluminum Fast Link structure with
dedicated pins
Cone Waterproof Cone Net Weight 4 kg / 8.8 lbs
Voice Coil Type Venlated voice coil
INDEX
INTRODUCTION ............................... 4
TECHNICAL SPECIFICATION ...................... 4
AX4CL MECHANICAL DRAWING ................... 5
OPTIONAL ACCESSORIES ........................ 5
SPARE PARTS .................................. 5
REAR PANEL .................................. 6
BASIC INSTALLATION INSTRUCTIONS............... 6
PIN LOCKING AND SPLAY ANGLES SET UP ........... 7
FLOOR INSTALLATION WITH KPTPOLEAX16CL POLE
ADAPTER ..................................... 8
FLOOR AND FRONT FILL INSTALLATION USING
KPTFAXCL FOAM STAND ......................... 9
WALL INSTALLATION USING KPTWAX16CLL
BRACKETS .................................... 9
AX4CL CONNECTION EXAMPLES ................. 10

5
AX4CL MECHANICAL DRAWING
OPTIONAL ACCESSORIES
KPTWAX16CLL Wall bracket for 1 or 2 units DHSS10M20 ø35mm 1-1.7m Pole with Handle and M20 screw
KPTFAX16CL Floor stand ESO2500LU025 25 cm SPEAKON linking cable 4x4mm
KPTPOLEAX16CL Pole adapter KP210S ø35mm 0.7-1.2m Pole with M20 screw
KPTFAXCL Foam adapters for stage monitor or fronill applicaon NL4FX Neutrik Speakon® PLUG
see hp://www.axiomproaudio.com for detailed descripon and other available accessories.
SPARE PARTS
94SPI10555 Locking Pin NL4MP Neutrik Speakon® panel socket
98ALT200009 2.5’’ speaker - 0.8” VC - 8 ohm
34.0 cm
13.4"
(without rigging)
39.0 cm
15.4"
(with rigging)
36.0 cm
14.2"
(pin to pin distance)
9.00 cm
3.54"
15.4 cm
6.06"

6
REAR PANEL
INPUT & LINK - Both connectors at the top and the boom of the AX4CL can operate as input
or link, to connect an appropriated processed amplier or to link the column to a second one.
The AX4CL does not include an internal passive crossover for ltering the signal, but only an
internal protecon that excludes the internal speaker to protect them from excessive input
power. The protecon should not trip with a typical music program, but only with a massive and
constant power signal, like a feedback. The connecons are the following:
INPUT - LINK
NL4 pin number internal connecon
1+ + speakers (pass thru link speakon)
1- - speakers (pass thru link speakon)
2+ + no connecon (pass thru link speakon)
2- - no connecon (pass thru link speakon)
WARNING:
The maximum quanty of AX4CL that can be linked together depends by the load capacity of the appropriate processed
amplier.
BASIC INSTALLATION INSTRUCTIONS
WARNING! CAREFULLY READ THE FOLLOWING INSTRUCTIONS AND CONDITION OF USE:
• This loudspeaker is designed exclusively for Professional audio applicaons. The product must be installed by qualied
personal only.
• Proel strongly recommends that this loudspeaker cabinet be suspended taking into consideraon all current Naonal,
Federal, State and Local regulaons. Please contact the manufacturer for further informaon.
• Proel do not accept any liability for damage caused to third pares due to improper installaon, lack of maintenance,
tampering or improper use of this product, including disregard of acceptable and applicable safety standards.
• During assembly pay aenon to the possible risk of crushing. Wear suitable protecve clothing. Observe all
instrucons given on the rigging components and the loudspeaker cabinets. When chain hoists are in operaon
ensure that there is nobody directly underneath or in the vicinity of the load. Do not under any circumstances climb
on the array.

7
PIN LOCKING AND SPLAY ANGLES SET UP
The gure below shows how to insert correctly the locking pin and how to set up the splay angle between loudspeakers.
Each of the following examples has some symbols at the connecon points: these symbols indicate if a splay angle is allowed or is
prohibited for safety or acouscal reason:
press and
insert
AX4CL
column to column
KPTxAXCL and AX4CL
accessory to column
(upward)*
KPTxAXCL and AX4CL
accessory to column
(downward)*
* all accessories have similar inseron and locking
LOCKING PIN INSERTION
release and
lock
Use these holes for the column speaker splay angle:
0° as no splay.
2° as normal splay angle to obtain
a curved vercal array.
2° as normal splay angle to obtain
a curved vercal array.
+4° and -4° as splay angle
to aim a single speaker
downward or upward
(stacked only).
+4° and -4° as splay angle
to aim a single speaker
downward or upward
(stacked only).
When connecng insert this pin
first, also use it to rest when unused.
Use these holes for the accessories splay angle:
AX4CLKPT ACCESSORIES
SPLAY ANGLE SET UP
pin
pin
2°
4°
0°
2°
4°
0°
Fastening knob:
ghten it aer assembly the units,
release it before disassembly the units.
0° as no splay.
When connecng insert this pin
first, also use it to rest when unused.
Fastening knob:
ghten it aer assembly the units,
release it before disassembly the units.
20
0
4° convex angle
is prohibited
4° upward
angle is
prohibited
0° is allowed
2° concave
angle is
allowed

8
FLOOR INSTALLATION WITH KPTPOLEAX16CL POLE ADAPTER
The KPTPOLEAX16CL is used in combinaon with the KP210S or DHSS10M20 pole on the KPTFAX16CL oor stand as base.
WARNINGS:
• The ground where the KPTFAX16CL oor stand is placed needs to be stable and compact.
• Adjust the feet so to put the KTPFAX16CL perfectly horizontal. Use a spirit level to obtain the best result.
• Always secure ground stacked setups against movement and possible pping over.
• A maximum of 4 x AX4CL speakers are allowed to be installed over a KPTFAX16CL with pole serving as ground support.
• The column must be setup with 0° aiming.
1 - Remove the Pin (B).
2 - Unscrew the 4 screws (C).
3 - Remove the flange (A)
from base.
4 - Screw in the pole (D).
5 - Insert the pole
adapter (E).
KP210S or
DHSS10M20 pole
6 - Loosen the knobs (F)
and (G).
7 - Place the column (H).
8 - Insert the front
pin (I).
9 - Insert the rear
pin (L).
10 - Tighten the
knobs (F)
and (G).
B
C
A
D
F
H
I
L
G
E
E

9
FLOOR AND FRONT FILL INSTALLATION USING KPTFAXCL FOAM STAND
WARNINGS:
• KPTFAX4CL can be used in front-ll or monitor applicaons on stage.
• The ground where the KPTFAXCL foam stand is placed needs to be stable and compact.
• When using this support for fronill applicaon, place it on a stable surface. If it is placed on a front line subwoofer,
it must be secured to it using a strap, because the subwoofer vibraons could cause it to fall to ground.
WALL INSTALLATION USING KPTWAX16CLL BRACKETS
WARNINGS:
• No hardware is supplied to install the KPTWAX16CLL to the walls: the hardware to be used depends on the wall
structure. Use always the best hardware available, taking in consideraon the whole weight of loudspeakers and
accessories.
• Brackets MUST be installed by qualied personnel in accordance with safe installaon pracces.
• A single AX4CL or 2x AX4CL speakers can be installed using the KPTWAX16CLL as top and boom wall brackets.
0°
20° 45°
2
2
4
4
4
60°
60°*
*to use these angle setup top and boom
brackets must be have same orientaon.
to fix the plate on the top
bracket use always two bolts
To fix the plate on the boom bracket use two bolts or a single bolt.
Column orientaon is possible only aiming it at 0°.

10
AX4CL CONNECTION EXAMPLES
The following examples shows all the possible connecons between a dedicated amplier and the AX4CL column speaker, please
note the amplier must be equipped with a DSP and specically designed preset.
2 x 4mm² speaker cable
2 x AX4CL
ESO2500LU05 - lenght 0,25m
ESO1500LU2 - lenght 2m
ESO1500LU5 - lenght 5m
ESO1500LU10 - lenght 10m
ESO1500LU15 - lenght 15m
ESO1500LU20 - lenght 20m
1+/1-
1+/1-
1+/1-1+/1-
Power amplifier capable of delivering:
160 W to a 16 ohm load.
2 x 4mm² speaker cable
1 x AX4CL
ESO1500LU2 - lenght 2m
ESO1500LU5 - lenght 5m
ESO1500LU10 - lenght 10m
ESO1500LU15 - lenght 15m
ESO1500LU20 - lenght 20m
1+/1-1+/1-
Power amplifier capable of delivering:
80 W to a 32 ohm load.

11
2 x 4mm² speaker cable
4 x AX4CL
1+/1-
1+/1-
1+/1-
1+/1-
1+/1-
1+/1-
1+/1-1+/1-
Power amplifier capable of delivering:
320 W to a 8 ohm load.
ESO2500LU05 - lenght 0,25m
ESO1500LU2 - lenght 2m
ESO1500LU5 - lenght 5m
ESO1500LU10 - lenght 10m
ESO1500LU15 - lenght 15m
ESO1500LU20 - lenght 20m

PROEL S.p.A. (World Headquarters) - Via alla Ruenia 37/43 - 64027 Sant’Omero (Te) - ITALY
Tel: [phone] Fax: [phone] www.axiomproaudio.com
