Axminster Trade AT305SB User manual

AT305SB
305mm Saw Bench
230V Code 700158
415V Code 600807
Original Instructions
AT: 11/10/2021
BOOK VERSION: 02

Cert No: TSCE-12R
Axminster Tool Centre Ltd
Axminster Devon
EX13 5PH UK
axminstertools.com
Type Saw Bench
Model AT305SB and conforms to the machinery example for which the
EC Type-Examination Certificate No AN 50149963
has been issued by Union-one Machinery Co., Ltd.
at: No. 30-2 Lane 70, Sec. 1, Hsing-Lung Rd. 411 TaipingCity,Taichung Taiwan
and complies with the relevant essential health and safety requirements.
2006/42/EC
2006/95/EC
2014/35/EU
EN ISO 12100
EN ISO 13855
declares that the machinery described:-
This machine complies with the following directives:
EU Declaration of Conformity
EN ISO 14119
EN 1870-19
EN 60204-1/AC
EN 60204-1:1997
Signed
Andrew Parkhouse
Operations Director Date: 19/09/2018

2
Table of Contents
2
Table of Contents..........................................................................................................................................
3
Warnings .......................................................................................................................................................
6
Specifications ................................................................................................................................................
7
Shipping Contents.........................................................................................................................................
7
Unpacking..................................................................................................................................................
7
Cleaning ....................................................................................................................................................
8

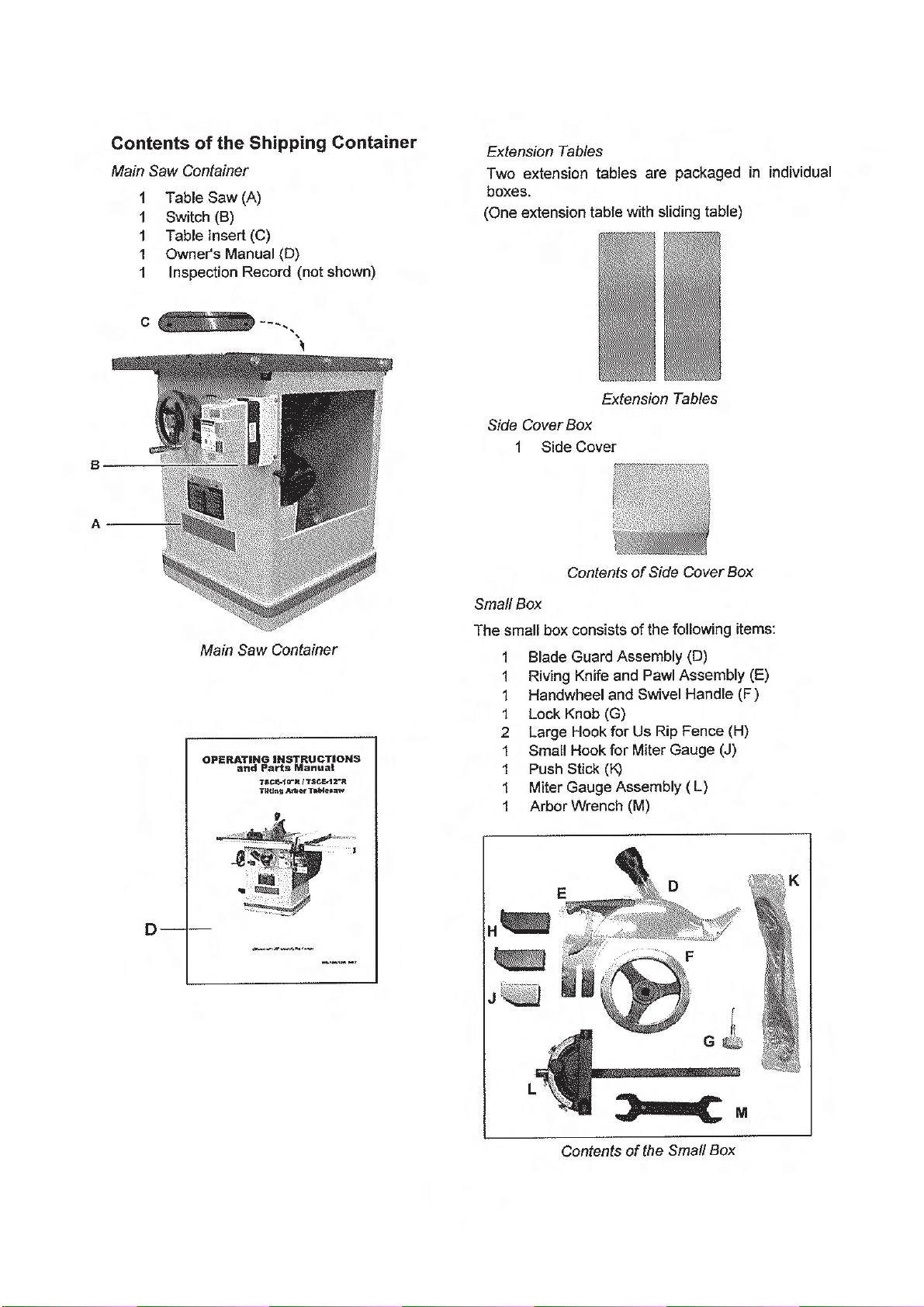

Contents of the Shipping Container ..........................................................................................................
9

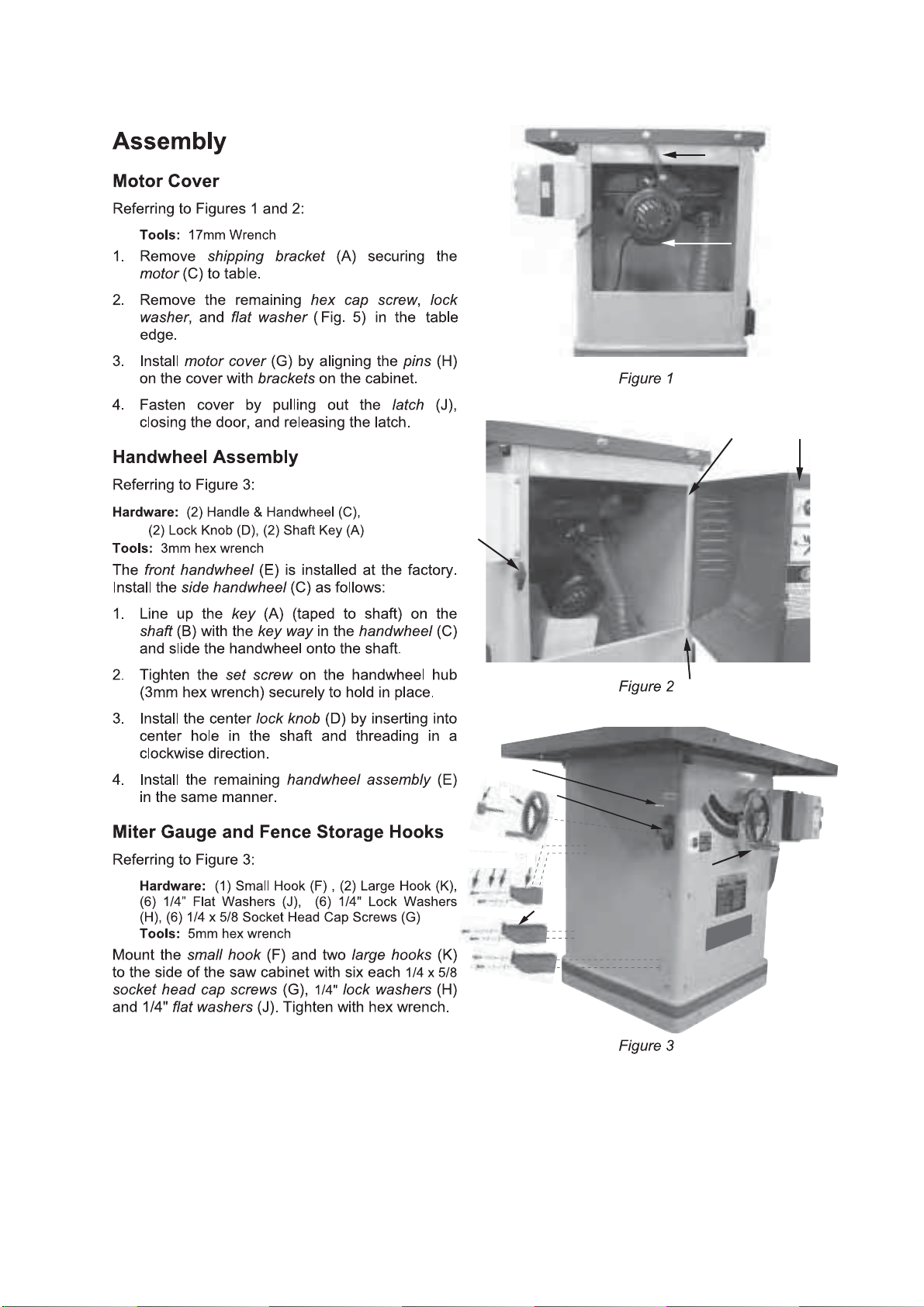

Assembly.......................................................................................................................................................
9
Motor Cover...............................................................................................................................................
9
Handwheel Assembly ................................................................................................................................
9
Miter Gauge and Fence Storage Hooks....................................................................................................
Extension Wing........................................................................................................................................
10
10

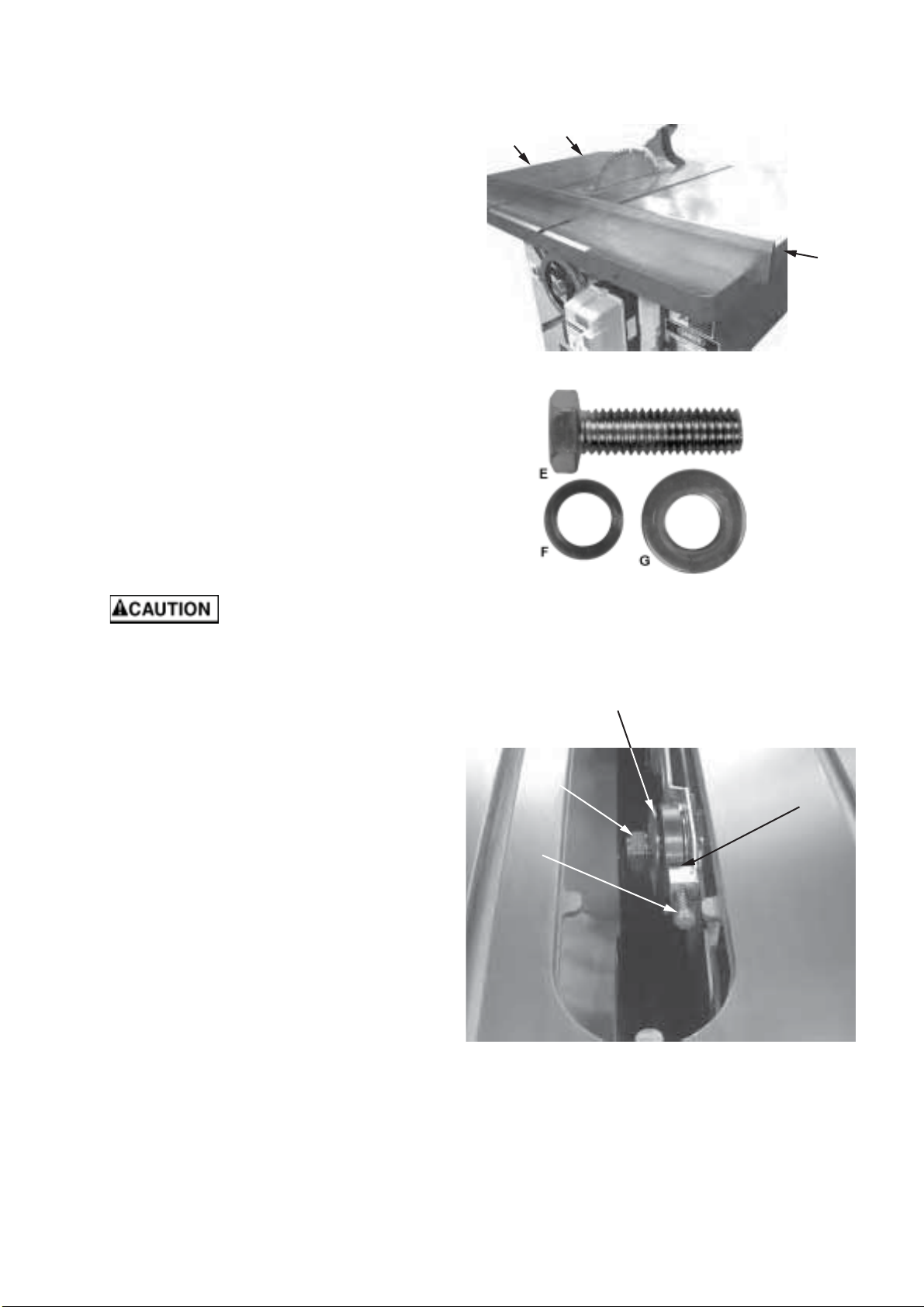

Blade Installation/Replacement...............................................................................................................
11
Riving Knife and Guard Installation .........................................................................................................
12

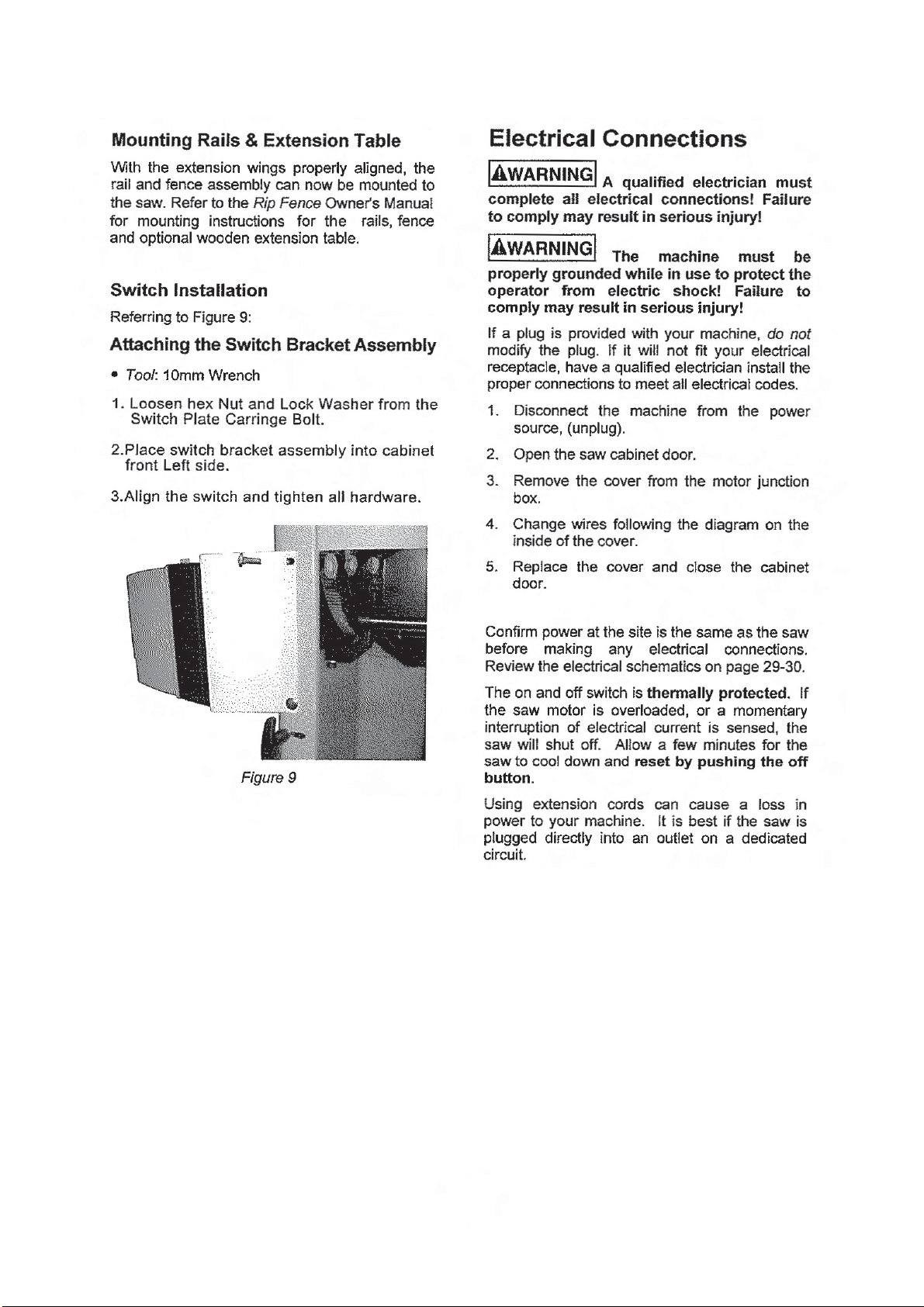

Mounting Rails & Extension Table ..........................................................................................................
12
Switch Installation....................................................................................................................................
12
Electrical Connections.................................................................................................................................
Adjustments ................................................................................................................................................
13
13
Handwheel Adjustments..........................................................................................................................
13
Insert Adjustment.....................................................................................................................................
13
Miter Gauge.............................................................................................................................................
14
Riving Knife Adjustment ..........................................................................................................................
15
Blade Alignment ......................................................................................................................................
16
Adjusting 45 and 90 Positive Stops......................................................................................................
17
Changing the Belt ....................................................................................................................................
17
Maintenance................................................................................................................................................
17
Cleaning ..................................................................................................................................................
17
Lubrication ...............................................................................................................................................
17
Miscellaneous..........................................................................................................................................
18
Troubleshooting ..........................................................................................................................................
19

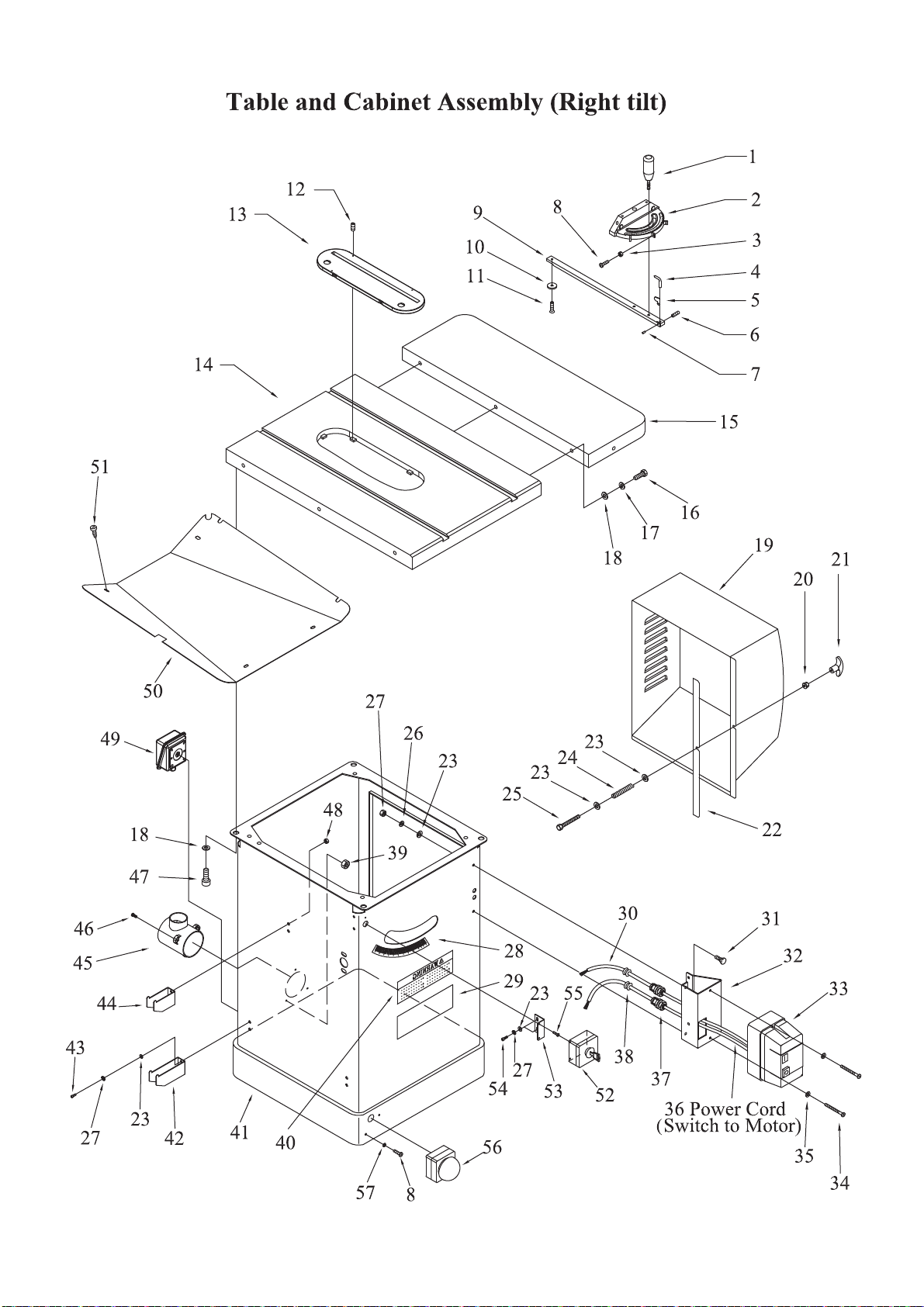

Table & Cabinet Assembly ..............................
.. .......................... ............................................................
22
..................................
................................. .............................................
27
Blade Guard Assembly ...........................................................................................................
29
Wiring Diagrams..........................................................................................................................................
The specifications in this manual are given as general information and are not binding. Sellers have the
right to effect at any time and without prior notice, changes or alterations to parts, fittings, and accessory
equipment deemed necessary for any reason whatsoever.
................
Motor and Trunnion Assembly
2

1. Read and understand the entire owner's manual before attempting assembly or operation.
2. Read and understand the warnings posted on the machine and in this manual. Failure to comply with
all of these warnings may cause serious injury.
3. Replace the warning labels if they become obscured or removed.
5. Do not use this table saw for other than its intended use. If used for other purposes, Manufacturer
disclaims any real or implied warranty and holds itself harmless from any injury that may result from
that use.
6. Always wear approved safety glasses/face shields while using this table saw. Everyday eyeglasses
only have impact resistant lenses; they are not safety glasses.
7. Before operating this table saw, remove tie, rings, watches and other jewelry, and roll sleeves up past
the elbows. Remove all loose clothing and confine long hair. Non-slip footwear or anti-skid floor strips
are recommended. Do not wear gloves.
8. Wear ear protectors (plugs or muffs) during extended periods of operation.
9. Some dust created by power sanding, sawing, grinding, drilling and other construction activities
contain chemicals known to cause cancer, birth defects or other reproductive harm. Some examples
of these chemicals are:
Lead from lead based paint.
Crystalline silica from bricks, cement and other masonry products.
Arsenic and chromium from chemically treated lumber.
Your risk of exposure varies, depending on how often you do this type of work. To reduce your
exposure to these chemicals, work in a well-ventilated area and work with approved safety equipment,
such as face or dust masks that are specifically designed to filter out microscopic particles.
10. Do not operate this machine while tired or under the influence of drugs, alcohol or any medication.
11. Make certain the machine is properly grounded.
12. Make all machine adjustments or maintenance with the machine unplugged from the power source. A
machine under repair should be RED TAGGED to show it must not be used until maintenance is
complete.
13. Remove adjusting keys and wrenches. Form a habit of checking to see that keys and adjusting
wrenches are removed from the machine before turning it on.
14. Keep safety guards in place at all times when the machine is in use. If removed for maintenance
purposes, use extreme caution and replace the guards immediately.
15. Check the alignment of the riving knife, fence and miter slot to the blade. A caution decal is installed
on each guard to remind the operator of the dangers of improper machine operation.
16. Check damaged parts. Before further use of the machine, a guard or other part that is damaged
should be carefully checked to determine that it will operate properly and perform its intended function.
Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any
other conditions that may affect its operation. A guard or other part that is damaged should be
properly repaired or replaced.
17. Provide for adequate space surrounding work area and non-glare, overhead lighting.
18. Keep the floor around the machine clean and free of scrap material, oil and grease.
4. This table saw is designed and intended for use by properly trained, experienced personnel and sales
agent only. If you are not familiar with the proper and safe operation of a table saw, do not use until
proper training and knowledge have been obtained.
3

19. Keep visitors a safe distance from the work area. Keep children away.
20. Make your workshop child proof with padlocks, master switches or by removing safety keys.
21. Give your work undivided attention. Looking around, carrying on a conversation and “horse-play” are
careless acts that can result in serious injury.
22. Maintain a balanced stance at all times so that you do not fall or lean against the blade or other
moving parts. Do not overreach or use excessive force to perform any machine operation.
23. Use the right tool at the correct speed and feed rate. Do not force a tool or attachment to do a job for
which it was not designed. The right tool will do the job better and safer.
24. Use recommended accessories; improper accessories may be hazardous.
25. Maintain tools with care. Keep blade sharp and clean for the best and safest performance. Follow
instructions for lubricating and changing accessories.
26. Check the saw blade for cracks or missing teeth. Do not use a cracked or dull blade or one with
missing teeth or improper set. Make sure the blade is securely locked on the arbor.
27. Keep hands clear of the blade area. Do not reach past the blade to clear parts or scrap with the saw
blade running. Never saw freehand. Avoid awkward operations and hand positions where a sudden
slip could cause your hand to contact the blade.
28. Do not attempt to saw boards with loose knots or with nails or other foreign material, on its surface.
Do not attempt to saw twisted, warped, bowed or “in wind” stock unless one edge has been jointed for
guiding purposes prior to sawing.
29. Do not attempt to saw long or wide boards unsupported where spring or weight could cause the
board to shift position.
30. Always use the riving knife, blade guard, push stick and other safety devices for all operations where
they can be used. On operations such as dadoing or molding where the blade guard cannot be used,
use feather boards, fixtures and other safety devices and use extreme caution. Reinstall the riving
knife and blade guard immediately after completing the operation that required their removal.
31. Be sure the saw blade rotates clockwise when viewed from the motor side of the machine.
32. Turn off the machine before cleaning. Use a brush or compressed air to remove chips or debris — do
not use your hands.
33. Do not stand on the machine. Serious injury could occur if the machine tips over.
34. Never leave the machine running unattended. Turn the power off and do not leave the machine until it
comes to a complete stop.
35. Remove loose items and unnecessary work pieces from the area before starting the machine.
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or
possible machine damage.
This means that if precautions are not heeded, it may result in serious injury or possibly
even death.
(Right side)
4

Shipping Contents
Unpacking
Remove box and wood crating completely from
around saw. Check for shipping damage. Report
any damage immediately to your distributor and
shipping agent. Do not discard any shipping
material until the Table Saw is assembled and
running properly.
Compare the contents of your container with the
parts lists in the next two pages to make sure all
parts are intact. Missing parts, if any, should be
reported to your distributor. Read the instruction
manual thoroughly for assembly, maintenance
and safety instructions.
1. Unbolt the saw from the skid.
2. Carefully slide the saw from the pallet onto
the floor.
Do not connect the tablesaw
to the power source until all assembly has
been completed! Failure to comply may
cause serious injury!
The Table Saw should be placed in an area with
a sturdy level floor, good ventilation and
sufficient lighting. Leave enough space around
the machine for mounting extension wings and
rail assemblies, and loading and off-loading
stock and general maintenance work.
Cleaning
Exposed metal surfaces, such as the table top
and extension wings, have been given a
protective coating at the factory. This should be
removed with a soft cloth moistened with
kerosene. Do not use acetone, gasoline, or
lacquer thinner for this purpose. Do not use
solvents on plastic parts, and do not use an
abrasive pad because it may scratch the
surfaces.
5

Model AT305SB
Code 700158
Rating Trade
Power 2.2kW (230V)
Plug Fitted UK 16A
Blade Dia/Bore 305 mm/30 mm
Blade Tilt 0° - 45°
Max Depth of Cut @ 45˚ 72 mm
Max Depth of Cut @ 90˚ 102 mm
Max Width of Cut with Fence 620 mm
Table Size 836 x 787 mm
Table Height 860 mm
Sliding Table Size 354 x 650 mm
Dust Extraction Outlet 100 mm + 60 mm
Min Extraction Airflow Required 1,000 m³/hr
Overall L x W x H 787 x 876 x 900 mm (787 x 1,486 x 900 mm with sliding table in use)
Weight 270 kg
Model AT305SB
Code 600087
Rating Trade
Power 3.75kW (415V)
Plug Fitted UK 16A
Blade Dia/Bore 305 mm/30 mm
Blade Tilt 0° - 45°
Max Depth of Cut @ 45˚ 72 mm
Max Depth of Cut @ 90˚ 102 mm
Max Width of Cut with Fence 620 mm
Table Size 836 x 787 mm
Table Height 860 mm
Sliding Table Size 354 x 650 mm
Dust Extraction Outlet 100 mm + 60 mm
Min Extraction Airflow Required 1,000 m³/hr
Overall L x W x H 787 x 876 x 900mm (787 x 1,486 x 900mm with sliding table in use)
Weight 270 kg
Specification
Specification

7

G
J
H
H
A
C
A
B
C
FJHG
K
D
E
8

Extension Wing
Referring to Figures 4 and 5:
Hardware: (6) 7/16”x1-1/2” Hex Cap Bolts, (6) 7/16”
Lock Washers, (6) 7/16” Flat Washers & (2)
Extension Tables
Tools: 17mm Wrench, Straight Edge
1. Attach the left extension wing (A) to the
table (B)withthreeeachhex cap screws (E),
lock washers (F) and flat washers (G). Snug so
the extension wing can still be manually
adjusted but do not tighten.
2. Adjust the extension wing horizontally so the
front edge is flush with the front edge of the
saw table (C). Then, using the straightedge as
reference, adjust vertically so the tops of the
extension wing and saw table are flush.
3. Tighten the three extension wing mounting
screws.
4. Remove the mounting hardware (Fig. 5) from
the table on the right side; then attach the right
extension wing in the same manner.
Blade Installation/Replacement
Use care when working with or
around sharp saw blade to prevent injury!
To install or replace a blade (refer to Figure 6):
Tools: 22mm Wrench (10") 38mm Wrench (Aus 12")
32mm Wrench (12")
1. Disconnect machine from power source.
2. Raise the blade height all the way up and set
the blade tilt to 0º (refer to Handwheel
Adjustments on page 13).
3. Remove the table insert.
4. Rotate the arbor to line up the slot (C) with the
arbor lock (D).
5. Press the arbor lock (D) in the direction shown
by the arrow to engage it into the slot (C) in the
arbor. At the same time remove the arbor
nut (A), loosening with a wrech if necessary.
6. Remove the collar (B).
7. Install the blade, making sure the cutting teeth
at the top of the blade point toward the front of
the saw. If unsure, refer to Figure 8 for the
proper blade orientation.
8. Replace the collar (B) and arbor nut (A).
9. Engage the arbor lock (D) and tighten the nut
(A) with a wrench.
10. Lower the blade below the table.
Figure 4
Figure 5
Figure 6
AB
C
D
A
B
C
9

Riving Knife and Guard Installation
Description
Referring to Figure 7:
The complete riving knife and guard assembly is
shown in A.
Installation
Referring to Figure 8:
1. Set the saw blade to the 90 degree position
and raise it all the way (refer to Handwheel
Adjustments on page 13).
2. Remove the table insert (J).
3. Located inside the table and accessible
through the insert opening (Figure 8 inset),
place the quick-release clamp lock handle (K)
in the unlock position.
4. The floating clamp block (L) is spring loaded
and will move away (O) from the fixed
block (M), leaving a gap.
5. Insert the bottom of the riving knife (N1, N2) all
the way into the gap between the clamp blocks
(L, M); then lock the handle (K).
6. Replace the insert (J) back on the table. The
saw blade and riving knife should protrude
through the slot in the insert.
You should feel a snap as each piece locks in
position. Attempt to lift as a test to make sure that
they are securely locked in place.
Adjustment
The clamping blocks (L, M, Fig. 8) are adjusted at
the factory and no further adjustment of the blade
guard and riving knife assembly should be
necessary. However, proper alignment is very
important. Before operating the table saw, read
Riving Knife Adjustment (p.14) to verify and follow
the adjustment procedure if necessary.
Figure 7
Figure 8
A
E
J
M
N1
P
Note: please use the correct thickness of Riving
Knife to fit your blade.
10

11

12

Riving Knife Adjustment
Lateral alignment
The saw blade and riving knife must be in line as
close as possible with each other (lateral
alignment) for the prevention of kickback. Upon
initial blade guard and riving knife installation no
further adjustment should be necessary. Alignment
should be checked and adjusted, if required, after
each blade change.
Check the alignment as follows:
1. Remove the blade guard and pawl (A, E,
Fig. 7).
2. Place a straightedge (A, Fig. 13) on the table
so it rests against the blade (B, Fig 13) and
riving knife (C,Fig.13).Rotatethebladesothe
top of the blade tooth touches the straightedge.
The saw blade and riving knife must be in line.
If adjustment is required:
3. Remove the table insert.
4. Loosen the lock handle (A, Fig. 14) and
remove the riving knife, making a note as to
which direction the riving knife needs to be
moved to align it with the saw blade.
5. Using a 3mm hex wrench, make adjustments
to four set screws (D, Fig. 15) accessible
through openings located in the corners of the
floating clamp block (B, Fig. 15).
6. If necessary, repeat the above procedure.
Blade proximity alignment
The gap between the saw blade and riving knife
must be between 3 and 8mm (Figure 16) to reduce
the possibility of kickback. If adjustment is needed,
note whether the blade to knife gap needs to be
increased or decreased. Then adjust as follows:
1. Remove the blade guard, pawl, table insert and
riving knife.
Referring to Figure 15:
2. With a 4mm hex wrench, loosen two socket
head flat screws (E).
Note: These screws are accessible through
openings on the floating clamp block (B)
located diagonally on either side of the lock
handle (A). They secure the fixed clamp
block (C) to the riving knife extension plate (F).
Loosening these screws (E) will allow the fixed
clamp block (C) to slide back and forth on the
extension plate (F).
3. Slide the fixed clamp block (F) toward or away
from the saw blade as required.
Figure 13
Figure 14
Figure 15
Figure 16
B
A
C
A
F
13

4. Tighten the socket head flat screws ( (E).
5. Reinsert the riving knife; tighten the lock handle
(A, Fig. 14) and check that the saw blade/knife
gap is between 3 - 8mm (Figure 16).
Note: Attempt to make the gaps as even as
possible.
Blade Alignment
Tools: 8mm hex wrench, combination square,
marker
Blade alignment with the table is adjusted at the
factory. After a period of use, or, after moving the
saw to another location, the blade may no longer
be aligned with the table.
To check and align the blade (refer to Figure 17):
1. Disconnect the saw from the power source.
2. Raise the blade guard up a way from the blade.
3. Choose a tooth on the far side of the blade
(towards the rear) and position the tooth
slightly above the table insert. Mark the tooth
with a marker. Measure the distance from the
side of the blade to the right T-slot edge using
a combination square. Make sure to measure
between the teeth not on the tooth (Figure 17).
4. Rotate the blade toward the front so that the
marked tooth is just above the insert. Measure
the distance from the side of the blade to the
right T-slot edge. The two measurements
should be the same.
5. If they are not the same, loosen four hex
socket cap screws (A, Fig. 18) that hold the
table to the base. Two are shown in Figure 18.
6. Make the needed adjustments and tighten the
four hex socket cap screws firmly.
7. Check the alignment once again after
tightening hardware.
Figure 17
Figure 18
A
14

A
B
C

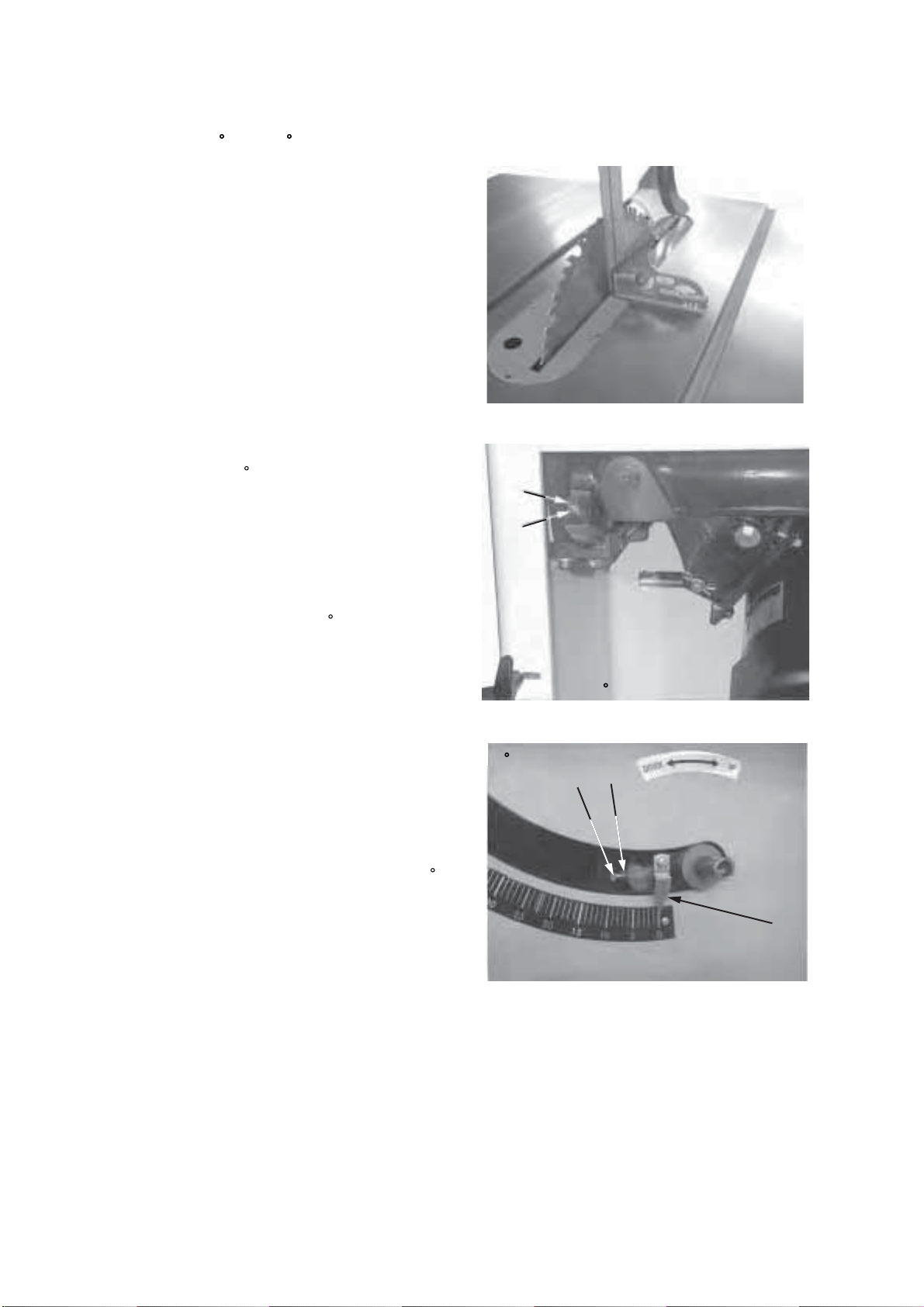

Adjusting 45 and 90 Positive Stops
The stops have been adjusted at the factory. After
a period of use, or, after moving the saw to another
location, the stops may no longer be set properly.
To check and adjust the stops:
Tools: 12mm wrench, combination square
1. Disconnect saw from power source.
2. Raise the saw blade to its maximum height
using the handwheel.
3. Set the blade at 90 degrees to the table by
turning the blade tilting handwheel clockwise
as far as it will go.
4. Place a combination square on the table
against the blade and check to see that the
blade is at a 90 angle to the table, Figure 19.
Make sure square is not touching a blade
tooth.
5. If blade is not at 90 degrees, open the motor
cover door, loosen lock nut (A, Fig. 20) and
turn adjusting stop screw (B, Fig. 20) on the
front trunnion in, or out. The adjusting stop
screw should stop against the front trunnion
bracket when the blade is 90 to the table.
6. Tighten the lock nut (A, Fig. 20).
7. Set the blade at 45 degrees to the table by
turning the blade tilting handwheel counter-
clockwise as far as it will go. Place a
combination square on the table against the
blade. Make sure square is not touching a
blade tooth.
8. If the blade is not 45 degrees, remove the
raising and lowering handle. Loosen lock nut
(A, Fig. 21) and turn adjusting stop screw
(B, Fig. 21) on the front trunnion in, or out. The
adjusting stop screw should stop against the
front trunnion bracket when the blade is 45 to
the table.
9. Check the accuracy of the pointer (C, Fig. 21)
on the angle scale and adjust, if necessary.
Assembly and adjustment of the saw are now
complete. Make sure all fasteners are tight. The
saw may now be placed into operation.
Figure 19
Figure 20
Figure 21
45 Stop Adjustment
90 Stop Adjustment
A
B
15

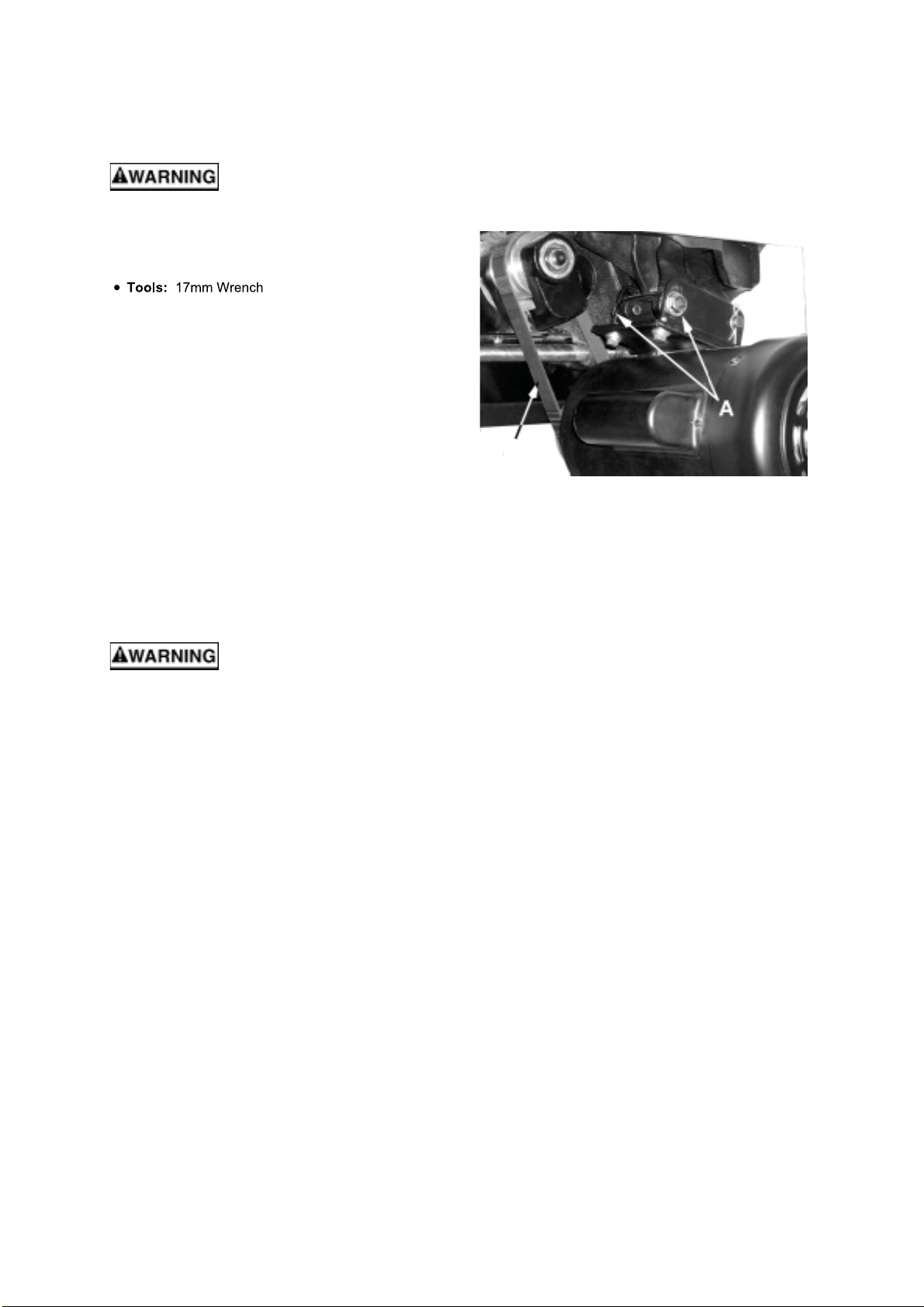

Changing the Belt
Make all machine adjustments
or maintenance with the machine unplugged
from the power source. Failure to comply may
cause serious injury!
Referring to Figure 22:
1. Disconnect the machine from the power
source, unplug.
2. Lower the blade to its lowest point.
3. Loosen two hex cap bolts (A).
4. Take the tension off of the belt (B) by lifting up
on the motor.
5. Remove the belt from the arbor and motor
pulleys.
6. Replace and tension the belt. The weight of the
motor should apply enough tension to the belt.
Tighten the hex cap bolts (A).
7. Check the belt tension after the saw has been
used for a few hours. Adjust as necessary.
Figure 22
Maintenance
Always disconnect power to the machine before performing maintenance. Failure
to do this may result in serious personal injury.
Cleaning
Note: The following maintenance schedule
assumes the saw is being used every day.
Daily:
Wipe down the table surface and grooves
with a rust preventive.
Clean pitch and resin from the saw blade.
Weekly:
Table surface must be kept clean and free of
rust for best results. Apply a coat of paste
wax to the surface to facilitate this. An
alternative is to apply white talcum powder,
rubbed in vigorously once a week with a
blackboard eraser; this will fill casting pores
and form a moisture barrier. This method
provides a table top that is slick and allows
rust rings to be easily wiped from the
surface. Important also is the fact that
talcum powder will not stain wood or mar
finishes as wax pickup does.
Clean motor housing with compressed air.
Wipe down the fence rails with a dry silicon
lubricant.
Periodic:
Keep the inside of the cabinet and trunnion
area clean.
Check for excessive play in the tilting and
raising mechanism and in the saw arbor and
re-adjust as required.
Check for belt tension and wear. Readjust or
replace belt as required.
Lubrication
Grease the tilting worm gear, raising worm
gear, castor system worm gear and the
trunnion areas with a good grade non-
hardening grease.
Check all adjustments after lubricating.
Miscellaneous
Routinely check condition of the following items:
Mounting bolts
Power switch
Saw blade
Blade guard assembly
B
16

Troubleshooting
Trouble Possible Cause Solution
Saw stops or will
not start
Overload tripped
Saw unplugged from wall or motor
Fuse blown or circuit breaker tripped
Cord damaged
Allow motor to cool and reset by
pushing off switch
Check all plug connections
Replace fuse or reset circuit breaker
Replace cord
Does not make
accurate 45 or
90 cuts
Stops not adjusted correctly
Angle pointer not set accurately
Miter gauge out of adjustment
Check blade with square and adjust
stops
Check blade with square and adjust
pointer
Adjust miter gauge
Material binds
blade when
ripping
Fence not aligned with blade
Warped wood
Excessive feed rate
Splitter not aligned with blade
Check and adjust fence
Select another piece of wood
Reduce feed rate
Align splitter with blade
Saw makes
unsatisfactory
cuts
Dull blade
Blade mounted backwards
Gum or pitch on blade
Incorrect blade for cut
Gum or pitch on table
Sharpen or replace blade
Turn blade around
Remove blade and clean
Change blade to correct type
Clean table
Blade does not
come up to
speed
Extension cord too light or to long
Low shop voltage
Motor not wired for correct voltage
Replace with adequate size cord
Contact your local electric company
Refer to motor junction box
Saw vibrates
excessively
Stand on uneven floor
Damaged saw blade
Bad poly v-belts
Bent pulley
Improper motor mounting
Loose hardware
Reposition on flat, level surface
Replace saw blade
Replace poly v-belts
Replace pulley
Check and adjust motor
Tighten hardware
Rip fence binds
on guide rails
Guide rails or extension wing not installed
correctly
Guide of rip fence not adjusted properly
Reassemble guide rails, refer to fence
manual
Adjust guides, refer to fence manual
Material kicked
back from blade
Rip fence out of alignment
Splitter not aligned with blade
Feeding stock without rip fence
Splitter not in place
Dull blade
Letting go of material before it is past
blade
Anti-kick back plates dull
Align rip fence with miter slot
Align splitter with blade
Install and use rip fence
Install and use splitter (with guard)
Replace blade
Push material all the way past blade
before releasing work
Replace or sharpen anti-kick back
plates
Blade does not
raise or tilt freely
Sawdust and debris in raising and tilting
mechanisms
Clean and regrease
17

18

Table and Cabinet Assembly(Right tilt)
lndex Part Description Size Qty.
No. No.
1………… UOTS10-1…………….…… Lock Knob………………. ……………... .…1
2………… UOTS10-2.………………… Miter Gauge Body.……… ……………... .…1
3………… UOTS10-3.………………… Hex Nut………………….. M5…………. .…3
4………… UOTS10-4.………………… Pointer…………………… ……………... .…1
5………… UOTS10-5.………………… Stop Link………………... ……………... .…1
6………… UOTS10-6.…………………. Set Screw.………………... M5ǘ
ǘ
5………. .…1
7………… UOTS10-7.…………………. Special Pin………………. M3ǘ
ǘ
6………. .…1
8………… UOTS10-8.…………………. Screw…………………….. M5ǘ
ǘ
20……... .…5
9………… UOTS10-9.…………………. Guide Bar.……………….. ……………... .…1
10……….. UOTS10-10……………….… Guide Washer…………… ……………... .…1
11……….. UOTS10-11……………….… Flat Head Screw………… M6ǘ
ǘ
8………. .…1
12……….. UOTS10-12……………….… Set Screw.………………... 1/4”ǘ
ǘ
3/8”….. .…6
13……….. TSCE10-13…………..…….. Table Insert……………… ……………... .…1
…………. TSCE12-13…………..…….. Table Insert……………… ……………... .…1
13A……... TSCE10-13A.……..……….. Dado Insert (optional)..… ……………... .…1
…………. TSCE12-13A.………..…….. Dado Insert (optional)..… ……………... .…1
14……….. TSCE10-14…………..…….. Table……………………... ……………... .…1
…………. TSCE12-14…………..…….. Table……………………... ……………... .…1
15……….. UOTS12-15…….……………. Extension Wing…………. ……………... .…2
…………. TSCE12-15…………..……... Extension Wing…………. ……………... .…2
16……….. UOTS10-16……………….… Hex Cap Screw………….. 7/16”ǘ
ǘ
1-1/2”. .…6
17……….. UOTS10-17……………….… Lock Washer.……………. 7/16”……….. .…6
18……….. UOTS10-18……………….… Flat Washer.……………... 7/16”……….. .…6
19……….. TSCE10-19…………..…….. Motor Cover…………….. ……………... .…1
…………. TSCE12-19………..……….. Motor Cover…………….. ……………... .…1
20……….. UOTS10-20……………….… Flange Nut………………. M6…………. .…1
21……….. UOTS10-21…………………. Handle…………………… ……………... .…1
22……….. UOTS10-22……………….… Foam Strip………………. ……………... .…1
23……….. UOTS10-23……………….… Flat Washer……………... 1/4”………… ...14
24……….. UOTS10-24……………….… Spring……………………. ……………... .…1
25……….. UOTS10-25……………….… Hex Cap Bolt.…………… M6ǘ
ǘ
50……... .…1
26……….. UOTS10-26……………….… Lock Washer.……………. 1/4”………… ...10
27……….. UOTS10-27……………….… Hex Nut………………… 1/4”………… .…6
19
