Specifications/Instructions
ACTIVAL™Flow Measurement and Control Valve
Standalone Model
(JIS 10K / FC200)
General
ACTIVAL™Flow Measurement and Control Valve, Model
FVY5130J/FVY5140J/FVY5150J, is a series of motorized
two-way valves with flanged-end connection. DN15 to DN80
rotary valve and actuator are integrated in a single unit.
In combination with the functions of a control valve, Model
FVY5130J/FVY5140J/FVY5150J measures and controls flow.
Model FVY5130J/FVY5140J/FVY5150J thus enables to control
temperature for air conditioning by controlling chilled/hot water
volume and to measure chilled/hot water flow.
For such a high functionality, compact size and simple
installation of Model FVY5130J/FVY5140J/FVY5150J are
incomparable.
3 kinds of control signals are available to operate the Model
FVY5130J/FVY5140J/FVY5150J.
- 4-20 mA DC input:
Provides proportional control in combination with a DDC
controller. (e.g., Infilex™GC Model WY5111, Model R35/R36)
- 2-10 V DC input:
Provides proportional control in combination with a DDC controller. (e.g., Infilex™AC Model WY5117)
- 0-10 V DC input:
Provides proportional control in combination with a DDC controller.
Flow data stored in the Model FVY5130J/FVY5140J/FVY5150J is retrieved via RS-485 communication (Modbus protocol). The
retrieved flow data is effective for energy-saving facility operation.
Notes
∗JIS: Japanese Industrial Standards ∗DDC: Direct Digital Control
Features
•Compact and lightweight:
Rotary valve actualizes small body and light weight.
•Valve and actuator integrated in a single unit.
•Model FVY5130J/FVY5140J/FVY5150J holds flow data
effective for maintenance and energy-saving facility
operation. The data is retrieved via RS-485
communication (Modbus protocol).
•Valve for chilled/hot water control applicable to large Cv
value, high rangeability, and low leakage.
•Durable actuator with low power consumption.
•Flow control/position control operation selectable:
For flow control, flow characteristic is selectable (equal
percentage or linear). For position control, flow
characteristic is equal percentage.
•In combination with Display Panel (Model
QY5010S1000) and the insertion-type pipe temperature
sensor (Model TY7830) or the temperature sensor for
pipe surface (Model TY7820), pressure, temperature,
and flow can be displayed on the Display Panel.
•CE Marking certified product:
Models FVY5130J, FVY5140J, and FVY5150J conform
to all the applicable standards of CE Marking.
IMPORTANT:
Do not use the data measured by Model FVY5130J/FVY5140J/FVY5150J for charging or dealing purposes.

AB-7042
2
Safety Instructions
Please read instructions carefully and use the product as specified in this manual. Be sure to keep this manual near by for ready
reference.
Usage Restrictions
This product is targeted for general air conditioning. Do not use this product in a situation where human life may be affected. If
this product is used in a clean room or a place where reliability or control accuracy is particularly required, please contact Azbil
Corporation’s sales representative. Azbil Corporation will not bear any responsibility for the results produced by the operators.
Warnings and Cautions
WARNING Alerts users that improper handling may cause death or serious injury.
CAUTION Alerts users that improper handling may cause minor injury or material loss.
Signs
Alerts users possible hazardous conditions caused by erroneous operation or erroneous use. The symbol inside I
indicates the specific type of danger.
(For example, the sign on the left warns of the risk of electric shock.)
Notifies users that specific actions are prohibited to prevent possible danger. The symbol inside Q graphically
indicates the prohibited action.
(For example, the sign on the left notifies that disassembly is prohibited.)
Instructs users to carry out a specific obligatory action to prevent possible danger. The symbol inside d graphically
indicates the actual action to be carried out.
(For example, the sign on the left indicates general instructions.)
WARNING

•Some of the product models weigh more than 18 kg. Carefully move the product with a vehicle or enough
manpower in an appropriate manner.
Careless lift or accidental drop of the product might cause injury or product damage.
CAUTION (1/2)

•Use the product under the operating conditions (temperature, humidity, power, vibration, shock, mounting
direction, atmospheric condition, etc.) as listed in the specifications.
Failure to do so might cause fire or device failure.
•Do not use the product in an atmosphere containing oxidizing gas, explosive gas, etc.
Doing so might damage the actuator, valve, or their components.
•Do not allow the fluid to freeze.
Doing so might damage the valve body and cause fluid leakage.
•Do not install the product nearby a steam coil or a hot-water coil.
High temperature radiation might cause malfunction of its actuator.
•Use the product within the rated operating ranges as listed in the specifications.
Failure to do so might cause device failure.

•Use this product within the lifespan given in the specifications and avoid instrumentations that keep the product to
operate excessively.
Continued use beyond this lifespan might cause device failure or fire.
•Installation and wiring must be performed by qualified personnel in accordance with all applicable safety
standards.
•All wiring must comply with applicable codes and ordinances.
•Before wiring and maintenance, be sure to turn off the power to the product.
Failure to do so might cause electric shock.
•Install the product in the proper position as specified in this manual.
Excessively tight connection to a pipe or improper installation position might damage the product.

AB-7042
3
CAUTION (2/2)
•Use full gaskets for the flat face flanges.
Failure to do so might damage the valve or cause fluid leakage.
•When installing the product with flange gasket, do not allow the flange gasket to go inside the pipe.
Doing so might cause incorrect measurement and control of flow.
•Do not use rubber gaskets.
Doing so might cause incorrect measurement and control of flow.
•After installation, make sure no fluid leaks from the valve-pipe connections.
Incorrect installation might cause fluid leakage.

•Do not allow any foreign objects inside the pipes during installation. Flush the piping to remove the foreign objects
after installation.
Foreign objects inside the piping might damage the product.
•Install the valve to the pipe so that they are electrically connected at the same potential. If the valve and the pipe
are electrically isolated, noise will be generated, causing incorrect measurement and control of flow.
•Do not put load or weight on the actuator of the product.
Doing so might damage the product.
•Do not carelessly touch the product when being used to control hot water.
Its temperature becomes high, and you might get burned.

•For wiring, strip each wire insulation as specified in this manual. If the strip length is longer than the specified, the
stripped part of the wires will be exposed, causing electric shock or short circuit between adjacent terminals. If it is
shorter, the stripped part will not contact the connector.
•To connect the wires to the screw terminals, use crimp terminal lugs with insulation.
Failure to do so might cause short circuit or electric shock.
•Firmly tighten the terminal screws.
Insufficient tightening of the terminal screws might cause overheating or fire.
•Be sure to provide a circuit breaker for the power to the product as the product does not have a power switch.
•Do not measure insulation resistance or withstand voltage of the product.
Doing so might cause accident or device failure.
•Do not touch the moving parts of the product.
Doing so might cause injury.
•Do not disassemble the product.
Doing so might cause electric shock or device failure.
•Dispose of the product as industrial waste in accordance with your local regulations.
Do not reuse all or part of this product.
IMPORTANT:
•This product is applicable only to chilled/hot water control. If the product is used to control any other medium
such as brine or air, flow cannot be measured or controlled.
•Install the valve so that the flow direction of process fluid agrees with the arrow indicated on the valve body. If
the flow direction is opposite to the arrow, correct measurement and control of flow is not assured.
•The actuator mounting position onto the valve cannot be changed. Therefore, do not loosen the yoke fixing
screws or the actuator fixing screws. Loose fixing screws lower flow measuring accuracy.
•Flow measuring accuracy in the subsection Measuring range and accuracy shown later is for the valve
sensor measuring 7 to 17 °C and 45 to 65 °C ranges, 0.1 to 0.8 MPa pipe pressure, and 0.03 to 0.3 MPa
differential pressure. Without these ranges, the flow measuring accuracy may lower.
•To keep flow measuring accuracy, control the quality of process fluid (water), and do not allow rust or foreign
object inside the valve. Rust or foreign object inside the valve lowers flow measuring accuracy.
•Thermally insulate the valve, and do not allow the process fluid to freeze. Frozen process fluid around the valve
sensor may damage the valve sensor and cause error output.

AB-7042
4
Model Numbers
Model FVY5130J/FVY5140J/FVY5150J is the model for the valve and actuator integrated into a single unit.
The model number label is attached to the yoke.
Base
model
number
Actuator
control
signal
Valve
rating/
material
Actuator
type ⎯
Valve
size/Cv
value
Description
FVY51 Flow measurement and control valve
3 4-20 mA DC input, pulse output, RS-485 communication (Modbus protocol)
4 2-10 V DC input, pulse output, RS-485 communication (Modbus protocol)
5 0-10 V DC input, pulse output, RS-485 communication (Modbus protocol)
0 JIS 10K / JIS FC200 for chilled/hot water
J IEC IP54 (dust-proof and splash-proof) protected and standard torque type
actuator with terminal block
00 Fixed
11 DN15 (1/2”) / 1.0 in Cv value
12 DN15 (1/2”) / 2.5 in Cv value
13 DN15 (1/2”) / 6.0 in Cv value
21 DN25 (1”) / 10 in Cv value
22 DN25 (1”) / 16 in Cv value
41 DN40 (11/2”) / 25 in Cv value
42 DN40 (11/2”) / 40 in Cv value
51 DN50 (2”) / 65 in Cv value
61 DN65 (21/2”) / 95 in Cv value
81 DN80 (3”) / 125 in Cv value

AB-7042
5
Specifications
For weight, refer to the table shown in the section Dimensions.
Valve and actuator (as a single unit) specifications
Item Specification
Environmental conditions Rated operating condition Transport/storage conditions (packaged)
Ambient temperature -20 °C to 50 °C
(Do not allow process fluid to freeze.)
-20 °C to 70 °C
Ambient humidity 5 %RH to 95 %RH
Vibration 4.9 m/s2(10 Hz to 150 Hz) 19.6 m/s2(10 Hz to 150 Hz)
Installation location Indoor / outdoor (Outdoor cover (optional) is required outdoors. Avoid locations with salt
pollution or atmosphere with corrosive gas.)
Installation orientation Installable in any position ranging from upright to sideways (90°tilted.)
* The valve sensor must face upward when tilted.
* Always install in upright position outdoors.
Manual operation Available. Refer to the subsection Manually opening/closing valve.
Position for shipment 100 % (fully open) preset at factory.
Valve specifications
Item Specification
Model Two-way valve with flanged-end connection
Body pressure rating JIS 10K (Max. working pressure: 1.0 MPa)
End connection JIS 10K flanged-end, flat face flange (FF)
Model number Nominal size Cv Close-off ratings
FVY5130J0011/FVY5140J0011/FVY5150J0011 DN15 (1/2”) 1.0 1.0 MPa
FVY5130J0012/FVY5140J0012/FVY5150J0012 DN15 (1/2”) 2.5 1.0 MPa
FVY5130J0013/FVY5140J0013/FVY5150J0013 DN15 (1/2”) 6.0 1.0 MPa
FVY5130J0021/FVY5140J0021/FVY5150J0021 DN25 (1”) 10 1.0 MPa
FVY5130J0022/FVY5140J0022/FVY5150J0022 DN25 (1”) 16 1.0 MPa
FVY5130J0041/FVY5140J0041/FVY5150J0041 DN40 (11/2”) 25 1.0 MPa
FVY5130J0042/FVY5140J0042/FVY5150J0042 DN40 (11/2”) 40 1.0 MPa
FVY5130J0051/FVY5140J0051/FVY5150J0051 DN50 (2”) 65 1.0 MPa
FVY5130J0061/FVY5140J0061/FVY5150J0061 DN65 (21/2”) 95 1.0 MPa
Size, Cv, Close-off rating
FVY5130J0081/FVY5140J0081/FVY5150J0081 DN80 (3”) 125 1.0 MPa
Applicable fluid Chilled/hot water
Allowable fluid temperature 0 °C to 80 °C (Non-freezing)
∗Frozen process fluid around the valve sensor may damage or may cause output error.
Rangeability 100 : 1
Flow characteristic Equal percentage
For flow control, flow characteristic is selectable between equal percentage and linear.
Seat leakage 0.01 % of rated Cv value (0.0006 Cv or less for DN15 model)
Materials Body Gray cast iron (equivalent to JIS FC200)
Plug, stem Stainless steel (equivalent to JIS SCS13)
Seat ring Heat-resistant PTFE
Gland packing Inorganic fiber
Gasket Expansion graphite sheet
Paint Gray
Actuator to be combined Integrated with the valve

AB-7042
6
Actuator specifications
Item Specification
Power supply 24 V AC ±15 %, 50 Hz/60 Hz
Power consumption 8 VA
Timing 63 ±5 sec (50 Hz) / 53 ±5 sec (60 Hz)
Control signal Model FVY5130J 4-20 mA DC input (Input impedance: 250 Ω)
Model FVY5140J 2-10 V DC input (Input impedance: 500 kΩ)
Model FVY5150J 0-10 V DC input (Input impedance: 500 kΩ)
Input type Potential free (dry) contact inputDI*1
(Cooling/heating switch
signal)
Voltage, current 12 V DC, 5 mA
Output type Open collector output
Contact rating 30 V DC, Max. 60 mA
Pulse output*2
(Totalized energy output
Totalized flow output) Pulse rate*33.4 Hz or lower
Temperature sensor input*4Pt100 RTD, 3-wire
Transmission system RS-485
Transmission speed 4800 bps
Connection Multi-drop (1 to 31 max.)
Communication
(Modbus protocol)*5
Transmission distance Max. 500 m
Transmission system AP-bus (RS-485 communication)
Transmission speed 4800 bps
Communication
(Display Panel)
Transmission distance Max. 50 m
Materials Case Die cast aluminum
Top cover, terminal
cover
Polycarbonate resin
Yoke Steel plate (bright chromate finish)
Position indication Pointer of the actuator shows the position (0 % to 100 %).
Position and flow can be indicated on the optional Display Panel.
Enclosure rating IEC IP54 (dust-proof and splash-proof)
Wire connection Power, control signal,
DI, pulse output
M3.5 screw terminal connection
Temperature sensor
(Pt100 input)
6-pin (3-pin ×2) connector
RS-485
communication
6-pin (3-pin ×2) connector
Display Panel 4-pin connector
Operation status indicator LED 1 red LED
Status LED indication
Normal Repetition of
1-second ON →1-second OFF.
Major alarm Continuous ON.
Minor alarm Repetition of
1-second ON →0.25-second OFF →
0.25-second ON →0.25-second OFF.
Communication error
(and minor alarm)
Repetition of
0.25-second ON →0.25-second OFF
Notes:
∗1 Heating and cooling modes are switched over by DI (open/closed contact). Heating and cooling modes are also switched over by setting the
Display Panel (Model QY5010S1000). Refer to AB-7044 Instruction Manual of ACTIVAL Flow Measurement and Control Valve
Standalone Model for details.
∗2 Totalized energy or totalized pulse rate for the pulse output is selectable by setting the Display Panel (Model QY5010S1000). Refer to
AB-7044 Instruction Manual of ACTIVAL Flow Measurement and Control Valve Standalone Model for details.
∗3 Pulse rate is set with the Display Panel (Model QY5010S1000). Refer to AB-7044 Instruction Manual of ACTIVAL Flow Measurement
and Control Valve Standalone Model for details.
∗4 In combination with 2 temperature sensors (Pt100 RTD, 3-wired), the Model FVY5130J/FVY5140J/FVY5150J is applicable to simplified
energy calculation. Refer to AB-7044 Instruction Manual of ACTIVAL Flow Measurement and Control Valve Standalone Model for
details.
∗5 Flow measuring data and device data are output in Modbus protocol via RS-485 communication. Besides, in combination with the
RS-485/analog output signal converter (Model RYY792C3001), flow measuring data is converted in 4-20 mA DC output signal. Refer to
AB-7044 Instruction Manual of ACTIVAL Flow Measurement and Control Valve Standalone Model for details.
1s
1s
ON
OFF
1s
0.25s
0.25s
0.25s
ON
OFF
0.25s
0.25s
0.25s
0.25s 0.25s
0.25s
ON
OFF
0.25s

AB-7042
7
Measuring range and accuracy
IMPORTANT:
Flow measuring accuracy shown in the below is for the valve sensor measuring 7 to 17 °C and 45 to 65 °C
ranges, 0.1 to 0.8 MPa pipe pressure, and 0.03 to 0.3 MPa differential pressure. Without these ranges, the flow
rate measuring accuracy may lower.
(1/2)
Item Specification
Setting range Model number Nominal size Cv value Max. set flow
FVY5130J0011/FVY5140J0011/FVY5150J0011 DN15 (1/2”) 1.0 10 l/min
FVY5130J0012/FVY5140J0012/FVY5150J0012 DN15 (1/2”) 2.5 25 l/min
FVY5130J0013/FVY5140J0013/FVY5150J0013 DN15 (1/2”) 6.0 60 l/min
FVY5130J0021/FVY5140J0021/FVY5150J0021 DN25 (1”) 10 100 l/min
FVY5130J0022/FVY5140J0022/FVY5150J0022 DN25 (1”) 16 160 l/min
FVY5130J0041/FVY5140J0041/FVY5150J0041 DN40 (11/2”) 25 250 l/min
FVY5130J0042/FVY5140J0042/FVY5150J0042 DN40 (11/2”) 40 400 l/min
FVY5130J0051/FVY5140J0051/FVY5150J0051 DN50 (2”) 65 650 l/min
FVY5130J0061/FVY5140J0061/FVY5150J0061 DN65 (21/2”) 95 950 l/min
FVY5130J0081/FVY5140J0081/FVY5150J0081 DN80 (3”) 125 1250 l/min
Flow measuring
Measuring
accuracy
(Factory preset)
Notes:
∗1 ΔPv is differential pressure between valve inlet pressure (Pvin) and outlet pressure (Pvout).
∗2 Flow measuring accuracy above may change depending on the conditions including valve positions, differential pressure, etc.
0 10 20 30 40 50 60 70 80 90 100
DN15
Cv1.0, ±10 %RD
Cv2.5, ±7 %RD
Cv6.0 ±7 %RD
DN25 to DN80
±5 %RD
DN15
±3％FS*2
DN25-DN80
±1％FS*2
300
250
200
150
100
50
0
ΔPv*1(kPa)
Flow (%)

AB-7042
8
(2/2)
Item Specification
Measuring range 0 MPa to 1.0 MPa*4Pressure
measuring Accuracy ±0.5 %FS (factory preset) *5
Measuring range -10 °C to 100 °C
Valve sensor*3
Temperature
measuring Accuracy ±1.0 °C (factory preset) in the 0 °C to 80 °C measuring range*6
(within 0 °C to 80 °C measuring range, at -25 °C to 40 °C temperature difference between measuring
temperature and ambient temperature)
Pt100 input
Temperature
measuring
Accuracy*7Conversion accuracy: ±0.4 °C (at 0 °C to 50 °C ambient temperature)
±0.6 °C (at -20 °C to 0 °C ambient temperature)
Error due to wiring length: ±0.15 °C (15 ±15 m)
in the 0 to 80 °C measuring range
Flow measuring accuracy*9Temperature
difference b/w
supply and
return water
±5 %RD ±7 %RD ±10 %RD ±1 %FS ±3 %FS
ΔT = 5 °C ±25 %RD ±27 %RD ±29 %RD ±21 %FS ±23 %FS
ΔT = 10 °C ±15 %RD ±17 %RD ±20 %RD ±11 %FS ±13 %FS
Energy
calculation*8
(with two
temperature
sensors (Pt100
input) connected)
Accuracy
ΔT = 15 °C ±12 %RD ±14 %RD ±17 %RD ±8 %FS ±10 %FS
Notes:
∗3 Valve sensor is the temperature and pressure sensors mounted onto the valve (Model FVY5130J/FVY5140J/FVY5150J), measuring valve
surface temperature and inlet and outlet flow pressure.
∗4 When you test the withstand pressure of the valve sensor manufactured on and after Nov. 1, 2011 (date code: 1144 or greater), up to
1.6 MPa pressure can be applied to the valve sensor.
∗5 The above pressure measuring accuracy is for the 7 °C to 65 °C flow temperature. If the flow temperature is out of the 7 °C to 65 °C range,
the valve sensor flow measuring accuracy may lower.
∗6 For accurate measuring of flow temperature, thermal insulation is required. Refer to the subsection Heat insulation for applying thermal
insulation.
∗7 Overall accuracy is calculated based on the sensing accuracy of the temperature sensors connected, the conversion accuracy, and the
error due to wiring length.
∗8 Energy calculation accuracy is calculated from the flow measuring accuracy at 1 °C measuring error of the temperature difference.
∗9 The flow measuring accuracy in the table corresponds to the data shown in the above flow measuring accuracy graph.
Data in Model FVY5130J/FVY5140J/FVY5150J
Data type Description
Flow data Following items are displayed on Display Panel (Model QY5010S1000):
Actual flow, supply water temperature, return water temperature, valve inlet pressure, valve outlet pressure,
actual flow (% in bar graph), actual valve position (% in bar graph)
Following items are output in analog signal using RS-485/analog output signal converter (Model
RYY792C3001):
Control setting value, actual valve position, actual flow, set flow, supply water temperature, return water
temperature, valve inlet pressure, valve outlet pressure, instantaneous energy
Following items are retrieved via RS-485 communication (Modbus protocol):
Control setting value, actual valve position, actual flow, set flow, supply water temperature, return water
temperature, valve inlet pressure, valve outlet pressure, instantaneous energy, totalized flow, totalized
energy, cool/heat status, point status*1
Device data Following items are retrieved via RS-485 communication (Modbus protocol):
Model number, date of manufacture, version of hardware, version of software, serial number, power-ON time,
operating time, operating level, number of operations, number of reverse, range, device status*2
Notes:
∗1 Point status indicates an error of analog data. Refer to AB-7044 Instruction Manual of ACTIVAL Flow Measurement and Control Valve
Standalone Model for details.
∗2 Device status indicates the status of this product. Refer to AB-7044 Instruction Manual of ACTIVAL Flow Measurement and Control
Valve Standalone Model for details.

AB-7042
9
Wire Specifications
Item Specification Length*1Connection
Power JIS CVV, JIS IV
0.75 mm2, 1.25 mm2, 2.0 mm2
⎯M3.5 screw connection
Control signal, DI (Cooling/heating switch
signal), pulse output
JIS CVV, JIS IV, KPEV®*3, JCS*2CVV-S
0.75 mm2, 1.25 mm2
50 m M3.5 screw connection
Display Panel JIS VCTF (0.3 mm2×4-core)
φ4.5 mm to φ6.0 mm
50 m 4-pin connector
Temperature sensor for
pipe surface
(Pipe sensor)
3-core cable assembled with the sensor 30 m
Temperature
sensor
(Pt100 input)
Insertion-type pipe
temperature sensor
JIS VCTF (0.3 mm2×3-core) 30 m
6-pin (3-pin ×2) connector
RS-485 communication KPEV®-S*32P, JCS IPEV-S 2P
0.9 mm2
500 m*46-pin (3-pin ×2) connector
Notes:
∗1 Total length of the product - relay terminal block wiring and the relay terminal block - load (device in connection).
∗2 JCS: Japanese Electric Wire and Cable Makes' Association
∗3 KPEV: Wire standard provided by Furukawa Electric Co., Ltd.
∗4 Max. wiring length is 100 m for the Model FVY5130J/FVY5140J/FVY5150J with the RS-485/analog output signal converter (Model
RYY792C3001).
Options
For options, separate order is required.
Item Specification Note
Display Panel Model QY5010S1000* Data displaying device
for Model FVY5130J/FVY5140J/FVY5150J series
For the specifications of Display Panel,
refer to AB-7043 Specifications/
Instructions of Display Panel.
Model TY7820Z0P01 Total length: 1.5 m
Model TY7820Z0P05 Total length: 5 m
Model TY7820Z0P10 Total length: 10 m
Temperature sensor
for pipe surface
(Pipe sensor)
Model TY7820Z0P30 Total length: 30 m
For the specifications of the pipe sensor,
refer to AB-6923 Specifications/
Instructions of Temperature Sensor for
Pipe Surface.
Insertion-type pipe temperature sensor
Model TY783
For the specifications of the insertion type pipe temperature sensor, refer to AB-5429
Specifications/Instructions of Pipe Temperature Sensor.
Outdoor cover Part No. DY3001A1017 Required when the product is installed outdoors.
Cable gland with three ports
Part No. DY7000A1000
Do not use it outdoors.
For the specifications of the cable gland with three ports, refer to AS-923E Specifications of
Cable Gland with Three Ports.
RS-485/analog output signal converter
Model RYY792C3001
Signal converter from RS-485 to 4 to 20 mA DC. For the specifications of RS-485/analog
output signal converter, refer to AB-7045
Specifications/Instructions of RS-485/
Analog Output Signal Converter.
Hot-rolled steel (JIS SS400), electro-galvanized
Part number Applicable valve size
83168456-001 DN15
83168456-002 DN25
83168456-003 DN40
83168456-004 DN50
83168456-005 DN65
Valve flange adapter kit
(for replacing Model V5063/V5064 with
Model FVY5130J/FVY5140J/FVY5150J)
83168456-006 DN80
Note:
∗Order Display Panel (Model QY5010S1000) and connect it to Model FVY5130J/FVY5140J/FVY5150J. Display Panel is required to set the
Model FVY5130J/FVY5140J/FVY5150J.
CE Marking Conformity
This product complies with the following Electromagnetic Compatibility (EMC).
EMC : EN61000-6-2, EN55011 Class A

AB-7042
10
Dimensions
Model number Valve size
(DN) H (mm) H1(mm) L (mm) L1(mm) t (mm) φC (mm) φD (mm) φh (mm) N Weight (kg)
FVY51X0J001X 15 213 75 108 50 16 70 95 15 4 4.6
FVY51X0J002X 25 228 90 127 60 18 90 125 19 4 6.6
FVY51X0J004X 40 241 103 165 82.5 20 105 140 19 4 10.0
FVY51X0J0051 50 245 107 178 89 20 120 155 19 4 11.5
FVY51X0J0061 65 262 124 190 90 22 140 175 19 4 16.0
FVY51X0J0081 80 263 125 203 100 22 150 185 19 8 18.5
Figure 1. Dimensions (mm)
70 70
L1
L
t
H1
H
138
φC φD
82 85
N ×φh
Valve senso
r
(in valve sensor cover)
Flow direction indication
Valve sensor cable

AB-7042
11

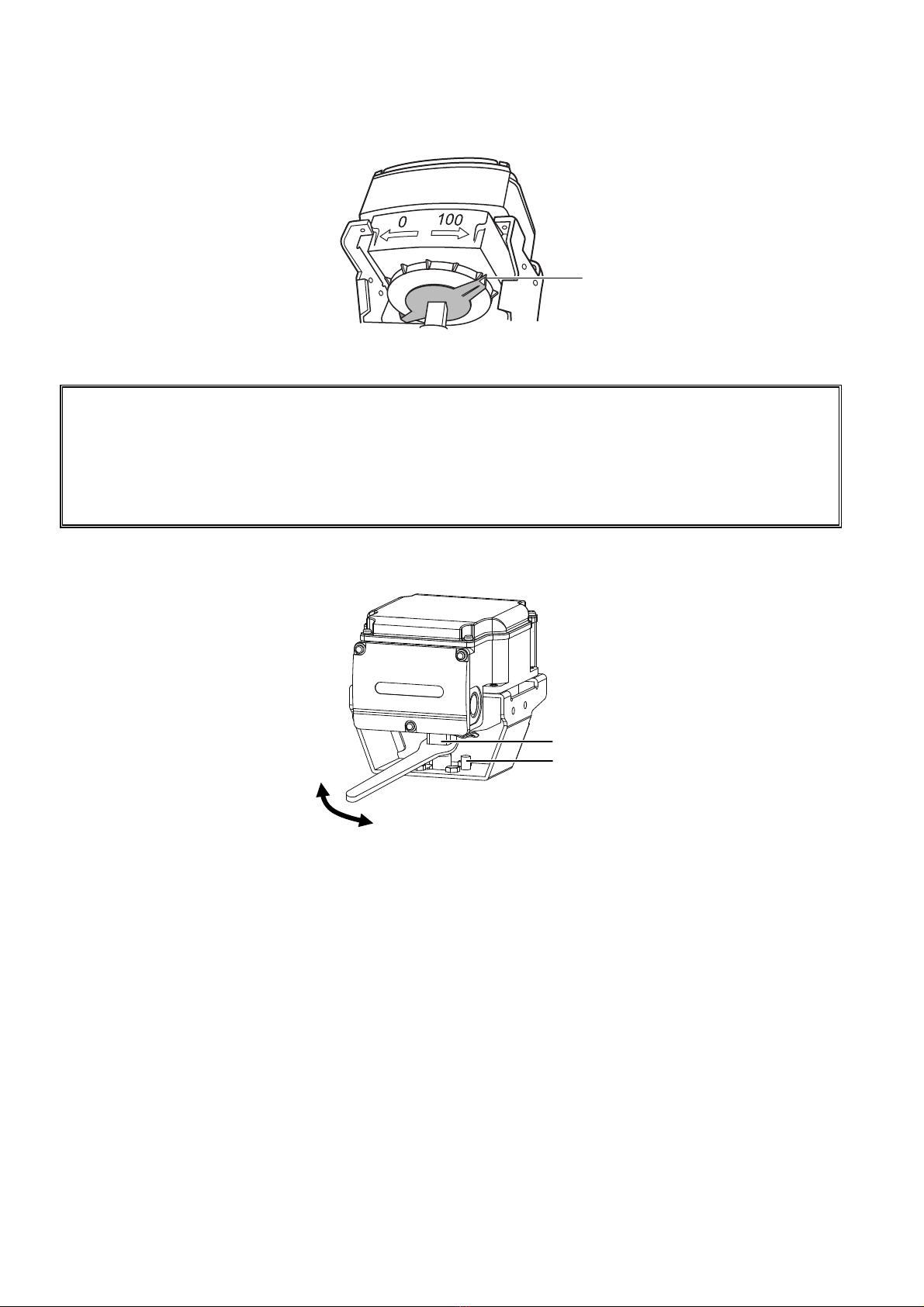

Parts Identification
Valve details
Figure 2. Parts identification: Valve details
Actuator details (Connectors, ports, terminals, and LED)
Figure 3. Parts identification: Actuator details
Top cover
Terminal cover
Knockout
hole
Top cover
Pointer
Joint
Plug
A
ctuato
r
Yoke
Valve bod
y
Bonnet
Terminal
cove
r
O-ring
Gland packing
Stem
Spring
Seat ring
Heat insulation
Connector for Pt100 input
Row T1: Supply water temperature
Row T2: Return water temperature
Reset switch
Connector for
Display Panel
24 V AC
Power
Port for
Display Panel cable
Port for
temperature sensor
(Pt100 input) cable
Port fo
r
valve sensor cable
Port fo
r
temperature senso
r
(Pt100 input) cable
Operating status LED (red)
Connector for
RS-485 communication
Pulse
output
DI
(Cooling/heating
switch)
Control
signal
input

AB-7042
12
Installation
Precautions for installation
CAUTION

•Installation and wiring must be performed by
qualified personnel in accordance with all
applicable safety standards.

•Install the product in the proper position as
specified in this manual.
Excessively tight connection to a pipe or
improper installation position might damage the
product.

•Use full gaskets for the flat face flanges.
Failure to do so might damage the valve or cause
fluid leakage.

•Do not use rubber gaskets.
Doing so might cause incorrect measurement
and control of flow.

•After installation, make sure no fluid leaks from
the valve-pipe connections.
Incorrect installation might cause fluid leakage.

•Do not allow any foreign objects inside the pipes
during installation. Flush the piping to remove the
foreign objects after installation.
Foreign objects inside the piping might damage
the product.

•Install the valve to the pipe so that they are
electrically connected at the same potential. If
the valve and the pipe are electrically isolated,
noise will be generated, causing incorrect
measurement and control of flow.
IMPORTANT:
Model FVY5130J/FVY5140J/FVY5150J requires
straight pipe runs (valve diameter ×2 long) on the
inlet and outlet sides for accurate flow measuring.
•Model FVY5130J/FVY5140J/FVY5150J is the valve and
actuator integrated into a single unit. Do not combine the
valve with any other actuator, or do not combine the
actuator with any other valve.
•To remove foreign objects inside the pipes, install a
strainer with 40 or more meshes on the inflow side of
each valve. In a case that the strainers cannot be
installed on the inflow side of each valve, install it on the
pipe diverting sections (sections diverting from main
piping system to sub piping system).
•Install the valve so that the flow direction of process fluid
agrees with the arrow indicated on the valve body.
Installation location
CAUTION

•Do not use the product in an atmosphere
containing oxidizing gas, explosive gas, etc.
Doing so might damage the actuator, valve, or
their components.

•Do not install the product nearby a steam coil or
a hot-water coil.
High temperature radiation might cause
malfunction of its actuator.
IMPORTANT:
•The top and the terminal covers might be corroded
by chemicals and organic solvent or their vapor.
Do not expose the Model FVY5130J/FVY5140J/
FVY5150J to such substances/vapor.
•Although the product can be used in high humidity
environments (max. 95 %RH), do not immerse the
actuator in water.
•Although the product can be used outdoors, be
sure not to expose the product to direct sunlight.
Provide the outdoor cover (optional) to install
outdoors.
•Install the product in a position allowing easy access for
maintenance and inspection. 300 mm clearance on top
of and around the actuator, 600 mm clearance on the
front are required, as shown in Fig. 4. When installing the
product in a ceiling space, provide an access panel
within the 500 mm radius of the product. And, place a
drain pan under the valve.
•Do not mount the product on a pipe where water hammer
occurs, or where solid objects including slug may
accumulate.
Figure 4. Clearance for maintenance
300 mm
(rear)
300 mm (top)
300 mm
(left)
300 mm
(right)
600 mm
(front)
600 mm
(front )
Valve senso
r

AB-7042
13
Mounting position
Model FVY5130J/FVY5140J/FVY5150J can be mounted in any position ranging from upright to sideways (90°tilted). Note that
the Model FVY5130J/FVY5140J/FVY5150J must be installed with the valve sensor vertically positioned above the valve body
when being tilted. It is also installable on the vertical upflow pipe. (See Fig. 5.) However, the Model FVY5130J/FVY5140J/
FVY5150J must be installed always in upright position outdoors.
Do not mount Model FVY5130J/FVY5140J/FVY5150J; with its actuator vertically below the valve, on a vertical downflow pipe, or
with the valve sensor facing downward.
Correct mounting positions
Incorrect mounting positions
Figure 5. Examples of correct and incorrect mounting positions
Piping
IMPORTANT:
Do not put force on the valve sensor or its cable to prevent failure.
•Check that the model number of the product is what you ordered. The model number is shown on the label attached to the
yoke.
•Install a bypass pipe and gate valves on the inflow, outflow, and bypass sides. Also, install a strainer with 40 or more
meshes on the inflow side.
•Before activating the product, fully open (in 100 % position) the valve and flush the pipes (with the product installed) at the
maximum flow to remove all the foreign objects. (Factory preset position: 100 %)
Heat insulation
Apply heat insulation to the valve, as and shown in Fig. 2. Do not apply it to the yoke or the actuator. If the heat
insulation is inappropriate, temperature measuring accuracy may lower. If the yoke and/or the actuator are covered with
insulation material, the pointer cannot be checked or may be distorted.
When cutting the insulation material that covers the valve, be sure not to damage the valve sensor cable.
Upright Upflow 90°tilted
(Valve sensor faces upward.)
Flow
direction
Flow direction
Flow direction
Valve senso
r
Upside down
(Actuator vertically below the valve.)
Downflow 90°tilted
(Valve sensor faces downward.)
Flow
direction
Flow direction
Flow direction

AB-7042
14
Factory preset position
The actuator shaft is positioned at 100 % (in fully open position) for shipment. The shaft is thus completely turned clockwise, and
the pointer points at ‘100’. (See Fig. 6.)
Figure 6. Pointer position for shipment
Manually opening/closing valve
IMPORTANT:
•Manually opening/closing valve with the power (24 V AC) applied may damage the actuator.
•To manually open/close valve, do not turn the joint beyond the fully open (100)/closed (0) mark.
•To manually open/close valve, slowly turn the joint. If shock is sent to the actuator, the actuator may get
damaged.
•Do not touch the pin with a wrench (tool) when manually opening/closing valve.
Disconnect the power from actuator before manual operation. As shown in Fig. 7, from the front of the actuator, hold the joint
using a tool such as a wrench, and turn the joint slowly toward the set position.
Figure 7. Manual operation
Pointer
Joint
Pin
Hold the joint using a wrench
and turn slowly.

AB-7042
15
Wiring
CAUTION
•Installation and wiring must be performed by qualified personnel in accordance with all applicable safety
standards.
•Before wiring and maintenance, be sure to turn off the power to the product.
Failure to do so might cause electric shock.
IMPORTANT:
•This product is designed for 24 V AC power supply voltage.
Do not apply any other power voltage (e.g., 100 V AC, 200 V AC) to the product.
•To prevent damage, cover the terminals except when connecting/disconnecting wires.
•Do not leave any refuse including metal chips inside the actuator after cutting a knockout hole and after
connecting the wires.
Wiring procedure
1) To lead the wires into the terminals, cut out a knockout hole for a wiring port. Two knockout holes are provided on the
bilateral sides of the actuator terminals. Select a knockout hole according to the conduit mounting direction, and cut it out by
lightly knocking the hole using a screwdriver.
2) Unscrew the 3 setscrews (M4 ×10) of the terminal cover and remove the terminal cover, as shown in Fig. 9.
Figure 8. Knockout hole for wiring port Figure 9. Terminal cover removal
3) Refer to Figs. 3 and 10 and correctly connect the wires to the M3.5 screw terminals. Note that the wires of the temperature
sensor, Display Panel, and RS-485 communication lines are connected to the connectors.
Figure 10. Terminals arrangement
4) Separate the power supply line from the signal lines. Do not lead the power supply line through the wiring port (knockout
hole) for the signal lines since the power supply line may generate noise causing operation error and failure.
A
ctuator of Model FVY5130J/FVY5140J/FVY5150J
1234567
8
∼⊥
24 V AC cable Pulse output
+ -
DI
(Cooling/heating
switch signal)
+ - + -
Control signal
input
2. Remove
terminal cover.
1. Unscrew the
setscrews.
M3.5 screw terminals
Knockout hole for wiring port

AB-7042
16
5) Connect the wires of each line. After connecting the wires, lightly pull them from the wiring ports so that minimum wire slack
remains inside the actuator. Too long wire slack inside the actuator may block the terminal cover to close or may hold down
the reset switch and interrupt the operation. See Fig. 3 for the location of the reset switch.
6) Tighten the seal connectors of the wiring ports. On the wiring ports for Display Panel cable and temperature sensor (Pt100
input) cable, tighten the seal connectors until the clearance between the wiring port and the seal connector becomes
narrower than 1 mm.
Cable may get twisted as you tighten the seal connector. In such a case, loosen and remove the seal connector and untwist
the cable, then re-tighten the seal connector.
Wires connection of the temperature sensor (Pt100 input)
Wire color*
Terminal Temperature
sensor for pipe
surface
Insertion-type pipe
temperature sensor Description
T1A Red Red Pt100 A (supply water temperature)
T1B White Black Pt100 B (supply water temperature)
T1B White White Pt100 B (supply water temperature)
T2A Red Red Pt100 A (return water temperature)
T2B White Black Pt100 B (return water temperature)
Figure 13. 6-pin connector for temperature
sensor (Pt100 input) T2B White White Pt100 B (return water temperature)
Note: ∗Wire color of the insertion-type pipe temperature sensor shown in the above
table is the wire colors of the recommended cable.
1) Pass the 3-core cable of the temperature sensor (Temperature sensor for pipe surface/Insertion-type pipe temperature
sensor) through the actuator port for the temperature sensor (Pt100 input). (See Fig. 3 for the location of the port.) Use JIS
VTCF 0.3 mm2×3 cores cable or equivalent for the insertion-type pipe temperature sensor.
2) Strip the wire sheath. Strip length is 7 mm. (See Fig. 14.)
Figure 14. Wire sheath strip length
3) Unplug the 6-pin connector for temperature sensor (Pt100 input) from the actuator socket, and connect the sheath stripped
wires (3-core cable of the temperature sensor (Pt100 input)) to the connector. Insert a slotted screwdriver (with 2.5 ×0.4 mm
blade tip) into a square hole of the connector for clamp release. The screwdriver successfully releasing the clamp remains
the inserted position. Insert the stripped wire into a circular hole (terminal), and then pull out the screwdriver. Make sure that
all the wires are completely connected by lightly pulling the wires.
Figure 15. Wires connection to the 6-pin connector for the temperature sensor
4) Plug the connector into the actuator socket.
T1A T1B T1B
T2A T2B
T2B
Seal
connectors
1 mm (max.)
clearance
1 mm (max.)
clearance
Figure 12. Clearance for seal connector connection
Wiring port fo
r
valve senso
r
Wiring port fo
r
temperature senso
r
(Pt100 input)
Knockout hold fo
r
the wiring port
6-pin connector fo
r
RS-485 communication
6-pin connector for
temperature sensor
(Pt100 input)
4-pin connector for
Display Panel
Figure 11. Connectors for the temperature sensor,
Display Panel, and RS-485 communication
Insert a screwdriver.
Insert a wire. Lightly pull
connected wires.
7 mm

AB-7042
17
Wires connection of Display Panel
Terminal Wire color* Description
RED Red 12 V DC
BLK Black 0 V
WHT White AP-bus (+)
GRN Green AP-bus (-)
Figure 16. 4-pin connector for Display Panel
Note: ∗Wire color of the Display Panel shown in the above table is the wire colors of the
recommended cable.
1) Pass the 4-core cable of Display Panel through the actuator port for Display Panel. (See Fig. 3 for the location of the port.)
2) Strip the wire sheath. Strip length is 8 mm. (See Fig. 14.)
3) Unplug the 4-pin connector for Display Panel from the actuator socket, and connect the sheath stripped wires to the
connector. Hold down a clamp release button using a slotted screwdriver, insert the stripped wire into a terminal, and then
release the button. Make sure that all the wires are completely connected by lightly pulling out the wires.
Figure 17. Wires connection to the 4-pin connector for Display Panel
4) Plug the connector into the actuator socket.
Wires connection of RS-485 communication
Terminal Description
In DA DA
In DB DB
In SG SG
Out DA DA
Out DB DB
Figure 18. 6-pin connector for RS-485 communication Out SG SG
1) Pass the cable of RS-485 communication through the actuator wiring port (a knockout hole).
2) Strip the wire sheath. Strip length is 7 mm.
3) Unplug the 6-pin connector for RS-485 communication from the actuator socket, and connect the sheath stripped wires to
the connector. Insert a slotted screwdriver (with 2.5 ×0.4 mm blade tip) into a pocket on the top/bottom of the connector for
clamp release. The screwdriver successfully releasing the clamp remains the inserted position. Insert the stripped wire into
a terminal, and then pull out the screwdriver. Make sure that all the wires are completely connected by lightly pulling out the
wires.
Figure 19. Wires connection to the 6-pin connector for RS-485 communication
Wires connection of control signal, DI (Cooling/heating switch signal), pulse output
1) Pass the cable of control signal/DI/pulse output through a wiring port on the other side of the port for power supply cable.
2) Use 4- or 6-core cable for connecting the multiple signal lines.
DA DB SG
In
Out
DA DB SG
R B W G R: RED
B: BLK
W: WHT
G: GRN
Hold down a button. Insert a wire.
Lightly pull out
connected wires.
Insert a screwdriver.
Insert a wire.
Lightly pull out
connected wires.

AB-7042
18
Precautions for connection
1. RS-485 communication (See Figs. 26 and 27.):
•Pass the cable of RS-485 communication through a wiring port (knockout hole) on the other side of the wiring port for power
supply cable. Attach the optional cable gland with three ports (Model DY7000A1000) to the wiring port to share the wiring
port with signal lines.
•Connect the wires of RS-485 communication cable to the unplugged connector from the actuator socket. After connecting
the wires to the connector, plug the connector into the socket.
•Do not use terminators.
•Do not connect between the terminals DA and DB.
•Single-point ground is required for one side of the shielded cable.
•Connect SG wire for stable communication link.
•To daisy-chain the communication line, connect the wires of the receiving line to the terminals In DA, In DB, and In SG.
Connect the wires of the sending line to the terminals Out DA, Out DB, and Out SG.
2. Pulse output (See Figs. 28 and 29.):
•Apply 30 V DC or lower voltage (on '+V' shown in Fig. 28).
•Do not directly connect the DC power to the pulse output terminal.
•To use a magnetic counter with a relay coil, refer to Fig. 29 and connect a protection diode to the input of the magnetic
counter.
3. Temperature sensor for pipe surface:
Since the 3-core cable of the temperature sensor for pipe surface has small diameter, the seal connector pre-assembled
with the product is not enough to ensure the IEC IP54 protection. Caulk the seal connector or apply the tape to seal the
connector.
4. Insertion-type pipe temperature sensor:
Use the seal connector Part No. 83104098-001 for the cable of the insertion-type pipe temperature sensor (JIS VTCF 0.3
mm2×3 cores or equivalent.)
5. Internal isolation:
Only the pulse output and the RS-485 communication are internally isolated. Isolator therefore is required to connect a
non-isolated device to the control signal input and DI (Cooling/heating switch signal) of the product.
Solid line: Isolated, Dashed line: Not isolated
Power T1 (Supply water temperature)
T2 (Return water temperature)
Pulse output Display Panel
DI (Cooling/heating switch signal) RS-485 communication In
Control signal input
Internal circuit
RS-485 communication Out
Figure 20. Internal isolation
6. Single transformer with two products (See Fig. 21.):
Connect the lines from the terminal 1 of each product to the transformer with the same polarity. Connect the lines from the
terminal 2 of each product the same way. If the terminals (of the product and the transformer) with different polarities are
connected, the products may get damaged.
7. Single controller with multiple 4-20 mA input type products (See Figs. 22 and 23):
4-20 mA control signal input is not isolated from the power, and the 4-20 mA input impedance is 250 Ω. For connecting a
controller, the relations among the input impedance of this product, the output load resistance of the controller, and the
output load resistance and input impedance of an isolator (if necessary) must meet the following formula.
Applicable load resistance > Total input impedance
To operate the two products with a single controller for example, refer to Fig. 22 for the two products powered by a single
transformer, and refer to Fig. 23 for the two products separately powered by the two transformers. To connect a single
transformer, be sure to connect an isolator to the 4-20 mA input terminal of the second product. The products will
malfunction without the isolator.
8. Single controller with multiple 2-10 V input type or 0-10 V input type products (See Figs. 24 and 25.):
2-10 V/0-10 V control signal input is not isolated from the power.
To operate the two products with a single controller for example, the two products must be powered by a single transformer.

AB-7042
19
Connection examples
Controller
(e.g. Model R35/R36TC0) Isolator*1
Isolator*1, *3
Model FVY5130J
(4-20 mA input)
Model FVY5130J
(4-20 mA input)
*2
*2
Notes:
∗1 Provide an isolator for the controller not internally isolated.
∗2 Terminals 2, 6, and 8 of the product are internally connected.
∗3 - No isolator provided for the 4-20 mA input of the first product
- Less than 500 Ωapplicable load resistance of the controller
Provide an isolator for the second product if both of the above
conditions fit your connection.
Power Power
Figure 22. Connection example: Two Model FVY5130J with
a single controller and two transformers for each Model FVY5130
Controller
(e.g. Model R35/R36TC) Isolator*1
Model FVY5130J
(4-20 mA input)
Model FVY5130J
(4-20 mA input)
*2
*2
Isolator
(required)
Power
Notes:
∗1 Provide an isolator for the controller not internally isolated.
∗2 Terminals 2, 6, and 8 of the product are internally connected.
∗3 Refer to 6. Single transformer with two products in the
Precautions for connection section.
Figure 23. Connection example: Two Model FVY5130J with
a single controller and a single transformer
*3
*3
Power
Controller
(e.g. Model R35/R36TC0)
Isolator*1Model FVY5130J
(4-20 mA input)
Model FVY5130J
(4-20 mA input)
Isolator*1
Notes:
∗1 Provide an isolator for the controller not internally isolated.
∗2 Terminals 2, 6, and 8 of the product are internally connected.
*2
*2
Figure 21. Connection example: Two Model FVY5130J with
a single transformer
Controller
(e.g. Model R35/R36TC0)
Model FVY5140J
(2-10 V input)
Model FVY5140J
(2-10 V input)
*2
*2
Controller
(e.g. Model WY5117)
Isolator*1
Isolator*1
Notes:
∗1 Provide an isolator for the controller not internally isolated.
∗2 Terminals 2, 6, and 8 of the product are internally connected.
∗3 Refer to 6. Single transformer with two products in the
Precautions for connection section.
Figure 24. Connection example: Two Model FVY5140J with
a single controller
Power
*3
*3

AB-7042
20
*2
*2
Controller
(e.g. Third party
controller)
Isolator*1
Isolator*1
Notes:
∗1 Provide an isolator for the controller not internally isolated.
∗2 Terminals 2, 6, and 8 of the product are internally connected.
∗3 Refer to 6. Single transformer with two products in the
Precautions for connection section.
Figure 25. Connection example: Two Model FVY5150J with
a single controller
Power
*3
*3
Model FVY5150J
(0-10 V input)
Model FVY5150J
(0-10 V input)
Master
Slave
(Model R series)
Slave
(Model FVY51X0J: this product)
1
2
3
4
5
6
Figure 26. Connection example: 3-wire RS-485 communication
Model FVY51X0J
(This product) Pulse counter
+
-
3
4
+V
0 V
Figure 28. Connection example: Totalizing pulse output
(open collector output)
Model FVY51X0J
(This product)
+
-
3
4
+V
Protection diode
Magnetic counter
0 V
Figure 29. Connection example: Magnetic counter with relay coil
Master
Slave
(Model R series)
Figure 27. Connection example: 5-wire RS-485 communication
Slave
(Model FVY51X0J: this product)
Note:
∗This product has 3-wire communication
line connection. The example shows
5-wire communication line connection o
f
the master device.
