ACTIVALTM
Motorized Two-Way Valve with Flanged-End Connection
<4-20 mA DC Input with 4-20 mA DC Feedback Output>
(PN16 / GG-20)
General
ACTIVALTM Model VY519XJ is a series of motorized two-
way valves with anged-end connection. Rotary valve and
actuator are integrated in a single unit.
Valve size ranges from DN15 (1/2”) to DN80 (3”), and valve
body rating corresponds to ISO PN16.
Actuator has a reversible synchronous motor, which operates
at a low voltage of 24 V AC.
4-20 mA DC input control signal provides proportional control
in combination with a PLC (e.g., Model R35/R36).
* PLC: Programmable Logic Controller
Features
• Compact and lightweight:
Rotary motor actualizes small body and light weight.
• Valve and actuator integrated in a single unit:
Pre-assembled body requires no adjustment.
• Valve for chilled/hot water control and for steam control
applicable to high differential pressure, large Cv value,
high rangeability, and low leakage.
• Durable actuator with low power consumption.
• Equal percentage ow characteristics.
• 4-20 mA DC output available for position feedback.
• Open/close changeover for input signal failure:
Actuator fully opens/closes valve in case that the control
signal is not input to the actuator. (Default: Fully open)
• Direction changeover of control action:
Open/close action by 4-20 mA DC input signal is
reversely controllable.
Normal action 4 mA: 0 % to 20 mA: 100 %
Reverse action 20 mA: 0 % to 4 mA: 100 %.
(Default: Normal action)
• Adjustable dead band*:
Dead band width can be narrowed to more precisely
operate valve actuator.
* Actuator is not operated by input signal changed less than a
certain amount. This amount of change is called dead band.
• CE Marking certied:
ACTIVAL Model VY51 conforms to all the applicable
standards of CE Marking.
* Although our company name changed from Yamatake Corporation to Azbil Corporation on April 1, 2012, our former logo remains on this product.

2
AB-7054
Safety Instructions
Please read instructions carefully and use the product as specied in this manual. Be sure to keep this manual near by for
ready reference.
Usage Restrictions
This product is targeted for general air conditioning. Do not use this product in a situation where human life may be affected.
If this product is used in a clean room or a place where reliability or control accuracy is particularly required, please contact
Azbil Corporations’ sales representative. Azbil Corporation will not bear any responsibility for the results produced by the
operators.
A WARNING
a• This product weighs 18 kg or over (depending on the models). To prevent hazardous accident and severe injury,
move or carry the product with enough manpower or using a vehicle.
U• Do not disassemble the product. Disassembly may result in electrical shock or equipment damage.
A CAUTION (1/2)
a• This product must be operated under the operating conditions (power, temperature, humidity, vibration,
installation position, atmospheric condition, etc) specied in this manual to prevent equipment damage.
a• This product must be operated within its rated operating ranges specied in this manual. Failure to comply will
cause equipment damage.
a• Installation and wiring must be performed by qualified personnel in accordance with all applicable safety
standards.
a• Avoid application that keeps the operating cycle of the product excessively frequent. Excessively frequent
operation may cause re or equipment failure.
a• All wiring must comply with local codes of indoor wiring and electric installation rules.
a• Install externally the protective device such as fuse or circuit breaker for your safety.
a• Always close the top cover and the terminal cover except when setting the selector switches and connecting/
disconnecting wires.

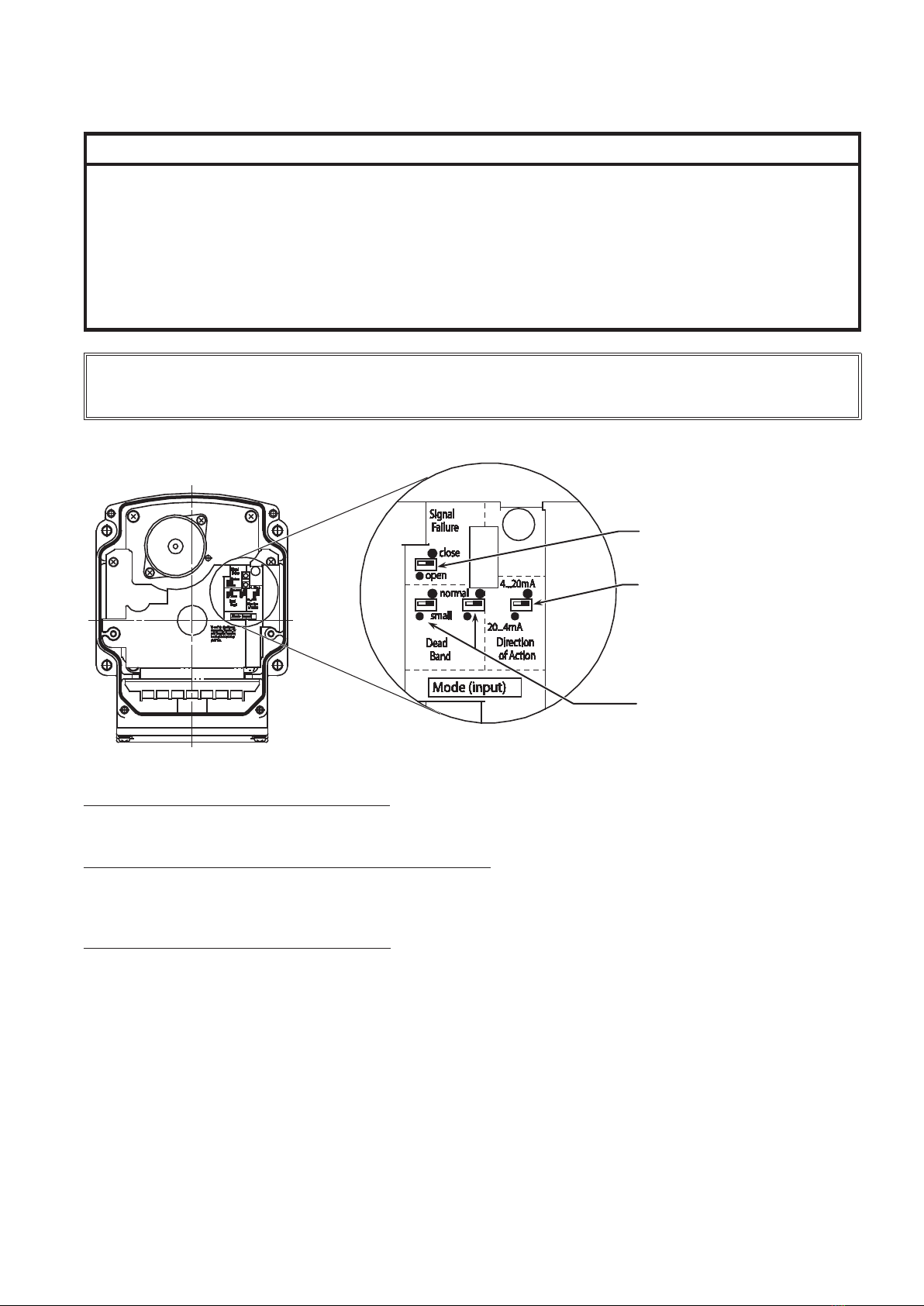

a• Set the selector switches using a pen nib or a nger. Do not use a tool such as a screwdriver. Such a tool can
damage the selector switches or the PCB.
a• To operate the product with small dead band, provide shielded cable for input/output signal lines and power line.
Unshielded cable can cause error due to noise.
a• Install the product in the position as specied in this manual. Excessively tight connection of the valve to a pipe
and improper installation position may damage the valve.
a• After installation, make sure no uid leaks from the connecting parts of valve and pipes. Incorrect piping may
cause uid leakage.
a• Do not allow any foreign substance inside the piping. Flush the piping so that no foreign substance remains.
Attach a strainer in a pipe on the inow side of the product to prevent equipment damage.
a• Avoid using the product in an atmosphere containing oxidizing gas, explosive gas, etc. since it may damage the
actuator, valve, or their components.
a• Do not leave the controlled uid frozen to prevent equipment damage or uid leakage.
a• Do not put heavy load on the actuator.
a• Do not install the product nearby a steam coil or a hot-water (in high temperature) coil. High heat radiation may
result in an actuator malfunction.
S• Avoid touching the installed product (valve body, yoke, joint). When being used to control hot water or steam, it
may reach high temperature and may cause burn injury.
a• Disconnect power from the product (including the optional devices) before performing any wiring, maintenance,
or setting the selector switches to prevent equipment damage.
a• Use crimp terminal lugs with insulation for electric wires to be connected to the screw terminals.
a• Make sure all the wires are tightly connected to the screw terminals. Loose connection may cause re or heat
generation.
S• Do not touch the moving parts of the product to prevent personal injury.

3
AB-7054
A CAUTION (2/2)
a• Do not stack unpacked products. Piled products without package will be polluted or damaged.
a• Dispose of this product as an industrial waste in accordance with your local regulations. Do not reuse all or part
of this product.
IMPORTANT:
• The service life of ACTIVAL operated with small dead band can be shortened since the ACTIVAL operates
more frequently with small dead band than with normal dead band.
• Use shielded cable for the ACTIVAL with small dead band. Noise may affect the signal transmission causing
operation error, otherwise.
• To control ACTIVAL with a third-party controller, please consult with Azbil Corporations’ sales personnel.
Model Numbers
Model VY519XJ00XX is the model for the valve and actuator integrated into a single unit.
The model number label is attached to the yoke. The 4-20 mA control signal is indicated on the actuator label and on the
wiring diagram.
Base
model
number
Actuator/valve Actuator Valve
Description
Control
signal
Rating/
material Type Nominal
size/Cv
VY51 Motorized two-way valve with anged-end connection
94 mA DC to 20 mA DC input with 4 mA DC to 20 mA DC feedback output
7PN 16 / GG-20
[for water]
8 PN 16 / GG-20
[for steam]
JIEC IP54 protected and standard torque type actuator with terminal block
(Mountable valve sizes: DN15 to DN80)
00 
11 DN15 (1/2”) / 1.0 in Cv value
12 DN15 (1/2”) / 2.5 in Cv value
13 DN15 (1/2”) / 6.0 in Cv value
14 DN15 (1/2”) / 1.6 in Cv value [for steam only]
15 DN15 (1/2”) / 4.0 in Cv value [for steam only]
21 DN25 (1”) / 10 in Cv value
22 DN25 (1”) / 16 in Cv value
41 DN40 (11/2”) / 25 in Cv value
42 DN40 (11/2”) / 40 in Cv value
51 DN50 (2”) / 65 in Cv value
61 DN65 (21/2”) / 95 in Cv value
81 DN80 (3”) / 125 in Cv value

4
AB-7054
Specications
For weight, refer to the table shown in the section Dimensions.
Valve specications
Item Specication
Model Two-way valve with anged-end connection (raised face ange), proportional control
Body pressure rating PN16 (Max. working pressure: 1.6 MPa)
End connection PN16 anged-end (equivalent to ISO 7005-2: 1988)
Size, Cv, Close-off ratings
Note:
Close-off ratings of the actuator in combination
are shown on the right.
Practical close-off rating required for the valve
controlling 175 °C steam is 0.8 MPa.
Model number Nominal size Cv Close-off ratings
VY519XJ0011 DN15 (1/2”) 1.0 1.0 MPa
VY519XJ0012 DN15 (1/2”) 2.5 1.0 MPa
VY519XJ0013 DN15 (1/2”) 6.0 1.0 MPa
VY519XJ0014 DN15 (1/2”) 1.6 1.0 MPa
VY519XJ0015 DN15 (1/2”) 4.0 1.0 MPa
VY519XJ0021 DN25 (1”) 10 1.0 MPa
VY519XJ0022 DN25 (1”) 16 1.0 MPa
VY519XJ0041 DN40 (11/2”) 25 1.0 MPa
VY519XJ0042 DN40 (11/2”) 40 1.0 MPa
VY519XJ0051 DN50 (2”) 65 1.0 MPa
VY519XJ0061 DN65 (21/2”) 95 1.0 MPa
VY519XJ0081 DN80 (3”) 125 0.7 MPa
Materials Body Gray cast iron (GG-20)
Plug and stem Stainless steel
Seat ring Heat-resistant PTFE
Gland packing Inorganic ber
Gasket Non-asbestos joint sheet
Applicable uid Chilled/hot water, high temperature water, steam,
brine (ethylene glycol solutions, 50 % max.)
Allowable uid temperature* 0 °C to 175 °C (Non-freezing)
Flow characteristics Equal percentage
Rangeability 100 : 1
Seat leakage 0.01 % or less of rated Cv value (0.0006 Cv or less for DN15 model)
Paint Gray
Actuator to be combined Integrated with the valve
Actuator specications
Item Specication
Power supply 24 V AC ± 15 %, 50 Hz/60 Hz
Power consumption 12 VA
Timing 63 ± 5 sec (50 Hz) / 53 ± 5 sec (60 Hz)
Control signal input 4 mA DC to 20 mA DC input (Input impedance: 100 W)
Feedback signal output Range: 4 mA DC (0 % position) to 20 mA DC (100 % position)
Max. load resistance: 500 W
Materials Case Cast aluminum alloy
Top cover, terminal cover Polycarbonate resin (Color: gray)
Yoke Steel plate
Surface nishing Case None
Yoke Electro-galvanized (Bright chromate nish)
Valve position indication Pointer located at the bottom of the actuator shows the position by pointing at the value of
the scale (0: close to 100: open) on front, rear, and bottom sides.
Manual operation Available. Refer to the section Manually opening/closing the ACTIVAL.
Wires connection M3.5 screw terminal connection
Enclosure rating IEC IP54 (dust-proof and splash-proof)
Insulation resistance Between terminal and case: 5 MW or higher at 500 V DC
Dielectric strength Between terminal and case: 500 V AC/min with 5 mA or less leakage current

5
AB-7054
Valve and actuator (as a single unit) specications
Item Specication
Environmental conditions Rated operating condition Limit operating condition Transport/storage
conditions (packaged*2)
Ambient temperature*1-20 °C to 50 °C
(Fluid temperature 0 °C to 150 °C)
-20 °C to 60 °C -20 °C to 70 °C
-20 °C to 40 °C
(Fluid temperature 150 °C to 175 °C)
Ambient humidity 5 %RH to 95 %RH
Vibration 4.9 m/s2 (10 Hz to 150 Hz) 9.8 m/s2
(10 Hz to 150 Hz)
19.6 m/s2
(10 Hz to 150 Hz)
Notes: *1 Do not allow the uid to freeze.
*2 Actuator shall be packed during transport and storage.
Installation locations Indoor / outdoor (Keep away from direct sunlight.)

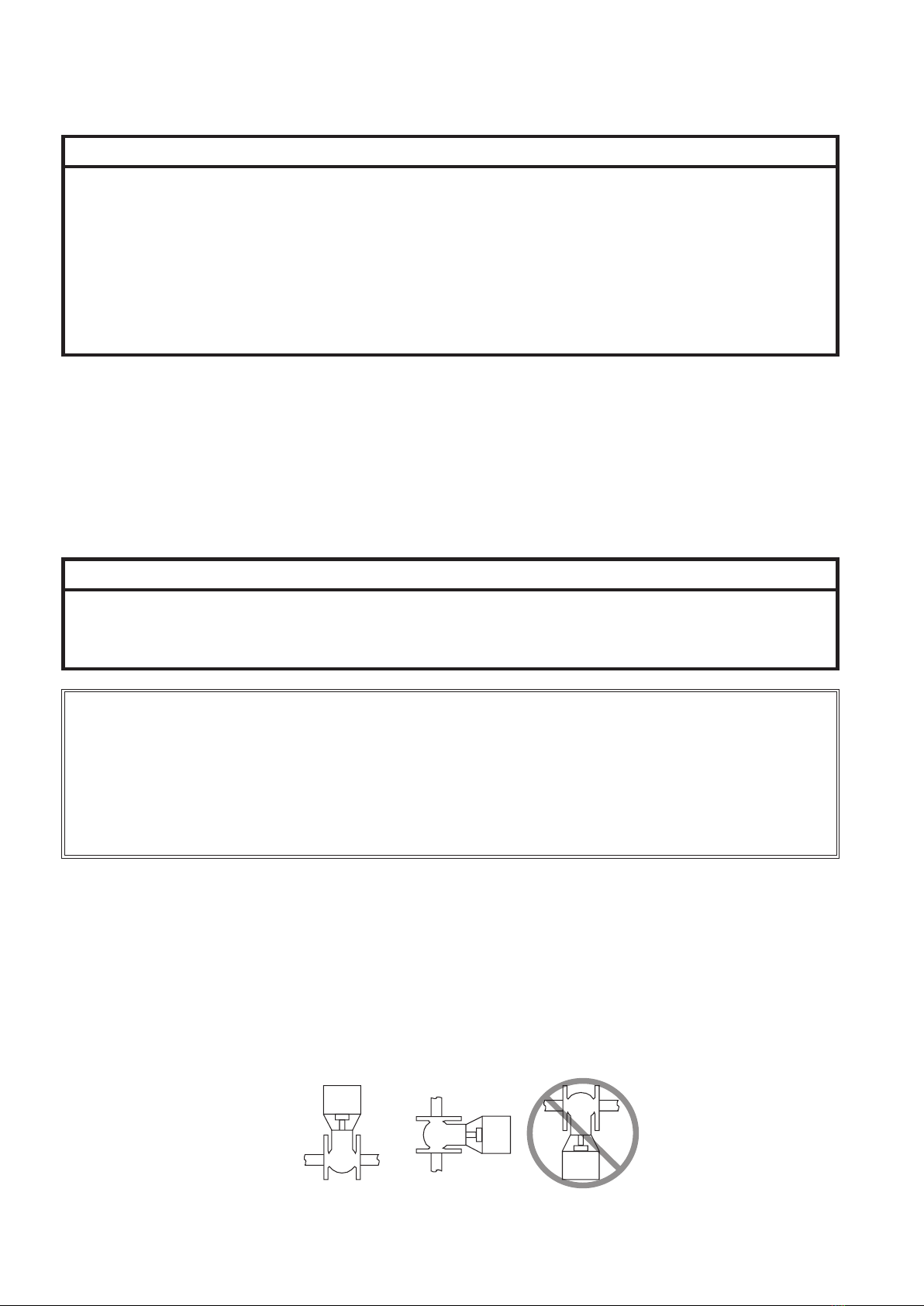

Installation orientation Installable in any position ranging from upright to sideways (90° tilted.)
* Always install in upright position outdoors.
Position for shipment 100 % (fully open) preset at factory.
Options
For options, separate order is required.
Item Specication
Seal connector
(Part No. 83104346-003)
Applicable wire size: f7 mm to f9 mm
(Seal connector is necessary for IEC IP54 protection.)

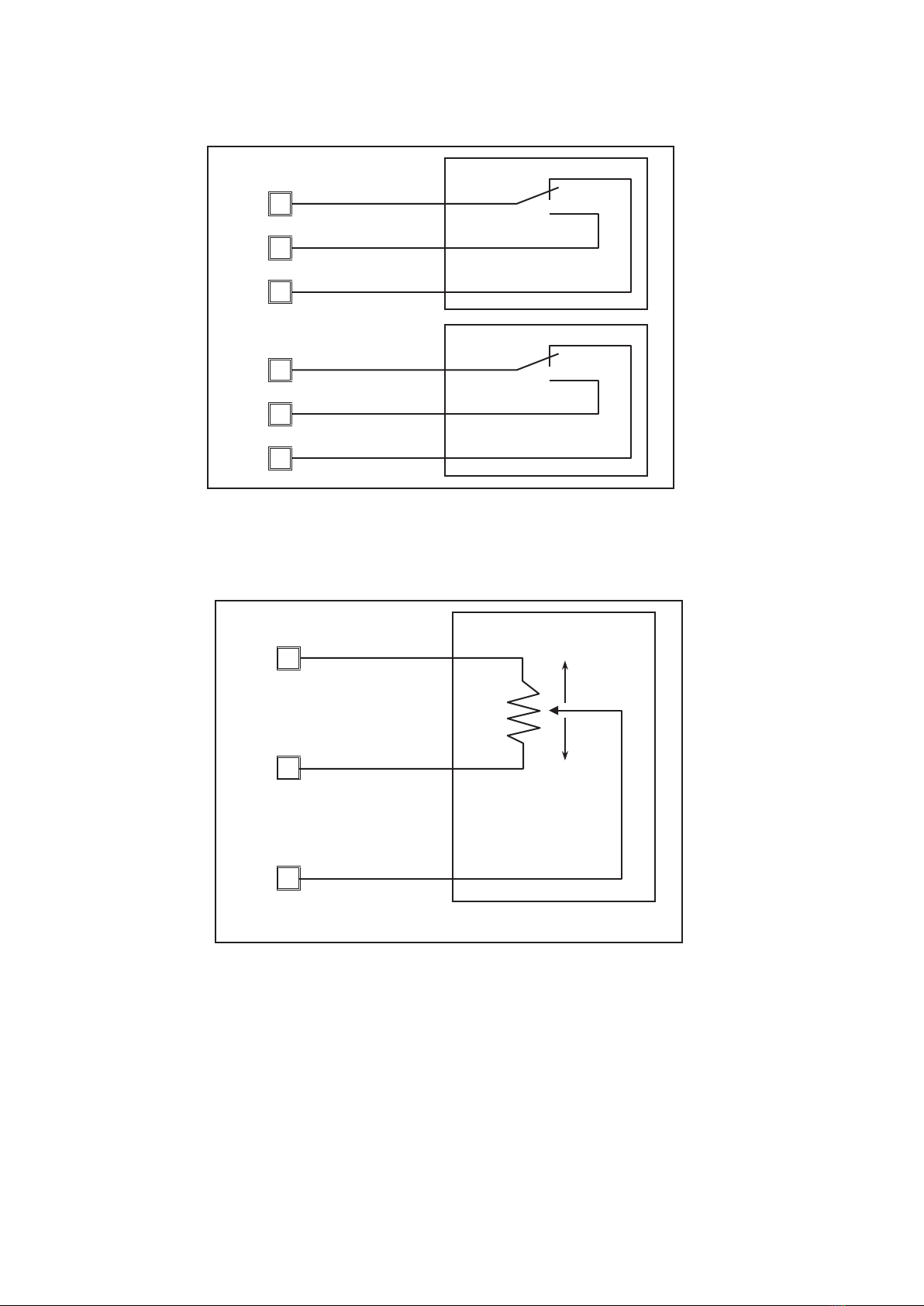

Auxiliary switches*1
(Part No. 83165274-001)
Number of auxiliary switches: 2 (SW A and SW B)
Maximum applied voltage/current: 30 V DC / 3 A DC
Actuating position
SW A: Adjustable between 0 % (fully closed) to 100 % (fully open)
SW B: Adjustable between 0 % (fully closed) to 100 % (fully open)
Auxiliary potentiometer*1
(Part No. 83165275-001)
Number of auxiliary potentiometer: 1
Total resistance: Nominal 1 kW
Operating position: 0 % (fully closed) to 100 % (fully open)
Max. applied voltage: 5 V DC
* Note: Either of an auxiliary switch or an auxiliary potentiometer can be added, but not both.
A
mbient temperature (°C)
50
40
-20
1
00 1751500
F
luid temperature (°C)

6
AB-7054
Dimensions
Model number Valve size
(DN) H (mm) H1 (mm) L (mm) L1 (mm) t (mm) fC (mm) fD (mm) fg (mm) fh (mm) N Weight (kg)
VY519XJ001X 15 213 75 108 50 16 65 95 46 14 4 4.6
VY519XJ002X 25 228 90 127 60 18 85 115 65 14 4 6.6
VY519XJ004X 40 241 103 165 82.5 20 110 150 84 19 4 10.0
VY519XJ0051 50 245 107 178 89 20 125 165 99 19 4 11.5
VY519XJ0061 65 262 124 190 90 22 145 185 118 19 4 16.0
VY519XJ0081 80 263 125 203 100 22 160 200 132 19 8 18.5
Figure 1. Dimensions and maintenance clearance (mm): Model VY5197J/VY5198J
Parts Identication
Figure 2. Parts identication
∗Note:
Leave a clearance of 100 mm if you do not open the top cover (to set th
e
selector switches after the ACTIVAL is installed).
7
0 70
H
H1 138
L
1
L
t
φg φ
C
φ
D
82 85
Min. 500 (See Note.)
Min. 300
N ×φh
138
F
low direction
Top cover
Terminal cover
Top cover
Knockout hole
Terminal cove
r
Yoke
Actuator
Valve body
P
ointer
J
oint
O
-ring
P
acking
S
tem
Seat ring
Sprin
g
Plu
g
: Heat insulation
Gland

7
AB-7054
Setting
On the PCB (printed circuit board) of the actuator, the selector switches are provided.
A CAUTION
a• Disconnect power from the product (including the optional devices) before performing any wiring, maintenance,
or setting the selector switches to prevent equipment damage.
a• Always close the top cover and the terminal cover except when setting the selector switches and connecting/
disconnecting wires.
a• Set the selector switches using a pen nib or a nger. Do not use a tool such as a screwdriver. Such a tool can
damage the selector switches or the PCB.
a• To operate the product with small dead band, provide shielded cable for input/output signal lines and power line.
Unshielded cable can cause error due to noise.
IMPORTANT:
The service life of ACTIVAL operated with small dead band can be shortened since the ACTIVAL operates
more frequently with small dead band than with normal dead band.
Identication of the selector switches
Figure 3. Selector switches
Open/close selector switch for input signal failure:
If no control signal is input, the actuator automatically closes (0 %) or opens (100 %) the valve by setting the selector switch at
‘open’ (100 %) or ‘close’ (0 %).
Direction selector switch for control action of 4-20 mA input signal:
Direction of control action by 4-20 mA DC input signal can be reversely switched.
Normal action: 4 mA for 0 % to 20 mA for 100 %
Reverse action: 20 mA for 0 % to 4 mA for 100 %
Normal/small selector switch for dead band width:
To more precisely operate the valve, smaller dead band (than the normal) of the control signal input can be set. Two selector
switches are provided for the normal/small dead band width. Always set the both switches at the same mode (‘normal’ or
‘small’).
Open/close selector switch
f
or input signal failure
(
Initially set at ‘close’.)
D
irection selector switch
f
or control action of 4-20 mA input signal
(
Initially set at normal action
(
4mA:0% to 20mA:100%))
N
ormal/small selector switch
f
or dead band width
(
Initially set at ‘normal’ dead band.)

8
AB-7054
Installation
Precautions for installation
ACAUTION
a• Installation and wiring must be performed by qualified personnel in accordance with all applicable safety
standards.
a• Install the product in the position as specified in this manual. Excessively tight connection of piping and
improper installation position may damage the valve.
a• After piping installation, make sure no  uid leaks from the connecting parts. Incorrect piping may cause  uid
leakage.
a• Do not allow any foreign substance inside the piping. Flush the piping so that no foreign substance remains.
Attach a strainer in a pipe on the in ow side of the product to prevent equipment damage.
a• Disconnect power from the product (including the optional devices) before performing any wiring, maintenance,
or setting the selector switches to prevent equipment damage.
• ACTIVAL Model VY519XJ is the valve and actuator integrated into a single unit. Do not combine the valve with any other
actuator, or do not combine the actuator with any other valve.
• To remove foreign substances inside the pipes, install a strainer with 40 or more meshes (with 80 or more meshes
recommended for steam control) on the in ow side of each valve. In case that the strainers cannot be installed on the
in ow side of each valve, install it on the pipe diverting sections (sections diverting from main piping system to sub piping
system).
• Install the valve so that the  ow direction of process  uid agrees with the arrow indicated on the valve body.
Installation location
ACAUTION
a• Avoid using the product in an atmosphere containing oxidizing gas, explosive gas, etc. since it may damage the
actuator, valve, or their components.
a• Do not install the product nearby a steam coil or a hot-water (in high temperature) coil. High heat radiation may
result in an actuator malfunction.
IMPORTANT:
• The top and the terminal covers might be corroded by chemicals and organic solvent or their vapor. Do not
expose the ACTIVAL to such substances/vapor.
• When the ACTIVAL is used for steam humidifying, install a valve interlocking with air-conditioning unit on the
in ow side in case the ACTIVAL gets damaged.
• Although the ACTIVAL can be used in high humidity environments (max. 95 %RH), do not immerse the
actuator in water.
• Although the ACTIVAL can be used outdoors, be sure not to expose the ACTIVAL to direct sunlight.
• Install the ACTIVAL in a position allowing easy access for maintenance and inspection. Fig. 1 shows the minimum
clearance for maintenance and inspection. When installing the ACTIVAL in a ceiling space, provide an access hole within
the 50 cm radius of the ACTIVAL. And, place a drain pan under the valve.
• Do not mount the ACTIVAL on a pipe where water hammer occurs, or where solid objects including slug may accumulate.
• To set the selector switches after installation, leave a enough clearance above the top cover of the actuator, as shown in
Fig. 1.
Mounting position
The ACTIVAL can be mounted in any position ranging from upright to sideways (90° tilted). The ACTIVAL should be installed
with its actuator vertically positioned above the valve body. (See Fig. 4.) However, the ACTIVAL must be installed always in
upright position outdoors.
Figure 4. Mounting position
Correct mounting Incorrect mounting

9
AB-7054
Piping
• Check that the model number of the product is what you ordered. The model number is shown on the label attached to
the yoke.
• Install a bypass pipe and gate valves on the inow, outow, and bypass sides. Also, install a strainer with 40 or more
meshes (with 80 or more meshes recommended for steam control) on the inow side.
• When installing the ACTIVAL to the pipes, do not allow any object, such as chips, to get inside a pipe or valve. Valve
cannot fully close, or the valve seat may get damaged causing uid leakage, due to an object jammed inside the valve.
• When piping, do not apply too much sealing material, such as solidifying liquid and tape, to the pipe connection sections
so that these materials ow into the valve. Valve cannot fully closes, or the valve seat may get damaged causing uid
leakage, due to the sealing material jammed inside the valve.
• Before activating the ACTIVAL, fully open (in 100 % position) the valve and ush the pipes (with the ACTIVAL installed) at
the maximum ow rate to remove all the foreign substances. (Factory preset position: 100 %)
• For steam control, drain retained water (condensate) in piping. Install a trap on a pipe run which may retain condensate.
Condensate may cause water hummer or damage the valve and piping.
Heat insulation
Do not apply heat insulation to the actuator or to the yoke, as shows in Fig. 2. If the yoke and the actuator are covered
with insulation material, the pointer cannot be checked and may be distorted.
Factory preset position
The actuator shaft is positioned at 100% (in fully open position) for shipment. The shaft is thus completely turned clockwise,
and the pointer points at ‘100’. (See Fig. 5.)
Figure 5. Pointer position for shipment
Manually opening/closing the ACTIVAL
IMPORTANT:
• Manually opening/closing the ACTIVAL with the power (24 V AC) applied may damage the actuator.
• To manually open/close the ACTIVAL, do not turn the joint beyond the fully open (100)/closed (0) mark.
• To manually open/close the ACTIVAL, slowly turn the joint. If shock is sent to the actuator, the actuator may
get damaged.
Disconnect the power from the ACTIVAL before manually operating the ACTIVAL. As shown in Fig. 6, from the front of the
ACTIVAL, hold the joint using a tool such as a wrench, and turn the joint slowly toward the set position.
Figure 6. Manual operation
Pointer
Joint
Hold the joint using a wrench
a
nd turn slowly.

10
AB-7054
Auxiliary switch / Auxiliary potentiometer (optional)
IMPORTANT:
• The auxiliary switch/potentiometer is installed on site. Refer to the instructions supplied with the auxiliary
switch/potentiometer for installation.
• Do not open the top cover except when adjusting the auxiliary switch/potentiometer. Close the top cover
instantly after adjusting the auxiliary switch/potentiometer.
• Do not put any load on the top cover.
Procedure to change the actuator mounting position
IMPORTANT:
• Do not change the combination of the valve, yoke, and actuator.
• Set the ACTIVAL in 100 % position when changing the mounting position. If the valve in 0 % position is
assembled with the actuator in 100 % position, the actuator put torque on the closed valve, and the gear of
the actuator gets damaged.
1) Remove the screws connecting the actuator and the yoke. Lift the actuator and detach it from the yoke. Make sure that
the groove on the top of the valve stem is parallel to the pipes (indicating the valve in 100 % position). <Step 1 in Fig. 7>
2) Remove the screws connecting the yoke and the valve. <Step 2 in Fig. 7>
3) Change the facing direction of the yoke. The yoke and actuator can be horizontally rotated every 90° (0°/90°/180°/270°
from the factory preset position) to mount onto the valve.
4) A thermal insulation sheet is inserted between the yoke and the valve. When changing the mounting positions, reinsert
the sheet and then t the yoke into the new mounting position.
5) Before xing the yoke to the valve with the screws, check that the actuator engages correctly with the valve stem (at the
new mounting position). Check that the pointer of the actuator indicates 100 % position as well. Then, x the yoke to the
valve. <Step 3 in Fig. 7>
6) Mount the actuator. Place the actuator, with its facing direction changed, on the yoke, and x them with the screws.
<Step 4 in Fig. 7>
7) Check that the ACTIVAL with the mounting position changed operates smoothly (from 0 % to 100 %).
Figure 7. Changing the actuator mounting position
Step 1
Step 4
Lift off the actuator.
Change the actuator mounting
position, and remount the
actuator on the yoke.
Step 2
Step 3
Detach the yoke from the
valve.
Change the yoke mounting
position, and remount the
yoke on the valve.
G
roove
Valve stem
T
hermal insulation sheet

11
AB-7054
Wiring
ACAUTION
a• Installation and wiring must be performed by qualified personnel in accordance with all applicable safety
standards.
a• Disconnect power from the product (including the optional devices) before performing any wiring, maintenance,
or setting the selector switches to prevent equipment damage.
a• Always close the top cover and the terminal cover except when setting the selector switches and connecting/
disconnecting wires.
IMPORTANT:
• The ACTIVAL is designed for 24 V AC power supply voltage.
Do not apply any other power voltage (e.g., 100 V AC, 200 V AC) to the ACTIVAL.
• Make sure the polarity of the power supply and 4-20 mA DC feedback output referring to the wiring diagrams.
Incorrect wiring may result in PCB (print circuit board) burnout.
• To prevent damage, cover the terminals except when connecting/disconnecting wires.
• Do not leave any refuse including metal chips after cutting a knockout hole and after connecting the wires
inside the actuator.
• Do not connect 24 V AC power to the terminals 4 to 7.
Wiring precautions
1) To lead the wires into the terminals, cut out a knockout hole for a wiring port. Two knockout holes are provided on the
bilateral sides of the actuator terminals. Select a knockout hole according to the conduit mounting direction, and cut it out
by lightly knocking the hole using a screwdriver.
Figure 8. Knockout hole for wiring port
2) Unscrew the 3 setscrews (M4 × 10) of the terminal cover and remove the terminal cover, as shown in Fig. 9.
Figure 9. Terminal cover removal
3) Correctly connect the wires to the terminals with M3.5 screw terminal lugs, referring to Figs 10 to 12.
4) When the ACTIVAL is used in a high-humidity environment or outdoors, use a water-proof connector for the wiring port.
Knockout hole
for wiring port
1
. Unscrew the setscrews.
2. Remove terminal cover.
Terminal cover
Setscrews

12
AB-7054
To keep IP54 protection (dust-proof and splash-proof),
Use a water-proof connector for the ACTIVAL in a high-humidity environment or outdoor location.
• Be sure to completely close the terminal cover and the top cover.
• Waterproof the wiring port.
- For cable connection, use a water-proof connector. (Seal connector Part No. 83104346-003 is recommended.)
- For conduit connection, use a water-proof plica tube or the like.
Terminals connection

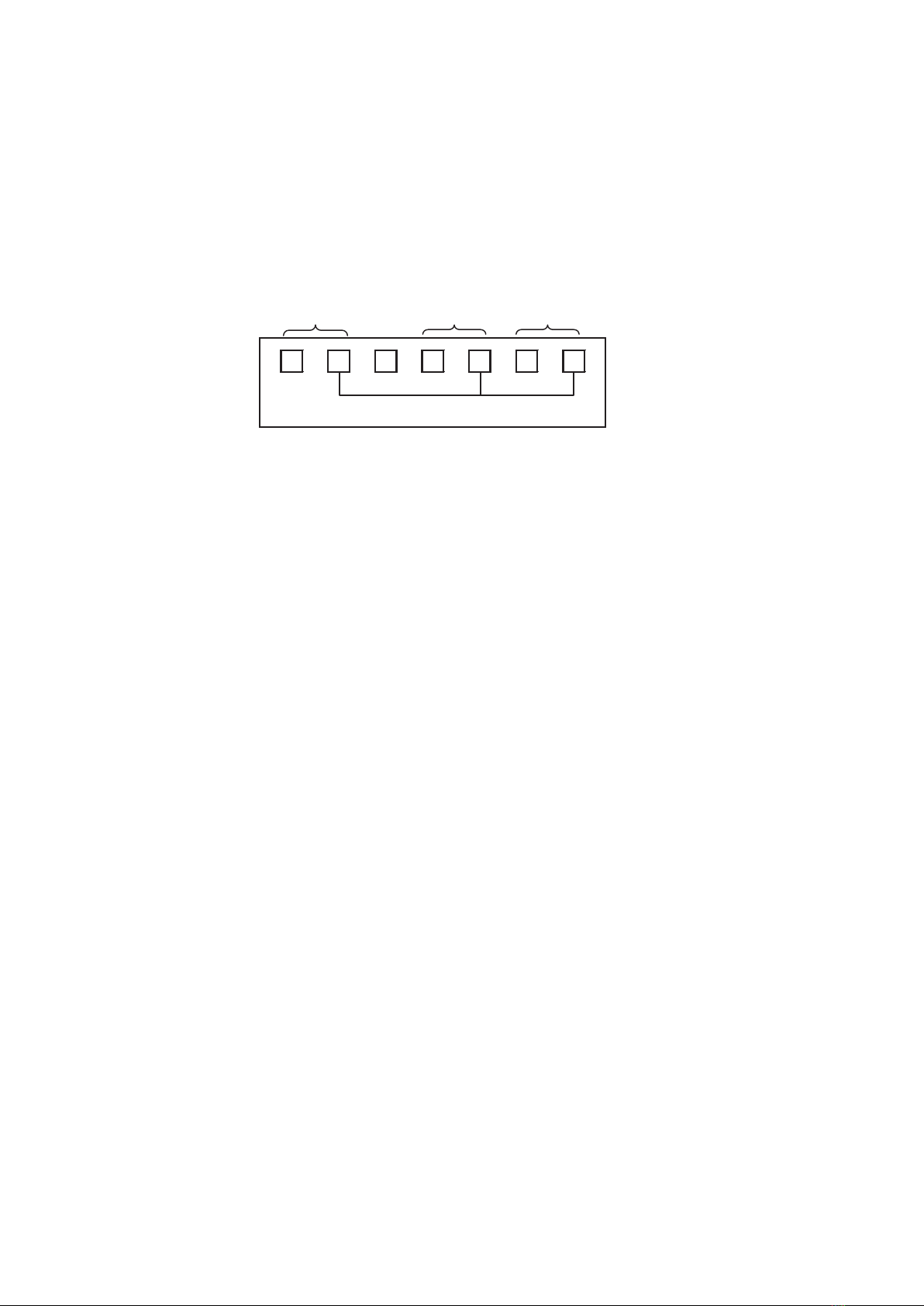

Figure 10. Terminals connection of Model VY519XJ00XX
1 2 3 4 5 6 7
24 V AC
power supply
4-20 mA DC
inputs from
controller
4-20 mA DC
feedback output
∗Note:
Terminals 2, 5, and 7 are
connected inside the actuator
.
T1 T2Vacant + - + -

13
AB-7054

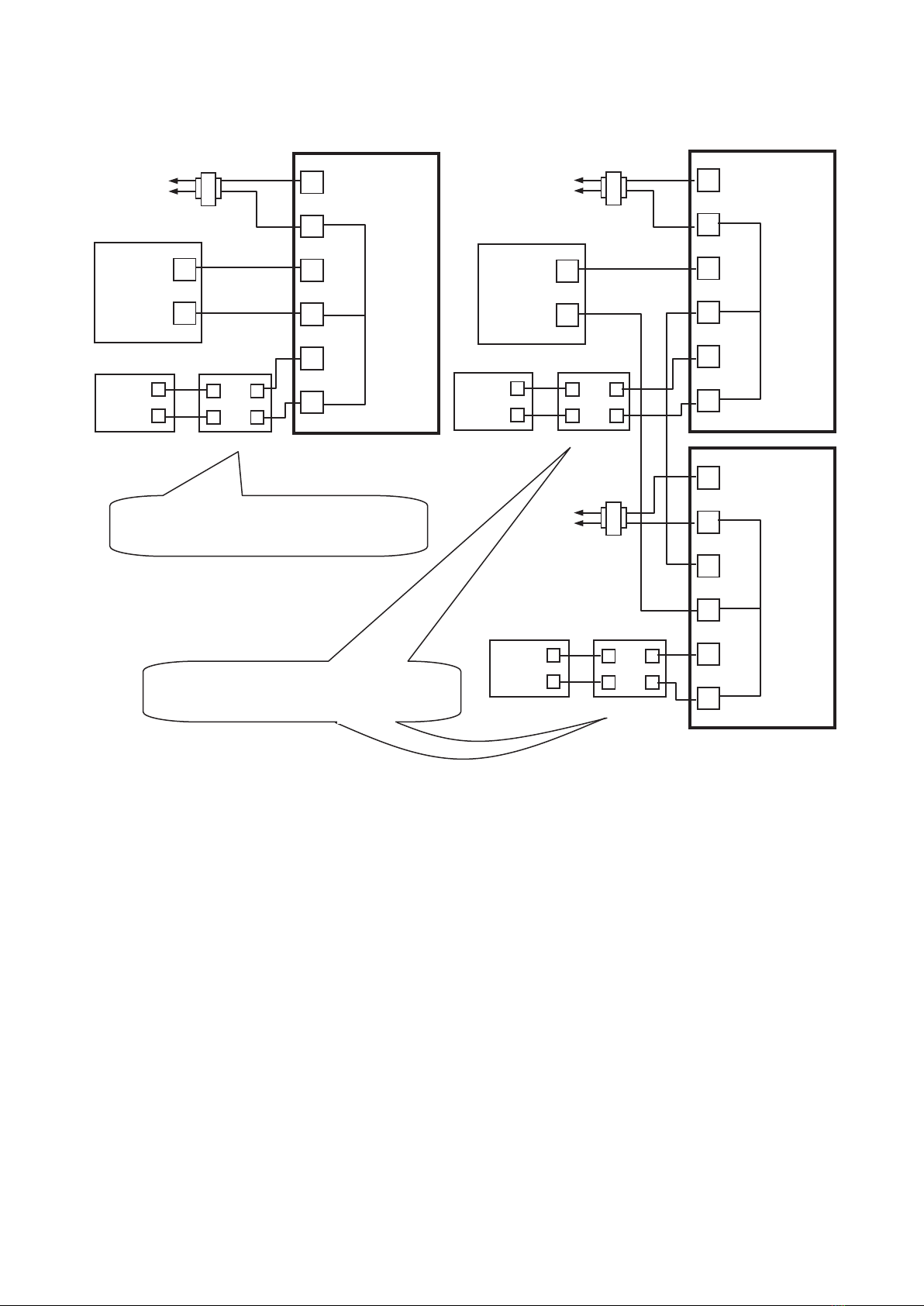

Connection Examples (Connection to Azbil Corporations’ R series controller)
Connection to Model R35TC0/R36TC0 Connection to Model R35TC0/R36TC0 (Parallel operation)
Notes:
* Input impedance of the actuator is 100 W.
* For connecting multiple ACTIVAL to one controller (e.g., Model R35.36), provide a transformer (two in total) for each ACTIVAL
since 4-20 mA input is not isolated from other terminals.
* Terminals 2, 5, and 7 are connected inside the actuator. To connect to a device (PLC, position indicator, etc.) with its terminals not
isolated inside, externally isolate (between the ACTIVAL and the device). Otherwise, a loop is formed for the common line and can
damage the circuit of the ACTIVAL. (R series controllers including Model R35/R36 shown in Figs. 11 and 12 are isolated inside.)
* Isolation transformer is required for ACTIVAL. Transformer without isolation may damage the ACTIVAL and other devices connected to
ACTIVAL.
Model R35TC0/R36TC0
+ 13
- 14
1 T1
2 T2
4 +
5 -
6 +
7 -
Figure 12. Connection example: Two Model VY519XJ
with Model R35TC0/R36RC (Parallel operation)
2 ×Model VY519XJ
(4-20 mA DC input with
4-20 mA DC output)
1 T1
2 T2
4 +
5 -
6 +
7 -
Power
supply
Isolation
transformer
Power
supply
Isolation
transformer
Position indicator
Isolator
+
-
+ +
- -
Position indicator
Isolator
+
-
+ +
- -
Isolation example:
I
f the position indicator is not isolated inside, provid
e
a
n isolator. If isolated, an isolator is not required.
Model R35TC0/R36TC0
Model VY519XJ
(4-20 mA DC input with
4-20 mA DC output)
+ 13
- 14
1 T1
2 T2
4 +
5 -
6 +
7 -
Figure 11. Connection example: Single Model VY519XJ00
with Model R35TC0/R36RC
Power
supply
Isolation
transformer
Position indicator
Isolator
+
-
+ +
- -
Isolation example:
I
f the position indicator is not isolated inside, provide
a
n isolator. If isolated, an isolator is not required.

14
AB-7054
Internal Connection of Auxiliary Switch / Auxiliary Potentiometer
Auxiliary switch Part No. 83165274-001
Switches A and B actuating position: Adjustable between 0 % (fully closed) and 100 % (fully open)
Figure 13. Internal connection of Part No. 83165274-001
Auxiliary potentiometer Part No. 83165275-001
Potentiometer operating position: Adjustable between 0 % (fully closed) and 100 % (fully open)
Figure 14. Internal connection of Part No. 83165275-001
OP1
OP2
OP3
N.C.
N
.O.
Common
OP4
OP5
OP6
N.C.
N
.O.
Common
S
witch A
S
witch B
OP1
OP2
OP3
Open
C
lose

15
AB-7054
Inspection and Maintenance
ACAUTION
S• Avoid touching the installed product (valve body, yoke, joint). When being used to control hot water, it reaches
high temperature and may cause burn injury.
• Inspect the ACTIVAL according to Table 1.
• Manually open/close the ACTIVAL at least once a month if it is left in inactive state for a long period.
• Visually inspect the uid leakage of the valve and the actuator operations every six months. If any of the problems
described in Table 2 are found, take corresponding actions shown in the table.
If your problem is not solved by the corresponding action, please contact Azbil Corporation near you.
Table 1. Inspection items and details
Inspection item Inspection interval Inspection detail
Visual inspection Semiannual • Fluid leakage from the gland and the ange face
• Loosened bolts
• Valve and actuator damages
Operating status Semiannual • Unstable open/close operation
• Abnormal noise and vibration
Routine inspection Any time • Fluid leakage to the outside
• Abnormal noise and vibration
• Unstable open/close operation
• Valve hunting
Table 2. Troubleshooting
Problem Part to check Action
Fluid leaks from the ange face. Loosened ange bolts
Gasket on the ange face
Misaligned piping
Tighten the ange bolts.
Replace the gasket.
Redo piping.
Fluid leaks from the gland part. Consult with our sales personnel.
Fluid leaks from the bonnet. Loosened bolts Tighten the bolts.
Valve does not operate smoothly /
valve stops halfway /
valve does not operate at all.
Conditions of the power applied and of the input
signal applied
Loosened terminals
Wiring condition / disconnected wires
Check the power supply and the controller
connected to.
Tighten the terminals.
Check the wiring.
Fluid leaks to the outside of the valve
when the ACTIVAL is in fully closed
position.
Actuator pointer not pointing to fully closed
position
Fully close the ACTIVAL.
The valve vibrates or produces an
abnormal noise.
Primary pressure condition
Differential pressure condition
Adjust the mounting position and change the
installation location.
The auxiliary switch does not operate. Auxiliary switch (cam switch) condition
Loosened terminals
Wiring condition / disconnected wires
Redo the cam switch setting.
Tighten the terminals.
Check the wiring.
The auxiliary potentiometer does not
operate.
Condition of resistance
Loosened terminals
Wiring condition / disconnected wires
Check the resistance value (1 kW).
Tighten the terminals.
Check the wiring.
Valve hunting occurs. Secondary pressure condition
Differential pressure condition
Control stability
Adjust the mounting position and change the
installation location.
Correct the control parameter setting of
controller.
Input signal disagrees with the feedback
output signal.
To completely shut off the valve, valve open and close (0-100% position) operation is controlled
by 10-90 % range of actuator voltage/current input signal. Input signal therefore disagrees with
the feedback signal, and this is not an error.

AB-7054
Trademark information:
ACTIVAL is a trademark of Azbil Corporation in Japan or in other countries.
http://www.azbil.com/
Building Systems Company
Specications are subject to change without notice.
Rev.2.0 Jan. 2015 AB-7054
16
