AZZA PYRAMID Mesh User manual

CSAZ-804M

1. Specifications
2. Chassis Parts
3. Removing The Top Metal Mesh Panel
4. Overview
5. Power Supply Installation
6. 2.5"SSD / 3.5"HDD Installation
7. PCI-E Cable
8. Fan Installation
9. Digital RGB Fan Installation For Motherboard
Installation Instructions

Specifications
Specifications
Model
Type:
Model Name:
Model Number:
ATX Tower
Color: 1.5~2.0mm SPCC+ 2.5mm Aluminum
Side Panel Window:
UP to 95mm
Power Supply: ATX
Motherboard Compability:
External 5.25" Drive Bays: 0
Internal 2.5" Drive Bays: Up to 2
Internal 3.5" Drive Bays: Up to 1 (Converble with 2.5"SSDx1 )
Expansion Slots: 3
Front Ports: 2xUSB 3.0、HD Audio、Type C、Metal power buon
Physical Specifications
Metal Chassis Dimensions (HxWxD) 558x490x490/22x19.3x19.3 inch
Weight:
Available Fan Ports: 1 x 120mm Fan port in the Top (1x 120mm Hurricane III Digital RGB Fan included )
Water Cooling:
Isolated Chamber: ATX Power supply inside its own isolated chamber,
prevenng its heat from aecng other components.
Easy Installaon Cooler: A pre-cut hole for easy installaon of CPU Cooler,
eliminang the need to remove the motherboard.
Accessories:
Adjustable video card holder
Features
Expansion
Max. CPU Cooler Height:
Max. GPU Length:
Dimensions with Case Stand(HxWxD)
L=330 mm / W=150 mm / H=70 mm (Horizontal)
PYRAMID Mesh
CSAZ-804M
4 sides panel are full metal mesh
Metal Mesh Side Window: 
visual beauty of light transmission.
<305x280mm E-ATX 、ATX、Micro ATX、Mini ITX
585x490x490mm/23x19.3x19.3 inch
200mm PCI-E 4.0 extension cable for VGA card (Support EATX、ATX MB)
12.9kgs /28.4lbs



Chassis parts
2
3
4
5
6
8
9
10
11
12
Pyramid structure
120mm/140mm fan bracket
12cm ARGB Fan
Power supply rack
Adiustable video card holder
Horizontal PCIe slot
I/O Ports: USB 3.0 x 2 , Type C, HD Audio
Spring bolt screw of top panel cover
Fan cable management cover
3.5"HDD /2.5"SSD spring bolt tray X1
2.5"SSD brackets X1
71
1
8
3
2
10
4
9
11
12
5
6
7
TOP metal mesh panel cover

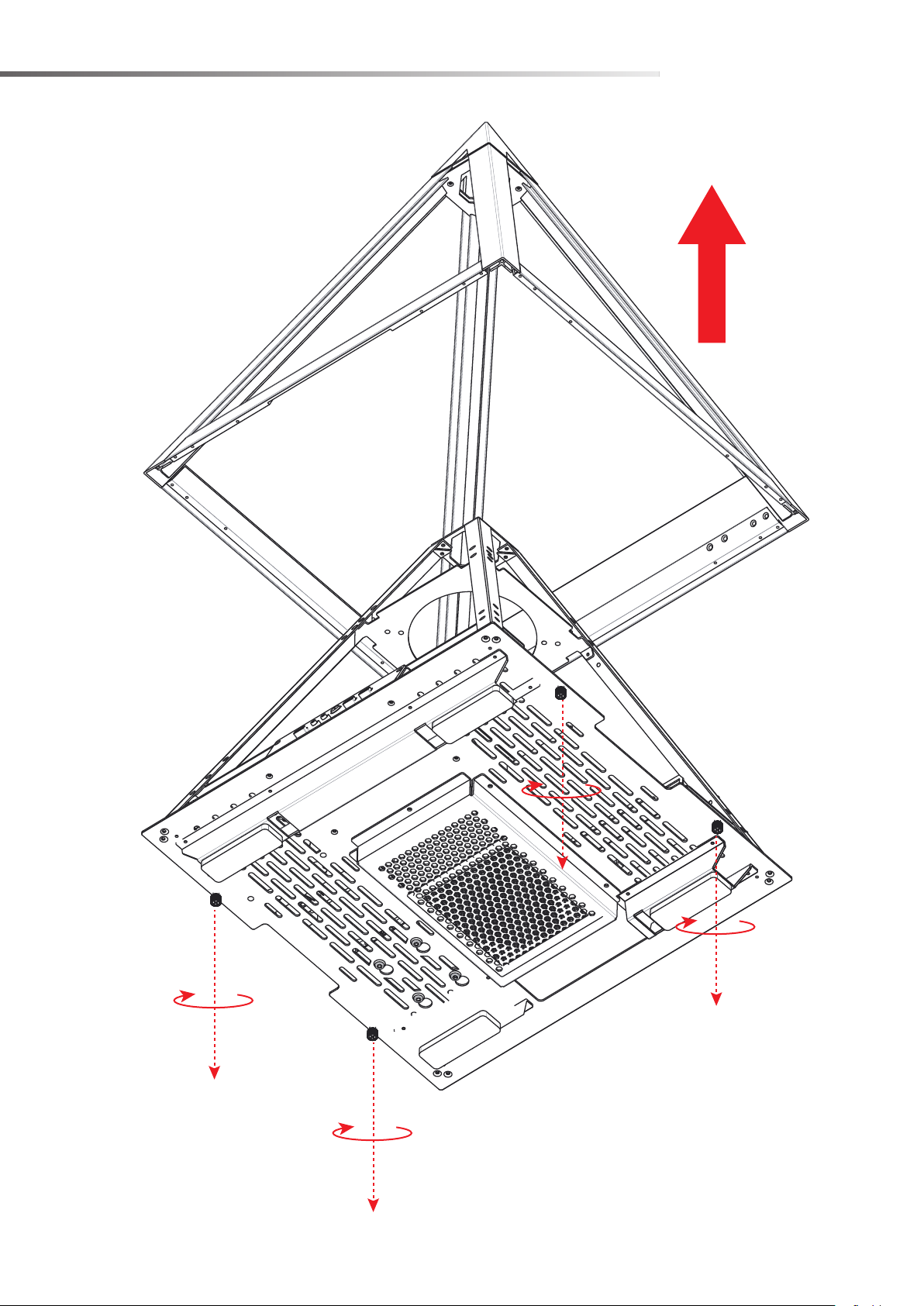

Removing The Top Glass Panel
Lift to remove top panel
Loosen the four screws

Overview
1
2
3
1
2
Pre-cut hole for CPU cooling
3
Power cord management hole
4
Water radiator management hole
motherboard mount
4
4

Overview

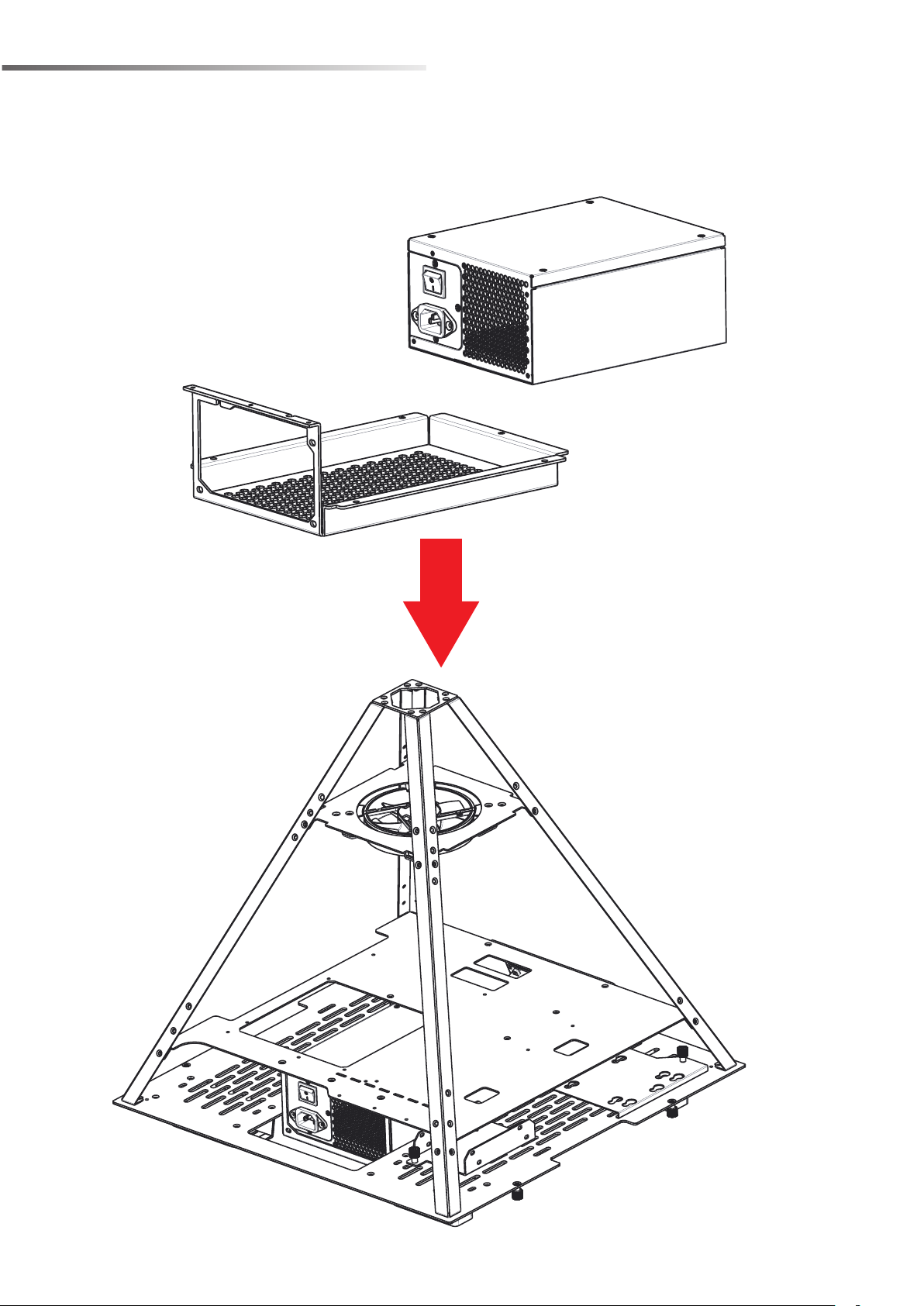

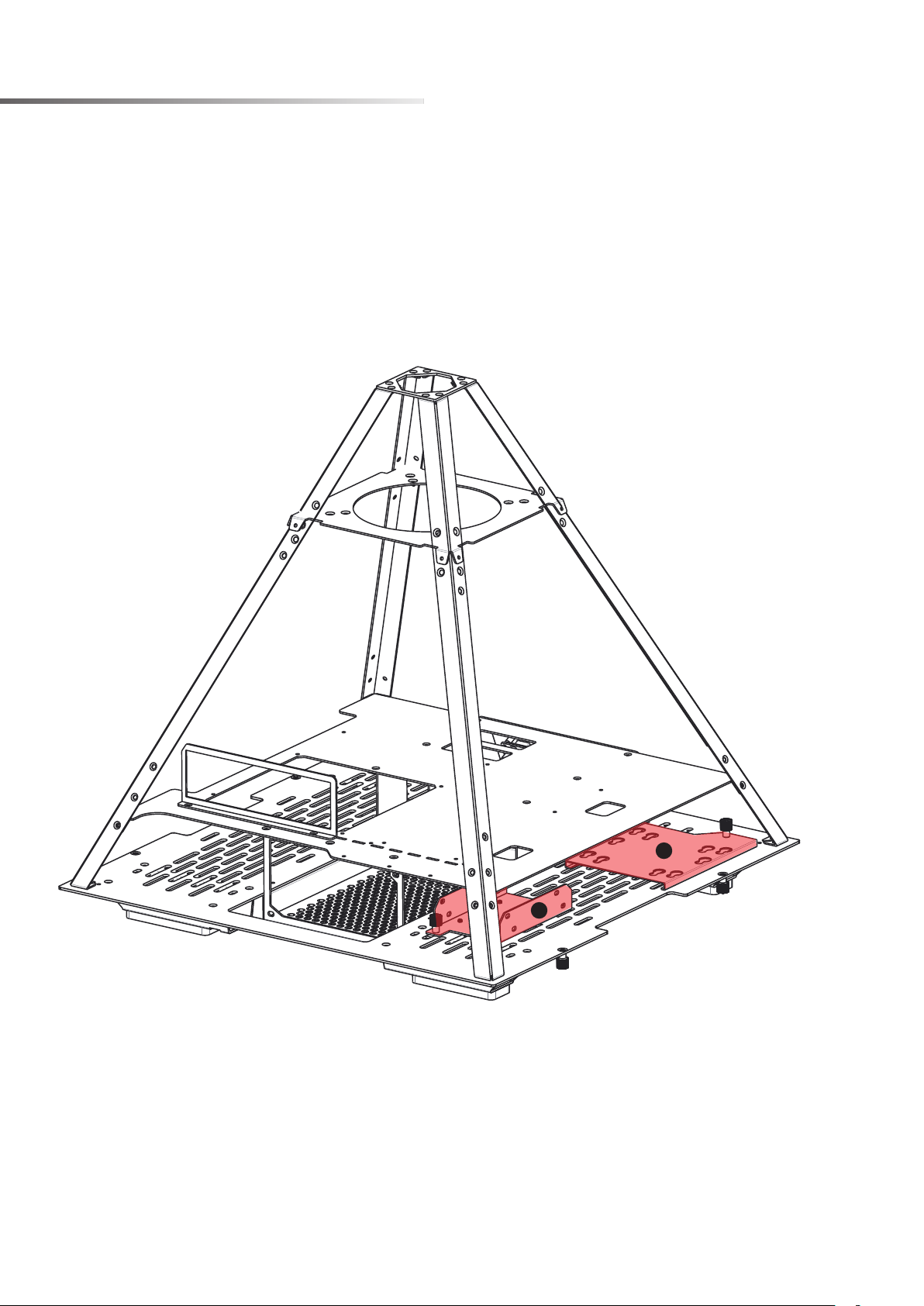

Power Supply Installation

2.5"SSD / 3.5"HDD Installation
(I) 2.5" SSD spring bolt tray: Supports up to 2.5" SSD x 2
(II) 3.5" HDD spring bolt tray: Supports 3.5 HDD x 1
(also compatible with a 2.5" SSD)
I
II
Supports up to 2 x 120mm fan on the hard drive bay

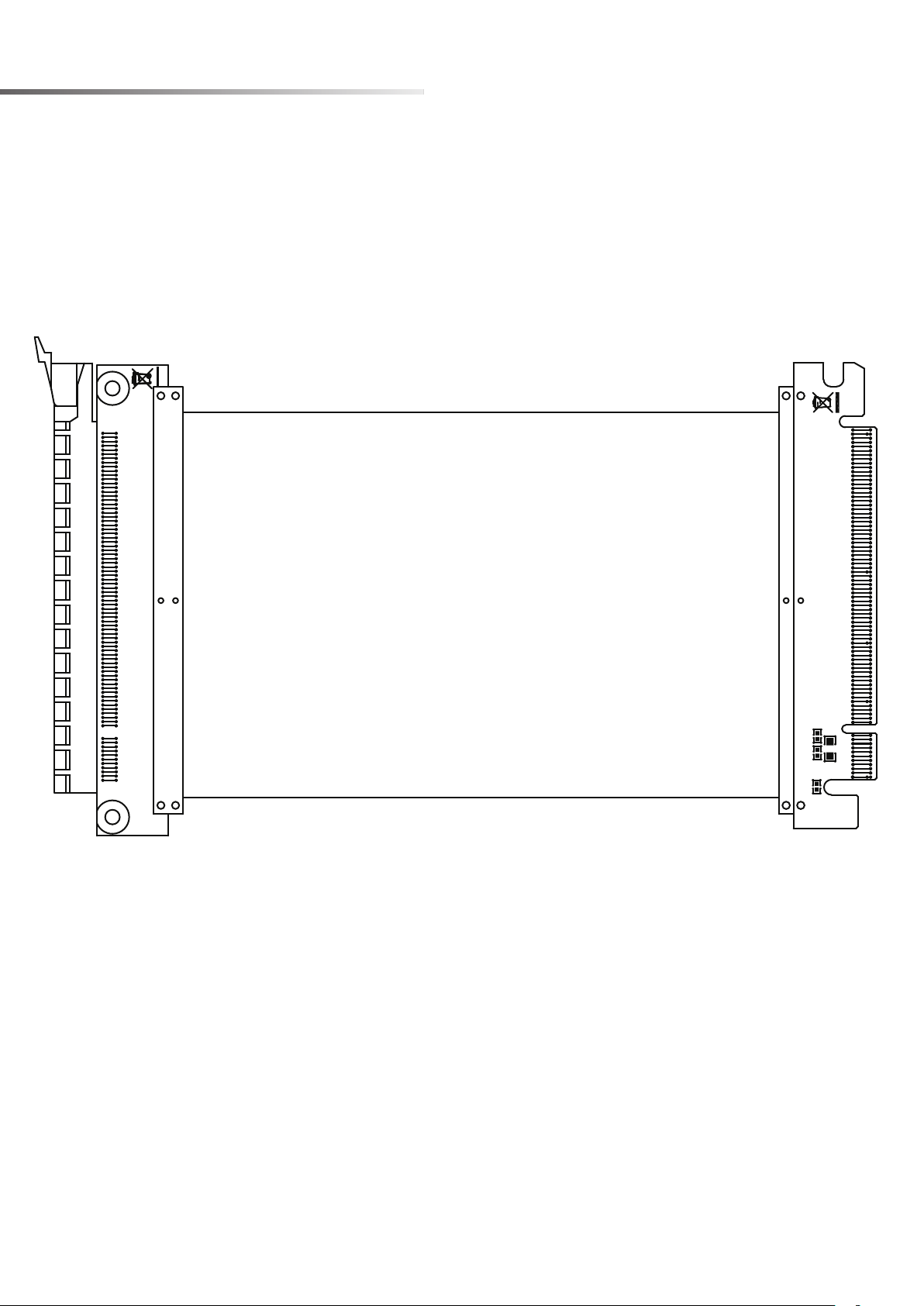

PCI-E Cable
J1
C4
C1 C3
C2
200 mm PCI-E 4.0 Cable(Support EATX、ATX Motherboard)

Fan Installation

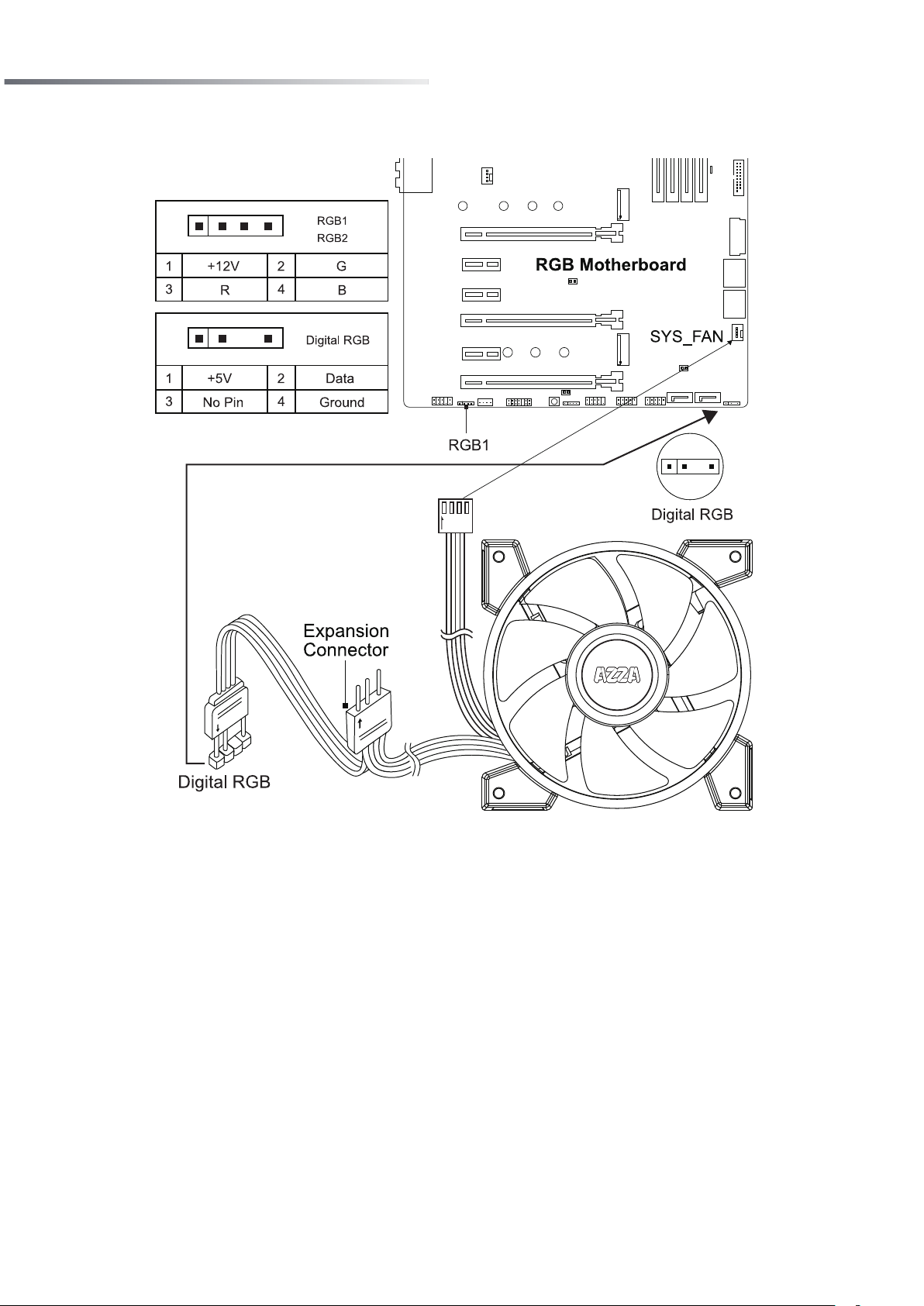

Digital RGB Fan Installation For Motherboard
The addressable RGB fans can connect directly to the 5V addressable RGB headers of compatible motherboards,
such as those from MSI™, ASUS™, Gigabyte™ and AsRock™.
Please note: Only 5V addressable headers from compatible motherboards are supported. Please do NOT connect
the fan to a 12V non-addressable header.
Please check your motherboard’s specifications before use. Do not go past the motherboard’s allowed limits on
power rating and LED count when connecting multiple fans/LED strips.
