Backyard Discovery PERGOLA SWING User manual

• Owner's Manual
• Frequently Asked Questions
• Assembly Instructions
• Warranty Information
PERGOLA SWING
OUTDOOR PRODUCT
MODEL: #1806627
Backyard Discovery
3305 Airport Drive
Pittsburg, KS 66762
1-800-856-4445
Made in China
INS-1806627-A-PERGOLA SWING-ENG 09/12/2017
Features the fastening system.
Register your new (Outdoor Product) on-line @
www.backyarddiscovery.com (you will also find any updates on
assembly instructions and information to order replacement parts)
Save this assembly manual for future reference in the event that
you need to order replacement parts.

PLEASE HAVE THE FOLLOWING INFORMATION WHEN YOU MAKE YOUR CALL:
1 – MODEL NUMBER OF THE PRODUCT LOCATED ON THE FRONT OF THE ASSEMBLY MANUAL
2 – DESRIPTION OF THE PART FROM THE PARTS LIST
POR FAVOR TENGA VISIBLE LA SIGUIENTE INFORMACIÓN CUANDO LLAME:
1 - NÚMERO DE MODELO DEL PRODUCTO QUE SE ENCUENTRA UBICADO AL FRENTE DEL MANUAL
DE ENSAMBLAJE
2 - DESCRIPCIÓN DE LA PIEZA QUE SE ENCUENTRA EN LA LISTA DE PIEZAS
PLEASE READ THIS BEFORE STARTING ASSEMBLY
POR FAVOR LEA ESTAS INSTRUCCIONES ANTES DE COMENZAR EL ENSAMBLAJE
STOP
PARE
M ss ng A Part?
CALL US BEFORE GOING
BACK TO THE STORE!
The store where you made your purchase
does not stock parts for th s tem.
If you have assembly quest ons or f you need parts,
whether they are m ss ng or damaged
Call Toll-Free Help L ne or v s t www.backyardd scovery.com
¡LLÁMENOS ANTES DE REGRESAR A LA TIENDA!
La enda donde realizó la compra no almacena piezas de es e produc o.
Si ene pregun as sobre el ensamblaje o si necesi a piezas debido a que
fal an o es án dañadas
llame gras a la línea de ayuda
1-800-856-4445
• READ THE ASSEMBLY MANUAL COMPLETELY, PAYING SPECIAL ATTENTION TO THE IMPORTANT TIPS AND SAFE-
TY INFORMATION.
• AFTER YOU HAVE READ THE ASSEMBLY MANUAL, YOU WILL BE ABLE TO DECIDE IF YOU NEED PROFESSIONAL
HELP TO COMPLETE THE ASSEMBLY OF THE STRUCTURE.
• SEPARATE AND IDENTIFY ALL PARTS TO MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED.
• IF YOU CAN’T FIND ALL OF THE PARTS, CHECK THE PACKING MATERIAL. SMALL PARTS MAY HAVE FALLEN INTO IT
DURING SHIPMENT.
• IF YOU HAVE PROBLEMS WITH THE ASSEMBLY OR IF ANY PART IS MISSING OR DAMAGED, PLEASE CALL THE
HELP LINE 1-800-856-4445 OR VISIT www.ba kyarddis overy. om
• LEA EL MANUAL DE ENSAMBLAJE COMPLETAMENTE, PRESTANDO ESPECIAL ATENCIÓN A LOS CONSEJOS ÚTILES
IMPORTANTES Y A LA INFORMACIÓN SOBRE SEGURIDAD.
• DESPUÉS DE QUE HAYA LEÍDO EL MANUAL DE ENSAMBLAJE, PODRÁ DECIDIR SI NECESITA AYUDA PROFESIONAL
PARA EFECTUAR EL ENSAMBLAJE DE LA ESTRUCTURA.
• SEPARE E IDENTIFIQUE TODAS LAS PIEZAS PARA COMPROBAR QUE DISPONE DE TODAS LAS PARTES INDICADAS.
• SI NO PUEDE ENCONTRAR TODAS LAS PIEZAS, REVISE EL MATERIAL DE EMPAQUE. ES POSIBLE QUE ALGUNAS
PIEZAS PEQUEÑAS PUEDAN HABERSE CAÍDO ALLÍ DURANTE EL ENVÍO.
• MANTÉNGASE ALEJADO DE LOS NIÑOS MENORES A LA EDAD RECOMENDADA.
• SI TIENE PROBLEMAS CON EL ENSAMBLAJE O SI ALGUNA PIEZA FALTA O ESTÁ DAÑADA, LLAME A LA LÍNEA DE
AYUDA AL 1-800-856-4445 O VISITE www.ba kyarddis overy. om

Owner’s Manual Outdoor Product
ENG OWNER OP-2012
Dear Customer:
Please read entire booklet completely before beginning the assembly process.
Structures are not intended for public use. The Company does not warranty any of its
residential structures subjected to commercial use such as: Recreational Park, or any
similar Commercial Application.
Please follow all recommendations below. ailure to do so may result in the warranty
being void and/or safety violations that could result in serious injury. This manual
contains helpful information concerning Assembly Preparation, Installation Procedure,
and Required aintenance. Always keep safety in mind as your structure is being built.
PLEASE RETAIN THESE INSTRUCTIONS OR UTURE RE ERENCE. KEEP THEM IN A SA E
PLACE WHERE YOU CAN RE ER TO THEM AS NEEDED. IN ORDER TO PROVIDE YOU
WITH THE MOST E ICIENT SERVICE, IT IS REQUIRED THAT YOU PROVIDE US WITH THE
PART NUMBERS WHEN ORDERING PARTS.
or Your Records:
Please take time and fill out the information below. This information will be needed for
warranty issues.
Where Purchased: ______________
Date of Purchase: ________________
Installation Date: _______________
Installed by: ______________________

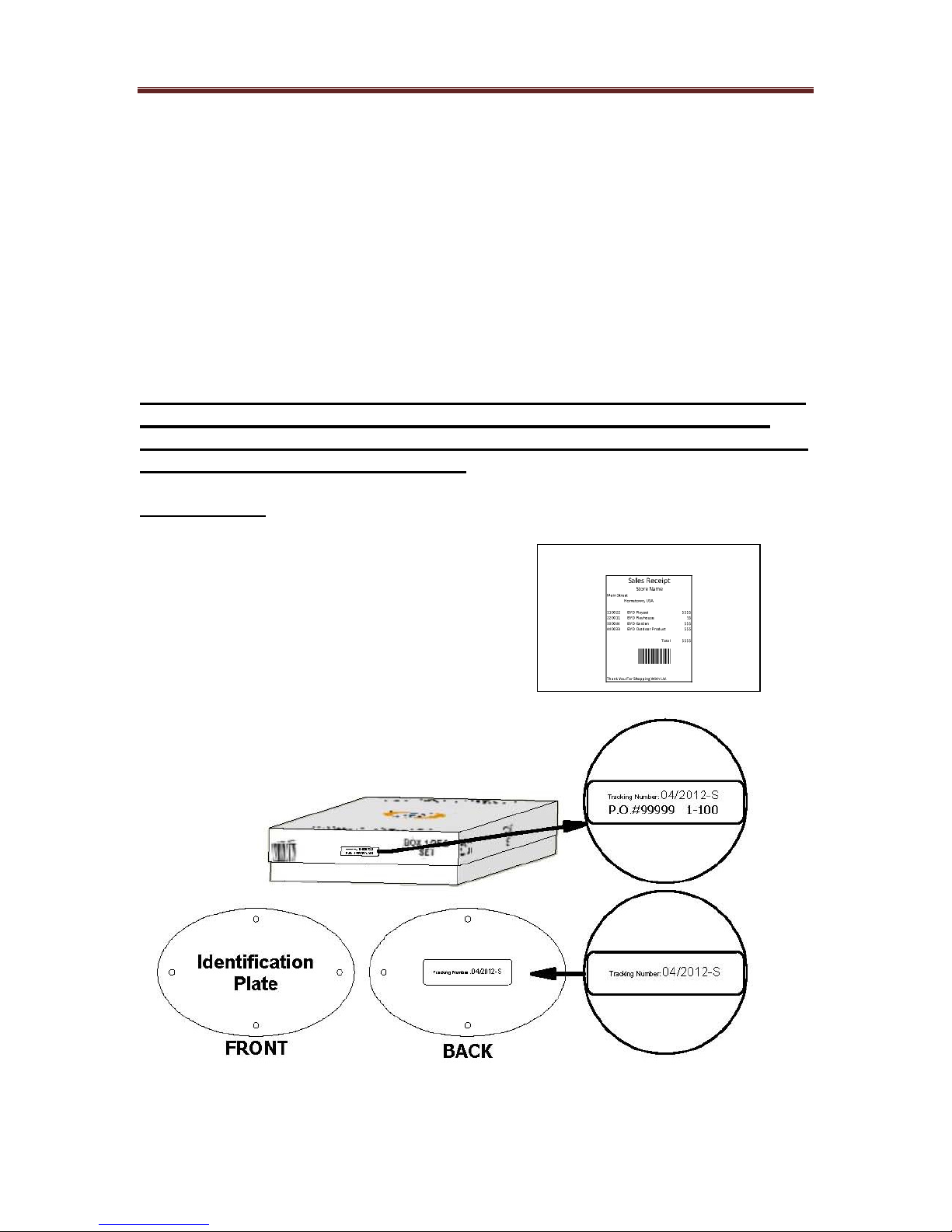

Tracking Number Reference Label
Tracking ID number on the carton and back of the ID plate are included for
tracking purposes associated with warranty claims.
Staple Receipt Here

Owner’s Manual Outdoor Product
ENG OWNER OP-2012
Maintenance Instructions:
1. Check all nuts and bolts twice monthly during the usage season and tighten as required.
(But not so tight that you crack the wood) It is particularly important that this
procedure be followed at the beginning of each season.
2. Oil all metallic moving parts monthly during the usage period.
3. Check all coverings for bolts and sharp edges twice monthly during usage season to be
certain they are in place. Replace when necessary. It is especially important to do this
at the beginning of each new season.
4. For rusted areas on metallic members such as hinges, brackets, etc. sand and repaint,
using a non lead-based paint meeting the requirements of Title 16 CRF Part 1303.
5. Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season
causing splinters to appear. Light sanding may be necessary to maintain a safe
environment. Treating your Product with protection (sealant) after sanding will help
prevent severe checking/splitting and other weather damage.
6. We have applied a waterborne translucent stain to your unit. This is done for color only.
Once or twice a year, depending on your climate conditions, you must apply some type
of protection (sealant) to the wood of your unit. Prior to the application of sealant,
lightly sand any “rough” spots on your set. Please note this is a requirement of your
warranty.

Outdoor Product Assembly Manual FAQs:
1. Is the wood treated with chemicals? Backyard Discovery uses 100% Chinese Cedar
wood which is naturally bug resistant, decay and rot resistant. To help ensure your
family’s safety, our wood is completely chemical free and we do not use pressure-
treated wood. The stain we use is a top coat using a water-based product that is for
appearance only.
2. How often should the product be stained? Backyard Discovery recommends the
product be stained once each year. A water or oil based stain can be used at the
customer’s discretion.
3. Why does it seem that my product is developing cracks? Wood is a natural material;
no two pieces are exactly alike. Each piece has its own characteristics and
personality and reacts differently to environmental changes. When any wood
product is exposed to the elements, it develops “wood checks”. A check is the radial
separation of the wood fibers running with the grain of the wood. These are caused
by the varying temperature and moisture conditions. A check is not a crack – it does
not affect the strength or durability of the wood or structural integrity of the product.
4. Do Backyard Discovery products come with a warranty? Yes. All Backyard
Discovery products carry a 1-year replacement warranty on all parts for
manufacturer’s defect. Our wood carries a 5 year pro-rated warranty on rot and
decay as well. Please see warranty details for more information.
5. What is the best way to get started assembling the product? Backyard Discovery
recommends taking all the parts out of the boxes and arranging them by part
number before you begin any assembly. This will not only allow faster assembly, but
will also identify any parts that may be missing or damaged so they can be replaced
before assembly. If parts are missing or need replacement, go to
www.backyarddiscovery.com/support.aspx and follow the prompts to order them.
Next, read the assembly manual and get the tools ready for the job as
recommended in the manual. If the assembly manual is lost or misplaced a new one
can be printed from Backyard Discovery’s website: www.backyarddiscovery.com .
6. The 2”x4” boards do not measure 2”x 4”. Why not? In the U.S. it is common practice
to describe lumber dimensions using the rough cut sizes from the saw mill and not
the finished dimensions. Retailers, home stores, etc. all use this accepted practice
for describing lumber dimensions. However, Backyard Discovery products are
designed and constructed using the actual dimensions so everything fits properly
and remains so during the life of the product.
For more information and frequently asked questions, please refer to our website at
www.backyarddiscovery.com .

(Level 24")
(Open End Wrenches 1/2")
(Square)
(Tape Measure)
(3/8" Drive Ratchet, 1/2" STD
Sockets 1/2" Deep Sockets)
(Claw Hammer)
(Cordless Drill or Electric Drill)
(Drill Attachments: Phillips
Head & Socket Driver)
(An Adult w/ an Adult Helper)
(Ladder)
(Phillips Screw Driver)
(3/16" Concrete Bit)

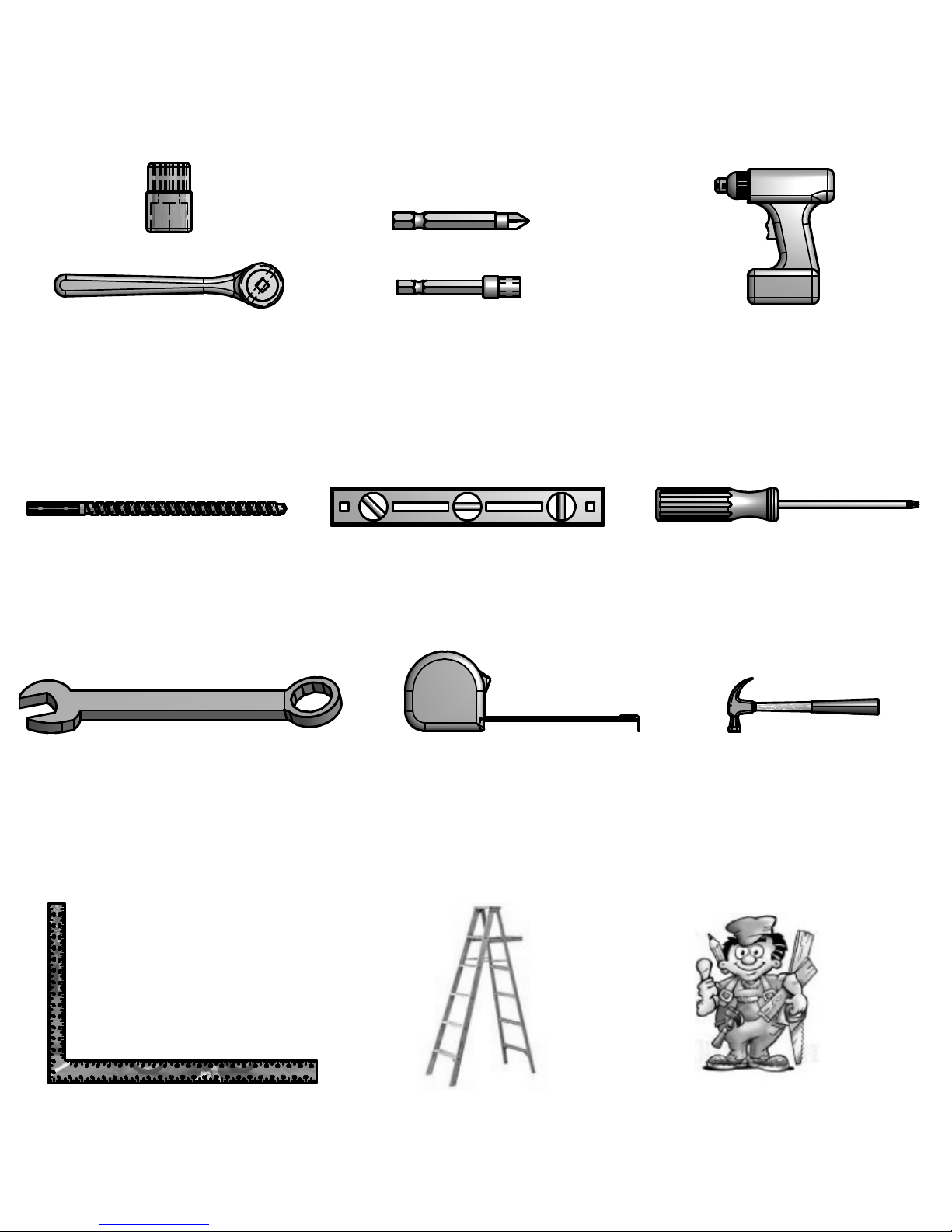

Tools Required for Installation:
(These are the tools that are generally required for assembly of our outdoor products. These tools
are not included with the outdoor product purchase.)

Important Assembly Notes
1) While assembling unit, take time before and after each phase to make sure unit is level. If unit is
not level, assembly will be difficult and improper assembly may result. Extra care must be taken to
ensure the unit is square.
2) Pay close attention to the ITEMS NEEDED FOR EACH PHASE. They can be a valuable aid when
sorting your wood and hardware. Assembly will be made easier if items are sorted by phase.
3) Pay close attention to make sure you are using the correct hardware in the correct phases. Using
incorrect hardware may result in improper assembly.
4) Whenever a T-nut is used, follow these directions. Place T-nut in pre-drilled hole. Tap in with hammer.
Place bolt with washers in the opposite side. Hand tighten to make sure the bolt is in the T-nut.
DO NOT over tighten.
5) Read the steps of each phase thoroughly. The written steps may include important information not
shown in the illustrations.

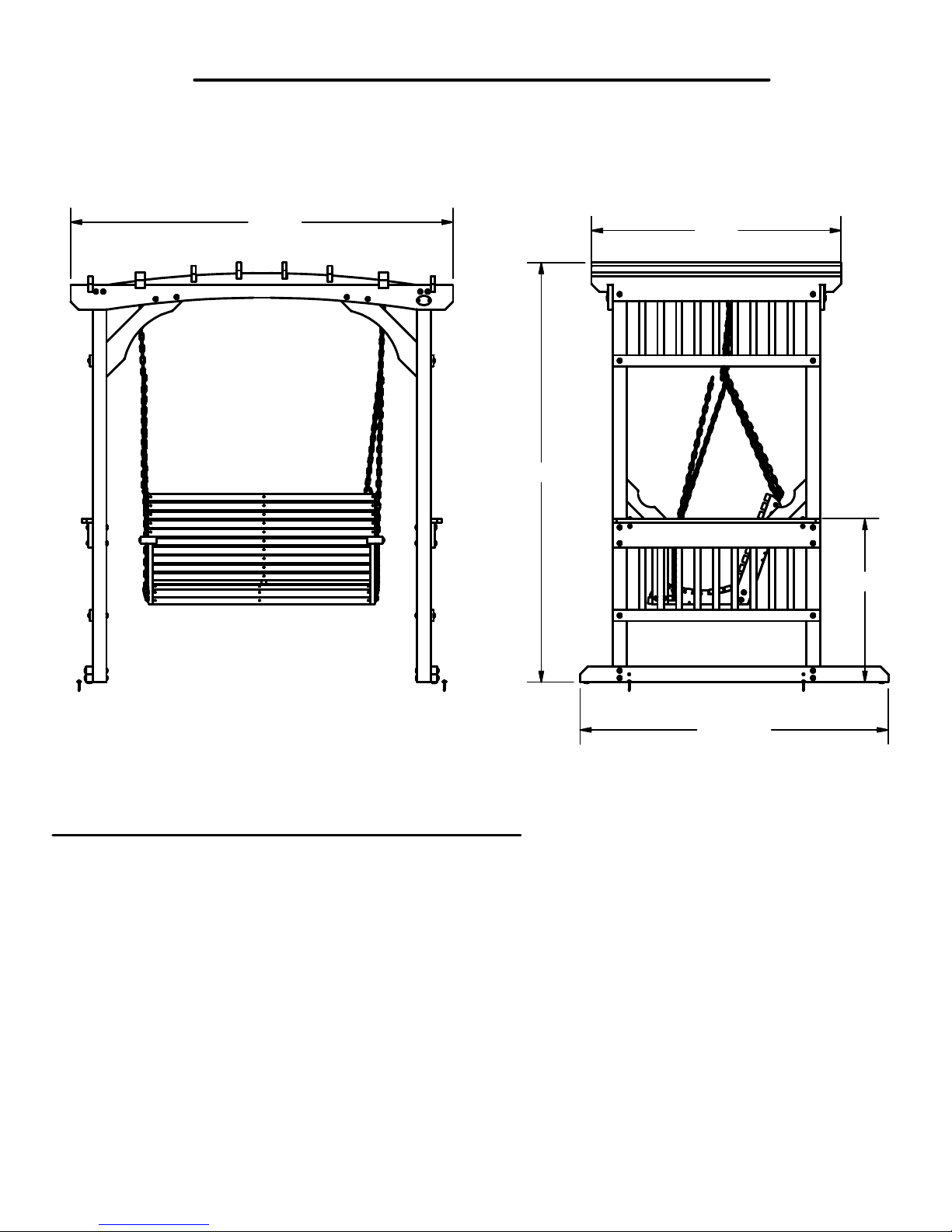

Basic Setup Dimensions
Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such
as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
NOT TO EXCEED 600 LBS
6'-10"
5'-6 1/8"
2'-11"
7'-5 7/8"
4'-6"

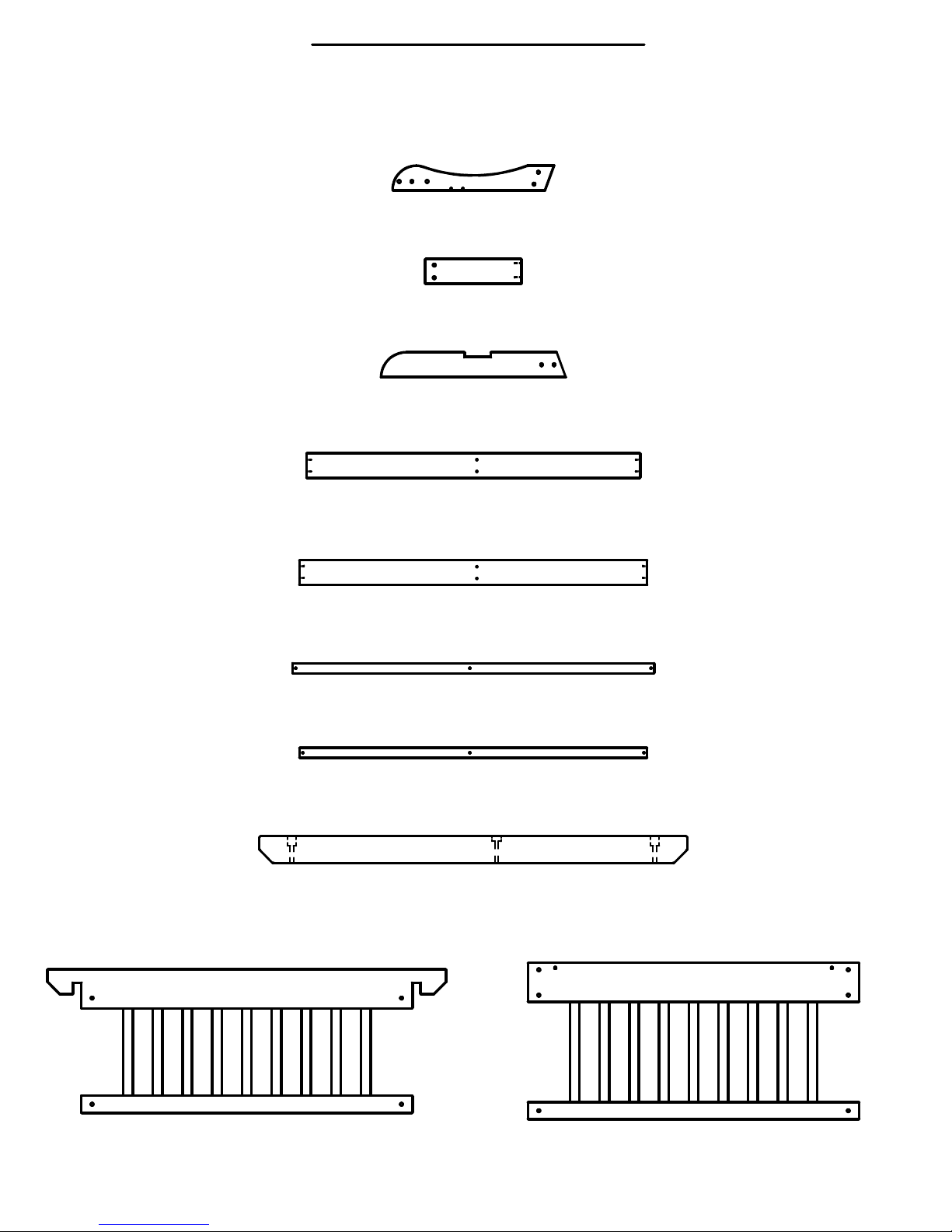

Parts Identification

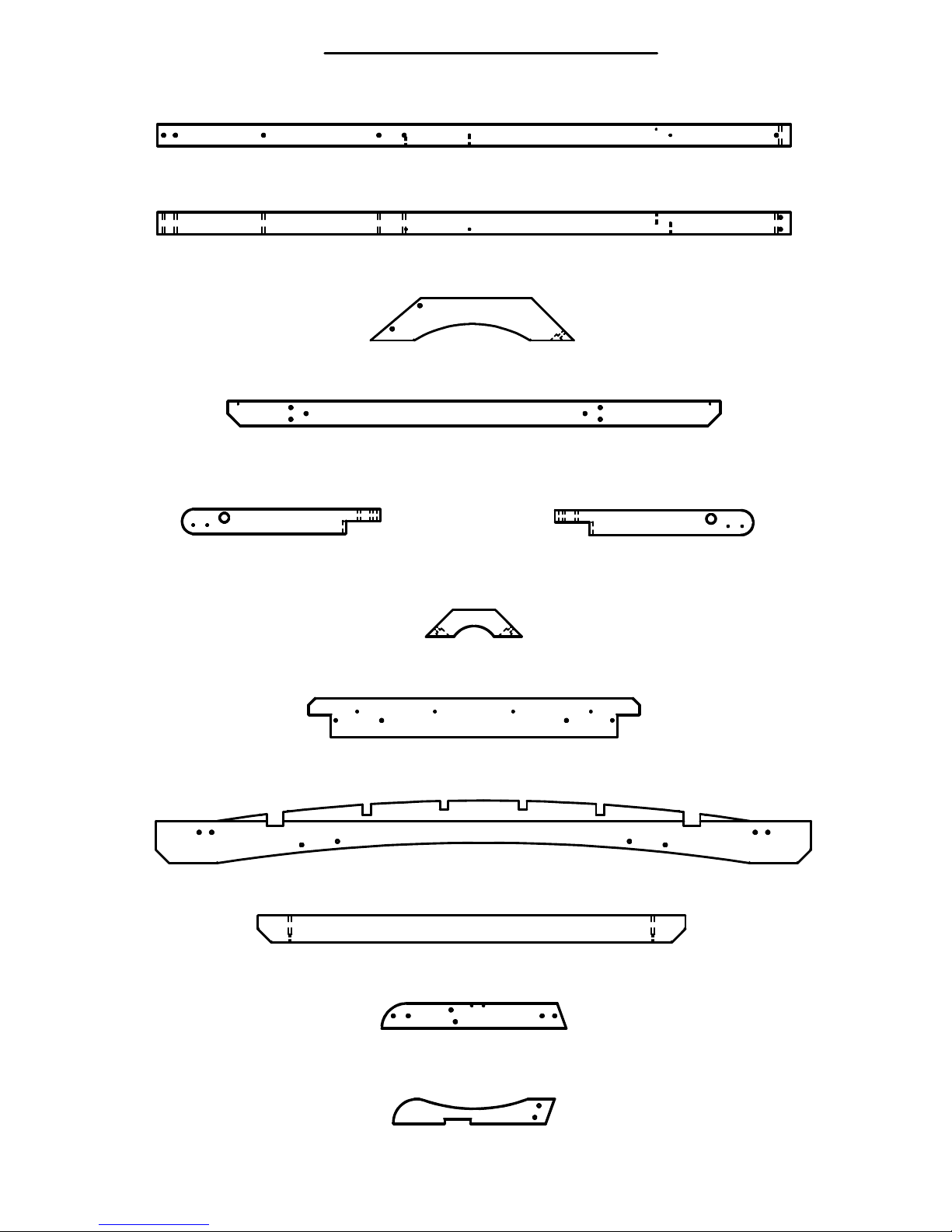

Wood Components
(NOT TO SCALE)
B2 - POST - W4L07358
3"x3"x85" (76x76x2160)
(2)
B1 - POST - W4L07351
3"x3"x85" (76x76x2160)
(2)
D1 - SUPPORT BRACE - W4L07809
1 3/8"x5 1/4"x25 3/8" (36x134x646)
(4)
E1 - GROUND BOARD - W4L07353
1 3/8"x3 3/8"x66 1/8" (36x86x1680)
(2)
E2 - RIGHT ARM REST - W4L07340
1 3/8"x3 3/8"x26 5/8" (36x86x677)
(1)
E3 - LEFT ARM REST - W4L07341
1 3/8"x3 3/8"x26 5/8" (36x86x677)
(1)
G1 - SHELF - W4L07352
1"x5 1/4"x44 1/2" (24x134x1130)
(2)
H1 - ARCH RAIL - W4L07806
1"x5 1/4"x82" (24x134x2084)
(2)
H2 - CENTER RAFTER - W4L07808
1"x3 3/8"x53 1/2" (24x86x1360)
(4)
H5 - SIDE BACK RAIL - W4L07346
1"x3 3/8"x24 3/4" (24x86x630)
(2)
H8 - CENTER SEAT SUPPORT - W4L07349
1"x3 3/8"x21 3/4" (24x86x551)
(1)
E4 - SHELF BRACE - W4L07416
1 3/8"x3 3/8"x12" (36x86x304.8)
(4)

Parts Identification
Wood Components
(NOT TO SCALE)
H9 - SIDE SEAT SUPPORT - W4L07350
1"x3 3/8"x21 3/4" (24x86x551)
(2)
H10 - SWING RAIL SUPPORT - W4L07344
1"x3 3/8"x13" (24x86x330)
(2)
H11 - CENTER BACK RAIL - W4L07347
1"x3 3/8"x24 3/4" (24x86x630)
(1)
M1 - SWING SEAT SUPPORT - W4L07345
5/8"x3 3/8"x44 3/4" (16x86x1138)
(1)
M2 - SWING BACK SUPPORT - W4L07348
5/8"x3 3/8"x46 3/4" (16x86x1186)
(1)
T2 - SWING BACK BOARD - W4L07342
1"x1 3/8"x48 5/8" (24x36x1234)
(10)
T3 - SWING SEAT BOARD - W4L07343
1"x1 3/8"x46 3/4" (24x36x1186)
(12)

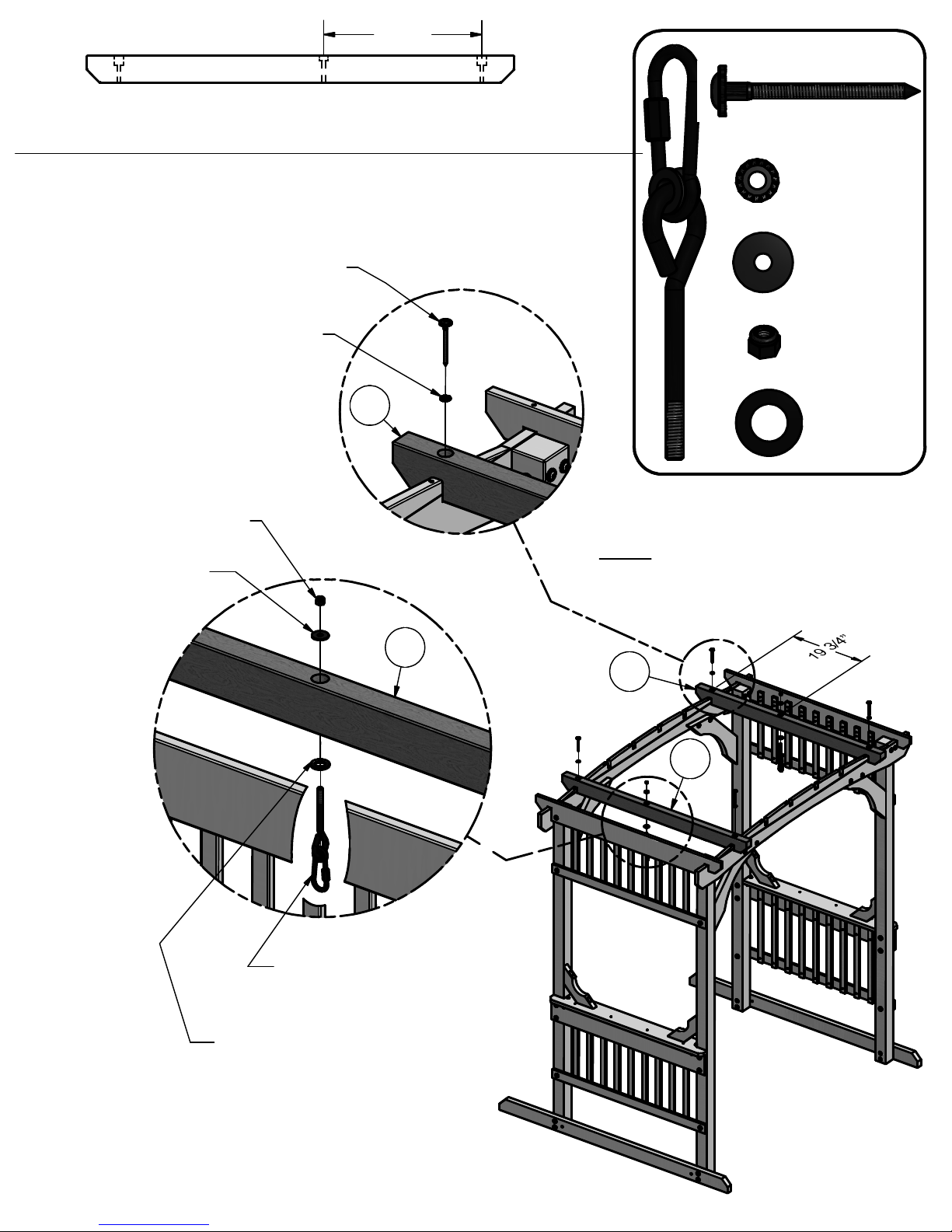

W1 - SWING SUPPORT - W4L07807
2"x3 3/8"x53 1/2" (50x86x1360)
(2)
WP1 - UPPER WALL PANEL - W2A02027
1 9/16"x53 9/16"x19 1/4" (40x1360x489)
(2) WP2 - LOWER WALL PANEL - W2A02028
1 9/16"x44 1/2"x21" (40x1130x533)
(2)

Parts Identification

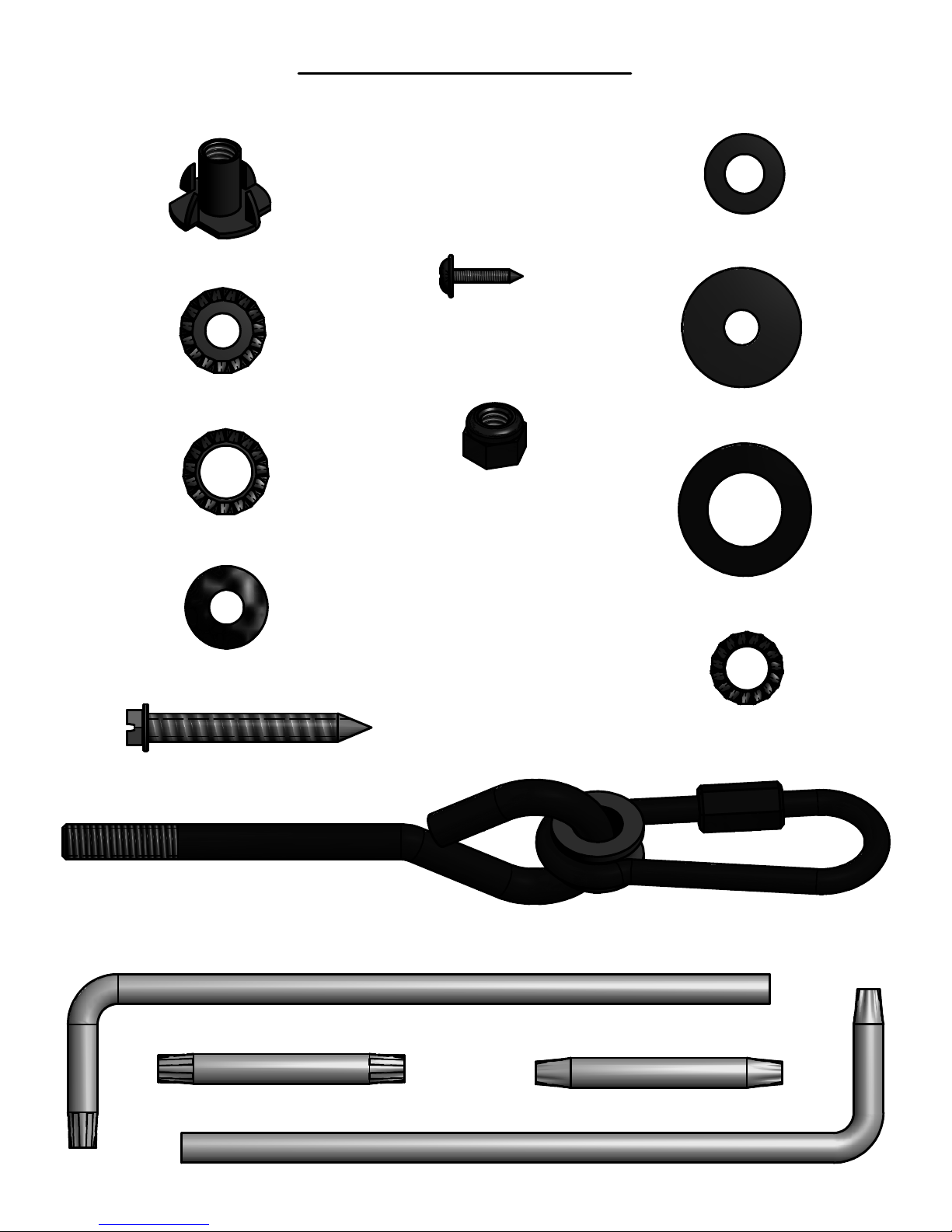

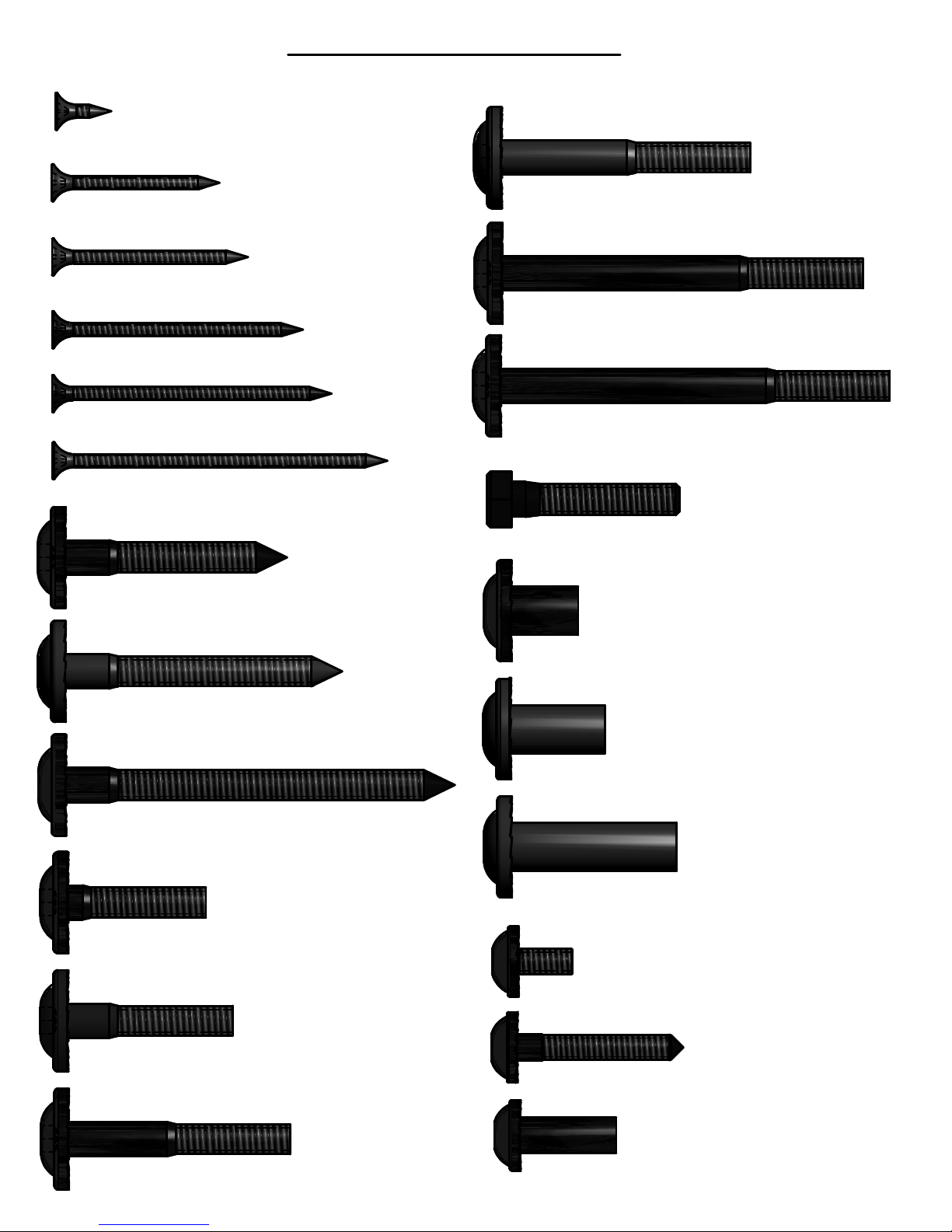

Hardware
- SCREW PFH 8x1/2 BLK - H100203
(2)
- SCREW PFH 8x3 BLK - H100362
(13)
- SCREW PFH 8x2 1/4 BLK - H100483
(9)
- LAG SCREW WH 5/16x2 BLK - H100458
(9)
- LAG SCREW WH 5/16x3 1/2 BLK - H100482
(4)
- BOLT WH 5/16x1 1/4 BLK - H100459
(4)
- BOLT WH 5/16x1 1/2 BLK - H100407
(15)
- BOLT WH 5/16x2 BLK - H100457
(9)
- BOLT WH 5/16x2-1/4 BLK - H100205
(4)
- BOLT WH 5/16x3 1/4 BLK - H100484
(4)
- BOLT WH 5/16x3 1/2 BLK - H100503
(30)
- NUT BARREL WH 5/16x5/8 BLK - H100469
(4)
- NUT BARREL WH 5/16x7/8 BLK - H100192
(48)
- BOLT HEX 5/16x1-1/2 - BLK - H100498
(7)
- SCREW PFH 8x1-1/2 BLK - H100200
(70)
- SCREW PFH 8x1 3/4 BLK - H100382
(13)
- SCREW PFH 8x2-1/2 BLK - H100201
(4)
- NUT BARREL WH 5/16x1-1/2 BLK - H100193
(9)
- BOLT WH 1/4x1/2 BLK - H100401
(9)
- LAG SCREW WH 1/4x1-1/2 BLK - H100403
(4)
- NUT BARREL WH 1/4x7/8 BLK - H100399
(9)
- LAG SCREW WH 5/16x2-1/2 BLK - H100197
(4)

Parts Identification
Hardware
- WASHER FLAT 9x18 BLK - H100474
(13)
- WASHER FLAT 8x27 BLK - H100478
(2)
- SWING HANGER (7.125") QUICK LINK - BLK - H100496(2)
- WASHER SAFETY 17x30 - BLK - H100497
(2)
- T-40 TORX WRENCH - A100041
(2)
- T-40 TORX BIT - A100042
(2)
- CONCRETE ANCHOR 1/4" x 2" - H100120
(4)
- WASHER LOCK EXT 8x19 BLK - H100198
(78)
- NUT LOCK 5/16 BLK - H100479
(9)
- WASHER LOCK EXT 12x19 BLK - H100199
(62)
- T-NUT 5/16 BLK - H100379
(4)
- WASHER LOCK EXT 8x15 BLK - H100400
(9)
- T-30 TORX BIT - H100147
(2)
- T-30 TORX WRENCH - H100114
(2)
- WASHER FLAT 8x19 BLACK - H100630
(4)
- SCREW PWH 8x5/8 BLK - H100202
(2)

Parts Identification
Accessories
(NOT TO SCALE)
SQ - "A" REVISION TAG - A100314
(1)
- L BRACKET 2.5x38x50x55 BLK - A4M00615
(4)
- TIE STRAP PLATE - A4M00631
(2)
- GROUND STAKE REBAR - A4M00527
(4)
- CHAIN SUPPORT BRACKET - A4M00632
(2)
- QUICK LINK - A4M00633
(4)
- PERGOLA SWING CHAIN - A4M00634
(2)
- PERGOLA SWING FOOT - A6P00081
(4)
STAIN PEN (BW-2UV) BARNWOOD - A6P00173
(1)
- 3-SIDED-90° BRACKET - BLK - A4M00706
(4)
XR - BYD ID TAG (SMALL) WITHOUT AGES - A100241(1)

STEP 1
WP1
B1
WP2
B2
E1
NUT BARREL WH 5/16x7/8 BLK
(2 PLCS)
WASHER LOCK EXT 12x19 BLK
(2 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
NUT BARREL WH 5/16x7/8 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x3 1/4 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
BOLT WH 5/16x3 1/2 BLK
(4 PLCS)
NUT BARREL WH 5/16x7/8 BLK
(2 PLCS)
WASHER LOCK EXT 12x19 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
BOLT WH 5/16x3 1/2 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
LAG SCREW WH 5/16x2 BLK
(2 PLCS)
BOLTWH5/16x3
1/2BLK
(10)
BOLTWH5/16x3
1/4BLK
(2)
LAGSCREWWH
5/16x2BLK
(2)
WASHER LOCK
EXT 8x19 BLK
(14)
NUT BARREL
WH 5/16x7/8 BLK
(8)
WASHER LOCK
EXT 12x19 BLK
(12)
B1 - POST - W4L07351
3"x3"x85" (76x76x2160)
(1)
B2 - POST - W4L07358
3"x3"x85" (76x76x2160)
(1)
(1)
E1 - GROUND BOARD - W4L07353
1 3/8"x3 3/8"x66 1/8" (36x86x1680)
(1)
(1)
- PERGOLA SWING FOOT - A6P00081
(2) SQ - "A" REVISION TAG - A100314
(1)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
BOLT WH 5/16x3 1/2 BLK
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
NUT BARREL WH 5/16x1-1/2 BLK
(4 PLCS)
SCREW PWH 8x5/8 BLK
(2 PLCS)
PERGOLA SWING FOOT
(2 PLCS)
"A" REVISION TAG
(1 PLC)
NUT BARREL
WH 5/16x1-1/2
BLK
(4)
SCREW PWH
8x5/8 BLK
(2)
WP1 - UPPER WALL PANEL - W2A02027
1 9/16"x53 9/16"x19 1/4" (40x1360x489)
WP2 - LOWER WALL PANEL - W2A02028
1 9/16"x44 1/2"x21" (40x1130x533)
NOTE:
HOLE LOCATIONS
ARE SAME ON 'B1'
AS SHOWN ON 'B2'
123456789101112131415
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
17 18 19
20 21 22 23
2221201918171615141312111098765432
1
!

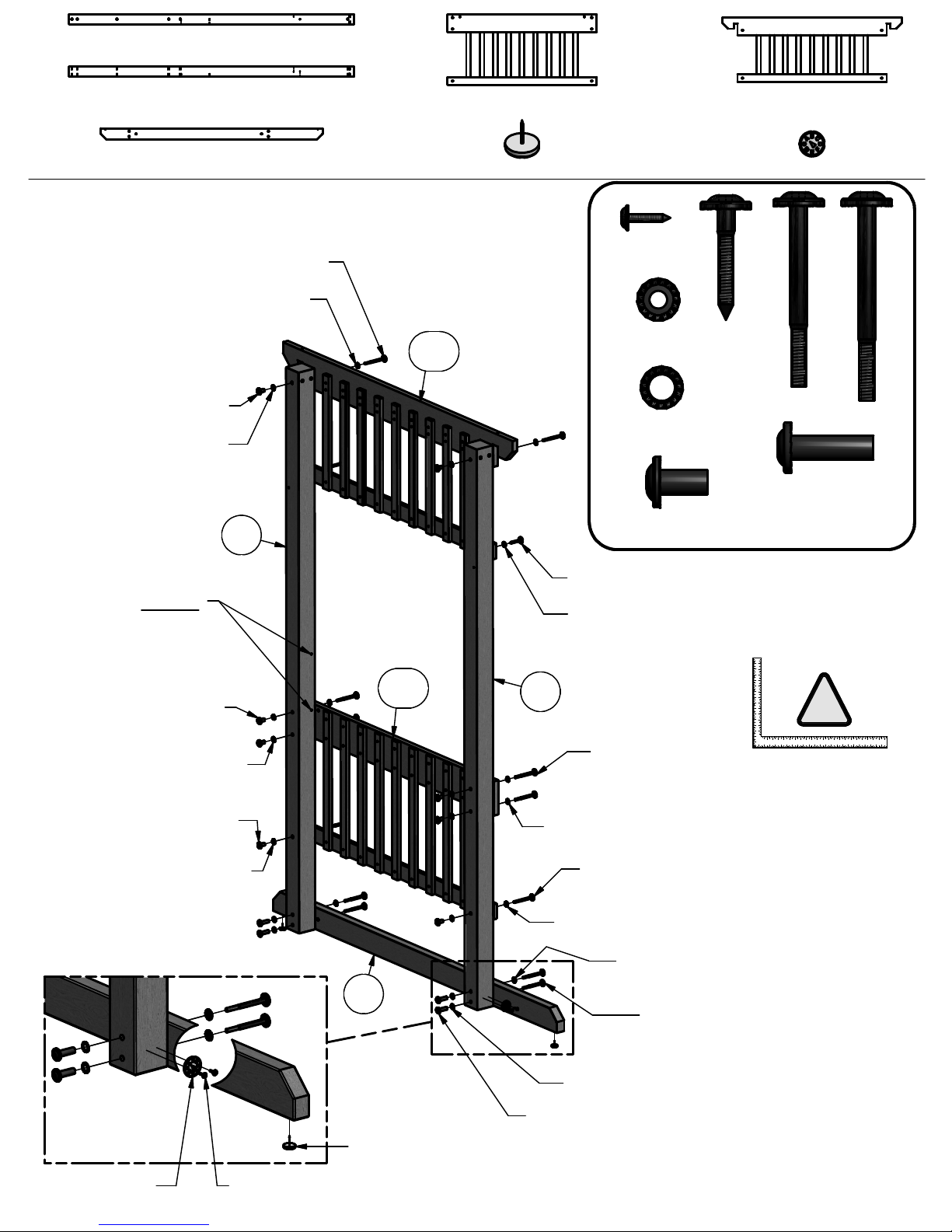

STEP 2
BOLT WH 5/16x3 1/2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
BOLT WH 5/16x3 1/4 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
BOLT WH 5/16x3 1/2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
LAG SCREW WH 5/16x2 BLK
(2 PLCS)
BOLT WH 5/16x3 1/2 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
NUT BARREL WH 5/16x7/8 BLK
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(2 PLCS)
NUT BARREL WH 5/16x7/8 BLK
(2 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
NUT BARREL WH 5/16x1-1/2 BLK
(4 PLCS)
WP2
B2
E1
WP1
B1
B2 - POST - W4L07358
3"x3"x85" (76x76x2160)
(1)
B1 - POST - W4L07351
3"x3"x85" (76x76x2160)
(1)
E1 - GROUND BOARD - W4L07353
1 3/8"x3 3/8"x66 1/8" (36x86x1680)
(1)
(1)
(1)
WASHER LOCK EXT 12x19 BLK
(2 PLCS)
NUT BARREL WH 5/16x7/8 BLK
(2 PLCS)
- PERGOLA SWING FOOT - A6P00081
(2)
PERGOLA SWING FOOT
(2 PLCS)
WP2 - LOWER WALL PANEL - W2A02028
1 9/16"x44 1/2"x21" (40x1130x533)
WP1 - UPPER WALL PANEL - W2A02027
1 9/16"x53 9/16"x19 1/4" (40x1360x489)
NOTE:
HOLE LOCATIONS
ARE SAME ON 'B2'
AS SHOWN ON 'B1'
BOLTWH5/16x3
1/4BLK
(2)
NUT BARREL
WH 5/16x1-1/2
BLK
(4)
BOLTWH5/16x3
1/2BLK
(10)
LAGSCREWWH
5/16x2BLK
(2)
WASHER LOCK
EXT 8x19 BLK
(14)
WASHER LOCK
EXT 12x19 BLK
(12)
NUT BARREL
WH 5/16x7/8 BLK
(8)
123456789101112131415
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16
17
18
19
20 21 22 23
2221201918171615141312111098765432
1
!

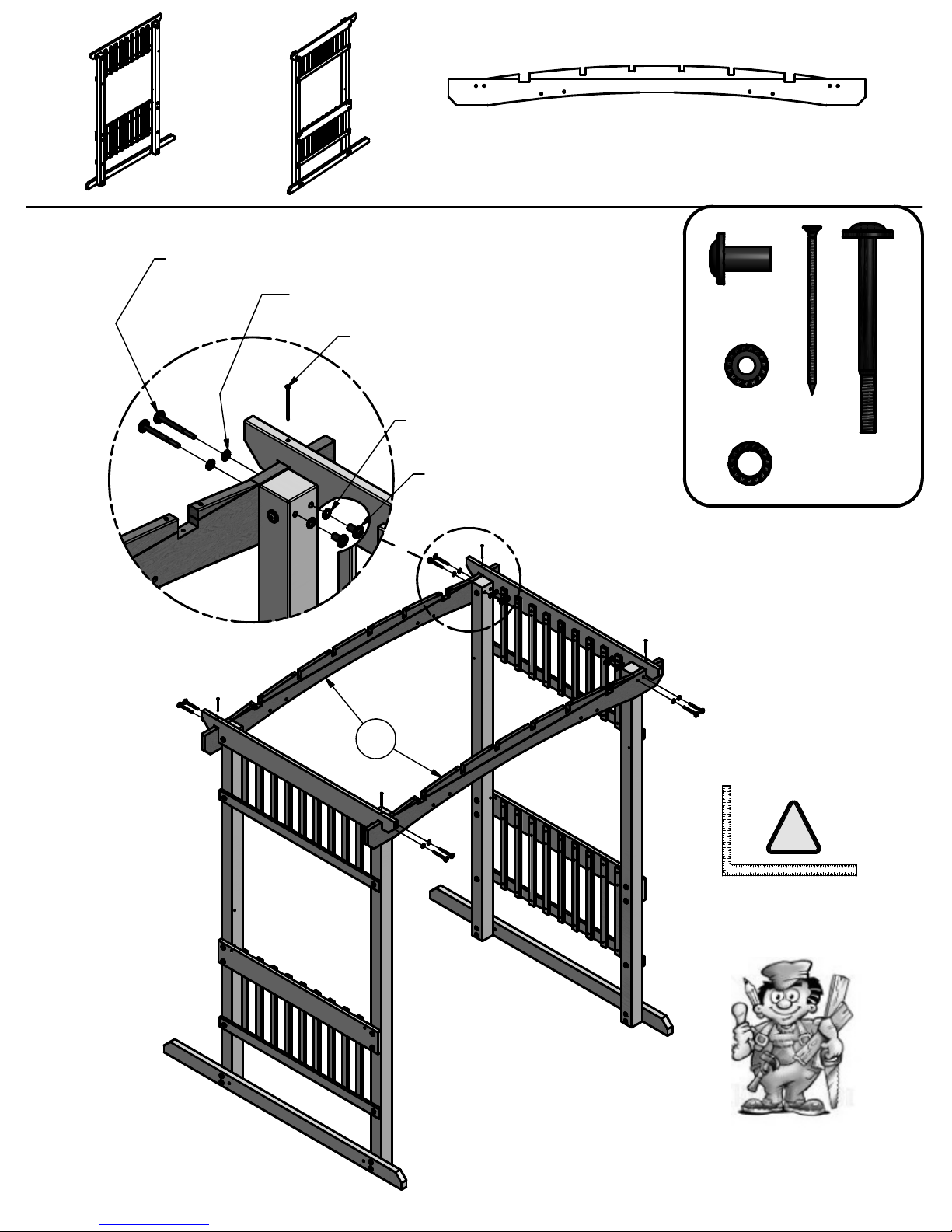

STEP 3
SCREW PFH 8x3 BLK
(4 PLCS)
NUT BARREL WH 5/16x7/8 BLK
(8 PLCS)
WASHER LOCK EXT 12x19 BLK
(8 PLCS)
WASHER LOCK EXT 8x19 BLK
(8 PLCS)
BOLT WH 5/16x3 1/2 BLK
(8 PLCS)
123456789101112131415
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7
8 9
10 11 12 13 14 15
16 17 18 19 20 21
22 23
2221201918171615141312111098765432
1
!
SCREWPFH8x3
BLK
(4)
BOLTWH5/16x3
1/2BLK
(8)
NUT BARREL
WH 5/16x7/8 BLK
(8)
WASHER LOCK
EXT 8x19 BLK
(8)
WASHER LOCK
EXT 12x19 BLK
(8)
H1 - ARCH RAIL - W4L07806
1"x5 1/4"x82" (24x134x2084)
(2)
LEFTASSEMBLY
RIGHTASSEMBLY
LEFTASSEMBLY
RIGHTASSEMBLY
H1

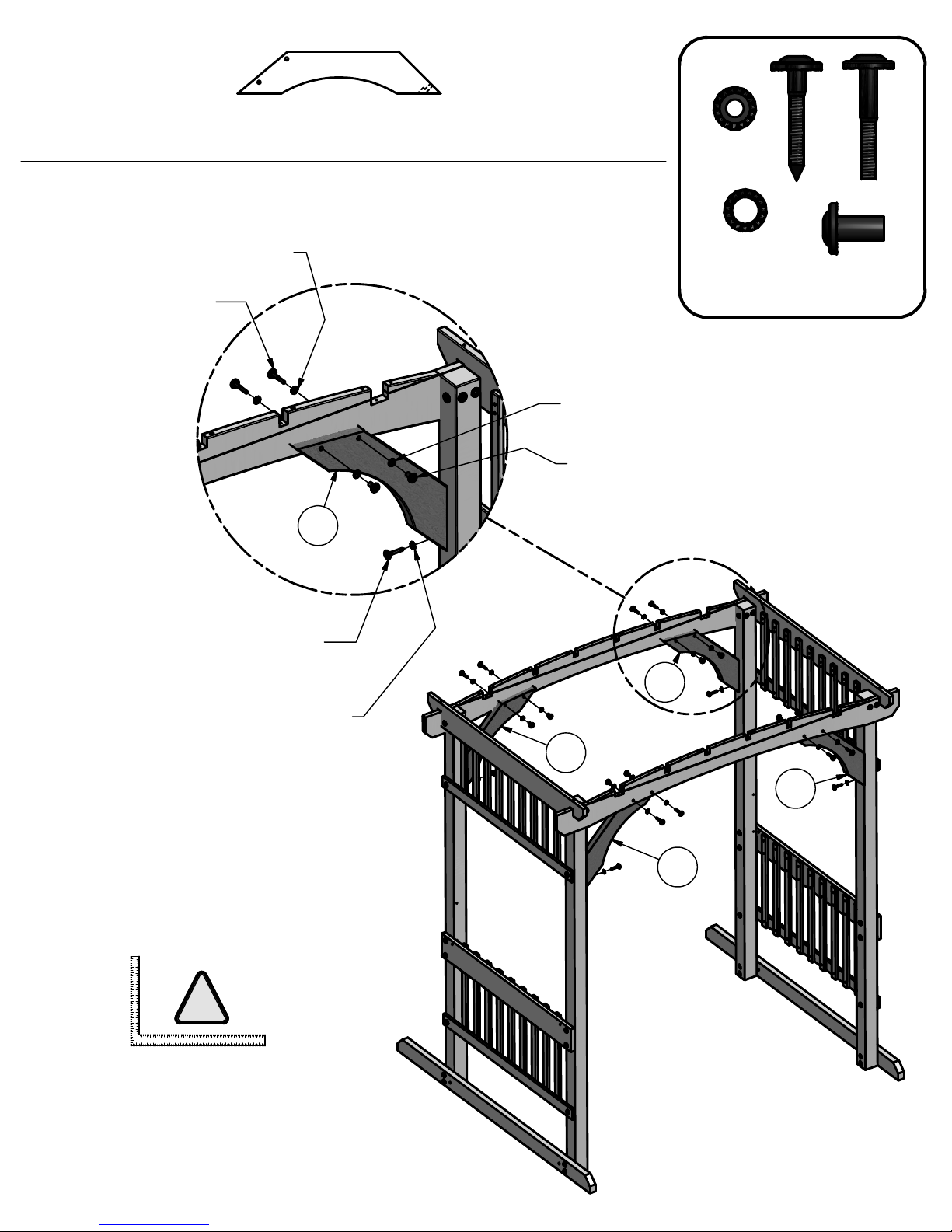

STEP 4
LAG SCREW WH 5/16x2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
NUT BARREL WH 5/16x7/8 BLK
(8 PLCS)
WASHER LOCK EXT 12x19 BLK
(8 PLCS)
WASHER LOCK EXT 8x19 BLK
(8 PLCS)
BOLT WH 5/16x2 BLK
(8 PLCS)
BOLTWH5/16x2
BLK
(8)
LAGSCREWWH
5/16x2BLK
(4)
NUT
BARREL WH
5/16x7/8 BLK
(8)
WASHER
LOCK EXT
8x19 BLK
(12)
WASHER
LOCK EXT
12x19 BLK
(8)
D1 - SUPPORT BRACE - W4L07809
1 3/8"x5 1/4"x25 3/8" (36x134x646)
(4)
D1
D1
D1
D1
D1
RIGHTASSEMBLY
LEFTASSEMBLY
123456789101112131415
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2221201918171615141312111098765432
1
!

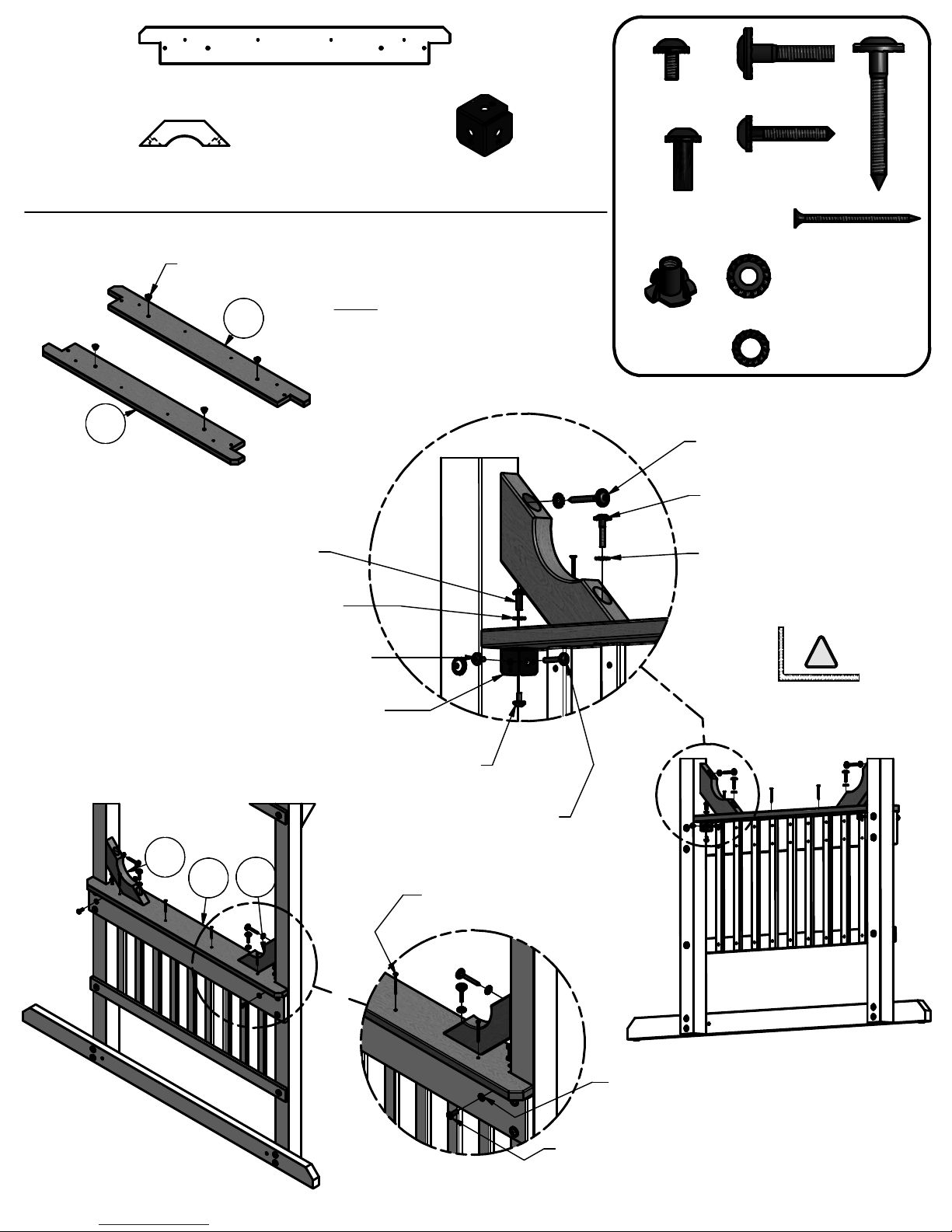

STEP 5
G1
SCREW PFH 8x2
1/4 BLK
(8)
G1 - SHELF - W4L07352
1"x5 1/4"x44 1/2" (24x134x1130)
(2)
BOLT WH 1/4x1/2 BLK
(4 PLCS)
BOLT WH 1/4x1/2 BLK
(4 PLCS)
LAG SCREW WH 1/4x1-1/2 BLK
(4 PLCS)
WASHER LOCK EXT 8x15 BLK
(4 PLCS)
NUT BARREL WH 1/4x7/8 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(8 PLCS)
BOLT WH 5/16x1 1/2 BLK
(4 PLCS)
LAG SCREW WH 5/16x2-1/2 BLK
(4 PLCS)
SCREW PFH 8x2 1/4 BLK
(8 PLCS)
WASHER LOCK EXT 8x15 BLK
(4 PLCS)
NUT BARREL WH 1/4x7/8 BLK
(4 PLCS)
E4 - SHELF BRACE - W4L07416
1 3/8"x3 3/8"x12" (36x86x304.8)
(4) - 3-SIDED-90° BRACKET - BLK
- A4M00706
(4)
BOLT WH
1/4x1/2 BLK
(8)
WASHER LOCK
EXT 8x15 BLK
(8)
WASHER LOCK
EXT 8x19 BLK
(8)
BOLT WH 5/16x1
1/2 BLK
(4)
LAGSCREWWH
5/16x2-1/2BLK
(4)
LAG SCREW WH
1/4x1-1/2 BLK
(4)
NUT BARREL
WH 1/4x7/8 BLK
(8)
E4
E4
123456789101112131415
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2 3 4 5 6 7
8 9 10
11 12 13 14 15
16 17 18 19 20 21 22 23
22212019 1817 16 15 14 13 1211 10 98765432
1
!
3-SIDED-90° BRACKET - BLK
(4 PLCS)
G1
G1
T-NUT 5/16 BLK
(4 PLCS)
T-NUT 5/16 BLK
(4)
NOTE:
ORIENTATION OF 'G1' BOARDS.
T-NUTS TO BOTTOM SIDE.

STEP 6
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
LAG SCREW WH 5/16x3 1/2 BLK
(4 PLCS)
WASHER SAFETY 17x30 - BLK
(2 PLCS)
WASHER FLAT 8x27 BLK
(2 PLCS)
NUT LOCK 5/16 BLK
(2 PLCS)
SWING HANGER
QUICK LINK - BLK
(2 PLCS)
WASHER LOCK
EXT 8x19 BLK
(4)
WASHER FLAT
8x27 BLK
(2)
WASHER
SAFETY
17x30 - BLK
(2)
SWINGHANGER(7.125")
QUICKLINK-BLK
(2)
NUT LOCK 5/16
BLK
(2)
W1 - SWING SUPPORT - W4L07807
2"x3 3/8"x53 1/2" (50x86x1360)
(2)
RIGHTASSEMBLY
LEFTASSEMBLY
NOTE:
ORIENTATION OF ‘W1’ BOARDS
END
TOWARDS
BACK
FIG. 1
FIG. 2
W1
W1
W1
W1
19 3/4
LAG SCREW WH
5/16x3 1/2 BLK
(4)
BACK

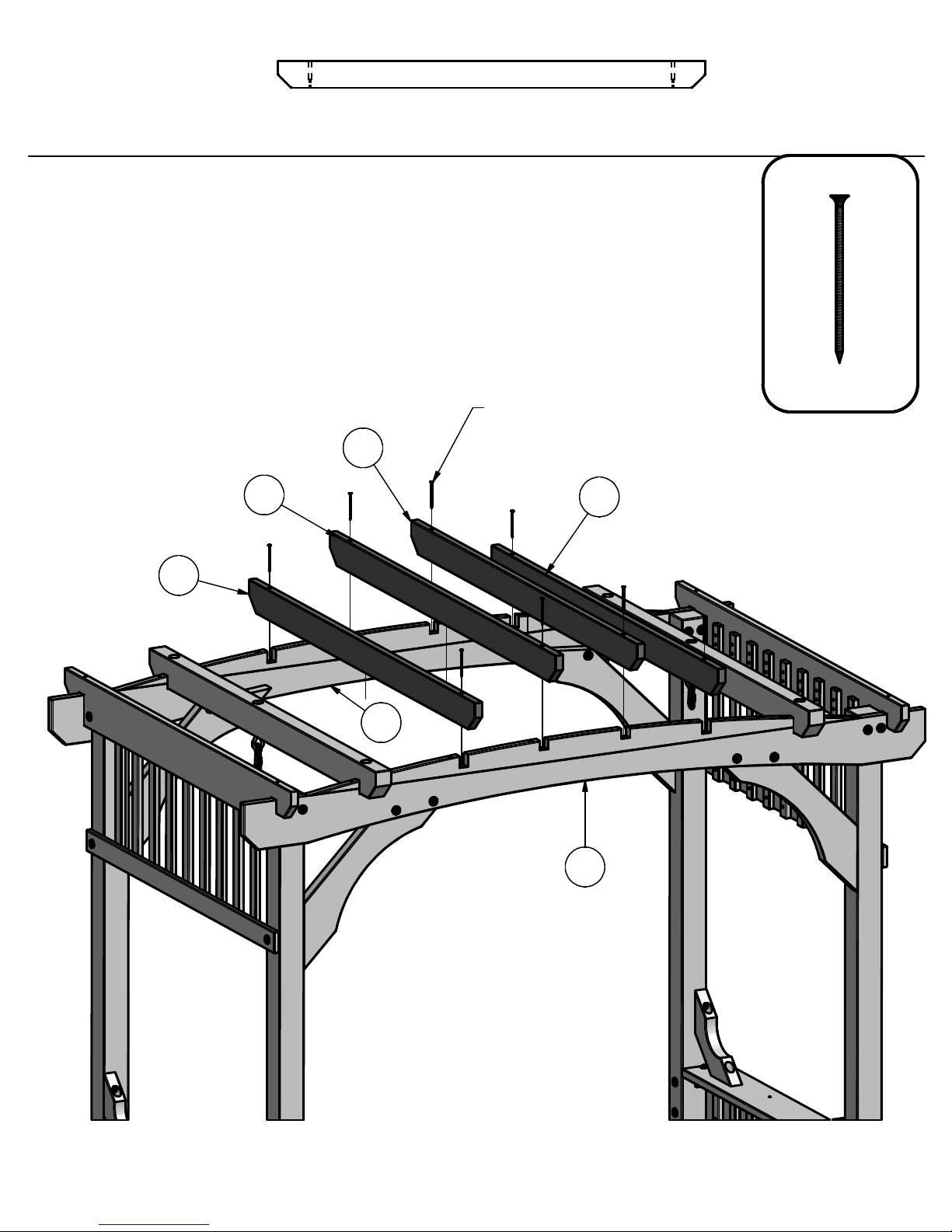

STEP 7
SCREWPFH8x3
BLK
(8)
H2 - CENTER RAFTER - W4L07808
1"x3 3/8"x53 1/2" (24x86x1360)
(4)
H2
H2
H2
H2
H1
H1
SCREW PFH 8x3 BLK
(8 PLCS)

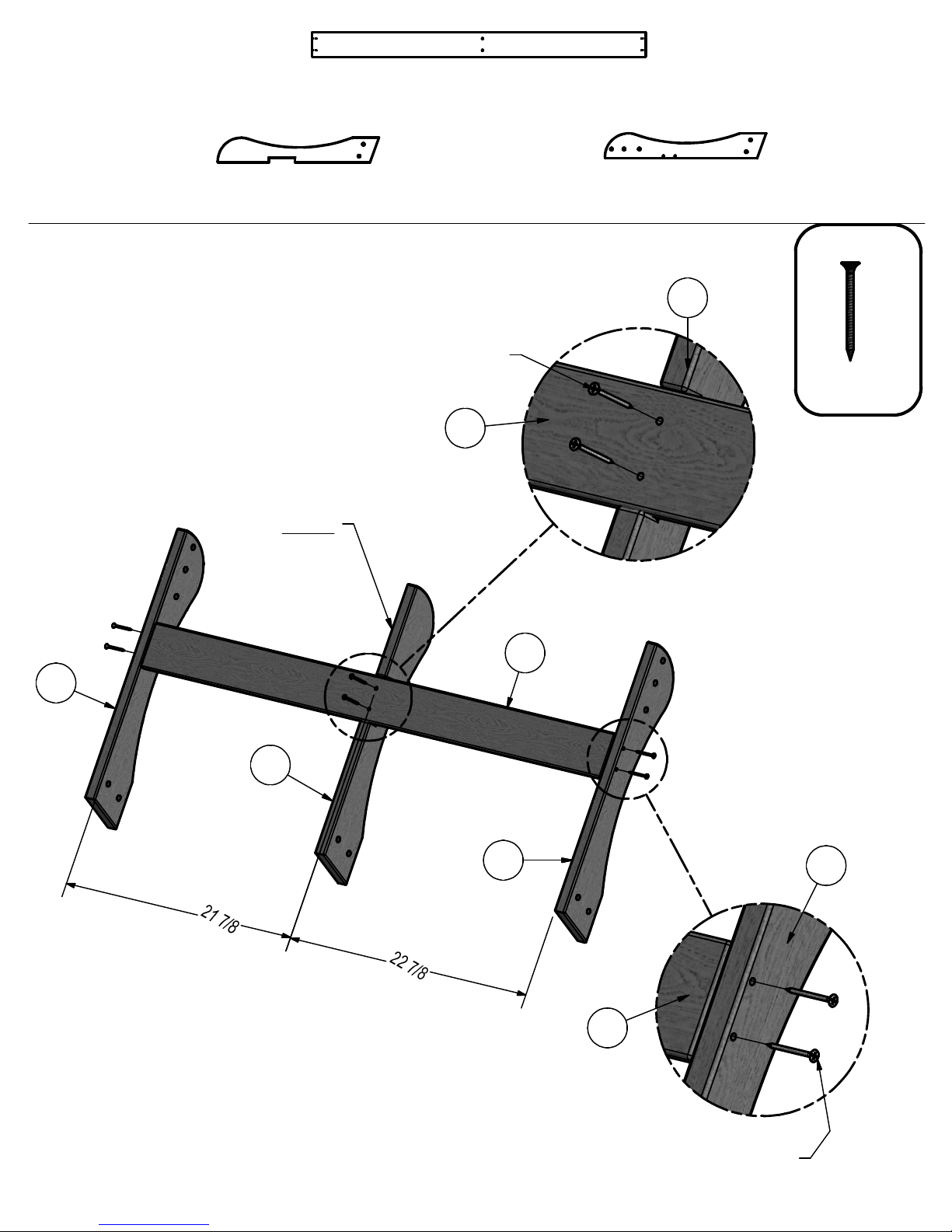

STEP 8
SCREW PFH 8x1 3/4 BLK
(2 PLCS)
SCREW PFH 8x1 3/4 BLK
(4 PLCS)
H9
H8
H9
M1
H8 - CENTER SEAT SUPPORT - W4L07349
1"x3 3/8"x21 3/4" (24x86x551)
(1)
H9 - SIDE SEAT SUPPORT - W4L07350
1"x3 3/8"x21 3/4" (24x86x551)
(2)
M1 - SWING SEAT SUPPORT - W4L07345
5/8"x3 3/8"x44 3/4" (16x86x1138)
(1)
SCREWPFH8x1
3/4BLK
(6)
NOTE:
‘H8’ OFFSET
M1
H8
M1
H9
FIG. 1
FIG. 2
FIG. 3
SWING SEAT FRAME ASSEMBLY
