OASIS
12x10 PERGOLA
MODEL: #1606517
Backyard Discovery
3305 Airport Drive
Pittsburg, KS 66762
1-800-856-4445
Made in China
INS-1606517-B-OASIS 12x10 PERGOLA-ENG-07-21-2016
Features the fastening system.
Register your new (Outdoor Product) on-line @
www.swingsetsonline.com (you will also find any updates on
assembly instructions and information to order replacement parts)
Save this assembly manual for future reference in the event that
you need to order replacement parts.

PLEASE HAVE THE FOLLOWING INFORMATION WHEN YOU MAKE YOUR CALL:
1 – MODEL NUMBER OF THE PRODUCT LOCATED ON THE FRONT OF THE ASSEMBLY MANUAL
2 – DESRIPTION OF THE PART FROM THE PARTS LIST
PLEASE READ THIS BEFORE STARTING ASSEMBLY
STOP
Missing A Part?
CALL US BEFORE GOING
BACK TO THE STORE!
The store where you made your purchase
does not stock parts for this item.
If you have assembly questions or if you need parts,
whether they are missing or damaged
Call Toll-Free Help Line or visit www.swingsetsonline.com
1-800-765-4138
• READ THE ASSEMBLY MANUAL COMPLETELY, PAYING SPECIAL ATTENTION TO THE IMPORTANT TIPS AND
SAFETY INFORMATION.
• AFTER YOU HAVE READ THE ASSEMBLY MANUAL, YOU WILL BE ABLE TO DECIDE IF YOU NEED PROFESSIONAL
HELP TO COMPLETE THE ASSEMBLY OF THE PLAYSET.
• SEPARATE AND IDENTIFY ALL PARTS TO MAKE SURE THAT YOU HAVE ALL OF THE PARTS LISTED.
• IF YOU CAN’T FIND ALL OF THE PARTS, CHECK THE PACKING MATERIAL. SMALL PARTS MAY HAVE FALLEN INTO IT
DURING SHIPMENT.
• IF YOU HAVE PROBLEMS WITH THE ASSEMBLY OR IF ANY PART IS MISSING OR DAMAGED, PLEASE CALL THE
HELP LINE 1-800-765-4138 OR VISIT www.swings tsonlin .com.

Owner’s Manual Outdoor Product
ENG OWNER OP-2012
Dear Customer:
Please read entire booklet completely before beginning the assembly process.
Structures are not intended for public use. The Company does not warranty any of its
residential structures subjected to commercial use such as: Recreational Park, or any
similar Commercial Application.
Please follow all recommendations below. ailure to do so may result in the warranty
being void and/or safety violations that could result in serious injury. This manual
contains helpful information concerning Assembly Preparation, Installation Procedure,
and Required aintenance. Always keep safety in mind as your structure is being built.
PLEASE RETAIN THESE INSTRUCTIONS OR UTURE RE ERENCE. KEEP THEM IN A SA E
PLACE WHERE YOU CAN RE ER TO THEM AS NEEDED. IN ORDER TO PROVIDE YOU
WITH THE MOST E ICIENT SERVICE, IT IS REQUIRED THAT YOU PROVIDE US WITH THE
PART NUMBERS WHEN ORDERING PARTS.
or Your Records:
Please take time and fill out the information below. This information will be needed for
warranty issues.
Where Purchased: ______________
Date of Purchase: ________________
Installation Date: _______________
Installed by: ______________________
Tracking Number Reference Label
Tracking ID number on the carton and back of the ID plate are included for
tracking purposes associated with warranty claims.
Staple Receipt Here

Owner’s Manual Outdoor Product
ENG OWNER OP-2012
Maintenance Instructions:
1. Check all nuts and bolts twice monthly during the usage season and tighten as required.
(But not so tight that you crack the wood) It is particularly important that this
procedure be followed at the beginning of each season.
2. Oil all metallic moving parts monthly during the usage period.
3. Check all coverings for bolts and sharp edges twice monthly during usage season to be
certain they are in place. Replace when necessary. It is especially important to do this
at the beginning of each new season.
4. For rusted areas on metallic members such as hinges, brackets, etc. sand and repaint,
using a non lead-based paint meeting the requirements of Title 16 CRF Part 1303.
5. Inspect wood parts monthly. The grain of the wood sometimes will lift in the dry season
causing splinters to appear. Light sanding may be necessary to maintain a safe
environment. Treating your Product with protection (sealant) after sanding will help
prevent severe checking/splitting and other weather damage.
6. We have applied a waterborne translucent stain to your unit. This is done for color only.
Once or twice a year, depending on your climate conditions, you must apply some type
of protection (sealant) to the wood of your unit. Prior to the application of sealant,
lightly sand any “rough” spots on your set. Please note this is a requirement of your
warranty.

Outdoor Product Assembly Manual FAQs:
1. Is the wood treated with chemicals? Backyard iscovery uses 100% Chinese Cedar wood
which is naturally bug resistant, decay and rot resistant. To help ensure your families
safety, our wood is completely chemical free and we do not use pressure-treated wood.
The stain we use is a top coat using a water-based product that is for appearance only.
2. How often should the product be stained? Backyard iscovery recommends the product be
stained once each year. A water or oil based stain can be used at the customer’s discretion.
3. Why does it seem that my product is developing cracks? Wood is a natural material; no two
pieces are exactly alike. Each piece has its own characteristics and personality and reacts
differently to climate changes. When any wood product is exposed to the elements, it
develops “wood checks”. A check is the radial separation of the wood fibers running with
the grain of the wood. These are caused by the varying temperature and moisture
conditions. A check is not a crack – it does not affect the strength or durability of the wood
or structural integrity of the product.
4. o Backyard iscovery products come with a warranty? Yes. All Backyard iscovery
products carry a 1-year replacement warranty on all parts for manufacturer’s defect. Our
wood carries a 5 year warranty on rot and decay as well. Please see warranty details for
more information.
5. What is the best way to get started assembling the product? Backyard iscovery
recommends taking all the parts out of the boxes and arranging them by part number
before you begin any assembly. This will not only allow faster assembly, but will also
identify any parts that may be missing or damaged so they can be replaced before
assembly. If parts are missing or need replacement, go to
www.swingsetsonline.com/support.aspx and follow the prompts to order them. Next, read
the assembly manual and get the tools ready for the job as recommended in the manual. If
the assembly manual is lost or misplaced a new one can be printed from Backyard
iscovery’s website: www.swingsetsonline.com .
6. The 2”x4” boards do not measure 2”x 4”. Why not? In the U.S. it’s common practice to
describe lumber dimensions using the rough cut sizes from the sawmill and not the finished
dimensions. Retailers, home stores, etc. all use this accepted practice for describing lumber
dimensions. However, Backyard iscovery products are designed and constructed using the
actual dimensions so everything fits properly and remains so during the life of the product.
For more information and frequently asked questions, please refer to our website at
www.swingsetsonline.com .

(Level 24")
(Square)
(Tape Measure)
(Cordless Drill or Electric Drill)
(Drill Attachments: Phillips
Head & Socket Driver) (An Adult w/ an Adult Helper)
(Rubber Mallet - Optional)
(Ladder)
(Phillips Screw Driver)
Tools Required for Installation:
(These are the tools that are generally required for assembly of our outdoor products. These tools
are not included with the outdoor product purchase.)
(Concrete Drill Bit)

Important Assembly Notes
1) While assembling unit, take time before and after each step to make sure unit is level. If unit is
not level, assembly will be difficult and improper assembly may result. Extra care must be taken to
ensure the unit is square.
2) Pay close attention to the ITEMS NEEDED FOR EACH STEP. They can be a valuable aid when
sorting your wood and hardware. Assembly will be made easier if items are sorted by step.
3) Pay close attention to make sure you are using the correct hardware in the correct steps. Using
incorrect hardware may result in improper assembly.
4) Whenever a T-nut is used, follow these directions. Place T-nut in pre-drilled hole. Tap in with hammer.
Place bolt with washers in the opposite side. Hand tighten to make sure the bolt is in the T-nut.
DO NOT over tighten.
5) Read any written steps of each step thoroughly. The written steps may include important information not
shown in the illustrations.
Basic Setup Dimensions
Place the set on level ground, not less than 6 ft [2 m] from any structure or obstruction such
as a fence, garage, house, overhanging branches, laundry lines, or electrical wires.
6'-0"
6'-0"
12'-0"
10'-0"
7'-11 1/16"
6'-7 1/2"
8'-11 3/8"
120.79
6'-11 3/8"
8'- 3/4"
GENERAL INFORMATION:
YOUR PERGOLA HAS BEEN DESIGNED
AND ENGINEERED FOR RESIDENTIAL
USE ONLY. A MAXIMUM WEIGHT LIMIT
OF 600 POUNDS IS RECOMMENDED
FOR THE BENCH.

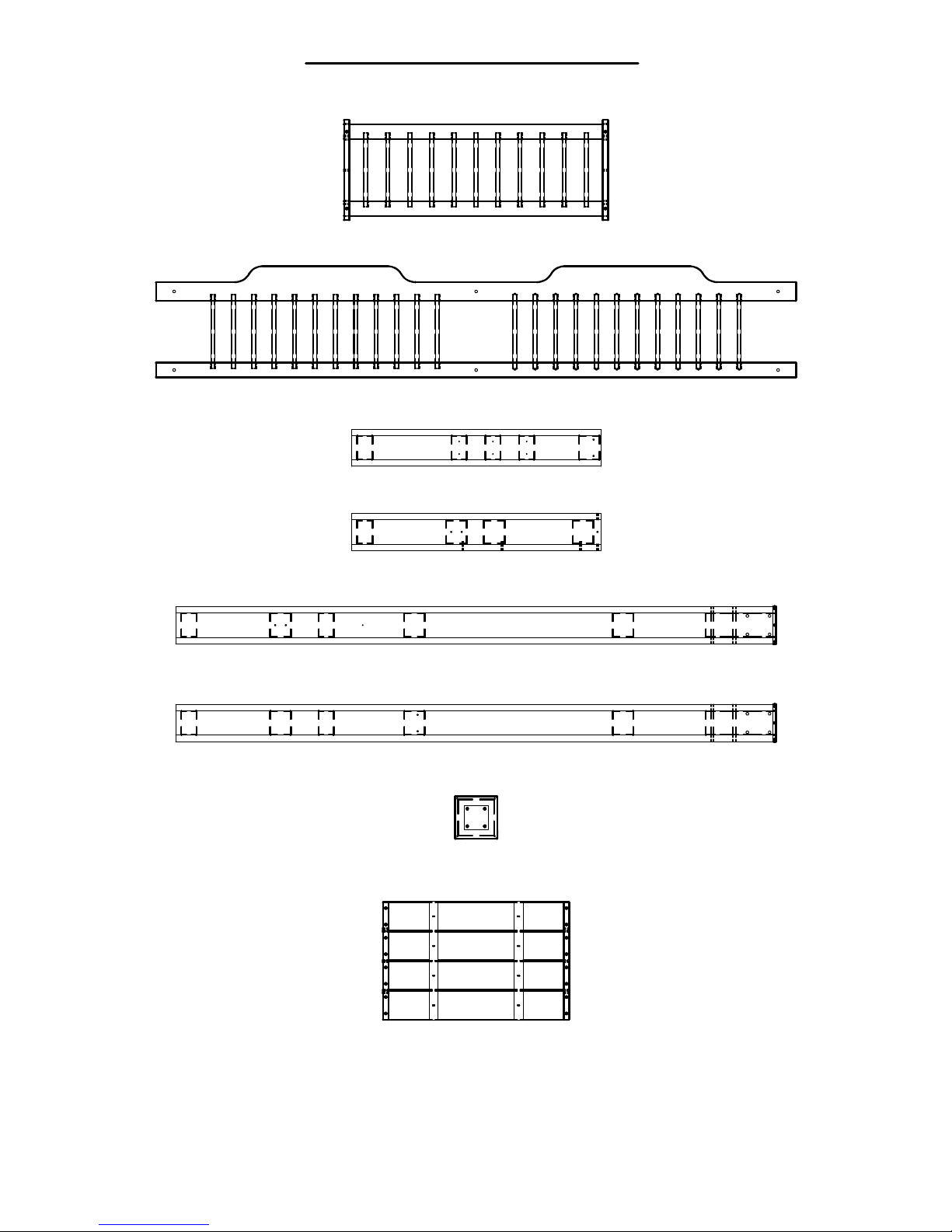

Parts Identification
Wood Components
(NOT TO SCALE)
D1 - JOIST - W4L04585
1 3/8"x5 1/4"x114" (36x134x2896)
(2)
D2 - JOIST - W4L04590
1 3/8"x5 1/4"x114" (36x134x2896)
(2)
D3 - SLOTTED JOIST - W4L04586
1 3/8"x5 1/4"x114" (36x134x2896)
(8)
D4 - JOIST - W4L04587
1 3/8"x5 1/4"x90" (36x134x2286)
(2)
D5 - JOIST - W4L04591
1 3/8"x5 1/4"x90" (36x134x2286)
(2)
D6 - JOIST END - W4L04588
1 3/8"x5 1/4"x15" (36x134x381)
(12)
D7 - JOIST END - W4L04592
1 3/8"x5 1/4"x15" (36x134x381)
(4)
D8 - LONG ANGLE BRACE - W4L04593
1 3/8"x5 1/4"x37 1/8" (36x134x942)
(4)
D9 - SHORT ANGLE BRACE - W4L04594
1 3/8"x5 1/4"x29 3/4" (36x134x755)
(4)
D10 - SUPPORT BOARD - W4L06174
1 3/8"x5 1/4"x14 1/8" (36x134x360)
(3)
G1 - SEAT - W4L06047
1"x5 1/4"x92 7/8" (24x134x2360)
(2)
G2 - SEAT - W4L06017
1"x5 1/4"x39 1/2" (24x134x1002)
(2)

Parts Identification
Wood Components
(NOT TO SCALE)
G3 - ARMREST - W4L06013
1"x5 1/4"x18" (24x134x458)
(2)
H2 - SUPPORT BOARD - W4L06016
1"x3 3/8"x16 1/8" (24x86x410)
(4)
H3 - BRACE - W4L06015
1"x3 3/8"x12 1/4" (24x86x312)
(4)
H4 - BRACE - W4L06012
1"x3 3/8"x12 1/4" (24x86x312)
(3)
J1 - TABLE TOP RAIL - W4L06007
1"x2 3/8"x86 3/8" (24x60x2194)
(2)
J2 - TABLE TOP RAIL - W4L06008
1"x2 3/8"x11 1/8" (24x60x281)
(4)
J4 - SUPPORT BOARD - W4L06175
1"x2 3/8"x26" (24x60x660)
(2)
J5 - SUPPORT BOARD - W4L06176
1"x2 3/8"x24 1/8" (24x60x612)
(2)
J6 - SUPPORT BOARD - W4L06177
1"x2 3/8"x82 5/8" (24x60x2098)
(2)
M1 - WALL RAIL - W4L06048
5/8"x3 3/8"x95 1/2" (16x86x2426)
(1)
N1 - CLEAT - W4L06014
5/8"x2 3/8"x10 3/8" (16x60x262)
(1)
P1 - LONG PURLIN - W4L04589
1 3/8"x1 3/8"x76 5/8" (36x36x1945)
(12)
P2 - SHORT PURLIN - W4L04595
1 3/8"x1 3/8"x59 1/4" (36x36x1504)
(12)
G4 - ARMREST - W4L06187
1"x5 1/4"x18" (24x134x458)
(2)
N2 - CLEAT - W4L06188
5/8"x2 3/8"x8 7/8" (16x60x226)
(1)
H5 - BRACE - W4L07083
1"x3 3/8"x12 1/4" (24x86x312)
(4)

Parts Identification
Wood Components
(NOT TO SCALE)
WP3 - PERGOLA POST - W2A01820
5 1/2"x5 1/2"x89 1/2" (140x140x2273)
(2)
WP4 - PERGOLA POST - W2A01821
5 1/2"x5 1/2"x89 1/2" (140x140x2273)
(2)
WP1 - PERGOLA POST - W2A01819
51/2"x5 1/2"x37 1/8" (140x140x943)
(1)
WA1 - WALL ASSEMBLY - W2A01822
2 7/8"x15"x39 1/2" (72x382x1003)
(2)
WP2 - PERGOLA POST - W2A01823
5 1/2"x5 1/2"x37 1/8" (140x140x943)
(1)
WA2 - WALL ASSEMBLY - W2A01824
1"x16 3/4"x95 1/2" (24x424x2426)
(1)
FP1 - POST CAP - W2A01825
1 7/8"x6 1/2"x6 1/2" (48x164x164)
(1)
TT1 - TABLE TOP ASSEMBLY - W2A01865
1 5/8"x17 5/8"x27 7/8" (40x448x708)
(2)

Parts Identification
Wood Components
(NOT TO SCALE)
TT2 - TABLE TOP ASSEMBLY - W2A01866
1 5/8"x17 5/8"x27 7/8" (40x448x708)
(1)
TT3 - TABLE TOP ASSEMBLY - W2A01867
1 5/8"x15 3/4"x27 7/8" (40x401x708)
(2)

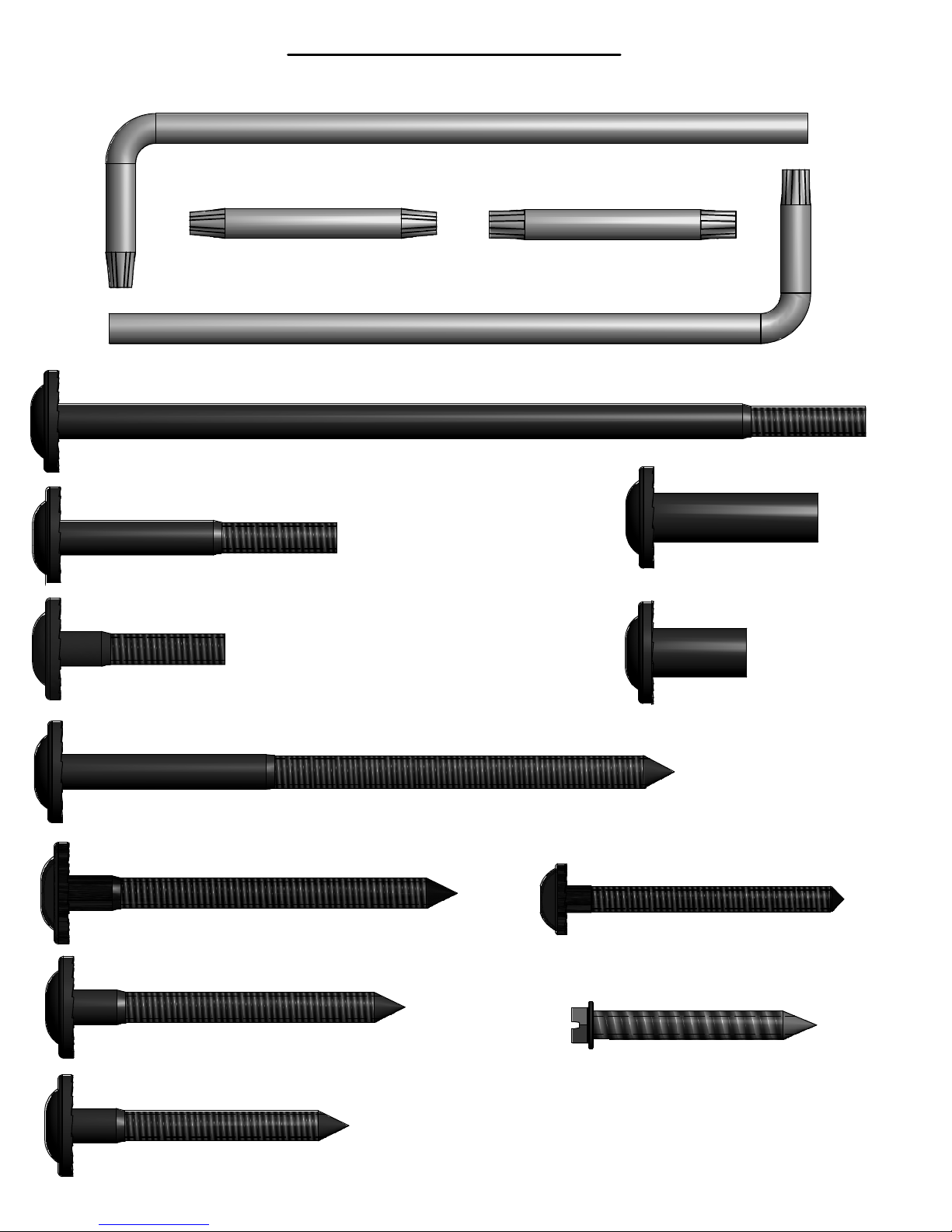

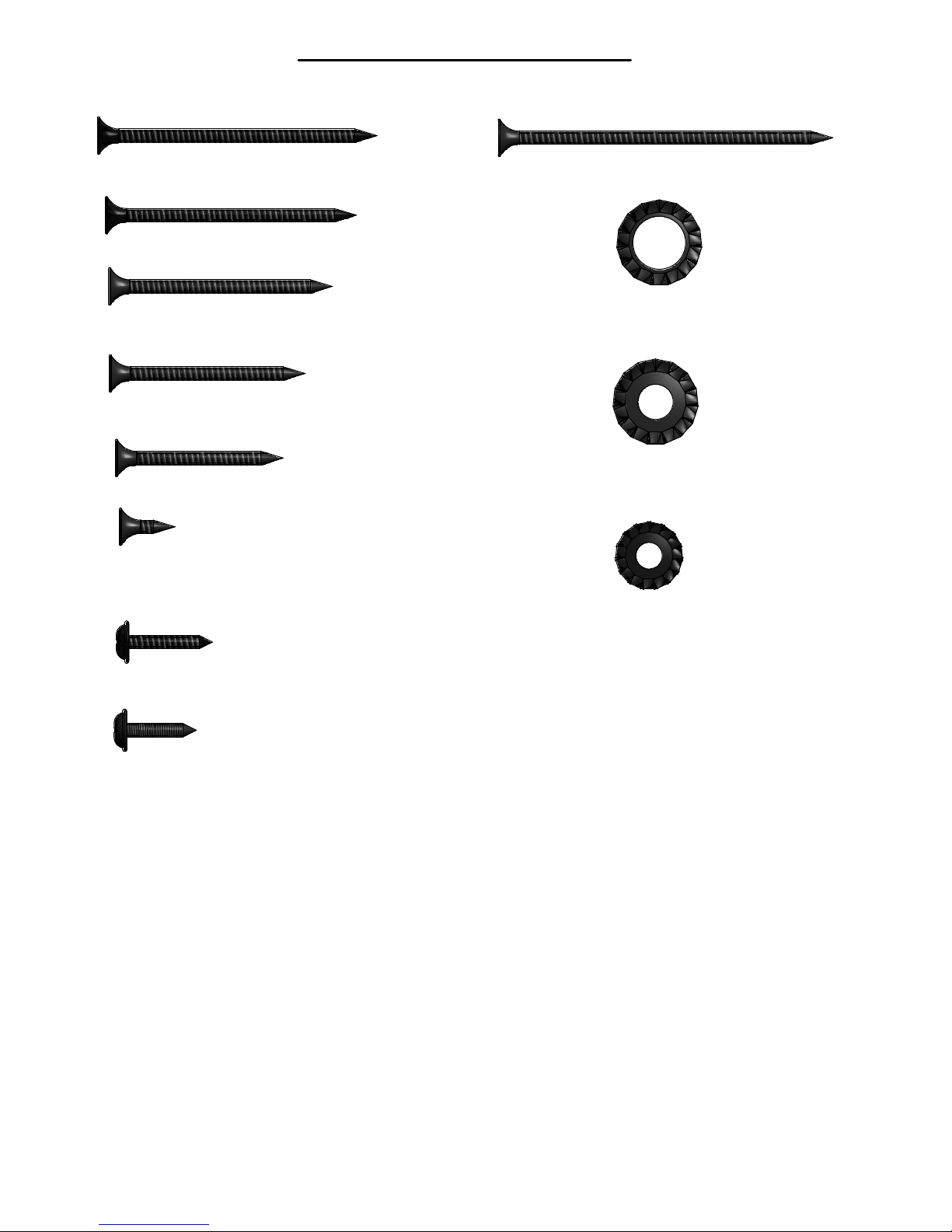

Parts Identification
Hardware
- T-30 TORX WRENCH - H100114
(2)
- T-30 TORX BIT - H100147
(2)
- T-40 TORX WRENCH - A100041
(2)
- T-40 TORX BIT - A100042
(2)
CQ - CONCRETE ANCHOR 1/4" x 2" - H100120
(26)
VK - NUT BARREL WH 5/16x7/8 BLK - H100192
(22)
VL - NUT BARREL WH 5/16x1-1/2 BLK - H100193
(34)
VM - BOLT WH 5/16x2-1/2 BLK - H100194
(17)
VP - BOLT WH 5/16x7-1/4 BLK - H100196
(34)
VQ - LAG SCREW WH 5/16x2-1/2 BLK - H100197
(24)
VX - LAG SCREW WH 5/16x5-1/2 BLK - H100204
(17)
VZ - LAG SCREW WH 5/16x3 BLK - H100206
(9)
- BOLT WH 5/16x1 1/2 BLK - H100407
(4)
- LAG SCREW WH 1/4x2-1/2 BLK - H100456
(16)
- LAG SCREW WH 5/16x3 1/2 BLK - H100482
(3)

Parts Identification
Hardware
- SCREW PFH 8x2 1/4 BLK - H100483
(17)
- SCREW PFH 8x2 BLK - H100391
(52)
VT - SCREW PFH 8x1-1/2 BLK - H100200
(44)
- SCREW PFH 8x1 3/4 BLK - H100382
(22)
VV - SCREW PWH 8x5/8 BLK - H100202
(2)
VU - SCREW PFH 8x2-1/2 BLK - H100201
(110)
VW - SCREW PFH 8x1/2 BLK - H100203
(2)
- WASHER LOCK EXT 6x15 BLK - H100405
(16)
VR - WASHER LOCK EXT 8x19 BLK - H100198
(105)
VS - WASHER LOCK EXT 12x19 BLK - H100199
(56)
- SCREW PWH 8x3/4 BLK - H100392
(7)
- SCREW PFH 8x3 BLK - H100362
(4)

Parts Identification
Accessories
(NOT TO SCALE)
HT - FOOT 142 SQUARE POST - A100029
(6)
XR - BYD ID TAG (SMALL) WITHOUT AGES - A100241
(1)
- 90° L-BRACKET - BLK - A4M00555
(3)
(1) STAIN MARKER - MED BRN-2UV - A6P00171
SR - "B" REVISION TAG - A100315
(1)

STEP 1
REPEAT PROCESS FOR OPPOSITE SIDE.
***HAND TIGHTEN ONLY AT THIS TIME***
BOLT WH 5/16x2-1/2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
NUT BARREL WH 5/16x7/8 BLK
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
BOLT WH
5/16x2-1/2
BLK
(8)
WASHER
LOCK EXT
8x19 BLK
(8)
NUT
BARREL WH
5/16x7/8 BLK
(8)
WASHER
LOCK EXT
12x19 BLK
(8)
D4
D9
D9
D4 - JOIST - W4L04587
1 3/8"x5 1/4"x90" (36x134x2286)
(2)
D9 - SHORT ANGLE BRACE - W4L04594
1 3/8"x5 1/4"x29 3/4" (36x134x755)
(4)

STEP 2
REPEAT PROCESS FOR OPPOSITE SIDE.
***HAND TIGHTEN ONLY AT THIS TIME***
BOLT WH
5/16x2-1/2
BLK
(8)
WASHER
LOCK EXT
8x19 BLK
(8)
NUT
BARREL WH
5/16x7/8 BLK
(8)
WASHER
LOCK EXT
12x19 BLK
(8)
BOLT WH 5/16x2-1/2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
NUT BARREL WH 5/16x7/8 BLK
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
HOLES TOWARDS THE TOP
D1
D8
D8
D8 - LONG ANGLE BRACE - W4L04593
1 3/8"x5 1/4"x37 1/8" (36x134x942)
(4)
D1 - JOIST - W4L04585
1 3/8"x5 1/4"x114" (36x134x2896)
(2)

STEP 3
WASHER
LOCK EXT
8x19 BLK
(6)
WASHER
LOCK EXT
12x19 BLK
(4)
BOLT WH 5/16x7-1/4 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
LAG SCREW WH 5/16x3 BLK
(2 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)
NUT BARREL WH 5/16x1-1/2 BLK
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
D4
D5
D5 - JOIST - W4L04591
1 3/8"x5 1/4"x90" (36x134x2286)
(1)
BOLT WH
5/16x7-1/4
BLK
(4)
NUT
BARREL WH
5/16x1-1/2
BLK
(4)
LAG SCREW
WH 5/16x3
BLK
(2)
WP4 - PERGOLA POST - W2A01821
5 1/2"x5 1/2"x89 1/2" (140x140x2273)
(2)
WP4
WP4
123456789101112131415
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2221201918171615141312111098765432
1
!
NOTE HOLES

STEP 4
WASHER
LOCK EXT
8x19 BLK
(6)
WASHER
LOCK EXT
12x19 BLK
(4)
D5 - JOIST - W4L04591
1 3/8"x5 1/4"x90" (36x134x2286)
(1)
BOLT WH
5/16x7-1/4
BLK
(4)
NUT
BARREL WH
5/16x1-1/2
BLK
(4)
LAG SCREW
WH 5/16x3
BLK
(2)
WP3 - PERGOLA POST - W2A01820
5 1/2"x5 1/2"x89 1/2" (140x140x2273)
(2)
WP3
WP3
D5
D4
LAG SCREW WH 5/16x3 BLK
(2 PLCS)
BOLT WH 5/16x7-1/4 BLK
(4 PLCS)
NOTE HOLES
123456789101112131415
13
12
11
10
9
8
7
6
5
4
3
2
1
1 2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2221201918171615141312111098765432
1
!
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS)
NUT BARREL WH 5/16x1-1/2 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(2 PLCS)

STEP 5
WASHER
LOCK EXT
8x19 BLK
(12)
WASHER
LOCK EXT
12x19 BLK
(8)
BOLT WH
5/16x7-1/4
BLK
(8)
NUT
BARREL WH
5/16x1-1/2
BLK
(8)
LAG SCREW
WH 5/16x3
BLK
(4)
NUT BARREL WH 5/16x1-1/2 BLK
(8 PLCS)
WASHER LOCK EXT 12x19 BLK
(8 PLCS)
WASHER LOCK EXT 8x19 BLK
(8 PLCS)
BOLT WH 5/16x7-1/4 BLK
(8 PLCS)
LAG SCREW WH 5/16x3 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
D2
D4
D4
D1
D1
D2 - JOIST - W4L04590
1 3/8"x5 1/4"x114" (36x134x2896)
(2)

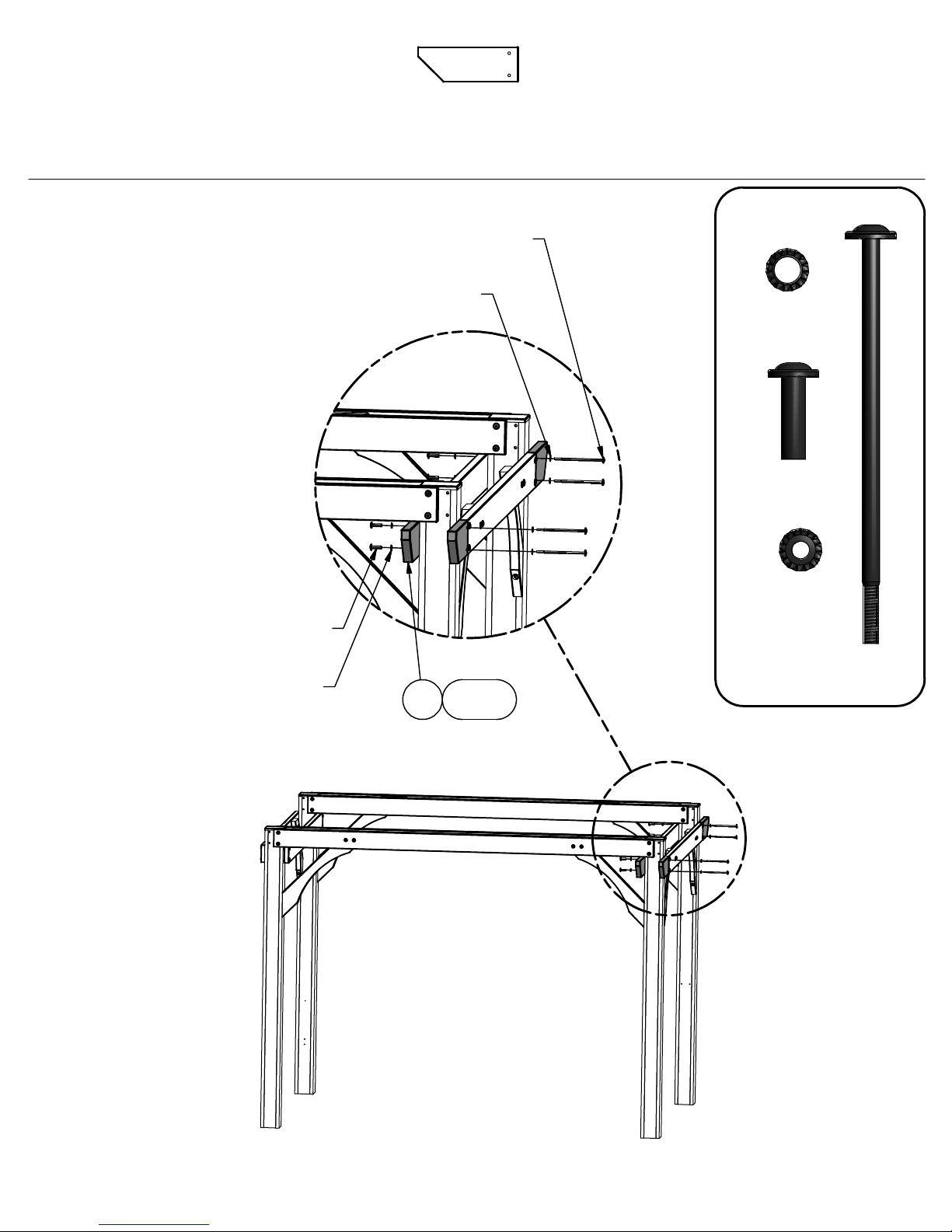

STEP 6
WASHER
LOCK EXT
8x19 BLK
(4)
WASHER
LOCK EXT
12x19 BLK
(4)
BOLT WH
5/16x7-1/4
BLK
(4)
NUT
BARREL WH
5/16x1-1/2
BLK
(4)
BOLT WH 5/16x7-1/4 BLK
(4 PLCS)
WASHER LOCK EXT 8x19 BLK
(4 PLCS)
NUT BARREL WH 5/16x1-1/2 BLK
(4 PLCS)
WASHER LOCK EXT 12x19 BLK
(4 PLCS) D6 4 PLCS
D6 - JOIST END - W4L04588
1 3/8"x5 1/4"x15" (36x134x381)
(4)
