(This page intentionally left blank.)

08/15/2022
16835-W
BEFORE YOU BEGIN
Backyard Products, LLC
1000 Ternes Drive
Monroe, MI 48162
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 10.
• CHECK ALL PARTS
Inventory all parts listed on pages 5-8.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See pages 3-4 for required and optional materials and quantities.
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-734-242-6900 email: [e-mail]
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
GABLE 10' x 12' (304,8 x 365,8 cm)
ASSEMBLY MANUAL
KEEP THIS MANUAL FOR FUTURE REFERENCE
BUILDING SIZE ACTUAL FLOOR SIZE
10' x 12' (304,8 x 365,8 cm)
BASE MODEL 10' x 12' (304,8 x 365,8 cm)
10' x 16' (304,8 x 487,7 cm)
ADD 10' x 4' 10' x 16' (304,8 x 487,7 cm)
Base Building +1 Extender
10' x 16' Building 10' x 12'

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver ❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑Square or
❑Utility Knife
❑Shingle Blades
B C
❑Drill / Driver
❑1/8" Drill Bit
❑#2 Philips Drive Bit
❑1/4" Drill Bit
❑5/16" Drill Bit
❑1/2" Drill Bit
❑Hand Saw

3
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
• This shed does not include any oor or leveling materials.
• See the FLOOR LEVELING section on page 10 for recommended methods and suggested materials to properly level your oor,
as this will vary depending on your specic site.

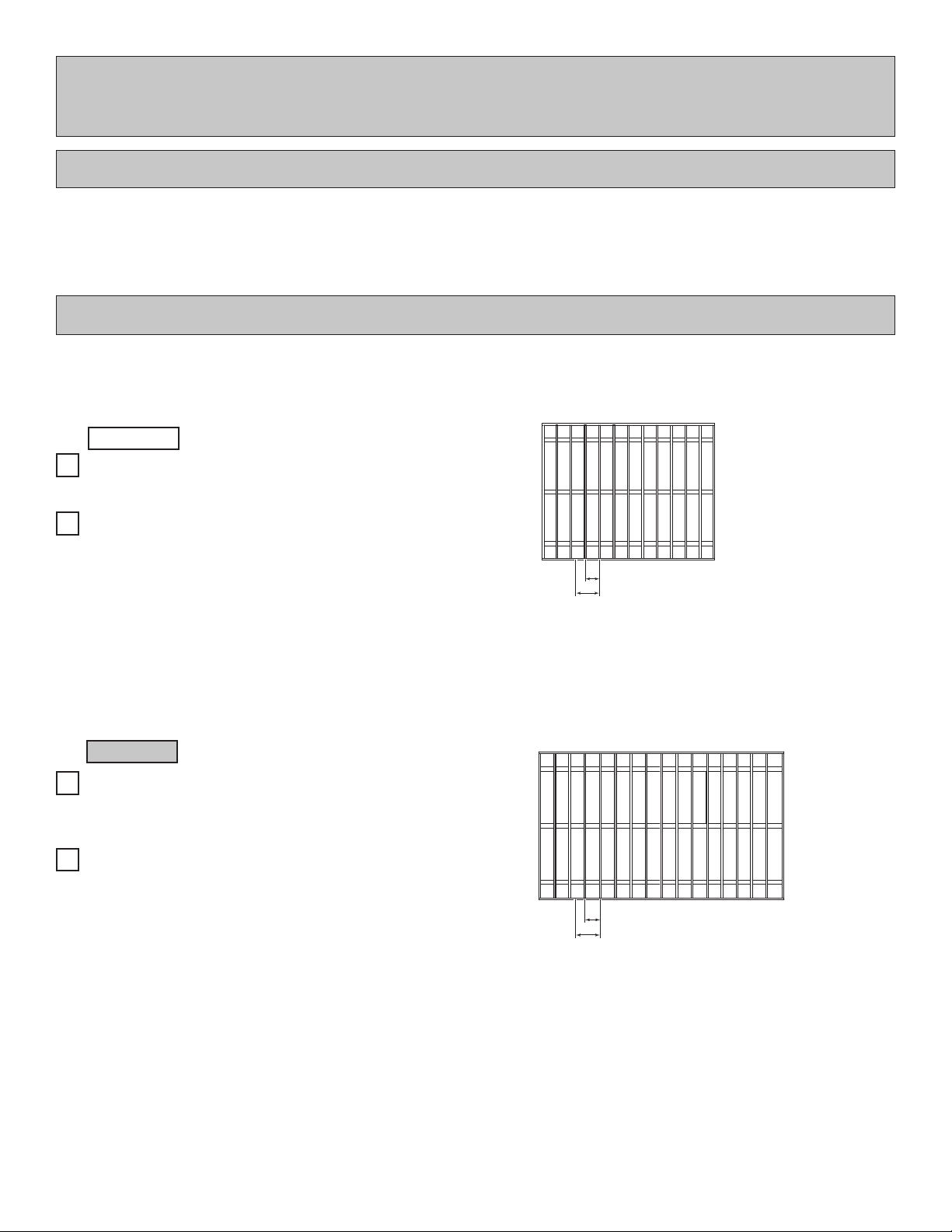

REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! Depending on your specic use you may want to construct a heavy duty oor frame by adding additional oor joists
(shown below as shaded). Below is a list of additional materials (not included):
x3
x4
x12
x16
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm) Treated Lumber
cut to 2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
3" (7,6 cm) hot-dipped galvanized nails
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm) Treated Lumber
cut to 2 x 4 x 117" (5,1 x 10,2 x 297,2 cm)
3" (7,6 cm) hot-dipped galvanized nails
10x16'
10x12'
Optional 12" (30,5 cm) spacing
Optional 12" (30,5 cm) spacing
Standard 16" (40,5 cm) spacing
Standard 16" (40,5 cm) spacing

4
ADDITIONAL MATERIALS
ALL SIZES
COMPLETING YOUR SHED
You will need these additional materials:
OPTIONAL MATERIALS
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES (Bundles)..................
PAINT FOR SIDING (Gallons)................
Use 100% acrylic latex exterior paint.
1" GALVANIZED ROOFING NAILS(lbs).
For shingles.
PAINT FOR TRIM ...........................2 Quarts
Use 100% acrylic latex exterior paint.
CAULK ...10x12 - 3 Tubes ...10x16 - 4 Tubes
Use acrylic latex exterior caulk that is paintable.
7
3
4
9
3
5
10x12' 10x16'
10x12' 10x16'
(2) coats recommended.
DRIP EDGE (Feet).......................................
#15 ROOFING FELT (Sq ft. to cover)........
1" GALVANIZED ROOFING NAILS(lbs)....
60
146
¼
70
255
¼
For roong felt.
2" (5,1 cm) 2" (5,1 cm)
x1 x2
1 lb. of 2" (5,1 cm) Hot
Dipped Galvanized
Box-Type Nails.
1 lb. of 2" (5,1 cm) Hot
Dipped Galvanized
Box-Type Nails.
NOTE: Use a minimum of 5/8" (1,6 cm) Oriented Strand Board (OSB)
5/8" x 48" x96"
(1,6 x 121,9 x 243,8 cm)
x4
5/8" x 48" x96"
(1,6 x 121,9 x 243,8 cm)
x5
FLOOR PANELS (Not Included)

Floor panel sizes and quantities are shown below.
10x12' 10x16'
NAIL BOXES (Shown Actual Size)
3" (7,6 cm)
2" (5,1 cm)
x4 BOXES
x6 BOXES

5

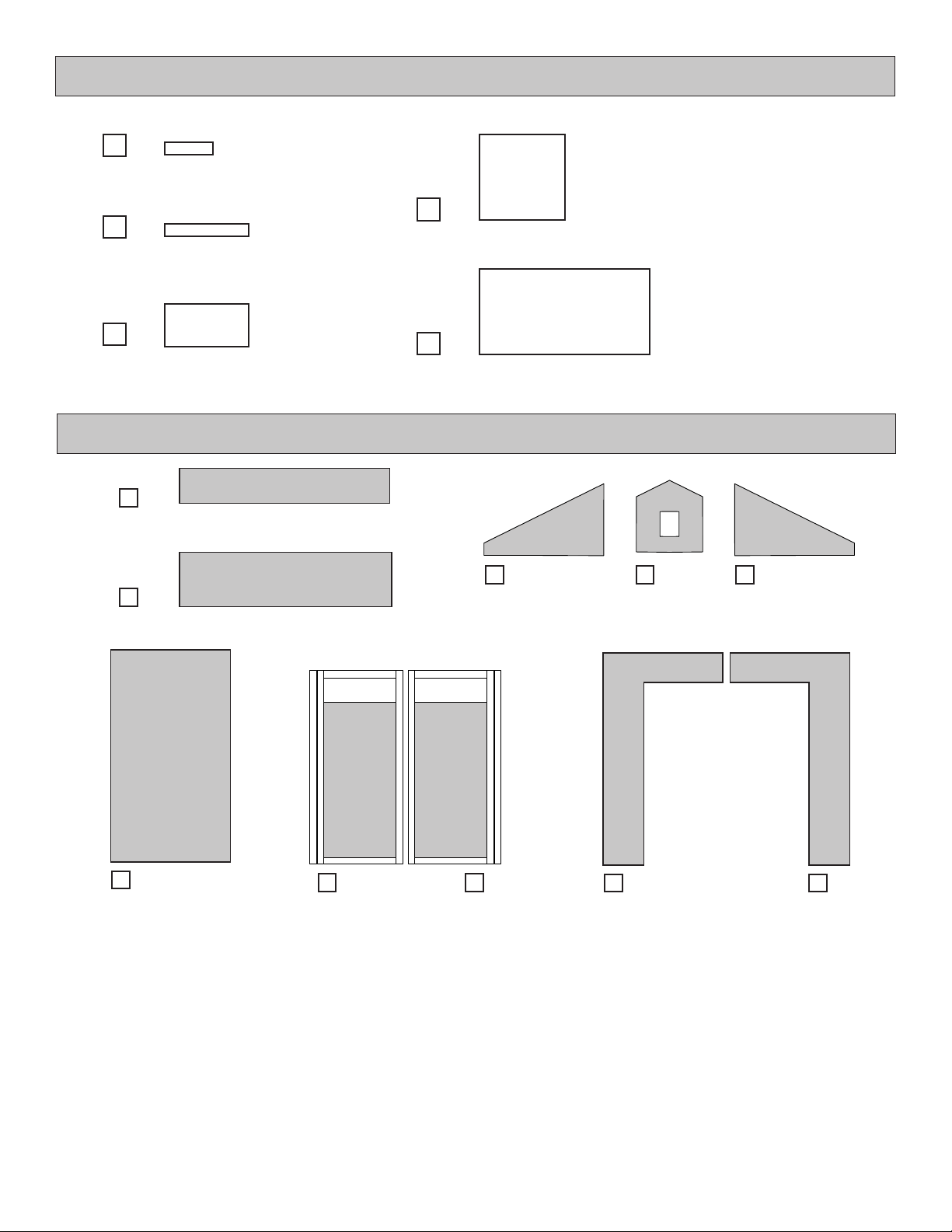

PARTS IDENTIFICATION AND SIZES
RS RS
Part identication
letters are stamped on some parts.
Check these locations for
part stamp.
Treated lumber is stamped:
WALLS
x23 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
x6 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
YFA
x6 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x1 7/16" x 3-1/4" x 66-3/4" (1,1 x 8,3 x 169,5 cm) OSB
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
RAFTERS
TRIM
x4 3/8 x 1-3/4 x 81-7/8" (1,0 x 4,4 x 208 cm)
x4 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
3/4"
(1,9 cm)
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Gauge Block for 3/4" (1,9 cm) measurement
x1 GAA
DOOR
x12 6 x 24" (15,2 x 61 cm) OSB OR WOOD GRAIN
x14 2 x 4 x 75-1/4" (5,1 x 10,2 x 191,1 cm)
ECN
19/32" x 3" x 72" (1,5 x 7,6 x 183 cm)
x1 ZJ
x4 3/8 x 7-7/8 x 73-5/16" (1 x 20 x 186,2 cm)
x4 3/8 x 5-7/8 x 72-3/4" (1 x 14,9 x 184,8 cm)
x2 3/8 x 4-3/4 x 75-7/8" (1 x 12,1 x 197,2 cm)
x2 3/8 x 4-3/4 x 75-7/8" (1 x 12,1 x 197,2 cm)
x4 3/8 x 4-3/4 x 80-5/8" (1 x 12,1 x 204,8 cm)
x12 2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm)
CLA
x8 2 x 4 x 75-1/4" (5,1 x 10,2 x 191,1 cm) ECA
x4 3/8 x 1-3/4 x 82-1/2" (1,0 x 4,4 x 209,6 cm)
x2 2 x 4 x 20-3/8" (5,1 x 10,2 x 51,8 cm) JBD
x2 1 x 3 x 72" (5,1 x 10,3 x 183 cm)
HJ
x2 2 x 4 x 84" (5,1 x 10,2 x 213,4 cm)
TO
x4 2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)
TJ
2 x 4 x 24" (5,1 x 10,2 x 61 cm)
x2 RL
2 x 4 x 36" (5,1 x 10,2 x 91,4 cm)
x2 SL
2 x 4 x 23-1/4" (5,1 x 10,2 x 59,1 cm)
x4 UV
x2 2 x 4 x 44-3/8" (5,1 x 10,2 x 112,7 cm)
HVC
OO
x2 69" Door Stiffener (175,3 cm)
x4 19/32" x 3" x 26-5/8" (1,5 x 7,6 x 67,6 cm) AH
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
x3 2 x 4 x 6-1/2" (5,1 x 10,2 x 16,5 cm)
UY
x1 2 x 3 x 8" (5,1 x 7,6 x 20,3 cm) (Used when window installed.)
RGF

6
ROOF PANELS
NOTE: Panel parts are not stamped.Roof panels are 7/16" (1,1 cm) thick.
7/16 x 27-1/4 x 48"
(1,1 x 69,2 x 121,9 cm)
x6
7/16 x 8-5/8 x 48"
(1,1 x 21,9 x 121,9 cm)
x4
7/16 x 8-5/8 x 27-1/4"
(1,1 x 21,9 x 69,2 cm)
x4
7/16 x 48 x 96"
(1,1 x 121,9 x 243,8 cm)
x2
7/16 x 47-7/8 x 48"
(1,1 x 121,6 x 121,9 cm)
x2
WALL PANEL & DOORS PARTS LIST
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x2
3/8 x 17-7/8 x 84" (1 x 45,4 x 213,4 cm)
3/8 x 23-7/8 x 84" (1 x 60,6 x 213,4 cm)
x1
x1 x1
x8 x1
LEFT DOOR
x1
RIGHT DOOR
x2 x2x2

7
x255
x100
x24
x72
x175
x58
x8
FASTENER/HARDWARE BAG
3" (7,6 cm)
1-5/8" (4,1 cm)
2" (5,1 cm)
2" (5,0 cm)
1-1/2" (3,8 cm)
3/4" (1,9 cm)
1" (2,5 cm)
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
VENT, WINDOW and DOOR HARDWARE
x2
Transom Window
3/4" (1,9 cm)
x8
x1 64" Metal Threshold
3/4" (1,9 cm) x11
Bagged seperately / special coating
x2
x12
1" (2,5 cm)
x4
x1
1-1/4"
(3,2 cm)
x2
Handle (locking)
with Screws
Spring Bolt
x2
(4 screws in each package)
x8
1-1/4 (3,2 cm)
x8
#8 x 1" (2,5 cm)
Pan Head Screws

8
PARTS IDENTIFICATION AND SIZES
GABLE 10' x 4' EXTENDER KIT PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
10x4'

stamped on some parts.
• Check these locations for part stamp.
RS RS
6 x 24" (15 x 60,1 cm)
x4
x6 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x4 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
Roof panels are 7/16" (1,1 cm) thick.
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
WALL
RAFTERSTRIMROOF PANELS
x2 x2
23-1/2" x 47-7/8"
(59,7 x 121,9 cm)
47-7/8" x 48"
(121,6 x 121,9 cm)
HARDWARE
3" (7,6 cm)
x12
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x2
x4 2 x 4 x 75-1/4" (5,1 x 10,2 x 191,1 cm)
ECN
x1 1 x 3 x 72" (5,1 x 10,3 x 183 cm)
HJ
x2 3/8 x 5-7/8 x 72-3/4" (1 x 14,9 x 121,9 cm)
x2 3/8 x 4-3/4 x 80-5/8" (1 x 12,1 x 121,9 cm)
x4
1-5/8" (4,1 cm)
x32
2" (5,1 cm)

9
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
D
D

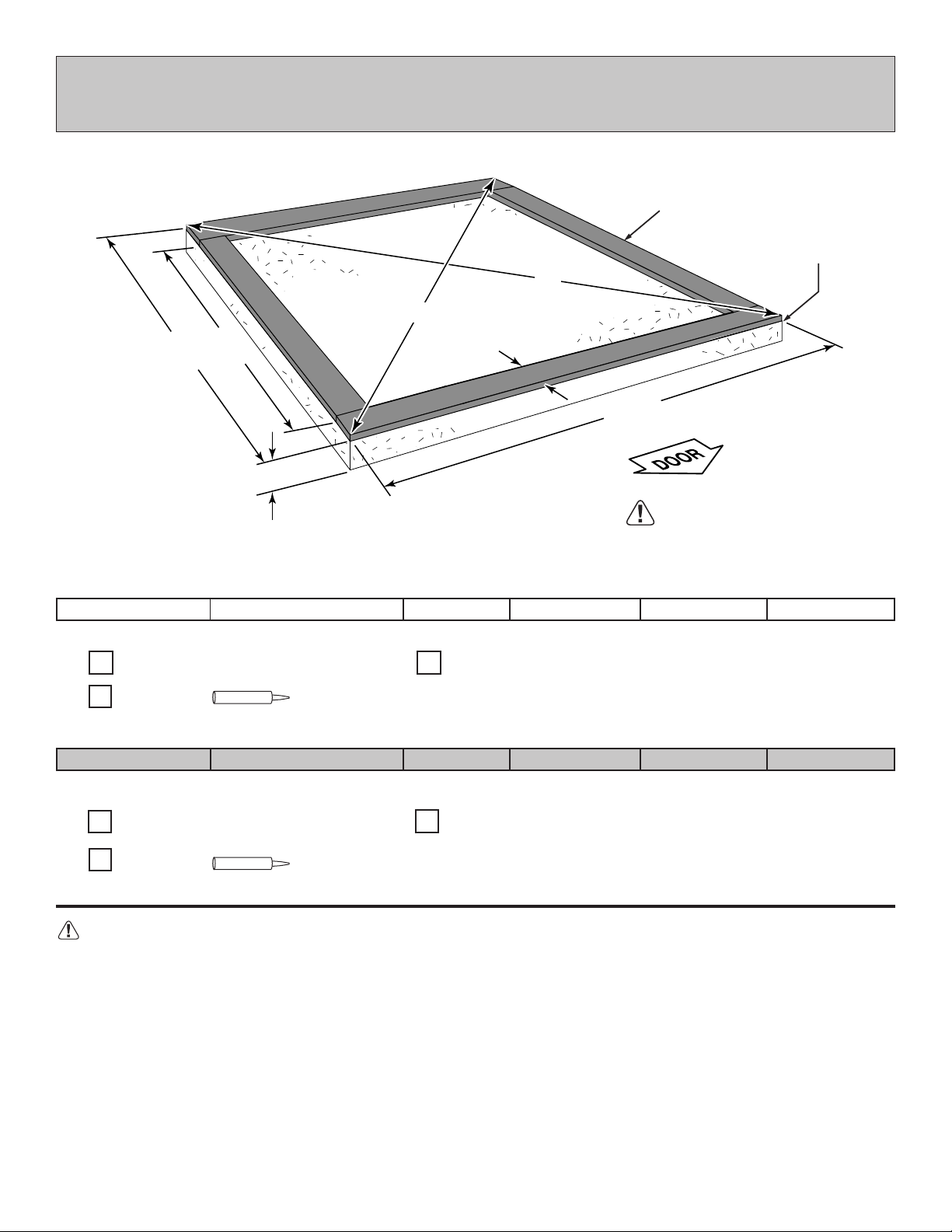

CONCRETE FOUNDATION

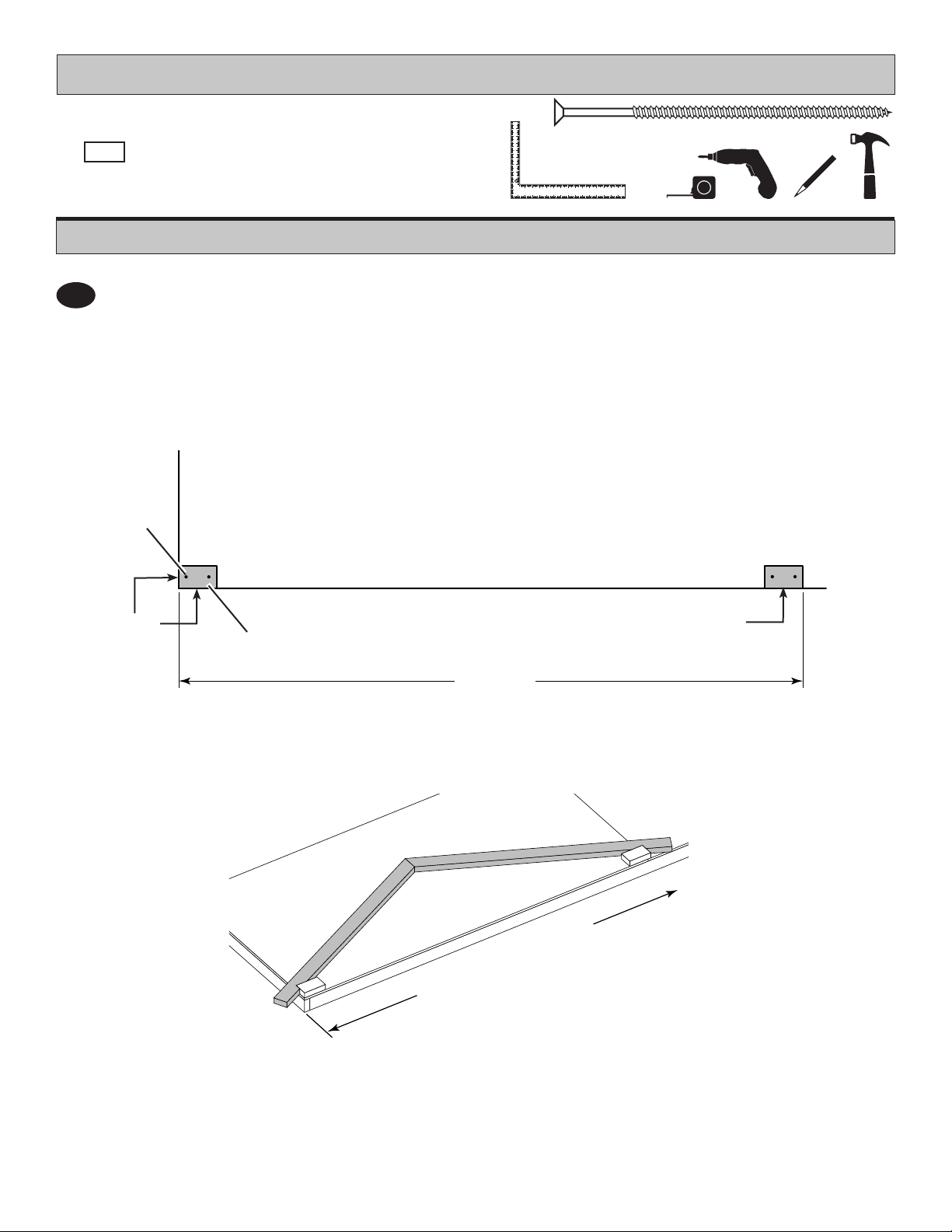

If you choose to install your kit on a concrete slab refer to the diagram below.
Attach the sill plates on the foundaton as shown, and continue on to page 14.
ABC D
Actual Floor SizeBuilding Size
• A treated 2 x 4 (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete.
Purchase full length treated lumber, or butt shorter pieces end-to-end and seal seams with caulk.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
120" (304,8 cm)
120" (304,8 cm)
137" (348 cm)
185" (469,9 cm)
10' x 12' (304,8 x 365,8 cm)
10' x 16' (304,8 x 487,7 cm)
10'x12' (304,8 x 365,8 cm)
10'x16' (304,8 x 487,7 cm)
144" (365,8 cm) 187-7/16" (476,1 cm)
192" (487,7 cm) 226-7/16" (575,2 cm)
Treated Sill Plate
Caulk between
sill plate and
concrete.
10' x 12' Building Requires:
10' x 16' Building Requires:
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm)
x2 2 x 4 x 12' (5,1 x 10,2 x 365,8 cm) x2
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm)
x2 2 x 4 x 16' (5,1 x 10,2 x 487,7 cm)
x2
Sill plates must be treated lumber.
Caulk
Caulk
x1
x1
Allow new concrete slabs to cure for at least seven (7) days.
ABC D
Actual Floor SizeBuilding Size
Cut to: 137" (348 cm)
Cut to: 185" (469,9 cm)

10
• 3" Screws angled into 4x4.
• (2) at each point frame
and 4x4 touch.
Runners are generally
12" (30,5 cm) from ends

under seams.
FLOOR FRAME NOT INCLUDED
OPTIONAL WOOD FRAME FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS (Typical for 10' x 12' Kit)
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber.
Never use shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
MATERIAL REQUIRED:
4 x 4 x 12' (10,2 x 10,2 x 305 cm) Treated Lumber
4 x 4 x 16' (10,2 x 10,2 x 487,7 cm) Treated Lumber
x3
x3
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
10' x 12'
10' x 16'
x60
x78
3" (7,6 cm)
3" (7,6 cm)
Fasteners for Frame to 4x4:
(3" Screws shown as one option.)
Minimum 3" screws / exterior grade.
12"
(30,5 cm)
12"
(30,5 cm)
Measurements to
centers of 4x4's.
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"

11
Measurements to
centers of 4x4's.
Measurements to
centers of 4x4's.
4x4 runners are generally installed 12" (30,5 cm) from ends of oor frame and under any seams.
FINISH
FINISH
Your oor frame is now level.
Your oor frame is now level.
After the frame is level and square, secure one side of frame to 4x4 runners using one fastener at ends
of each runner. At the opposite end of the frame, secure the frame to 4x4 runners with one fastener at the
ends of each runner, ensuring that the frame remains square.
Fasten the frame to the 4x4 runners with (2) 3" screws at each connection (Fig. B).
Second, secure at ends with
one fastener.
Second, secure at ends with
one fastener.
Fig. A
10' x 12'
Fig. C
10' x 16'
12"
(30,5 cm)
12"
(30,5 cm)
12"
(30,5 cm)
12"
(30,5 cm)
First, secure at ends with
one fastener.
Fig. B
Fig. B
187-7/16"
(476,1 cm)
226-7/16"
(575,2 cm)
187-7/16"
(476,1 cm)
226-7/16"
(575,2 cm)
LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
2
BEGIN
1
Use a level and ensure the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across the corners.
If the measurements are the same, the frame is square.
• The diagonal measurement for 10' x 12' will be approximately 187-7/16" (476,1 cm) (Fig. A).
• The diagonal measurement for 10' x 16' will be approximately 226-7/16" (575,2 cm) (Fig. C).

LEVELING & SQUARING THE FLOOR FRAME (Not Included)
• 3" (7,6 cm) screws angled into 4x4.
• (2) at each connnection.
• 3" (7,6 cm) screws angled into 4x4.
• (2) at each connnection.
First, secure at ends with
one fastener.

12

Re-level if necessary.

• Organize your assembly procedure during the build process
to avoid over-handling of the walls.
HINT:
EAVE WALL
EAVE WALL
Your door location may vary.
EAVE WALL
EAVE WALL
OPTION GABLE WALL
OPTION
GABLE WALL

13
PARTS REQUIRED:
RAFTER ASSEMBLY
3" (7,6 cm)
x6
x2 CLA 2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm)
BEGIN
¸
1
Build a rafter jig using the oor and (2) CLA parts.
120-3/4"
(306,7 cm)
CLA x2
Secure (1) CLA ush to the oor deck with (2) 3" screws (Fig. A).
Measure over 120-3/4" (306,7 cm) and install a second CLA ush to the oor deck.
Secure with (2) 3" screws.
Fig. A
(2) 3" (7,6 cm)
Screws
in each CLA


Flush Flush

14

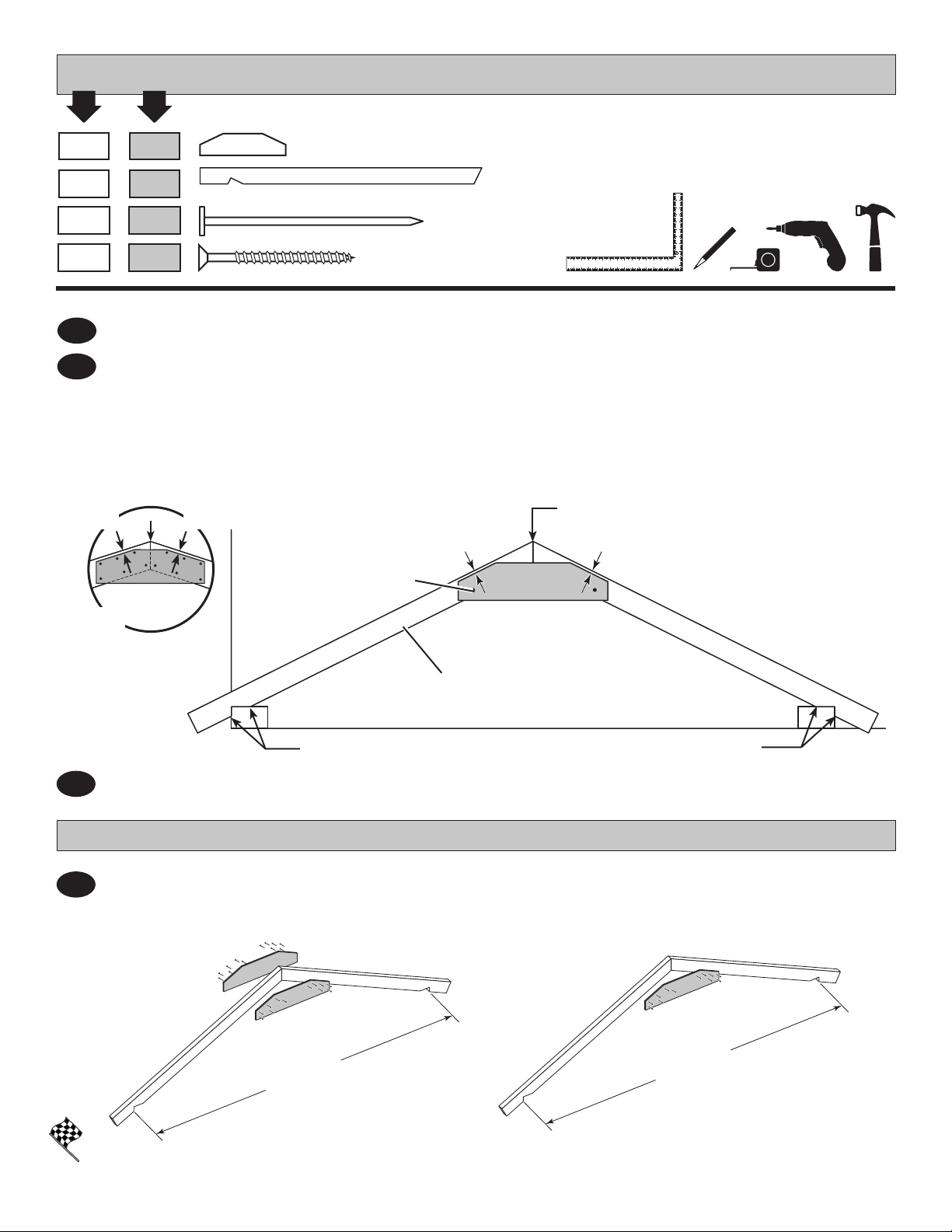

RAFTER ASSEMBLY
2 x 4 x 75-1/4" (5,1 x 10,2 x 191,1 cm)
ECN
1-5/8" (4,1 cm)
OSB OR WOOD GRAIN
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
ECN x2
Flush at peak
Repeat steps 1 and 2 to build (2) rafters with only (1) gusset (FIg. C)
Flip over rafter assembly and fasten a 2nd gusset with 2" nails (Fig. A, FIg. B).
No need to use the jig for the 2nd gusset.
4
3
2
Place gusset onto ECN with a 1/4" gap from edge (Fig. A) while holding rafters in place.
Secure gusset with (1) 1-5/8" screw into each rafter.
HINT: These screws will help hold the measurements when you nail on gussets.
Secure the gusset to the rafters with (10) 2" nails in the pattern shown (Fig. A).
Press ECN rmly against the outside of CLA's, as shown (Fig. A) and push rafters tight to the middle.
Rafters should touch (ush) at peak (Fig. A).
BEGIN
¸
1Place (2) rafters ECN into the jig, as shown.
FINISH
1-5/8" (4,1 cm)
Screw
120-3/4"
(306,7 cm)
120-3/4"
(306,7 cm)
Repeat steps 1-3 to build (4) or (6) ADDITIONAL rafters with (2) gussets (FIg. B).
Fig. C - Build 2
Fig. B - Build 5 or 7 (total)
Fig. A
1/4"
(1,9 cm)
1/4"
(1,9 cm)
Your rafters are now assembled.
Aat both ends when securing gusset.
Flush
2" (5,1 cm)
PARTS REQUIRED:
x174
x18
x130
x14
x18x14
x16x12
10x16'10x12'

15
01
01
03
03
02
02
02
02
04
06
04
06
04
06
05

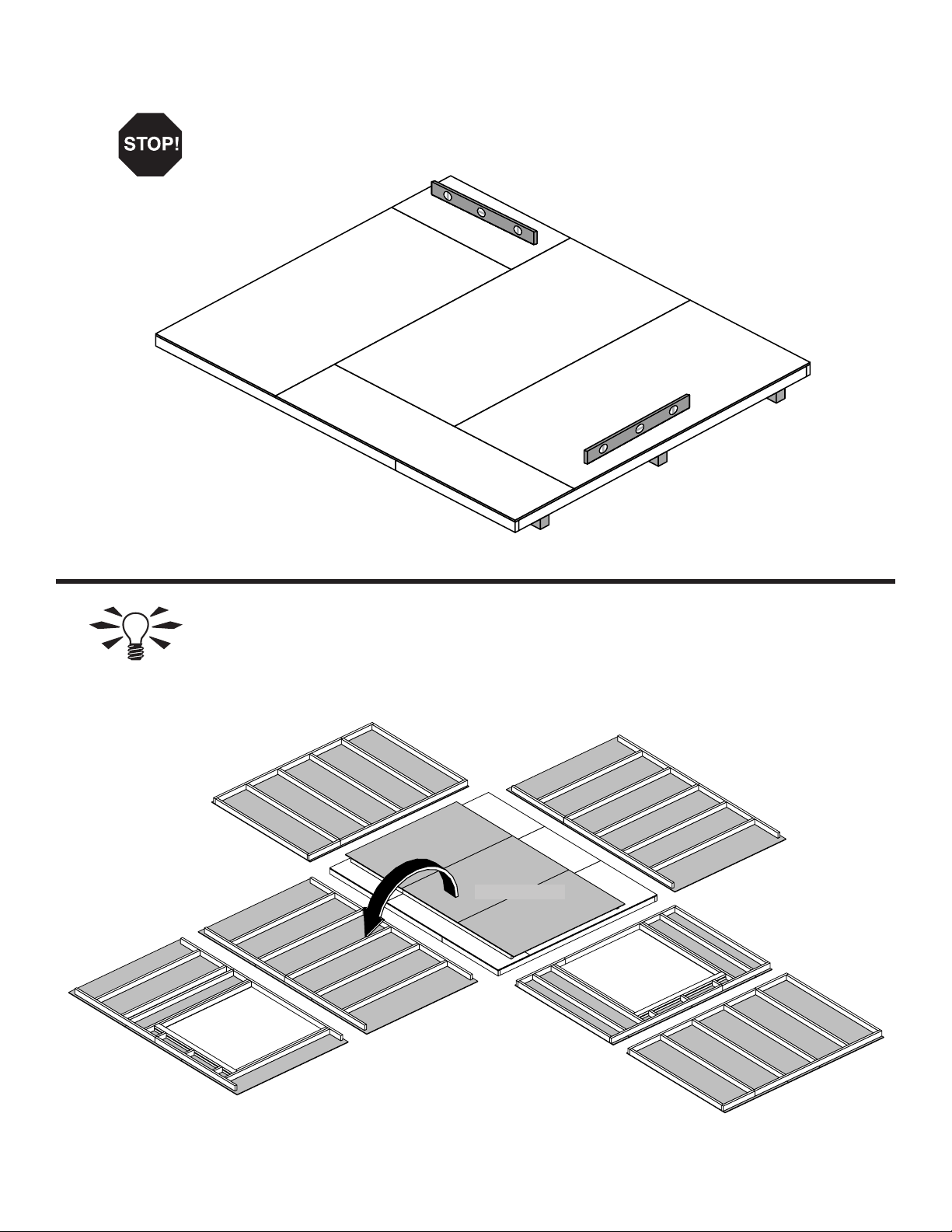

07
Create your own style of shed. Choose your door location.
Use this guide to nd the corresponding wall construction and installlation pages.
As another option, eave walls with doors can be reversed during assembly.
IMPORTANT! Build your door header before building any walls (see page 16).
10' x 12'
Wall 01: Page 18
Wall 02: Page 20
Wall 04: Page 24 (Build 2 eave walls)
10' x 16'
Wall 01: Page 18
Wall 02: Page 20
Wall 06: Page 28 (Build 2 eave walls)
10' x 12'
Wall 02: Page 20
Wall 03: Page 22
Wall 04: Page 24
Wall 05: Page 26
10' x 16'
Wall 02: Page 20
Wall 03: Page 22
Wall 06: Page 28
Wall 07: Page 30
WALL INDEX
10' x 16' Door on gable wall
After assembling the walls for your 10' x 16' shed,
go to page 38 for wall installation.
10' x 16' Door on eave wall
After assembling the walls for your 10' x 16' shed,
go to page 38 for wall installation.
10' x 12' Door on gable wall
After assembling the walls for your 10' x 12' shed,
go to page 32 for wall installation.
10' x 12' Door on eave wall
After assembling the walls for your 10' x 12' shed,
go to page 32 for wall installation.

16
PARTS REQUIRED: 3" (7,6 cm)

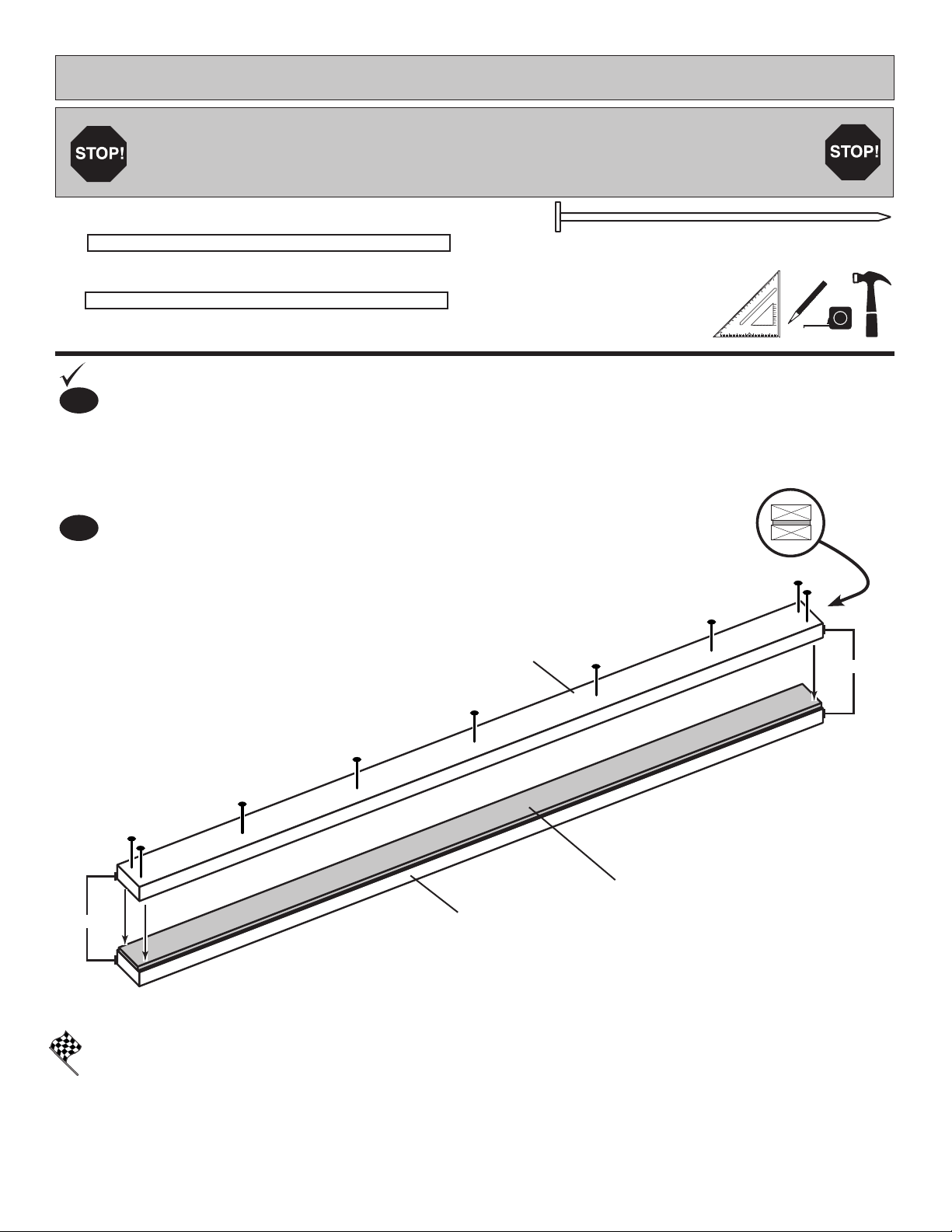

DOOR HEADER
x18
x2
2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
x1
7/16 x 3-1/4 x 66-3/4" (1,1 x 8,3 x 170,2 cm) OSB
Place (1) AM and OSB end-to-end on at surface, ush in middle.
Center OSB on top of AM.
Fasten together with 3" nails in the pattern shown.
Your door header is now assembled.
FINISH
OSB
ASSEMBLED
END VIEW
BEGIN
1
AM
AM
2Flip header assembly over and nail as shown on the other side.
Flush
Flush
Assemble this door header before building any walls!
Any wall with a door will require this assembly.

17
x40 2" (5,1 cm)
PARTS REQUIRED:
Place (1) 48" x 84" panel on the wall frame, as shown.
Locate the panel 1-1/2" above the top plate.
Use a 2x4 as a gauge block for the 1-1/2" top overhang measurement.
Use the GAA gauge block to mark the 3/4" side measurement on the wall stud.
Secure panel with (2) 2" nails in the corners (Fig. A).
2
Secure panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
EXAMPLE WALL
Ensure your wall is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever,
move the panel side-to-side until you have a 3/4" measurement on the wall stud.
Secure corner with (2) 2" nails (Fig. B).
3/4" Gauge
Block
x1 3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm )
For squareness maintain 1-1/2"
and 3/4" measurement along panel edges.
BEGIN HERE
3/4"
(1,9 cm)
6" (15,2 cm)
12" (30,5 cm)
2x4
TEMP. SPACER
3/4" GAUGE
BLOCK
GAA
WALL PANEL INSTALLATION HINTS & EXAMPLES
BEGIN
1
Angle nail to draw panels
tight at seams.
Install all wall panels with the primed side facing up.
2x4
1-1/2"
(3,8 cm)
3/4"
(1,9 cm)
Fig. A 3/4"
(1,9 cm)
2 Nails
1-1/2" (3,8 cm)
overlap at top
Fig. B 3/4"
(1,9 cm)
1-1/2" (3,8 cm)
overlap at top
2 Nails
HINT

18
12"
25-3/4"
36"
60"
84" 36"
94-1/4"
108"
120"
78-1/2"
(30,4 cm)
(65,4 cm)
(91,4 cm)
(152,4 cm)
(213,4 cm) (91,4 cm)
(239,4 cm)
(274,3 cm)
(304,8 cm)
(304,8 cm)
36" 84"
(91,4 cm) (274,3 cm)
1-1/2"
(3,8 cm)
Fig. B
3" (7,6 cm)
Screws
Pre-Assembled Header
Install Header in
this position
Fig. A
PARTS REQUIRED:
3" (7,6 cm)
10' WALL - 01
x60
2
1
BEGIN
3" (7,6 cm)
x6
x1
Pre Assembled Header
x3
2 x 4 x 6-1/2" (5,1 x 10,2 x 16,5 cm)
UY
x2 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
YFA
x6 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
x2 2 x 4 x 84" (5,1 x 10,2 x 213,4 cm)
TO
2 x 4 x 36" (5,1 x 10,2 x 91,4 cm)
x2 SL
TO
YFA YFA
TO
SL
SL
AI x6
UY x3
Flush Flush
Flush Flush
3" (7,6 cm)
Screws
Orient parts on edge on oor as shown. Measure and mark from end of boards.
Orient Pre Assembled Header on at side (Fig. A).
Secure with (2) 3" nails at each connection and (4) 3" nails at seams.
Fasten (3) middle parts UY to Pre Assembled Header with (2) 3" screws (Fig. B).
Secure parts UY to top plates with (2) 3" nails at each connection and (4) 3" nails at seam.
Seam
64"
(162,6 cm)
