11/09/2022
ACTUAL FLOOR SIZE IS 120" x 116-5/8" (305 x 296 cm)
PRINCETON 10' x 10' (305 x 305 cm)
ASSEMBLY MANUAL
MARCO SERIES
16162
A Backyard Products Company
KEEP THIS MANUAL FOR FUTURE REFERENCE
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 7.
• CHECK ALL PARTS
Inventory all parts listed on pages 4-6.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-734-242-6900 email: [e-mail]

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; (2) or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have  nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver
❑Drill / Driver
❑3/8" Drill Bit
❑#2 Philips Drive Bit
❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑ Square or
❑Utility Knife
❑Shingle Blades
B C

3
COMPLETING YOUR SHED
You will need these additional materials:
TO VALIDATE YOUR WARRANY YOU MUST USE THE FOLLOWING ITEMS:
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
DRIP EDGE ..................... 50 Feet #15 ROOFING FELT
To cover 112 Sq. Ft. of roof area.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
• This kit includes a complete oor.
• This shed kit does not include ANY leveling materials.
• See the FLOOR LEVELING section on page 7 for recommended methods and suggested materials to properly level your
oor, as this will vary depending on your specic site.
3-TAB SHINGLES ............................ 5 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 3 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 2 Lbs
For shingles.
PAINT FOR TRIM .............................1 Quart
Use 100% acrylic latex exterior paint.
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! The included oor has been designed for general use. Depending on your specic use you may want to construct a
heavy duty oor frame by adding additional oor joists (shown below as shaded). Below is a list of additional materials (not included):
x2
x16
2 x 4 x 12' (5 x 10 x 365,8 cm) Treated Lumber
Cut to (2) 2 x 4 x 21" (5 x 10 x 53,3 cm)
and:
Cut to (2) 2 x 4 x 89-1/2" (5 x 10 x 227,3 cm)
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
Optional 12" (30,5 cm) spacingStandard 16" (40,6 cm) spacing
1" GALVANIZED ROOFING NAILS.........1/4 Lb
For roong felt.

4

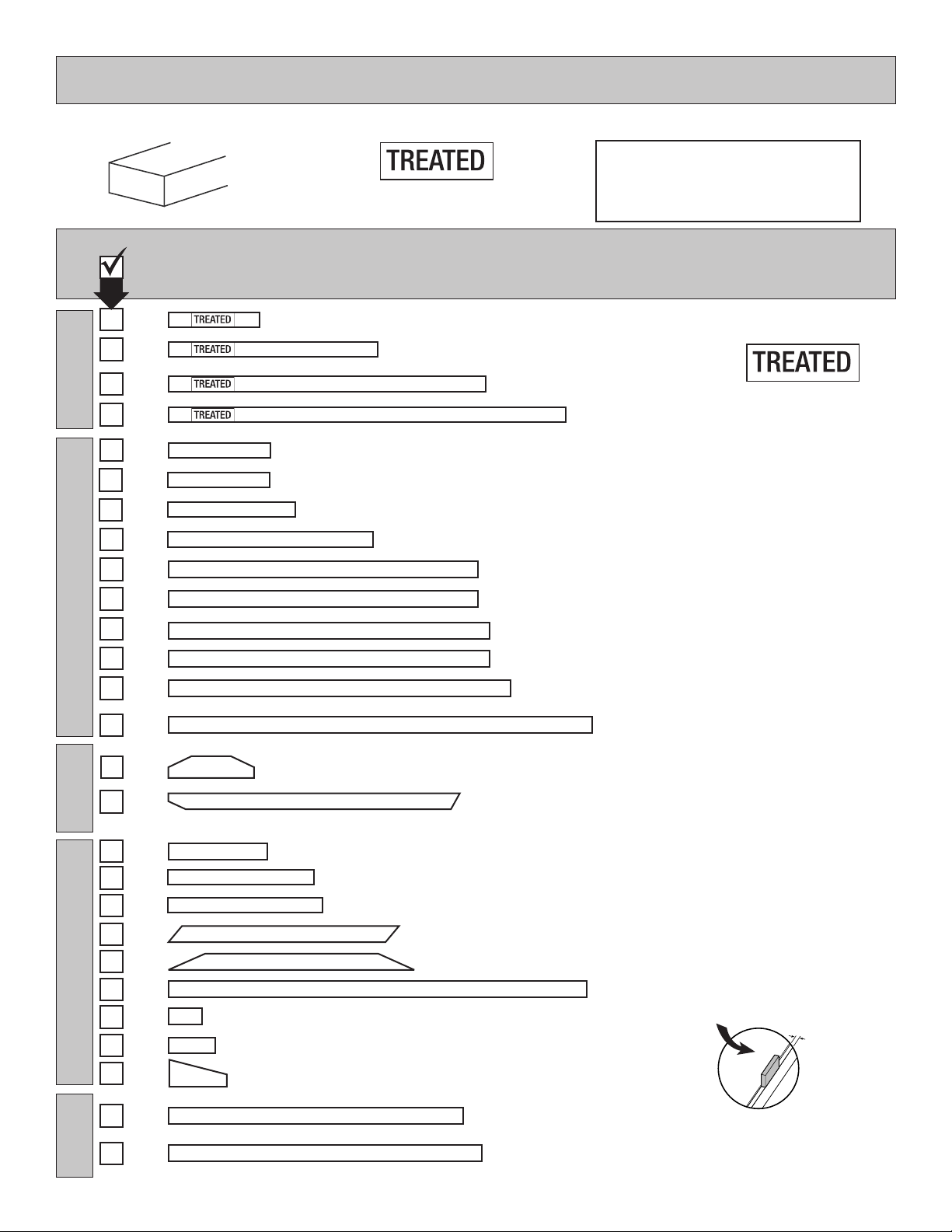

PARTS IDENTIFICATION AND SIZES
FLOORDOOR
RAFTER
TRIM WALL
Treated lumber is stamped:
ZJ
6 x 24" (15 x 61 cm)
x8
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
x1 5/8 x 3 x 72" (1,6 x 6,3 x 183 cm)
OO
x2 69" Door Stiffener (175,3 cm)
XMA
x1 11/16 x 2-1/2 x 60-5/8" (1,7 x 6,3 x 154 cm)
x4 2 x 4 x 72" (5 x 10 x 182,9 cm)
x4 2 x 4 x 48" (5 x 10 x 121,9 cm)
x6 2 x 4 x 89-1/2" (5 x 10 x 227,3 cm)
x6 2 x 4 x 21" (5 x 10 x 53,3 cm)
x1 2 x 3 x 22-1/8" (5 x 7,6 x 56 cm)
LT
x2 2 x 3 x 22-1/2" (5 x 7,6 x 56 cm)
LV
x1 2 x 3 x 24-3/4" (5 x 7,6 x 56 cm)
ADJ
x4 2 x 3 x 72" (5 x 7,6 x 183 cm)
OY
x2 7/16 x 2-1/2 x 73-1/2" (1,1 x 6,3 x 187 cm)
x2 2 x 3 x 70-1/4" (5 x 7,6 x 178,4)
OZ
x8 2 x 3 x 69" (5 x 7,6 x 175,3)
OV
x4 2 x 3 x 77" (5 x 7,6 x 196 cm)
PB
x2 2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
PR
2 x 4 x 65-7/8" (5 x 10 x 167 cm)
x8 CV
1 x 3 x 23-1/4" (2,5 x 7,6 x 59 cm)
x2 DN
2 x 3 x 58" (5 x 7,6 x 147,3 cm)
x4 CDD
1 x 3 x 95-1/2" (2,5 x 7,6 x 242,5 cm)
x2 BS
2 x 3 x 46-1/4" (5 x 7,6 x 117,5 cm)
x4 NH
Part identication
is stamped on some parts.
• Check these locations for part stamp.
RS RS
Treated lumber is
stamped:
x4 1 x 3 x 7-1/2" (2,5 x 7,6 x 19 cm)
GBB
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4
.................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
x4 3/4 x 5-1/8 x 8-3/8" (1,9 x 13 x 21,3 cm) RIGHT PAINTED RED
LEFT PAINTED GREEN
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm)
x1 GAA USED AS A GAUGE BLOCK FOR 3/4" (1,9 CM) MEASUREMENT.
3/4"
(1,9 cm)
19/32 x 2-1/2 x 22-1/4" (1,5 x 6,3 x 56,5 cm)
x2 CYZ
19/32 x 2-1/2 x 24-3/4" (1,5 x 6,3 x 62,9 cm)
x2 FF

5
x2
3/8 x 23-7/8 x 72"
(1 x 61 x 183 cm)
x3
3/8 x 48 x 72"
(1 x 122 x 183 cm)
x1
3/8 x 48 x 72"
(1 x 122 x 183 cm)
WALL PANELS and DOORS
ROOF PANELS
FASTENER/HARDWARE BAG (Shown Actual Size)
SOFFIT PANELS
x27
x58
x60
x140
x60
3" (7,6 cm)
2" (5,0 cm)
2" (5,0 cm)
3/4" (1,9 cm)
1-1/4" (3,2 cm)
x2x2 x1 x1
x1
x1
x1
RIGHT DOOR
x4
19" x 48"
(48 x 122 cm)
x2
23-7/8 x 48"
(61 x 122 cm)
x2
23-7/8 x 19"
(61 x 48 cm) x2
48" x 96"
(122 x 244 cm)
x1
LEFT DOOR
x2 3/8 x 5 x 21-1/4" (0,9 x 12,7 x 54 cm)
x2 3/8 x 5 x 96" (0,9 x 12,7 x 244 cm)
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
x1
x2 1-1/2" (3,8 cm)
Roof panels are 7/16" (1,1 cm) thick.
DOOR HARDWARE (Not Actual Size)
x1
x1
x2
x8
1" (2,5 cm)

6
x1
x1
x1
x2
23-7/8 x 92-5/8" (61 x 235,3 cm)
23-7/8 x 96" (61 x 244 cm)
48 x 92-5/8" (122 x 235,3 cm)
23-7/8 x 23-7/8" (61 x 61 cm)
FLOOR PANELS
WINDOW, VENTS and RAMPS
x2
x1 x12
1/2" (1,3 cm)
x2
Floor panels are 5/8" (1,6 cm) thick.

7

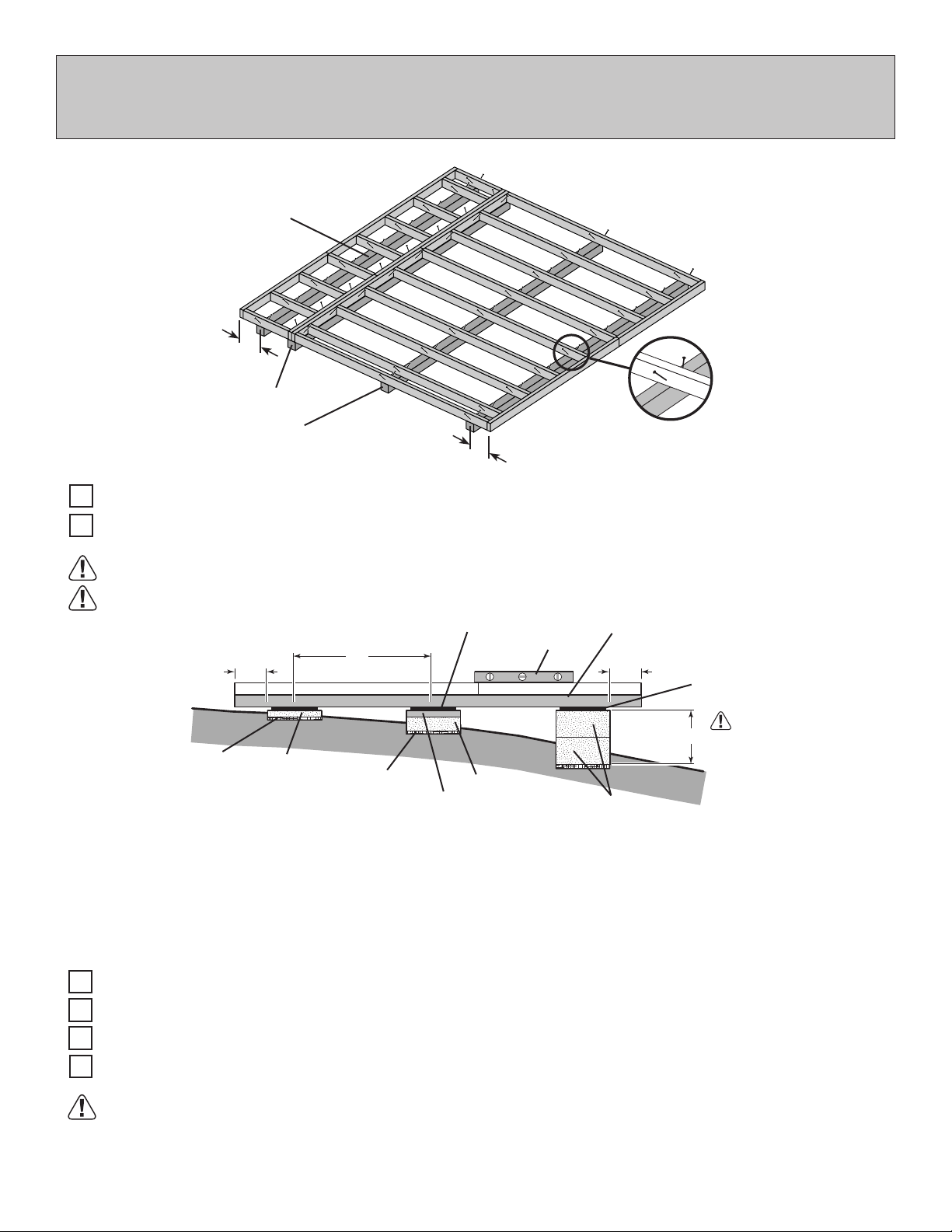

FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber.
Never use shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
PREFERRED METHOD - 4x4 TREATED RUNNERS
MATERIAL REQUIRED
x4 4 x 4 x 10' (10,2 x 10,2 x 304,8 cm) Treated Lumber
Fasteners for Frame to 4x4.
(3" Screws shown as one option.) Minimum (70) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
9-1/2"
(24,1cm)
9-1/2"
(24,1cm)
Support seam.
Measurements to
centers of 4x4's.
• 3" Screw angled into 4x4.
• (2) at each point frame
and 4x4 contact.
4x4 Centered
4x4 Runners
(not included).

8
A
BC
4"
(10 cm)
3-1/2"
(8,9 cm)
DOOR

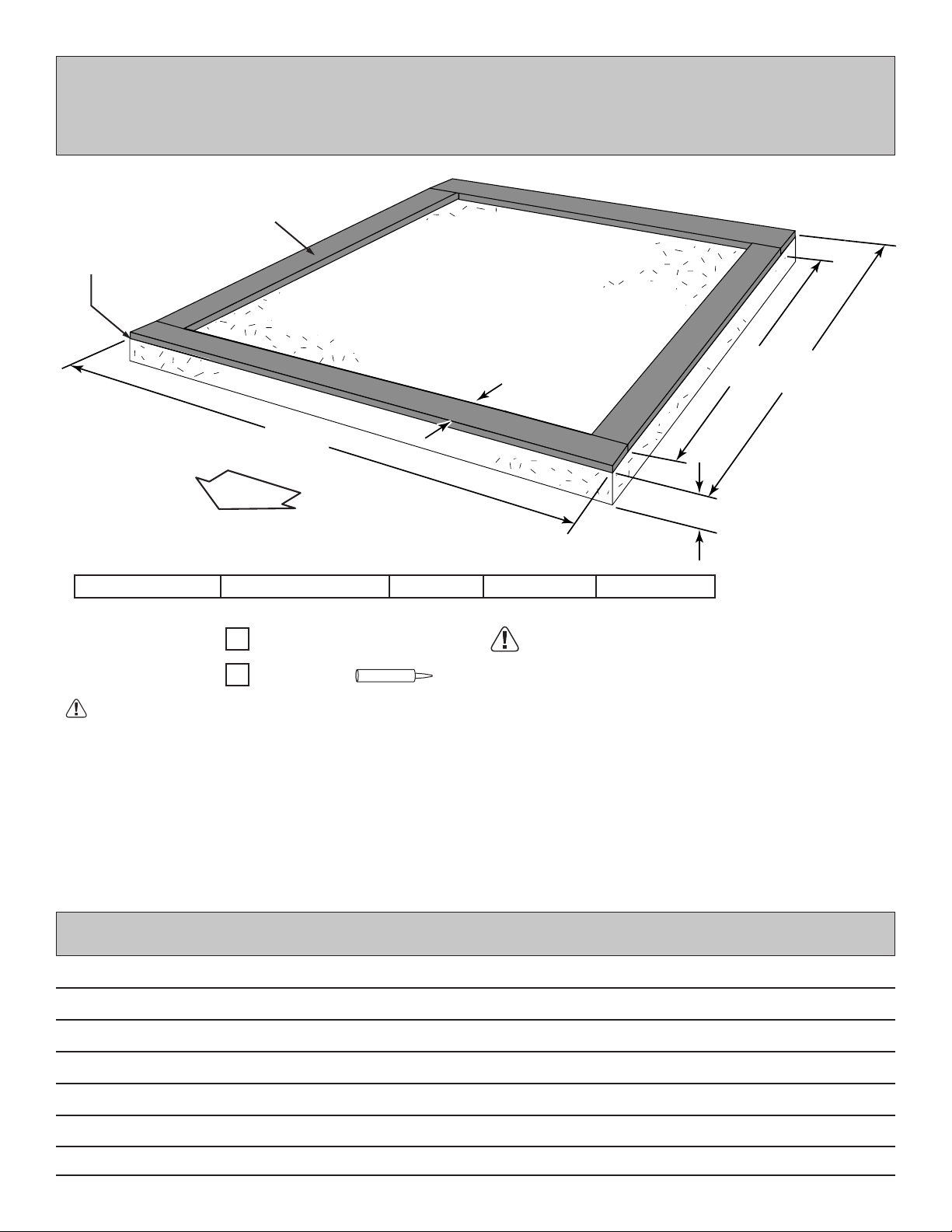

CONCRETE FOUNDATION
Your kit contains all materials to construct a wooden oor.
If you choose to install your kit on a concrete slab, refer to the diagram below.
A B CActual Floor SizeBuilding Size
• A treated 2 x 4 (5 x 10 cm) sill plate is required when installing your shed on concrete. Hint: Use treated lumber in your kit or
purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4 (5 x 10 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
120" (305 cm) 109-1/2" (278,1 cm)10'x 9'-8-5/8" (305 x 296 cm)10'x 10' (305 x 305 cm) 116-1/2" (295,9 cm)
NOTES
Treated Sill Plate
Caulk between sill plate
and concrete.
2 x 4 x10' (5 x 10 x 305 cm)
Requires:
x4 MUST be treated lumber.
Caulk
x1
Allow new concrete slabs to cure for at least seven (7) days.

21"
16"
32-1/4"
48"
64"
72"
80"
96"
112"
120"
72" 48"
(53,3 cm)
(40,6 cm)
(81,9 cm)
(304,8 cm)
(162,6 cm)
(183 cm)
(152,4 cm)
(244 cm)
(284,5 cm)
(304,8 cm)
(183 cm) (121,9 cm)
1-1/2"
(3,8 cm)
48"
(121,9 cm)
9
1
3" (7,6 cm)
PARTS REQUIRED:
NOTE:
Look for Stamp.

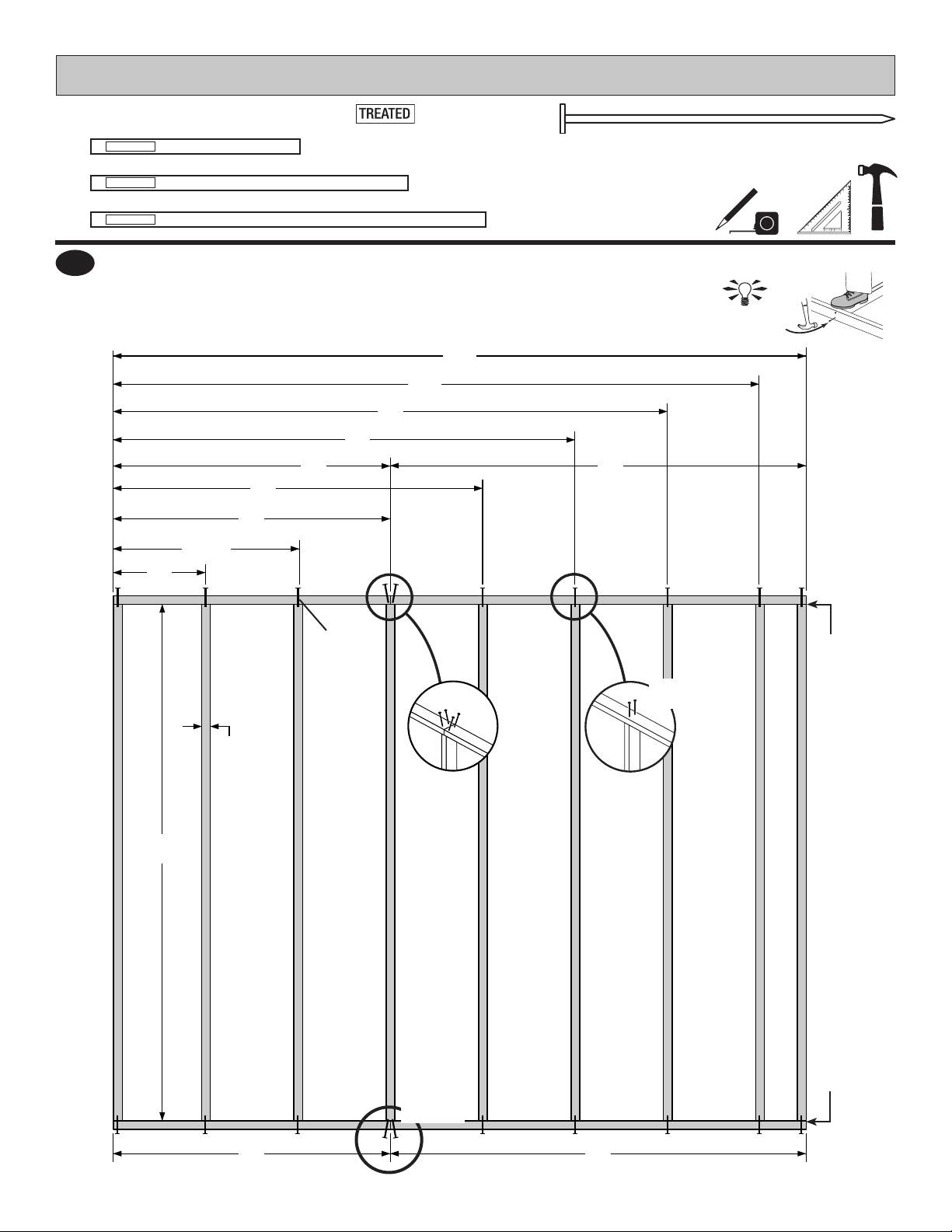

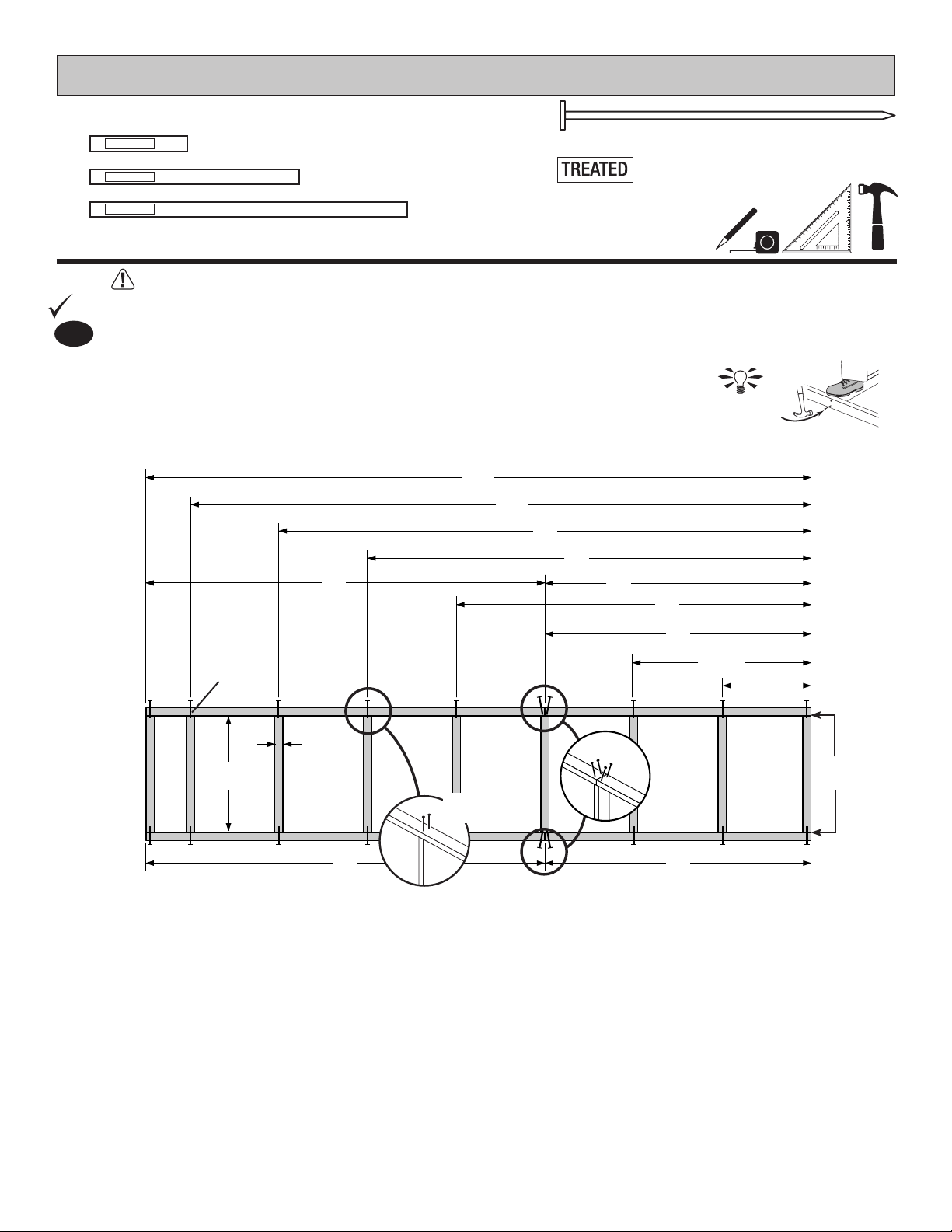

FLOOR FRAME
BEGIN
You will build two oor sections.
x40
Center
on marks
Arrange parts as shown on at surface. Measure and mark each dimension from end of boards.
Secure with (2) 3" nails at each mark and (4) nails at seams.
Flush
at ends
HINT:
For easier nailing
stand on frame.
3" (7,6 cm)
Nails
x9 2 x 4 x 21" (5 x 10 x 58,3 cm)
TREATED
x2 2 x 4 x 48" (5 x 10 x 122 cm)
TREATED
x2 2 x 4 x 72" (5 x 10 x 183 cm)
TREATED
Seam

89-1/2"
16"
32-1/4"
48"
64"
72"
80"
96"
112"
120"
72"48"
(227,3 cm)
(40,6 cm)
(81,9 cm)
(304,8 cm)
(162,6 cm)
(183 cm)
(152,4 cm)
(244 cm)
(284,5 cm)
(304,8 cm)
(183 cm)(121,9 cm)
1-1/2"
(3,8 cm)
48"
(121,9 cm)
10
3" (7,6 cm)
Arrange parts as shown on at surface. Measure and mark each dimension from end of boards.
Secure with (2) 3" nails at each mark and (4) nails at seams.
PARTS REQUIRED:
Flush
at ends
NOTE:
Look for Stamp.
FLOOR FRAME
HINT:
For easier nailing
stand on frame.
x40
2
Flush
at ends
Seam
Center
on marks
Seam
3" (7,6 cm)
Nails
x2 2 x 4 x 48" (5 x 10 x 122 cm)
TREATED
x2 2 x 4 x 72" (5 x 10 x 182,9 cm)
TREATED
2 x 4 x 89-1/2" (5 x 10 x 227,3cm)
x9 TREATED

120"
(304,8 cm)
116-1/2"
(295,9 cm)
11
3" (7,6 cm)
PARTS REQUIRED:
Flush Flush
FLOOR FRAME
x46
Fasten  oor sections together, as shown. Secure with 3" nails.
3
Your  oor frame is now assembled. Proceed to level and square frame.
FINISH
Stagger nail
pattern.

12
FINISH
LEVEL AND SQUARE FLOOR FRAME
Before attaching  oor decking, it is important to level and square the  oor frame.
A level and square  oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use level and check the frame is level before applying  oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the same, the
frame is square. The diagonal measurement will be approximately 167-1/4" (424,8 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at ends of
each runner. Move to the opposite end of the frame. Secure the frame to 4x4 runners with one fastener at ends
of each runner making sure the frame remains square (Fig. A).
Once the  oor frame is level and square, fasten the frame to the 4x4 runners at each point
where the frame contacts the 4x4 runners.
See page 7 for the preferred  oor leveling method.
First, secure at ends with one fastener.
Second, secure at ends with one fastener.
167-1/4"
(424,8 cm)
167-1/4"
(424,8 cm)
Fig. A
120"
(304,8 cm)
116-1/2"
(295,9 cm)

13
Move to the opposite side. Using the long edge of the panel as a lever, move the panel side-to-side until the top
corner is ush to the oor frame (Fig. B). Secure panel with (2) 2" nails in the corners.
2
BEGIN
1
3
4Continue securing the panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
Use a chalk line or use pre-painted grid lines to nail into joists under panel.
Check that the oor frame is square by measuring diagonally across the frame corners. If the measurements are
the same your oor frame is square. The measurement will be approximately 167-1/4" (424,8 cm).
Install (1) 48" x 92-1/2" panel with the 48" edge and corner ush to the outside of the oor frame (Fig
A) and 3/4" along the oor joist. Use the GAA gauge block for the 3/4" measurement.
Secure panel with (2) 2" nails in the corners.
PARTS REQUIRED:
x1
5/8 x 48 x 92-1/2"
(1,6 x 121,9 x 235 cm)
x62 2" (5,1 cm)
FLOOR PANELS
Ensure your wall frame is square by installing one panel and squaring frame.
Install panels with rough side up (painted grid lines).
3/4" GAUGE
BLOCK
48" x 92-1/2"
3/4"
GAUGE
BLOCK
For squareness maintain 3/4"
measurement along panel edge.
3/4"
(1,9 cm)
6" (15,2 cm)
12" (30,5 cm)
Fig. B
3/4"
(1,9 cm)
2 Nails
Flush
GAUGE
BLOCK
Fig. A
3/4"
(1,9 cm)
2 Nails
Flush
GAUGE
BLOCK
120" (304,8) cm)
Flush
Flush
DOOR

14
PARTS REQUIRED:
FINISH
Your  oor panels are now installed.
5
x195
2" (5,1 cm)

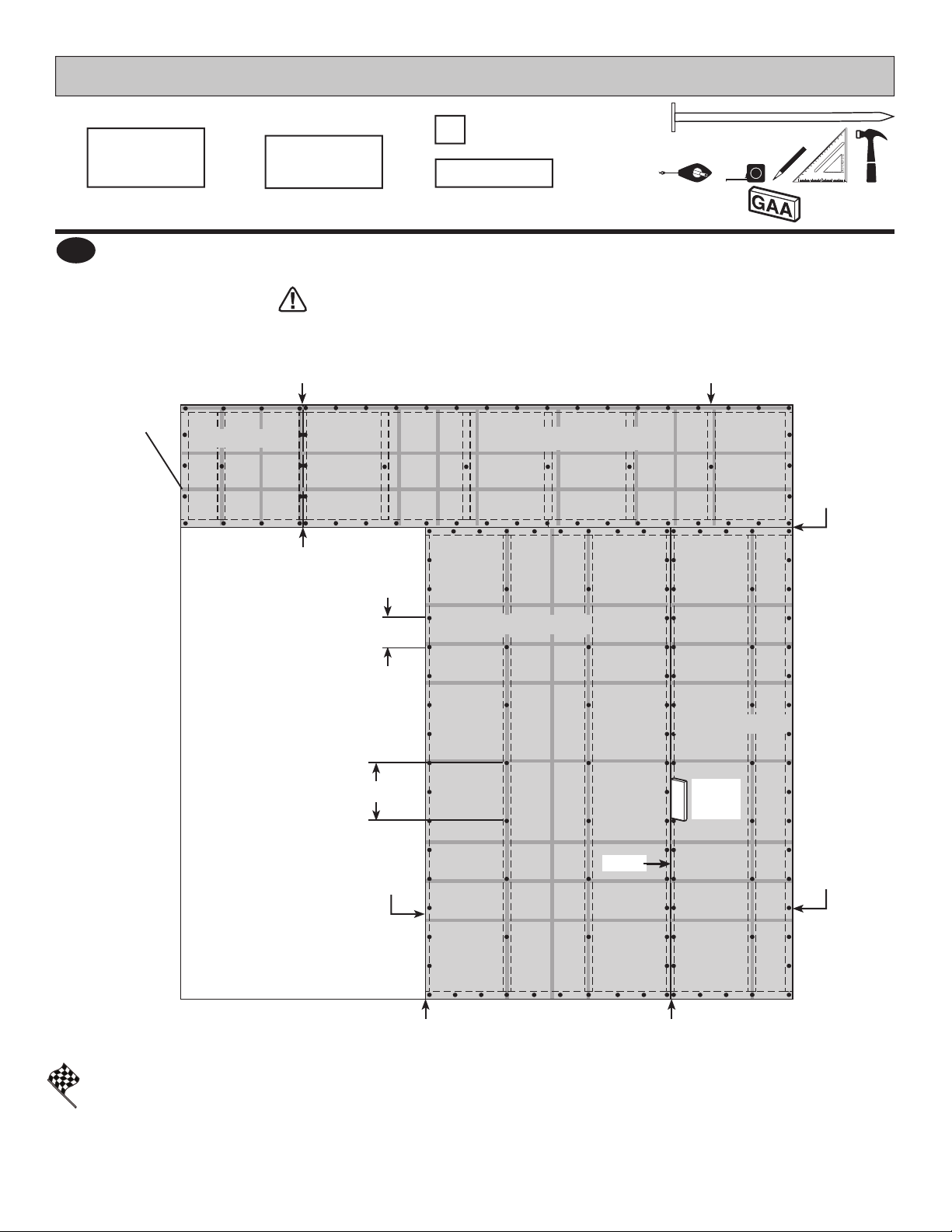

FLOOR PANELS
Continue installing the remaining panels in the following order:
1. 48 x 92-1/2"
2. 23-7/8 x 92-1/2"
3. 23-7/8 x 96"
4. 23-7/8 x 23-7/8"
Maintain 3/4" measurement along edge of panel using the 3/4 Gauge Block.
Secure panels using 2" nails spaced 6" apart on edges and 12" apart inside panel.
All panels should be  ush.
3/4" GAUGE
BLOCK
Grid lines up
23-7/8" x 23-7/8"
48" x 92-1/2"
23-7/8" x 92-1/2"
Flush
Flush
Flush
Flush Flush
Flush
Flush
Flush
Flush
Flush
6"
(15,2 cm)
12" (30,5 cm)
23-7/8" x 96"
5/8 x 48 x 92-1/2"
(1,6 x 121,9 x 235 cm)
x1
5/8 x 23-7/8 x 92-1/2"
(1,6 x 121,9 x 235 cm)
x1
5/8 x 23-7/8 x 96"
(1,6 x 60,6 x 243,8 cm)
x1
5/8 x 23-7/8 x 23-7/8"
(1,6 x 60,6 x 60,6 cm)
x1
3/4"
GAUGE
BLOCK

15

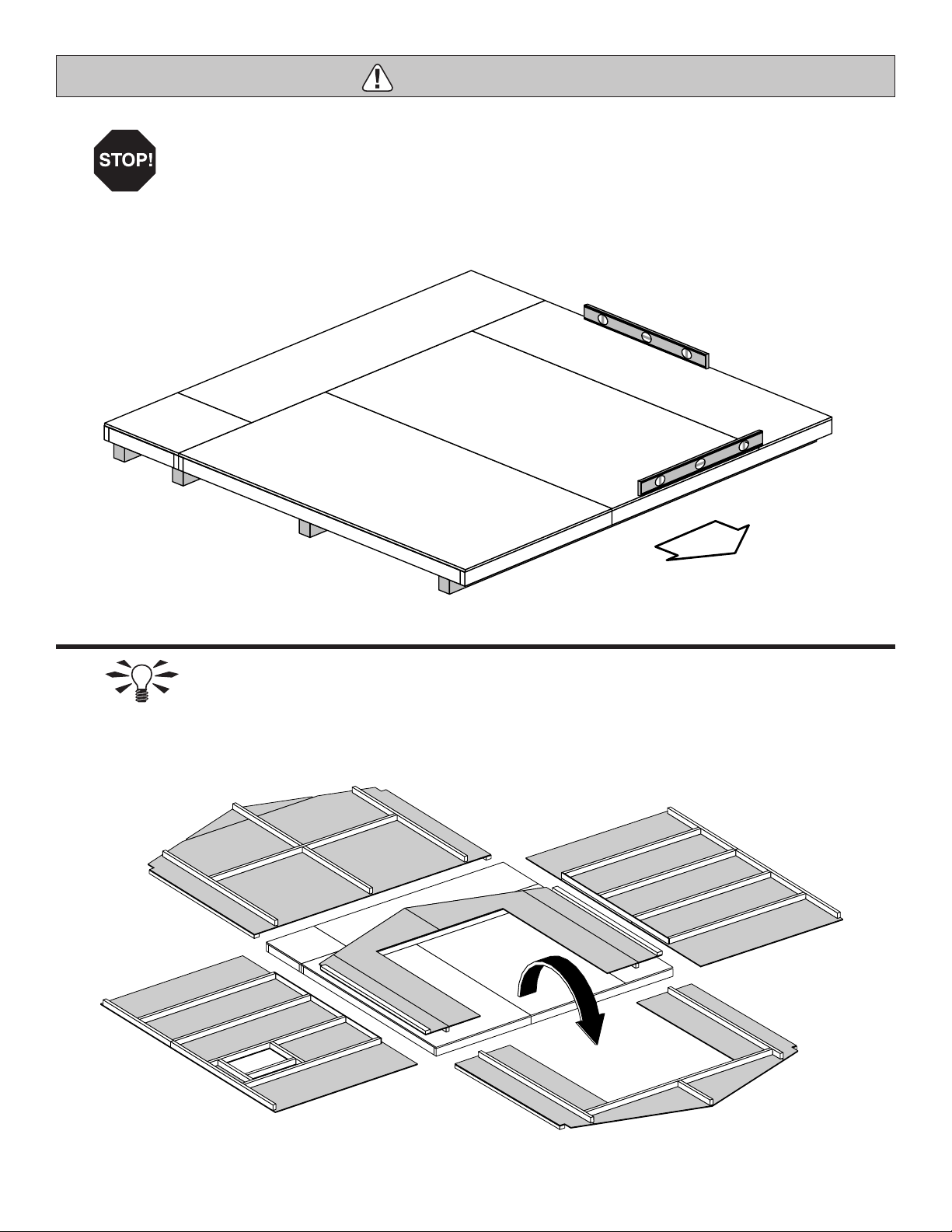

Ensure that the oor frame is level after installing oor panels.
Re-level if necessary.
• The oor should used as a stable work surface for wall construction.
• Organize your assembly procedure during the build process
to avoid over-handling of the walls.
HINT:
IMPORTANT!
DOOR
SIDE WALL
SIDE WALL
FRONT WALL
BACK WALL

125"
(317,5 cm)
125"
(317,5 cm)
16
RAFTER ASSEMBLY JIG
PARTS REQUIRED:
FINISH
Build a jig to ensure all rafters are assembled the same.
Mark a straight line on the  o o r from corner to corner.
Secure blocks in place with 1-1/4" screws according to the measurement shown.
Ensure blocks are square and at 125" (317,5 cm)
Your rafter jig is now assembled.
2
BEGIN
¸
1
1-1/4" (3,2 cm) x8
Chalk Line
Square
(2) 1-1/4" (3,2 cm)
Screws per block
Flush Flush
1 x 3 x 7-1/2" (2,5 x 7,6 x 19 cm)
x4 GBB
GBB GBB GBB
GBB
x8

125"
(317,5 cm)
1/4" (6 mm)
Gap
GUSSET
17

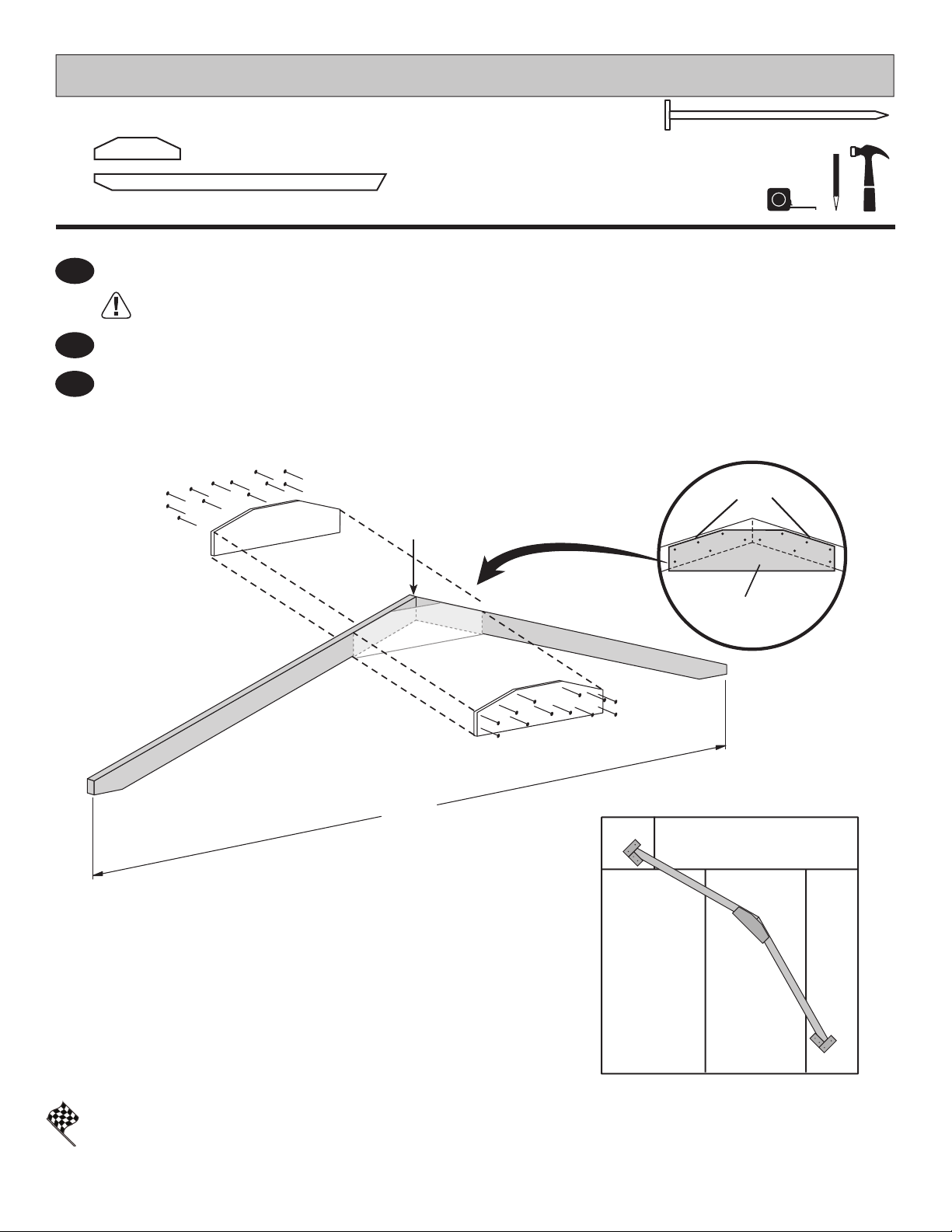

RAFTERS
2" (5 cm) x96
FINISH
Flush rafters at peak.
Secure gusset to rafter with 2" nails, staggered, as shown.
Repeat steps to build (3) more assemblies.
Flip over rafter assembly and nail gusset to back side.
Unscrew jig and save blocks. Set aside rafters and proceed to building your back wall.
Use Jig to assemble rafters.
Flush at
peak.
3
2
BEGIN
¸
1
PARTS REQUIRED:
2 x 4 x 65-7/8" (5 x 10 x 167 cm)
6 x 24" (15 x 61 cm)
x8
x8
x96
CV
Place (2) rafter halves CV on  oor jig. You will assemble (4) rafters.

1-1/2"
(3,8 cm)
77"
(176 cm)
46-1/4"
(117,5 cm)
46-1/4"
(117,5 cm)
48-3/4"
(124 cm)
48-3/4"
(124 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
94-1/2"
(240 cm)
18
Use NH as a guide to locate PB. (Do not nail.)
Arrange parts on edge on oor, as shown.
Secure with (2) 3" nails at each connection.
1
BEGIN
3" (7,6 cm) x6
PB PB
NH
PR
PARTS REQUIRED:

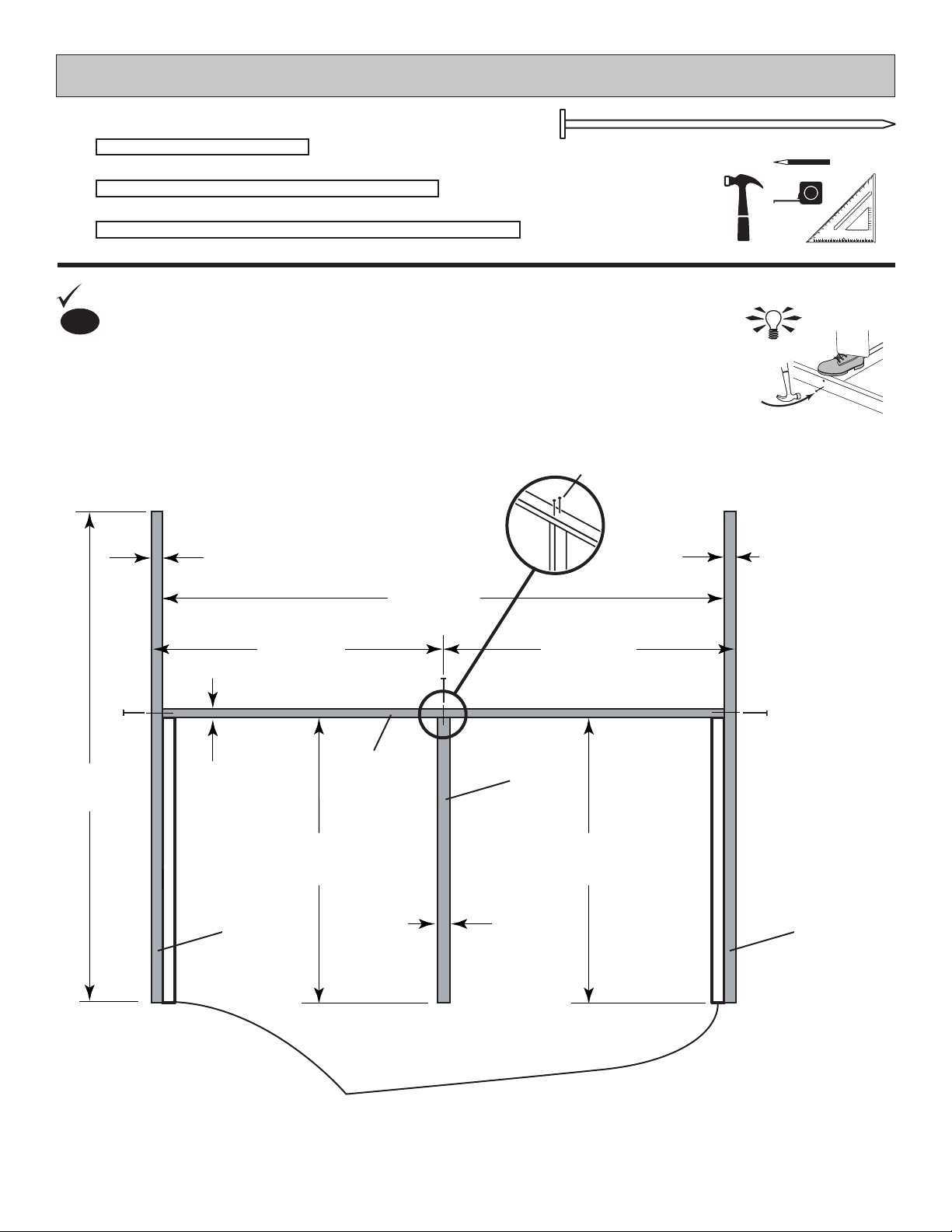

BACK WALL FRAME
3" (7,6 cm) Nails
2 x 3 x 46-1/4" (5 x 7,6 x 117,5 cm)
2 x 3 x 77" (5 x 7,6 x 196 cm)
2 x 3 x 94-1/2" (5 x 7,6 x 240 cm)
x1
x2
x1
NH
PB
PR
HINT:
