STOP
DO NOT RETURN
TO THE STORE!
If you discover missing or damaged parts,
or if you have questions about the building process,
please reach out to us directly for the fastest service.

Review your product for the chance to win a $500 Visa Gift Card.
A new winner is selected every 2 months.
Win $500
Write a Backyard Products, LLC. product review at backyardreviews.net for a chance to win a $500 Visa gift card. No purchase necessary to enter. Must be
legal U.S. resident (including DC & Puerto Rico), 18 or older to participate. Taxes on prize are responsibility of winner. Odds of winning depend on the number
of eligible reviews received. Void where prohibited. For complete details and ocial rules, visit https://backyardreviews.net/sweepstakes-rules.
Scan
QR code above.
Click
‘write a review’
Find your product.
Tell us what you think.
Submit your review.
You’ll be notified by e-mail if
you’ve won the $500 gift card.
How to Enter: Open camera.
Aim. Tap.
o
r
v
i
s
i
t
b
a
c
k
y
a
r
d
r
e
v
i
e
w
s
.
n
e
t

11/28/2022
KEEP THIS MANUAL FOR FUTURE REFERENCE
ASSEMBLY MANUAL
Includes 8' x 12' Building and Floor Instructions
GAMBREL 8' x 12'
16913
Building 8' x 12'
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 7.
• CHECK ALL PARTS
Inventory all parts listed on pages 3-5.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 6 for required and optional materials and quantities.
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-734-242-6900 email: [e-mail]

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
qGloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
qSafety Glasses
qTape Measure
qPaint Tools
qLadder
qCaulk Gun
qHammer
qLevel
FINISH
BEGIN
qPencil
qPhillips
Screwdriver
qDrill / Driver
q5/16" Drill Bit
q1/8" Drill Bit
q#2 Philips Drive Bit
qTool Belt/
Nail Pouch
qChalk Line
qNail Gun
• gun nails
qTin Snips
(for drip edge)
q Square or
qUtility Knife
qShingle Blades
B C

3
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
stamped on some parts.
• Check these locations for part stamp.
RS RS
Treated lumber is stamped:
PARTS IDENTIFICATION AND SIZES
DOOR FLOORTRIM ROOF WALLS
OO
x2 69" Door Stiffener (175,3 cm)
x14 SUB-ASSEMBLED TRUSS
x1 DT 2 x 3 x 11-3/4" (5,1 x 7,6 x 29,8 cm)
x4 NK 2 x 3 x 48" (5,1 x 7,6 x 121,9 cm)
x1 BSN 2 x 3 x 35" (5,1 x 7,6 x 88,9 cm)
x3 NE 2 x 3 x 45-1/2" (5,1 x 7,6 x 115,6 cm)
x1 EH 2 x 3 x 51" (5,1 x 7,6 x 129,5 cm)
x14 AFE 2 x 3 x 44" (5,1 x 7,6 x 111,8 cm)
x4 3/8 x 1-3/4 x 72-3/8" (1,0 x 7,6 x 186,4 cm)
x8 3/8 x 1-3/4 x 45-3/8" (1,0 x 7,6 x 115,3 cm)
x2 OZ 2 x 3 x 70-1/4" (5,1 x 7,6 x 178,4 cm)
x1 ZB 19/32 x 2-1/2 x 55" (1,5 x 6,3 x 139,7 cm)
x1 ELC 2 x 3 x 90-1/8"" (5,1 x 7,6 x 228,9 cm)
x4 PT 2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm)
Gauge Block for 3/4" (1,9 cm)
measurement
x1 GAA
3/4"
(1,9 cm)
x2 2 x 4 x 36-3/4" (2,5 x 10,26 x 93,3 cm)
DBL
x2 2 x 4 x 36-3/4" (2,5 x 10,26 x 93,3 cm)
DBR
x2 2 x 4 x 35-3/4" (2,5 x 10,26 x 90,8 cm)
ZHL
x2 2 x 4 x 35-3/4" (2,5 x 10,26 x 90,8 cm)
ZHR
x12 6" x 24" (15,2 x 61 cm)
x10 TREATED 2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
TREATED
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TREATED
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)

4
ROOF PANELS
FLOOR PANELS
NOTE: Panel parts are not stamped.
NOTE: Panel parts are not stamped.
Roof panels are 7/16" (1,1 cm) thick.
Wall panels are 3/8" (1,0 cm) thick.
Floor panels are 5/8" (1,6 cm) thick.

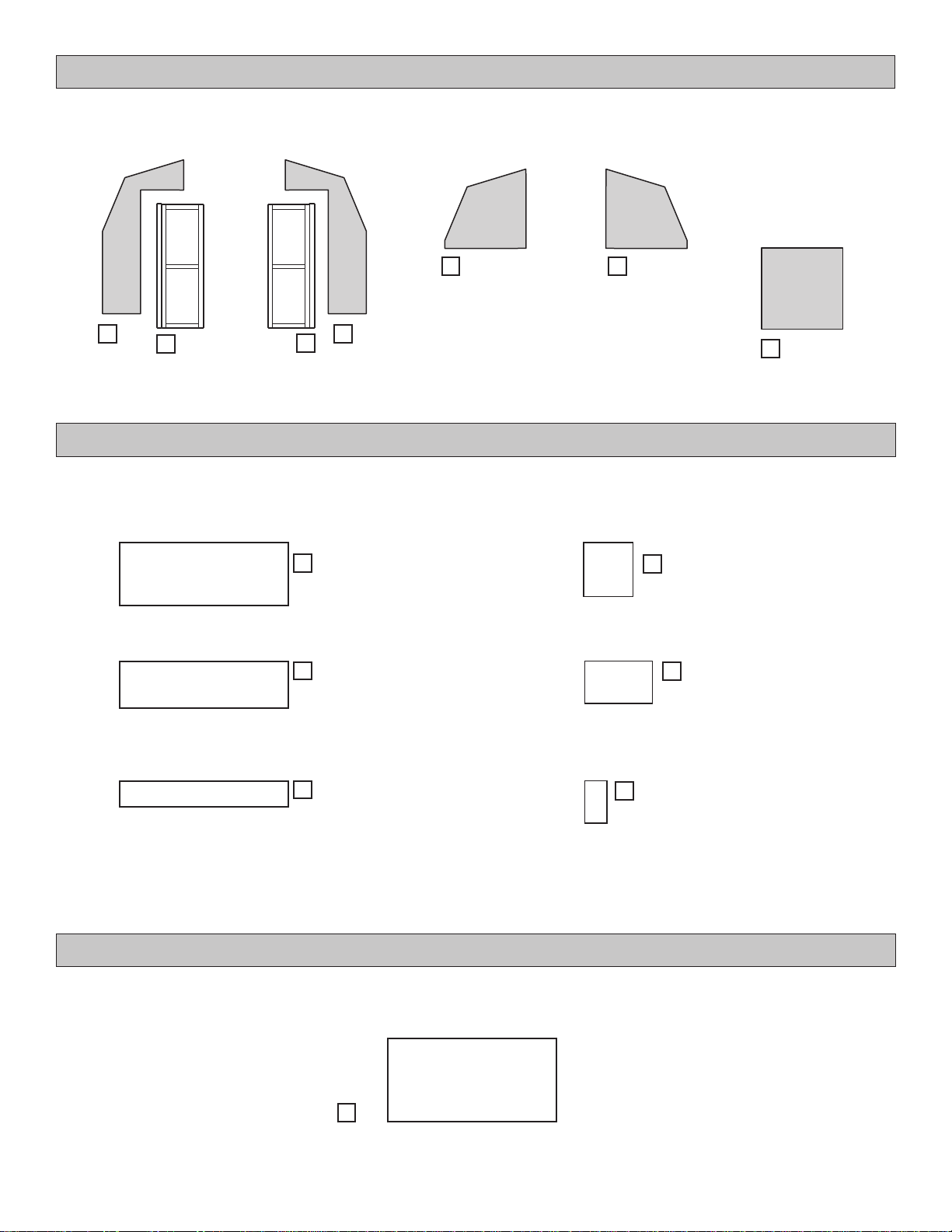

WALL PANELS & DOORS
x1
x1
x8
3/8 x 48 x 48"
(1 x 121,9 x 121,9 cm)
x1
x1
x1
LEFT DOOR x1
RIGHT DOOR
x2
7/16 x 35-3/8 x 48"
(1,1 x 89,9 x 121,9 cm)
x2
7/16 x 23-7/8 x 48"
(1,1 x 60,6 x 121,9 cm)
x2
7/16 x 11-7/8 x 48"
(1,1 x 30,2 x 121,9 cm)
7/16 x 35-3/8 x 96"
(1,1 x 89,9 x 243,8 cm)
x2
7/16 x 23-7/8 x 96"
(1,1 x 60,6 x 243,8 cm)
x2
7/16 x 11-7/8 x 96"
(1,1 x 30,2 x 243,8 cm)
x2
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
x3
3/8 x 42-1/2 x 48"
(1 x 108 x 121,9 cm) 3/8 x 42-1/2 x 48" (1 x 108 x 121,9 cm)

5
NOTES
x3 BOXES
x5 BOXES
x150
x185
x 4
x22
x2
x70
NAIL BOXES & NAIL BAGS
FASTENER/HARDWARE BAG
DOOR HARDWARE
2" (5,1 cm)
1-1/2" (3,8 cm)
3" (7,6 cm)
2" (5,0 cm)
1-1/4" (3,2 cm)
3" (7,6 cm)
2" (5,1 cm)
1-1/2" (3,8 cm)
x2
1" (2,5 cm)
x8
(4 screws in each package)
Spring-Bolt
x44 3/4" (1,9 cm)
x1
T & D Handle
x2 1-1/2" (3,8 cm)
(2 screws in each package)
x1
x1 (8' Z-Channel)
x2
8 x 16"
(20,3 x 35,6 cm)
1/2" (13 mm)
x2

6
OPTIONAL MATERIALS
DRIP EDGE ..................... 60 Feet #15 ROOFING FELT
To cover 170 Sq. Ft. of roof area.
1" GALVANIZED ROOFING NAILS.........1/4 Lb
For roong felt.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
COMPLETING YOUR SHED
You will need these additional materials:
3-TAB SHINGLES ............................. 7 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 3 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 4 Lbs
For shingles.
PAINT FOR TRIM ........................,... 1 Quart
Use 100% acrylic latex exterior paint.
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
IMPORTANT! Depending on your specic use, you may want to construct a heavy duty oor frame by adding additional oor joists
(shown below as shaded). Below is a list of additional materials (not included).
x3
x12
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm) Treated Lumber
Cut lumber to 2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
Treated Lumber
ea. 3" (7,6 cm) hot-dipped galvanized nails
Optional 12" (30,5 cm) spacing
• This shed kit includes a complete wood oor system.
• This shed kit does not include ANY leveling materials.
• See the FLOOR LEVELING section on page 7 for recommended methods and suggested materials to properly
level your oor, as this will vary depending on your specic site.
• If you choose to install your kit on a concrete slab refer to page 8.

7
FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS
• 3" Screw angled into 4x4.
• (2) at each point frame
and 4x4 touch.
4x4 Runners
(not included)
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber.
Never use shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see page 7.
CONCRETE
Fasteners for Frame to 4"x 4".
(3" Screws shown as one option.) Minimum (40) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
4" Block
8" Block
Gravel
Gravel Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
Measurements to
centers of 4x4's.
MATERIAL REQUIRED
x2 4 x 4 x 12' (10,2 x 10,2 x 365,8 cm)
Treated Lumber
DOOR
12"
(30,5 cm)
12"
(30,5 cm)

8
A
BC
4" (10,2 cm)
3-1/2"
(8,9 cm)
DOOR
CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
A B CActual Floor SizeBuilding Size
• A treated 2 x 4 (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete. Hint: Use treated lumber in your kit or
purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
Treated Sill Plate
Caulk between sill plate
and concrete.
Requires:
x2
x2
MUST be treated lumber.
MUST be treated lumber.
Caulk
x1
Allow new concrete slabs to cure for at least seven (7) days.
NOTES
96" (243,8 cm) 137" (348 cm)96" x 144" (243,8 x 365,8 cm)8' x 12' (243,8 x 365,8 cm) 144" (365,8 cm)
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm)
2" x 4" x 11'-1-5/8" (5,1 x 10,2 x 339,4 cm)
ACTUAL FLOOR SIZE IS: 96" x 144" (243,8 x 365,8 cm)

9
93"
(236,2 cm)
96"
(243,8 cm)
144"
(403,9 cm) 128"
(325,1 cm)
112"
(284,5 cm)
48"
(121,9 cm)
48"
(121,9 cm)
64"
(121,9 cm)
80"
(203,2 cm)
96"
(243,8 cm)
48"
(121,9 cm)
32"
(81,3 cm) 16"
(40,7 cm)
96"
(243,8 cm)
3" (7,6 cm)
x44
PARTS REQUIRED:
Center
on marks

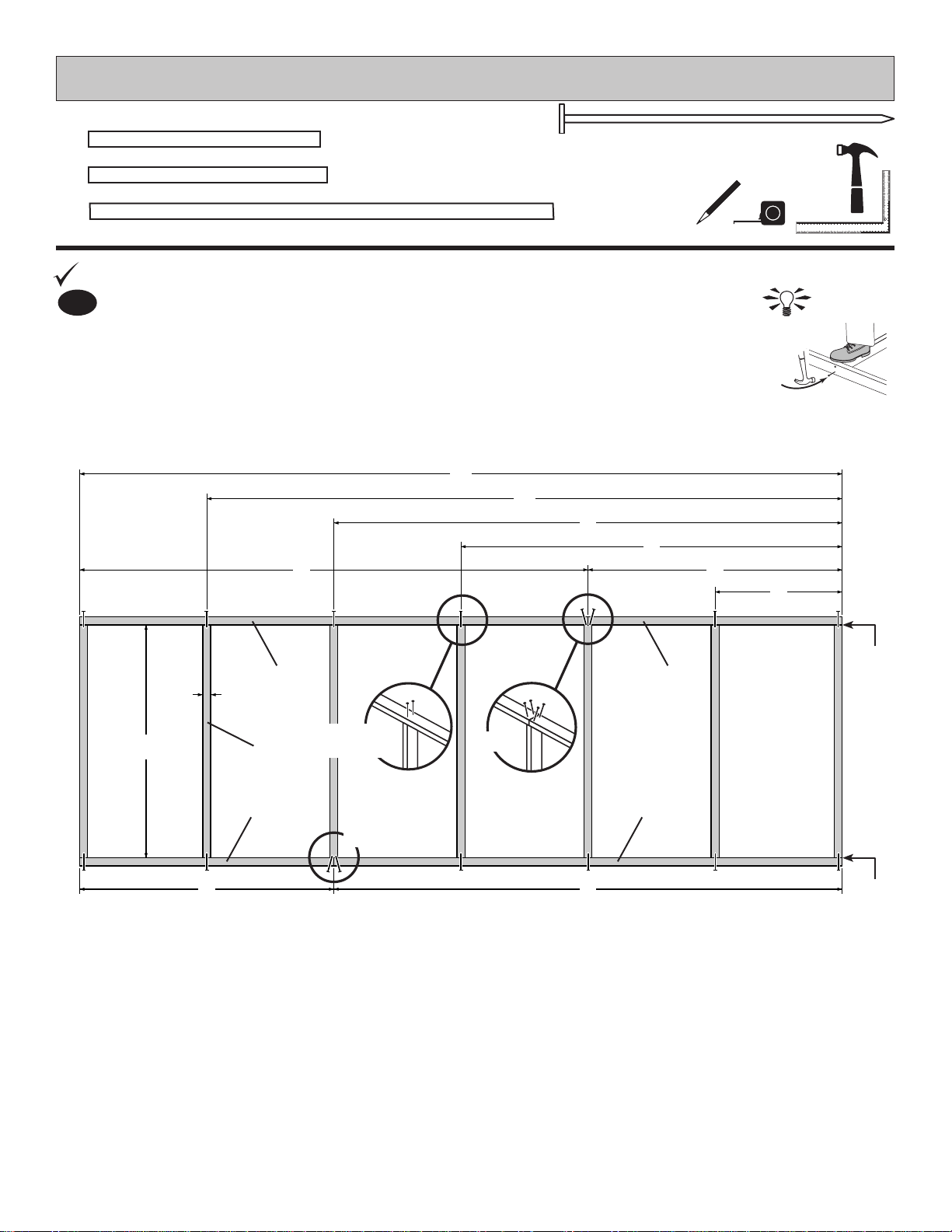

FLOOR FRAME
Look for
Stamp
TREATED
HINT:
For easier nailing
stand on frame.
Arrange parts as shown on a at surface. Measure and mark.
Secure with (2) 3" nails at each mark.
Your oor frame is now assembled. Proceed to level and square frame.
FINISH
BEGIN
1
3" (7,6 cm)
Nails
SEAM
Flush
Flush
1-1/2"
(3,8 cm)
x10 TREATED
2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
TREATED
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TREATED
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)

10
First, secure
at ends with
one fastener.
Second, secure
at ends with
one fastener.
173-1/16"
(439,6 cm)
173-1/16"
(439,6 cm)
Fig. A
FINISH
LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
2
3
4
Use level and check the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the same, the
frame is square. The diagonal measurement will be approximately 173-1/16" (439,6 cm).
When the frame is level and square, secure one side of frame to the 4x4 runners with one fastener at ends of
each runner.
Move to the opposite end of the frame.
Secure the frame to 4x4 runners with one fastener at ends of each runner, making sure the frame remains square
(Fig. A).
Once the oor frame is level and square fasten the frame to at each point the frame
contacts the 4x4 runners .
See page 7 for the preferred oor leveling method.
FLOOR FRAME
BEGIN
1
DOOR

11
PARTS REQUIRED:
x3 5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
Grid lines up
Grid lines up
x186 2" (5,1 cm)
FLOOR PANELS
3/4"
(1,9 cm)
2
1
BEGIN
¸
1
1
FINISH
Your oor panels are now installed.
Continue installing 2 more 48"x 96" panels as in step 1. Install middle panel rst.
Secure panels with 2" nails spaced 6" apart on edges and 12" apart inside panels.
3/4" Gauge
Block
3/4" Gauge
Block
3/4" Gauge
Block
For squareness maintain 3/4"
measurement along panel edge.
BEGIN HERE 3/4"
(1,9 cm)
6" (15,2 cm)
6" (15,2 cm)
12"
(30,5 cm)
Flush
Flush
FlushFlush
3/4"
(1,9 cm)
3/4" GAUGE
BLOCK
Place right 48"x 96" panel on frame with rough side up (painted grid lines), ush at edges.
Use GAA as a gauge block to maintain the 3/4" measurement on the oor joist.
Secure the panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
12"
(30,5 cm)

12
Ensure the oor frame is level after installing oor panels.
Re-level if necessary.
• The oor should be used as a stable work surface for wall construction.
• Organize your assembly procedure during the build process
to avoid over-handling of the walls.
HINT:
IMPORTANT!
SIDE WALL
SIDE WALL
FRONT WALL
DOOR
BACK WALL

13
x40 2" (5,1 cm)
PARTS REQUIRED:
Place (1) (48" x 48") panel on the wall frame, as shown.
Locate the panel ush to the top plate.
Use the gauge block to mark the 3/4" side measurement on the wall stud.
Secure panel with (2) 2" nails in the corners (Fig. A).
2
Secure panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
EXAMPLE WALL
Ensure your wall is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever,
move the panel side-to-side until you have a 3/4" measurement on the wall stud.
Secure corner with (2) 2" nails (Fig. B).
3/4" Gauge
Block
x1 3/8 x 48 x 48"
(1 x 121,9 x 121,9 cm)
For squareness maintain 3/4" and 1-1/2"
measurement along panel edge.
BEGIN HERE
3/4"
(1,9 cm)
6" (15,2 cm)
12" (30,5 cm)
3/4" GAUGE
BLOCK
GAA
WALL PANEL INSTALLATION HINTS & EXAMPLES
BEGIN
1
Install all wall panels with the primed side facing up.
3/4"
(1,9 cm)
Fig. A 3/4"
(1,9 cm)
2 Nails
Fig. B 3/4"
(1,9 cm)
2 Nails
Angle nail to draw panels
tight at seams.
HINT:

14
45-1/2" 45-1/2"
7/16"
45-1/16"45-1/16"
(115,6 cm) (115,6 cm)
(11 mm)
(114,5 cm)(114,5 cm) 7/16"
(11 mm)
ELC
NE (x3)

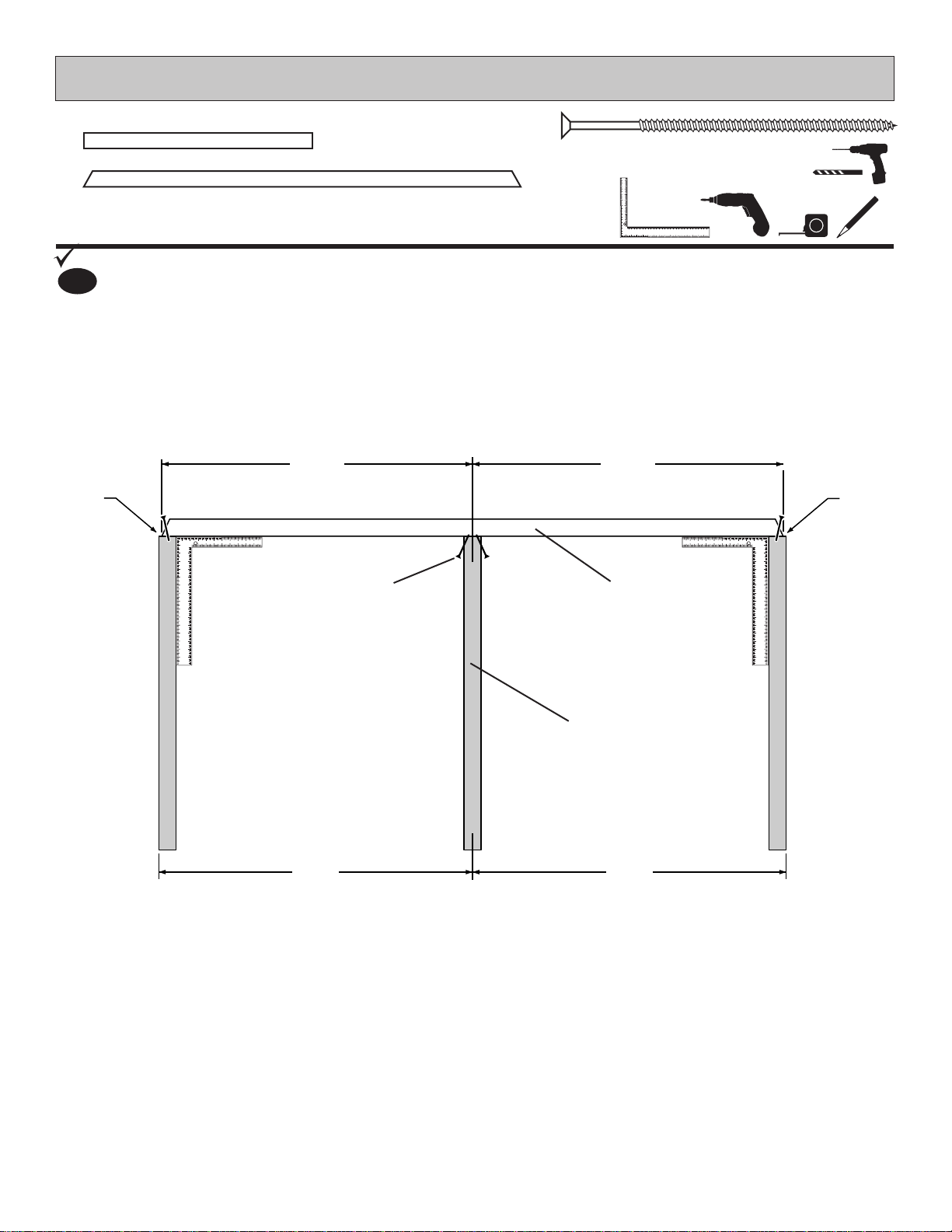

BACK WALL
1
BEGIN
PARTS REQUIRED:
Arrange parts on the at side, on a at surface. Measure and mark.
Secure parts with 3" screws, angled.
Pre-drill all holes.
3" (7,6 cm)
x4
x3 NE
2 x 3 x 45-1/2" (5,1 x 7,6 x 115,6 cm)
x1 ELC
2 x 3 x 90-1/8"" (5,1 x 7,6 x 228,9 cm) 3/16" (4,8 mm) Drill Bit
3" (7,6 cm)
Screws

15
1-1/4"
(3,2 cm)
1-1/4"
(3,2 cm)
1"
(2,5 cm) 1" (2,5 cm)
1"
(2,5 cm)
2-1/2" (6,3 cm)
2-1/2" (6,3 cm)

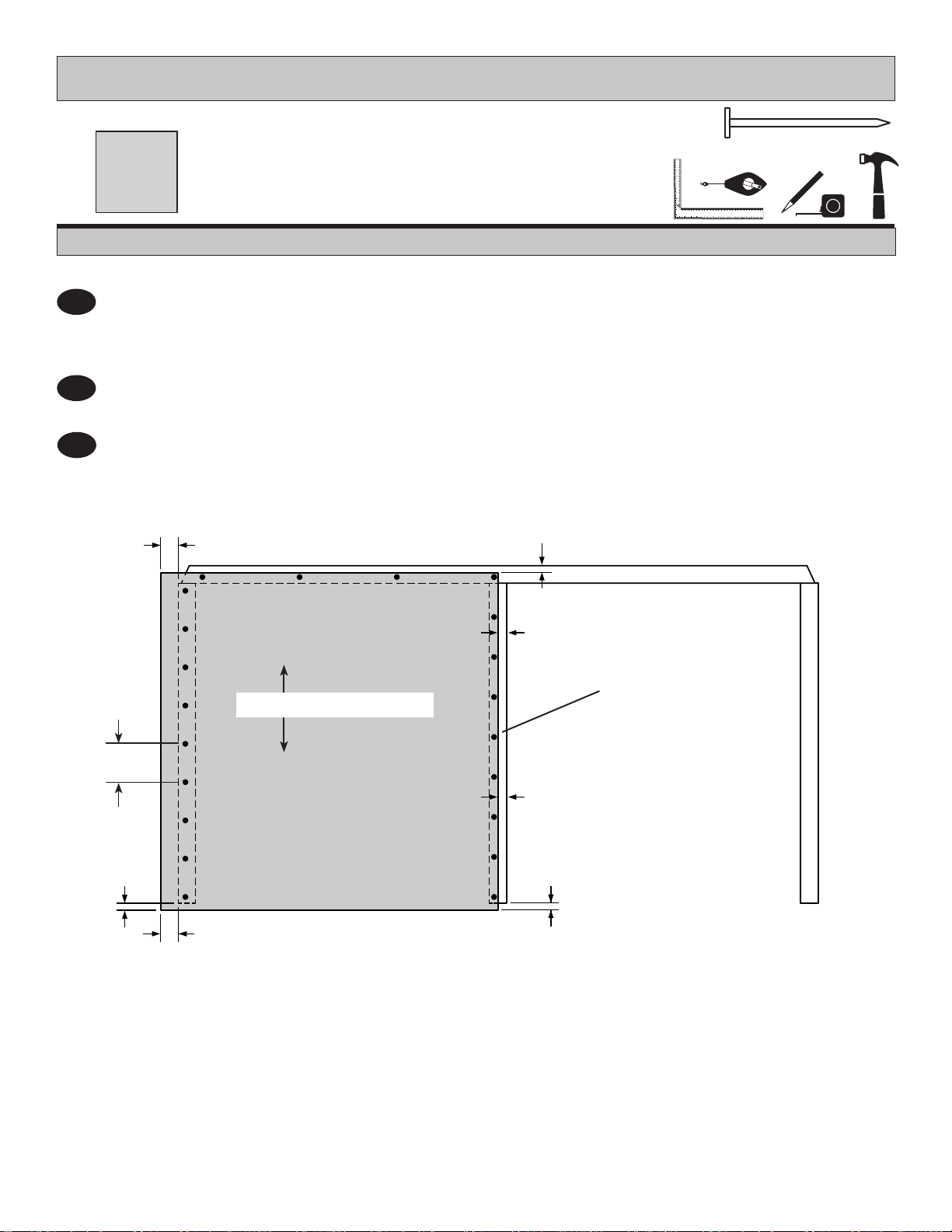

Install (1) 48" x 48" wall panel on frame, as shown. Ensure 1-1/4" measurement on center brace.
Maintain 1" along the top of the horizontal brace (ELC) and 1-1/4" centered on the center brace (NE).
Secure panel to horizontal brace with (4) 1-1/2" nails spaced evenly.
3
2
Ensure panel edge is 1-1/4" centered on the center brace (NE).
Secure panel with 1-1/2" nails spaced 6" apart.
Ensure end wall brace (NE) is 2-1/2" from the panel edge.
Secure with 1-1/2" nails spaced 6" apart.
6"
(15,2 cm)
1-1/2" (3,8 cm)
Nails
BACK WALL PANELS
PARTS REQUIRED: x21 1-1/2" (3,8 cm)
4
Install panels with the primed side facing up.
x1 3/8 x 48 x 48"
(1 x 121,9 x 121,9 cm)
ELC
Install wood grain vertical

16
1" (2,5 cm)
1"
(2,5 cm)
1"
(2,5 cm)
2-1/2"
(6,3 cm)
2-1/2"
(6,3 cm)

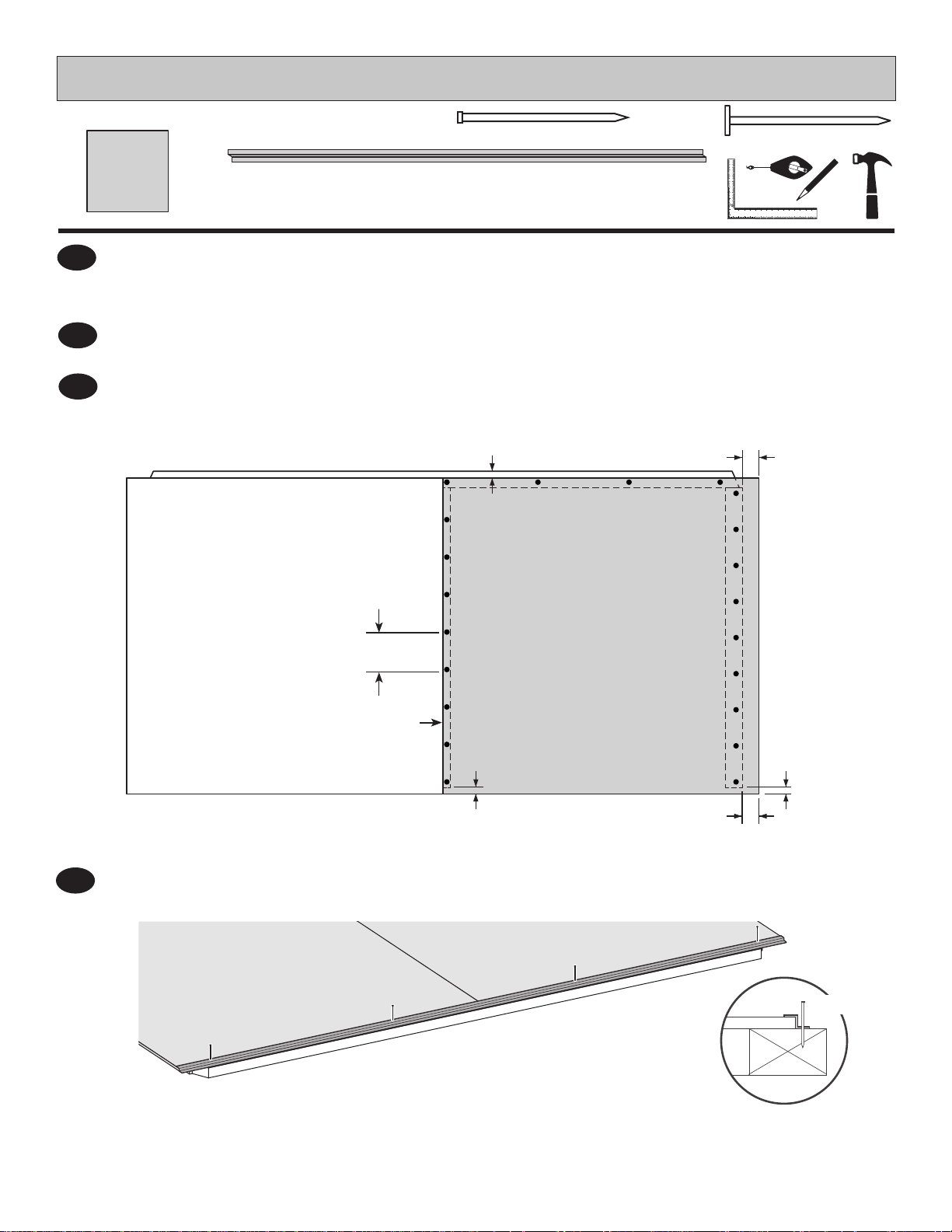

Install 2nd 48" x 48" wall panel on frame, ush to installed panel.
Maintain 1" along the top of the horizontal brace.
Secure panel to horizontal brace with (4) 1-1/2" nails spaced evenly.
6Secure panel to center brace with 1-1/2" nails spaced 6" apart.
Ensure end wall brace is 2-1/2" from the panel edge.
Secure with 1-1/2" nails spaced 6" apart.
6"
(15,2 cm)
5
7
BACK WALL PANELS
PARTS REQUIRED: x21 1-1/2" (3,8 cm)
x1 3/8 x 48 x 48"
(1 x 121,9 x 121,9 cm)
FINISH
Your back wall is now assembled.
8Install the 8' Z-Channel on frame, ush along edge and overlapping installed panels (Fig. A).
Tack in place with (4) 1-1/2" nishing nails, as shown.
Fig. A
x1 (8' Z-Channel)
Flush
ELC
x4 1-1/2" (3,8 cm)

17
1"
(2,5 cm)
1-1/4"
(3,2 cm)
x1
x1
2

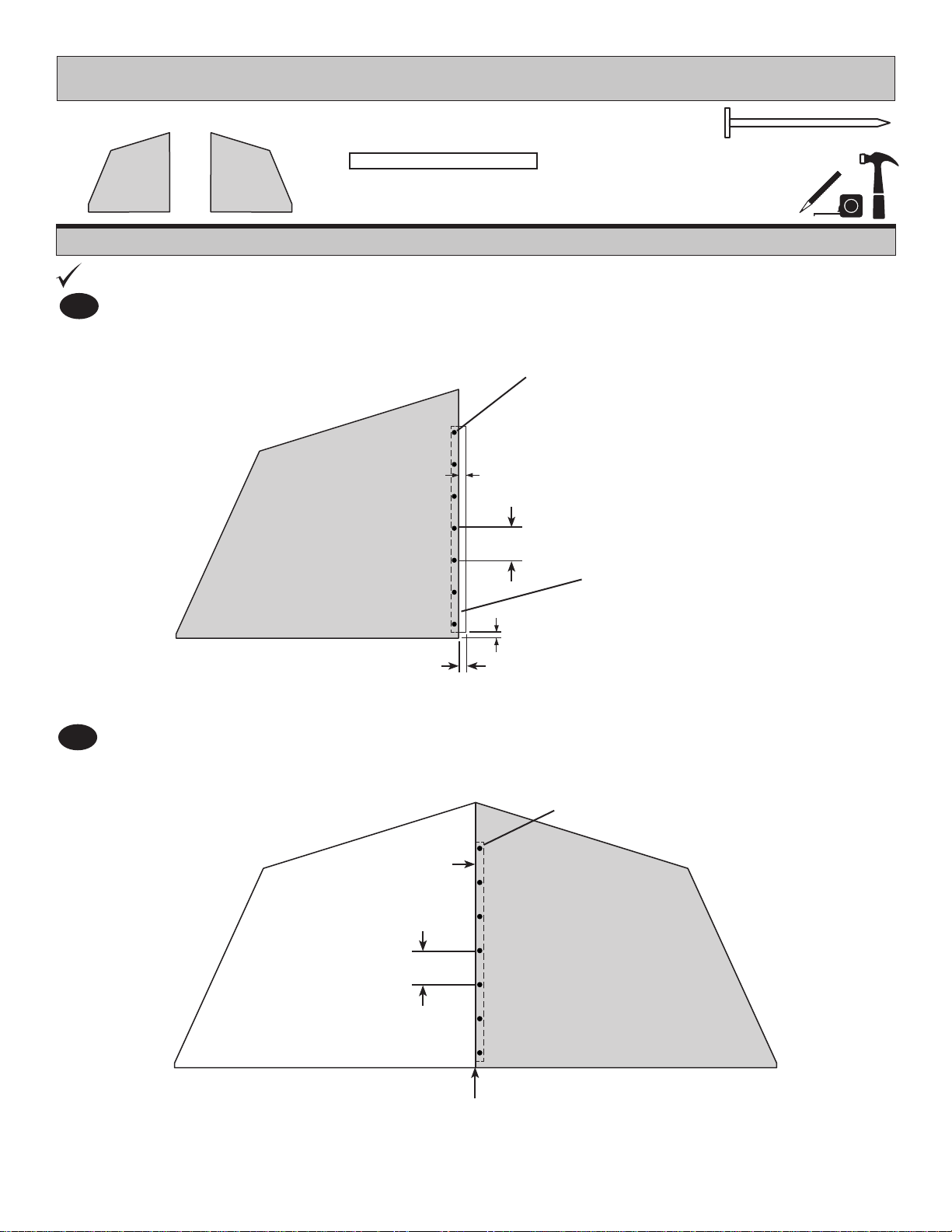

BACK WALL GABLE UNIT
PARTS REQUIRED: x14 1-1/2" (3,8 cm)
6"
(15,2 cm)
6"
(15,2 cm)
Install right gable panel ush to installed panel.
Secure to BSN with 1-1/2" nails spaced 6" apart.
Install gable panels with the primed side facing up.
1-1/4"
(3,2 cm)
Lay BSN on the at side. Install left gable panel on BSN at measurements shown.
Secure with 1-1/2" nails spaced 6" apart.
1
BEGIN
Flush
BSN (on at)
1-1/2" (3,8 cm)
Nails
1-1/2" (3,8 cm)
Nails
Flush
FINISH
Your back gable unit is now assembled.
x1 BSN
2 x 3 x 35" (5,1 x 7,6 x 88,9 cm)

18
44"
24"
48"
96"
72"
96"
120"
144"
48" 96"
(111,8 cm)
(61 cm)
1-1/2"
(3,8 cm)
(121,9 cm)
(243,8 cm)
(182,9 cm)
(243,8 cm)
(304,8 cm)
(365,8 cm)
(121,9 cm) (243,8 cm)

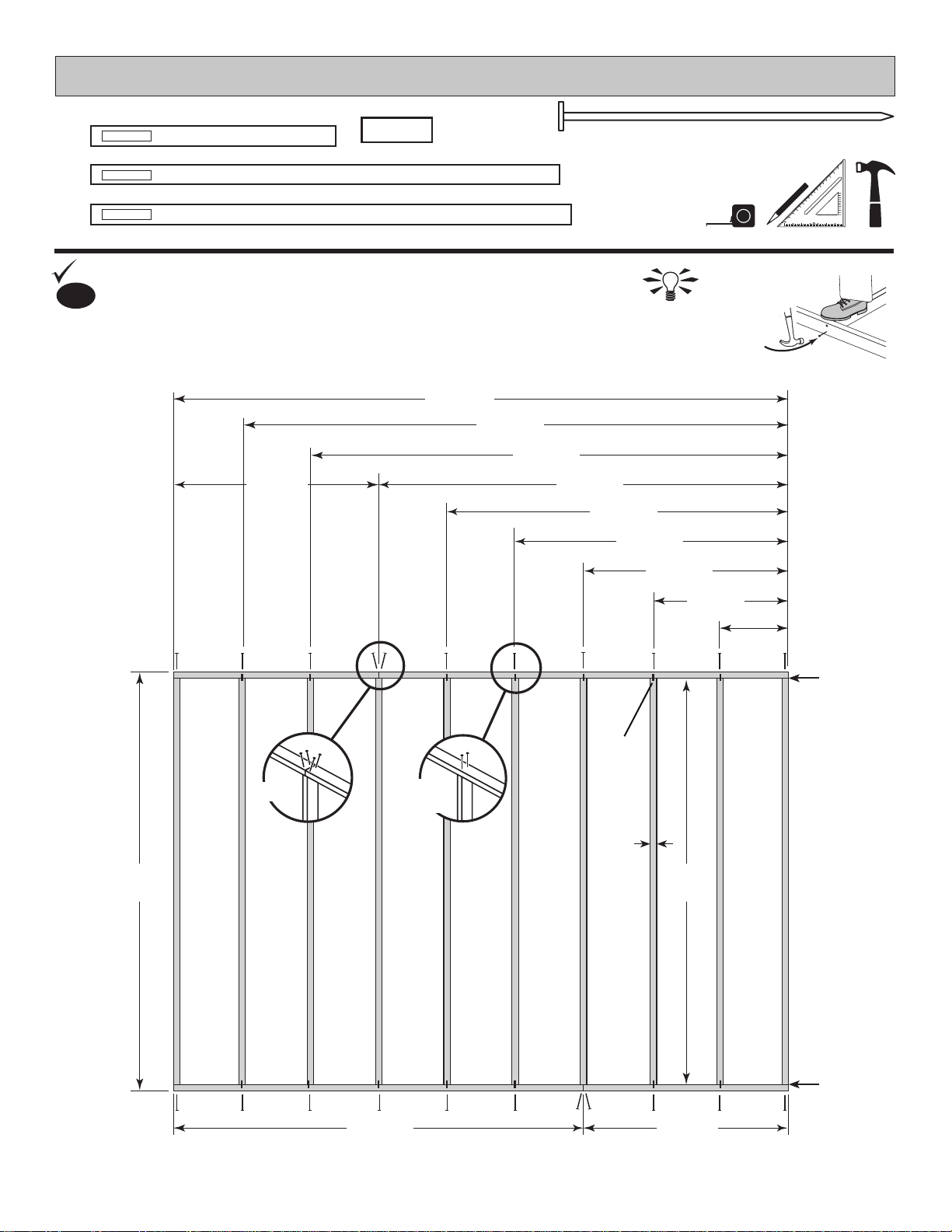

PARTS REQUIRED: SIDE WALLS
3" (7,6 cm)
x32
HINT:
For easier nailing
stand on frame.
BEGIN
1Arrange parts on edge on oor as shown. Measure and mark.
Secure with (2) 3" nails at each connection and (4) 3" nails angled at seams.
NK
NK
PT
PT
AFE
(x7)
Flush
Flush
3" (7,6 cm)
Nails SEAM
Seam
x4 NK
2 x 3 x 48" (5,1 x 7,6 x 121,9 cm)
x14 AFE
2 x 3 x 44" (5,1 x 7,6 x 111,8 cm)
x4 PT
2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
