KEEP THIS MANUAL FOR FUTURE REFERENCE
ACTUAL FLOOR SIZE IS 144" x 90" (365,8 x 228,6 cm)
MODERN 12' x 7' -6" (365,8 x 228,6 cm)
ASSEMBLY MANUAL 04/20/202216252
• BUILDING RESTRICTIONS AND APPROVALS
 Besuretochecklocalbuildingdepartmentandhomeownersassociationforspecicrestrictionsand/orrequirementsbeforebuilding.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials
to level your shed are listed on page 8.
• CHECK ALL PARTS
Inventory all parts listed on pages 4-7.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-734-242-6900 email: [e-mail]
Backyard Products, LLC
1000 Ternes Drive
Monroe, MI 48162

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
=Youhavenishingedtheassemblyorinstallation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver
❑Drill / Driver
❑1/4" Drill Bit
❑3/8" Drill Bit
❑1/2" Drill Bit
❑#2 Philips Drive Bit
❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑Pliers
❑Square or
❑Utility Knife
❑Shingle Blades
B C

3

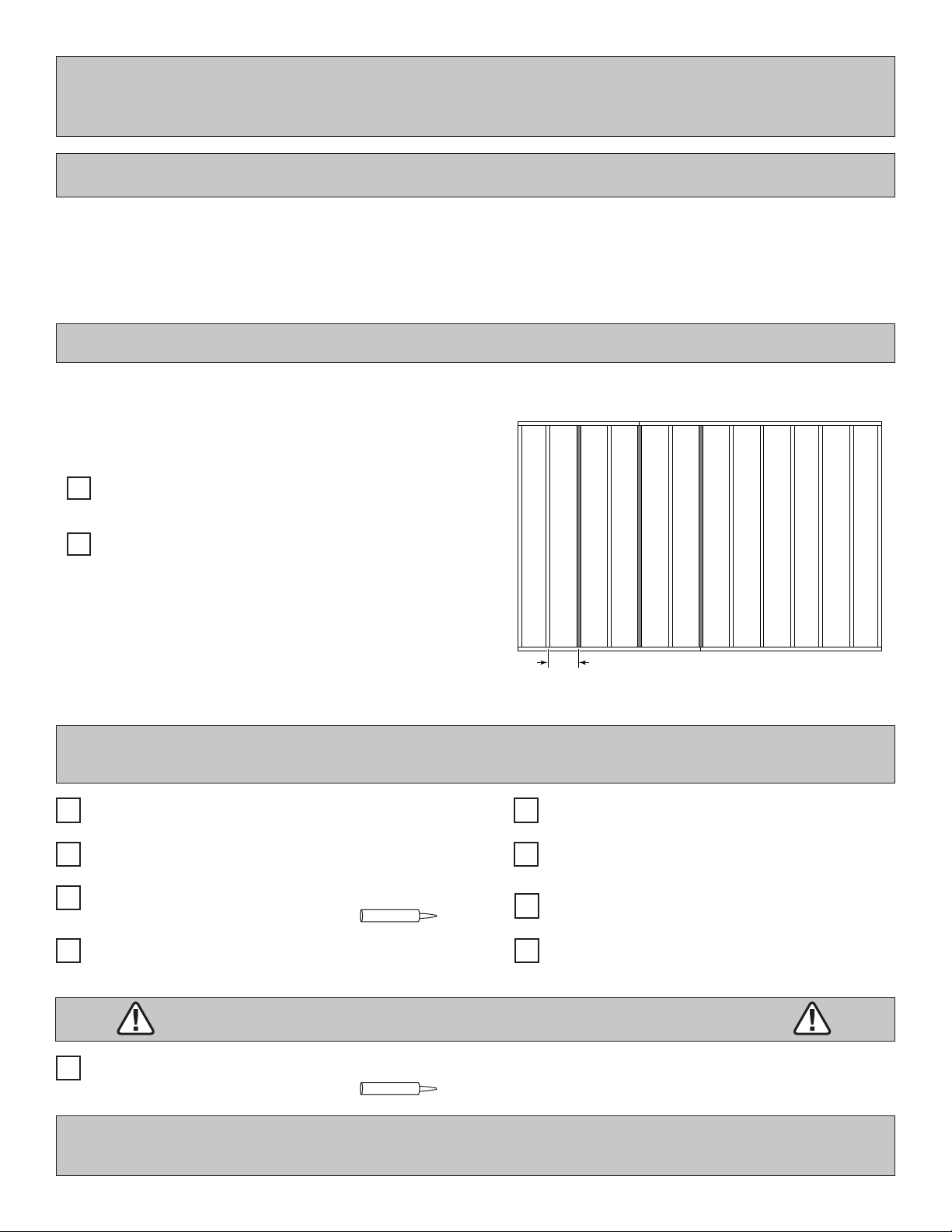

COMPLETING YOUR SHED
You will need these additional materials:
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
1" GALVANIZED ROOFING NAILS....1/4 Lb
Forroongfelt.
DRIP EDGE ...................................... 50 Feet #15 ROOFING FELT
To cover 134 Sq. Ft. of roof area.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES ............................. 5 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 2 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 3 Lbs
For shingles.
PAINT FOR TRIM ............................. 1 Quart
Use 100% acrylic latex exterior paint.
CAULK .............................................. 1 Tube
For windows
Use acrylic latex exterior caulk that is paintable.
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT!Theincludedoorhasbeendesignedforgeneraluse.Dependingonyourspecicuseyoumaywanttoconstructa
heavydutyoorframebyaddingadditionaloorjoists(shownbelow).Belowisalistofadditionalmaterials(notincluded):
x3
x12
2 x 4 x 87" (5 x 10 x 221 cm) Treated Lumber
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
TO VALIDATE YOUR WARRANTY YOU MUST USE THE FOLLOWING:
•Thisshedkitincludesacompletewoodoorsystem.
• This shed kit does not include ANY leveling materials.
• See the FLOOR LEVELING section on page 8 for recommended methods and suggested materials to properly level your

Optional 12" (30,1 cm) spacing.
• Standard spacing is 16" (40,7 cm).

4
x2 2 x 4 x 86-1/8" (5,1 x 10,2 x 218,8 cm)
OHB
x2 2 x 4 x 82-1/2" (5,1 x 10,2 x 209,6 cm)
NES
x7 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x2 2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
x2 2 x 4 x 70-1/2" (5,1 x 10,2 x 179,1 cm)
AYA
x2 2 x 4 x 68-9/16" (5,1 x 10,2 x 174,1 cm)
NCE
x4 2 x 4 x 72-1/2" (5,1 x 10,2 x 184,2 cm)
PTA
x2 2 x 4 x 78-1/16" (5,1 x 10,2 x 198,3 cm)
OFB
x2 1 x 3 x 31-15/16" (2,5 x 7,6 x 81,1 cm)
THB
x4 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x2 2 x 4 x 40" (5,1 x 10,2 x 101,6 cm)
SKA
x2 2 x 3 x 31-15/16" (5,1 x 7,6 x 81,1 cm)
RMA
x8 19/32" x 2-1/2" x 26-5/8"" (1,5 x 6,3 x 67,6 cm)
AH
x5 19/32" x 2-1/2" x 9" (1,5 x 6,3 x 22,9 cm)
EY
x1 19/32" x 5-1/2" x 11-5/16" (1,5 x 14 x 28,7 cm)
WDA
x2 2 x 4 x 86-15/16" (5,1 x 10,2 x 220,8 cm)
KTB
2 x 4 x 12-1/8" (5,1 x 10,2 x 30,8 cm)
x5 PPA
x11 2 x 3 x 10-7/16" (5,1 x 7,6 x 26,5 cm)
QVA
x2 1 x 3 x 72" (2,5 x 7,6 x 182,8 cm)
HJ
x11 2 x 4 x 92-3/16" (1,5 x 10,2 x 234,2 cm)
SDC
x4 TP 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
x1 PT 2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
x2 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
TM
x1 3/8" x 1-1/2" x 9" (0,9 x 3,8 x 22,9 cm)
x1 3/8" x 2-11/16" x 12-1/4" (1,5 x 6,8 x 31,1 cm)
(Left / Green)
x1 3/8" x 2-11/16" x 12-1/4" (1,5 x 6,8 x 31,1 cm)
(Right / Red)
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
2 x 4 x 87" (5,1 x 10,2 x 220,9 cm)
x10
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
x2 7/16" x 3 1/4" X 66-3/4" (1,1 x 8,3 x 169,5 cm) OSB
GKA
x1 2 x 3 X 59-1/4" (1,1 x 7,6 x 150,5 cm)
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
PARTS IDENTIFICATION AND SIZES
RS RS
Partidentication
letters are stamped on some parts.
Check these locations for
part stamp.
Treated lumber is stamped:
WALLS
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
RAFTERS
TRIM FLOOR
3/4"
(1,9 cm)
x1 3/4 x 3 x 5"
(2,5 x 7,6 x 12,7 cm)
GAA

5
19/32" x 2-1/2 x 90-5/8" (1,5 x 6,3 x 230,2 cm)
x2 VAA
19/32" x 2-1/2" x 72-3/4" (1,5 x 6,3 x 184,8 cm)
x2 ZD
19/32" x 3-1/2 x 96" (1,5 x 8,8 x 243,8 cm)
x2 ZX
3/8" x 10-3/8" x 75-5/8" (1 x 26,3 x 192,1 cm)
x1
3/8" x 10-3/8" x 79-5/8" (1 x 26,3 x 202,2 cm)
x1
x1 3/8" x 2" x 73-7/16" (0,9 x 5,1 x 186,5 cm)
x1 3/8" x 2" x 73-7/16" (0,9 x 5,1 x 186,5 cm)
x1 3/8" x 2" x 93-1/8" (0,9 x 5,1 x 236,5 cm)
x1 3/8" x 2" x 93-1/8" (0,9 x 5,1 x 236,5 cm)
x2 OY 2 x 3 x 72" (5,1 x 7,6 x 182,8 cm)
x2 3/8" x 5-1/4" x 94-7/16" (1 x 13,3 x 242,5 cm)
x2 3/8" x 2" x 73-5/16" (0,9 x 5,1 x 186,2 cm)
x1 19/32" x 3-1/2" x 60-1/2" (1,5 x 8,8 x 153,7 cm)
WAB
x1 19/32" x 3-1/2" x 61-1/16" (1,5 x 8,8 x 155,1 cm)
UDR
x1 19/32" x 3-1/2" x 61-1/16" (1,5 x 8,8 x 155,1 cm)
UDL
x2 19/32" x 3-1/2" x 45" (1,5 x 8,8 x 114,3 cm)
WQA
x4 19/32" x 2-1/2" x 58-3/4" (1,5 x 6,3 x 149,2 cm)
TTB
x1 19/32" x 2" x 72" (1,5 x 5,1 x 182,9 cm)
OWB
x2 OO 69" (75,3 cm) Door Stiffener
x1 19/32" x 3-1/2" x 59-1/4" (1,5 x 8,8 x 150,4 cm)
HBA
NOTE: Panel parts are not stamped.
Floor panels are 5/8" (1,6 cm) thick.Roof panels are 7/16" (1,1 cm) thick.
7/16" x 11-7/8" x 96"
(1,1 x 30,2 x 243,8 cm)
x1
7/16" x 10-11/16" x 96"
(1,1 x 27,1 x 243,8 cm)
x1
7/16" x 10-11/16" x 31-7/8"
(1,1 x 27,1 x 81 cm)
x1
7/16" x 10-11/16" x28"
(1,1 x 27,1 x 71,1 cm)
x1
7/16" x 48" x 96"
(1,1 x 121,9 x 243,8 cm)
x3
5/8" x 42" x 96"
(1,5 x 106,6 x 243,8 cm)
5/8" x 48" x 90"
(1,5 x 106,6 x 228,6 cm)
x1
x1
5/8" x 48" x 96"
(1,5 x 121,9 x 243,8 cm)
x1
SOFFIT
PARTS LIST continued...
TRIM
PANEL PARTS LIST
ROOF PANELS
FLOOR

6
WALL PANEL & DOORS PARTS LIST
x4 BOXES
x4 BOXES
NAIL BOXES
FASTENER / HARDWARE BAG
x1
3/8" x 48" x 96"
(1 x 121,9x 243,8 cm)
x1
3/8" x 48" x 96"
(1 x 121,9x 243,8 cm)
x3
3/8" x 48 x 76"
(1 x 113,3 x 193 cm)
x1
3/8" x 48" x 84"
(1 x 122 x 213,4 cm)
x1
3/8" x 42" x 96"
(1 x 106,7 x 243,8 cm)
x1
3/8" x 42" x 96"
(1 x 106,7 x 243,8 cm)
x1
3/8" x 48" x 84"
(1 x 122 x 213,4 cm)
x1
3/8" x 4-1/2" x 48"
(1 x 11,4 x 121,9 cm)
x1
3/8" x 10-7/16" x 48"
(1 x 26,5 x 121,9 cm)
x1
Right Door
x230 2" (5,1 cm)
3" (7,6 cm)
x100
x2
x90
x100
3/4" (1,9 cm)
2" (5,0 cm)
3" (7,6 cm)
2" (5,1 cm)
x265 1-1/2" (3,8 cm)
NOTE:
If you are using a nail gun, nails may
be used where screws are shown for
quicker assembly.
Length of nail must match screw length.
x1
Left Door
1-1/4" (3,2 cm)

7

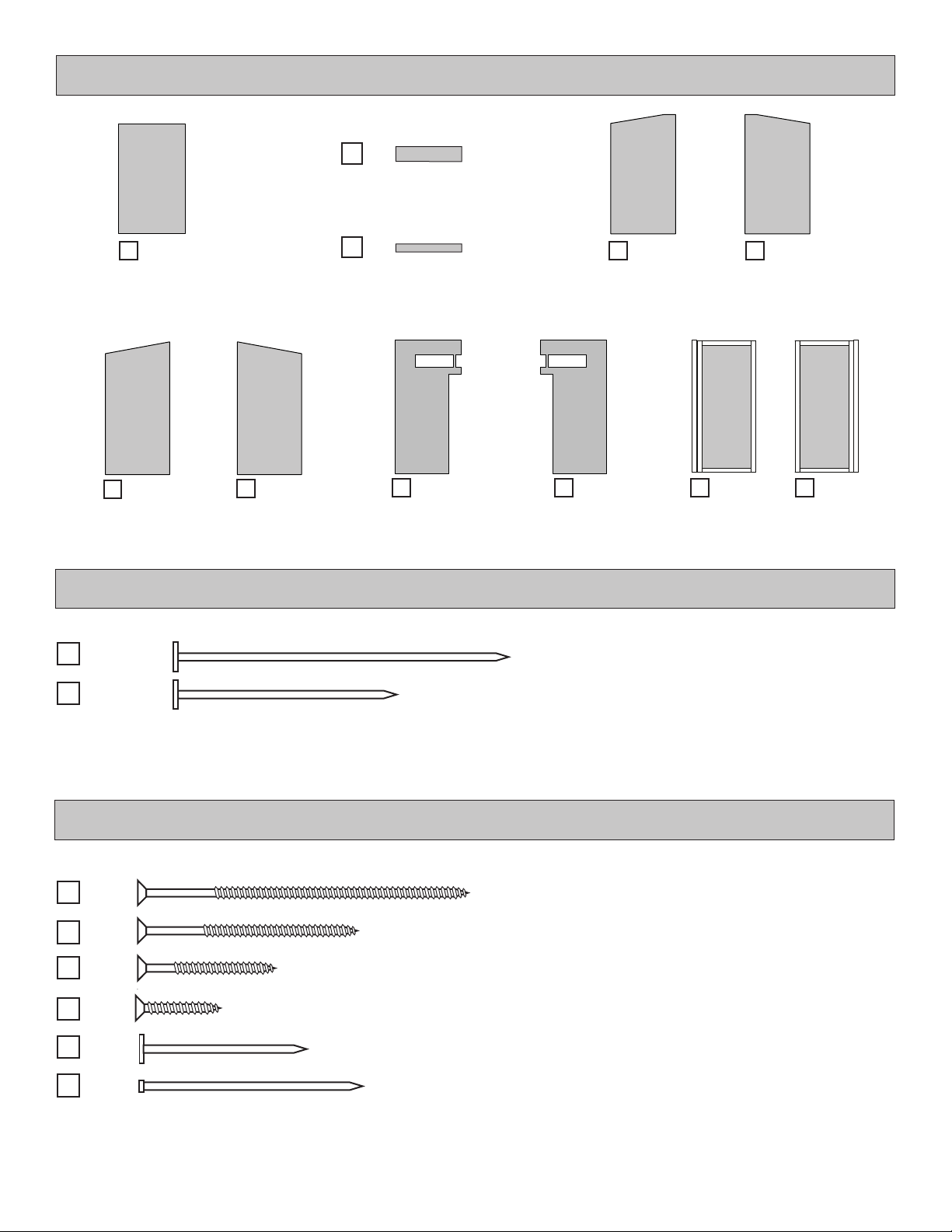

HARDWARE / WINDOWS / Misc.
DOOR HARDWARE
x2
8 x 16"
(20,3 x 35,6 cm)
1/2" (1,2 cm)
x12
x1 64" Metal Threshold Bagged separately / special coating
3/4" (1,9 cm) x11
x4
Window
x11 H 2.5
Tie Plate
x2
Spring
Bolt
x8
1-1/4" (3,2 cm)
x1
x2
1-1/2" (3,8 cm)
NOTES

8
DOOR
FLOOR LEVELING OPTIONS
Therearemultiplewaystolevelyouroorframe.Ourrecommendedlevelingmethodisshownbelow.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS
Measurements to
center of 4x4's.
• 3" Screws angled into 4x4.
• (2) at each point frame
•and 4x4 touch.
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIAL REQUIRED
x2 4 x 4 x 12' (10 x 10 x 365,8 cm)Treated Lumber
Fasteners for Frame to 4x4.
(3" Screws shown as one option.) Minimum (40) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
12"
(30,5 cm)
12"
(30,5 cm)

9
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
DOOR
CONCRETE FOUNDATION
Yourkitcontainsallmaterialstoconstructawoodenoor.Ifyouchoosetoinstallyourkit
on a concrete slab refer to the diagram below.
• A treated 2 x 4 (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete.
Hint: Use treated lumber in your kit or purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
NOTES
Allow new concrete slabs to cure for at least seven (7) days.
2 x 4 x 12'-0" (5,1 x 10,2 x 365,8 cm)
2 x 4 x 8'-0" (5,1 x 10,2 x 229,6 cm)
Caulk
Requires:
x2
x2
x1
MUST be treated lumber.
MUST be treated lumber.
144" (365,8 cm)
144" x 90" (365,8 x 228,6 cm) 83" (210,9 cm)
12'x 7'-6" (365,8 x 228,6 cm) 90" (228,6 cm)
AActual Size B CBuilding Size
Treated Sill Plate
Caulk between sill
plate and concrete.

10
A
B
L
C
B
G
G
G
H
I
M
K
H
G
F
D
D
E
Description Section Page
Floor A 11
Walls (front & back) B 15
Rafters C 27
Side Walls D 31
Roof Panels E 35
Rafter Extensions F 39
Rake Framing G 40
Soft & Fascia H 41
Wall Trim I 50
Windows J 53
Doors K 54
Door HDW. L 58
Window Trim M 60
Shingles/Roong ................................................................... 63
COMPONENT SECTION INDEX
I
I
I
J

11
48"
(121,9 cm)
48"
(121,9 cm)
32"
(81,3 cm)
16"
(40,6 cm)
48"
(121,9 cm)
64"
(162,6 cm)
80"
(203,2 cm)
90"
(228,6 cm)
87"
(221 cm)
96"
(243,8 cm)
112"
(284,5 cm)
128"
(325,1 cm)
144"
(365,8 cm)
96"
(243,8 cm)
DOOR
HINT:
For easier nailing
stand on frame.
1Arrangepartsasshownonatsurface.Measureandmark.
Secure with (2) 3" nails at each mark and (4) 3" nails at seams.
BEGIN
Youroorframeisnowassembled.Proceedtolevelandsquareframe.
FINISH
x10
x2
3" (7,6 cm)
x44
2 x 4 x 87" (5,1 x 10,2 x 221 cm)
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
PARTS REQUIRED:
Center
on marks
FLOOR FRAME
Look for
Stamp
TREATED
FlushFlush
FlushFlush
SEAM

12
DOOR
First, secure
at ends using
one fastener.
Second, secure
at ends using
one fastener.
169-13/16"
(431,3 cm)
169-13/16"
(431,3 cm)
Fig. A
FINISH
LEVEL AND SQUARE FLOOR FRAME
Beforeinstallingoordecking,itisimportanttolevelandsquaretheoorframe.
Alevelandsquareoorframeisrequiredtocorrectlyconstructyourshed.
BEGIN
2
3
4
1
Uselevelandchecktheframeislevelbeforeapplyingoorpanels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 169-13/16" (431,3 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. Move to the opposite end of the frame. Secure the frame to 4x4 runners using one
fastener at ends of each runner making sure the frame remains square (Fig. A).
Oncetheoorframeislevelandsquare,fastentheframetothe4x4runnersateachpointtheframe
contacts the 4x4 runners.
Seepage8forthepreferredoorlevelingmethod.

13
48"
(121,9 cm)
144"
(365,8 cm)
6"
(15,2 cm)
12"
(30,5 cm)
Fig. A
PARTS REQUIRED:
x1
x53
5/8" x 48" x 96"
(1,6 x 121,9 x 243,8 cm)
Seam
2" (5,1 cm)
Flush
Flush
(2) Nails
FLOOR PANELS
3/4"
(1,9 cm)
Fig. B
Flush
3/4"
(1,9 cm)
DOOR
(2) Nails
Install all panels with the rough side facing up (painted grid lines).
Move to the opposite side. Using the long edge of the panel as a lever, move the
panelside-to-sideuntilthetopcornerisushtotheoorframe(Fig. B).
Secure panel with (2) 2" nails in the corners.
2
BEGIN
1
3Continue securing the panel with 2" nails spaced 6"
apart on edges and 12" apart inside panel.
Install the 48" x 96" panel withthe48"edgeandcornerushtotheoorframe(Fig A).
Secure panel with (2) 2" nails in the corners.

14
42"
(106,7 cm)
90"
(228,6 cm)
144"
(365,8 cm)
6"
(15,2 cm)
48"
(122 cm)
12"
(30,5 cm)
DOOR
PARTS REQUIRED:
x1 x1
x115
5/8" x 48" x 90"
(1,6 x 60,6 x 122 cm)
5/8" x 42" x 96"
(1,6 x 106,7 x 243,8 cm)
2" (5,1 cm)

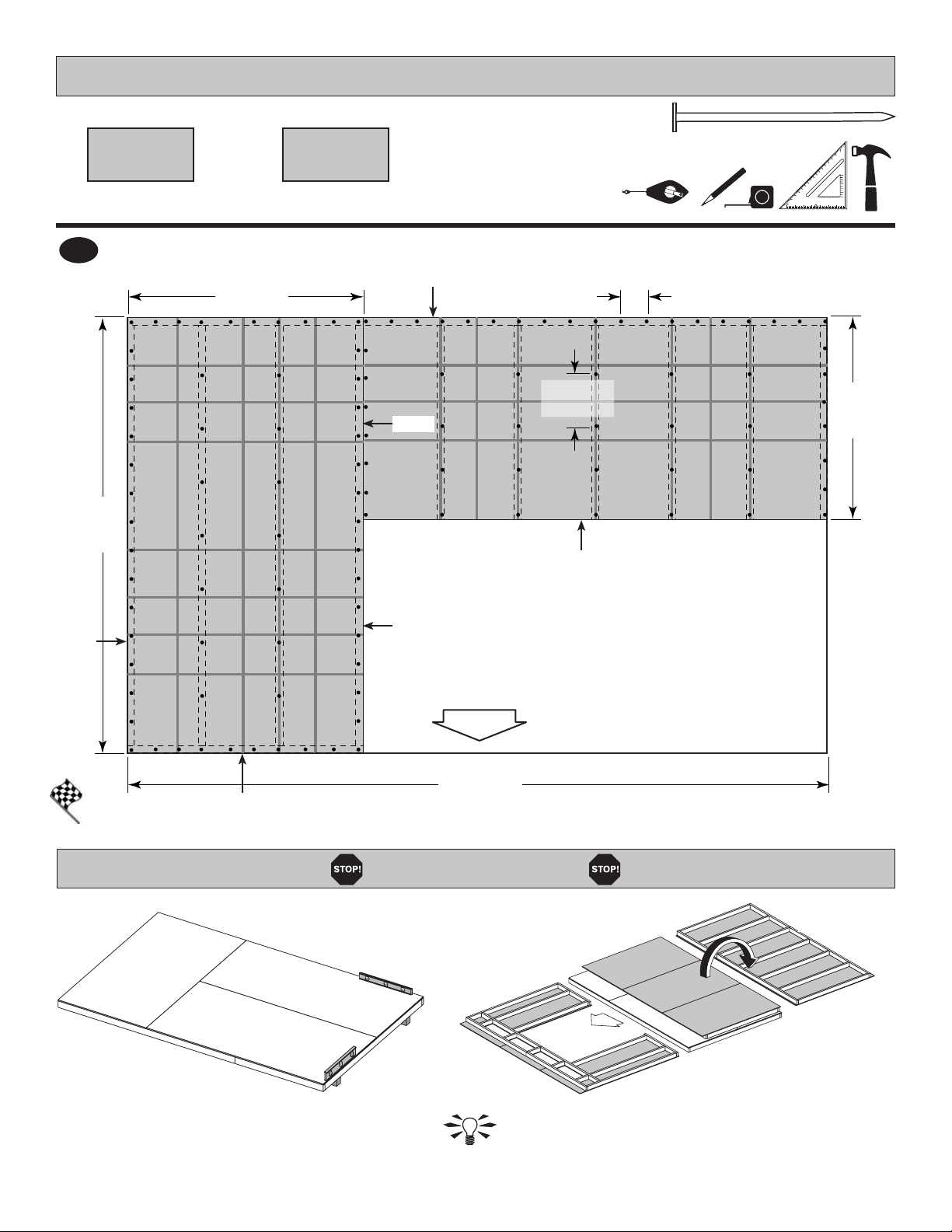

FLOOR PANELS
Flush
Flush
Flush
Flush
Flush
Flush
DOOR
FINISH
Youroorpanelsarenowinstalled.
Continue installing panels with 2" nails spaced 6" apart on edges, and 12" apart inside panels.
4
Back Wall
Front Wall
•Leveltheoorafterinstallingoorpanels.
Re-level if needed.
HINT:
IMPORTANT!
•Theoorshouldbeusedasastableworksurface
for wall construction.
• Organize your assembly procedure during the build
process to avoid over-handling of the walls.

15
UM x7
TP
SP
SP
TP
144"
(365,8 cm) 120"
(304,8 cm)
68"
(172,7 cm) 1-1/2"
(3,8 cm)
96"
(243,8 cm)
96"
(243,8 cm)
48"
(122 cm)
72"
(182,9 cm)
48"
(122 cm)
24"
(61 cm)
96"
(243,8 cm)
SEAM
3" (7,6 cm)
Nails
HINT:
For easier nailing
stand on frame.
BEGIN
1
Secure with (2) 3" nails at each mark and (4) 3" nails at seams
Arrangepartsonedgeonoor.Measureandmark.
2
BACK WALL FRAME
PARTS REQUIRED:
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
x7 2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x32 3" (7,6 cm)

16

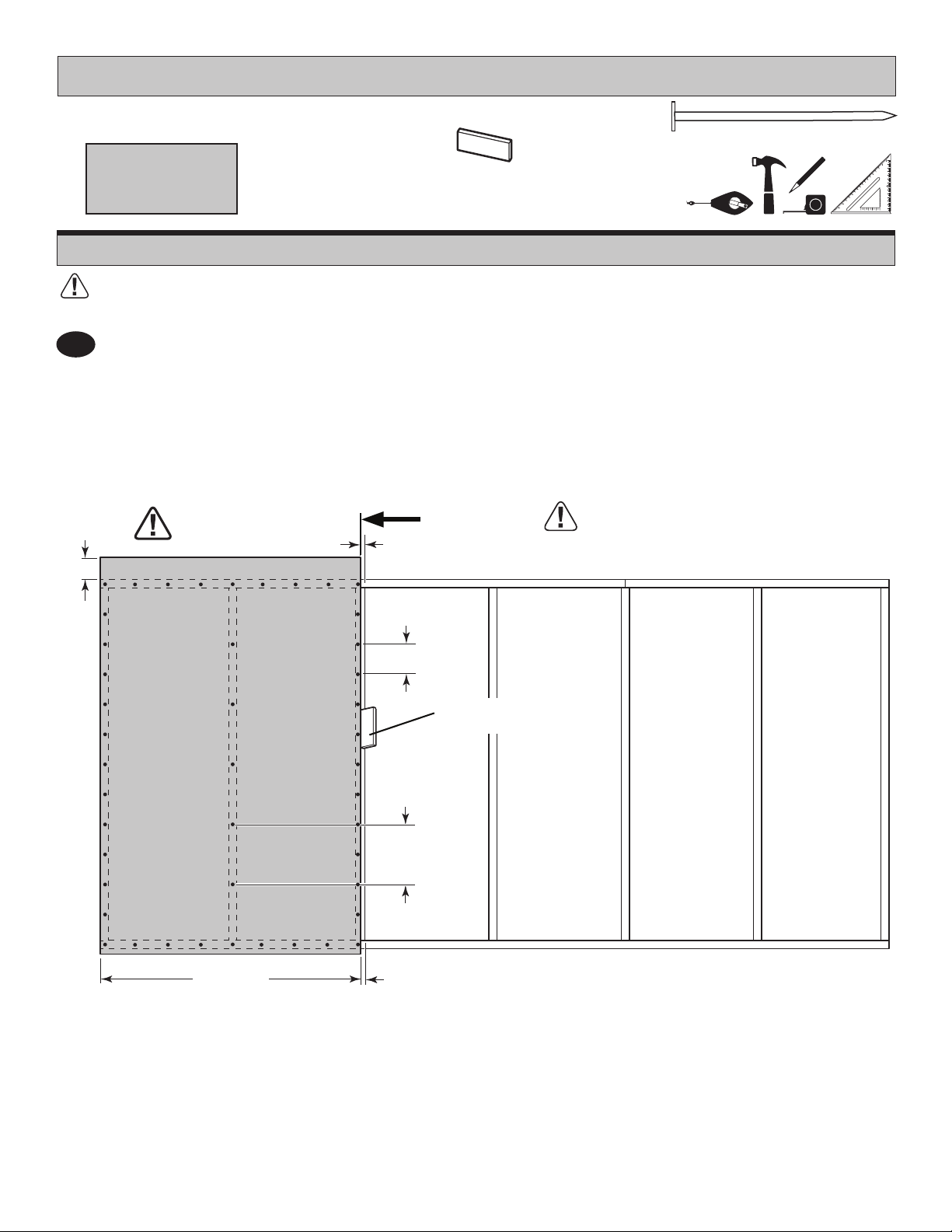

BACK WALL PANELS
48" x 76"
(121,9 x 193 cm)
PARTS REQUIRED:
x1
x45 2" (5,1 cm)
3/4" GAUGE
BLOCK
GAA
For squareness maintain 3/4"
measurement along panel edges.
BEGIN HERE
3/4" GAUGE
BLOCK
Place 48" x 76" panel on wall frame,, as shown.
Use the gauge block to mark the 3/4" measurement on the wall stud.
Secure panel using 2" nails spaced 6" apart on edges and 12" apart inside panel.
3
• Ensure top of panel is overhanging the top of frame by 4".
6"
(15,2 cm)
4"
(10,2 cm) 3/4"
(1,9 cm)
3/4"
(1,9 cm)
48"
(121,9 cm)
12"
(30,5 cm)
Install all panels with the primed side facing up.

17
48"
(121,9 cm)
3/4"
(1,9 cm)
4"
(10,2 cm) 3/4"
(1,9 cm)
12"
(30,5 cm)
6"
(15,2 cm)
48"
(121,9 cm)
4"
(10,2 cm)
12"
(30,5 cm)
6"
(15,2 cm)
Your back wall is now assembled.
FINISH
Carefullyipthebackwallover.
48" x 76"
(121,9 x 193 cm)
x2
BACK WALL PANELS
PARTS REQUIRED: x90 2" (5,1 cm)
Place center and end 48" x 76" panels
on frame as shown (Fig. A, Fig. B).
Secure with 2" nails spaced 6" apart on
edges and 12" apart inside panel.
4For squareness maintain 3/4"
measurement along panel edges.

along panel edges.
3/4" GAUGE
BLOCK
GAA
3/4" GAUGE
BLOCK
Flush
Fig. A
Fig. B

18
PARTS REQUIRED:
3" (7,6 cm)
x16

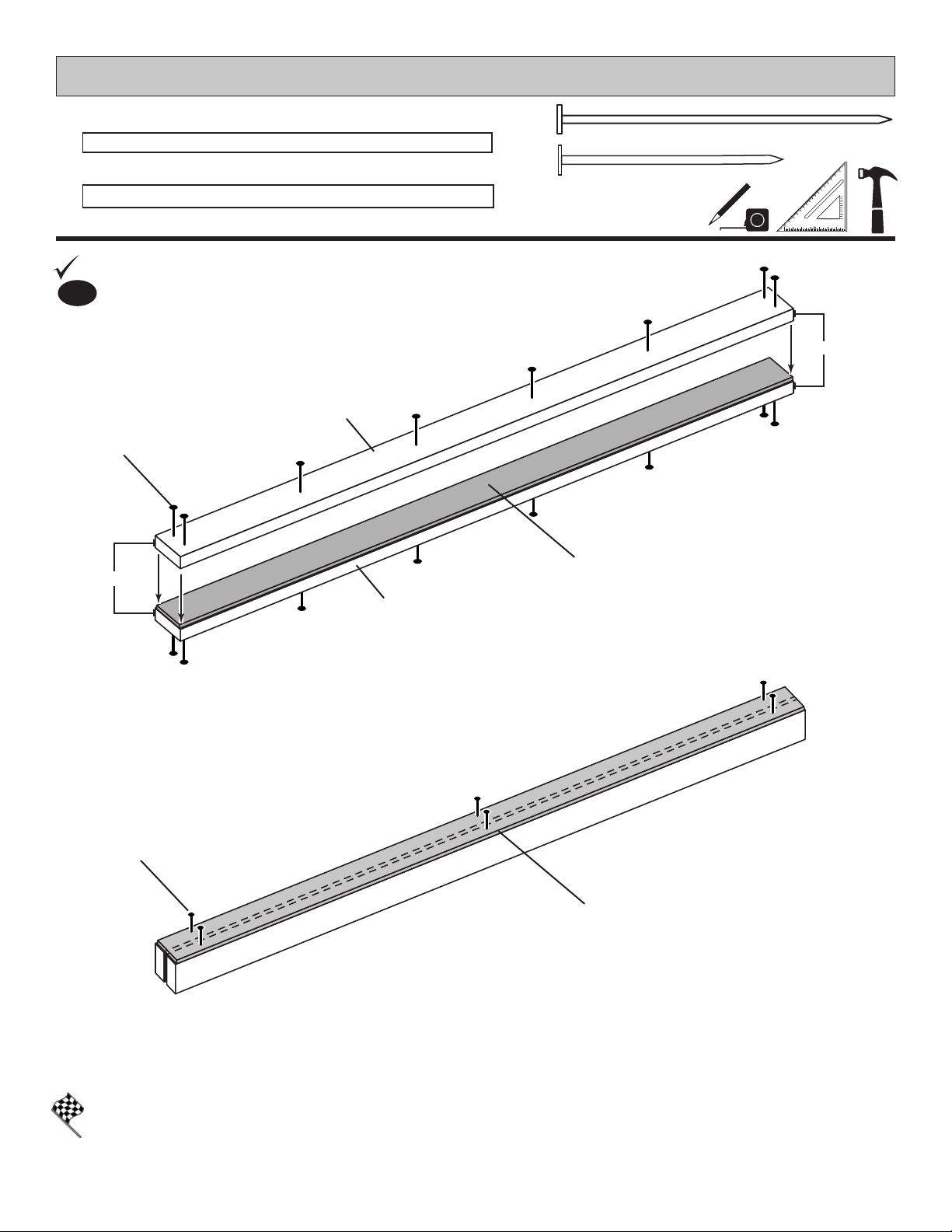

FRONT WALL - DOOR HEADER
AM
AM Center OSB
Center OSB
Flush
Flush 3-1/4" x 66-3/4"
OSB
3-1/4" x 66-3/4"
OSB
x2
7/16" x 3-1/4" x 66-3/4" (1,1 x 8,3 x 169,5 cm) OSB
x2
2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
1
BEGIN
1Build header assembly as shown using 3" and 2" nails.
Your door header is now assembled.
FINISH
x6 2" (5,1 cm)
3" (7,6 cm)
Nails
2" (5,1 cm)
Nails
