• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check with local building department and homeowners association for speci c restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 7.
• CHECK ALL PARTS
Inventory all parts listed on pages 5 - 6. Contact our Customer Service Team if any parts are missing or damaged.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 4 for required and optional materials and quantities.
04/16/2019
ASSEMBLY MANUAL
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
16513
A Backyard Products Company
- CUSTOMER SERVICE -
Call: 1- 800-577-9663 email: [email protected]
KEEP THIS MANUAL FOR FUTURE REFERENCE
ACTUAL FLOOR SIZE: 8' x 9'- 8-1/2" (243,8 x 295,9 cm)
GRANBURY 8' x 10' (244 x 304,8 cm)
VALUE SERIES

2

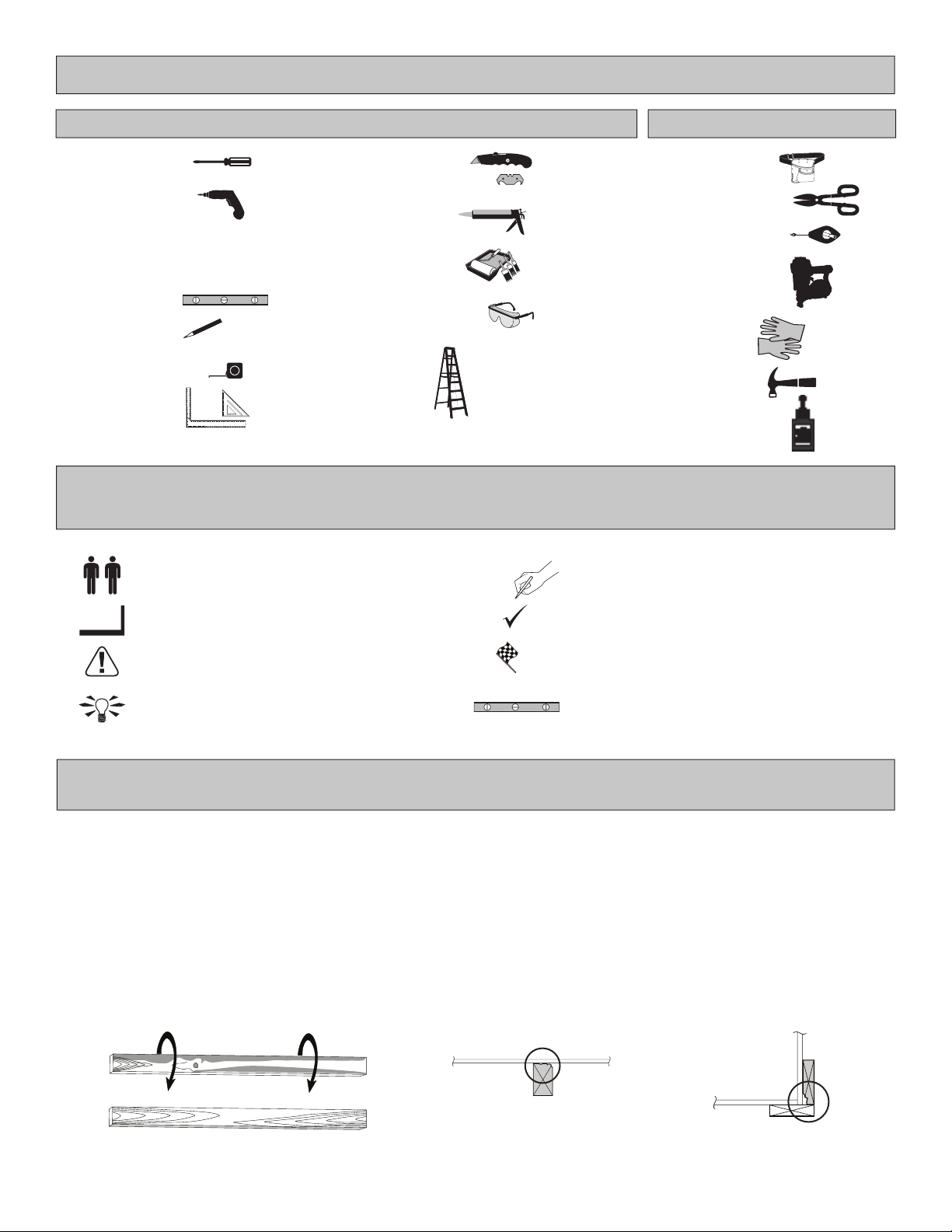

TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have  nished the assembly or installation.
= Level
Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
Safety Glasses
Tape Measure
Paint Tools
Ladder
Wood Glue
Caulk Gun
Hammer
Level
FINISH
BEGIN
Pencil
Phillips
Screwdriver
 Drill / Driver
 5/16" Drill Bit
 1/8" Drill Bit
 #2 Philips Drive Bit
Tool Belt/
Nail Pouch
Chalk Line
Nail Gun
• gun nails
Tin Snips
(for drip edge)
 Square or
Utility Knife
Shingle Blades
B C

3
CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
A
BC
4" (10,2 cm)
3-1/2"
(8,9 cm)
DOOR
AB CActual Floor SizeBuilding Size
• A treated 2 x 4 (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete. Hint: Use treated lumber in your kit or
purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
96" (243,8 cm) 109-1/2" (278,1 cm)
8'x 9'-8-1/2" (295,9 x 235 cm)
8'x 10' (243,8 x 304,8 cm) 116-1/2" (295,9 cm)
Treated Sill Plate
Caulk between sill plate
and concrete.
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm)
Requires:
x4 MUST be treated lumber.
Caulk
x1
Allow new concrete slabs to cure for at least seven (7) days.
NOTES

4
COMPLETING YOUR SHED
You will need these additional materials:
OPTIONAL MATERIALS
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
DRIP EDGE ..................... 60 Feet #15 ROOFING FELT
To cover 93 Sq. Ft. of roof area.
1" GALVANIZED ROOFING NAILS.........1/4 Lb
For roong felt.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS
FOR INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES ............................ 6 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 2 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 3 Lbs
For shingles.
PAINT FOR TRIM .............................2 Quart
Use 100% acrylic latex exterior paint.
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! The included oor has been designed for general use. Depending on your specic use you may want to construct a
heavy duty oor frame by adding additional oor joists (shown below as shaded). Below is a list of additional materials (not included):
x5
x20
2 x 4 x 8' (5 x 10 x 244 cm) Treated Lumber
Cut to (6) 2 x 4 x 93" (5 x 10 x 236 cm)
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
• This shed kit includes a complete wood oor system.
• This shed kit does not include ANY leveling materials.
•See the FLOOR LEVELING section on page 7 for recommended methods and suggested materials to properly level your
oor, as this will vary depending on your specic site.
Optional 12" (30,5 cm) spacing
Standard 24" (61 cm) spacing

WALLS
RAFTERS
TRIM
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Gauge Block for 3/4" (1,9 cm) measurement
x1 GAA
DOOR
3/4"
(1,9 cm)

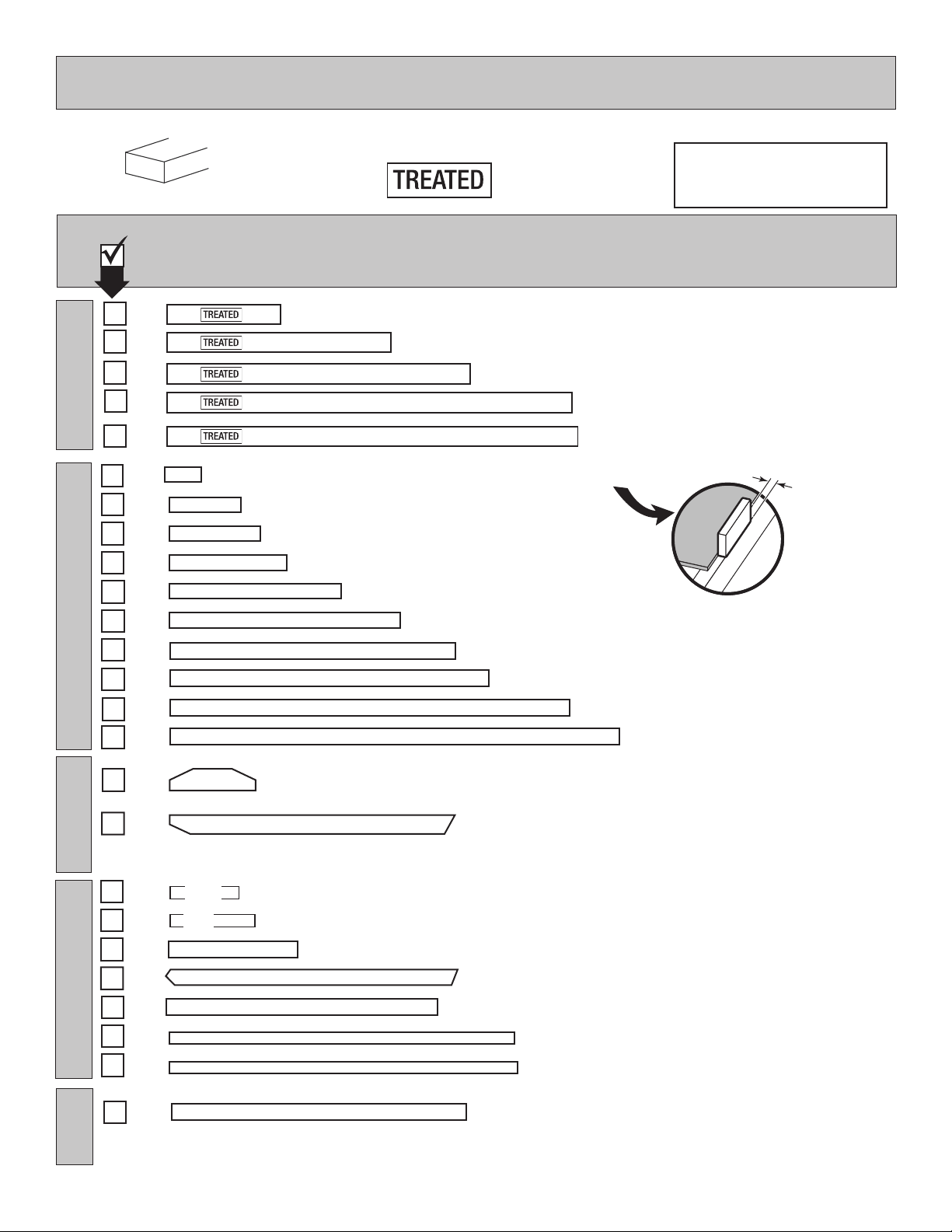

PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
PARTS IDENTIFICATION AND SIZES
RS RS
Part identication
letters are stamped on some parts.
Check these locations for
part stamp.
Treated lumber is stamped:
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3 .................3/4" x 2-1/2" (3,8 x 6,3 cm)
5
x2 2 x 3 x 17-1/2" (2,5 x 7,6 x 30,2 cm)
BV
x2 2 x 3 x 11-7/8" (2,5 x 7,6 x 30,2 cm)
DQ
x1 2 x 3 x 23-7/8" (2,5 x 7,6 x 60,6 cm)
LW
x2 2 x 3 x 34" (2,5 x 7,6 x 86,4 cm)
CI
2 x 3 x 46-1/4" (2,5 x 7,6 x 117,5 cm)
NH
x4
FZ
x13 2 x 3 x 66-1/2" (2,5 x 7,6 x 168,9 cm)
OZ
x4 2 x 3 x 70-1/4" (2,5 x 7,6 x 178,4 cm)
x1 PS 2 x 3 x 91" (2,5 x 7,6 x 231,1 cm)
x2 PT 2 x 3 x 96" (2,5 x 7,6 x 243,8 cm)
WI 2 x 3 x 54-1/16" (2,5 x 10,2 x 129,8 cm)
x8
3/8 x 1-3/4 x 71-3/4" (1 x 4,4 x 182,2 cm)
x4
OO
x2 1-1/4 x 2-1/2 x 69" (3,2 x 7,6 x 175,3 cm)
19/32 x 2-1/2 x 23" (1,5 x 6,3 x 58,4 cm)
x2 GI
WX 2 x 3 x 55-3/4" (2,5 x 10,2 x 141,6 cm)
x4
3/8 x 1-3/4 x 71-1/4" (1 x 4,4 x 181 cm)
x4
WR
x1 19/32 x 3 x 63" (1,5 x 7,6 x 160 cm)
FLOOR
2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
x6
x1 2 x 4 x 92-1/2" (5,1 x 10,2 x 235 cm)
x1 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
x1 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
x1 2 x 4 x 24" (5,1 x 10,2 x 61 cm)
x8 6 x 24" (15,2 x 61 cm)
x2 1 x 2 x 11" (2,5 x 5,1 x 27,8 cm)
WQ
x2 1 x 2 x 14" (2,5 x 5,1 x 35,6 cm)
WO

6
WALL PANEL & DOORS PARTS LIST
FASTENER AND HARDWARE BAG
DOOR HARDWARE / WINDOW
Floor panels are 5/8" (1,6 cm) thick
Roof panels are 7/16" (1,1 cm) thick
FLOOR AND ROOF PANELS
FLOOR
ROOF
7/16 x 7-7/8 x 23-7/8"
(1,1 x 20 x 60,6 cm)
x2
7/16 x 23-7/8 x 48"
(1,1 x 60,6 x 121,9 cm)
x2
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
x2
5/8 x 20-1/2 x 96"
(1,6 x 52,1 x 243,8 cm)
x1
WALL PANELS & DOORS
x1 BOXES x3 BOXES
x4
3/8 x 48 x 72"
(1 x 121,9 x 182,9 cm)
x2
3/8 x 46-1/8 x 72"
(1 x 117,2 x 182,9 cm)
x2
3/8 x 20 x 72"
(1 x 50,8 x 182,9 cm)
x2
3/8 x 22 x 72"
(1 x 55,9 x 182,9 cm)
x1
LEFT DOOR
x1
RIGHT DOOR
x1
x1
x1
x1
DOOR HARDWARE / WINDOW
FASTENER / HARDWARE BAG
NAIL BOXES
ROOF PANELS
x1
x1
x2 x4 x4
x2
x70 x8
x70
x12
x8
x64
x51
x12
x42
x7
56" Metal Threshold
3/4" (1,9 cm) x11
Bagged seperately / special coating
(4 screws in each package)
x8
x2
x1
1" (2,5 cm
)
3/4" (1,9 cm)
3" (7,6 cm 2" (5,1 cm)
3" (7,6 cm)
2" (5,1 cm)
2" (5,1 cm)
1-1/4" (3,2 cm)
1-1/2" (3,8 cm)
Bagged separately / For Window
NOTE POINT
1-5/8" (4,1 cm)
1/2" (1,3 cm)
3/4" (1,9 cm)
1" (2,5 cm)
7/16 x 7-7/8 x 48"
(1,1 x 20 x 121,9 cm)
7/16 x 47-7/8 x 48"
(1,1 x 121,6 x 121,9 cm)
7/16 x 7-7/8 x 23-7/8"
(1,1 x 20 x 60,6 cm)
7/16 x 23-7/8 x 48"
(1,1 x 60,6 x 121,9 cm)
Roof panels are 7/16" (1,1 cm) thick. NOTE: Panel parts are not stamped.
NOTE: Panel parts are not stamped.
WALL PANELS & DOORS
x1 BOXES x3 BOXES
x4
3/8 x 48 x 72"
(1 x 121,9 x 182,9 cm)
x2
3/8 x 46-1/8 x 72"
(1 x 117,2 x 182,9 cm)
x2
3/8 x 20 x 72"
(1 x 50,8 x 182,9 cm)
x2
3/8 x 22 x 72"
(1 x 55,9 x 182,9 cm)
x1
LEFT DOOR
x1
RIGHT DOOR
x1
x1
x1
x1
DOOR HARDWARE / WINDOW
FASTENER / HARDWARE BAG
NAIL BOXES
ROOF PANELS
x1
x1
x2 x4 x4
x2
x70 x8
x70
x12
x8
x64
x51
x12
x42
x7
56" Metal Threshold
3/4" (1,9 cm) x11
Bagged seperately / special coating
(4 screws in each package)
x8
x2
x1
1" (2,5 cm
)
3/4" (1,9 cm)
3" (7,6 cm 2" (5,1 cm)
3" (7,6 cm)
2" (5,1 cm)
2" (5,1 cm)
1-1/4" (3,2 cm)
1-1/2" (3,8 cm)
Bagged separately / For Window
NOTE POINT
1-5/8" (4,1 cm)
1/2" (1,3 cm)
3/4" (1,9 cm)
1" (2,5 cm)
7/16 x 7-7/8 x 48"
(1,1 x 20 x 121,9 cm)
7/16 x 47-7/8 x 48"
(1,1 x 121,6 x 121,9 cm)
7/16 x 7-7/8 x 23-7/8"
(1,1 x 20 x 60,6 cm)
7/16 x 23-7/8 x 48"
(1,1 x 60,6 x 121,9 cm)
Roof panels are 7/16" (1,1 cm) thick. NOTE: Panel parts are not stamped.
NOTE: Panel parts are not stamped.
7/16 x 7-7/8 x 96"
(1,1 x 20 x 243,8 cm)
x2
x2
NOTE: Panel parts are not stamped.
7/16 x 48 x 96"
(1,1 x 121,9 x 243,8 cm)
NOTE:
If you are using a nail
gun, nails may be used
where screws are shown
for quicker assembly.
Length of nail must
match screw length.
WALL PANELS & DOORS
x1 BOXES x3 BOXES
x4
3/8 x 48 x 72"
(1 x 121,9 x 182,9 cm)
x2
3/8 x 46-1/8 x 72"
(1 x 117,2 x 182,9 cm)
x2
3/8 x 20 x 72"
(1 x 50,8 x 182,9 cm)
x2
3/8 x 22 x 72"
(1 x 55,9 x 182,9 cm)
x1
LEFT DOOR
x1
RIGHT DOOR
x1
x1
x1
x1
DOOR HARDWARE / WINDOW
FASTENER / HARDWARE BAG
NAIL BOXES
ROOF PANELS
x1
x1
x2 x4 x4
x2
x70 x8
x70
x12
x8
x64
x51
x12
x42
x7
56" Metal Threshold
3/4" (1,9 cm) x11
Bagged seperately / special coating
(4 screws in each package)
x8
x2
x1
1" (2,5 cm
)
3/4" (1,9 cm)
3" (7,6 cm 2" (5,1 cm)
3" (7,6 cm)
2" (5,1 cm)
2" (5,1 cm)
1-1/4" (3,2 cm)
1-1/2" (3,8 cm)
Bagged separately / For Window
NOTE POINT
1-5/8" (4,1 cm)
1/2" (1,3 cm)
3/4" (1,9 cm)
1" (2,5 cm)
7/16 x 7-7/8 x 48"
(1,1 x 20 x 121,9 cm)
7/16 x 47-7/8 x 48"
(1,1 x 121,6 x 121,9 cm)
7/16 x 7-7/8 x 23-7/8"
(1,1 x 20 x 60,6 cm)
7/16 x 23-7/8 x 48"
(1,1 x 60,6 x 121,9 cm)
Roof panels are 7/16" (1,1 cm) thick. NOTE: Panel parts are not stamped.
NOTE: Panel parts are not stamped.
WALL PANELS & DOORS
x1 BOXES x3 BOXES
x4
3/8 x 48 x 72"
(1 x 121,9 x 182,9 cm)
x2
3/8 x 46-1/8 x 72"
(1 x 117,2 x 182,9 cm)
x2
3/8 x 20 x 72"
(1 x 50,8 x 182,9 cm)
x2
3/8 x 22 x 72"
(1 x 55,9 x 182,9 cm)
x1
LEFT DOOR
x1
RIGHT DOOR
x1
x1
x1
x1
DOOR HARDWARE / WINDOW
FASTENER / HARDWARE BAG
NAIL BOXES
ROOF PANELS
x1
x1
x2 x4 x4
x2
x70 x8
x70
x12
x8
x64
x51
x12
x42
x7
56" Metal Threshold
3/4" (1,9 cm) x11
Bagged seperately / special coating
(4 screws in each package)
x8
x2
x1
1" (2,5 cm
)
3/4" (1,9 cm)
3" (7,6 cm 2" (5,1 cm)
3" (7,6 cm)
2" (5,1 cm)
2" (5,1 cm)
1-1/4" (3,2 cm)
1-1/2" (3,8 cm)
Bagged separately / For Window
NOTE POINT
1-5/8" (4,1 cm)
1/2" (1,3 cm)
3/4" (1,9 cm)
1" (2,5 cm)
7/16 x 7-7/8 x 48"
(1,1 x 20 x 121,9 cm)
7/16 x 47-7/8 x 48"
(1,1 x 121,6 x 121,9 cm)
7/16 x 7-7/8 x 23-7/8"
(1,1 x 20 x 60,6 cm)
7/16 x 23-7/8 x 48"
(1,1 x 60,6 x 121,9 cm)
Roof panels are 7/16" (1,1 cm) thick. NOTE: Panel parts are not stamped.
NOTE: Panel parts are not stamped.
x2 x4

DOOR
7
FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS
Measurements to
centers of 4x4's.
• 3" Screws angled into 4x4.
• (2) at each point frame
•and 4x4 touch.
12"
(30,5 cm)
12"
(30,5 cm)
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIAL REQUIRED
x2 4 x 4 x 10' (10 x 10 x 304,8 cm)Treated Lumber
Fasteners for Frame to 4x4.
(3" Screws shown as one option.) Minimum (24) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"

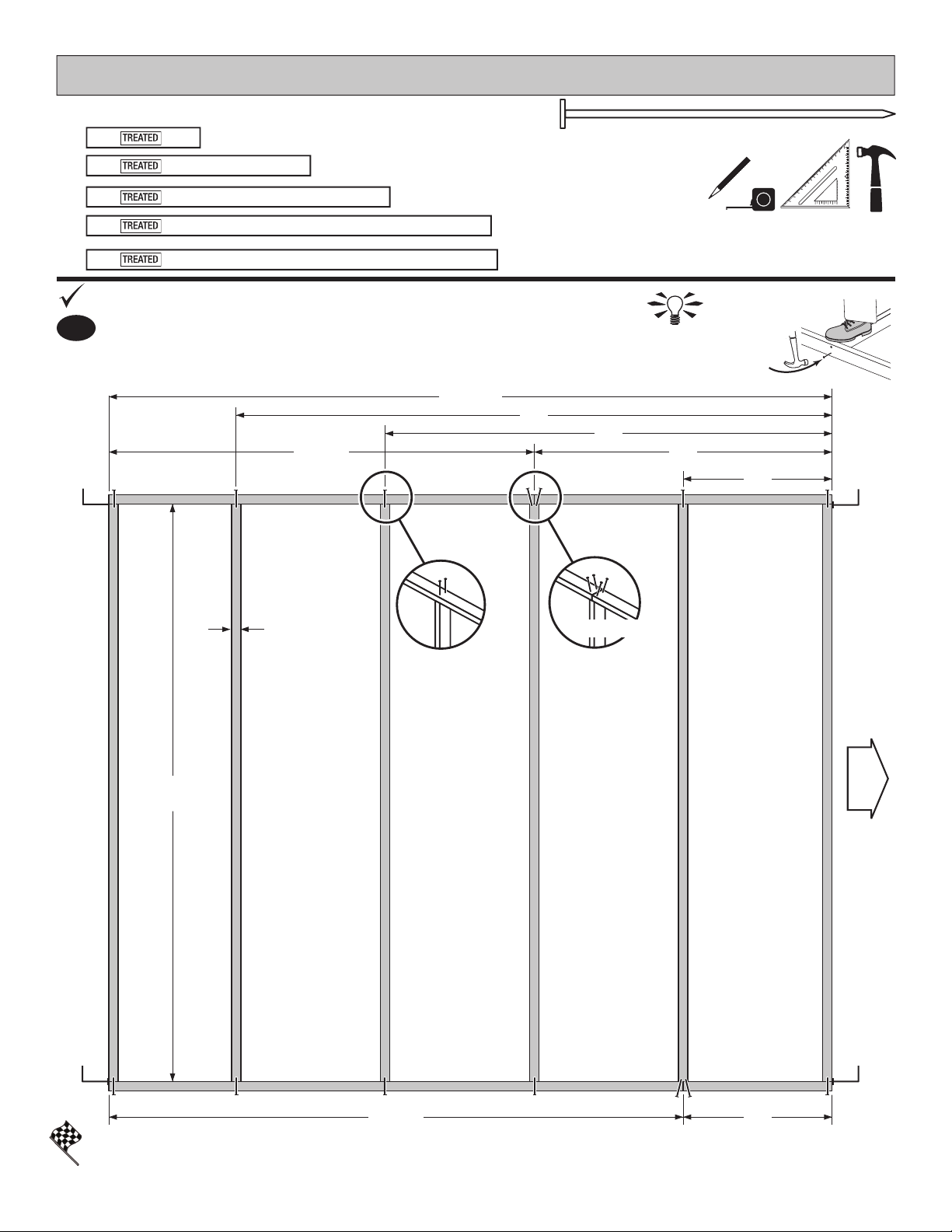

FLOOR FRAME
24"
48"
68 1/2"
24"
92 1/2"
72"
96"
116 1/2"
93"
(61 cm)
(121,9 cm)
(174 cm)
(161 cm)
(235 cm)
(182,9 cm)
(243,8 cm)
(295,9 cm)
(236,2 cm)
1-1/2"
(3,8 cm)
3" (7,6 cm)
x28
PARTS REQUIRED:
8
2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
x6
x1 2 x 4 x 92-1/2" (5,1 x 10,2 x 235 cm)
x1 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
x1 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
x1 2 x 4 x 24" (5,1 x 10,2 x 61 cm)
HINT:
For easier nailing
stand on frame.
Flush
Flush
Flush
Flush
DOOR
1Orient parts as shown on  at surface. Measure and mark.
Secure using (2) 3" nails at each mark and (4) 3" nails at seams.
BEGIN
TOENAILING
Your  oor frame is  nished.
FINISH

DOOR
FINISH

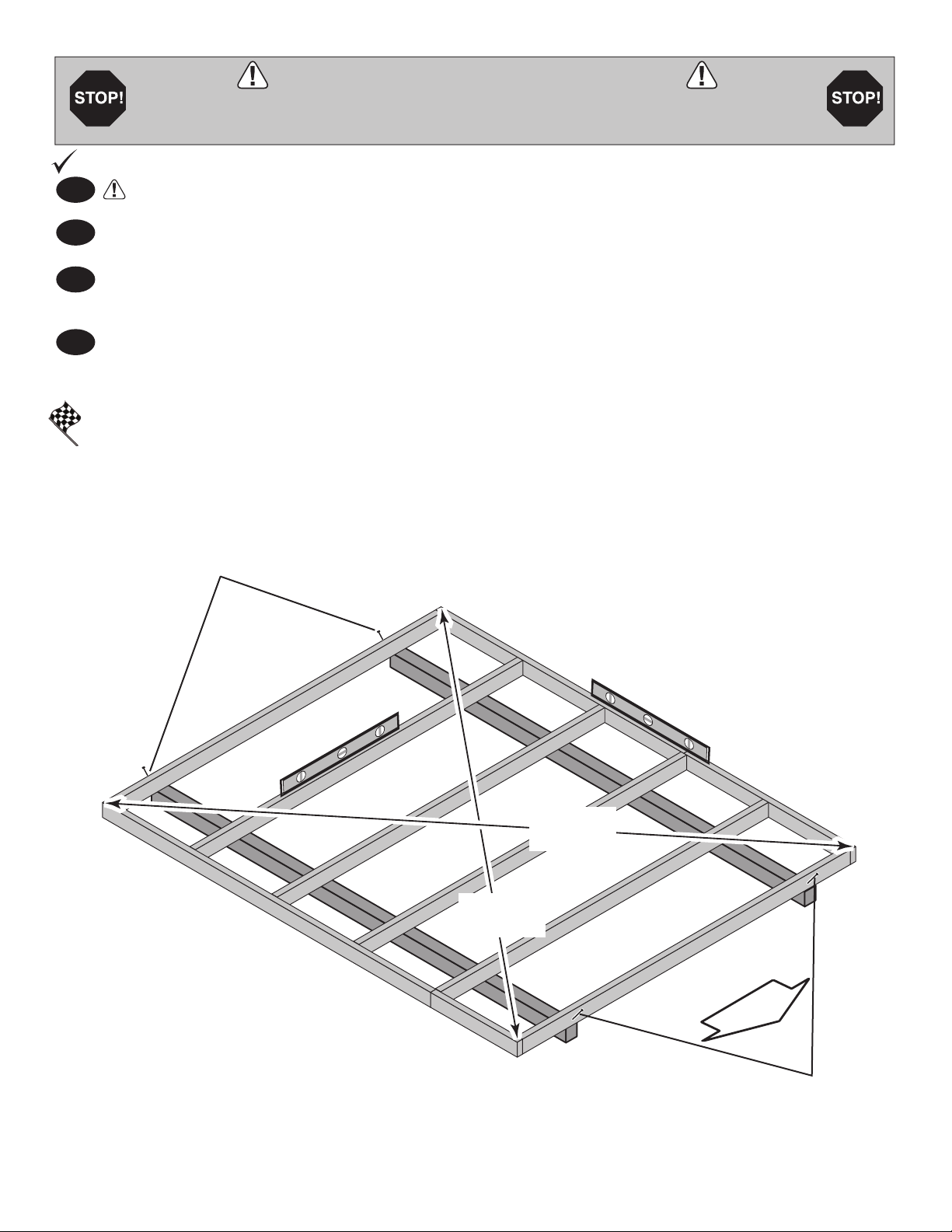

LEVEL AND SQUARE FLOOR FRAME
Before attaching  oor decking, it is important to level and square the  oor frame.
A level and square  oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use level and check the frame is level before applying  oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 150-15/16" (383,4 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener
at ends of each runner. Move to the opposite end of the frame. Secure the frame to 4x4 runners with
one fastener at ends of each runner making sure the frame remains square (Fig. A).
Once the  oor frame is level and square fasten the frame to the 4x4 runners at each point where the
frame contacts the 4x4 runners.
See page 7 for the preferred  oor leveling method.
9
First, secure at ends using (1) fastener.
Second,
secure at
ends using (1)
fastener.
150-15/16"
(383,4 cm)
150-15/16"
(383,4 cm)
Fig. A

DOOR

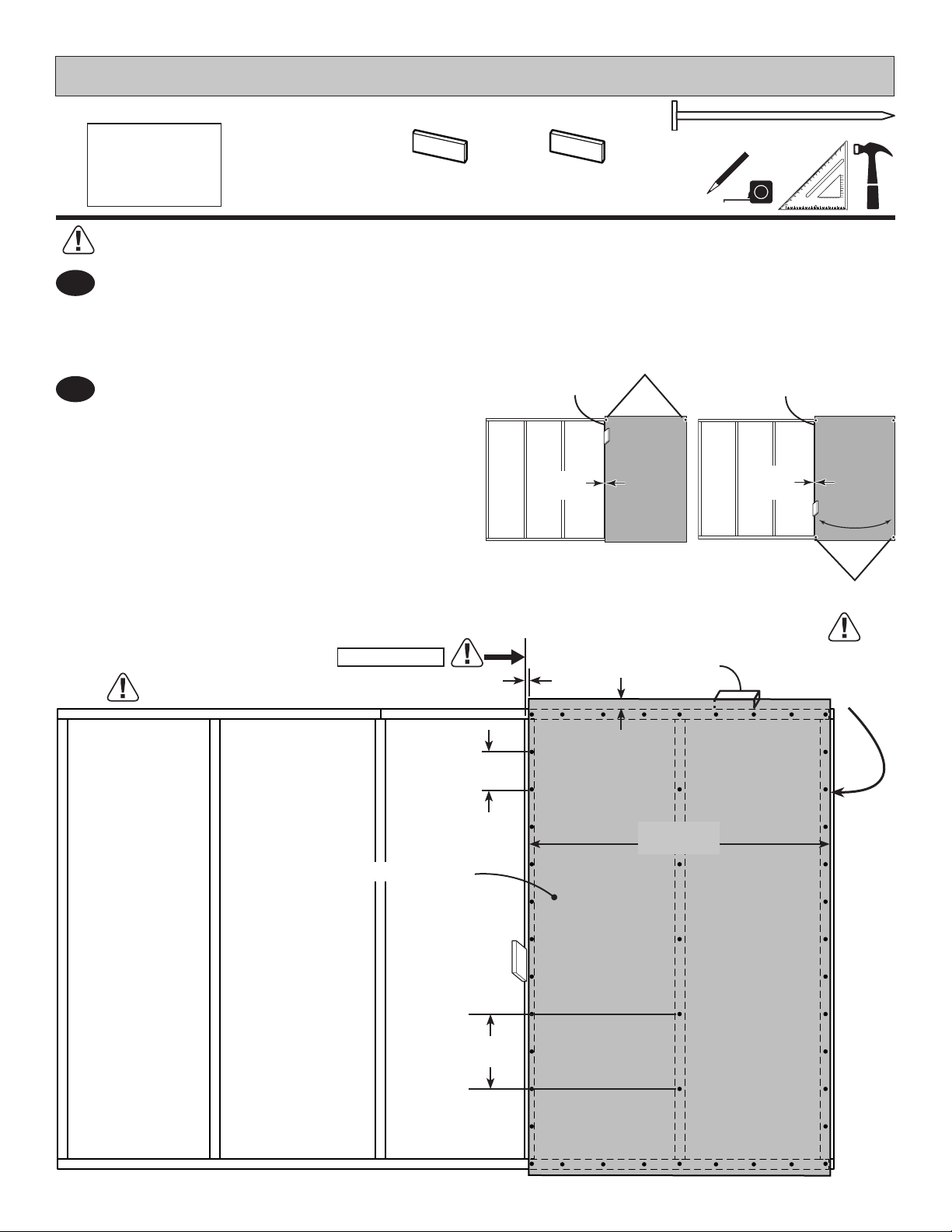

10
Fig. C
PARTS REQUIRED: x55
x1 5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
2" (5,1 cm)
FLOOR PANELS
DOOR
Grid lines up
12"
(30,2 cm)
6"
(15,2 cm)
Flush
Flush
Flush
(2) Nails
(2) Nails
3/4"
(1,9 cm)
3/4"
(1,9 cm)
150-15/16"
(383,4 cm)
150-15/16"
(383,4 cm)
3/4" GAUGE
BLOCK
Fig. B
Fig. A
Move to the opposite side. Using the long edge of the panel as a lever, move the
panel side-to-side until the top corner is ush to the oor frame (Fig. B).
Secure panel using (2) 2" nails in the corners.

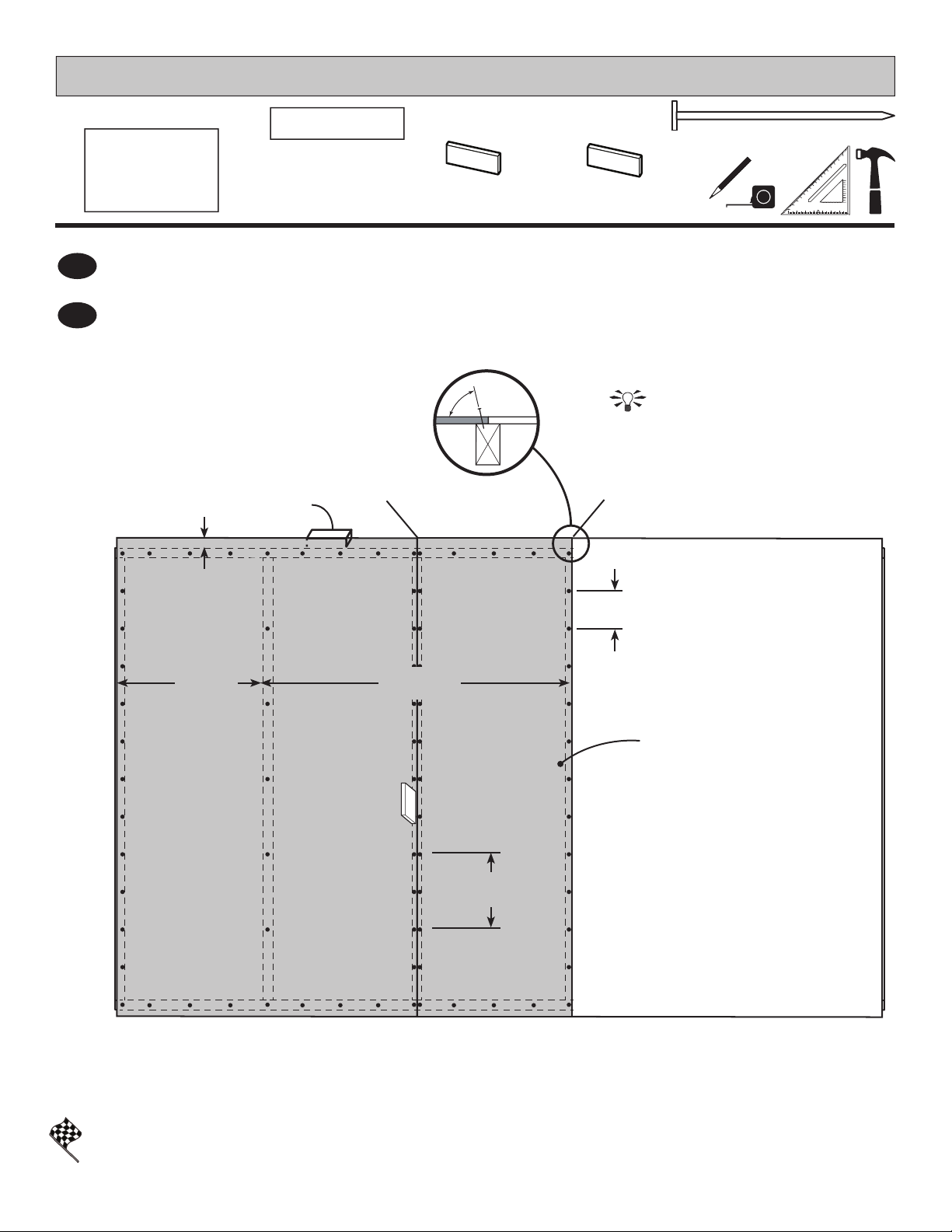

2
BEGIN
1
3
4
Ensure your oor frame is square by installing (1) panel and squaring frame.
Check the oor frame is square by measuring diagonally across the frame corners. If the measurements are the
same your oor frame is square. The measurement will be approximately 150-15/16" (383,4 cm) (Fig. C).
Install a 48" x 96" panel with the rough side up (painted-grid lines side) and with the 48" edge and corner
ush to the oor frame (Fig A). Use the gauge block to mark the 3/4" measurement on joist.
Secure panel using (2) 2" nails in the corners.
Use a chalk line grid lines to help locate frame. Use the gauge block to mark the 3/4" measurement on joist.
Secure panel using 2" nails 6" apart on edges and 12" apart inside panels.
3/4" GAUGE
BLOCK
GAA

PARTS REQUIRED:
FINISH
Your  oor panels are now installed.
Continue installing panels with rough side up (painted grid lines).
Install 20-1/2" x 96" panel last.
Use the gauge block to mark the 3/4" measurement on the  oor joists.
5
x152 2" (5,1 cm)
Secure panels using 2" nails 6" apart on edges, and 12" apart inside panels.
3/4" GAUGE
BLOCK
GAA
FLOOR PANELS
11
DOOR
Grid lines up
6"
(15,2 cm)
3/4"
(1,9 cm)
3/4" GAUGE
BLOCK
12"
(30,2 cm)
20-1/2"
(52,1 cm) Flush
Flush Flush
Flush
Flush
Flush
Flush
BEGIN HERE
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
x2
5/8 x 20-1/2 x 96"
(1,6 x 52,1 x 243,8 cm)
x1

DOOR
DOOR
12
Check that the oor frame is level after installing oor panels.
Re-level if needed.
HINT:
IMPORTANT!
• The oor should be used as a stable work surface for wall construction.
• Organize your assembly procedure during the build process
to avoid over-handling of the walls.
BACK WALL
FRONT WALL
LEFT WALL
RIGHT WALL

PARTS REQUIRED:
HINT:
1
BEGIN
Orient parts on edge on oor. Measure and mark from end of boards.
Use (2) 3" nails at each mark. Use (4) nails at seams.
EAVE SIDE WALLS
YOU WILL BUILD TWO IDENTICAL EAVE SIDE WALLS
3" (7,6 cm)
x28
22 1/4"
46 1/4"
70 1/4"
70 1/4"
94 1/4"
116 1/2"
46 1/4" 70 1/4"
66 1/2"
(56,5 cm)
(117,5 cm)
(178,4 cm)
(178,4 cm)
(239,4 cm)
(295,9 cm)
(117,5 cm) (178,4 cm)
(168,9 cm)
1 1/2"
(3,8 cm)
13
FZ
x6 2 x 3 x 66-1/2" (2,5 x 7,6 x 168,9 cm)
NH
OZ
OZ
NH
FZ x6
3" (7,6 cm)
Nails
TOENAILING
Flush Flush
Flush Flush
2 x 3 x 46-1/4" (2,5 x 7,6 x 117,5 cm)
NH
x2
OZ
x4 2 x 3 x 70-1/4" (2,5 x 7,6 x 178,4 cm)

PARTS REQUIRED:
3/4"
GAUGE BLOCK
GAA
EAVE SIDE WALLS
2" (5,1 cm)
x45

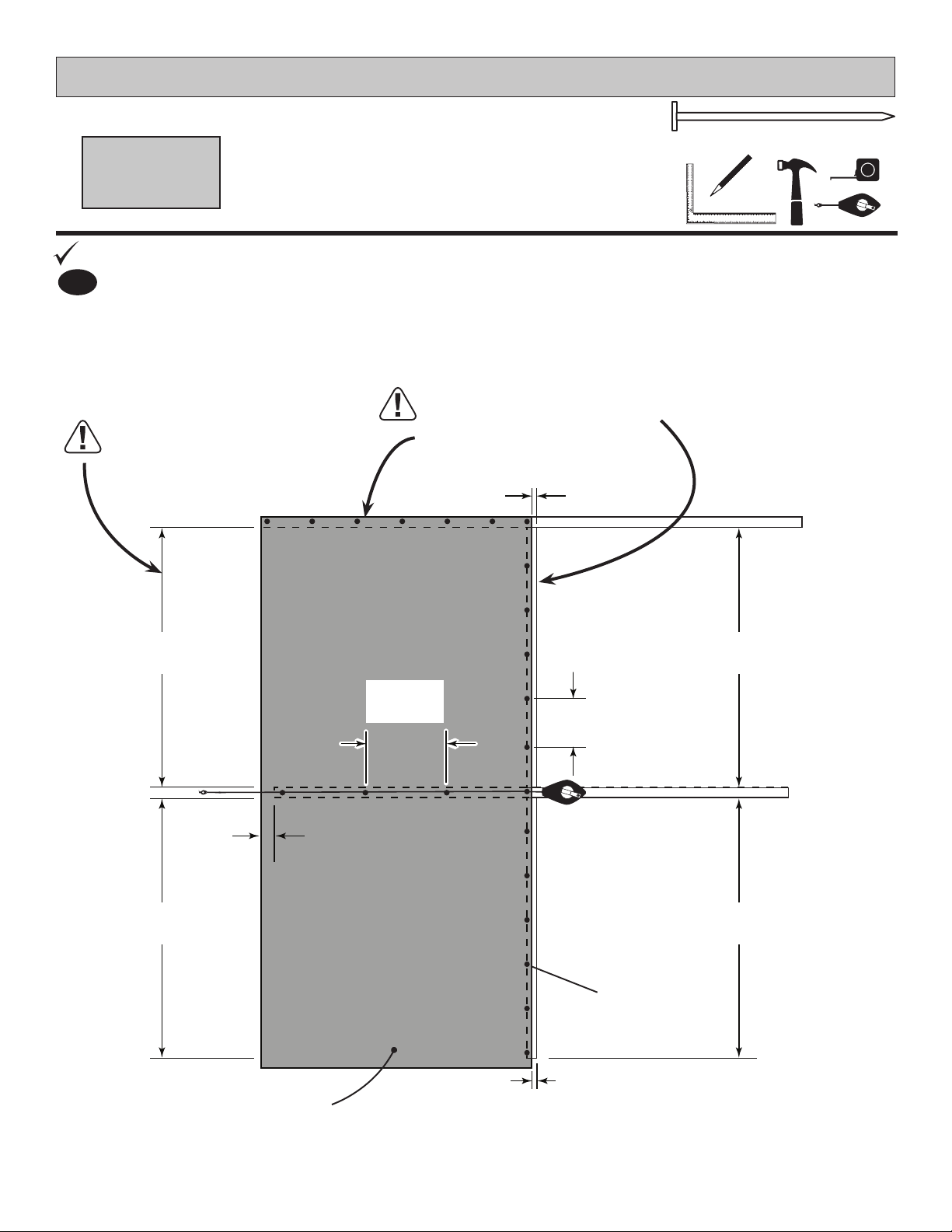

Place a 46-1/8" x 72" panel onto left wall frame with primed side up as shown.
Locate the panel 1-1/2" above the top plate. Use a DQ as a gauge block for the 1-1/2" top
overhang measurement. Use the GAA gauge block to mark the 3/4" side measurement on the
wall stud. Secure panel using (2) 2" nails in the corners (Fig. A).
3
2
Nail the panel using 2" nails 6" apart on edges and
12" apart inside panel.
Ensure your wall frame is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the
panel as a lever, move the panel side-to-side until you
have a 3/4" measurement on the wall stud. Secure
corner using (2) 2" nails (Fig. B).
2x3"
GAUGE BLOCK
DQ
Fig. A
3/4"
(1,9 cm)
2 Nails
1-1/2"
(3,8 cm)
Overlap
Fig. B
1-1/2"
(3,8 cm)
Overlap
2 Nails
3/4"
(1,9 cm)
2 x 3"
14
3/8 x 46-1/8 x 72"
(1 x 117,2 x 182,8 cm)
x1
For squareness maintain 3/4" and 1-1/2"
measurement along panel edge.
BEGIN HERE Panel will be
back from
frame approx.
1/4"
1-1/2"
(3,8 cm)
3/4"
(1,9 cm)
12"
(30,5 cm)
Primed side UP
3/4" Gauge
Block
6"
(15,2 cm)
46-1/8"
(117,2 cm)

3/4"
GAUGE BLOCK
GAA
3/8 x 46-1/8 x 72"
(1 x 117,2 x 182,8 cm)
x1
3/8 x 23-7/8 x 72"
(1 x 60,6 x 182,9 cm)
x1 2" (5,1 cm)
x77
2x3"
GAUGE BLOCK
DQ
15
PARTS REQUIRED:
Place 46-1/8" x 72" panel on frame as shown with primed side facing up  ush with center panel.
Secure panels using 2" nails 6" apart on edges and 12" apart inside panel.
Place 23-7/8" x 72" panel on frame as shown with primed side facing up  ush with installed panel.
Secure panel using 2" nails 6" apart on edges and 12" apart inside panel.
4
5
EAVE SIDE WALLS
2 x 3"
You have  nished building your eave side walls
Repeat STEPS 1 - 5 to build youropposite side eave wall.
FINISH
To draw panels tight
at seams angle nail.
Primed side UP
3/4" Gauge
Block
1-1/2"
(3,8 cm)
6"
(15,2 cm)
46-1/8"
(117,2 cm)
23-7/8"
(60,6 cm)
Flush
Flush
12"
(30,5 cm)

2 x 3 x 34" (5,1 x 7,6 x 86,4 cm)
x1 CI
x1
2 x 3 x 91 " (5,1 x 7,6 x 231,1 cm)
PS
Flush
16
BACK WALL FRAME
1-1/2"
(3,8 cm)
2-1/2"
(6,4 cm)
34"
(86,4 cm)
45-1/2"
(115,6 cm)
45-1/2"
(115,6 cm)
91"
(231,1 cm)
1-1/2"
(3,8 cm)
1
BEGIN
CI
PS
PARTS REQUIRED:
(2) 3" (7,6 cm)
Nails
3" (7,6 cm)
x2

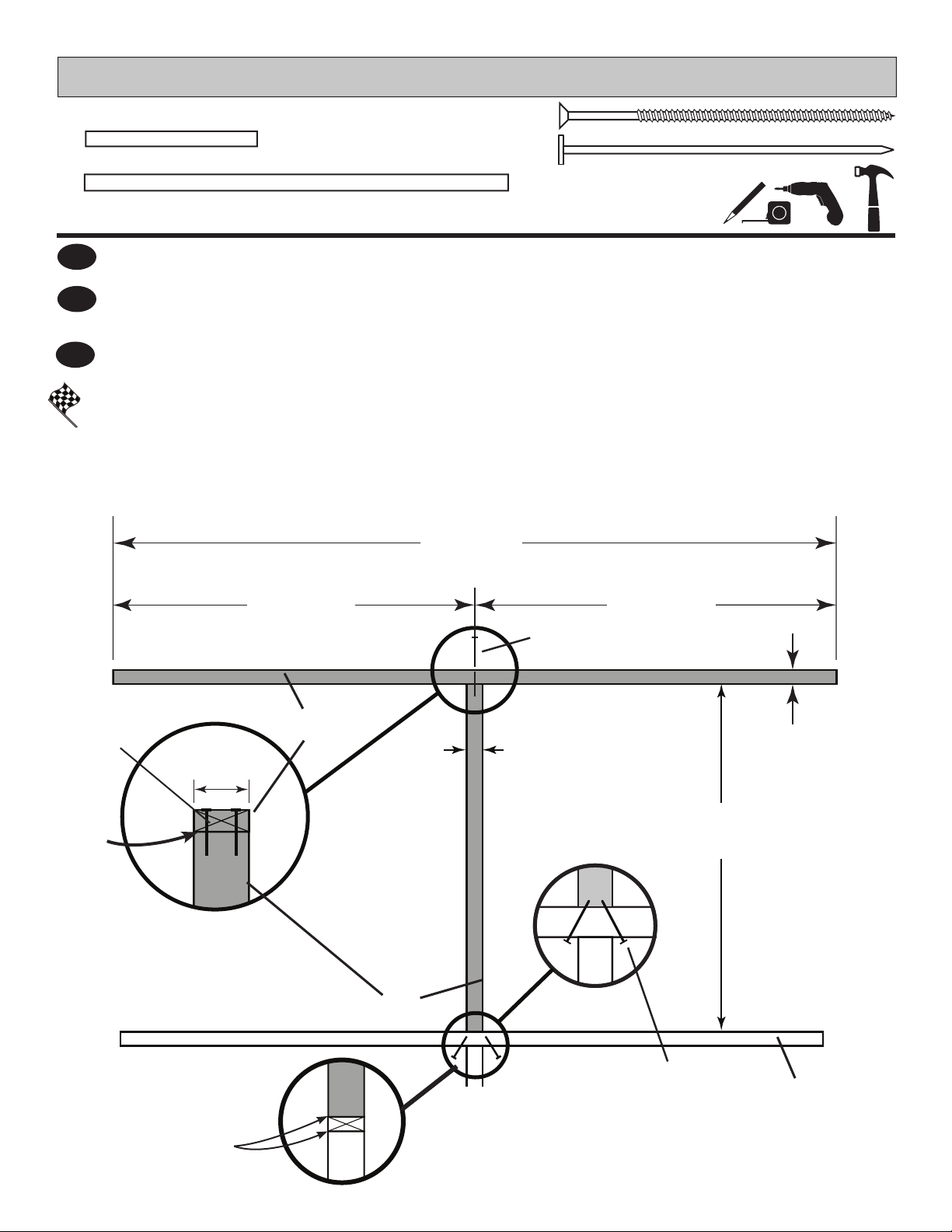

Center PS ush on CI on edge on oor as shown (Fig. A).
Nail using (2) 3" nails at connection.
Fig. A

2 x 3 x 34" (5,1 x 7,6 x 86,4 cm)
x1 CI
x1
2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
PT
Flush
Flush
17
(2) 3" (7,6 cm)
Nails
48"
(121,9 cm)
48"
(121,9 cm)
96"
(243,8 cm)
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
34"
(86,4 cm)
2-1/2"
(6,4 cm)
Fig. B
Fig. A
Center PT on CI on edge on  oor as shown.
Nail PT to CI using (2) 3" Nails (Fig. A).
Center CI  ush on PS on  at using a gusset as a temporary spacer.
3" (7,6 cm)
BACK WALL FRAME
Use (2) 3" screws at middle connection (Fig. B).
2
3
4
FINISH
You have  nished building your back wall frame.
PARTS REQUIRED: 3" (7,6 cm)
x2
PS
PT
CI
(2) 3" (7,6 cm)
Screws
(2) 3" (7,6 cm)
Nails
x2

3/8 x 48 x 72"
(1 x 121,9 x 182,9 cm)
18
34"
(86,4 cm)
6"
(15,2 cm)
34"
(86,4 cm)
2-1/2"
(6,4 cm)
34"
(86,4 cm)
34"
(86,4 cm)
12"
(30,5 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
2" Nails
x1
Place left panel on back frame as shown with primed side facing up.
BEGIN
1
BACK WALL PANELS
PARTS REQUIRED:
For squareness maintain ush
and 3/4" measurement along
panel edges.
Ensure 34" spacing before
nailing panel.
2" (5,1 cm)
x22
Secure using 2" nails 6" apart on edges and 12" apart inside panel.
Primed side UP
