Backyard Products GABLE 8 x 12 User manual

16134
Call Us First!
DO NOT RETURN TO STORE.
For questions on assembly or for general inquiries, you may contact us in the following ways:
Call customer service: 1-877-743-3400
Did you enjoy building your shed?
JOIN OUR TEAM
AND MAKE UP TO $1,500/WEEK*
o
r
v
i
s
i
t
b
a
c
k
y
a
r
d
i
n
s
t
a
l
l
e
r
.
c
o
m
Flexible schedule No selling,
just building
Bonus incentives
available
S
c
a
n
t
h
e

o
w
c
o
d
e
t
o
a
p
p
l
y
t
o
d
a
y
.
INSTALLERS
WANTED
*based on number of completed installations
Call a Recruiter Today! 734-365-7000
visit us online at
help.backyardproducts.com
AVOID THE WAIT!
Submit a help request
Answers to frequently asked questions
Live chat with an agent

(This page intentionally left blank.)

OPTIONAL DOOR
LOCATION
03/23/2021
KEEP THIS MANUAL FOR FUTURE REFERENCE
ACTUAL FLOOR SIZE IS 96 x 144" (243,8 x 365,8 cm)
16134
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
GABLE 8' x 12' (244 x 366 cm)
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 9.
• CHECK ALL PARTS
Inventory all parts listed on pages 3-5.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See pages 6 for required and optional materials and quantities.
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-877-743-3400 email: [e-mail]

2

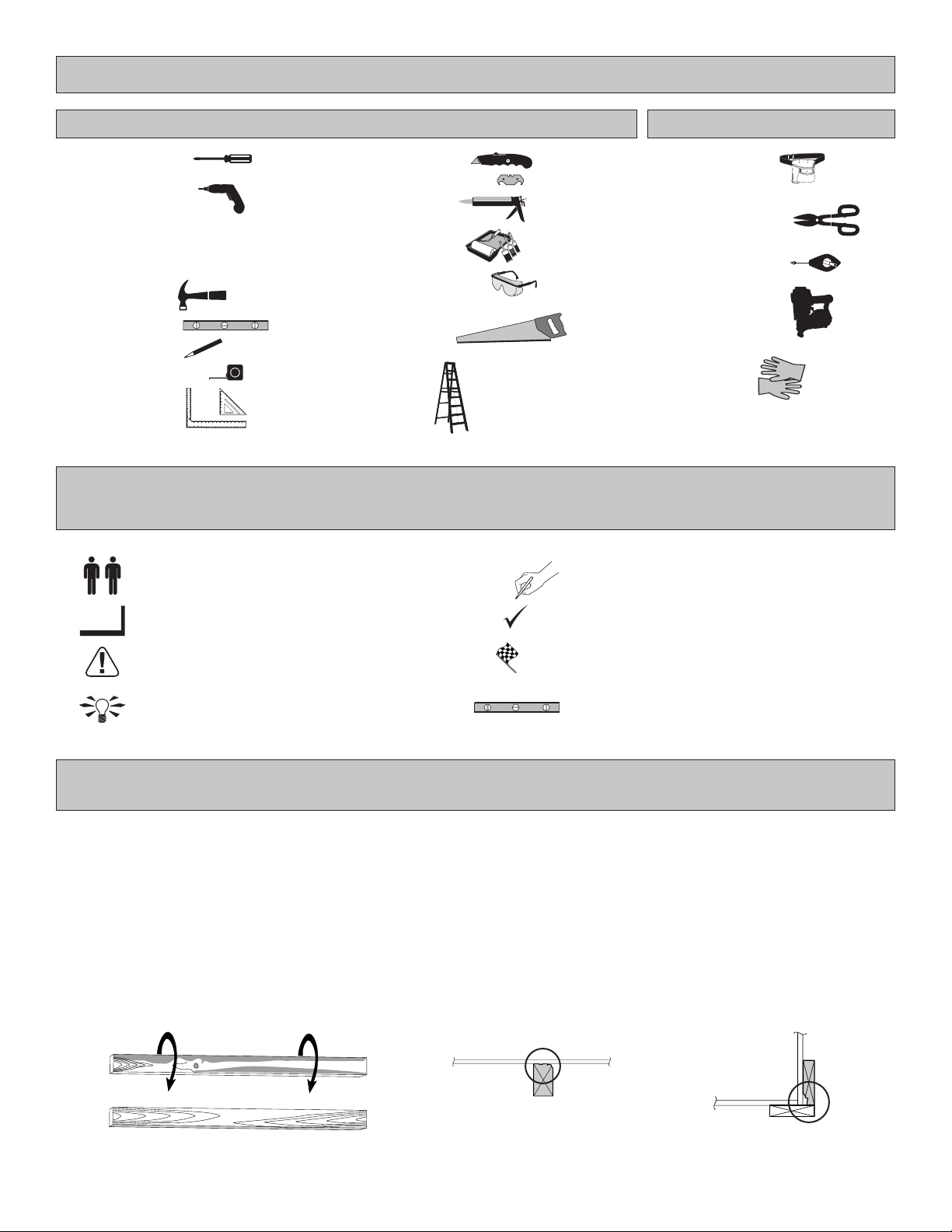

TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver ❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑Square or
❑Utility Knife
❑Shingle Blades
B C
❑Drill / Driver
❑1/8" Drill Bit
❑#2 Philips Drive Bit
❑1/4" Drill Bit
❑5/16" Drill Bit
❑1/2" Drill Bit
❑Hand Saw

3
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1" x 4".................3/4" x 3-1/2" (1,9 x 8,9 cm)
2" x 4"..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2" x 3"..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1" x 3".................3/4" x 2-1/2" (3,8 x 6,3 cm)
PARTS IDENTIFICATION AND SIZES
RS RS
Part identication
letters are stamped on some parts.
Check these locations
for part stamp.
WALLS
x2 2 x 4 x 89" (5,1 x 10,2 x 226,1 cm)
SZ
x20 2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
x2 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
YFA
x2 2 x 4 x 67" (5,1 x 10,3 x 170,2 cm)
AM
x4 2 x 4 x 44-3/8" (5,1 x 10,2 x 112,7 cm)
HVC
PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
RAFTERS
TRIMDOOR
x5 2 x 4 x 6-1/2" (5,1 x 10,2 x 16,5 cm)
UY
x1 2 x 3 x 8" (5,1 x 7,6 x 20,3 cm) (Used when window installed.)
RGF
x4 3/8 x 1-3/4 x 81-7/8" (1 x 4,4 x 208 cm)
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Gauge Block for 3/4" (1,9 cm) measurement
x1 GAA
3/4"
(1,9 cm)
x2 2 x 4 x 4" (5,1 x 10,2 x 10,2 cm)
CQA
x12 6 x 24" (15,2 x 61 cm) OSB OR WOOD GRAIN
x14 2 x 4 x 61-7/8" (5,1 x 10,2 x 157,2 cm)
CNA
1 x 3 x 60" (1,6 x 7,6 x 152,4 cm)
x2 GUA
x4 3/8 x 7-7/8 x 59-15/16" (1 x 20 x 152,2 cm)
x4 3/8 x 5-7/8 x 72-3/4" (1 x 14,9 x 184,8 cm)
x2 3/8 x 4-3/4 x 62-7/16" (1 x 12,1 x 158,6 cm)
x2 3/8 x 4-3/4 x 62-7/16" (1 x 12,1 x 158,6 cm)
x4 3/8 x 4-3/4 x 80-5/8" (1 x 12,1 x 204,8 cm)
x12 2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm)
CLA
x8 2 x 4 x 61-7/8" (5,1 x 10,2 x 157,2 cm)
CMA
x4 3/8 x 1-3/4 x 82-1/2" (1 x 4,4 x 209,6 cm)
x2 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
x4 2 x 4 x 92-5/8" (5,1 x 10,2 x 235,3 cm)
TJ
x6 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
x1 7/16 x 3-1/4 x 66-3/4" (1,1 x 8,3 x 169,5 cm)
OSB
ZJ
x1 19/32 x 3 x 72" (3,2 x 7,6 x 182,9 cm)
x4 19/32 x 2-1/2 x 26-5/8" (1,5 x 6,3 x 67,6 cm)
AH
OO
x2 69" (175,3 cm) Door Stiffener

4
ROOF PANELS
NOTE: Panel parts are not stamped.
NOTE: Panel parts are not stamped.
Roof panels are 7/16" (1,1 cm) thick.
WALL PANELS & DOORS
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x2
x2
7/16 x 48 x 96"
(1,1 x 121,9 x 243,8 cm)
x2
7/16 x 48 x 47-7/8"
(1,1 x 121,9 x 121,6 cm)
x2 7/16 x 48 x 8-1/2"
(1,1 x 121,9 x 21,6 cm)
x2
7/16 x 13-7/8 x 48"
(1,1 x 35,2 x 121,9 cm)
x2 7/16 x 13-7/8 x 8-1/2"
(1,1 x 35,2 x 21,6 cm)
x2
7/16 x 13-7/8 x 96"
(1,1 x 35,2 x 243,8 cm)
x2
x1x8 x1 x1
LEFT DOOR
x1
RIGHT DOOR
Painted
Green on End
Painted
Red on End

5
x225
x75
x24
x75
x170
x52

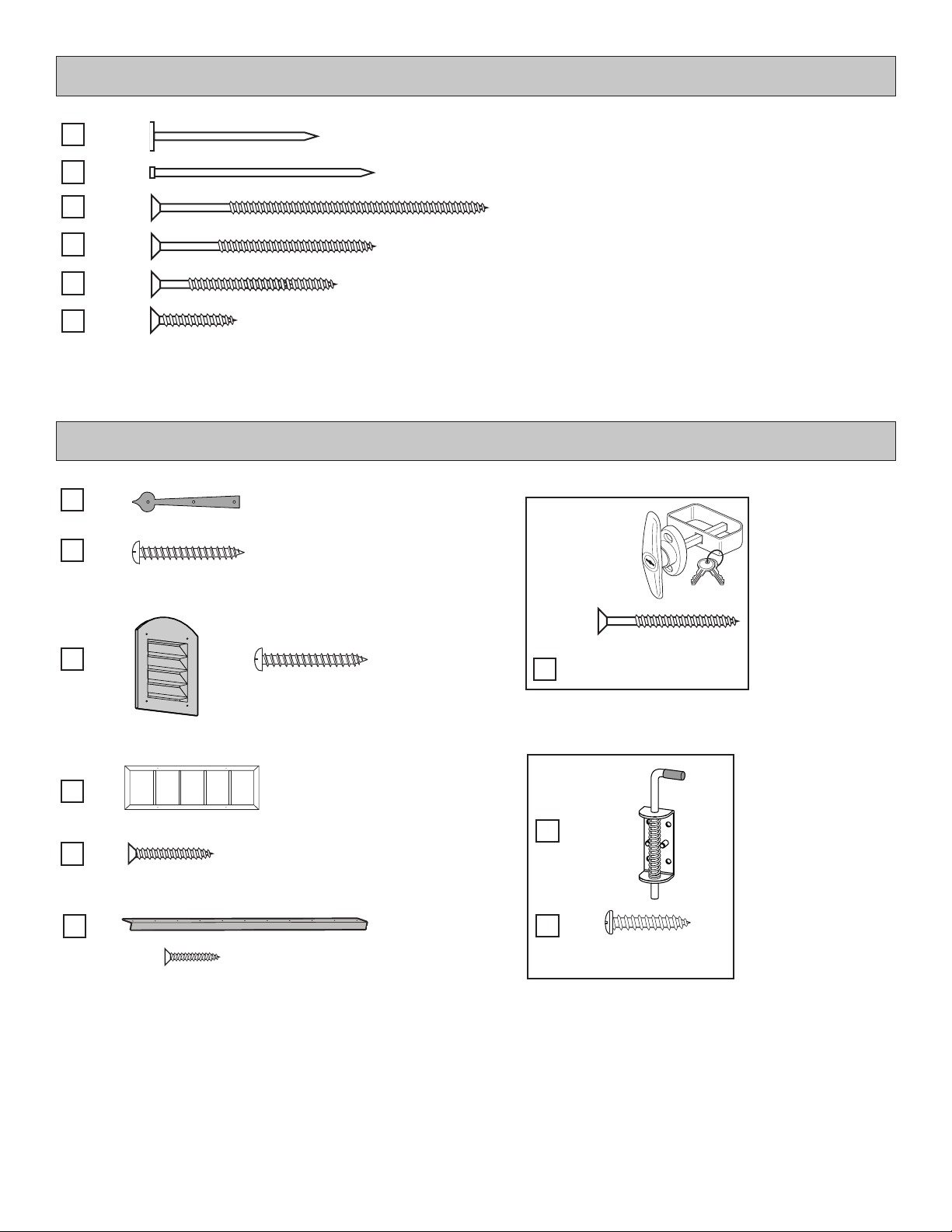

FASTENERS & HARDWARE
1-5/8" (4,1 cm)
2" (5,1 cm)
3" (7,6 cm)
3/4" (1,9 cm)
2" (5,0 cm)
1-1/2" (3,8 cm)
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
VENT, WINDOW and DOOR HARDWARE
x2
Transom Window
3/4" (1,9 cm)
x8
x1 64" Metal Threshold
3/4" (1,9 cm) x11
Bagged seperately / special coating
x2
x12
1" (2,5 cm)
x4
x1
1-1/4"
(3,2 cm)
x2
Handle (locking)
with Screws
Spring Bolt
x2
(4 screws in each package)
x8
1-1/4 (3,2 cm)
x8
#8 x 1" (2,5 cm)
Pan Head Screws

6
DRIP EDGE ..................... 60 Feet #15 ROOFING FELT
To cover 162 sq. ft. of roof area.
1" GALVANIZED ROOFING NAILS.........1/4 Lb
For roong felt.
IMPORTANT! Depending on your specic use you may want to construct a heavy duty oor frame by adding additional oor joists
(shown below as shaded). Below is a list of additional materials (not included):
x3
x12
2 x 4 x 10' (5 x 10 x 304,8 cm) Treated Lumber
Cut to (3) 2 x 4 x 117" (5 x 10 x 297,2 cm)
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
Optional 12" (30,5 cm) spacing
Standard 16" (40,7 cm) spacing
OPTIONAL MATERIALS
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
COMPLETING YOUR SHED
You will need these additional materials:
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
• This shed does not include any oor or leveling materials. Use our optional oor kit with building instructions and nails included.
• See the FLOOR LEVELING section on page 9 for recommended methods and suggested materials to properly level your oor,
as this will vary depending on your specic site.
• If you choose to install your kit on a concrete slab refer to page 7.
• If you choose to build your own wood oor foundation refer to page 8.
3-TAB SHINGLES ............................. 6 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................ 3 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 3 Lbs
For shingles.
PAINT FOR TRIM .......................... 2 Quarts
Use 100% acrylic latex exterior paint.

7
CONCRETE FOUNDATION
Your kit contains all materials to construct a wooden oor. If you choose to install your kit
on a concrete slab refer to the diagram below.
• A treated 2 x 4 (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete.
Hint: Purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
NOTES
Allow new concrete slabs to cure for at least seven (7) days.
2 x 4 x 8' (5,1 x 10,2 x 244 cm)
Caulk
Requires:
x2
x2
x1
MUST be treated lumber.
MUST be treated lumber.
96" (243,8 cm)
96" x 144" (243,8 x 365,8 cm) 137" (348 cm)
8'x 12' (243,8 x 365,8 cm) 144" (365,8 cm)
AActual Size B CBuilding Size
2 x 4 x 12' (5,1 x 10,2 x 365,8 cm)
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
D
D
Treated Sill Plate
Caulk between
sill plate and
concrete.
Sill plates must be treated lumber.
DOOR
DOOR

8
BUILD YOUR OWN WOOD FLOOR OPTION
(Materials not included.)
2 x 4 x 12' (5,1 x 10,2 x 365,8 cm)
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm)
x2
x10
MUST be treated lumber
MUST be treated lumber
MUST be treated lumber
5/8" x 48" x 96" (1,6 x 121,9 x 243,8 cm)
x3
x1
x40
x40
1 lb. of 2" (5,1 cm) Hot Dipped Galvanized Box-Type Nails
40 Nails - 3" (7,6 cm) Hot Dipped Galvanized Box-Type Nails
3" (7,6 cm)
2" (5,1 cm)
3" (7,6 cm)
MATERIAL REQUIRED
4 x 4 x 12' (10,2 x 10,2 x 365,8 cm)
x2
Screws for Frame to 4"x 4"
Minimum 3" screws / exterior grade.
144"
(365,8 cm)
96"
(243,8 cm)
93"
(236,2 cm)
16"
(40,6 cm)
16"
(40,6 cm)

9
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
• 3" Screws angled into 4
x t4.
• (2) at each point frame
and 4x4 touch.
Runners are generally 12" (30,5 cm) from

FLOOR FRAME NOT INCLUDED

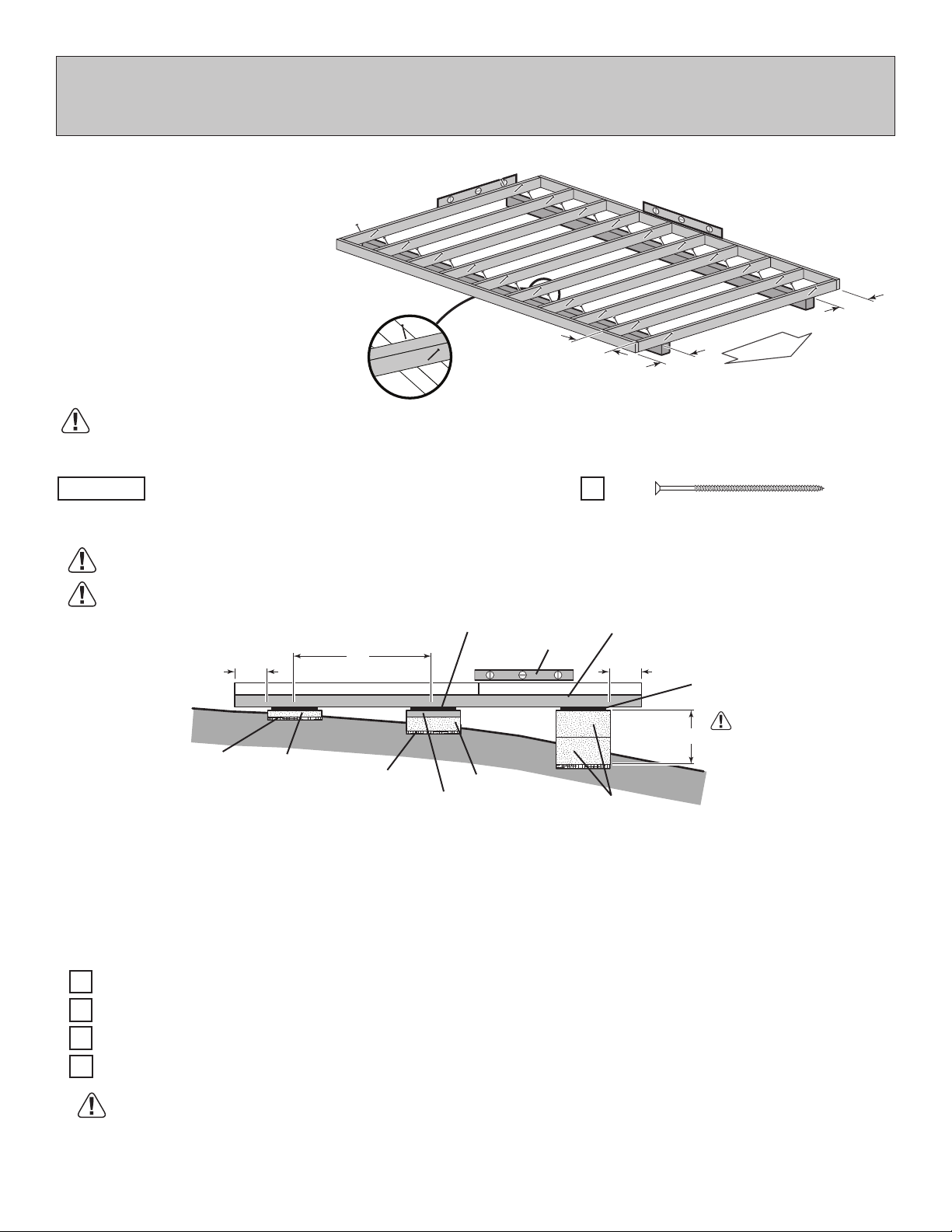

OPTIONAL WOOD FRAME FLOOR LEVELING OPTIONS

Leveling materials are not included in this kit.
PREFERRED METHOD - 4 x 4 TREATED RUNNERS (Typical for 8' x 12' Kit)
MATERIAL REQUIRED
4 x 4 x 12' (10,2 x 10,2 x 365,8 cm) Treated Lumber
8' x 12' x2 x40 3" (7,6 cm)
Fasteners for Frame to 4 x 4.
(3" Screws shown as one option.)
Minimum 3" screws / exterior grade.
12"
(30,5 cm)
16"
(40,6 cm)
12"
(30,5 cm)
Measurements to
centers of 4 x 4's.
DOOR

10
DOOR
FINISH

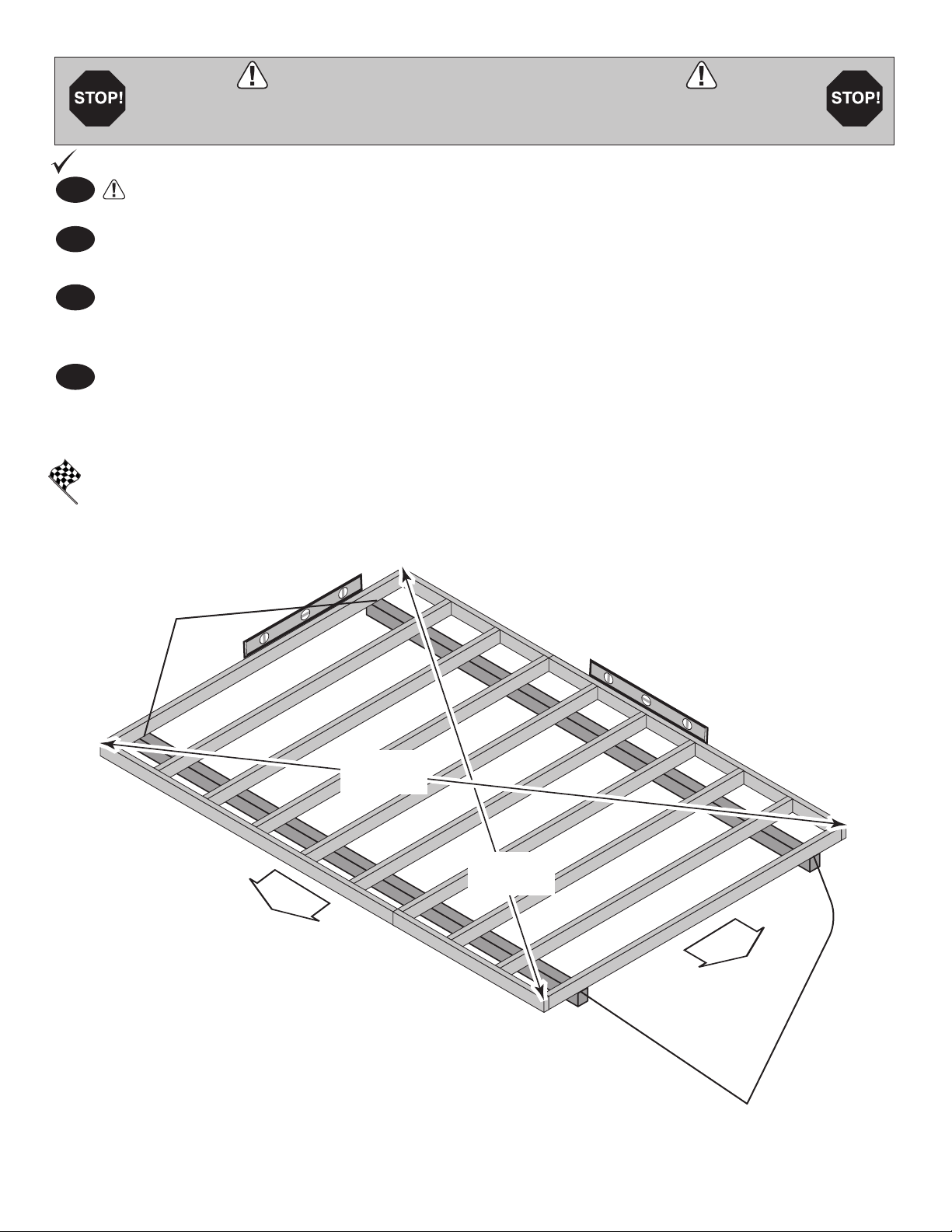

LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use a level to ensure the frame is level before installing oor panels.
Check for frame squareness by measuring diagonally across corners.
If the measurements are the same, the frame is square.
The diagonal measurement will be approximately 173-1/16" (439,6 cm).
When the frame is level and square, secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. Move to the opposite end of the frame.
Secure the frame to 4x4 runners with one fastener at ends of each runner, making sure the frame
remains square (Fig. A).
After the oor frame is level and square, fasten the frame to the 4x4 runners at each point
where the frame contacts the 4x4 runners.
See page 9 for the preferred oor leveling method.
First, secure
at ends with
one fastener.
Second, secure
at ends with
one fastener.
173-1/16"
(439,6 cm)
173-1/16"
(439,6 cm)
Fig. A
DOOR
DOOR

11
DOOR

Re-level if needed.
HINT:
IMPORTANT!

• Organize your assembly procedure during the build process to avoid
over-handling of the walls.
EAVE WALL
EAVE WALL
Your door location may vary.
EAVE WALL
EAVE WALL
OPTION GABLE WALL
OPTION
GABLE WALL

12
PARTS REQUIRED:
FINISH
You have nished rafter jig. Proceed to assemble your rafters.
RAFTER ASSEMBLY
3" (7,6 cm)
x4
Build a rafter jig using the oor and (2) UY parts.
x2 2 x 4 x 6-1/2" (5,1 x 10,2 x 16,5 cm)
UY
BEGIN
¸
1
96-3/4"
(245,7 cm)
UY x2
Secure (1) UY ush to the oor deck with (2) 3" screws (Fig. A).
Measure over 96-3/4" (243,8 cm) and install a second UY ush to the oor deck.
Secure with (2) 3" screws.
Fig. A
(2) 3" (7,6 cm)
Screws


Flush Flush

13
96-3/4"
(245,7 cm)
BEGIN
¸
1
PARTS REQUIRED: x 144 2" (5,1 cm)

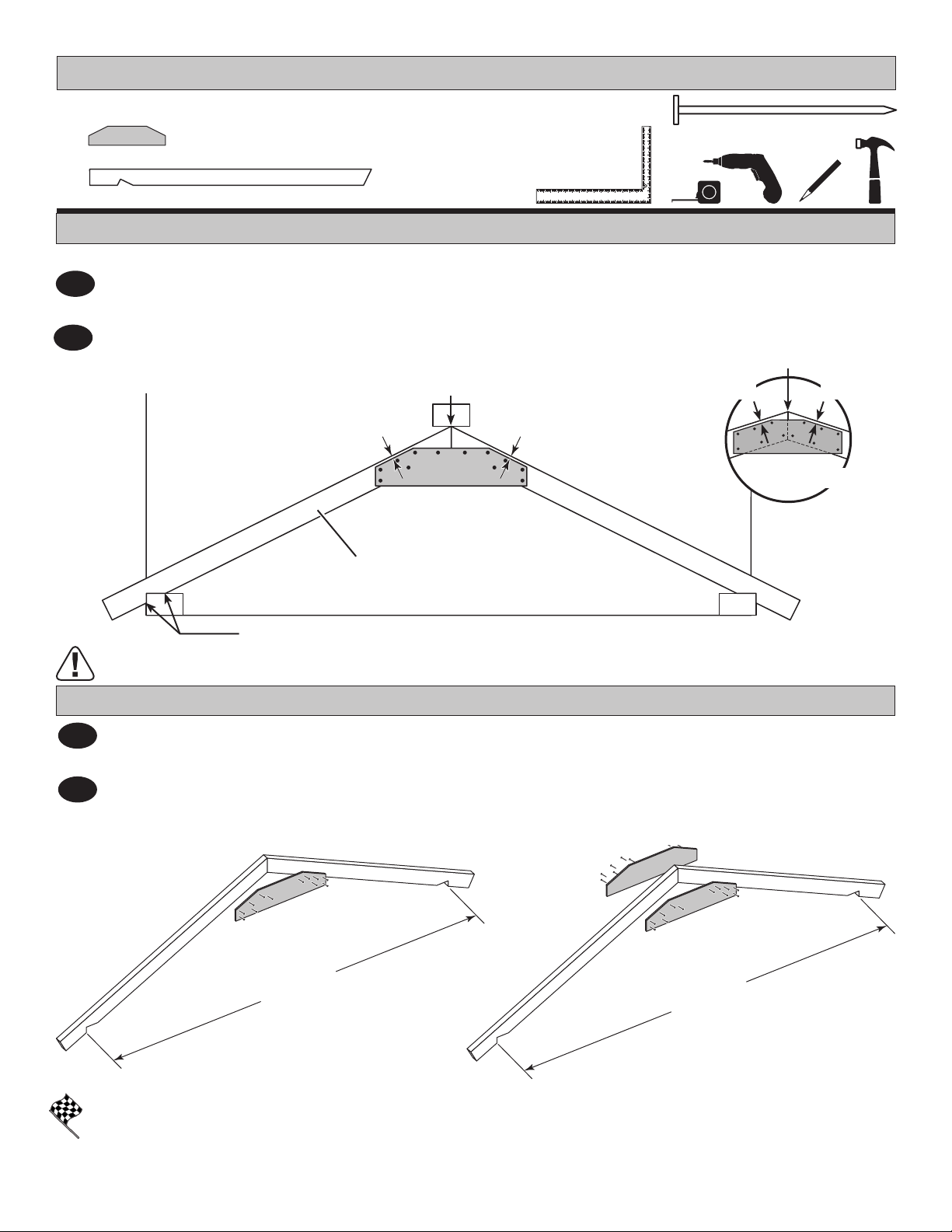

RAFTER ASSEMBLY
x12
6 x 24" (15,2 x 61 cm)
OSB OR WOOD GRAIN
x14
2 x 4 x 61-7/8" (5,1 x 10,2 x 157,2 cm)
CNA
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
CNA x2
Fig. A
UY at both ends when securing gusset.
You have nished assembling your rafters.
Remove jig parts UY from oor.
Flip rafters over and fasten a second gusset with (12) 2" nails. No need to use jig for the 2nd gusset.
3
4
2 Place gusset on CNA, holding a 1/4" gap from edge (Fig. B) and keeping rafters rm, as instructed.
Secure the gusset to the rafters with (12) 2" nails in the pattern shown (Fig. B).
Place (2) rafters CNA in the jig, as shown. Hold CNA rm against UY's as shown (Fig.A).
Rafters should touch at tips (Fig. B).
FINISH
96-3/4"
(245,7 cm)
Place two rafter-halves CNA in the jig, as shown (STEP - 1).
Flush rafters at peak. Secure gusset to rafters with 2" nails following the pattern shown (FIg. B).
Build (2) rafter assemblies with (1) gusset (Fig. C).
Build (5) rafter assemblies with (2) gussets (Fig. D).
SET ASIDE THESE TWO RAFTER ASSEMBLIES.
Fig. C - Build 2 Fig. D - Build 5
Fig. B
1/4"
(1,9 cm)
1/4"
(1,9 cm)
Flush
Flush

14
01 02
02 02
03 03
03 04
Create your own style of shed. Choose your door location.
Use this guide to nd the corresponding wall construction and installlation pages.
As another option, eave walls with doors can be reversed during assembly.
IMPORTANT! Build your door header before building any walls (see page 15).
8' x 12'
Wall 01: Page 17
Wall 02: Page 19
Wall 03: Page 21 (Build 2 eave walls)
8' x 12'
Wall 02: Page 19 (Build 2 gable walls)
Wall 03: Page 21
Wall 04: Page 23
WALL INDEX
8' x 12' Door on gable wall
After assembling the walls for your 8' x 12' shed,
go to page 25 for wall installation.
8' x 12' Door on eave wall
After assembling the walls for your 8' x 12' shed,
go to page 25 for wall installation.

15
PARTS REQUIRED: 3" (7,6 cm)

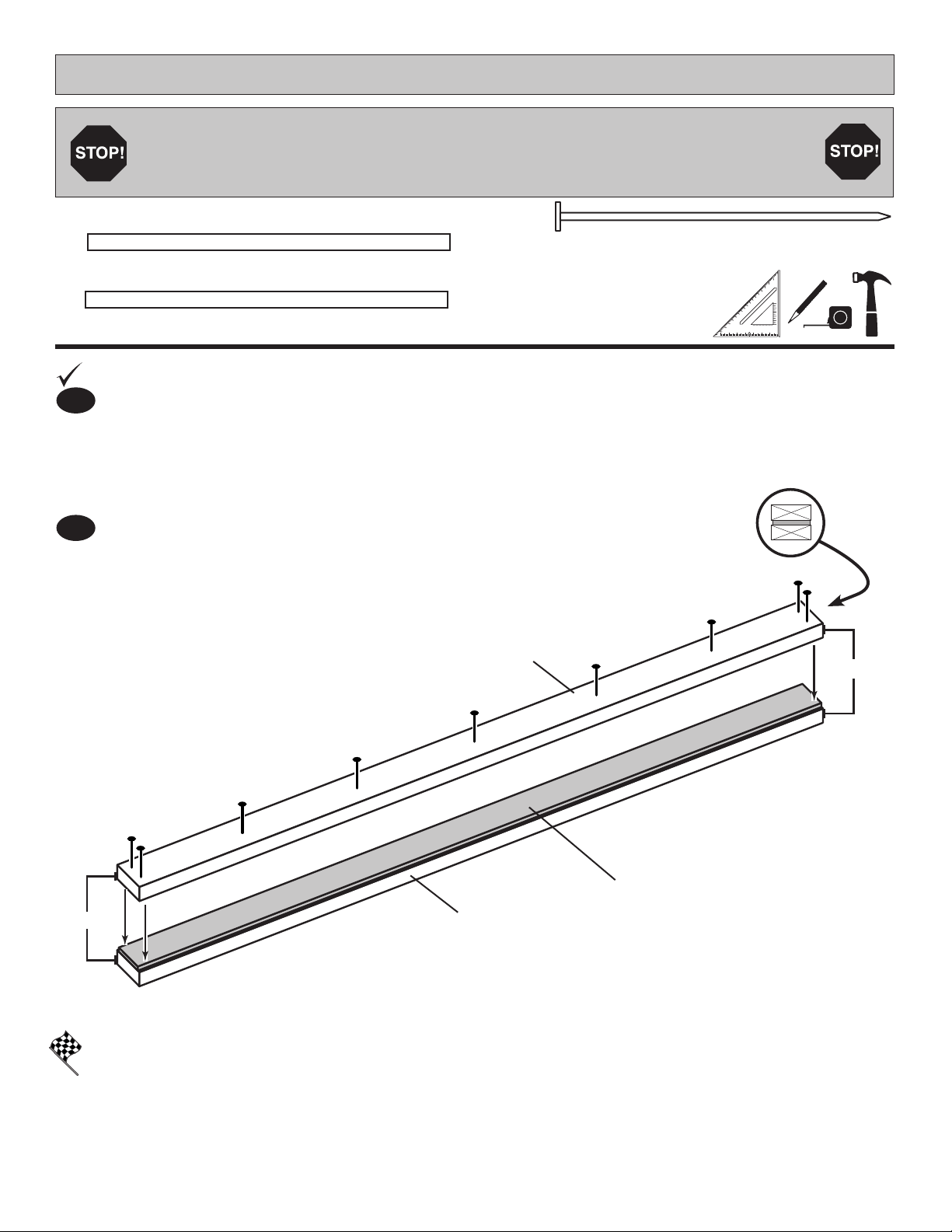

DOOR HEADER
x18
x2
2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
x1
7/16 x 3-1/4 x 66-3/4" (1,1 x 8,3 x 170,2 cm) OSB
Place (1) AM and OSB end-to-end on at surface, ush in middle.
Center OSB on top of AM.
Fasten together with 3" nails in the pattern shown.
Your door header is now assembled.
FINISH
OSB
ASSEMBLED
END VIEW
BEGIN
1
AM
AM
2Flip header assembly over and nail as shown on the other side.
Flush
Flush
Assemble this door header before building any walls!

16
x40 2" (5,1 cm)
PARTS REQUIRED:
Place (1) 48" x 84" panel on the wall frame, as shown.
Locate the panel 1-1/2" above the top plate.
Use a 2x4 as a gauge block for the 1-1/2" top overhang measurement.
Use the GAA gauge block to mark the 3/4" side measurement on the wall stud.
Secure panel with (2) 2" nails in the corners (Fig. A).
2
Secure panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
EXAMPLE WALL
Ensure your wall is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever,
move the panel side-to-side until you have a 3/4" measurement on the wall stud.
Secure corner with (2) 2" nails (Fig. B).
3/4" Gauge
Block
x1 3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm )
For squareness maintain 1-1/2"
and 3/4" measurement along panel edges.
BEGIN HERE
3/4"
(1,9 cm)
6" (15,2 cm)
12" (30,5 cm)
2x4
TEMP. SPACER
3/4" GAUGE
BLOCK
GAA

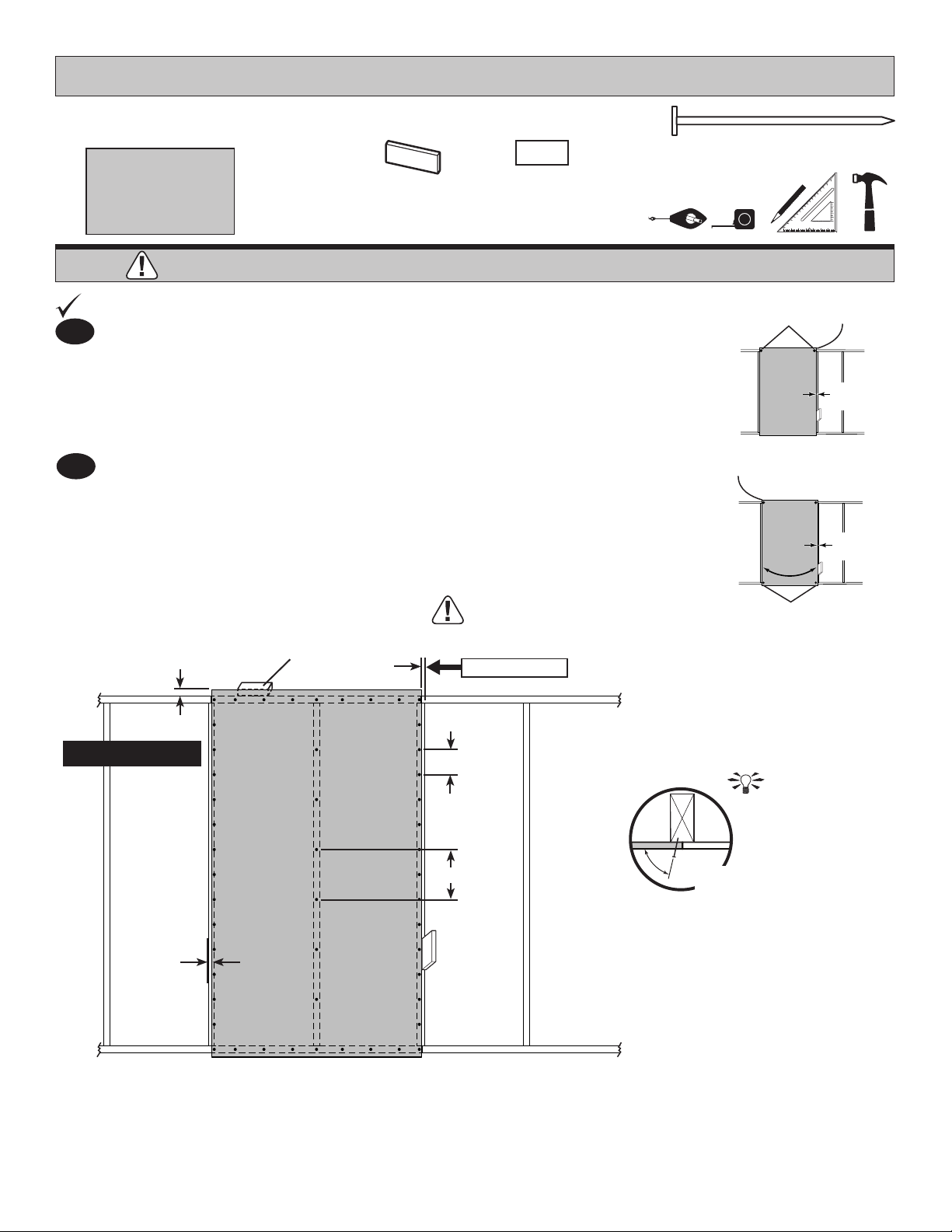

WALL PANEL INSTALLATION HINTS & EXAMPLES
BEGIN
1
Angle nail to draw panels
tight at seams.
Install all wall panels with the primed side facing up.
2x4
1-1/2"
(3,8 cm)
3/4"
(1,9 cm)
Fig. A 3/4"
(1,9 cm)
2 Nails
1-1/2" (3,8 cm)
overlap at top
Fig. B 3/4"
(1,9 cm)
1-1/2" (3,8 cm)
overlap at top
2 Nails
HINT

17
1-1/2"
78-1/2"
13-3/4" 13-3/4"
24"
48"
72"
82-1/4"
96"
64"
(3,8 cm)
(199,4 cm)
(34,9 cm) (34,9 cm)
(61 cm)
(121,9 cm)
(182,9 cm)
(208,9 cm)
(243,8 cm)
(162,6 cm)
Fig. B
3" (7,6 cm)
Screws
3" (7,6 cm)
x6
x1
Pre Assembled Header
Flush Flush
3" (7,6 cm)
Screws
HI NT:
For easier nailing
stand on frame.
PARTS REQUIRED:
3" (7,6 cm)
x50
8' WALL 01
BEGIN
1
Install Header in
this position
2
Flush
Arrange parts on edge on oor, as shown. Measure and mark from end of boards.
Orient Pre Assembled Header as shown (Fig. A).
Secure with (2) 3" nails at each connection.
Fasten (3) middle parts UY to Pre Assembled Header with (2) 3" screws (Fig. B).
Secure parts UY to top plates with (2) 3" nails at each connection.
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
UY x3
AI x4 YFAYFA
TP
TP
x4
2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
Pre-Assembled Header
x3
2 x 4 x 6-1/2" (5,1 x 10,2 x 16,51 cm)
UY
Fig. A
x2
2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
YFA

18
PARTS REQUIRED:
8' WALL 01
Install panels with the primed side facing up.
Install the left panel 1-1/2" from the top plate. Use a 2x4 spacer for consistent measurement.
Secure panel with 2" nails spaced 6" apart on edges.
Install the right panel ush to installed panel, as shown. Ensure 64" (162,8 cm) door measurement.
Secure panels with 2" nails spaced 6" apart on edges.
2x4
2" (5,1 cm)
x90
6" (15,2 cm)
BEGIN HERE
3/4"
(1,9 cm)
Flush
Flush
Flush
3" (7,6 cm)
x2
4
3
64"
(162,6 cm)
Your 8' WALL 01 is now assembled.
Carefully ip the wall over.
FINISH
1-1/2"
(3,8 cm)
1-1/2"
(3,8 cm)
x1 x1
3/4" GAUGE
BLOCK
GAA
2x4
TEMP. SPACER
