10/24/2022
KEEP THIS MANUAL FOR FUTURE REFERENCE
ACTUAL FLOOR SIZE IS 120" x 48" (304,8 cm x 121,9 cm)
COSMOPOLITAN 10' x 4' (304,8 cm x 121,9 cm)
ASSEMBLY MANUAL
16909-A
BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
***CONTACT OUR CUSTOMER SERVICE TEAM
IF ANY PARTS ARE MISSING OR DAMAGED***
- Order form and warranty at back of manual -
Call: 1-734-242-6900 email: [e-mail]

Be sure to check local building department and homeowners association for specic restrictions and/ or requirements before building.

Contact our Customer Service Team if engineered drawings are needed to pull local permits.

To ensure proper assembly you must build your shed on a level surface.
Recommended methods and materials to level your shed are listed on page 9.

Inventory all parts listed on pages 4-8.

You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
Three options for door trim.

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have  nished the assembly or installation.
= Level
❑Gloves
❑C-Clamps
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes
in no way negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑Phillips
Screwdriver
❑Drill / Driver
❑3/8" Drill Bit
❑#2 Philips Drive Bit
❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑Square or
❑Utility Knife
❑Shingle Blades
B C

3
COMPLETING YOUR SHED
You will need these additional materials:
OPTIONAL MATERIALS
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS NEEDED
DRIP EDGE ..................... 30 Feet #15 ROOFING FELT
To cover 42 Sq. Ft. of roof area.

For roong felt.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS
FOR INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
• This shed kit includes a complete wood oor frame system.
• This shed kit does not include ANY leveling materials.
• 

3-TAB SHINGLES ........................... 2 Bundles
PAINT FOR SIDING ......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 1 Tube
Use acrylic latex exterior caulk that is paintable.

For shingles.
PAINT FOR TRIM .............................1 Quart
Use 100% acrylic latex exterior paint.
WOOD GLUE ....................... Exterior Rated
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
IMPORTANT! The included oor is designed for general use. Depending on your specic use you may want to construct a heavy duty
oor frame by adding an additional oor joist (shown below as shaded). Below is a list of additional materials (not included):
x4
x1 2 x 4 x 8' (5 x 10 x 244 cm) Treated Lumber
Cut lumber to 2 x 4 x 45" (5 x 10 x 114,3 cm)
3" (7,6 cm) Hot Dipped Galvanized Nails
Optional 12" (30,5 cm) spacing
Standard 16" (40,6 cm) spacing

4
FLOORROOF WALLS
Part identication
is stamped on some parts.
• Check these locations for part stamp.
RS RS
x1 FGC 2 x 6 x 31-5/16" (5,1 x 15,2 x 81,1 cm)
x3 BZM 2 x 4 x 33-5/8" (5,1 x 10,2 x 85,4 cm)
x1 RAC 2 x 3 x 4-1/8" (5,1 x 7,6 x 10,5 cm)
x3 AYC 2 x 4 x 6-1/4" (5,1 x 10,2 x 15,9 cm)

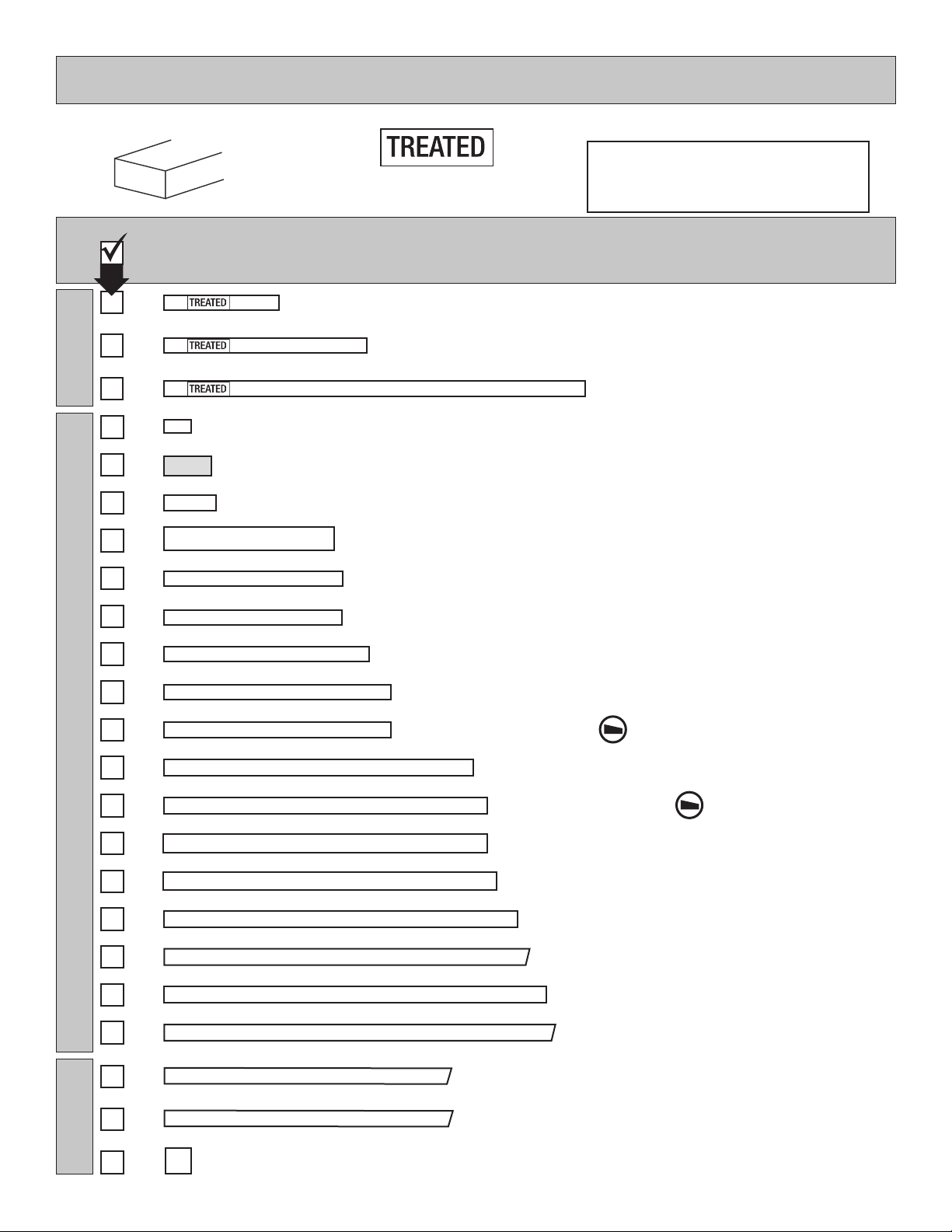

PARTS IDENTIFICATION AND SIZES
Treated lumber is stamped:
PARTS LIST



Nominal Board Size Actual Size
1 x 4 .................3/4" x 3-1/2" (1,9 x 8,9 cm)
2 x 4 ..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2 x 3 ..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1 x 3
.................3/4" x 2-1/2" (3,8 x 6,3 cm)
x2 3/8" x 3-1/2" x 3-1/2" (1,5 x 6,3 x 6,3 cm)
x2 2 x 4 x 96" (5 x 10,2 x 243,8 cm)
x2 HUB 2 x 4 x 69-3/8" (5,1 x 10,2 x 177,2)
x8 XMB 2 x 4 x 80-5/8" (5,1 x 10,2 x 204,8 cm)
x1  2 x 4 x 84-9/16" (5,1 x 10,2 x 214,8 cm)
x6 IMU 2 x 4 x 88-1/2" (5,1 x 10,2 x 224,8 cm)
x1 DKC 2 x 4 x 90-11/16" (5,1 x 10,2 x 230,3 cm)
x6 MJC 2 x 4 x 53-1/2" (5,1 x 10,2 x 135,9 cm)
x10 2 x 4 x 45" (5 x 10 x 114,3 cm)
x2 2 x 4 x 24" (5 x 10 x 61 cm)
x1  2 x 4 x 41" (5,1 x 10,2 x 104,1 cm)
x2 SP 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
x1 7/16" x 3-1/4" x 33-5/8" (1,1 x 8,3 x 85,4 cm) OSB
x2 EMA 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm) Beveled
Prole
x2  2 x 4 x 72" (5,1 x 10,2 x 182,9) Beveled
Prole
x2 TM 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
x1 CXB 2 x 4 x 73-1/4" (5,1 x 10,2 x 186,1 cm)
x2  2 x 4 x 53-7/8" (5,1 x 10,2 x 136,8 cm)
x2 Header Spacer
7/16" x 3-1/2" x 6-1/4" (1,1 x 8,9 x 15,9 cm)

5
DOOR TRIM CORNER TRIMSOFFIT TRIM
x4 19/32" x 3-1/2" x 24-5/8" (1,5 x 8,9 x 62,5 cm)
x4 MAC 19/32" x 3-1/2" x 29" (1,5 x 8,9 x 73,3 cm)
x2 JQC 19/32" x 3-1/2" x 36" (1,5 x 8,9 x 91,4 cm)
FMB
x1 19/32" x 3-1/2" x 10-1/8" (1,5 x 8,9 x 25,7 cm)
x1 3/8" x 3-11/16 x 73-7/8" (1 x 9,4 x 187,6 cm)
x1 3/8" x 3-11/16 x 49-7/8" (1 x 9,4 x 126,7 cm)
x2 3/8" x 1-1/2" x 49-1/2" (1 x 3,8 x 125,7 cm)
x2  19/32" x 5-1/2" x 74-7/16" (1,5 x 14 x 189,1 cm)
x2 UAC 19/32" x 5-1/2" x 50-1/2" (1,5 x 14 x 128,3 cm)
OO
x1 69" (175,3 cm) Door Stiffener
x1 QCC 19/32" x 5-1/2" x 54" (1,5 x 14 x 137,2 cm)
PARTS LIST
IDC
x2 19/32" x 3-1/2" x 65" (1,5 x 8,9 x 165,1 cm)
x1 ZP 19/32" x 3-1/2" x 72-3/8" (1,5 x 8,9 x 183,8 cm)
x2 FXA 19/32" x 3-1/2" x 2-7/16" (1,5 x 8,9 x 6,2 cm)
x1 19/32" x 2-1/2" x 84" (1,5 x 6,3 x 213,4 cm)
ONA
x1 19/32" x 2-1/2" x 84" (1,5 x 6,3 x 213,4 cm)
MTD
x2 19/32" x 3-1/2" x 83-7/16" (1,5 x 4,4 x 211,9 cm)
DIA
x2 19/32" x 3-1/2" x 90-15/16" (1,5 x 4,4 x 231 cm)
LUT
x1 19/32" x 2-1/2" x 92-1/8" (1,5 x 6,3 x 234 cm)
GSD
x1 19/32" x 2-1/2" x 92-1/8" (1,5 x 6,3 x 234 cm)
NCD
x1 SZA 19/32" x 5-1/2" x 54" (1,5 x 14 x 137,2 cm)
x2 HAD 19/32" x 3-1/2" x 43-3/4" (1,5 x 8,9 x 145,9 cm)
x1 19/32" x 3-1/2" x 55-1/16" (1,5 x 8,9 x 139,9 cm)
QFC
x1 19/32" x 3-1/2" x 56-13/16" (1,5 x 8,9 x 144,3 cm)
EZB
x1 19/32" x 3-1/2" x 69-7/16" (1,5 x 8,9 x 176,4 cm)
KTC
x1 19/32" x 3-1/2" x 45-7/16" (1,5 x 8,9 x 115,4 cm)
JAB
x2 ZO 19/32" x 3-1/2" x 72" (1,5 x 8,9 x 182,9 cm)

6
WALL PANELS & DOORS
ROOF PANELS
24 x 84"
(61 x 213,3 cm)
48 x 84"
(121,9 x 213,3 cm)
48 x 76"
(121,9 x 193 cm)
20 x 48"
(50,8 x 121,9 cm)
20 x 48"
(50,8 x 121,9 cm)
11-7/8" x 48"
(30,2 x 121,9 cm)
8-1/2 x 72"
(21,6 x 182,9 cm)
x1 x1
x1
48 x 96"
(121,9 x 243,8 cm)
7-13/16 x 72"
(19,8 x 182,9 cm)
23-7/8 x 96"
(60,6 x 243,8 cm)
x2 x1 x1
x1
x1
x1
x2
x1
NOTE: Panel parts are not stamped.
NOTE: Panel parts are not stamped.
x1
x1 x1
x1
x2
5-1/2 x 96"
(14 x 243,8 cm)
5-1/2 x 23-7/8"
(14 x 60,6 cm)
1-7/8 x 53-1/2"
(4,8 x 135,9 cm)
31-5/8" (80,3 cm)
DOOR
36" (91,4 cm)
DOOR


48" x 96"
(121,9 x 243,8 cm)
48" x 23-7/8"
(121,9 x 60,6 cm)
x2
4" x 48"
(10,2 x 82,2 cm)
x1

7

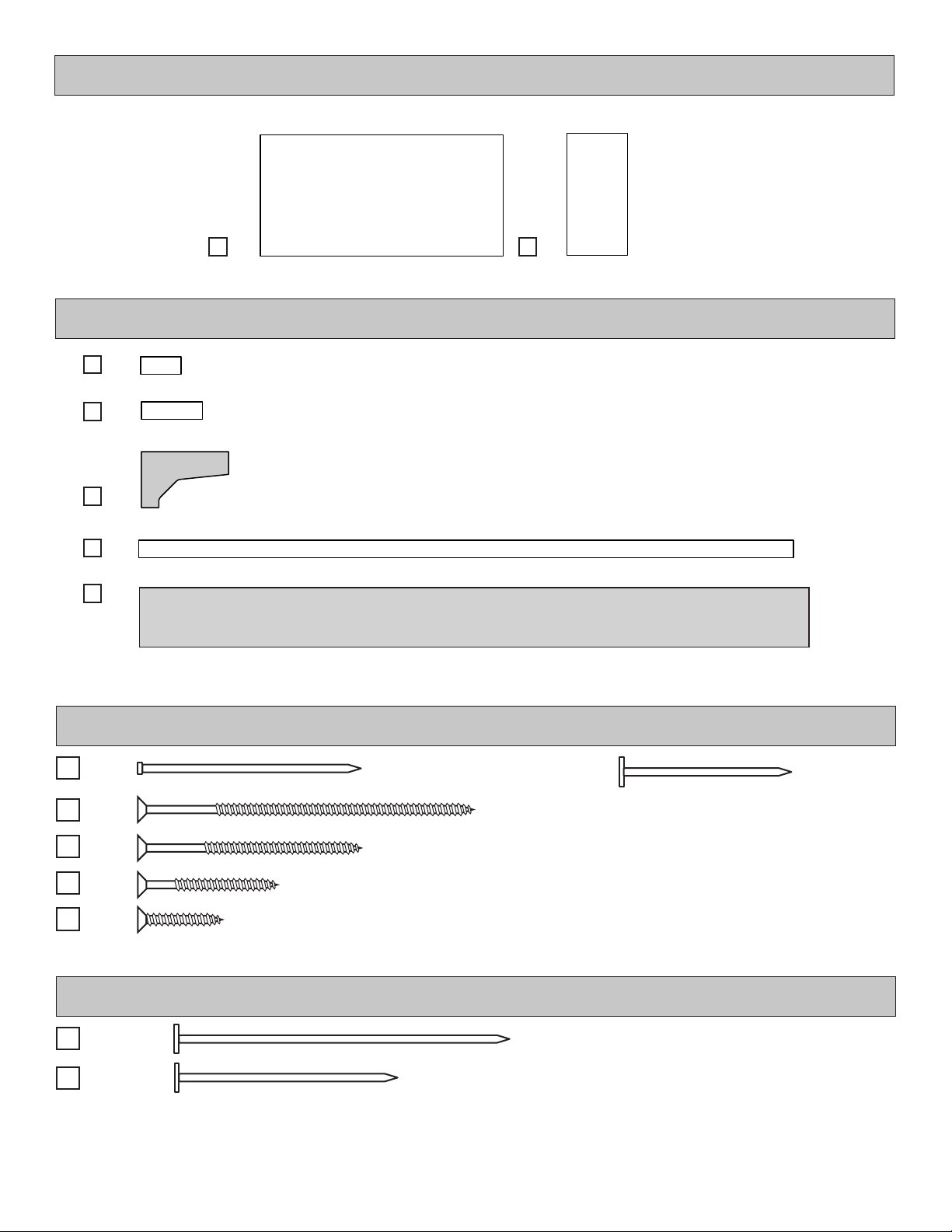

FASTENER/HARDWARE BAG (Shown Actual Size)
NAIL BOXES (Shown Actual Size)
x20
x70
x110
x20
x40
3" (7,6 cm)
3" (7,6 cm)
2" (5,1 cm)
2" (5,1 cm)
2" (5,1 cm)
3/4" (1,9 cm)
1-1/4" (3,2 cm)
x1 BOX
x2 BOXES
NOTE:
If you are using a nail gun, nails
may be used where screws are
shown for quicker assembly.
Length of nail must match screw length.
1-1/2" (3,8 cm)
x100
FLOOR PANELS
SHELF PARTS
NOTE: Panel parts are not stamped.
48" x 96"
(121,9 x 243,8 cm)
2 x 3 x 93-3/4" (5,1 x 7,6 x 238,1 cm)
8" x 12-1/2" (20,3 x 31,8 cm)
2 x 3 x 8-3/4" (5,1 x 7,6 x 22,2 cm)
2 x 3 x 5-3/4" (5,1 x 7,6 x 14,6 cm)
48" x 23-7/8"
(121,9 x 60,6 cm)
x1
x1
x1
x2
x2
x1
WDB
JPA
RTB
3/8" x 9" x 96" (1,0 x 22,9 x 243,8 cm)
x1

8
DOOR HARDWARE (Not Actual Size)
T-Handle
x1
x2 1-1/2" (3,8 cm)

x1
30-1/2" Metal Threshold
Bagged separately / special coating
3/4" (1,9 cm) x6
x1
31-3/16" Metal Threshold
Bagged separately / special coating
3/4" (1,9 cm) x6
x1
x1
x2
x1
36" (91,4 cm) Door Brush
x2
69-3/4" (177,2 cm) Door Brush
x2
#14 x 1" (2,5 cm)
x2
x8
1" (2,5 cm)
x2
5/16" x 2" Hex
Lag Screw
x2
5/16" x 1" Hex
Lag Screw
Metal Rain Channel
x1
1" x 1" x 36" (2,5 x 2,5 x 91,4 cm)
Door J-Channel
x1
1-1/4" x 7/16" x 36" (3,2 x 1,1 x 91,4 cm)
x1
x7
1" (2,5 cm)
x8x2
x12 #8 x 1" (2,5 cm)
Wide Head Metal Screws
x4
1-1/4" (3,2 cm)
x4
#12 2" (5,1 cm)
x2
16" x 8"

9
FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.

PREFERRED METHOD - 4x4 TREATED RUNNERS
Measurements to

• 3" Screw angled into 4x4.
• (2) at each connection.
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber.
Never use shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.

• If you are building your shed on a concrete foundation see the following page.
CONCRETE
MATERIAL REQUIRED
x2 4 x 4 x 10' (10,2 x 10,2 x 304,8 cm) Treated Lumber (Cut to (3) 48" runners.)

(3" Screws shown as one option.) Minimum (40) 3" screws / exterior grade.




Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
6"
(15,2 cm)
6"
(15,2 cm)

10
A B CActual Floor Size
• A treated 2 x 4" (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete.

• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4" (5 ,1x 10.2 cm) sill plates to slab using approved concrete anchors .
• Check local code for concrete foundation requirements.
120" (304,8 cm) 48" (121,9 cm)
 41" (104,1 cm)
NOTES
Treated Sill Plate
Caulk between sill plate
and concrete.
2 x 4 x 10' (5,1 x 10,2 x 304,8 cm)
2 x 4 x 8' (5,1 x 10,2 x 243,8 cm)
Requires:
x2
x1
MUST be treated lumber.
MUST be treated lumber.
Caulk
x1
Allow new concrete slabs to cure for at least seven (7) days.
3-1/2"
(8,9 cm)
4"
(10,2 cm)
AB
C
CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
D
OO
R

11
A
B
B
B
B
H
H
C
H
H
G
G
D
F
F
F
F
F
F
E

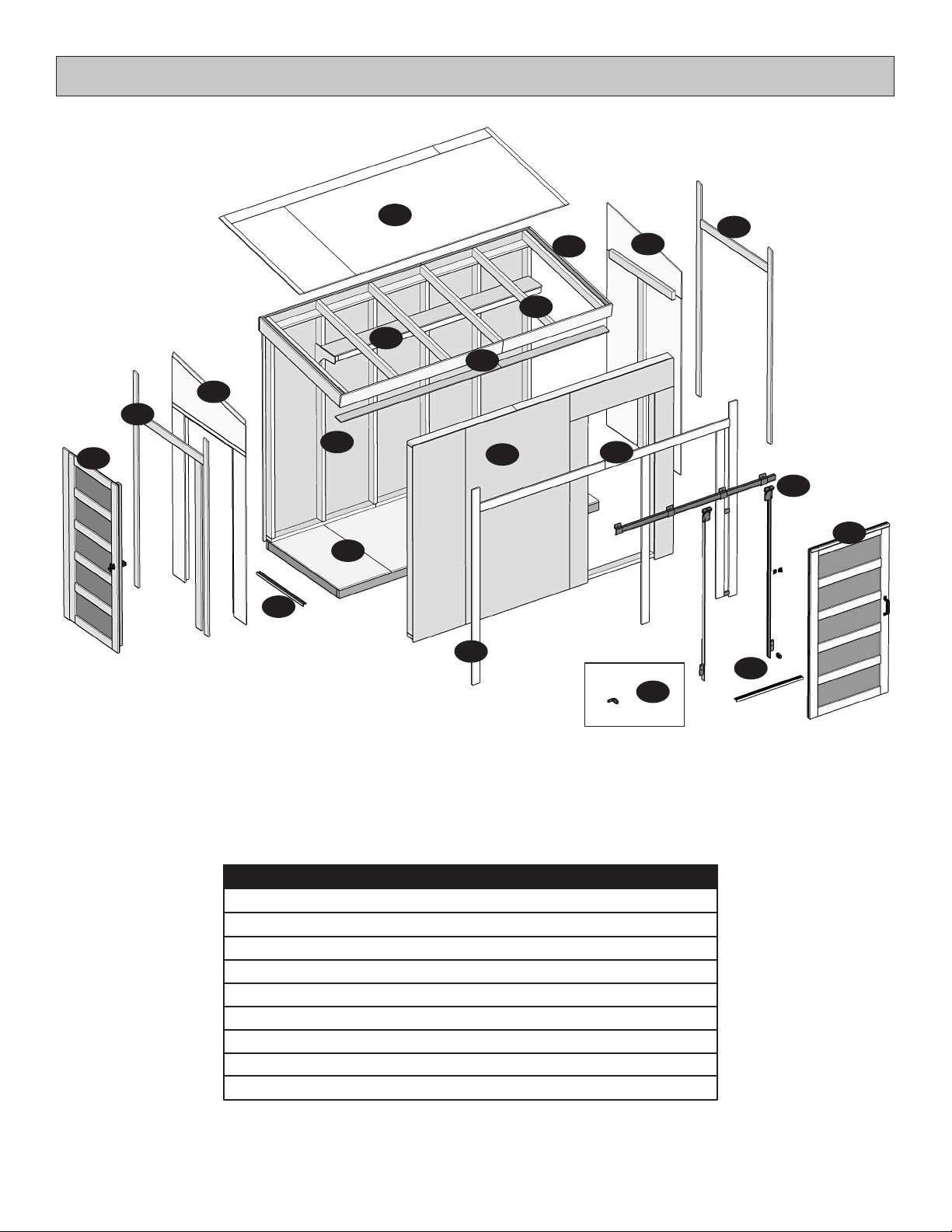

COMPONENT SECTION INDEX
Floor A 12
Walls B 16
Shelf C 29
Rafters D 31
Roof Panels E 33
Trim F 35
Doors & Door Trim G 42
Door HDW. H 54
Shingles/Roong ................................................................... 59
Description Section Page

96" 24"
45"
1-1/2"
(3,8 cm)
(114,3 cm)
8"
24"
40"
56"
72"
88"
96"24"
104"
120"
(243,8 cm) (61 cm)
(20,3 cm)
(61 cm)
(101,6 cm)
(142,2 cm)
(182,9 cm)
(223,5 cm)
(243,8 cm)(61 cm)
(264,2 cm)
(304,8 cm)
12
3" (7,6 cm)
Arange parts on edge on a  at surface. Measure and mark dimensions from end of boards.
Secure parts with (2) 3" nails at each mark and (4) 3" nails at seams.
PARTS REQUIRED:
Center on
marks.
FLOOR FRAME
HINT:


BEGIN
1
x44
Your  oor frame is now assembled.
FINISH
NOTE: The included  oor is designed for general use. Depending on your speci c use you may want to construct a heavy
duty  oor frame by adding additional  oor joists (see page 3 for optional materials).
3" (7,6 cm)
Nails
SEAM
SEAM
x2 2 x 4 x 96" (5 x 10,2 x 243,8 cm)
x10 2 x 4 x 45" (5 x 10 x 114,3 cm)
x2 2 x 4 x 24" (5 x 10 x 61 cm)

13
FLOOR FRAME
FINISH
LEVEL AND SQUARE FLOOR FRAME
Before installing the  oor decking, it is important to level and square the  oor frame.
A level and square  oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use level and check the frame is level before installing  oor panels.
Check for frame squareness by measuring diagonally across corners.
If the measurements are the same, the frame is square.
The diagonal measurement will be approximately 129-1/4" (328,3 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at ends of
each runner.
At the opposite end of the frame, secure the frame to 4x4 runners with one fastener at the end of each runner
making sure the frame remains square .
Once the  oor frame is level and square, fasten the frame at each point where the frame
contacts the 4x4 runners.
See page 9 for the preferred  oor leveling method.
Second, secure at ends


First, secure at ends with

129-1/4"
(328,3 cm)
129-1/4"
(328,3 cm)

14
Install the 48" x 96" pro-struct panel with the 48" edge and corner  ush to the  oor frame .
Secure panel with (2) 2" nails in the corners. Ensure that the 48" edge will be 3/4" on the fl oor joist.
Move to the opposite end. Using the long edge of the panel as a lever, move the panel side-to-side until
the 96" edges are  ush to the  oor frame . Ensure that the 48" edge will be 3/4" on the fl oor joist.
Secure panel with (2) 2" nails in the corners.
2
BEGIN
1
3
4Continue securing the panels with 2" nails spaced 6" apart on edges and 12" apart inside panels.
48 x 23-7/8"
(121,9 x 60,6 cm)
PARTS REQUIRED:

FLOOR PANELS
Flush
Flush
2" (5,1 cm)
Install the  pro-struct panel,  ush along edges and  ush to the installed panel.
Secure with (1) 2" nail in each corner.
x93
48 x 96"
(121,9 x 243,85 cm)
x1 x1
(2) Nails

(2) Nails
Flush

Your  oor panels are now installed.
FINISH
Flush
6"
(15,2 cm)
12"
(30,5 cm)
3/4"
(1,9 cm)



Move

15



 
 
HINT:
IMPORTANT!

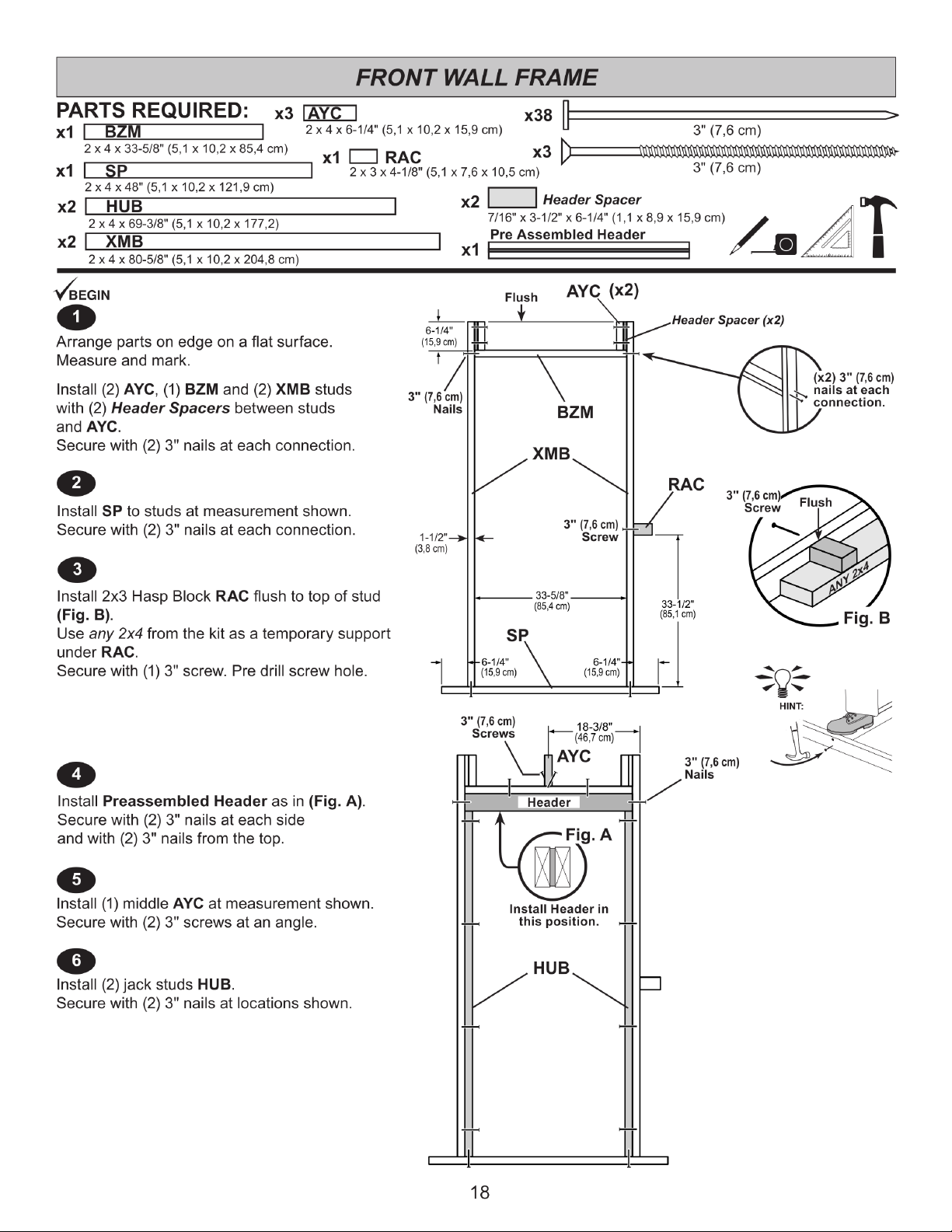

16
PARTS REQUIRED:
3" (7,6 cm)
DOOR HEADER
x14
Place (1) BZM and OSB end-to-end on  at surface,  ush in middle.
Center OSB on top of BZM.
Fasten together with 3" nails in the pattern shown.
Your door header is now assembled.
FINISH
OSB
ASSEMBLED

BEGIN
1
BZM
BZM
2Flip header assembly over and nail on the other side, as shown.
Flush
Flush
Assemble this door header before building any walls!
3" (7,6 cm)
Nails
x2 2 x 4 x 33-5/8" (5,1 x 10,2 x 85,4 cm)
BZM
x1 7/16" x 3-1/4" x 33-5/8" (1,1 x 8,3 x 85,4 cm) OSB

17
x50 2" (5,1 cm)
PARTS REQUIRED:

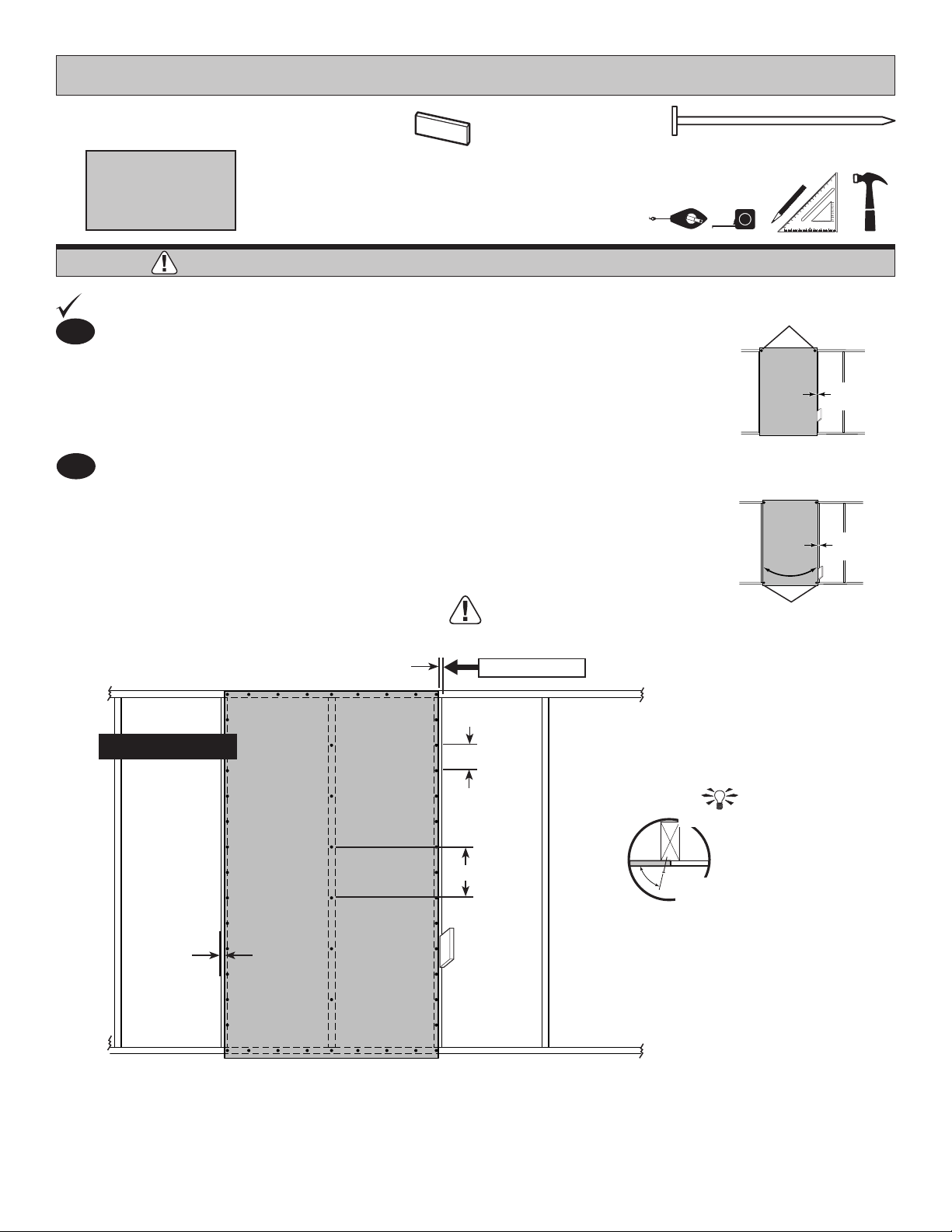

Place a 48" x 76" panel on the wall frame, as shown.
Locate the panel ush to the top plate.
H I NT: Use a 3/4" piece of wood as a measuring guide to mark the 3/4"
measurement on the wall stud.
Secure panel with (2) 2" nails in the corners 
2
Secure panel with 2" nails spaced 6" apart on edges and 12" apart inside panel.
EXAMPLE WALL
Ensure your wall is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever,
move the panel side-to-side until you have a 3/4" measurement on the wall stud.
Secure corner with (2) 2" nails .


Guide
x1
3/8 x 48 x 76"
(1 x 121,9 x 193 cm)


BEGIN HERE
3/4"
(1,9 cm)
6" (15,2 cm)
12" (30,5 cm)


Guide
WALL PANEL INSTALLATION HINTS & EXAMPLES
BEGIN
1
Install all wall panels with the primed side facing up.
3/4"
(1,9 cm)
 3/4"
(1,9 cm)
2 Nails
 3/4"
(1,9 cm)
2 Nails


HINT
