BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check with local building department and homeowners association for specic restrictions and/ or requirements before building.
. • ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to level your shed are
listed on page 7.
• CHECK ALL PARTS
Inventory all parts listed on pages 4 - 6. Contact our Customer Service Team if any parts are missing or damaged.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
- CUSTOMER SERVICE -
Call: 1-800-844-9273 email: [email protected]
A Backyard Products Company
AUBURN GABLE 8' x 8' (243,8 x 243,8 cm)
KEEP THIS MANUAL FOR FUTURE REFERENCE
ACTUAL FLOOR SIZE IS 96 x 96" (243,8 x 243,8 cm)
16552 1/2/2018

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑ Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑ Safety Glasses
❑ Tape Measure
❑ Paint Tools
❑ Ladder
❑ Caulk Gun
❑ Hammer
❑ Level
FINISH
BEGIN
❑ Pencil
❑ Phillips
Screwdriver ❑ Tool Belt/
Nail Pouch
❑ Chalk Line
❑ Nail Gun
• gun nails
❑ Tin Snips
(for drip edge)
❑ Square or
❑ Utility Knife
❑ Shingle Blades
B C
❑ Drill / Driver
❑ 1/8" Drill Bit
❑ #2 Philips Drive Bit
❑ 1/4" Drill Bit
❑ 5/16" Drill Bit
❑ 1/2" Drill Bit
❑ Hand Saw

3
OPTIONAL MATERIALS
DRIP EDGE ..................... 40 Feet #15 ROOFING FELT
To cover 112 Sq. Ft. of roof area.
1" GALVANIZED ROOFING NAILS.........1/4 Lb
For roong felt.
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS FOR
INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
COMPLETING YOUR SHED
You will need these additional materials:
3-TAB SHINGLES ............................. 5 Bundles
PAINT FOR SIDING .......................... 2 Gallons
Use 100% acrylic latex exterior paint. (2) coats recommended.
CAULK ................................................. 2 Tubes
Use acrylic latex exterior caulk that is paintable.
1" GALVANIZED ROOFING NAILS.... 3 Lbs
For shingles.
PAINT FOR TRIM .............................1 Quart
Use 100% acrylic latex exterior paint.
WOOD GLUE ....................... Exterior Rated
REINFORCED WOOD FLOOR FRAME (OPTIONAL)
WOOD FLOOR FRAME
IMPORTANT! Depending on your specic use you may want to construct a heavy duty oor frame by adding additional oor joists
(shown below as shaded). Below is a list of additional materials (not included):
x2
x8
2 x 4" x 8' (5 x 10 x 244 cm) Treated Lumber
Cut to (2) 2 x 4 x 93" (5 x 10 x 236 cm)
ea. 3" (7,6 cm) Hot Dipped Galvanized Nails
Optional 12" (30,5 cm) spacing
Standard 16" (40,7 cm) spacing
FOUNDATION OR FLOOR MATERIALS
ADDITIONAL MATERIALS
• This shed does not include any oor or leveling materials.
• See the FLOOR LEVELING section on page 7 for recommended methods and suggested materials to properly level your
oor, as this will vary depending on your specic site.
NOTE: Use a minimum of 5/8" (1,6 cm) Oriented Strand Board (OSB)
5/8" x 48" x96"
(1,6 x 121,9 x 243,8 cm)
x2
FLOOR PANELS
You will need oor panels and nails to complete your oor.
Floor panel sizes and quantities are shown below.
2" (5,1 cm)
x1
1 lb. of 2" (5,1 cm) Hot
Dipped Galvanized
Box-Type Nails.
MATERIAL REQUIRED: Use only wood treated for ground contact and fasteners approved for use with treated wood.
x7 2 x 4 x 93 (5,1 x 10,2 x 236,2 cm)
x2
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
Hot Dipped Galvanized Box-Type Nails.
3" (7,6 cm)
x28

WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1" x 4".................3/4" x 3-1/2" (1,9 x 8,9 cm)
2" x 4"..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2" x 3"..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1" x 3".................3/4" x 2-1/2" (3,8 x 6,3 cm)
PARTS IDENTIFICATION AND SIZES
RS RS
Part identication
letters are stamped on some parts.
Check these locations for
part stamp.
WALLS
x3 2 x 4 x 89" (5,1 x 10,2 x 226,1 cm)
SZ
x19 2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
TM
x2 2 x 4 x 68-1/2" (5,1 x 10,2 x 174 cm)
YFA
x2 2 x 4 x 51" (5,1 x 10,3 x 170,2 cm)
TCA

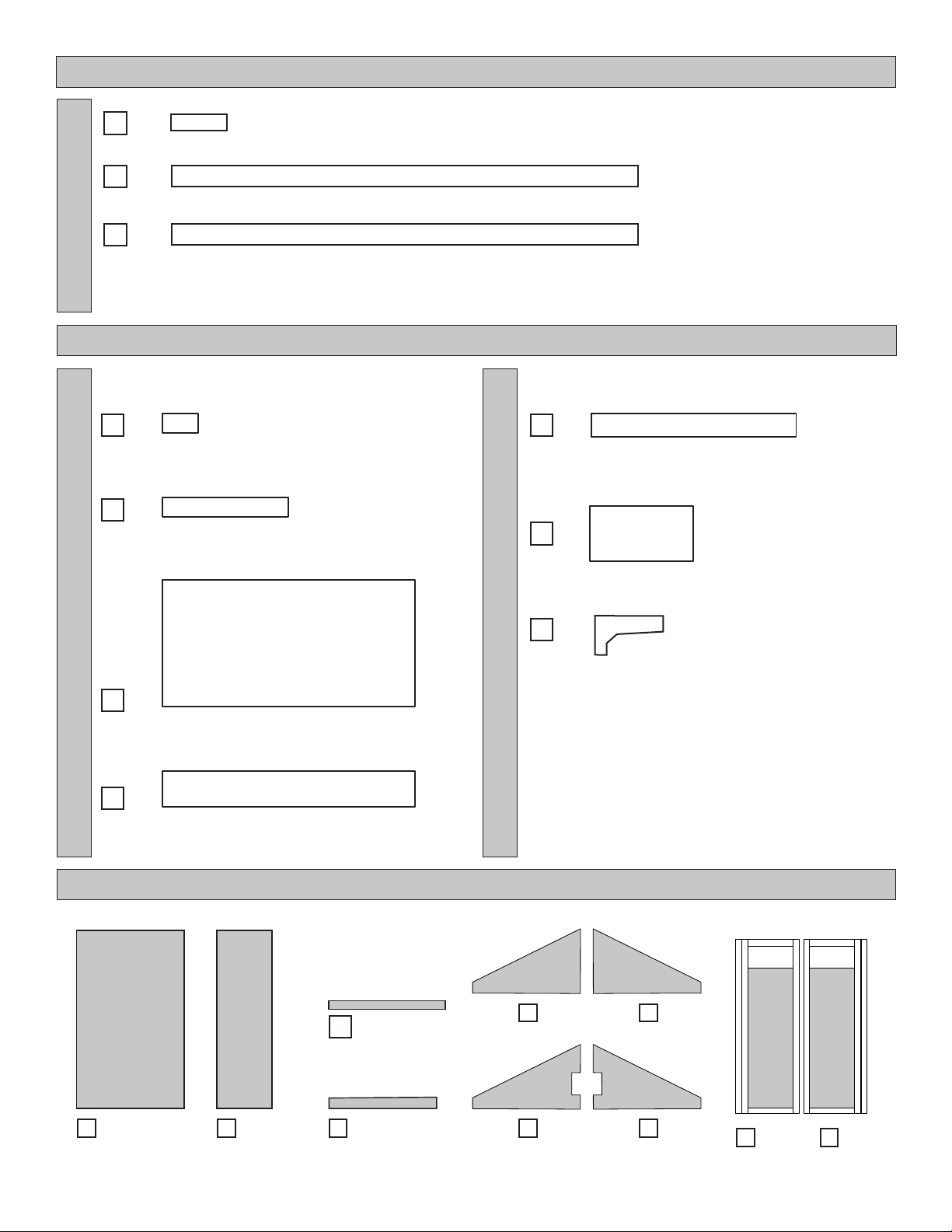

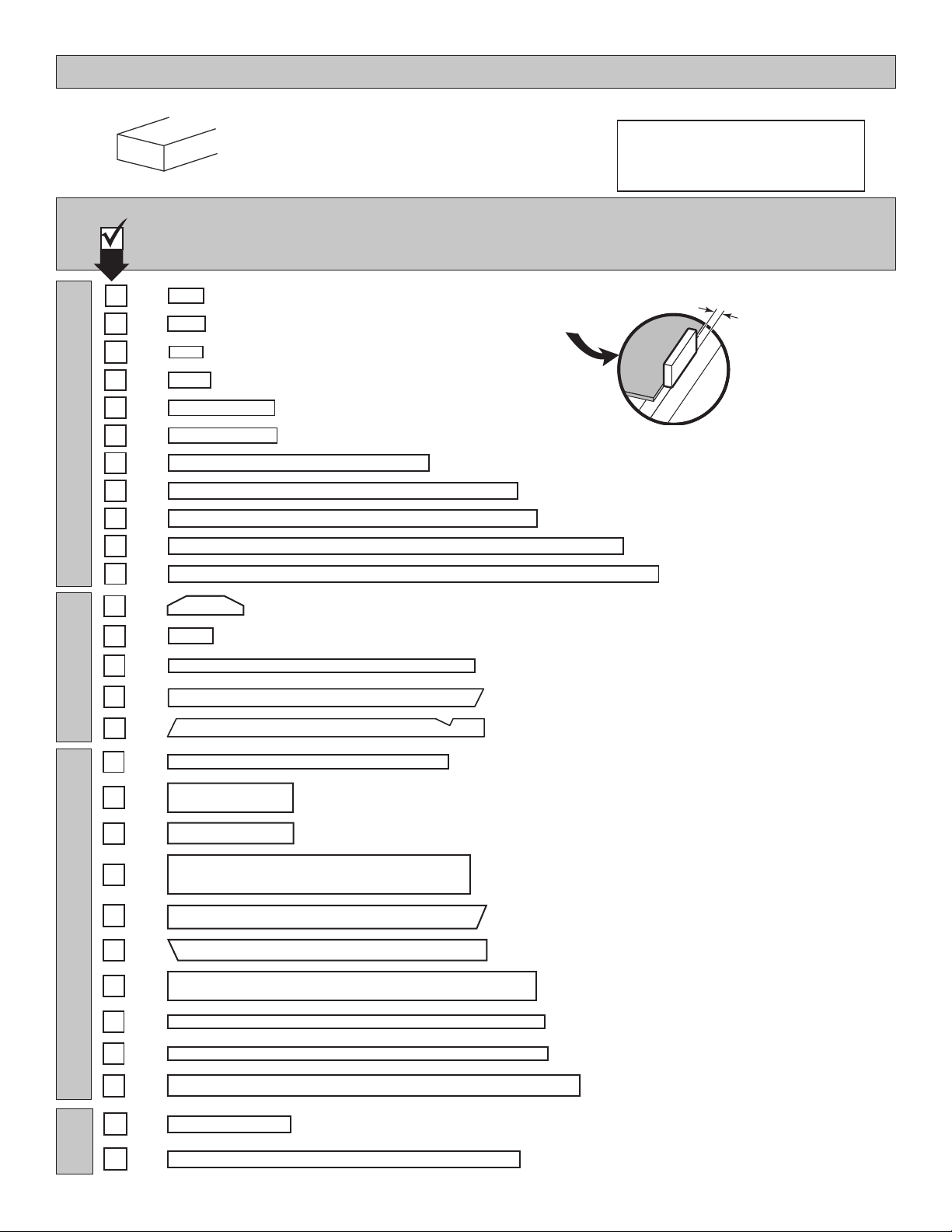

PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
RAFTERS
TRIM
RP
x2 2 x 4 x 20-1/2" (5,1 x 21 x 52,1 cm)
x1 2 x 4 x 21" (5,1 x 10,2 x 53,3 cm)
SBA
x1 2 x 4 x 6-1/2" (5,1 x 10,2 x 16,51 cm)
UY
x4 3/8 x 1-3/4 x 73-7/8" (1 x 4,4 x 187,6 cm)
x4 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
3/4"
(1,9 cm)
3/8 x 3-1/4 x 5-7/8" (1 x 8,3 x 14,9 cm) SHIM
x2
1 x 3 x 5" (2,5 x 7,6 x 12,7 cm) Gauge Block for 3/4" (1,9 cm) measurement
x1 GAA
DOOR
OO
x2 1-1/4 x 2-1/2 x 69" (3,2 x 6,3 x 175,3 cm)
x1 2 x 4 x 4" (5,1 x 10,2 x 10,2 cm)
CQA
4
x8 6 x 24" (15,2 x 61 cm) GUSSET
x10 2 x 4 x 61-7/8" (5,1 x 10,2 x 157,2 cm) CNA
19/32 x 3 x 55" (1,5 x 7,6 x 139,7 cm)
x1 ZB
1 x 3 x 60" (1,6 x 7,6 x 152,4 cm)
x1 GUA
x4 19/32 x 2-1/2 x 19" (1,5 x 7,6 x 67,6 cm)
BEA
x2 3/8 x 7-7/8 x 59-15/16" (1 x 20 x 152,2 cm)
x2 3/8 x 5-7/8 x 72-3/4" (1 x 14,9 x 184,8 cm)
x2 3/8 x 4-3/4 x 62-7/16" (1 x 12,1 x 158,6 cm)
x2 3/8 x 4-3/4 x 62-7/16" (1 x 12,1 x 158,6 cm)
x2 3/8 x 4-3/4 x 80-5/8" (1 x 12,1 x 204,8 cm)
x2 3/8 x 4-3/4 x 24-3/4" (1 x 12,1 x 62,9 cm)
x2 3/8 x 5-7/8 x 24-3/4" (1 x 14,9 x 62,9 cm)
x8 2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm)
CLA
x4 2 x 4 x 61-7/8" (5,1 x 10,2 x 157,2 cm) CMA
x4 3/8 x 1-3/4 x 74-1/2" (1 x 4,4 x 189,2 cm)

PARTS LIST continued...
5
PANEL PARTS LIST
ROOF PANELS
SHELF AND LOFT
SHELF AND LOFT
NOTE: Panel parts are not stamped.
Roof panels are 7/16" (1,1 cm) thick.
7/16 x 9 x 13-7/8"
(1,1 x 22,9 x 82,9 cm)
x2
7/16 x 13-7/8 x 96"
(1,1 x 82,9 x 243,8 cm)
x2
7/16 x 9 x 48"
(1,1 x 22,9 x 121,9 cm)
x2
7/16 x 48 x 96"
(1,1 x 121,9 x 243,8 cm)
x2
7/16 x 11-7/8 x 96" (1,1 x 30,2 x 243,8 cm)
x1
7/16 x 23-7/8" x 44-1/4" (1,1 x 121,9 x 112,4 cm)
x2
3/8 x 8 x 12-1/2" (1 x 20,3 x 31,8 cm)
x5
x2 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
2 x 3 x10-1/8" (5,1 x 7,6 x 25,7 cm)
AE
x5
1 x 4 x 96" (2,5 x 10,2 x 243,8 cm)
x1 KP
WALL PANEL & DOORS PARTS LIST
x6
3/8 x 48 x 76"
(1 x 121,9 x 193 cm)
x1 x1
x1 x1
x1
LEFT DOOR
DOOR HEADER FILLER
x1
RIGHT DOOR
x2
3/8 x 23-7/8 x 76"
(1 x 60,6 x 193 cm)
x1
3/8 x 3-7/8 x 48"
(1 x 9,8 x 121,9 cm)
x1
7/16 x 3 x 51"
(1,1 x 7,6 x 129,5 cm)

x163
x66
x22
x56
x99
x10
x8
x6
x12
VENT/ DOOR HARDWARE/ WINDOW
FASTENER/HARDWARE BAG
6
1-5/8" (4,1 cm)
2" (5,1 cm)
3" (7,6 cm)
3/4" (1,9 cm)
2" (5,0 cm)
1-1/2" (3,8 cm)
x2
Transom window
1" (2,5 cm)
1/2" (1,3 cm)
1-1/4" (3,2 cm)
x1
x1
x6
8 x 16"
(20,3 x 35,6 cm)
Wall Vent
x1
48" Metal Threshold
3/4" (1,9 cm) x11
Bagged seperately / special coating
1/2" (1,3 cm)
x12
1" (2,5 cm)
x4
x1 1-1/4” x8
3-Point Door Locking Mechanism
x1 1-1/4” x2
Handle (locking) with Screws

7
FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
• If you are building your shed on a concrete foundation see the following page.
CONCRETE
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel
2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
12"
DOOR
PREFERRED METHOD - 4x4 TREATED RUNNERS
12"
(30,5 cm)
12"
(30,5 cm)
Measurements to
centers of 4x4's.
• 3" Screw angled into
4x4.
• (2) at each point frame
and 4x4 touch.
4x4 Runners
(not included).
MATERIAL REQUIRED
x2 4x4 x 8' (10,2 x 10,2 x 243,8 cm) Treated Lumber
Fasteners for Frame to 4x4.
(3" Screws shown as one option.) Minimum (20) 3" screws / exterior grade.
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
96"
(243,8 cm)

8
CONCRETE FOUNDATION

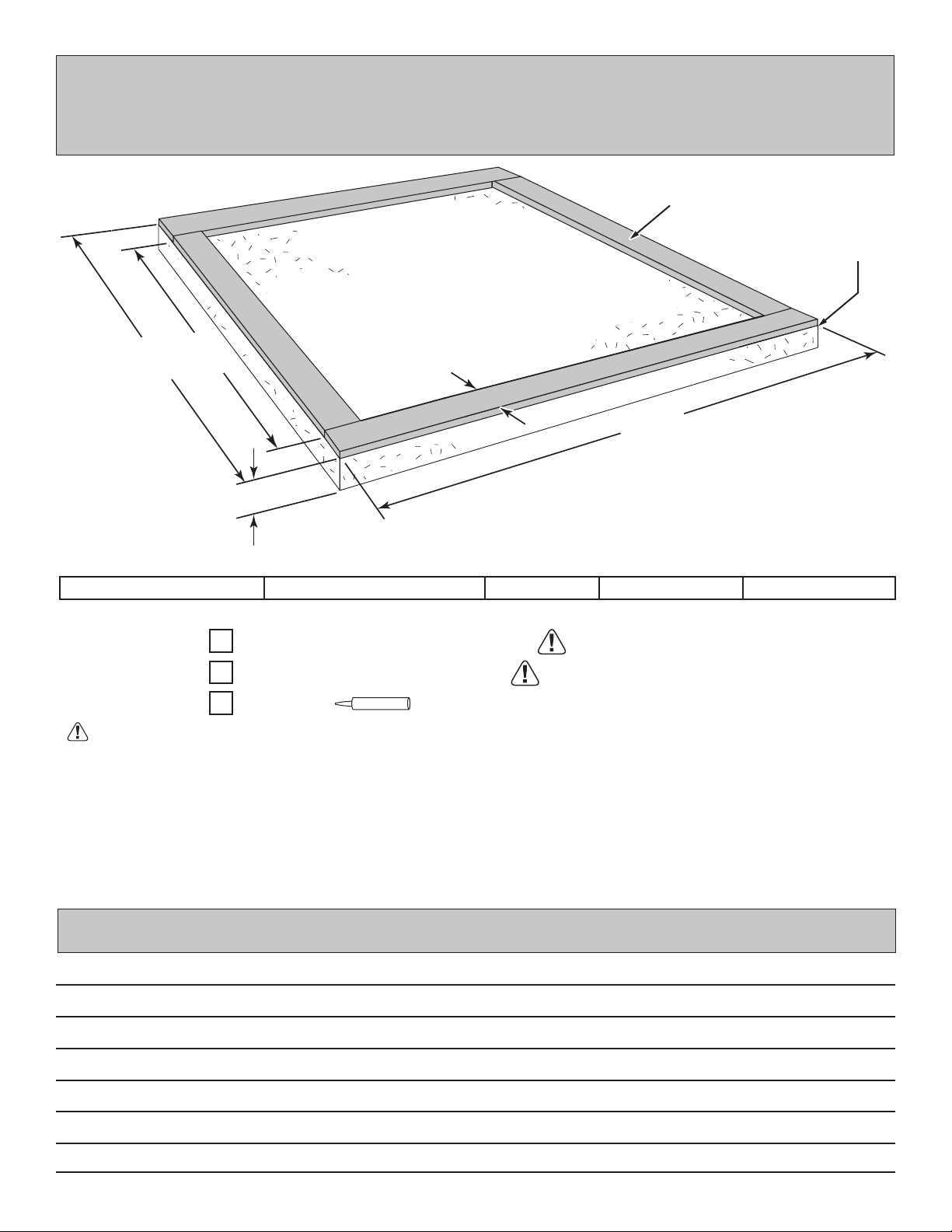

If you choose to install your kit on a concrete slab refer to the diagram below.
• A treated 2x4 (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2x4 (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
NOTES
Allow new concrete slabs to cure for at least seven (7) days.
2x4 x 7'-5" (5,1 x 10,2 x 226 cm)
2x4 x 8' (5,1 x 10,2 x 244 cm)
Caulk
Requires:
x2
x2
x1
MUST be treated lumber.
MUST be treated lumber.
96" (243,8 cm)
96" x 96" (243,8 x 243,8 cm) 89" (226,1 cm)
8' x 8' (243,8 x 243,8 cm) 96" (243,8 cm)
AActual Size B CBuilding Size
A
B
C
4"
(10,2 cm)
3-1/2"
(8,9 cm)
Treated Sill Plate
Caulk between sill
plate and concrete.

9
3" (7,6 cm)
x28
x7
2 x 4 x 93" (5,1 x 10,2 x 236,2 cm)
x2
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
PARTS REQUIRED:
FLOOR FRAME
Look for
Stamp
TREATED
HINT:
For easier nailing
stand on frame.

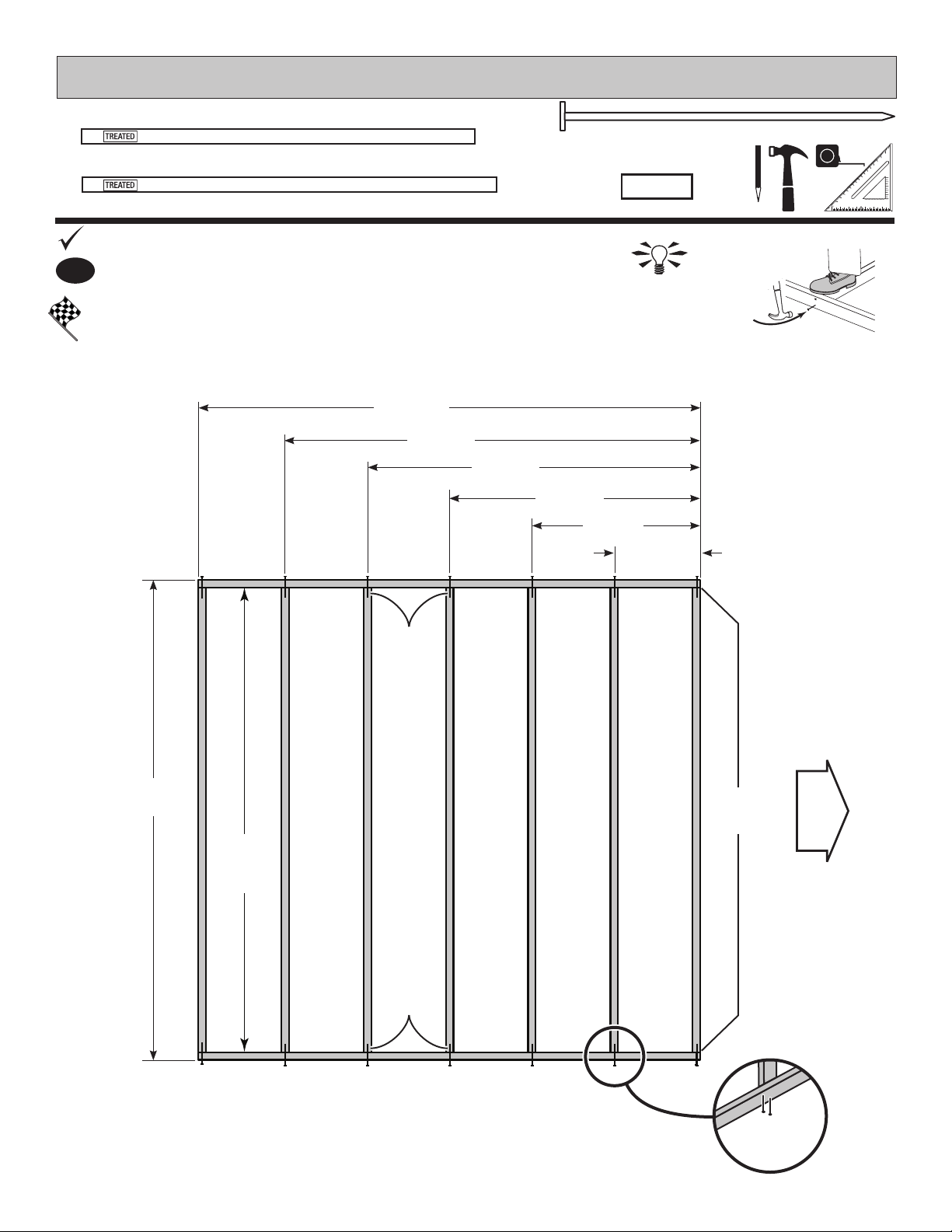

1Orient parts as shown on at surface. Measure and mark.
Use two 3" nails at each mark (Fig. A).
You have nished your oor frame.
Proceed to level and square frame.
BEGIN
FINISH
93"
(236,2
cm)
48"
(121,9 cm)
16"
(40,6 cm)
32"
(81,3 cm)
64"
(162,6 cm)
80"
(203,2 cm)
96"
(243,8 cm)
Flush
at ends.
Center
on marks
Center
on marks
DOOR
96"
(243,8 cm)
Fig. A

10
FINISH
LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
BEGIN
2
3
1
Use level and check the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 135 -3/4" (344,8 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener at
ends of each runner. Move to the opposite end of the frame. Secure the frame to 4x4 runners with one
fastener at ends of each runner making sure the frame remains square (Fig. A).
See page 7 for the preferred oor leveling method.
First, secure at ends
with one fastener.
Second, secure at ends
with one fastener.
135-3/4"
(344,8 cm)
135-3/4"
(344,8 cm)
Fig. A

11
Move to the opposite end. Using the long edge of the panel as a lever, move the
panel side-to-side until the top corner is ush to the oor frame (Fig. B).
Secure panel with two 2" nails in the corners.
2
BEGIN
1
3
4Continue attaching the panel using 2" nails 6" apart on edges and 12" apart inside panel.
Use a chalk line or use pre-painted grid lines to nail into joists under panel.
Ensure your oor frame is square by installing one panel
and squaring frame.
Check the oor frame is square by measuring diagonally across the frame corners. If the measurements are the
same your oor frame is square. The measurement will be approximately 135-3/4" (344,8 cm) (Fig. C).
PARTS REQUIRED:
x1 5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
x62 2" (5,1 cm)
FLOOR PANELS
Attach a 48 x 96" panel with the rough side up (painted-grid lines side) with the 48"
edge and corner ush to the oor frame (Fig A). Secure panel with two 2" nails in the
corners.
!
135-3/4"
(344,8 cm)
96"
(243,8 cm)
6"
(15,2 cm)
12"
(30,5 cm)
48"
(121,9 cm)
96"
(243,8 cm)
Grid lines UP
3/4"
(1,9 cm)
Approximately
DOOR
135-3/4"
(344,8 cm)
12" (30,5 cm) inside panel
Flush
Flush
Flush
2 Nails
2 Nails
Fig. A
Fig. B

12
PARTS REQUIRED:
FINISH
You have nished attaching your oor panels.
Continue installing 2nd panel using 2" nails 6" apart on edges, and 12" apart inside panels
5
x1
5/8 x 48 x 96"
(1,6 x 121,9 x 243,8 cm)
x62
2" (5,1 cm)
FLOOR PANELS
96"
(243,8 cm)
Flush
6"
(15,2 cm)
12"
(30,5 cm)
Flush
Flush
Grid lines UP
DOOR
48"
(121,9 cm)
96"
(243,8 cm)

13

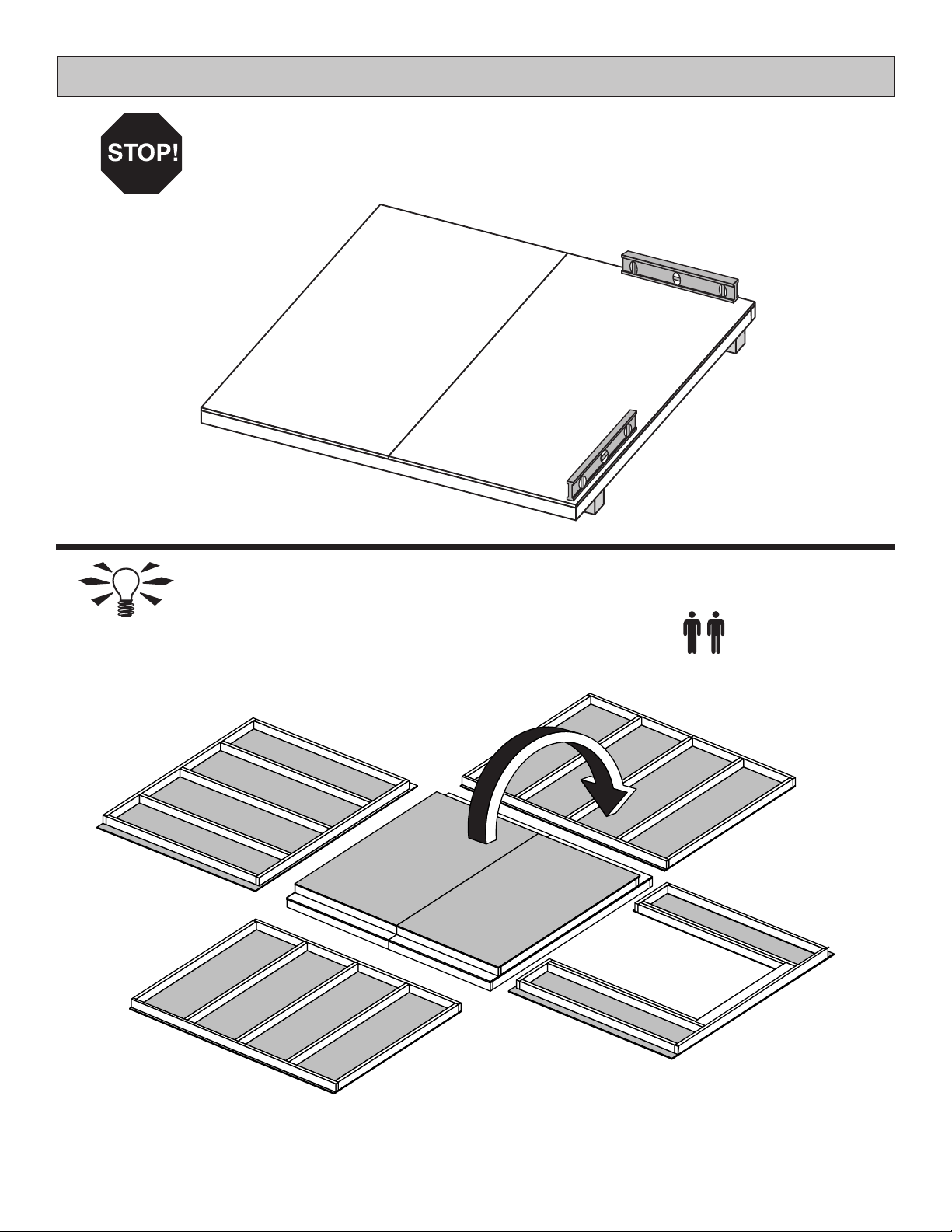

GABLE END
WALL
EAVE SIDE WALL
GABLE DOOR
WALL
EAVE SIDE WALL
Check the oor frame is level after installing oor panels.
Re-level if needed.
HINT:
IMPORTANT!
• The oor should be used as a stable work surface for wall construction.
• Organize your assembly procedure during the build process
to avoid over-handling of the walls.

14
PARTS REQUIRED:
FINISH
You have nished rafter jig. Proceed to assemble your rafters.
RAFTER ASSEMBLY
96"
(243,8 cm)
3/4"
(1,9 cm)
CLA x2
3" (7,6 cm)
x4
x2 CLA 2 x 4 x 4-7/8" (5,1 x 10,2 x 12,4 cm)
BEGIN
¸
1Secure one CLA ush to the oor deck using two 3" screws.
Measure over 96-3/4" and install a second CLA ush to the oor deck. CLA will overhang the oor.
Secure using two 3" screws.
96-3/4"
(245,7 cm)
IMPORTANT MEASUREMENT !!
Fig. B
Fig. A
It is very important to assemble your rafters using the following method for an even and at roof.
You will build a rafter jig using the oor and two CLA parts as shown.
Floor Width
(2) 3" (7,6 cm)
Screws
in each CLA
There will be an
overhang on
this end.
Flush Flush

15
PARTS REQUIRED: x 66 2" (5,1 cm)
x 6
1-5/8" (4,1 cm)
2" (5,1 cm)
Nails
RAFTER ASSEMBLY
x6
6 x 24" (15,2 x 61 cm)
GUSSET
x6
2 x 4 x 61-7/8" (5,1 x 10,2 x 157,2 cm)
CNA
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
CNA x2
CNA x2
Fig. A
Fig. B
Fig. C
Glue where
gusset installs
Keep rafters rmly against CLA at both ends when securing gusset.
Repeat steps 1 through 2 to assemble two more rafters.
Flip rafters over and attach a second gusset using glue and (12) 2" nails. No need to use jig for this gusset.
3
2
Keep CNA rm against outside CLA as shown (Fig.A). Rafters should touch at tips (Fig. A).
Apply glue to rafters where gusset will attach (Fig. B).
Place gusset onto CNA holding a 1/4" gap from edge (Fig. C). Secure gusset using one 1-5/8" screw into each
rafter. HINT: These screws will help hold the measurements when you nail on gussets.
Use ten 2" nails to nish securing the gusset to the rafters to pattern shown in Fig. C.
BEGIN
¸
1Place two rafters CNA into the jig as shown.
1-5/8" (4,1 cm)
Screw
96-3/4"
(245,7 cm)

16
PARTS REQUIRED: x 20 2" (5,1 cm)
x 4
1-5/8" (4,1 cm)
GABLE-END RAFTER ASSEMBLY
x2
6 x 24" (15,2 x 61 cm)
GUSSET
x4
2 x 4 x 61-7/8" (5,1 x 10,2 x 157,2 cm)
CNA
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
1/4" (1,9 cm)
GAP
CNA x2
CNA x2
Fig. A
Fig. B
Fig. C
Glue where
gusset installs
Keep rafters rmly against CLA at both ends when securing gusset.
You have nished assembling your rafters.
Remove CLA's from oor.
5
4 Repeat steps 1 through 2 to assemble two more gable-end rafters.
FINISH
1-5/8" (4,1 cm)
Screw
96-3/4"
(245,7 cm)
Gable-end rafter assemblies only have one gusset.
2" (5,1 cm)
Nails
1-5/8" (4,1 cm)
Screws

17
PARTS REQUIRED:
3" (7,6 cm)
DOOR HEADER ASSEMBLY
x20
x1
7/16 x 3 x 51" (1,1 x 7,6 x 129,5 cm) OSB
x2
2 x 4 x 51" (3,8 x 8,9 x 129,5 cm)
TCA
Center OSB on top of TCA
Glue both sides of OSB
Nail using 3" nails in the pattern shown.
Place another TCA on top of OSB.
2
3
1
BEGIN
You have assembled your door header.
FINISH
1
OSB
TCA
TCA
Flip header assembly over and nail as shown on the other side.
Flush
Flush
Center and Glue
both sides
Flush
4
You have nished assembling your door header.
FINISH

x4
2 x 4 x 72" (5,1 x 10,2 x 182,9 cm)
TM
x2
2 x 4 x 20-1/2" (5 x 10,2 x 52,1 cm)
RP
x1
TCA ASSEMBLY
2 x 4 x 68-1/2" (5 x 10,2 x 174 cm)
x2 YFA
18
HINT:
For easier nailing
stand on frame.
2 x 4 x 89" (5 x 10,2 x 226,1 cm)
x1 SZ
3" (7,6 cm)
PARTS REQUIRED: x56

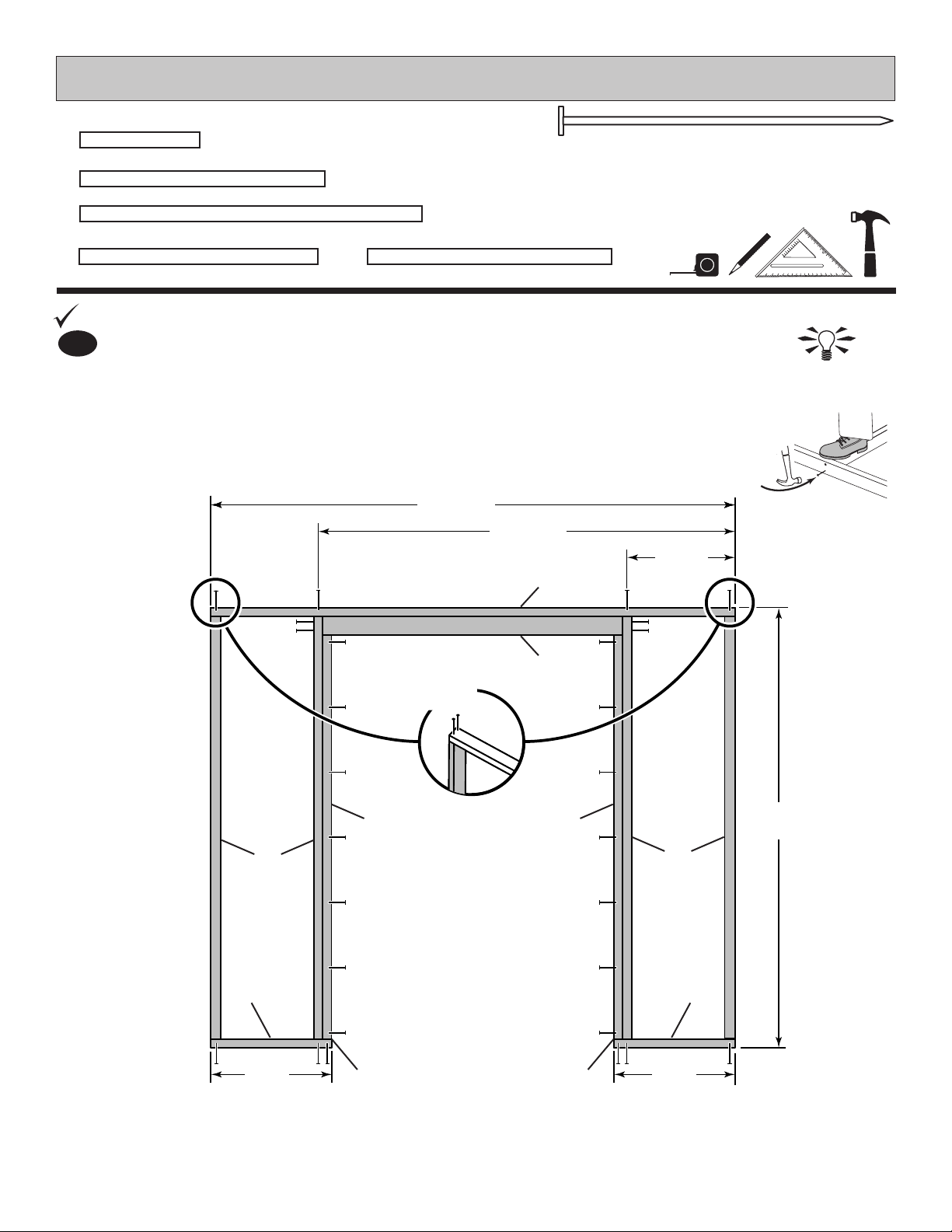

FRONT WALL
BEGIN
1
Use two 3" nails at each mark.
Orient parts on edge on oor. Measure and mark.
89"
(226,1 cm)
70-3/4"
(179,7 cm)
75"
(190,5 cm)
18-1/4"
(46,4 cm)
20-1/2"
(52,1 cm)
20-1/2"
(52,1 cm)
SZ
TCA ASSEMBLY
RPRP
Flush Flush
TM
YFA YFA
TM
3" (7,6 cm)
Nails
