BEFORE YOU BEGIN
IMPORTANT!
READ INSTRUCTIONS THOROUGHLY PRIOR TO BEGINNING ASSEMBLY.
- CUSTOMER SERVICE -
Call: 1-800-577-9663 email: [e-mail]
• BUILDING RESTRICTIONS AND APPROVALS
Be sure to check with local building department and homeowners association for specic restrictions and/ or requirements before building.
• ENGINEERED DRAWINGS
Contact our Customer Service Team if engineered drawings are needed to pull local permits.
• SURFACE PREPARATION
To ensure proper assembly you must build your shed on a level surface. Recommended methods and materials to level your shed are
listed on page 8.
• CHECK ALL PARTS
Inventory all parts listed on pages 4 - 6. Contact our Customer Service Team if any parts are missing or damaged.
• ADDITIONAL MATERIALS
You will need additional materials to complete your shed. See page 3 for required and optional materials and quantities.
01/18/12
KEEP THIS MANUAL FOR FUTURE REFERENCE
CLASSIC GENTRY GABLE 12' x 12' (365,8 x 365,8 cm)
ASSEMBLY MANUAL
16778
BUILDING SIZE ACTUAL FLOOR SIZE
12' x 12' (365,8 x 365,8 cm) 12' x 12' (365,8 x 365,8 cm)
A Backyard Products Company

2
TOOLS
Safety! Always use approved safety glasses during assembly.
OptionalRequired
HELPFUL REMINDER SYMBOLS
Look for these symbols for helpful reminders throughout this manual.
ORIENT LUMBER AND TRIM FOR BEST APPEARANCE
= Assistance Required; two or more people.
= Ensure squareness.
= Important required step or operation.
= Helpful assembly hint.
= Mark part with pencil.
= Beginning of steps for assembly or installation.
= You have nished the assembly or installation.
= Level
❑Gloves
Framing lumber is graded for structural strength and not appearance. Exterior trim is graded for one good side.
Always install the material leaving the best edge and best surface visible. Please remember that these blemishes in no way
negatively affect the strength or integrity of our product. (See Fig. A, B, C.)
A
❑Safety Glasses
❑Tape Measure
❑Paint Tools
❑Ladder
❑Caulk Gun
❑Hammer
❑Level
FINISH
BEGIN
❑Pencil
❑ Phillips
Screwdriver
❑Drill / Driver
❑3/8" Drill Bit
❑#2 Philips Drive Bit
❑Tool Belt/
Nail Pouch
❑Chalk Line
❑Nail Gun
• gun nails
❑Tin Snips
(for drip edge)
❑Square or
❑Utility Knife
❑Shingle Blades
B C
❑WoodGlue
❑Sawsall

3
ADDITIONAL MATERIALS
COMPLETING YOUR SHED
You will need these additional materials:
OPTIONAL MATERIALS
REFER TO THE BACK OF THIS MANUAL AND THE MANUFACTURER’S INSTRUCTIONS
FOR INSTALLATION OF SHINGLES, DRIP EDGE AND FELT.
3-TAB SHINGLES (Bundles)...................
PAINT FOR SIDING (Gallons).................
Use 100% acrylic latex exterior paint.
1" GALVANIZED ROOFING NAILS(lbs)...
For shingles.
PAINT FOR TRIM ......................1 Quart
Use 100% acrylic latex exterior paint.
WOOD GLUE ................. Exterior Rated
CAULK ............................................ 3
Tubes
Use acrylic latex exterior caulk that is paintable.
7
2
23
(2) coats recommended.
DRIP EDGE (Feet).................................
#15 ROOFING FELT (Sq ft. to cover).....
1" GALVANIZED ROOFING NAILS(lbs)...
60
180
1/2 lb.
For roong felt.
2" (5,1 cm)
x1
1 lb. of 2" (5,1 cm) Hot Dipped
Galvanized Box-Type Nails.
NOTE: Use a minimum of 5/8" (1,6 cm) Oriented Strand Board (OSB)
5/8" x 48" x96"
(1,6 x 121,9 x 243,8 cm)
x3
FLOOR PANELS (Not Included)
You will need oor panels and nails to complete your oor.
Floor panel sizes and quantities are shown below.
5/8" x 48" x48"
(1,6 x 121,9 x121,9 cm)
x3

4
2 x 4 x 60-1/2" (5,1 x 10,2 x 153,7 cm)
2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
PARTS IDENTIFICATION AND SIZES
Double letter part identication
is stamped on some parts.
• Check these locations for part
stamp.
CLASSIC GENTRY GABLE 12' X 12' PARTS LIST
INVENTORY YOUR PARTS before you begin.
We suggest sorting parts by the category they are listed in.
WOOD SIZE CONVERSION CHART
Nominal Board Size Actual Size
1" x 4".................3/4" x 3-1/2" (1,9 x 8,9 cm)
2" x 4"..............1-1/2" x 3-1/2" (3,8 x 8,9 cm)
2" x 3"..............1-1/2" x 2-1/2" (3,8 x 6,3 cm)
1" x 3".................3/4" x 2-1/2" (3,8 x 6,3 cm)
RS RS
RS
DOOR RAFTERS
TRIM WALLS
x5
x1
x24
x1
2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
AV
AI
2 x 4 x 44-1/2" (5,1 x 10,2 x 113 cm)
x1
x7
x5
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
2 x 4 x 92-1/2" (5,1 x 10,2 x 235 cm)
TJ
2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
x2
2 x 4 x 7" (5,1 x 10,2 x 17,8 cm)
x5
x4
x4
SP
STL
AHR
UM
AL
x6
3/4" (1,9 cm)
GAUGE BLOCK FOR 3/4" (1,9 cm)
MEASUREMENT.
TP
2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
x2 AM
x1 2 x 4 x 12-1/2" (5,1 x 10,2 x 31,8 cm)
AJ
x14 ADA
x4
2 x 4 x 77-15/16" (5,1 x 10,2 x 198 cm)
AF 2 x 4 x 18-1/8" (5,1 x 10,2 x 46 cm)
x12 6 x 24" OSB (15,2 x 61 cm)
AHL
19/32 x 3 x 62" (1,5 x 7,6 x 157,5 cm)
3/8 x 1-3/4 x 81-1/2" x 3/8" (4,4 x 207 x 1 cm)
3/8 x 1-3/4 x 83-1/2" (4,4 x 212.1 x 1 cm)
x1
x2
ZJ 19/32 x 2-1/2 x 72" (1,5 x 6,4 x 182,9 cm)
19/32 x 2-1/2 x 26 5/8" (1,5 x 6,4 x 67,6 cm)
AH
19/32 x 3 x 62" (1,5 x 7,6 x 157,5 cm)
x2
x2 WYR
WYL
19/32 x 4 x 85-3/16" (1,5 x 10,2 x 216,4 cm)
19/32 x 4 x 85-3/16" (1,5 x 10,2 x 216,4 cm)
x2
x2
2 x 6 x 96" (5,1 x 15,2 x 243,8 cm)
2 x 6 x 49-1/2" (5,1 x 15,2 x 125,7 cm)
AS
VX
OVERHANG
x2 2 x 3 x 69" (5,1 x 7,6 x 175,3 cm)
OO
3/8 x 3 x 66" (1 x 7,6 x 167,6 cm)
x1 F
x1 2 x 4 x 34" (5,1 x 10,2 x 86,4 cm)
SG
1" x 3" x 5" (2,5 x 7,6 x 12,7 cm)
x1 GAA
7/16 x 48 x 96" (1,1 x 121,9 x 243,8 cm)
7/16 x 23-1/8 x 96" (1,1 x 58,7 x 243,8 cm)

5
PARTS IDENTIFICATION AND SIZES
ROOF WINDOW LOFT/ BENCH/ SHELF
x1
1 x 3 x 96" (2,5 x 7,6 x 243,8 cm)
WJ
x2 1 x 4 x 96" (2,5 x 10,2 x 243,8 cm)
KP
x6
19/32 x 3 x 28-1/8" (1,5 x 7,6 x 71,4 cm)
DT
AZ
x2
19/32 x 3 x 30-1/8" ( 1,5 x 7,6 x 76,5 cm)
2 x 3 x10" (5,1 x 7,6 x 25,4 cm)
x1 7/16 x 36 x 40-7/8"
( 1,1 x 91,4 x 103,8 cm)
AC
x7
PANEL PARTS LIST
NOTE: Panel parts are not stamped with part identication.
x1 7/16 x 36 x 96"
(1,1 x 91,4 x 243,8 cm)
1 x 4 x 48" (2,5 x 10,2 x 121,9 cm)
x2 BE
1 x 3 x 48" (2,5 x 7,6 x 121,9 cm)
x2 FO
2 x 3 x 19" (5,1 x 7,6 x 48,3 cm)
x7 LR
x4 2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
x4 2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
2 x 3 x 96" (5,1 x 7,6 x 243,8 cm)
x1 PT
2 x 3 x 48" (5,1 x 7,6 x 121,9 cm)
x1 NK
3/8" x 14-1/4 x 22-1/2" (1 x 36,2 x 57,2 cm)
x6
x4 2 x 4 x 22-1/2" (5,1 x 10,2 x 57,2 cm)
AO
x1 2 x 4 x 11-5/8" (5,1 x 10,2 x 29,5 cm)
BG
x1 2 x 4 x 19-3/4" (5,1 x 10,2 x 50,2 cm)
PYA
19/32 x 3 x 8-1/2" (1,5 x 7,6 x 21,6 cm)
DF
x4
19/32 x 3 x 21" (1,5 x 7,6 x 53,3 cm)
BWR
x1
19/32 x 3 x 21" (1,5 x 7,6 x 53,3 cm)
BWL
x1
x1 1/4 x 23-7/8 x 96"
(0,6 x 60,6 x 243,8 cm) Peg board
x1 1/4 x 23-7/8 x 48"
(0,6 x 60,6 x 121,9 cm) Peg board
x1 7/16 x 19-1/2 x 92-1/2"
(1,1 x 49,5 x 235 cm)
x1 7/16 x 19-1/2 x 48"
(1,1 x 49,5 x 121,9 cm)
x1 7/16 x 11-1/2 x 96"
(1,1 x 21,2 x 243,8 cm)
x1 7/16 x 11-1/2 x 48"
(1,1 x 21,3 x 121,9 cm)
x2
7/16 x 48 x 96"
(1,1 x 121,9 x 243,8 cm)
x2
7/16 x 47-7/8 x 48"
(1,1 x 121,6 x121,9 cm)
x2 7/16 x 36-1/2 x 96"
(1,1 x 92,7 x 243,8 cm)
x2
7/16 x 36-1/2 x 47-7/8"
(1,1 x 92,7 x 121,6 cm)
LOFT/ BENCH/ SHELF
1 x 4 x 44-1/2" (2,5 x 10,2 x 113 cm)
x1 HYA

6
WALL PANELS
x9
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x2
x2
x2
x1
RIGHT DOOR
x1
LEFT DOOR
x1
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
FASTENER/HARDWARE BAG (Not Actual Size)
3” (7,6 cm)
2” (5,1 cm)
1-1/4” (3,2 cm)
x4 Boxes
x6 Boxes
x91
x19
2” (5,1 cm)
3” (7,6 cm)
1” (2,5 cm)
3/4” (1,9 cm)
x120
x64
x18
x92
2” (5,1 cm)
x2 16" x 8" ( 40,6 x 20,3 cm)
x4
3/4” (1,9 cm)
x12
1/2” (1,3 cm) x12
x12
64” Metal Threshold
3/4” (19 mm) x6
x1
x12
Other HARDWARE (Not Actual Size)
1-1/2” (3,8 cm)
x1
x2
x2
x8
22-1/4" x 29-3/4"
(56,5 x 75,6 cm)
x1
NAIL BOXES (Not Actual Size)
1” (2,5 cm)

7
A
B
C
4"
(10 cm)
3-1/2"
(8,9 cm)
D
D

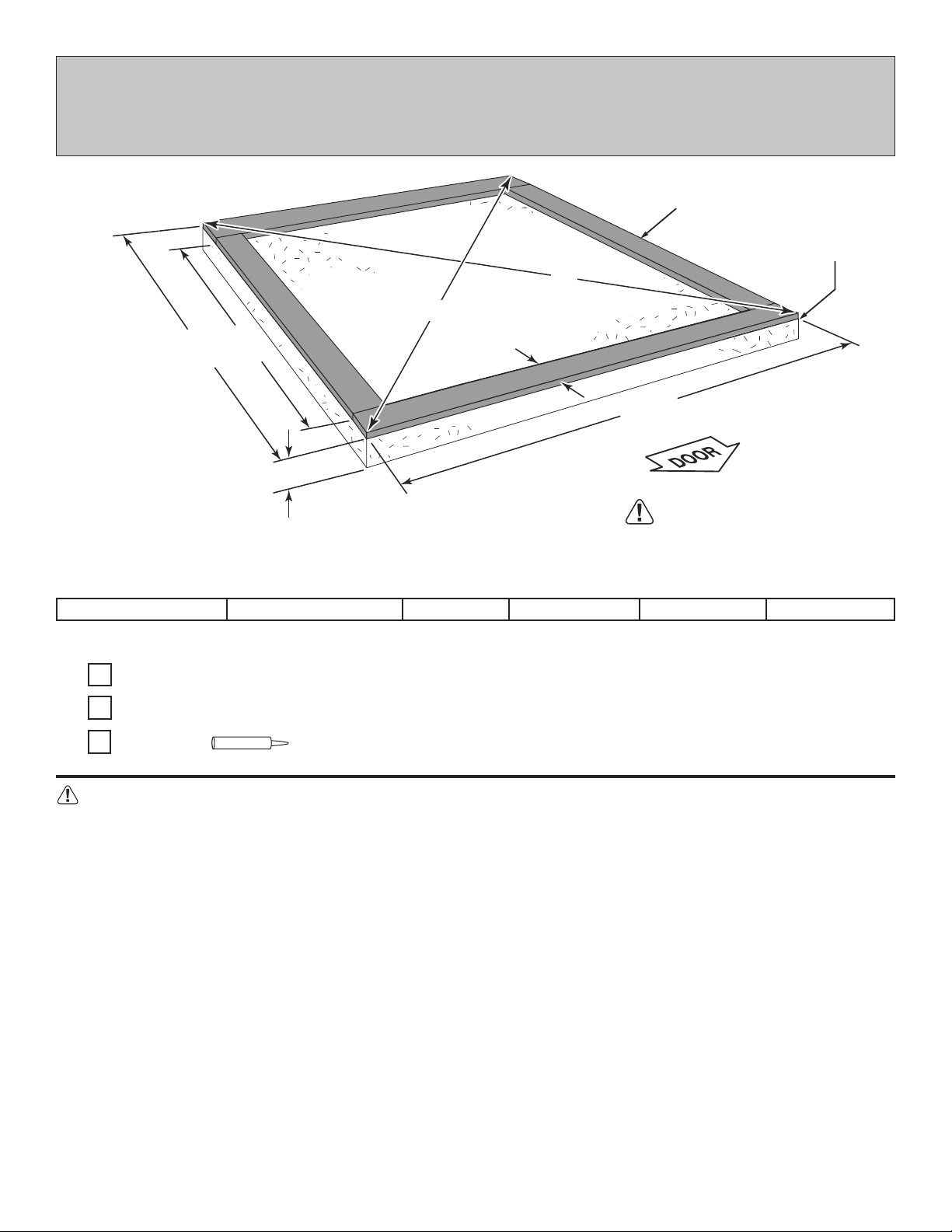

CONCRETE FOUNDATION
If you choose to install your kit on a concrete slab refer to the diagram below.
Attach the sill plates on the foundatIon as shown, and continue on to page 11.
AB C DActual Floor SizeBuilding Size
• A treated 2 x 4" (5,1 x 10,2 cm) sill plate is required when installing your shed on concrete.
Purchase full length treated lumber.
• Use a high quality exterior grade caulk beneath all sill plates.
• Fasten 2 x 4" (5,1 x 10,2 cm) sill plates to slab using approved concrete anchors (fasteners not included).
• Check local code for concrete foundation requirements.
144" (365,8 cm) 137" (348 cm)
12'x 12' (365,8 x 365,8 cm) 144" (365,8 cm) 203-5/8" (517,2 cm)
Treated Sill Plate
Caulk between
sill plate and
concrete.
12' x 12' Building Requires:
2 x 4 x 12' (5,1 x 10,2 x 365,8 cm)
x2
Sill plates MUST be treated lumber.
Caulk
x1
Allow new concrete slabs to cure for at least seven (7) days.
12'x 12' (365,8 x 365,8 cm)
2 x 4 x 11'-5" (5,1 x 10,2 x 348 cm)
x2

8

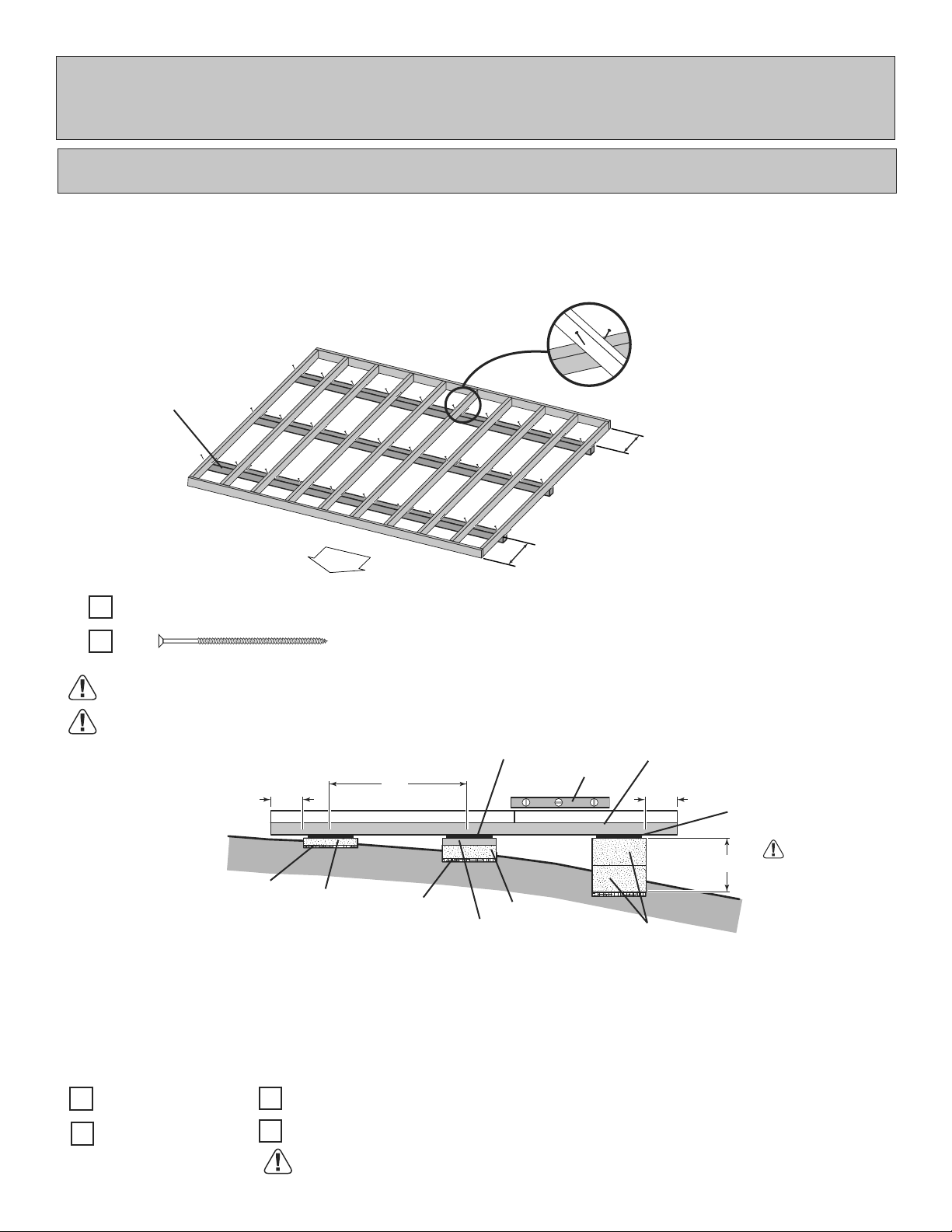

FLOOR LEVELING OPTIONS
There are multiple ways to level your oor frame. Our recommended leveling method is shown below.
Leveling materials are not included in this kit.
PREFERRED METHOD - 4x4 TREATED RUNNERS
MATERIAL REQUIRED
x3 4" x 4" x 12' (10,2 x 10,2 x 365,8 cm) Treated Lumber
x42 3" (7,6 cm)
Fasteners for Frame to 4"x 4".
(3" Screws shown as one option.)
Minimum 3" screws / exterior grade.
• This shed does not include any oor or leveling materials.
• See the FLOOR LEVELING section on page 9 for recommended methods and suggested materials to properly level your
oor, as this will vary depending on your specic site.
FOUNDATION OR FLOOR MATERIALS
• Level under 4x4 runners only.
• Locate leveling material 12" from ends of runners and no more than 48" apart.
• Asphalt shingles should be used between 4x4 runners and blocks or treated lumber. Never use
shingles in direct contact with ground.
• For best results and aiding in water drainage use gravel under each concrete block.
LEVELING METHODS
Use only wood treated for ground contact and fasteners approved for use with treated wood.
Always support frame seams.
8" Block
4" Block
Gravel
Gravel
Do not exceed 16".
4x4 Runner
Shingle
Shingle
Maximum between leveling
material locations.
48"
12"
2x4 Treated Lumber
2" Block
Level
Leveling higher than 16" not recommended.
LEVELING MATERIALS
Gravel 2x4 Treated Lumber
Solid Masonry Blocks in 1", 2", 4" or 8" thickness
Asphalt Shingles
12"
12"
(30,5 cm)
12"
(30,5 cm)
Measurements to
centers of 4x4's.
• 3" Screw angled into 4x4.
• (2) at each point frame and 4x4 touch.
4x4 Runners
(not included).
DOOR

9
FLOOR FRAME
FINISH
5
LEVEL AND SQUARE FLOOR FRAME
Before attaching oor decking, it is important to level and square the oor frame.
A level and square oor frame is required to correctly construct your shed.
BEGIN
2
3
4
1
Use level and check the frame is level before applying oor panels.
Check for frame squareness by measuring diagonally across corners. If the measurements are the
same, the frame is square. The diagonal measurement will be approximately 203-5/8" (517,2 cm).
When the frame is level and square secure one side of frame to the 4x4 runners using one fastener
at ends of each runner. At the opposite end of the frame, secure the frame to 4x4 runners with one
fastener at ends of each runner making sure the frame remains square (Fig. A).
Once the oor frame is level and square fasten the frame at each point the frame contacts the 4x4
runners.
See page 8 for the preferred oor leveling method.
203-5/8"
(517,2 cm)
203-5/8"
(517,2 cm)
First, secure at ends
with one fastener.
Second, secure at ends
with one fastener.
Fig. A
DOOR

10
IMPORTANT!
• The oor should be used as a level work surface for wall construction.
• Organize your wall sections during subassembly
to avoid over-handling of the walls.
HINT:
IMPORTANT!
SIDEWALL
SIDEWALL
FRONTWALL
BACKWALL
Check the oor frame is level after installing oor panels. Re-level if needed.
DOOR
DOOR

11

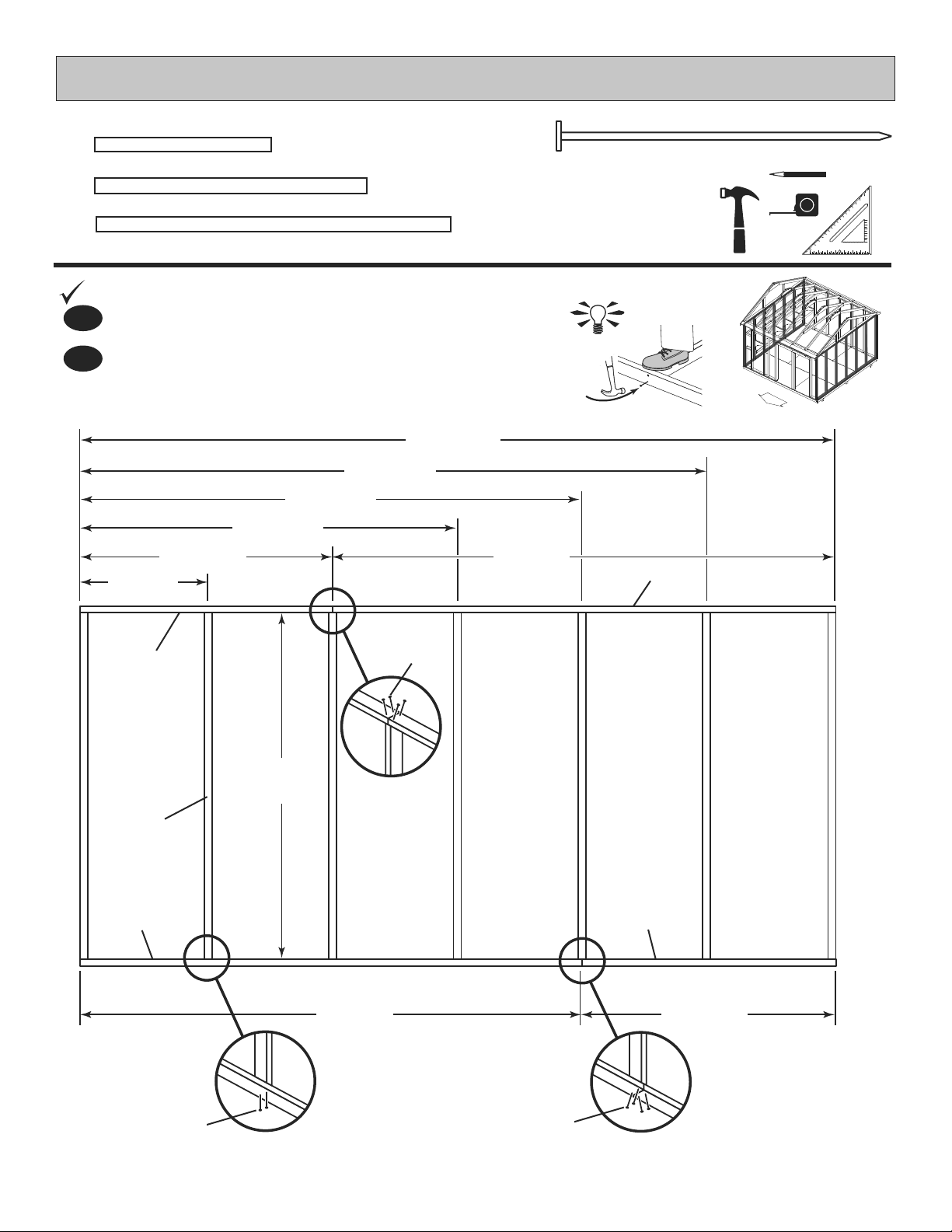

SIDE WALL FRAME
3" (7,6 cm)
PARTS REQUIRED:
x14
x4
x4
DOOR
x64
2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
AI
2 x 4 x 96" (5,1 x 10,2 x 243,8 cm)
TP
48"
(121,9 cm)
72"
(182,9 cm)
96"
(243,8 cm)
120"
(304,8 cm)
78-1/2"
(199,4 cm)
24"
(61 cm)
144"
(365,8 cm)
96"
(243,8 cm) TP
AIx7
SP
TP SP
48"
(121,9 cm)
96"
(243,8 cm)
2 x 4 x 48" (5,1 x 10,2 x 121,9 cm)
SP
HINT:
1
BEGIN
Orient parts on edge on oor as shown.
Nail using two 3" nails at each connection.
2
3" (7,6 cm)
Nails
IMPORTANT! You will build two walls the same.
3" (7,6 cm)
Nails
3" (7,6 cm)
Nails

12
2" (5,1 cm)
PARTS REQUIRED:
SIDE WALL PANELS
Flush
DOOR
x100
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm)
x2
3/4" Gauge
Block
AL
3/4"
(1,9 cm)
Fig. A
3/4"
(1,9 cm)
3/4"
(1,9 cm)
2 Nails
1-1/2"
(3,8 cm)
Overlap
1-1/2"
(3,8 cm)
Overlap
2 Nails Fig. B
12"
(30,5 cm)
6" (15,2 cm)
3/4" GAUGE
BLOCK
GAA
1-1/2"
(3,8 cm) 48"
(121,9 cm)
Primed side
UP
BEGIN HERE
Place LEFT panel onto wall frame with primed side up as shown.
Locate the panel 1-1/2" above the top plate. Use AL as a gauge block
for the 1-1/2" top overhang measurement. Use GAA as a gauge block to
mark the 3/4" side measurement on the wall stud. Secure panel with two
2" nails in the corners (Fig. A).
3
2
Nail the panel using 2" nails 6" apart on edges and 12" apart
inside panel.
Ensure your wall frame is square by installing one panel and squaring frame.
Move to the opposite end. Using the long edge of the panel as a lever,
move the panel side-to-side until you have a 3/4" measurement on the
wall stud. Secure corner with two 2" nails (Fig. B).
For squareness maintain 3/4" and
1-1/2" measurement along panel edge.
1
BEGIN
AL
1-1/2" GAUGE
BLOCK
Lip
Edge
Square
Edge

13
To draw panels tight
at seams angle nail.
2" (5,1 cm)
PARTS REQUIRED:
x4
SIDE WALL PANELS
x200
Flush
3/4"
(1,9 cm) 3/4"
(1,9 cm)
3/8 x 48 x 84"
(1 x 121,9 x 213,4 cm )
Flush Flush
12"
(30,5 cm)
6" (15,2 cm)
1-1/2"
(3,8 cm)
DOOR
48"
(121,9 cm)
Primed side UP
Place middle panel on frame as shown with primed side facing up
ush with rst panel. Nail using 2" nails 6" apart on edges and 12"
apart inside panel.
4
You have nished building your side wall.
FINISH
6
5Repeat STEP 4 to secure right panel.
Do not nail
in groove.
Repeat process to make second wall.
48"
(121,9 cm)
AL
1-1/2" GAUGE
BLOCK
AL
Square
Edge
Lip
Edge
Square
Edge
Lip
Edge

14
PARTS REQUIRED:
3" (7,6 cm)

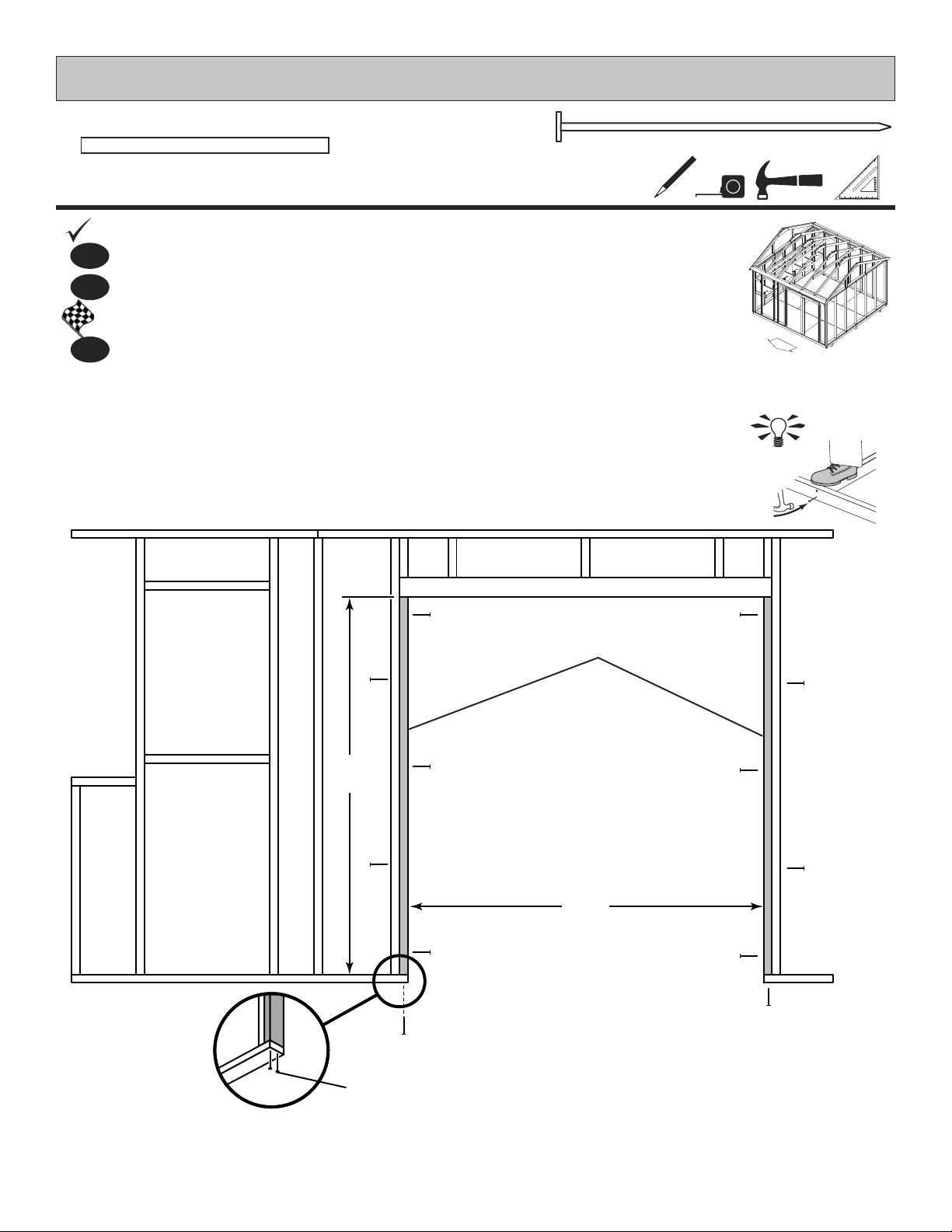

FRONT WALL FRAME (Door Header)
x2
x1
DOOR
x18
F
2 x 4 x 67" (5,1 x 10,2 x 170,2 cm)
AM
1/2”
(1,3 cm)
1/4”
(,6 cm)
1/4”
(,6 cm)
AM
F
AM
AM
F
Glue
1/2”
(1,3 cm)
1/2”
(1,3 cm)
Flush
3" (7,6 cm)
Nails
3/8 x 3 x 66" (1 x 7,6 x 167,6 cm)
HINT:
3" (7,6 cm)
Nails
Apply glue to parts as shown. Align parts on a at surface as shown.
Turn assembled header over and repeat staggered nail pattern.
Assemble header with 3” (7,6 cm) nails in a staggered pattern.
1
BEGIN
2
3
You have nished building your door header.
FINISH
4

15
PARTS REQUIRED:
3" (7,6 cm)
FRONT WALL FRAME
DOOR
x30
Orient parts on edge on oor as shown.
Nail using two 3" nails at each connection and four 3" nails at seam.
2
1
BEGIN
HINT:
137”
(348 cm)
126-3/4”
(321,9 cm)
58-1/4”
(148 cm)
44-1/2”
(113 cm)
36-3/8”
(92,4 cm)
12-3/8”
(31,4 cm)
92-1/2”
(235 cm)
38”
(96,5 cm)
67”
(170,2 cm)
AO
AO
AI x5
STL
69-1/4”
(175,9 cm)
AV
TJ
AJ
12-3/8”
(31,4 cm)
60-1/2”
(153,7 cm)
64”
(162,6 cm)
1-1/2”
(3,8 cm)
1-1/2”
(3,8 cm)
12-1/2”
(31,8 cm)
78-1/2”
(199,4 cm)
(4) 3" (7,6 cm)
Nails
(2) 3" (7,6 cm)
Nails
DIMENSIONS ARE TO CENTER OF STUDS.
MAINTAIN DIMENSION
x2 2 x 4 x 22-1/2" (5,1 x 10.2 x 57,2 cm)
AO
x1 AJ
2 x 4 x 12-1/2" (5,1 x 10,2 x 31,8 cm)
2 x 4 x 60-1/2" (5,1 x 10,2 x 153,7 cm)
x1 AV
x1
2 x 4 x 44-1/2" (5,1 x 10,2 x 113 cm)
STL
2 x 4 x 78-1/2" (5,1 x 10,2 x 199,4 cm)
x5 AI
x1
2 x 4 x 92-1/2" (5,1 x 10,2 x 235 cm)
TJ
(2) 3" (7,6 cm)
Nails

16
PARTS REQUIRED:
3" (7,6 cm)
FRONT WALL FRAME
DOOR
x32
HINT:
DIMENSIONS ARE TO CENTER OF STUDS.
MAINTAIN DIMENSION
68-1/2”
(174 cm)
44-1/2”
(113 cm)
20-1/2”
(52,1) cm
7”
(17,8 cm)
AL x5
67”
(170,2 cm)
SG
BG
11-5/8”
(28,6 cm)
34”
(86,4 cm)
78-1/2”
(199,4 cm)
Header
(2) 3" (7,6 cm)
Nails
Flush
Orient the pre-assembled header, AL, BG and SG as shown.
Secure using 3" nails at each connection as shown.
2
1
BEGIN
2 x 4 x 7" (5,1 x 10,2 x 17,8 cm)
x5 AL
x1 2 x 4 x 11-5/8" (5,1 x 10.2 x 29,5 cm)
BG
x1 2 x 4 x 34" (5,1 x 10.2 x 86,4 cm)
SG
Pre - Assembled Header
Flush

17
PARTS REQUIRED:
3" (7,6 cm)
FRONT WALL FRAME
x1
DOOR
x14
You have nished your front wall frame.
FINISH
3
Orient parts on edge on oor as shown.
Secure using 3" nails as shown.
2
1
BEGIN
HINT:
2 x 4 x 68" (5,1 x 10,2 x 172,7 cm)
UM
UM
64"
(162,6 cm)
68"
(172,7 cm)
MAINTAIN DIMENSION
UM
(2) 3" (7,6 cm)
Nails

18
2" (5,1 cm)
PARTS REQUIRED:
FRONT WALL PANELS
DOOR
x50
3/4" Gauge
Block
6" (15,2 cm)
6"
(15,2 cm)
64"
(162,6 cm)
1-1/2"
(3,8 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
3/4"
(1,9 cm)
Primed
side UP
Flush
x1
MAINTAIN DIMENSION
Place the left front wall panel onto wall frame as shown with primed side up.
Use the gauge block to mark the 3/4" measurement on the wall stud. Locate
the panel 1-1/2" from the top plate.
3
2
Proceed to attaching your other front panel.
Nail panels to frame with two 2" nails 6" apart on edges.
1
BEGIN
FINISH
4
Do not nail
in groove.
2 x 4"
3/4" GAUGE
BLOCK
GAA
2x4"
TEMP. SPACER
Square
Edge
Lip
Edge
