Scope of This Manual
Page 5May 2020 DSY-PM-01378-EN-08
SCOPE OF THIS MANUAL
This manual is intended to help you get the B2900 flow monitor up and running quickly�
IMPORTANT
Read this manual carefully before attempting any installation or operation. Keep the manual
accessible for future reference.
Unpacking and Inspection
Upon opening the shipping container, visually inspect the product and applicable
accessories for any physical damage such as scratches, loose or broken parts, or any other
sign of damage that may have occurred during shipment�
OTE:NIf damage is found, request an inspection by the carrier’s agent within 48 hours of
delivery and file a claim with the carrier� A claim for equipment damage in transit
is the sole responsibility of the purchaser�
SAFETY
Terminology and Symbols
Indicates a hazardous situation, which, if not avoided, will result in
death or serious personal injury�
WARNING Indicates a hazardous situation, which, if not avoided, could result in
death or serious personal injury�
Indicates a hazardous situation, which, if not avoided, could result in
minor or moderate personal injury or damage toproperty�
Considerations
The installation of the B2900 monitor must comply with all applicable federal, state, and
local rules, regulations, and codes�
WARNING
EXPLOSION HAZARD - SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR
CLASS I, DIVISION 2.
AVERTISSMENT
RISQUE D’EXPLOSION - LA SUBSTITUTION DE COMPOSANTS PEUT RENDRE
CEMATÉRIEL INACCCEPTABLE POUR LES EMPLACEMENTS DE CLASSE I, DIVISION 2.
WARNING
DO NOT CONNECT OR DISCONNECT EITHER POWER OR OUTPUTS UNLESS THE AREA IS
KNOWN TO BE NON-HAZARDOUS.
AVERTISSMENT
RISQUE D’EXPLOSION. NE PAS DÉBRANCHER TANT QUE LE CIRCUIT EST SOUSTENSION,
À MOINS QU’LL NE S’AGISSE D’UN EMPLACEMENT NON DANGEREUX.

Introduction
Page 6 May 2020DSY-PM-01378-EN-08
IMPORTANT
Not following instructions properly may impair safety of equipment and/or personnel.
Electrical Symbols
Function Direct
Current
Alternating
Current
Earth
(Ground)
Protective
Ground
Chassis
Ground
Symbol
INTRODUCTION
The B2900 flow monitor incorporates state-of-the-art, digital signal processing technology,
designed to provide exceptional flexibility at a very affordable price� Though designed
for use with Blancett flow sensors, this monitor can be used with almost any flow sensor
producing a low amplitude AC output or contact closure signal�
Figure 1: B2900 Flow monitor (NEMA 4X)
This monitor can accept low-level frequency input signals typically found in turbine flow
sensors� The output signal for these types of sensors is a frequency proportional to the rate
of flow� The B2900 monitor uses the frequency information to calculate flow rate and total
flow� Through the use of the programming buttons, you can select rate units, total units
and unit time intervals among other functions� If required, the monitor can easily be re-
configured in the field� Finally, you can choose between simultaneously showing rate and
total, or alternating between rate and grand total�

Installation
Page 7May 2020 DSY-PM-01378-EN-08
INSTALLATION
Connecting the B2900 Monitor to a Frequency Output Device
The B2900 monitor has two jumpers for setting the type of signal and the minimum
amplitude of the signal that it accepts� First, establish the type of output provided by the
flow sensor� The outputs almost always fall into one of two types�
• Type 1 is the unaltered frequency signal coming from an un-amplified
magnetic pickup� This signal is normally a sine wave in appearance, and
the amplitude of the waveform varies with the flow� Small turbines have
comparatively small rotating masses so they produce a smaller amplitude
waveform and higher frequencies than larger turbine sensors�
• Type 2 is the frequency signal from the transducer amplified, wave shaped or
both to produce a waveform of a specified type and amplitude� Most amplified
transducers output a square wave shape at one of many standard amplitudes�
For example, a popular amplified output is a 10V DC square wave�
If the flow sensors output signal is type 1, you must also determine the minimum
amplitude of the frequency output� The B2900 monitor has a high or low signal sensitivity
setting� Use the high signal sensitivity (30 mV) with low amplitude (usually small) turbine
flow sensors� Use the low signal sensitivity setting (60 mV) for larger turbines and amplified
transducers� See Figure 2 on page 7�
Use the high signal sensitivity setting where the minimum signal amplitude is below 60 mV�
Setting the sensitivity higher than necessary may allow noise interference�
JP1
JP2
JP3
Input Total Pulse Signal
TB1
Mag
Pulse
Iso
OC
Low
High
Input Waveform Selection
(Magnetic Pickup Selection Shown)
Input Signal Level Selection
(Low Signal Sensitivity (60 mV) Selection Shown)
Figure 2: Input jumper settings (NEMA 4X)
When the type of waveform and input signal level (amplitude) are determined, set the
jumpers on the B2900 monitor circuit board�
For typical variable reluctance magnetic pickups, set the waveform selection jumper
for Mag� Determine the setting for the input level by looking at the magnetic pickup
specifications� If the minimum amplitude at the minimum rated flow is greater than 60 mV,
use the low signal sensitivity jumper position� See Figure 2�

Installation
Page 8 May 2020DSY-PM-01378-EN-08
If the minimum signal level is below 60 mV, use the high signal sensitivity jumper position�
JP1
JP2
JP3
Input Total Pulse Signal
P1
Freq. In
4-20mA
Iso TotalPluse
RS485 B (–)
RS485 A (+)
RS485 Gnd
Setpoint 1
Setpoint 2
Gnd
+
–
+
–
+
–
TotalReset
OC TotalPluse
Signal Gnd
TB1
Mag
Pulse
Iso
OC
Low
High
Mag
Pulse
JP1
Input
Figure 3: Typical magnetic pickup connection (NEMA 4X)
For amplified input signals, set the input jumper to Pulse and the signal jumper to Low� See
Figure 4 on page 8�
OTE:NAmplified magnetic pickups require an external power source� The B2900 monitor
does not supply power to an amplified pickup�
JP1
JP2
JP3
Input TotalPulse Signal
P1
Freq.In
4-20mA
IsoTotal Pluse
RS485 Gnd
Setpoint 1
Setpoint 2
Gnd
+
–
+
–
+
–
TotalReset
OCTotal Pluse
Signal Gnd
TB1
Mag
Pulse
Iso
OC
Low
High
POWER
SUPPLY
Mag
Pulse
JP1
Input
RS485 B (–)
RS485 A (+)
Figure 4: Typical amplified pickup connection (NEMA 4X)

Power Connections
Page 9May 2020 DSY-PM-01378-EN-08
POWER CONNECTIONS
Standard
The power supply used in the B2900 monitor is an internal lithium 3�6V DC D cell that
powers the monitor for about six years when no outputs are used� The monitor can also
get power from a 4…20 mA current loop� See Figure 5� If the current loop is used, a sensing
circuit within the monitor detects the presence of the current loop and disconnects the
battery from the circuit�
JP1
JP2
JP3
Input Total Pulse Signal
P1
Freq. In
4-20mA
Iso Total Pluse
RS485 Gnd
Setpoint 1
Setpoint 2
Gnd
+
–
+
–
+
–
Total Reset
OC Total Pluse
Signal Gnd
TB1
Mag
Pulse
Iso
OC
Low
High
4…20 mA
Current Loop
(10…28V DC)
Load
10…28V DC
RS485 B (–)
RS485 A (+)
Figure 5: Loop power connections (NEMA 4X)

Operating the Monitor
Page 10 May 2020DSY-PM-01378-EN-08
OPERATING THE MONITOR

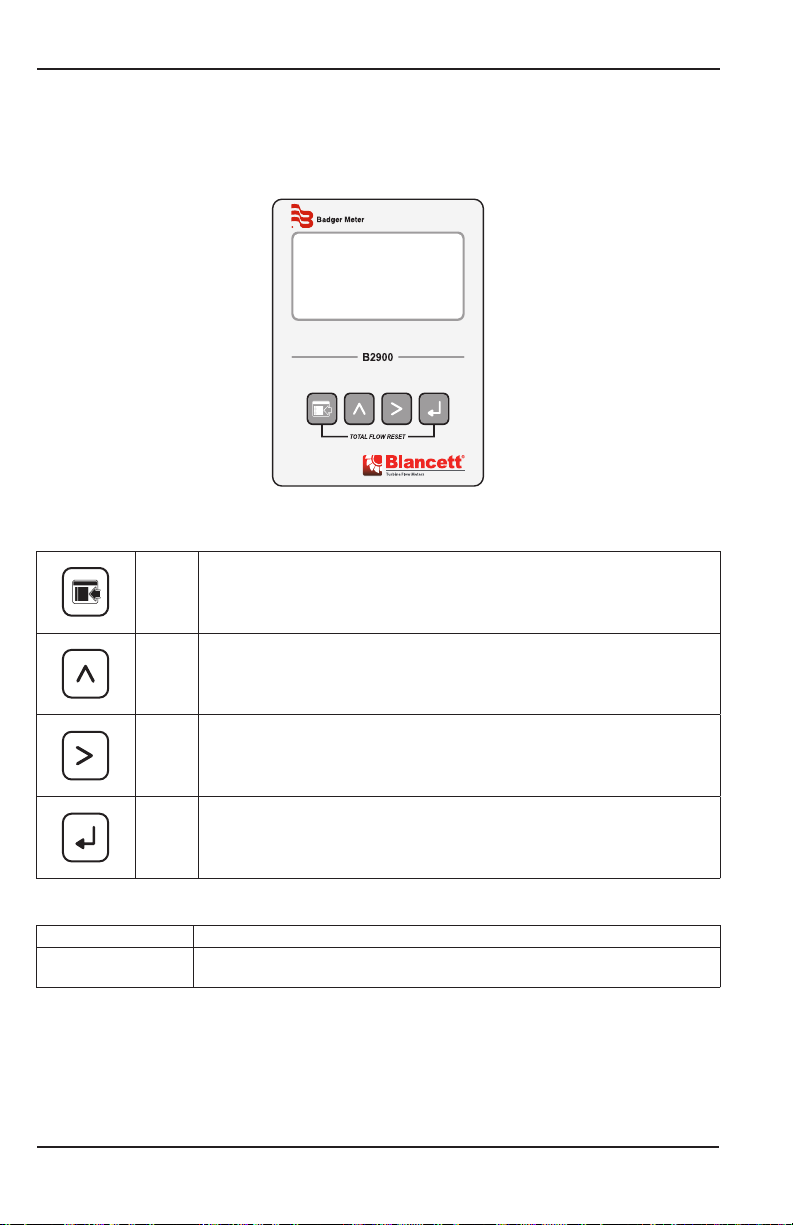

Buttons
Figure 6: Keypad detail
MENU
Switches to Program mode, press and hold for three seconds to enter
Extended Programming mode, saves programming information and is used in
the reset process
UP Scrolls backward through the parameter choices, increments numeric
variables and increases display contrast in Run mode
RIGHT Scrolls forward through the parameter choices, moves the active digit to the
right and decreases display contrast in Run mode
ENTER Advances to the next programming parameter and is used in the
resetprocess
Special Functions
MENU + ENTER Simultaneously press and hold to reset the current totalizer
UP + RIGHT Simultaneously press and hold to show the firmware version number, then
the grand total

Operating the Monitor
Page 11May 2020 DSY-PM-01378-EN-08
Modes of Operation
The monitor has three modes of operation— Run, Programming and Extended
Programmingmodes�
2
1Battery
Indicator
Alarm
Activation
Rate
Units
Totalizer
Units
Totalizer
Multiplier
Total
Rate
Communications
Indicator
Figure 7: Display annunciators
Run Normal operating mode
Program Program variables into the display
Extended Program Program advanced variables into the display
Test Diagnostic tool to show input frequency and totalizer counts
If the monitor is a replacement, the turbine’s K-factor changed or the monitor is used with
some other pulse generating device, you must program it�
Programming Using Frequency Output Turbine Flow Meters
Each Blancett turbine flow meter is shipped with either a K-factor value or frequency data� If
frequency data is provided, the data must be converted to a K-factor before programming
the monitor� K-factor information, when supplied, can usually be found on the neck of the
flow meter or stamped on the flow meter body� The K-factor represents the number of
pulses per unit of volume� See “K-Factors Explained” on page41� The K-factor is required to
program the monitor�
Enter Programming Mode
To access the Programming mode, momentarily press and then release MENU� The monitor
displays Fluid� To access the Extended Programming mode, press and hold MENU until Fluid
is displayed� To return to Run mode, press MENU�
2
1Battery
Indicator
Units
Indicator
Totalizer
Units
Totalizer
Multiplier
Numeric
Values
Function
Figure 8: Programming mode display

Menu Structure
Page 12 May 2020DSY-PM-01378-EN-08
MENU STRUCTURE
Liquid
Fluid
Meter (Size)
Numeric Entry
KFactor
(K-Factor Value)
KFacUnt
(K-Factor Unit)
MASS
Display (Options)
START
Basic Menu
Extended Menu
Sub Menu
Liquid
Gas
0.250
0.375
0.500
0.625
0.750
0.875
1.0
1.25
1.5
Flow
Flow GT = Grand Total
Test
2.0
3.0
4.0
6.0
8.0
10.0
1225
1250
1275
Pul/Gal
Pul/m³
Pul/Ltr
Pul/Ft³
=
=
=
=
Pulses/Gallon
Pulses/meter³
Pulses/Liter
Pulses/Ft³
=
=
=
=
Sec
Min
Hour
Day
Second
Minute
Hour
Day
RateInt
(Rate time interval)
RateUnt
(Unit/interval=T)
GPT
LB/T
OB/T
AF/T
ML/T
LPT
m³/T
Ft³/T
MG/T
Kg/T
Lb/T
=
=
=
=
=
=
=
=
=
=
=
Gallons/T
Liquid Barrel/T
Oil Barrel/T
Acre Feet/T
Million Liters/T
Liters/T
Meters³/T
Feet³/T
Million
Gallons/T
Kilograms/T
Pounds/T
MASS
TotalUnt
(Totalizer Unit)
Gal
LBL
OBL
AFt
MLt
LPT
m³
Ft³
MGa
Kgs
Lbs
=
=
=
=
=
=
=
=
=
=
=
Gallons
Liquid Barrel
Oil Barrel
Acre Feet
Million Liters
Liters
Meters³
Feet³
Million
Gallons
Kilograms
Pounds
Menu item appears
only when MASS
units are selected.
Continued at B
on next page.
Shape Key
Rate SU
(Rate Unit Setup)
Simple Advanced
RateUnt
(Rate/Total Units)
GPM
Gal
OB/D
m³/D
m³
m³/H
m³
LPM
Ltr
=
=
=
=
=
=
=
=
=
Gallons/Min
Gallons
Oil Barrel/Day
Meters³/Day
Meters³
Meters³/Hour
Meters³
Liters/Min
Liters
Continued at A
on next page.

Menu Structure
Page 13May 2020 DSY-PM-01378-EN-08
Liquid (continued)
4-20Cal
(Calibrate 4-20)
Lin Pts = Linear Points (2 to10)
Linear
(Linearization)
Freq#1
(Frequency 1)
Clr G-T
(Clear Grand Total)
NO YES
4mA Out
(4 mA Output)
Numeric Entry
20mA Out
(20 mA Output)
Numeric Entry
4-20Tst
(4-20 mA Output)
Numeric Entry
Numeric Entry
Numeric Entry
Coef#1
(Coecient 1)
Numeric Entry
Freq#(x)
(Frequency 2-10)
Numeric Entry
Coef#(x)
(Coecent 2-10)
Numeric Entry
NO YES
Passwd
(Password)
Numeric Entry
RstPswd
(Reset Password)
Numeric Entry
Spec Gr
(Specic Gravity)
TotlMult
(Totalizer Multiplier)
× 1000
× 100
× 10
× 1
× 0.1
× 0.01
=
=
=
=
=
=
×1000
×100
×10
1
0.1
0.01
Numeric Entry
Scale F
(Scale Factor)
Numeric Entry
SetTotal
(Set Total Value)
Numeric Entry
Cuto
(Low Flow Cuto)
Numeric Entry
Damping
(Display Damping)
Numeric Entry
PulsOut
(Pulse Output)
Disable
Enable
Numeric Entry
Fl=20mA
(Flow at 20 mA)
Continued from B
on previous page.
Continued from A
on previous page.

Menu Structure
Page 14 May 2020DSY-PM-01378-EN-08
Advanced I/O Liquid
Fluid
Meter (Size)
Numeric Entry
KFactor
(K-Factor Value)
KFacUnt
(K-Factor Unit)
Spec Gr
(Specic Gravity)
MASS
Display (Options)
START
Basic Menu
Extended Menu
Sub Menu
Liquid
Gas
0.250
0.375
0.500
0.625
0.750
0.875
1.0
1.25
1.5
Flow
Flow GT = Grand Total
Test
2.0
3.0
4.0
6.0
8.0
10.0
1225
1250
1275
Pul/Gal
Pul/m³
Pul/Ltr
Pul/Ft³
=
=
=
=
Pulses/Gallon
Pulses/meter³
Pulses/Liter
Pulses/Ft³
=
=
=
=
Sec
Min
Hour
Day
Second
Minute
Hour
Day
RateInt
(Rate time interval)
RateUnt
(Unit/interval=T)
GPT
LB/T
OB/T
AF/T
ML/T
LPT
m³/T
Ft³/T
MG/T
Kg/T
Lb/T
=
=
=
=
=
=
=
=
=
=
=
Gallons/T
Liquor Barrel/T
Oil Barrel/T
Acre Feet/T
Million Liters/T
Liters/T
Meters³/T
Feet³/T
Million
Gallons/T
Kilograms/T
Pounds/T
MASS
TotalUnt
(Totalizer Unit)
Gal
LBL
OBL
AFt
MLt
LPT
m³
Ft³
MGa
Kgs
Lbs
=
=
=
=
=
=
=
=
=
=
=
Gallons
Liquor Barrel
Oil Barrel
Acre Feet
Million Liters
Liters
Meters³
Feet³
Million
Gallons
Kilograms
Pounds
TotlMult
(Totalizer Multiplier)
× 1000
× 100
× 10
× 1
× 0.1
× 0.01
=
=
=
=
=
=
×1000
×100
×10
1
0.1
0.01
Numeric Entry
Scale F
(Scale Factor)
Numeric Entry
SetTotal
(Set Total Value)
Numeric Entry
Cuto
(Low Flow Cuto)
Numeric Entry
Damping
(Display Damping)
Numeric Entry
PulsOut
(Pulse Output)
Disable
Enable
Numeric Entry
Fl=20mA
(Flow at 20 mA)
Menu item appears
only when MASS
units are selected. Continued on
next page.
Shape Key

Menu Structure
Page 15May 2020 DSY-PM-01378-EN-08
Advanced I/O Liquid (continued)
4-20Cal
(Calibrate 4-20)
Lin Pts = Linear Points (2 to10)
Linear
(Linearization)
Freq#1
(Frequency 1)
Modbus Address (1 to127)
BusAddr
Clr G-T
(Clear Grand Total)
Passwd
Password
NO YES
4mA Out
(4 mA Output)
Numeric Entry
20mA Out
(20 mA Output)
Numeric Entry
4-20Tst
(4-20 mA Output)
Numeric Entry
Numeric Entry
Numeric Entry
Coef#1
(Coecient 1)
Numeric Entry
Freq#(x)
(Frequency 2-10)
Numeric Entry
Coef#(x)
(Coecent 2-10)
Numeric Entry
Modbus
Disable Enable
Numeric Entry
SetPT1
(Setpoint 1)
Numeric Entry
Passwd
Password
HystSP1
(Hysteresis1)
Numeric Entry
Passwd
Password
TripSP1
(Trip On 1)
High Low
Passwd
Password
SetPT2
(Setpoint 2)
Numeric Entry
Passwd
Password
HystSP2
(Hysteresis2)
Numeric Entry
Passwd
Password
TripSP2
(Trip On 2)
High Low
NO YES
Passwd
(Password)
Numeric Entry
RstPswd
(Reset Password)
Numeric Entry
Continued from previous page.

Menu Structure
Page 16 May 2020DSY-PM-01378-EN-08
Gas
Fluid
Meter (Size)
Numeric Entry
KFactor
(K-Factor Value)
KFacUnt
(K-Factor Unit)
Display (Options)
START
Basic Menu
Extended Menu
Sub Menu
Liquid
Gas
Flow
Flow GT = Grand Total
Test
2.0 in. Low
2.0 in. Med
2.0 in. High
Pul/m³
Pul/Ltr
Pul/Ft³
=
=
=
Pulses/meter³
Pulses/Liter
Pulses/Ft³
=
=
=
=
Sec
Min
Hour
Day
Second
Minute
Hour
Day
RateInt
(Rate time interval)
RateUnt
(Unit/interval=T)
SCF/T
ACF/T
Nm³/T
Am³/T
Lt/T
mmF³/T
mF³/T
=
=
=
=
=
=
=
Standard Ft³/T
Actual Ft³/T
Normal M³/T
Actual M³/T
Liters/T
Million Ft³/T
Thousand Ft³/T
Shape Key
Continued on next page.
TotlUnt
(Totalizer Unit)
SCF
ACF
Nm³
Am³
Lt
mmF³
mF³
=
=
=
=
=
=
=
Standard Ft³
Actual Ft³
Normal M³
Actual M³
Liters
Million Ft³
Thousand Ft³
TotlMult
(Totalizer Multiplier)
× 1000
× 100
× 10
× 1
× 0.1
× 0.01
=
=
=
=
=
=
×1000
×100
×10
1
0.1
0.01
Scale F
(Scale Factor)
Numeric Entry
SetTotal
(Set Total Value)
Numeric Entry
Cuto
(Low Flow Cuto)
Numeric Entry
Numeric Entry
Op Pres
(Operating Pressure psi)
Numeric Entry
Op Temp
(Operating Temp °F)

Menu Structure
Page 17May 2020 DSY-PM-01378-EN-08
Gas (continued)
4-20Cal
(Calibrate 4-20)
Lin Pts = Linear Points (2 to10)
Linear
(Linearization)
Freq#1
(Frequency 1)
Clr G-T
(Clear Grand Total)
NO YES
4mA Out
(4 mA Output)
Numeric Entry
20mA Out
(20 mA Output)
Numeric Entry
4-20Tst
(4-20 mA Output)
Numeric Entry
Numeric Entry
Numeric Entry
Coef#1
(Coecient 1)
Numeric Entry
Freq#(x)
(Frequency 2-10)
Numeric Entry
Coef#(x)
(Coecent 2-10)
Numeric Entry
NO YES
Passwd
(Password)
Numeric Entry
RstPswd
(Reset Password)
Numeric Entry
Continued from
previous page.
Damping
(Display Damping)
Numeric Entry
PulsOut
(Pulse Output)
Disable
Enable
Numeric Entry
Fl=20mA
(Flow at 20 mA)

Menu Structure
Page 18 May 2020DSY-PM-01378-EN-08
Advanced I/O Gas
Fluid
Meter (Size)
Numeric Entry
KFactor
(K-Factor Value)
KFacUnt
(K-Factor Unit)
Display (Options)
START
Basic Menu
Extended Menu
Sub Menu
Liquid
Gas
Flow
Flow GT = Grand Total
Test
2.0 in. Low
2.0 in. Med
2.0 in. High
Pul/m³
Pul/Ltr
Pul/Ft³
=
=
=
Pulses/meter³
Pulses/Liter
Pulses/Ft³
=
=
=
=
Sec
Min
Hour
Day
Second
Minute
Hour
Day
RateInt
(Rate time interval)
RateUnt
(Unit/interval=T)
SCF/T
ACF/T
Nm³/T
Am³/T
Lt/T
mmF³/T
mF³/T
=
=
=
=
=
=
=
Standard Ft³/T
Actual Ft³/T
Normal M³/T
Actual M³/T
Liters/T
Million Ft³/T
Thousand Ft³/T
Shape Key
Continued on next page.
TotlUnt
(Totalizer Unit)
SCF
ACF
Nm³
Am³
Lt
mmF³
mF³
=
=
=
=
=
=
=
Standard Ft³
Actual Ft³
Normal M³
Actual M³
Liters
Million Ft³
Thousand Ft³
TotlMult
(Totalizer Multiplier)
× 1000
× 100
× 10
× 1
× 0.1
× 0.01
=
=
=
=
=
=
×1000
×100
×10
1
0.1
0.01
Scale F
(Scale Factor)
Numeric Entry
SetTotal
(Set Total Value)
Numeric Entry
Cuto
(Low Flow Cuto)
Numeric Entry
Numeric Entry
Op Pres
(Operating Pressure psi)
Numeric Entry
Op Temp
(Operating Temp °F)

Menu Structure
Page 19May 2020 DSY-PM-01378-EN-08
Advanced I/O Gas (continued)
4-20Cal
(Calibrate 4-20)
Lin Pts = Linear Points (2 to10)
Linear
(Linearization)
Freq#1
(Frequency 1)
NO YES
4mA Out
(4 mA Output)
Numeric Entry
20mA Out
(20 mA Output)
Numeric Entry
4-20Tst
(4-20 mA Output)
Numeric Entry
Numeric Entry
Numeric Entry
Coef#1
(Coecient 1)
Numeric Entry
Freq#(x)
(Frequency 2-10)
Numeric Entry
Coef#(x)
(Coecent 2-10)
Numeric Entry
Continued from
previous page.
Damping
(Display Damping)
Numeric Entry
PulsOut
(Pulse Output)
Disable
Enable
Numeric Entry
Fl=20mA
(Flow at 20 mA)
Modbus Address (1 to127)
BusAddr
Clr G-T
(Clear Grand Total)
Passwd
Password
Modbus
Disable Enable
Numeric Entry
SetPT1
(Setpoint 1)
Numeric Entry
Passwd
Password
HystSP1
(Hysteresis1)
Numeric Entry
Passwd
Password
TripSP1
(Trip On 1)
High Low
Passwd
Password
SetPT2
(Setpoint 2)
Numeric Entry
Passwd
Password
HystSP2
(Hysteresis2)
Numeric Entry
Passwd
Password
TripSP2
(Trip On 2)
High Low
NO YES
Passwd
(Password)
Numeric Entry
RstPswd
(Reset Password)
Numeric Entry

Menu Structure
Page 20 May 2020DSY-PM-01378-EN-08
Liquid (Solar Powered)
Fluid
Meter (Size)
Numeric Entry
KFactor
(K-Factor Value)
KFacUnt
(K-Factor Unit)
MASS
Display (Options)
START
Basic Menu
Extended Menu
Sub Menu
Liquid
Gas
0.250
0.375
0.500
0.625
0.750
0.875
1.0
1.25
1.5
Flow
Flow GT = Grand Total
Test
2.0
3.0
4.0
6.0
8.0
10.0
1225
1250
1275
Pul/Gal
Pul/m³
Pul/Ltr
Pul/Ft³
=
=
=
=
Pulses/Gallon
Pulses/meter³
Pulses/Liter
Pulses/Ft³
=
=
=
=
Sec
Min
Hour
Day
Second
Minute
Hour
Day
RateInt
(Rate time interval)
RateUnt
(Unit/interval=T)
GPT
LB/T
OB/T
AF/T
ML/T
LPT
m³/T
Ft³/T
MG/T
Kg/T
Lb/T
=
=
=
=
=
=
=
=
=
=
=
Gallons/T
Liquor Barrel/T
Oil Barrel/T
Acre Feet/T
Million Liters/T
Liters/T
Meters³/T
Feet³/T
Million
Gallons/T
Kilograms/T
Pounds/T
MASS
TotalUnt
(Totalizer Unit)
Gal
LBL
OBL
AFt
MLt
LPT
m³
Ft³
MGa
Kgs
Lbs
=
=
=
=
=
=
=
=
=
=
=
Gallons
Liquor Barrel
Oil Barrel
Acre Feet
Million Liters
Liters
Meters³
Feet³
Million
Gallons
Kilograms
Pounds
Menu item appears
only when MASS
units are selected.
Continued at B
on next page.
Shape Key
Rate SU
(Rate Unit Setup)
Simple Advanced
RateUnt
(Rate/Total Units)
GPM
Gal
OB/D
m³/D
m³
m³/H
m³
LPM
Ltr
=
=
=
=
=
=
=
=
=
Gallons/Min
Gallons
Oil Barrel/Day
Meters³/Day
Meters³
Meters³/Hour
Meters³
Liters/Min
Liters
Continued at A
on next page.
