I –TOOL & HARDWARE LIST BDINQ400 CABINET INSTALLATION

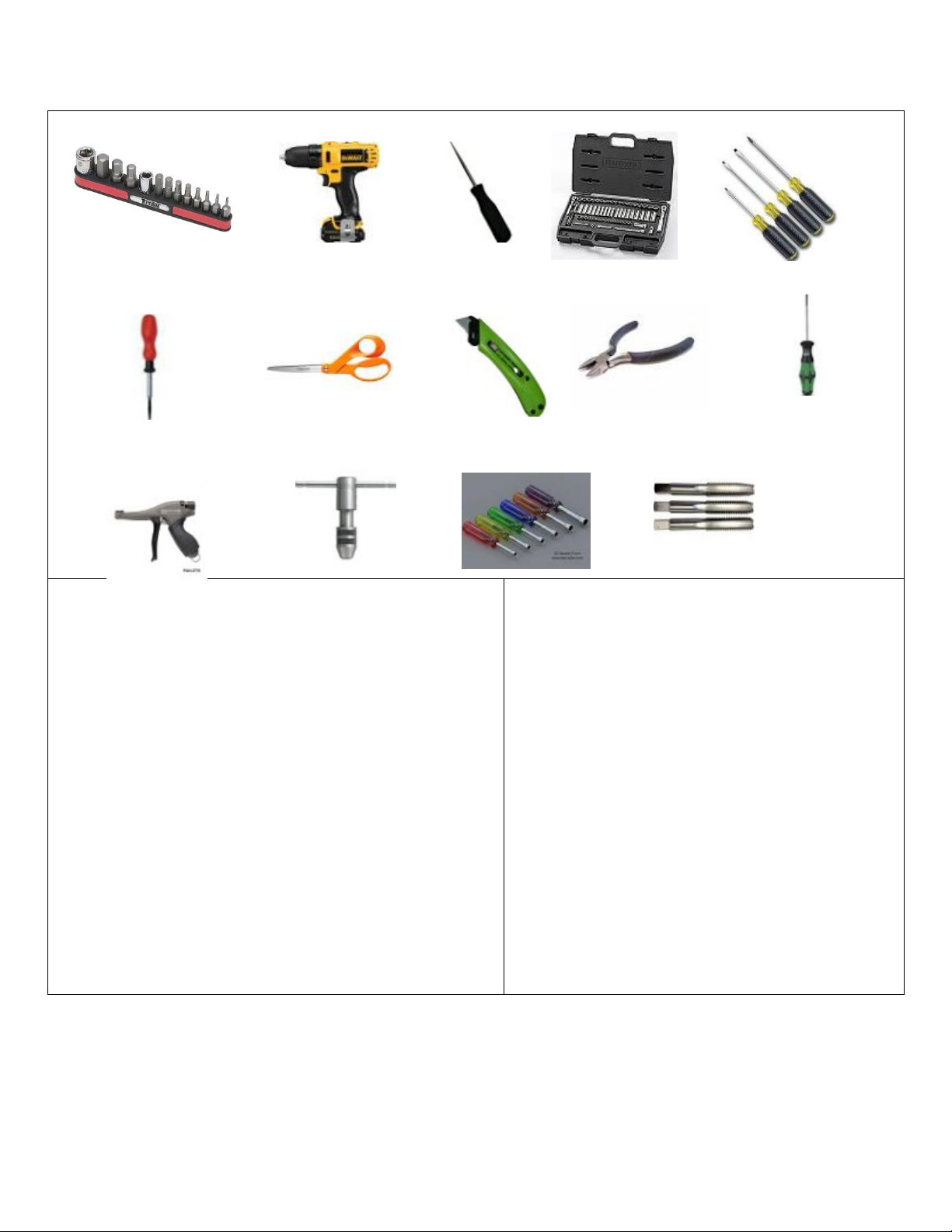

Tools Required
•SAE Hex Drive Bits ( 1/8”, 5/32”, 3/16 ” bits Required)
•Cordless Drill-3/8” Drive
•Awl
•Standard 1/4”and 3/8” drive Socket Set:
¼” to ¾” sockets including deep sockets
•Phillips and Standard Screw driver set.
•Phoenix Contact Screwdriver
•Slotted Screw Starter
•Scissors
•Box Cutter/ Utility knife
•Wire Snips
•Cable Tie Gun
•Small tap wrench
•1/4” to 7/16” Nut Drivers
•¼ -20 UNC,#10-32 UNF, #8-32 UNF taps
•Combination Voltmeter/Amp meter
Consumables
•Teflon Tape
•Isopropyl Alcohol
•Glass Cleaner
•Paper towels or wipes
Hardware - fasteners
•#8-32 SS Hex Cap Nut #10553
•#8-32 SS Locking Hex Cap Nut #10559
•#8 SS Lock Washer #11307
•#8 SS Flat Washer #11279
•#8 Flat Washer UHMW #41583
•#10-32 UNF SS Button Socket Cap Screw #43030
•#10 SS Flat Washer #11281
•¼-20 x 2 1/2” SS Button Socket Cap Screw #43716
•¼-20 x 1 3/4”SS Button Socket Cap Screw #43715
•¼-20 x 1/2” SS Button Socket Cap Screw-#43714
•¼” Seal Washer-#21638
•M6 Hex nut #43164
•M6 Flat Washer #43162
•M6 Lock Washer #43163
•M6 X 30 SS Socket Cap Screw
•Hoist Ring #43674
Gasket material
•¼” x 1/2” Neoprene Gasket #37886
•Neoprene D-Gasket #40521
•Gasket printer cover #398P123

398D003 Rev C 2 of 15
II –PREPARING THE SA MODULE & CABINET FOR INSTALLATION
Step 1: Remove the right side duct cover and lower SA module panels to gain access to the mounting holes
for the BDINQ400 cabinet on the SA chassis underneath the table top.
Remove front grille.

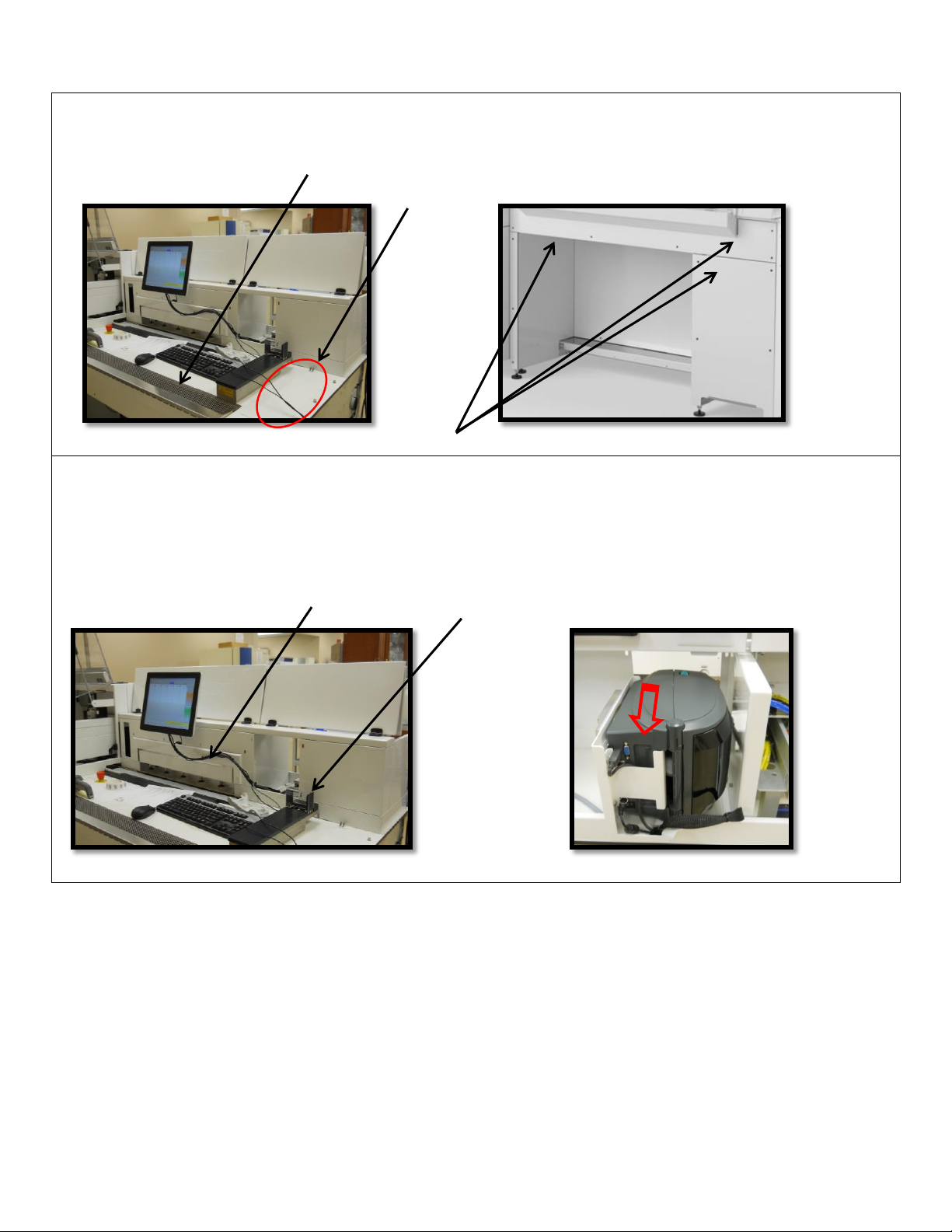

Step 2: Detach slide warmer from table top by removing mounting screws located underneath the tabletop
inside the bottom plenum. Move the slide warmer forward in order to clear the area in front of the printer
module. Slide the printer to the rear of the instrument.
Note: if this a field upgrade installation, remove existing touch screen, printer cover, front shifter panel and all
associated wiring for the touch screen. Install new front shifter panel p/n 200000025 that is designed for
cabinet interface.
Slide warmer
Front shifter panel
Duct cover
SA module access panels
Front grille

398D003 Rev C 3 of 15

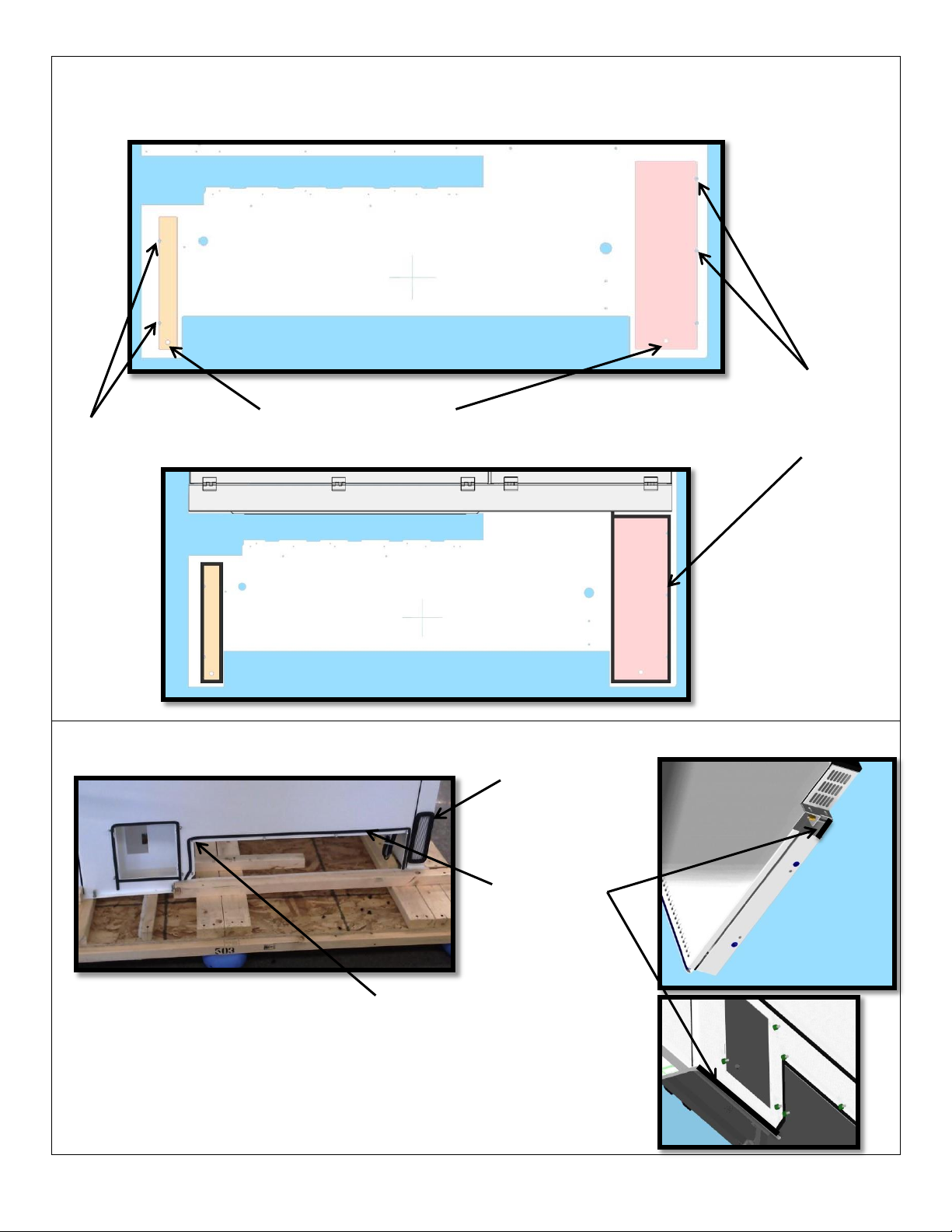

Step 3: Using templates 398F402 and 398F403 provided and shipped with the cabinet, apply gasket
to the table top around the perimeter of the templates as indicated by dashed red lines for sealing between the
bottom of the cabinet and the table top.
Step 4: Inspect the cabinet rear area to ensure that gasket material is properly attached. Inspect threaded
studs for damage or misalignment.
Align with holes in
table top
Template orientation
With hole towards front
(10) M6 threaded studs
“D”gasket
Align with holes in
table top
gasket
Flat gasket

398D003 Rev C 4 of 15
Step 5: Using a 5/32"Allen wrench tool, remove the outer right side panel of the cabinet and then remove
the inner access panel by removing the 1/4” hex head screws.
Step 6: Unscrew shipping screws attached to the viewscreen weight box and raise viewscreen.
Step 6: Attach front support bracket to the left and right view screen guide mounting holes prior to lifting
Support bracket
561/8”[1425 mm]
Outer side panel
Inner access panel

398D003 Rev C 5 of 15
III –LIFTING AND PLACEMENT OF THE BDINQ400

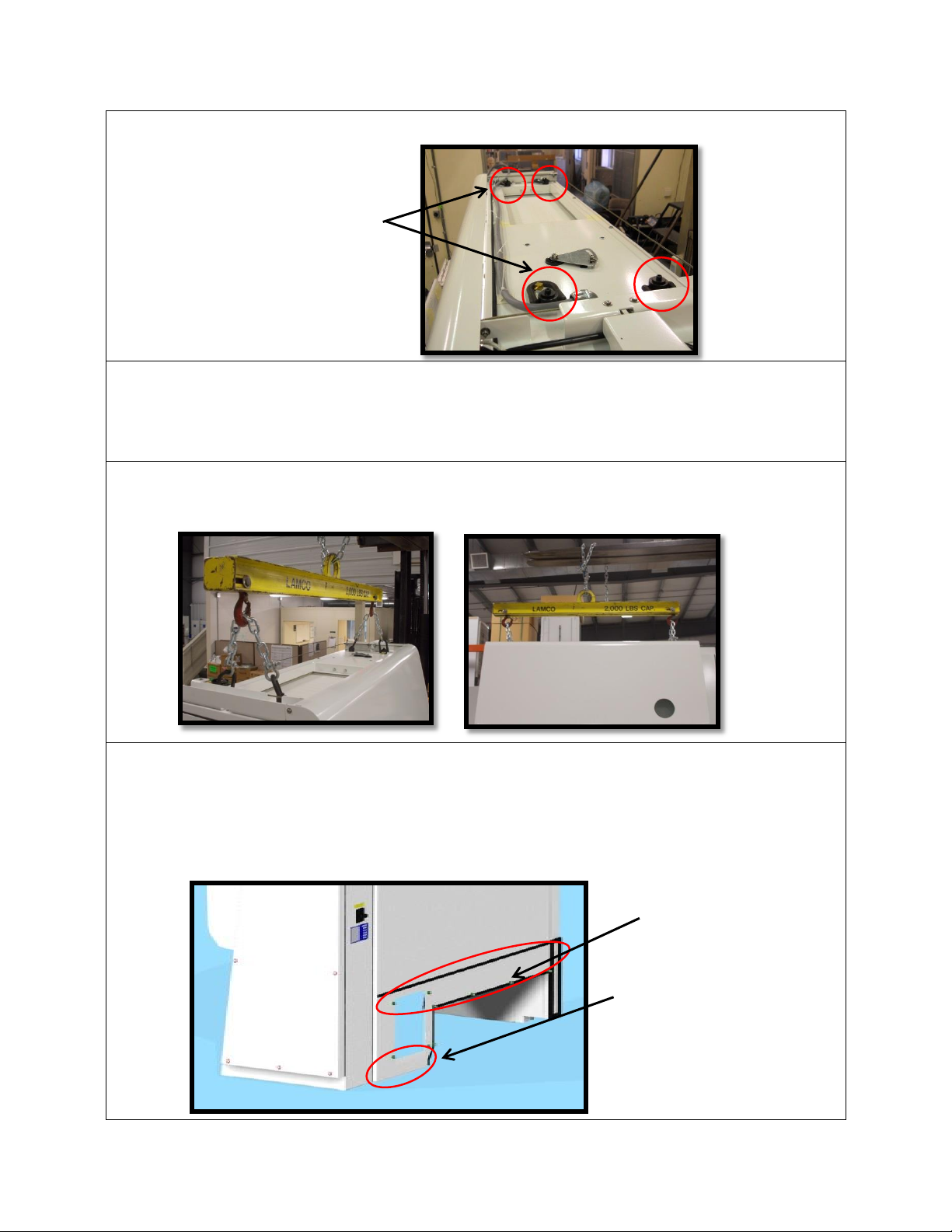

Step 1: Ensure that all four lifting hoist rings are properly attached to the top of the cabinet.
Step 2: The cabinet’s net weight is 390 lbs [177 kg] with the center of gravity located to the
right of center. Use a spreader beam that has adjustability for unbalanced loads.
Step 3: Attach lifting equipment to cabinet and lift up slightly to verify balance. Adjust as
needed to get more even balance.
Step 4: Position cabinet over table top of SA chassis and carefully lower in place. The
cabinet’s rear flange must fit between the slide plate warmer and shifter module cover.
Align cabinet mounting studs in rear with shifter module cover mounting holes then slide
cabinet back against shifter module cover. Next, align cabinet mounting holes in base with SA
chassis table top mounting holes.
Hoist rings
[Baker p/n 43674]
Mounting studs
Rear flange with gasket
attached to bottom

398D003 Rev C 6 of 15
IV –MANUAL LIFTING OF THE BDINQ400
REDUCING THE LIFTING WEIGHT OF THE CABINET
Step 1: Supporting the supply diffuser with one hand, remove the securing hardware with an
11/32 ratchet wrench or nut driver. Using two hands lower the front edge of the diffuser down.
Then while holding the edge firmly, carefully pull it forward off its rear mounting studs and
remove it from the cabinet work area. Use caution to avoid damaging the HEPA filter.

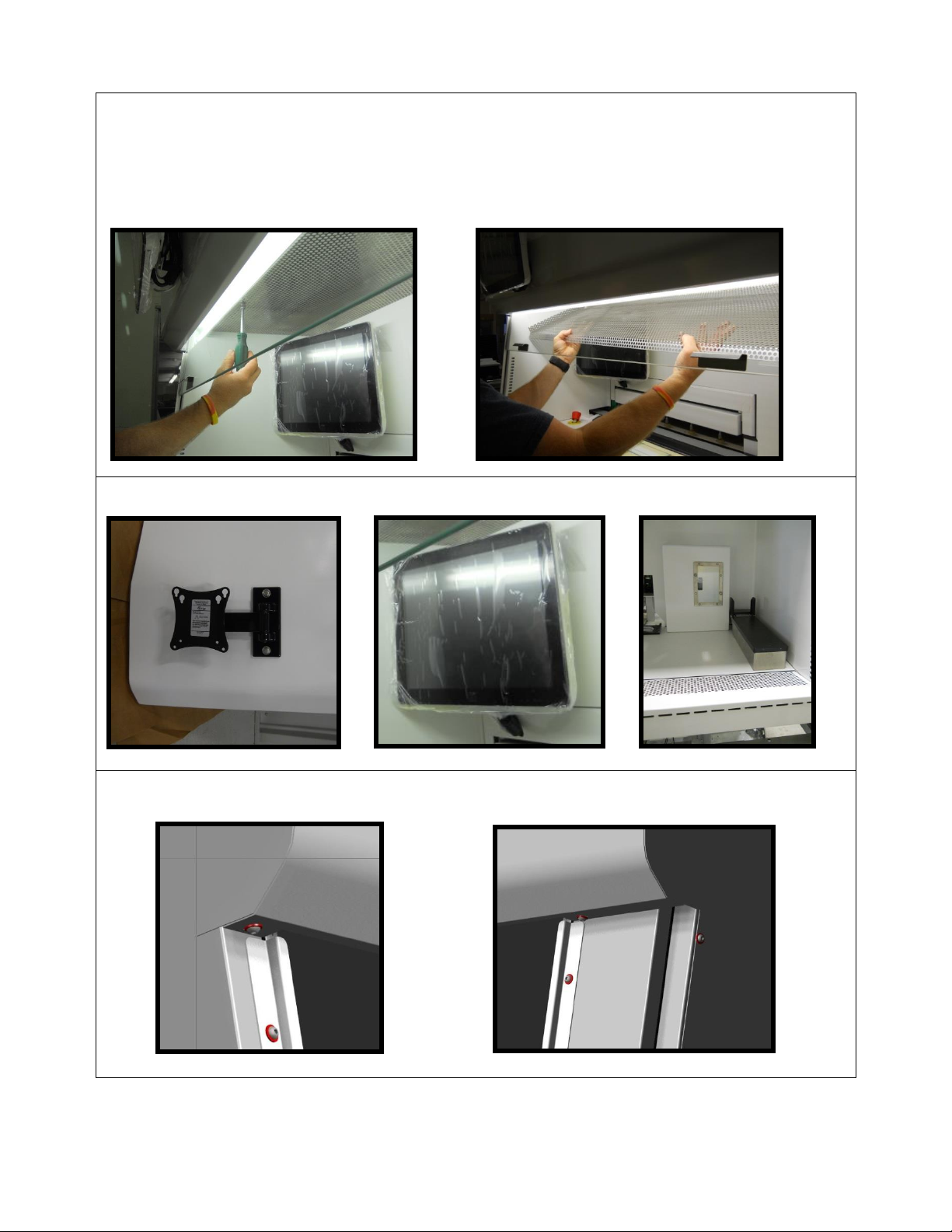

Step 2: Remove the exterior and interior touch screen mount and label printer cover
Step 3: Remove the two 1/4-20 button head screws from the lower left and right side of the
fascia panel

398D003 Rev C 7 of 15
Step 4: Open the fascia panel by firmly grabbing the lower edge of the fascia and carefully pivot
it to the full open position. While supporting the fascia open with one hand use the other hand to
pivot two fascia support arms on either side of the fascia away from the cabinet. Lower the fascia
panel onto the supports.

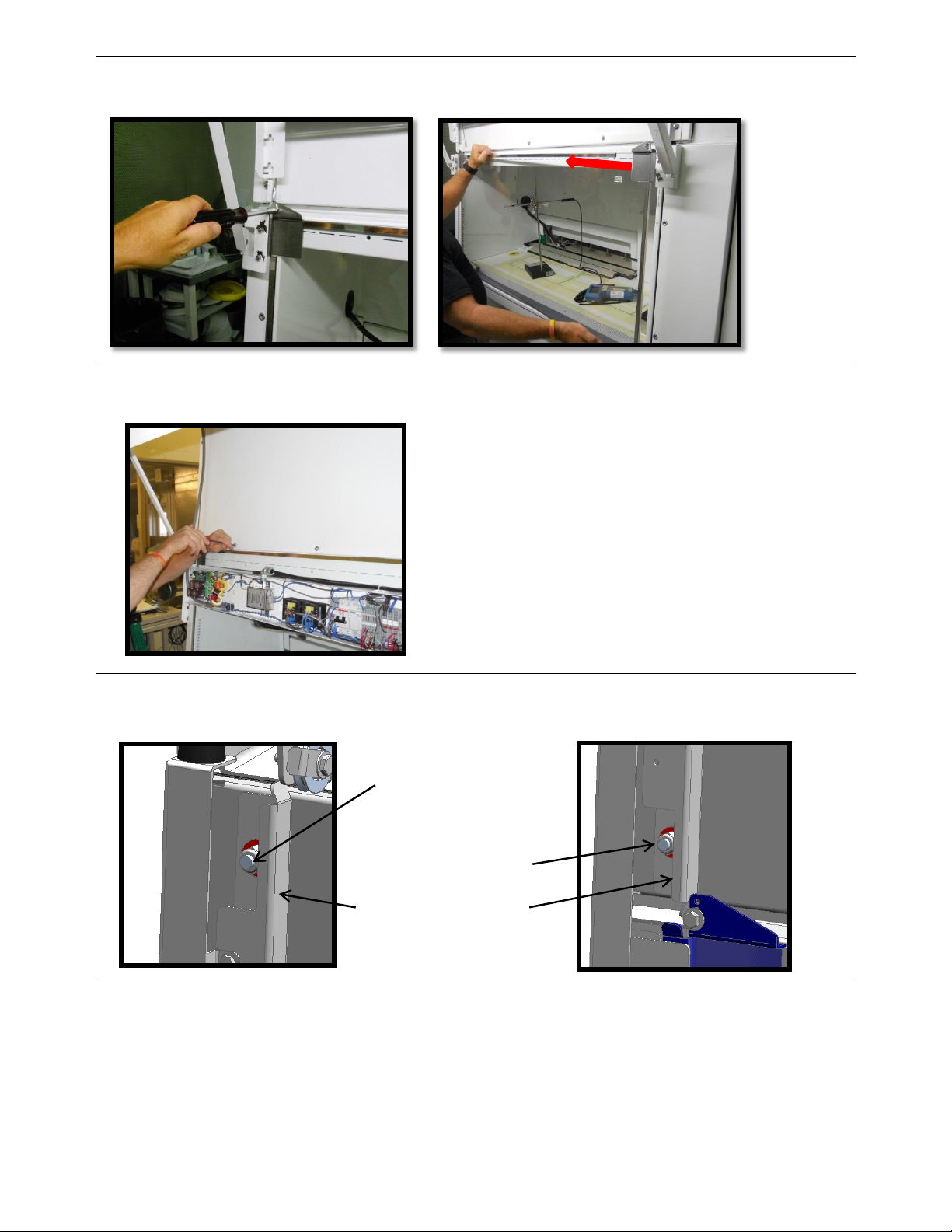

Step 5: Secure the weight box in its top position by raising the weight box and inserting the 1/4-
20 hex head shipping screws
Step 6: Unscrew cables on top of the weight box, remove shipping screws and remove weight
box. Remove weight box guides.
Shipping screws
Viewscreen
cables attachment
Weight box guide

398D003 Rev C 8 of 15
Step 7: Close the viewscreen and remove the left and right viewscreen guide brackets.

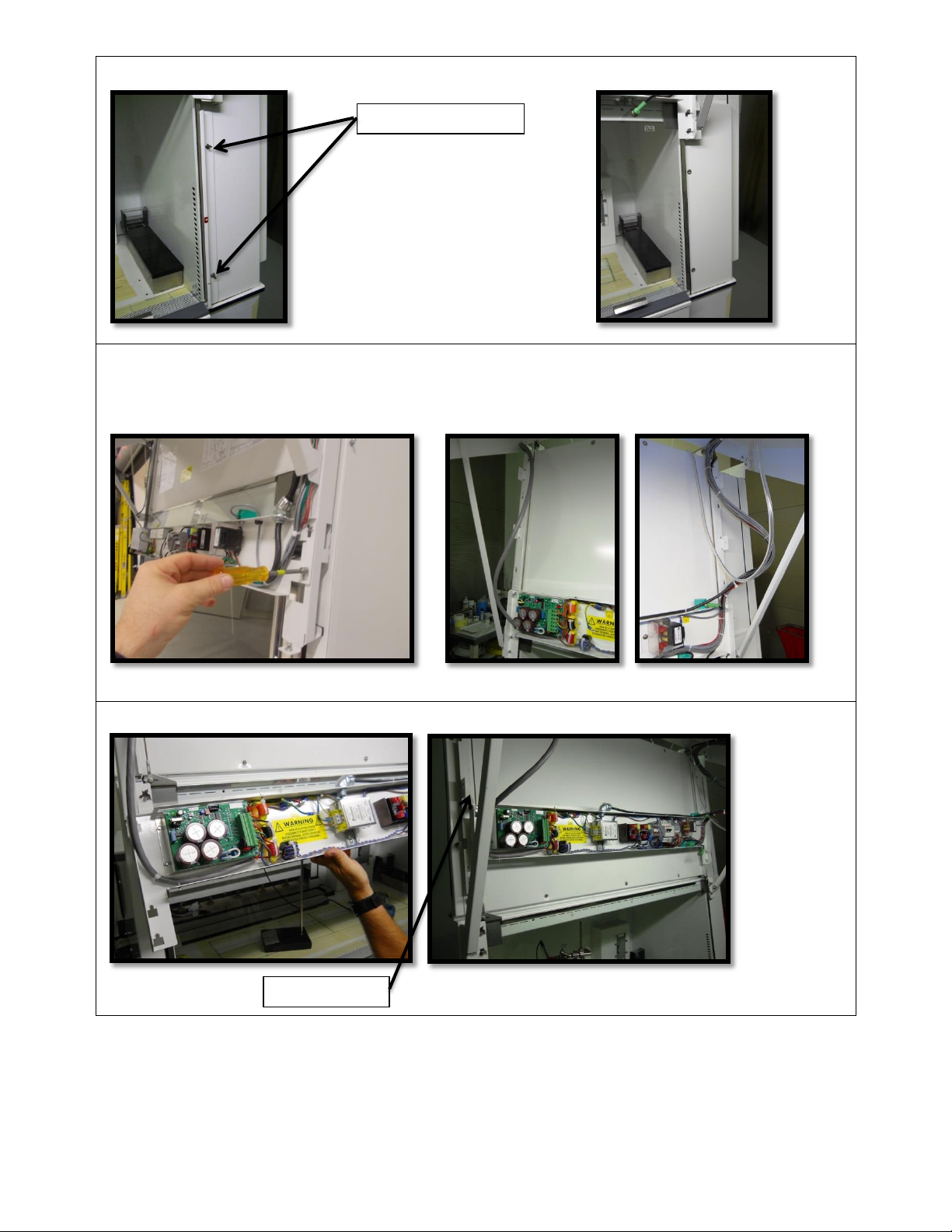

Step 8: Loosen the four 5/16” hex nuts, (2 each side) that secure the electrical board.
Do not completely remove these. Cut the wire ties securing cabinet wiring to the left and right of
the cabinet front seal panel
Step 9: Temporarily secure the electrical board to the wire tie cut-outs located using ty-raps
1/4-20 screws
Wire tie cut-out

398D003 Rev C 9 of 15
Step 10: Remove view screen cable screw on each side of the viewscreen, slightly lift up the
viewscreen and move sideways to clear cable bracket
Step 11: Lower control board and hang the top of the board off the lower screws. This
position will allow full access to the front seal panel hardware.
Step 12: Using a 7/16" ratchet or spin wrench, loosen and remove the locknut and washer
hardware from the upper viewscreen slides.
Top hardware
Bottom hardware
Upper viewscreen slide

398D003 Rev C 10 of 15
Step 13: Use a 5/32"Allen wrench tool to remove all ten front seal panel bolts and seal washers
from the front seal panel.
Step 14: Pull the front seal panel off from the cabinet. This may require prying up on a corner
of the panel to release hold. Be careful not to damage the gasket.

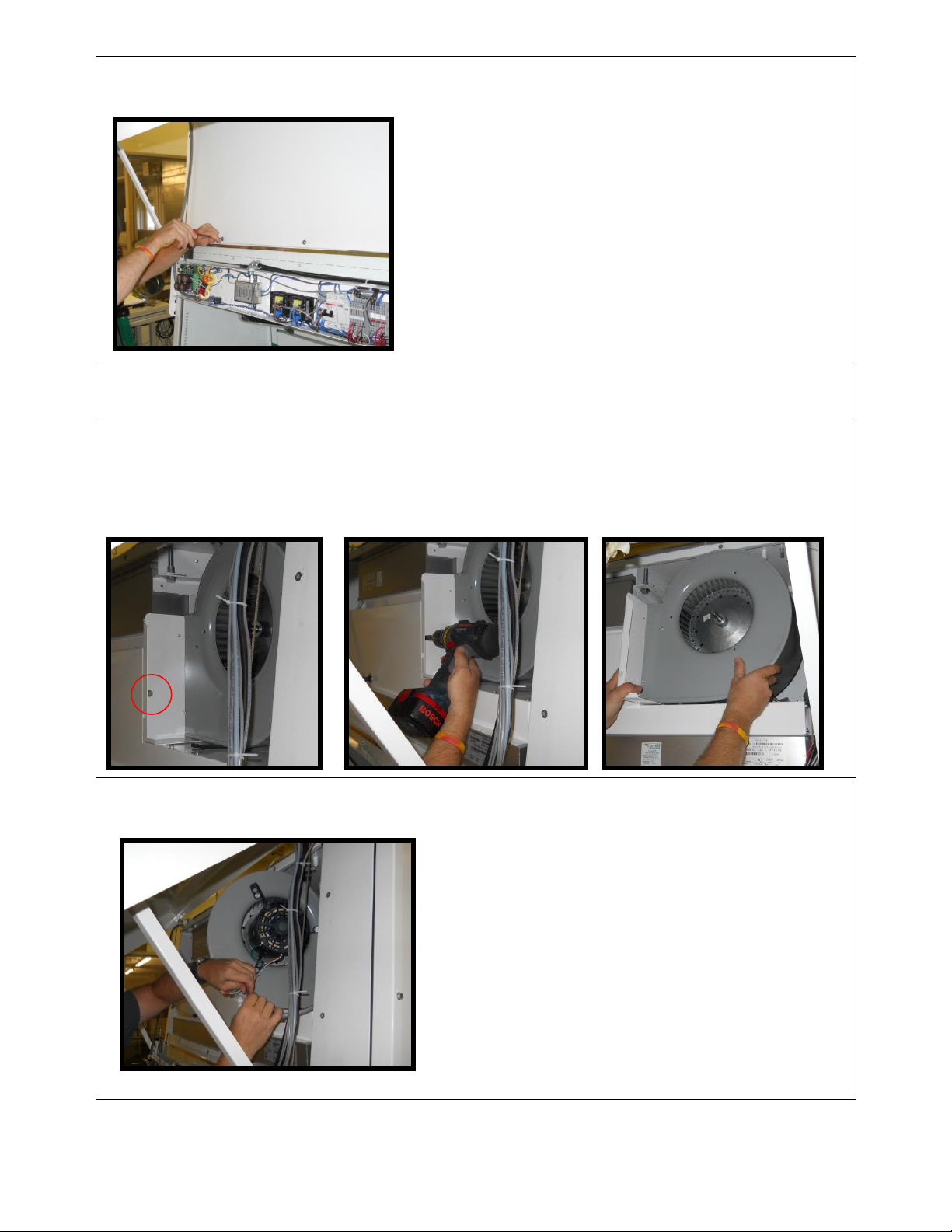

Step 15: Remove the screw holding the plastic clip securing the motor wiring. Using a 3/8" spin
wrench, ratchet, or drill with socket, loosen and remove the bolt from the blower housing as
shown. Grasp the motor blower assembly with two hands and carefully slide out from the
cabinet and rotate it so the motor is on the right. Let it rest on the supply plenum.
Step 16: Disconnect each of the motor wiring cables noting the proper color matching
connection. Remove blower from the front.

398D003 Rev C 11 of 15
1/4-20 hexhead panel screws
ATTACHING THE LIFTING AIDS TO THE CABINET

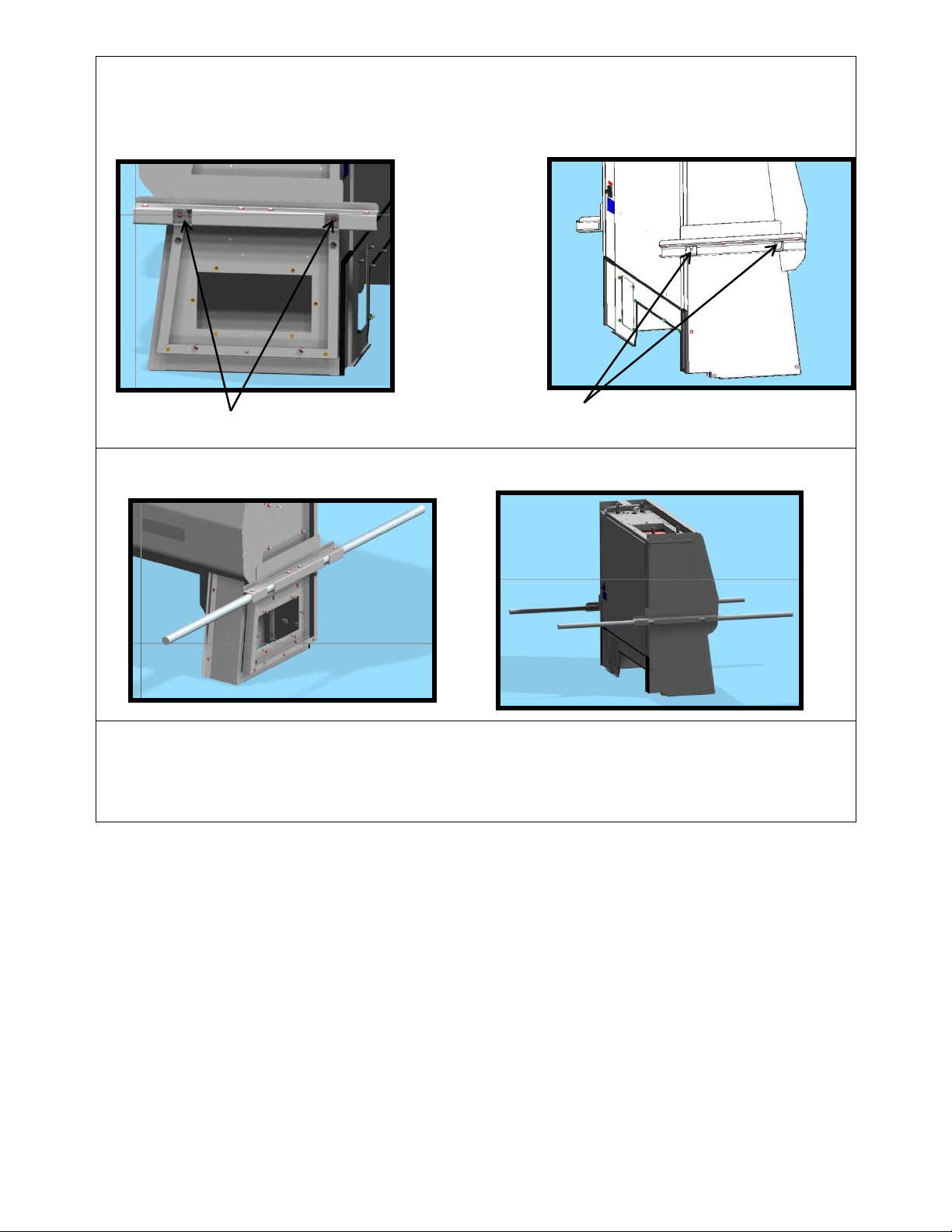

Step 1: Attach the lifting aid brackets to each side of the cabinet by inserting the existing side
panel screws
Step 2: Attach the lifting bars to the brackets using 1/4-20 hex head screws
Step 3: For ergonomic reason lift the cabinet onto a lift table that can be raised to the InoqulA
table top height. Position the lift table with cabinet to the right side of the SA module and lift the
cabinet with four people over the SA table top while moving to the left. When the cabinet is in
the proper position remove the lifting aids from the each side.
1/4-20 hex head panel screws

398D003 Rev C 12 of 15
V –ATTACHMENT OF THE BDINQ400
Step 1: Insert (2) M6 x 30 mounting screws on left side of the cabinet from underneath
the SA chassis table top.
Step 2: Insert three (3) M6 x 30 mounting screws in the slots located in right side plenum.
Step 3: Attach all M6 mounting hardware for cabinet rear wall to shifter module. Tighten all
hardware including mounting screws between cabinet and SA chassis table top.
Step 4: Remove front fixture bracket from cabinet
Mounting locations
Table top
Mounting locations

398D003 Rev C 13 of 15

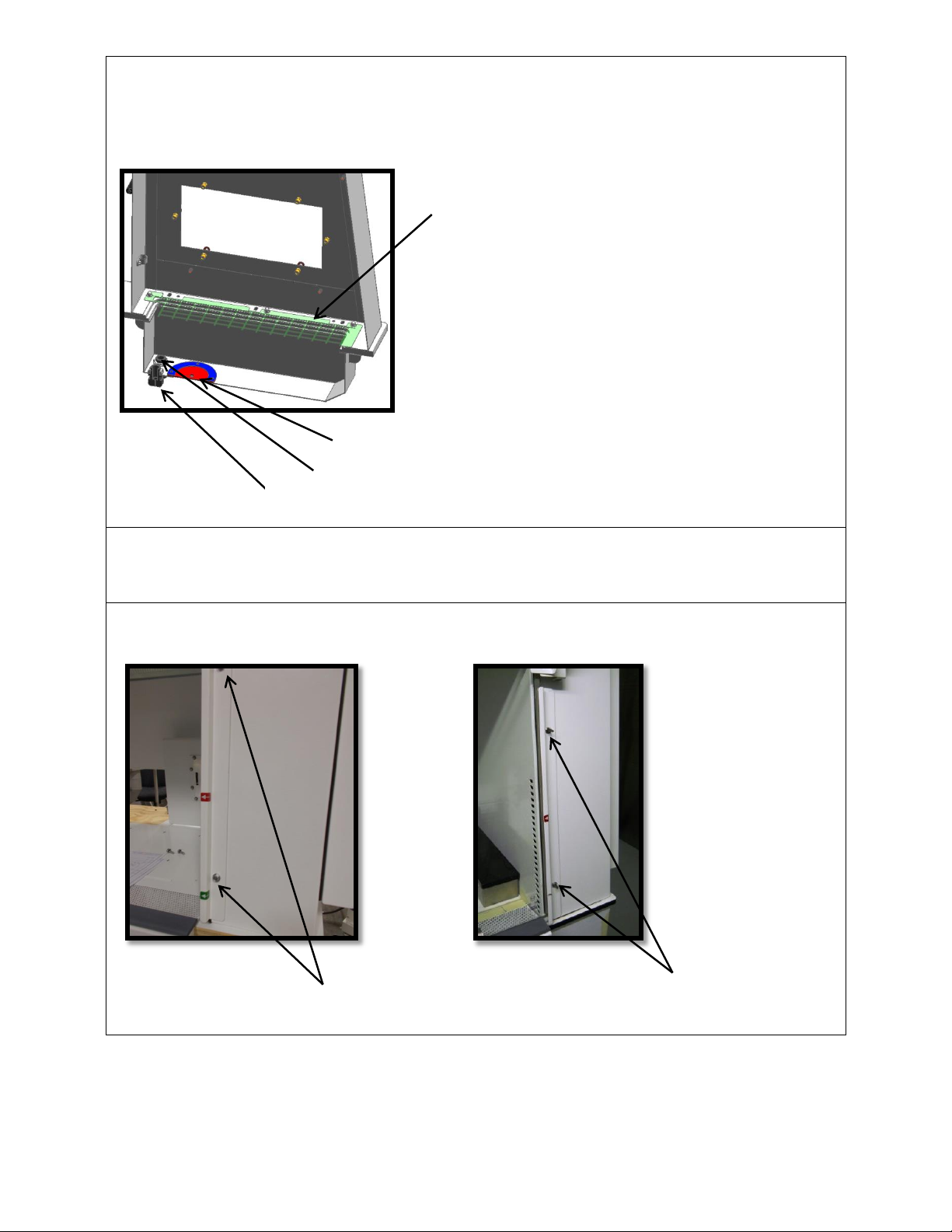

Step 5: Remove the towel guard and remove power cord plug and M12 male signal connector.
Feed all cables from bottom of cabinet through the bottom plenum into the designated cable
glands. Afterwards re-attach M12 male signal connector and power cord plug.
Connect touch screen cables to appropriate locations on the rear of the InoqulA PC.
Step 6: Install all removed cabinet parts in reverse order starting with blower, front seal panel,
viewscreen and weight box, touch screen mounts & printer cover and right side access panel
and outer side panel.
Step 7: Replace 1/4-20 button head screws in view screen guides and front dress panels with
1/4-20 thumb screws
Towel guard
Cable port for touch screen cables
Power cable gland
Signal cable gland
1/4-20 button head
shipping screw
1/4-20 thumb screw
