Baldwin Boxall OmniCarePLUS Multi-Exchange EVC User manual

OmniCarePLUS Multi-
Exchange EVC
Installation Instructions
Manual name: OmniCarePLUS
Issue: 1
ECR: n/a
Date of issue: May 2020

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
ii OmniCarePLUS issue 1
© May 2020 Baldwin Boxall Communications Limited
Wealden Industrial Estate
Farningham Road, Jarvis Brook
Crowborough
East Sussex
TN6 2JR
UK
Telephone: [phone]
Facsimile: [phone]
Email: [email protected].uk
Website: http://www.baldwinboxall.co.uk
This equipment has been designed and manufactured to conform to the following
EC Standards:
EMC: Emissions EN55032:2015
EMC: Immunity EN50130-4:1995 +A1:1998 +A2:2003
Safety: BS EN 62368-1:2014 +A11:2017
Failure to use the equipment in the manner described in the product literature
will invalidate the conformity.
A “Declaration of Conformity” statement to the above standards and a list of
auxiliary equipment used for compliance verification is available on request.

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
OmniCarePLUS issue 1 iii
Amendment Record __________________________________ vii
Proprietary Notice ___________________________________ vii
General Information __________________________________viii
Environmental Conditions______________________________viii
Safety and Statutory Information ________________________ ix
Comments__________________________________________x
Technical Description
Introduction_________________________________________1
Technical Specifications ________________________________2
Local Control Panels - - - - - - - - - - - - - - - - - - - - - - - - - - 2
Remote Units - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3
Network Control Stations - - - - - - - - - - - - - - - - - - - - - - - 3
BVOCTSHUB EVC Network Hub- - - - - - - - - - - - - - - - - - - - 4
BVOCTSINT PC Interface - - - - - - - - - - - - - - - - - - - - - - - 5
Embedded PC - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 6
Battery Box (BVOBATT & BVOBATT2) - - - - - - - - - - - - - - - - - 6
Controls and Indicators ________________________________7
Overview of System Design Requirements
OmniCare Design Requirements __________________________9
OmniCare Plus Design Requirements ______________________9
Recommendations for "Master Station" Location _____________ 10
Hardware Installation
Installation Overview _________________________________ 11
Local Control Point Installation __________________________ 12
Remote Unit Installation and Connection - - - - - - - - - - - - - - - 12
Control Panel Installation (OmniCare Site Cabling) - - - - - - - - - - - 12
Battery Box Installation- - - - - - - - - - - - - - - - - - - - - - - - 12
Delayed Call Output - - - - - - - - - - - - - - - - - - - - - - - - - 12
Network Connection - - - - - - - - - - - - - - - - - - - - - - - - 13
OmniCare Plus Network Installation ______________________ 13
BVOCTSHUB Network Hub Installation ___________________ 14

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
iv OmniCarePLUS issue 1
BVOCTSINT PC Interface _____________________________ 15
Embedded PC ______________________________________ 15
BVOCTSPCM/D Network Control Station ________________ 16
Commissioning
Commissioning the Local Control Point(s) _________________ 17
Commissioning the EVC Network _______________________ 17
Commissioning the Network Control Point(s) ______________ 17
Administrator Settings - - - - - - - - - - - - - - - - - - - - - - - - 18
Editor Settings - - - - - - - - - - - - - - - - - - - - - - - - - - - - 22
Tone Configuration
Tone Configuration (remote units)_______________________ 23
Operation
Main Screen _______________________________________ 25
System Status - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
Console Status - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
Clean Screen - - - - - - - - - - - - - - - - - - - - - - - - - - - - 26
View Call History - - - - - - - - - - - - - - - - - - - - - - - - - - 26
View Fault History - - - - - - - - - - - - - - - - - - - - - - - - - - 27
View Call Priority - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Touch to Enable - - - - - - - - - - - - - - - - - - - - - - - - - - - 27
Export System Logs to File - - - - - - - - - - - - - - - - - - - - - - 27
Print System Logs - - - - - - - - - - - - - - - - - - - - - - - - - - 28
Make All Call Broadcast - - - - - - - - - - - - - - - - - - - - - - - 28
To Answer Incoming Calls ____________________________ 29
To Answer an Incoming DRS Call - - - - - - - - - - - - - - - - - - - 29
To Answer an Incoming Fire Telephone / Stewards Telephone Call- - - - 30
To answer a call from a DTA (Disabled Toilet Alarm) - - - - - - - - - - 30
To Clear "Occupied" Disabled Refuge units - - - - - - - - - - - - - - 31
Fault Finding
Introduction _______________________________________ 33
Local Control Point Issues _____________________________ 33

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
OmniCarePLUS issue 1 v
Network Control Point Issues __________________________ 33
Maintenance
Maintenance & Routine testing __________________________ 35
Cables
Cable Requirements __________________________________ 37
Addendum
BVOCTSnn (08-64 Way) Control Panel ___________________ 40
BVOBATT Battery Enclosure ___________________________ 41
BVOBATT2 Battery Enclosure __________________________ 42

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
vi OmniCarePLUS issue 1

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
OmniCarePLUS issue 1 vii
AMENDMENT RECORD
Change Note
Number
Nature of Amendment Date of
Amendment
n/a Issue 1: Initial Release May 2020
PROPRIETARY NOTICE
All data and information contained within this manual is of a
proprietary nature with the exclusive title to the same held by
Baldwin Boxall Communications Limited. The possession of this
manual and the use of the information is, therefore, restricted
only to those persons duly authorised by Baldwin Boxall
Communications Limited.
Do not reproduce, transcribe, store in a retrieval system or
translate into any language, any part of this manual without the
prior permission of Baldwin Boxall Communications Limited.
In the interest of continual product development, Baldwin Boxall
Communications Limited reserves the right to make changes to
product specification without notice or liability. Use of Baldwin
Boxall Communications Limited products as critical components
in life support systems is not authorised except with express
written approval from Baldwin Boxall Communications Limited.

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
viii OmniCarePLUS issue 1
GENERAL INFORMATION
Personnel who install, maintain or repair this equipment must
read the safety information below before starting work.
This Manual contains Warnings, Cautions and Notes.
War nings describe potential threats to health or life, e.g.
WARNING
Before attempting to remove this component, ensure the Mains
Power Supply and Battery Backup have been disconnected.
Cautions describe potential threats to the equipment, e.g.
CAUTION
Notice must be taken of all cautions.
If a Caution is ignored the equipment may be damaged.
Notes are statements that are useful to the user in the context of
a particular section of the manual, e.g.
NOTE: This is an example of a note.
ENVIRONMENTAL CONDITIONS
This equipment must not be installed in an area that is subject to
a corrosive atmosphere, excessive moisture or may allow water or
other liquids to come into contact with the unit or its external
connections.Unless otherwise stated, all items are IP30.
AC Supply Voltage 230V - 15% +10% RMS 50Hz AC
DC Supply Voltage 18V to 33V (Nominal 24V) DC
Temperature (Operating &
Storage)
0°C up to +40°C
Humidity Range 0% - 90% Non-Condensing
In the close proximity of some radio frequency transmitting
devices, the signal to noise ratio of this product may be reduced.
If this occurs, re-location of the equipment or the signal cables is
recommended.
!!!

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
OmniCarePLUS issue 1 ix
SAFETY AND STATUTORY INFORMATION
CAUTION
These Safety Precautions apply to assembled systems, however
they may not all be applicable to every item within that system.
Failure to follow these instructions and guidelines may cause
personal injury and/or damage to the equipment.
WARNING
This equipment is intended for continuous operation and as such
should be permanently connected to the mains supply.
This unit does not contain an external mains switch.
For servicing, an all-pole Switch / Circuit Breaker with a separation
of 3 mm in each pole should be incorporated in the electrical
supply spur feeding the unit, and this must be suitably marked to
prevent inadvertent or accidental usage.
WARNING
Always ensure that this equipment is correctly earthed by
connection to an AC mains supply with a protective earth
connection.
WARNING
If Functional Testing, Maintenance, or Repair is to be completed
with the Mains Power (and/or battery backup) connected then this
should only be undertaken by personnel who are fully aware of the
danger involved and who have taken adequate precautions and
training.
Terminals marked with the "High Voltage" symbol are considered
hazardous and the external wiring connected to these terminals
requires installation by suitably trained personnel.
WARNING
The 24V DC batteries used within this system can deliver
extremely high currents that can cause fire or burns.
Care should be taken to ensure tools or jewellery etc. are
prevented from causing a Short Circuit.
!!!
!!!
!!!
!!!

WARNING
Batteries shall not be exposed to excessive heat such as sunshine,
fire or the like.
WARNING
If battery isolation / disconnection is required then the 0V cable to
the chassis should be disconnected first.
WARNING
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type.
Dispose of battery carefully to avoid environmental damage.
Do not dispose of battery in a fire.
CAUTION: ELECTRO-STATIC SENSITIVE DEVICES
Observe the relevant precautions for the protection of Electro-
static Sensitive Devices when handling this equipment.
CAUTION
This product must only be disposed of in accordance with the
WEEE directive.
OmniCarePLUS Multi-Exchange EVC
Installation Instructions
xOmniCarePLUS issue 1
COMMENTS
Comments regarding the content of this manual are welcome and
should be addressed to [e-mail].
!!!
!!!
!!!

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
OmniCarePLUS issue 1 1
1Technical Description
1.1 INTRODUCTION
The OmniCarePLUS Multi-Exchange EVC comprises a network
of BS5839-9 compliant “local” systems, each “local” system can
control upto 64 outstations, and can be operated as a standalone
EVC system.
With the addition of the OmniCarePLUS network enabling the
installation of much larger systems, upto 126 Local Control
points (each controlling upto 64 outstations) can be networked
together making it possible to connect upto a maximum of 8064
outstations.
The benefit of OmniCarePLUS is the ability to communicate with
any outstation on any part of the network from a single “point”.
This sitewide control is via graphical touch screen(s) called
Network Control Stations (NCS).
The network can be either copper or fibre (either multimode or
single mode) but must be Fire Rated, Enhanced cable configured
as a loop. All site cables and connections, including internal
interfaces, chargers & batteries are fully monitored for faults.
Each local control point is supplied with a separate battery box.

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
2OmniCarePLUS issue 1
1.2 TECHNICAL SPECIFICATIONS
Please refer to the OmniCare installation Manual for the majority
of Technical Specifications. Where there are OmniCarePLUS
specific items they will be detailed within this manual.
1.2.1 Local Control Panels
Control Panels
System self-monitoring BS5839 compliant
Remote signalling of fault Volt-free contact, closing/opening set on installation
Indicators Occupied, call, fault, power, charger, speech level
Transmission capability Half-duplex (DRS remotes) either voice switched or by
PTT (controlled at the Control Panel).
Full Duplex (Fire Telephones)
Power supply 110V / 230V AC autoswitching, battery backed with built
in batteries & charger
Power consumption (VA) 10VA + 1VA per remote connected
Dimensions (W x H x D) 410mm x 455mm x 200mm (8-64 way)
Bezel dimensions (W x H x D) 461mm x 506mm x 25mm (8-64 way)
Bezel Cutout dimensions W x H 420mm x 465mm (8-64 way)
Knockouts 20mm diameter in top and top/rear
Security Lockable glazed door
Weight (not including batteries) 26kg (8-64 way)
Temperature Range -10 to +30°C (storage and operating)
Humidity Range 95% Non Condensing
Network Connections Either Copper (4 cores) or Fibre (single or multimode)

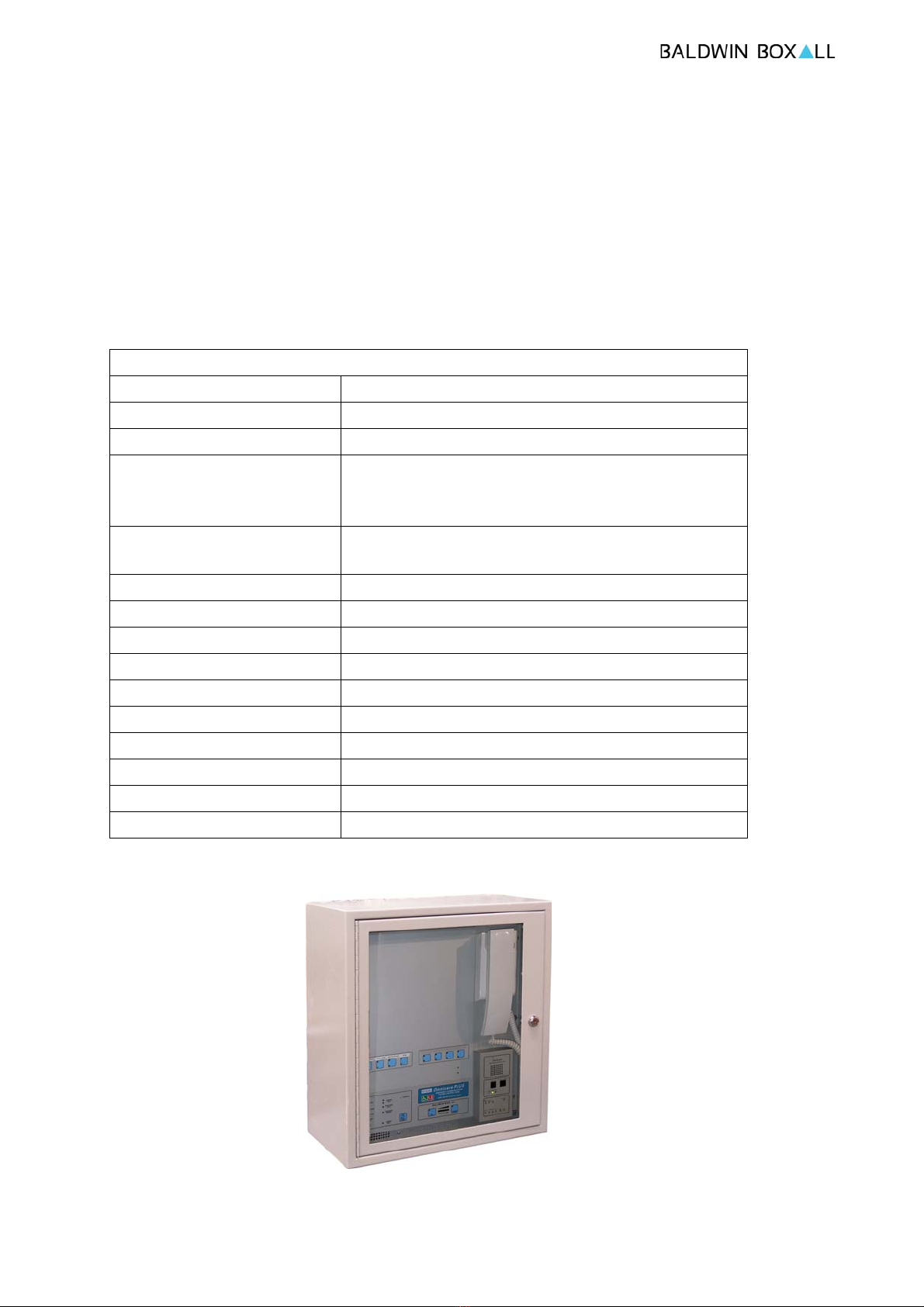

Figure 1.1 — Typical OmniCarePlus Local Control Panel

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
OmniCarePLUS issue 1 3
1.2.2 Remote Units
Please refer to the OmniCare installation manual for the technical
specifications of the remote units.
1.2.3 Network Control Stations
The Touchscreen is available with either a monitor mounted
handset or a desk mounted handset.
Figure 1.2 — Typical BVOCTSPCM (with attached handset)
Network Control Stations
Power supply 100V / 240V AC 50 / 60 Hz autoswitching
Power consumption 0.7A (18.1W Typical)
Dimensions (W x H x D) BVOCTSPCM (with monitor mounted handset)
580mm x 400mm x 260mm
BVOCTSPCD (monitor with desk mounted handset)
500mm x 400mm x 220mm
Desk mounted handset
70mm x 220mm x 70mm
Weight BVOCTSPCM (with monitor mounted handset)
Approx 5.1kg
Weight BVOCTSPCD (monitor with desk mounted handset)
Approx 8kg
Connections 1x HDMI, 1x USB, 1x RJ12 (cables supplied)
Transmission capability Half-duplex (DRS remotes) either voice switched or by
PTT (controlled at the Control Panel).
Full Duplex (Fire Telephones)

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
4OmniCarePLUS issue 1
1.2.4 BVOCTSHUB EVC Network Hub
The EVC Network Hub provides the network terminations and
battery backup for the network to provide power in case of mains
failure.

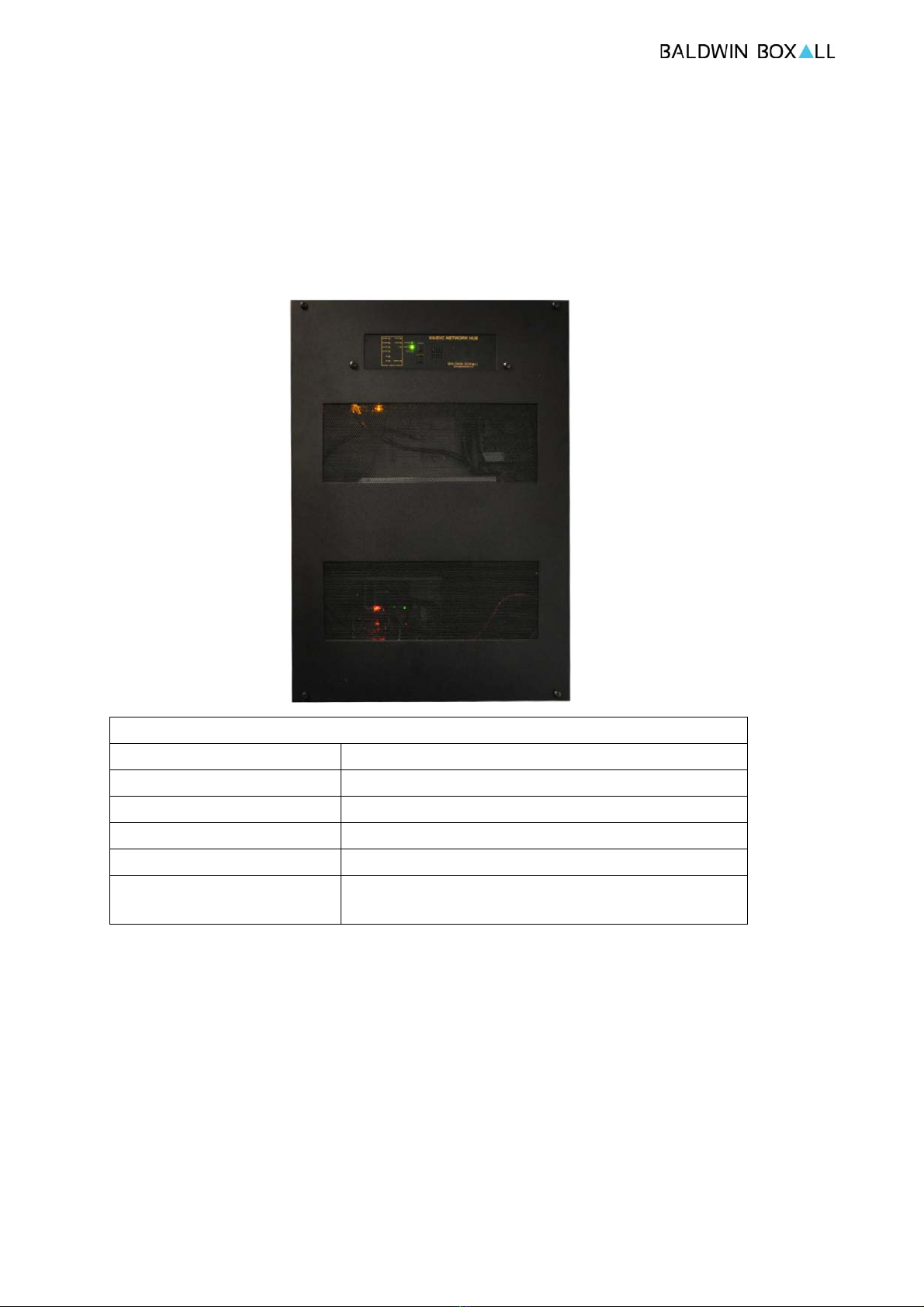

Figure 1.3 — Typical EVC Network Hub
EVC Network Hub
Power supply 200-230V AC 50/60 Hz
Power consumption 1.35A (Max)
Dimensions (W x H x D) 500mm x 725mm x 200mm
Weight 36kg (including batteries)
Connections 2 x CAT5 Cable to BVOCTSINT
Network Connections Fire Rated, Enhanced Cable (either Copper or Single /
Multi mode Fibre)

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
OmniCarePLUS issue 1 5
1.2.5 BVOCTSINT PC Interface
The PC Interface provides the connections between the Network
Hub and Embedded PC. The PC Interface must be located within
50m of the Network Hub and within 5m of the Embedded PC.

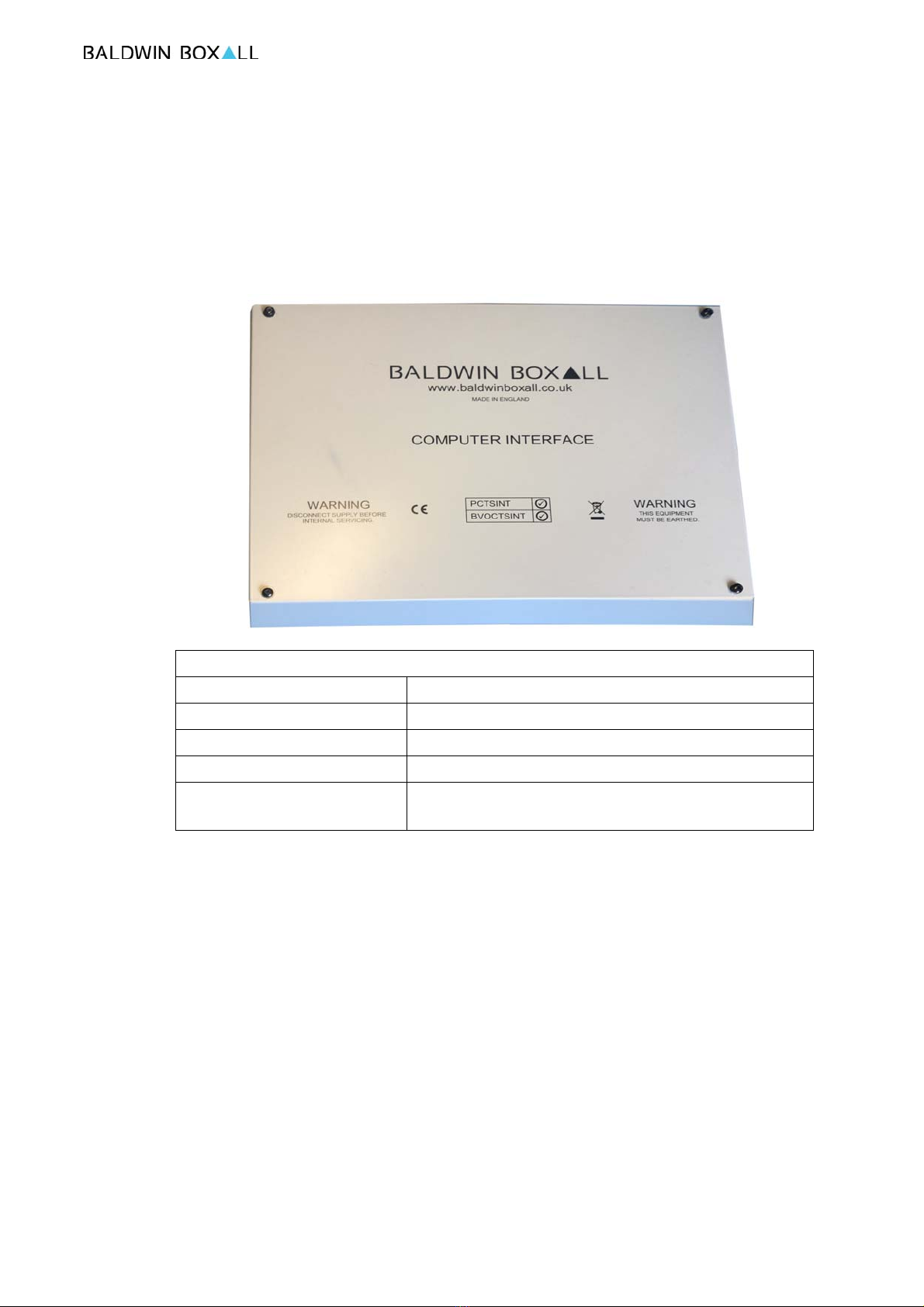

Figure 1.4 — Typical BVOCTSINT PC Interface
BVOCTSINT PC Interface
Power supply Nominal 24V DC from Embedded PC & BVOCTSINT
Power consumption 1A (Max)
Dimensions (W x H x D) 270mm x 200mm x 200mm
Weight 2.6kg
Connections 2 x CAT5 Cable to BVOCTSHUB
1x RJ12 & 1 x USB

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
6OmniCarePLUS issue 1
1.2.6 Embedded PC
The Embedded PC must be located within 5 meters of the PC
Interface and within 2 meters of the BVOCTSPCM/D
Touchscreen monitor.

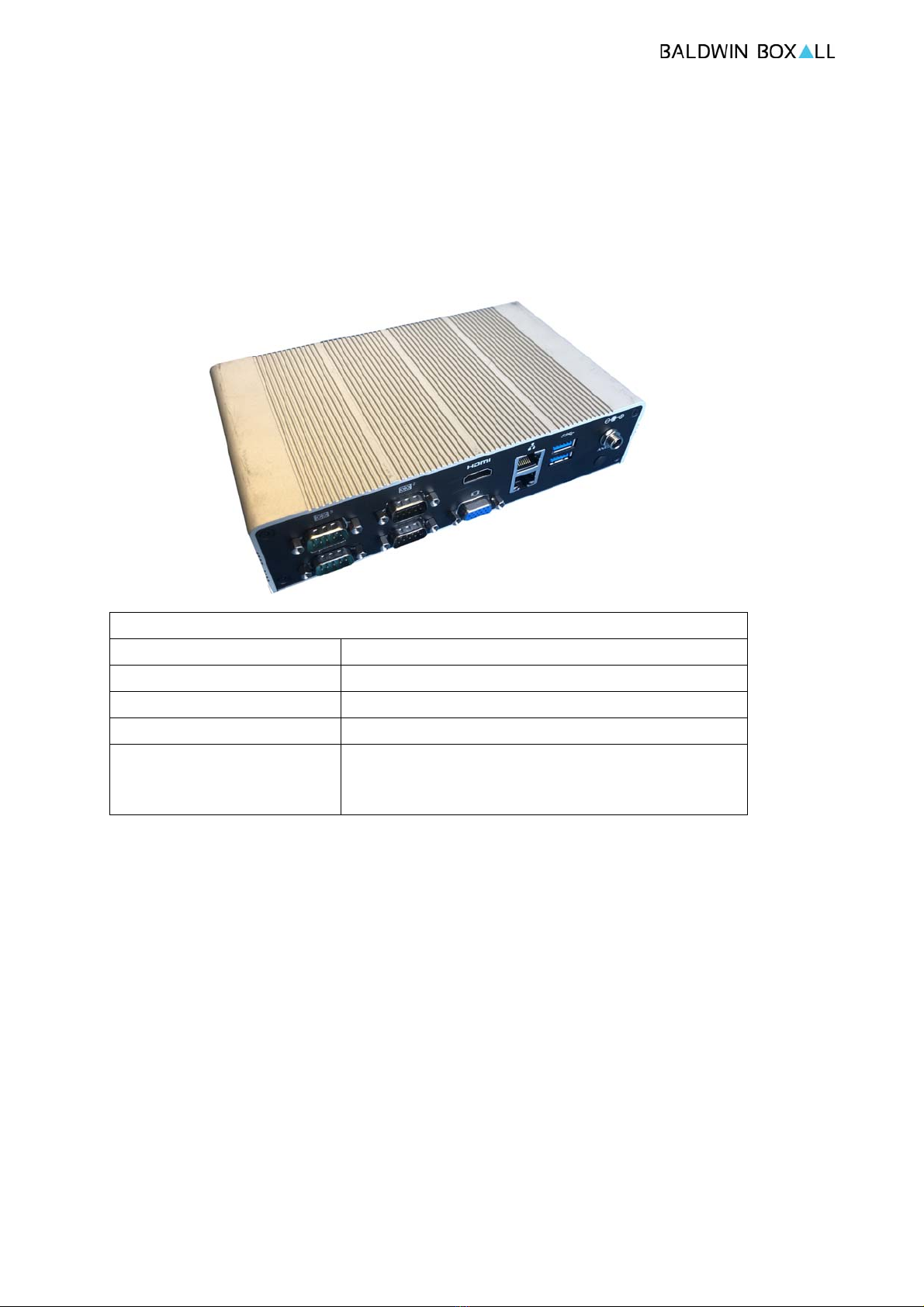

Figure 1.5 — Typical Embedded PC
Embedded PC
Power supply 12V DC from Inline 90-264V AC Adaptor
Power consumption 36W (Max)
Dimensions (W x H x D) 200mm x 50mm x 120mm
Weight 2.6kg
Connections 1x USB to BVOCTSINT
1x USB to BVOCTSPCM/D
1x HDMI to BVOCTSPCM/D
1.2.7 Battery Box (BVOBATT & BVOBATT2)
Each Local Control Point is supplied with a Battery Box, the size
depends on the batteries required. Refer to Section A.2 on
page 41 for dimensions and mounting details.
The battery boxes are designed to fit directly under the Local
Control Point. If for any reason this is not possible then extra
cabling and additional protection (in line fuses) will be required.

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
OmniCarePLUS issue 1 7
1.3 CONTROLS AND INDICATORS
The OmniCarePlus Local Control Point indicators are identical to
the standard control panel, with the addition of an extra set of
indicators and controls used for network operation.
Figure 1.6 — OmniCarePlus Local Control Point Indicators
NOTE: If a fault is announced then pressing the "Fault Accept" button
will silence the fault sounder. Depending on the type of fault it may also
be necessary to press the recessed "Fault Reset" button to clear any latched
faults. 
A latched fault will occur after powering the Control Panel and it will be
necessary to press the recessed fault reset button to clear the fault.

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
8OmniCarePLUS issue 1

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
OmniCarePLUS issue 1 9
2Overview of System
Design Requirements
2.1 OMNICARE DESIGN REQUIREMENTS
Please refer to the OmniCare Installation Manual for the design
requirements of each Local OmniCare system.
2.2 OMNICARE PLUS DESIGN
REQUIREMENTS
The OmniCare Plus Network system design must include each
local OmniCare Control Panel, each Network Control Station
and any EVC Network Hubs that may be required.
The network cable requirements for the OmniCare Plus network
are detailed in the BVRDNET Installation Manual. This includes
the type of cables required, the maximum distance between nodes
on the network and basic fault finding.

OmniCarePLUS Multi-Exchange EVC
Installation Instructions
10 OmniCarePLUS issue 1
2.3 RECOMMENDATIONS FOR "MASTER
STATION" LOCATION
To meet the requirements of BS5839-9 each local control panel is
considered a Master Station and as such their locations are defined
within BS5839-9.
NOTE: For full details please refer to BS5839-9.
For the purposes of BS5839-9 compliance, the Network Control
Stations are not defined as master stations.
Battery backup is supplied for each EVC Network Hub and is
sufficient to ensure the network remains operational in the case of
a local power failure. This meets the requirements of BS5839-9.
The Network Control Stations are outside of the scope of
BS5839-9, therefore consideration should be made to provide a
suitable alternative power source in the event of a local power
failure.
