Balt 34459 User manual

Assembly Instructions

123456789012345678901234567890121234567890123456789012345678901212345678901234

#34459 Security Cabinet

for Presentation Cart #27519

P-1 Left Side Panel 1 EA

P-2 Right Side Panel 1 EA

P-3 Back Panel 1 EA

P-4 Top Platform 1 EA

P-5 Bottom Platform 1 EA

P-6 Door 1 EA

P-7 Removeable Shelf 3 EA

AShort Wood Screw 4 EA

A1 PhillipsHeadScrew 1 EA

A2 Long Wood Screw 2 EA

BMetal Support Pins 12 EA

CCam Lock 12 EA

DCam Post 12 EA

ESpring Button 2 EA

FPlastic Grommet 2 EA

GDoor Lock w/Lock ring 1 EA

HKey 2 EA

JDoorKnob 1 EA

KDoorMagnet 1 EA

LAllenWrench 1 EA

Part Drawing Description Qty Part Drawing Description Qty

#34459 Security Cabinet

Hardware List

(Door Knob)

Should you require assistance during assembly,

please call our Customer Service Department

Monday - Friday 8 a.m. - 5 p.m.

Central Standard Time

Toll-Free Customer Service

1-800-749-2258

Do not use unless all screws

are tight. At least every six

months, check all screws

to be sure they are tight.

If parts are missing, broken,

damaged, or worn, stop use

of the product until repairs

are made by your dealer using

factory authorized parts.

#34459 Security Cabinet

Assembly Diagram

To Assemble:

IdentifyandSeparateall the Parts and Hardware.

Illustration # 1

Place the Left Side Panel (P-1) with

thePredrilledholes facing up and

install 4 each Cam Posts (D) in the 4

pre-drilledholes as shown in

illustration#1.

Install2each Cam Locks (C)intothe

largeholes asshown in

illustration#1.

Repeat Steps 2 & 3 for the Right

Side Panel (P-2).

Illustration # 2

Placethe Back Panel (P-3)withthe Holes facingup

andinstall 4 each Cam Locks (C) intothe large holes

asshown in illustration# 2.

Be sure that arrow on

top of Camlock (F)

alignswithcenterlineof

EdgeDrilledhole.

Phillips

Screwdriver

Centerlineof

EdgeDrilled

hole.

Arrow

P-1

P-3

Be sure that arrow on

top of Camlock (F)

alignswithcenterlineof

EdgeDrilledhole.

Phillips

Screwdriver

Centerlineof

EdgeDrilled

hole.

Arrow

Attach 1 each Door

Magnet(K)to theTopPanel

(P-4)andsecureusing2

WoodScrews(A2) as

showninillustration#4.

P-4

10.

Placethe Door (P-6)with the Screw Holesfacing up and

install1Lock (G) into thelargehole using 4 WoodScrews

(A). Press Lock Ring on from front side

asshowninillustration#3.

Attach Door Knob (J) to Door (P-6) using

1each (A1) screw.

Locate2 each SpringButtons(E) in thetop

andbottom of door (P-6).

Illustration # 4

PlacetheTopPanel (P-4) with theHoles

facing up and install 4 each Cam Locks

(C)intothe large holes as shownin

illustration#4.

Illustration # 3

P-6

LockRing

Illustration # 5

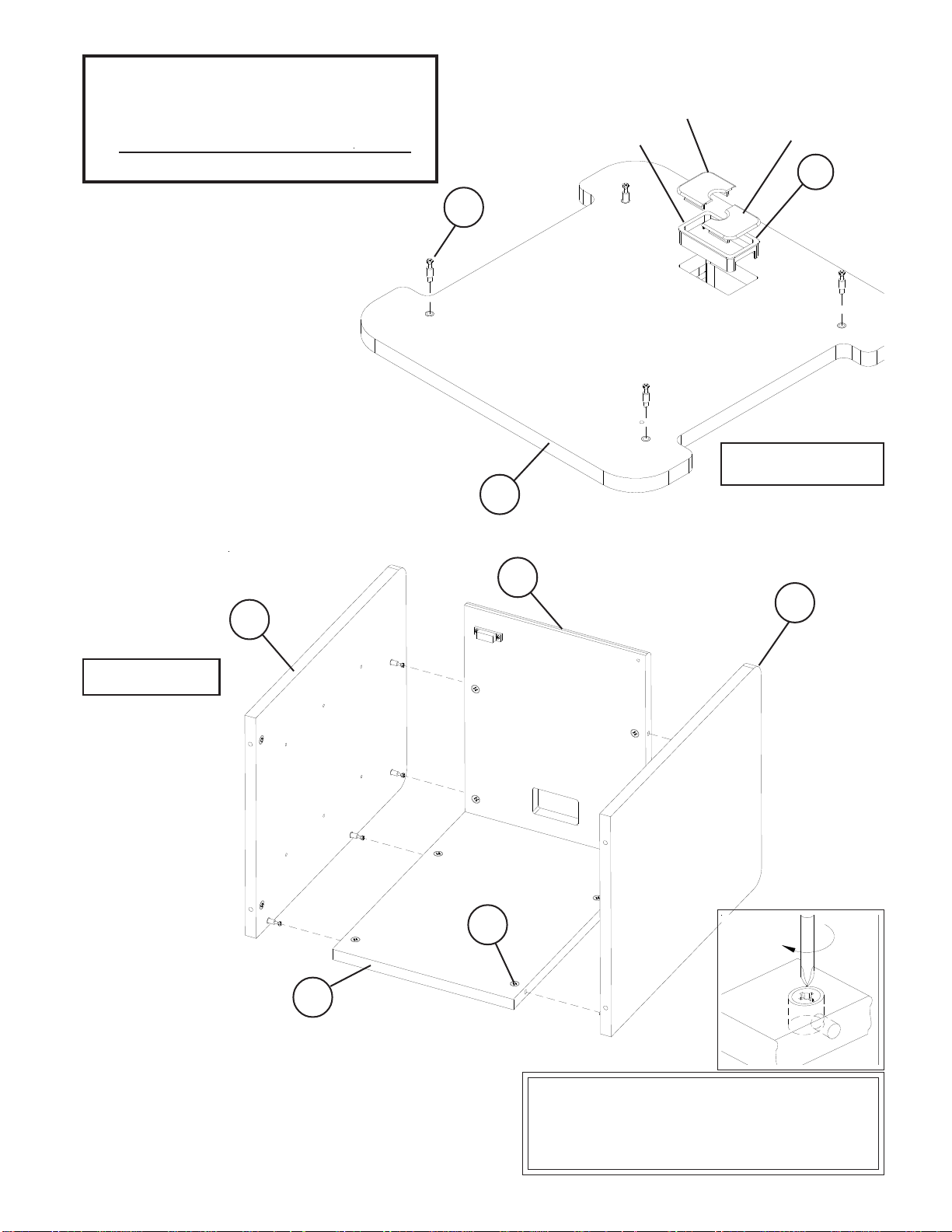

Attach Side Panels (P-1 & P-2) to the Back

Panel(P-3)and theTop Panel (P-4)asshown

in illustration#6. Secure by turning theCam

Locks(C)1/4”Turn untiltheylock.

Illustration # 6

To Secure CamLocks,Insert Large

PhillipsHeadScrewdriver and turn Cam

Lock1/4 turn (90 degrees)clockwise.

Placethe Bottom Platform (P-5)

withthePredrilledholesfacing up

and install 4 each Cam Posts (D)

inthepre-drilledholes as shown

in illustration# 5.

P-5

P-1

P-4 P-2

P-3

12.

11.

Missing Parts or UPS Damaged Parts

ForYourConvenienceyoucan

EMAILusat

[email protected]

24HOURS 7 DAYSAWEEK

To installGrommet(F)in Bottom

Platform (P-5),separate parts and

pressGrommetSleeveinrectangular

openingasshownin illustration # 5.

Snap 2 plastic Caps over top of

Sleeveasshownin illustration # 5.

Cap Cap

Sleeve

14.

13.

Illustration # 7

Illustration # 8

Cap Cap

Sleeve E

P-5

P-4

P-5

4 Screws from

Presentation Cart

17.

To Secure Cam Locks,

InsertLargePhillipsHead

ScrewdriverandturnCam

Lock1/4 turn (90degrees)

clockwise.

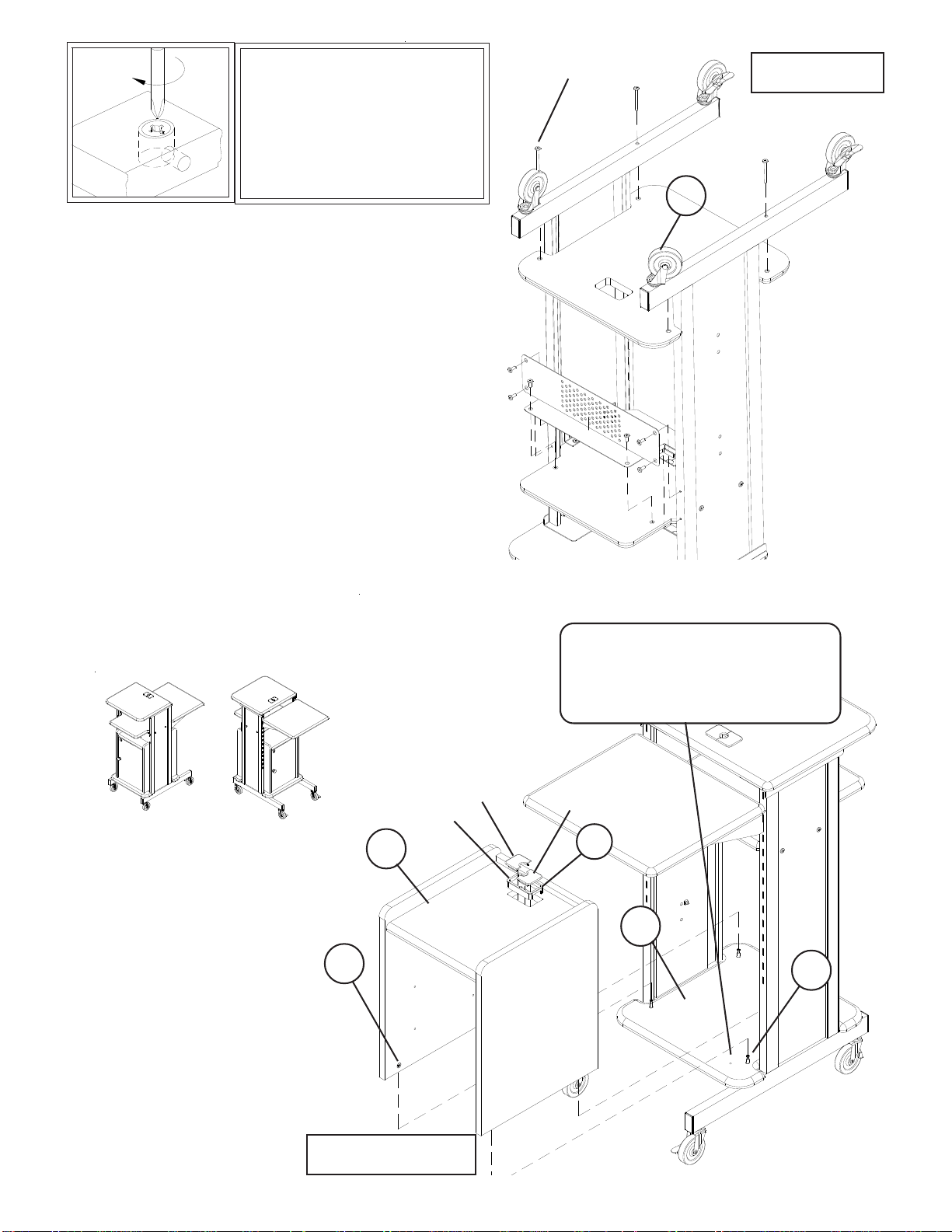

RemovebottomShelffrom

PresentationCart usingAllenWrench (L).

RemovetheMetalStabilityPanel from

PresentationCart usingAllenWrench (L).

AttachBottomShelf (P-5) w/cam posts tothe

Right & Left LegAssemblies of Presentation Cart

using4each screws as showninillustration # 7.

Note: Checkholelocation- illustration #8.

TightenScrewsusingAllenWrench(L).

15.

16.

17.

18.

19. To installGrommets(F)inTop Platform(P-4),

separateparts and press GrommetSleeve in

rectangularopeningasshowninillustration#8.

Snap 2 plastic Caps over top of Sleeve as shown in

illustration#8.

SecureCabinetassembly

toBottomPlatform (P-5) by

turning theCam Locks (C)

1/4Turnuntilthey lock.

Cabinet can be

installed facing the

front or back of

unit.

20.

21.

Note: this hole located toward

frontofunitforfrontopening

door,ortoward the back for

back opening door.

Illustration # 9

P-4

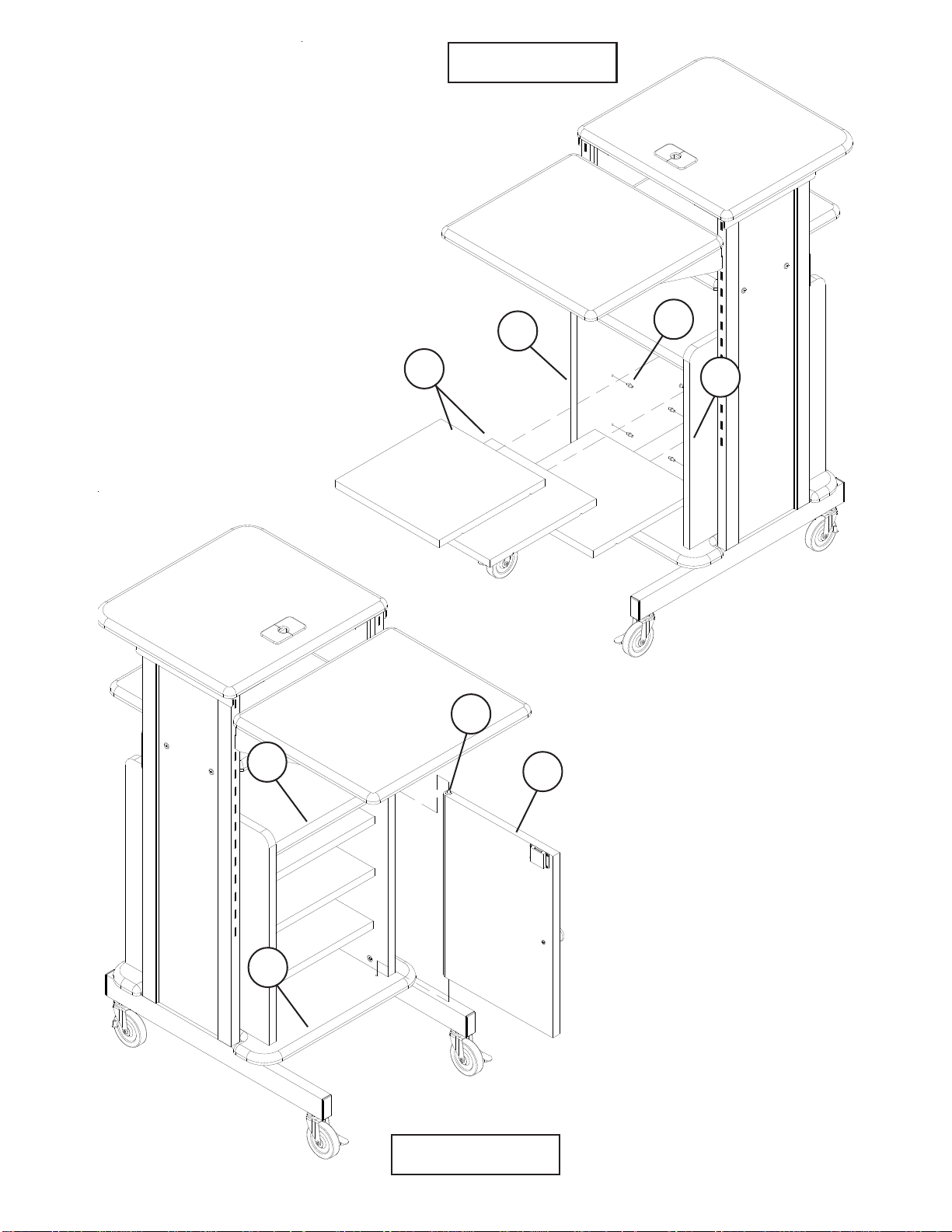

Place 12 Shelf Support Pins (B) in each

of the two Side Panels (P-1 & P-2 ).

PlaceRemovableShelves (P-7) on 12

ShelfSupportPinsas shown in

illustration#9.

23.InserttheendofSpring

Buttons(E)intotheholes

inTopPanel(P-4) and

BottomPlatform (P-5) as

showninillustration#10.

Illustration # 10

P-1

P-2

P-7

P-6

P-5

22.

Illustration # 12

InsertKey (H)asshown inillustration

#12 andturn lockcounter-clockwise

tolock door.

25.

ReplaceStabilityPanel using6

Screwsand AllenWrench(L)

asshowninillustration#11.

Illustration # 11

24.

34459-01/14/11
