Bantam e-STATION BC6 User manual

+
-
+
-
+
-
+
-
+
-
+
-
eSTATION
-
BC6
'Dual power'
Operating Manual
* We reserve the right to commit modifications.
* Copyright reserved
Microprocessor controlled high-performance rapid charger/discharger
for NiCd/NiMH/Lithium/Pb batteries with an integrated cell voltage
balancer.
Dual input power(AC/DC), USB PC link, temperature sensor and
integrated Lithium battery balancer
Charge current up to 5A, discharge current up to 1A, 1 to 6
series of LiIo/LiPo/LiFe, 1 to 15 cells of NiCd/NiMH, 2 to 20V
of Lead-acid (Pb)

+
-
+
-
+
-
+
-
+
-
+
-
BC6
- 2 -
- Optimised operating software
When charging or discharging, BC6 has an 'AUTO' function that sets the feeding current
automatically. Especially for Lithium batteries, it can prevent the over-charging can lead to an
explosion by users fault. Every program in the unit is controlled with mutual links and
communication for every possible error so it introduces a maximum safety. These can be set at
users option.
- Dual input power
BC6 employs the circuit that can be operated with the input power of AC(Alternating Current) or
DC(Direct Current). For AC input, it contains a AC-DC switching power supplier which has 5A of
power capacity and maximum output power of 50Watts for charging. As a result, it can charge up to
15 cells of NiCd/NiMH and 6 series of Lithium batteries with maximum current of 5.0A. But there
might be the limit of feeding current to a higher voltage of battery. Please refer 'Maximum circuit
power charge'.
- Individual voltage balancer for Lithium batteries inside
BC6 has an individual-cell-voltage balancer inside. So it does not need any balancer separately
when charging Lithium batteries (LiIo/LiPo/LiFe) for cell voltage balancing.
- Balance individual cells on discharge
BC6 also can monitor and balance individual cells of the Lithium battery pack during the
discharge process. If the voltage of any one cell varies abnormally, the process will be stopped with
the error message.
- Accept various types of Lithium battery
BC6 can accept three types of Lithium batteries - LiIo, LiPo and LiFe. They have different
characteristics by their chemistry. You can select any one of them that you are going to process
before the job. For their specifications, refer 'Warnings and safety notes' section.
- Lithium battery 'Fast' and 'Storage' mode
You can charge Lithium battery for special purposes. 'Fast' charge reduces the charging time of
Lithium battery and 'Storage' mode controls the final voltage of the battery to be suit for long time
storage.
- Maximum safety
Delta-peak sensitivity: The automatic charge termination program works on the principle of the
Delta-peak voltage detection. (NiCd/NiMH)
Auto-charge current limit: When charging NiCd or NiMH at 'AUTO' current mode, you can set the
upper limit of charge current to avoid from high current feeding . This is very useful when charging
the low impedance and small capacity NiMH battery in 'AUTO' mode.
Capacity limit: The charging capacity always calculated by multiple of the charging current and
time. If the charging capacity exceeds the limit the process will be terminated automatically when
Thank you for purchasing the e-STATION BC6 'Dual power'. You get a rapid charger/discharger
with a built-in balancer, which is computerised with a high performance microprocessor and
specialised operating software.
Please read this entire operating manual completely and attentively as it contains a wide variety of
specific programming and safety information. You need to keep this manual in a safe place, and be
sure to pass it on to the new owner if you ever dispose of BC6.
Special features

+
-
+
-
+
-
+
-
+
-
+
-
BC6
3-pin port for
Temperature
sensor or USB
Individual cell
connector port
Dec/Inc
To select sub program
To alter the value
Batt type/Stop
To select main program
To stop the operation
Charging lead
connector
(4mm banana female)
Start/Enter
To resume or start the operation
LCD screen
(16chr. x 2lines)
Input power cable
(DC11~18V)

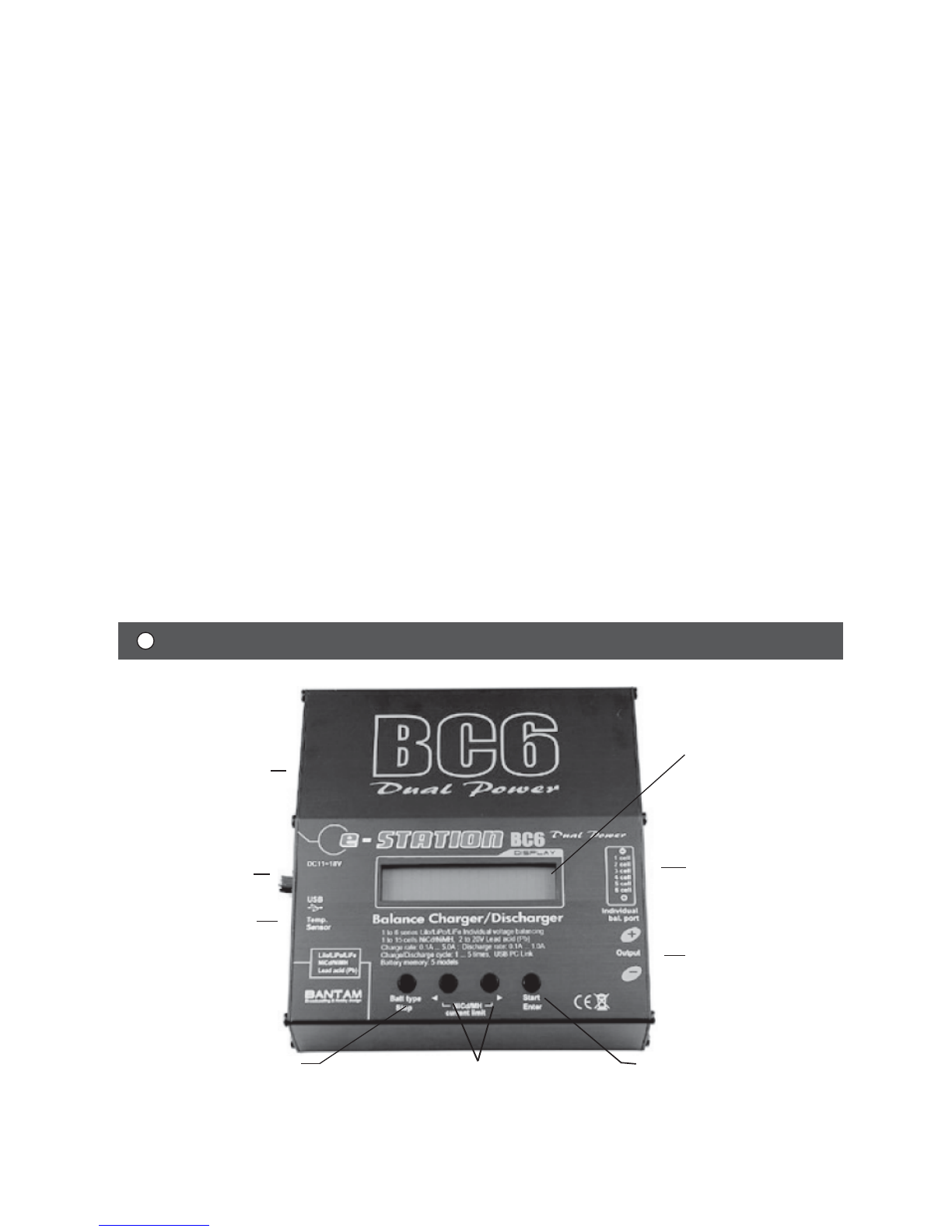

Exterior of the unit
Temperature limit(*): The temperature of the battery on charging will rise by its internal chemical
reaction. If you set the limit of temperature the process will be expired forcibly when the limit has
reached.
Processing time limit: You can also restrain the maximum process time to prevent from any
possible defect.
Input power monitor: To protect the car battery using as DC input power from being damaged
the voltage of it always monitored. If it drops below the lower limit the process will be ended
automatically.
- Data store/load
For users convenience it can store maximum five data of different batteries. You can establish
the data contains program setting of the battery to charge or discharge continually. These data
can be called out at any time you need and the process can be executed without program setting.
- Cyclic charging/discharging
Perform 1 to 5 cycles of charge>discharge or discharge>charge continually for battery
refreshing and balancing.
- PC based analysis using USB communication(**)
For technical expert, BC6 offers PC based program can analysis the characteristic of the
battery by USB port. It shows a graph of voltage, current, capacity and temperature curves. It also
shows the individual voltage of each cell in the Lithium battery pack.
* Separately purchased temperature sensor(Part no.; EAC110)
** Separately purchased program kit (Part no.: EAC200, Software CD plus USB link cable)
- 3 -
AC Input power port
(AC 100~240V, 50/60Hz)

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Warnings and safety notes
Never leave the charge unsupervised when it is connected to its power supply. If any
malfunction is observed immediately terminate the process and refer to the operation manual.
Keep away the unit from dust, damp, rain, heat direct sunshine and vibration. Do not drop it.
The circuit of the unit is designed to be powered by 12V DC or 100V~240V AC. But do not
supply both input power simultaneously. The circuit can be damaged permanently.
This unit and the battery to charge or discharge should be set up on a head-resistant,
non-inflammable and non-conductive surface. Never place them on a car seat, carpet or similar.
Keep all the inflammable volatile materials well away from operating area.
Be sure to understand the information of the battery to be charged or discharged accurately. If
the program is set up incorrectly the battery can severely be damaged. Especially Lithium
battery can cause a fire or an explosion by over-charging.
NiCd/NiMH voltage level: 1.2V/cell
allowable fast charge current: 1C ~ 2C depends on the performance of cell
discharge voltage cut off level: 0.85V/cell(NiCd), 1.0V/cell(NiMH)
LiIo voltage level: 3.6V/cell
max. charge voltage: 4.1V/cell
allowable fast charge current: 1C or less
min. discharge voltage cut off level: 2.5V/cell or higher
LiPo voltage level: 3.7V/cell
max. charge voltage: 4.2V/cell
allowable fast charge current: 1C or less
discharge voltage cut off level: 3.0V/cell or higher
LiFe voltage level: 3.3V/cell
max. charge voltage: 3.6V/cell
allowable fast charge current: 4C or less (e.g. A123M1)
discharge voltage cut off level: 2.0V/cell or higher
Pb voltage level: 2.0V/cell
(Lead-acid) max. charge voltage: 2.46V/cell
allowable fast charge current: 0.4C or less
discharge voltage cut off level: 1.75V/cell or higher
To avoid short-circuits between the charge lead, always connect the charge cable to the unit first
and only then to the battery to be charged or discharged. Reverse the sequence when
disconnecting.
Do not connect more than one battery pack to the charge lead at any one time.
Do not attempt to charge or discharge the following types of battery.
- Battery pack, which consists of different types of cell (including different manufacturers).
- Battery, which is already fully charged or just slightly discharged.
- Non-rechargeable batteries (Explosion hazard).
- Batteries that require a different charge technique from NiCd, NiMH, LiIo, LiPo, LiFe or Pb.
- Faulty or damaged battery.
- Battery fitted with an integral charge circuit or a protection circuit.
- Batteries installed in a device, or which are electrically linked to other components.
- Batteries that are not expressly stated by the manufacturer to be suitable for the currents the
charger delivers during the charge process.
- 4 -

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Please bear in mind of checking the following point before charge operation.
- Did you select the appropriate program, which are suitable for the type of battery?
- Did you set up adequate current for charging or discharging?
- Lithium battery pack can be composed with parallel and series circuits mixed. You have to
check the composition of the battery pack carefully before charging.
- Are all connections firm and safe, or is there an intermittent contact at any point in the circuit?
Charging
A specific quantity of electrical energy is fed into the battery during charge process. The charge
quantity is calculated by multiplying charge current by charge time. The maximum permissible
charge current varies according to the battery type or its performance, and can be found in the
information provided by the battery manufacturer. It is only allowed to charge batteries at rates
higher than the standard charge current if they are expressly stated to be capable of quick-charge.
- Connect the battery to charge to output terminal of the charger using suitable charge lead. They
are red, positive (+) and black, negative (-). Since the charger cannot detect the difference
between the internal resistance of the battery pack, cable resistance and connector transfer
resistance, the first requirement if the charger to work properly is that the charge lead should be of
adequate conductor cross-section. And also high-quality connectors (normally gold-contact type)
must be fitted to both ends.
- Refer to the information provided by the battery manufacturer regarding charging methods, and
verify the recommended charge current and charge time. Especially for Lithium batteries, you
have to follow the charge instruction provided by the manufacturer strictly.
- Do not attempt to disassemble the battery pack arbitrarily.
- You have to pay attention to verify the capacity and the voltage of the Lithium battery pack. It
may be composed of parallel and series connection mixed. In parallel link the capacity of the
battery pack is multiplied by the number of cells but the voltage remains same. That kind of
voltage imbalance causes a fire or explosion during charge process. We recommend you
compose the Lithium battery pack in series only.
Discharge
The typical purpose of discharge is to determine the residual capacity of the battery, or to lower
the voltage of battery to a defined level. When you discharge the battery you also have to pay
attention on the process same as charging. To avoid the battery becoming deep-discharged, set
the final discharge voltage correctly. Lithium batteries should not be deep-discharged to lower than
the minimum voltage, as this leads to a rapid loss of capacity or a total failure. Generally, you do
not need to discharge Lithium battery voluntarily.
- Some rechargeable batteries are said to have a memory effect. If they are partly used and
recharged before the whole charge is drawn out, they 'remember' this and next time will only use
that part of their capacity. This is a 'memory effect'. NiCd and NiMH batteries are said to suffer
from memory effect.They prefer complete cycles; fully charge then use until empty, do not
recharge before storage - allow them to self-discharge during storage. NiMH batteries have less
memory effect than NiCd.
- The Lithium battery prefers a partial rather than a full discharge. Frequent full discharges should
be avoided if possible. Instead, charge the battery more often or use a larger battery.
- The brand-new NiCd battery pack is partially useful with its capacity until it has been subjected
to 10 or more charge cycles in any case. The cyclic process of charge and discharge will lead to
optimise the capacity of battery pack.
Those warnings and safety notes are particularly important. Please follow the instructions
for a maximum safety; otherwise the charger and the battery can be damaged violently. And
also it can cause a fire to injure a human body or to lose the property.
- 5 -

+
-
+
-
+
-
+
-
+
-
+
-
Program flow chart
PROGRAM SELECT
Lithium battery LiXX CHARGE
BC6
Batt type
Stop
Batt type
Stop
Start
Enter
DECDEC
◀◀
INCINC
▶▶
LiXX BALANCE DECDEC
◀◀
INCINC
▶▶
LiXX
FAST CHG
INCINC
▶▶
DECDEC
◀◀
LiXX
STORAGE
DECDEC
◀◀
INCINC
▶▶
LiXX
DISCHARGE
PROGRAM SELECT
NiMH battery NiMH CHARGE
'Aut'/'Man'
Start
Enter
DECDEC
◀◀
INCINC
▶▶
NiMH
DISCHARGE DECDEC
◀◀
INCINC
▶▶
NiMH
CYCLE
PROGRAM SELECT
NiCd battery
Start
Enter
DECDEC
◀◀
INCINC
▶▶
NiCd
DISCHARGE DECDEC
◀◀
INCINC
▶▶
NiCd
CYCLE
PROGRAM SELECT
Pb battery Pb CHARGE
Start
Enter
DECDEC
◀◀
INCINC
▶▶
Pb DISCHARGE
Batt type
Stop
Batt type
Stop
USER SET
PROGRAM LiXX V. Type
Start
Enter LiPo/LiIo/LiFe
CHK Time
DECDEC
◀◀
INCINC
▶▶
NiMH D. Peak
sensitivity
DECDEC
◀◀
INCINC
▶▶
PROGRAM SELECT
SAVE DATA Save DATA
Start
Enter
Batt type
Stop
Batt type
Stop
PROGRAM SELECT
LOAD DATA Load DATA
Start
Enter
NiCd D. Peak
sensitivity
INCINC
▶▶
DECDEC
◀◀
Temp Cut-off
USB Enable DECDEC
◀◀
INCINC
▶▶
CHG>DCHG
Waste Time
DECDEC
◀◀
INCINC
▶▶
INCINC
▶▶
DECDEC
◀◀
Batt type
Stop
Batt type
Stop
Batt type
Stop
Batt type
Stop
Capacity
Cut-off
DECDEC
◀◀
INCINC
▶▶
INCINC
▶▶
DECDEC
◀◀
DECDEC
◀◀
INCINC
▶▶
Key Beep
Buzzer
Input Power Low
Cut-off
- 6 -
NiCd CHARGE
'Aut'/'Man'
Safety Timer
Batt type
Stop
Batt type
Stop

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Initial parameter set up (Users set up)
BC6 will be operated with the default value of the essential user settings when it is connected to a
12V battery or a AC wall socket for the first time. The screen displays the following information in
sequence and the user can change the value of parameter on each screen.
When you are willing to alter the parameter value in the program, press key to make it blink then
change the value with or key. The value will be stored by pressing key once.
The screen displays the nominal voltage of Lithium
battery. There are three kinds of Lithium battery;
LiFe(3.3V), LiIo(3.6V) or LiPo(3.7V). This is very
important so you have to check the battery carefully
and set it up correctly. If it is different from correct
value the battery can explode during charge process.
BC6 recognise the cell count of Lithium battery
automatically at the beginning of charge or discharge
process to avoid from erroneous setting by user. But
deeply discharged battery can be perceived incorrectly.
To prevent the error, you can set the time term to verify
the cell count by the processor. Normally, 10 minutes
are enough to perceive the cell count correctly. For the
battery of larger capacity, you may extend the time term.
But if you set the time term too long for the battery of
smaller capacity, the charge or discharge process can
be finished within the time term with the erroneous cell
count. This may cause the fatal result. If the processor
recognises the cell count incorrectly at the beginning of
charge or discharge process, you may extend the time.
Otherwise, you had better use with the default value.
Start
Enter
-
Display
LiFe
V. Type 3.3V
Display
LiPo/LiIo/LiFe
CHK Time 10min
Display
NiMH Sensitivity
D.Peak Default
INC▶
DEC
◀
This shows the trigger voltage for automatic charge
termination of NiMH and NiCd battery. The effective value
ranges from 5 to 20mV per cell. If the trigger voltage is set
higher, there is a danger of overcharging the battery; if it is
set lower, there is a possibility of premature termination.
Please refer the technical specification of the battery.
(NiCd default: 12mV, NiMH default: 7mV)
+
DEC
◀INC▶
-
+
DEC
◀INC▶
INC▶
DEC
◀
-
+
DEC
◀INC▶
Display
NiCd Sensitivity
D.Peak Default
-
+
DEC
◀INC▶
INC▶
DEC
◀
DEC
◀
INC
▶
Start
Enter
- 7 -
You can select the function of 3-pin port at left side of the
unit. It can be used temperature sensor port or USB port,
selected at this screen. If the port is assigned as a temp.
port, an optional temperature probe contacting the surface
of battery can be used. When it is selected as an USB port,
you can link the charger to your PC via an optional USB
cable. This can utilize the optional software that can show
you the charging process at PC.
You can set the maximum temperature at which the charger
should allow battery to reach during charge. Once a battery
reaches this temperature during charge, the process will be
terminated to protect the battery.
Display
USB/Temp Select
Temp Cut-Off 80C
-
+
DEC
◀INC▶
-
+
DEC
◀INC▶
INC▶
DEC
◀
Display
USB/Temp Select
USB Enabled

+
-
+
-
+
-
+
-
+
-
+
-
BC6
When you start a charge process, the integral safety timer
automatically starts running at the same time. This is
programmed to prevent overcharge the battery if it proves
to be faulty, or if the termination circuit cannot detect the
battery full. Please refer the statement in below to
calculate the time setting.
This program sets the maximum charge capacity that will
be supplied to the battery during charge. If the delta-peak
voltage is not detected nor the safety timer expired by any
reason, this feature will automatically stop the process at
the selected capacity value.
The beep sounds at every time pressing the buttons to
confirm your action. The beep or melody sounded at
various times during operation to alert different mode
changes. These audible sounds can be on or off.
This program monitors the voltage of input DC battery. If
the voltage drops below the value you set the operation
forcibly terminated to protect the input battery.
Display
Waste time
CHG/DCHG 5min
-
+
DEC
◀INC▶
-
+
DEC
◀INC▶
The battery is on the cyclic process of charge and
discharge can often become warm after charge or
discharge period. The program can insert a time delay to
occur after each charge and discharge process to allow
the battery adequate time to cool down before being
subjected to the next process. The value ranges from 1 to
60 minutes.
Display
Safety timer
ON 120min
-
+
DEC
◀INC▶
-
+
DEC
◀INC▶
Display
Capacity Cut-Off
ON 5000mAh
-
+
DEC
◀INC▶
-
+
DEC
◀INC▶
Display
Key Beep ON
Buzzer ON
INC▶
DEC
◀
-
+
DEC
◀INC▶
Display
Input power low
Cut-Off 10.0V
-
+
DEC
◀INC▶
INC▶
DEC
◀
INC▶
DEC
◀
INC▶
DEC
◀
- 8 -
INC▶
DEC
◀
Safety Timer Calculations
When charging NiCd or NiMH batteries, divide the battery's rated capacity (mAh) by the charge
current (A). And divide the result by 11.9. Set this number of minutes in the safety timer setting. If the
charger stops charging at this time limit by any reason, approximately 140% of the battery's capacity
will have been delivered to the battery. For example:
Capacity Current Safety timer setting
2000mAh 2.0A (2000 / 2.0 = 1000), divided by 11.9 = 84 minutes
3300mAh 3.0A (3300 / 3.0 = 1100), divided by 11.9 = 92 minutes
1000mAh 1.2A (1000 / 1.2 = 833), divided by 11.9 = 70 minutes

+
-
+
-
+
-
+
-
+
-
+
-
BC6
battery
voltage
charge
current
charged
capacity
charging
time
number
of
cells
Lithium battery (LiIo/LiPo/LiFe) program
These programs are only suitable for charging and discharging Lithium batteries with a nominal
voltage of 3.3V, 3.6V and 3.7V per cell. These batteries need to adopt different charge technique is
termed a constant voltage(CV) and constant current(CC) method. The charge current varies
according to the battery capacity and performance. The final voltage of charge process is also very
important; it should be precisely matched with the charade voltage of the battery. They are 4.2V for
LiPo, 4.1V for LiIo, and 3.6V for LiFe. The charge current and nominal voltage as for cell count set
on the charge program must always be correct for the battery to be charged.
When you are willing to alter the parameter value in the program, press key to make it blink
then change the value with or key. The value will be stored by pressing key once.
The left side of the first line shows the type of battery
you select at the users setting. The value on the left
side of second line sets a charge current and the value
on the right side of second line sets the voltage of the
battery pack.
After setting the current and voltage press key for
more than 3 seconds to start the process.
(Charge current: 0.1~5.0A, Voltage: 1~6 series)
This shows the number of cells you set up and the
processor detects. 'R:' shows the number of cells found
by the charger and 'S:' is the number of cells selected
by you at the previous screen. If both numbers are
identical you can start charging by press button. If
not, press button to go back to previous screen.
Then carefully check the number of cells of the battery
pack to charge again.

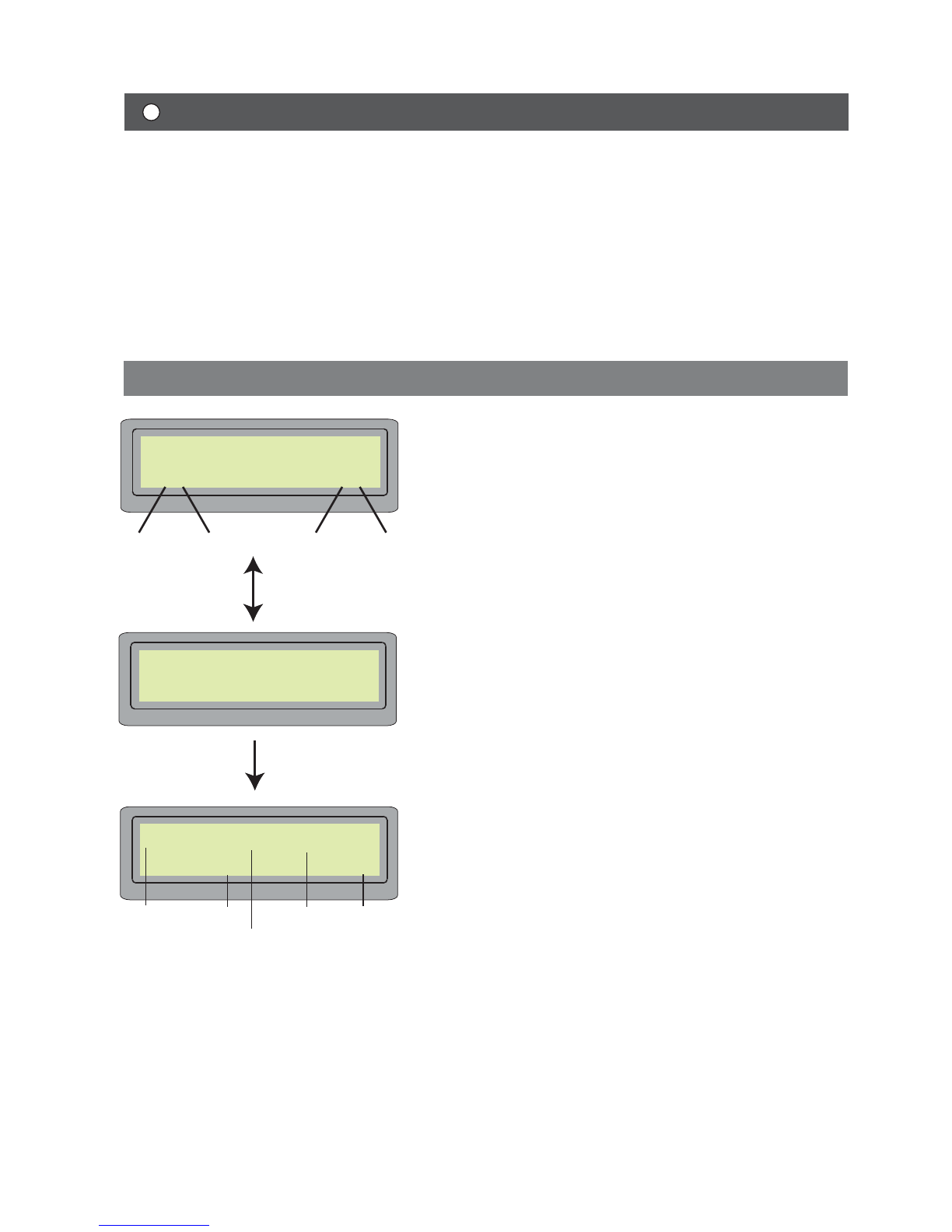

The screen shows the present situation during charge
process. To stop charging press key once.
Display
LiPo CHARGE
2.0A 11.1V(3S)
+-+-
'> 3 seconds'
Display
R: 3SER S: 3SER
CONFIRM(ENTER)
Display
Li3S 2.0A 12.59V
CHG 022:43 00682
Start
Enter
Batt type
Stop
Batt type
Stop
Start
Enter
Start
Enter
Start
Enter
DEC
◀INC▶
DEC
◀INC▶
Charging Lithium battery
Start
Enter
Start
Enter
Batt type
Stop
DEC
◀
INC
▶
- 9 -

4 cell
3 cell
2 cell
1 cell
5 cell
6 cell
Individual
bal. port
-
+
+
--
+
1S
-
+
2S
-
+
3S
LiPo 1S
LiPo 2S
LiPo 3S
LiPo 4S
LiPo 5S
+
+
-
+
-
+
-
+
-
+
-
Top View
LiPo 6S
+
-
4 cell
3 cell
2 cell
1 cell
5 cell
6 cell
Individual
bal. port
-
+
-
+
Top View
BC6
This is for balancing the voltages of Lithium batteries of the battery pack to be charged. To do this,
the battery pack being charged should have the individual cell connector. And connect it to the
individual port at the right side of charger with a suitable connection cable that fits with your battery
pack. And also, you need to connect the battery output plug to the output of charger.
In this mode, the charging process will be different from ordinary charging mode. The internal
processor of the charger will monitor the voltages of each cell of the battery pack and controls the
charging current that is feeding to each cell to normalise the voltage.
The value on the left side of second line sets a charge
current and the value on the right side of second line
sets the voltage of the battery pack.
After setting the current and voltage press key for
more than 3 seconds to start the process.
This shows the number of cells you set up and the
processor detects. 'R:' shows the number of cells found
by the charger and 'S:' is the number of cells selected
by you at the previous screen. If both numbers are
identical you can start charging by press button.
If not, press button to go back to previous screen.
Then carefully check the number of cells of the battery
pack to charge again.
The screen shows the present situation during charge
process. To stop charging press key once.
Display
Display
Display
Li3S 1.2A 12.59V
BAL 022:43 00682
LiPo BALANCE
2.0A 11.1V(3S)
R: 3SER S: 3SER
CONFIRM(ENTER)
battery
voltage
charge
current
charged
capacity
charging
time
number
of
cells
Charging Lithium battery at balance mode
+-+-
'> 3 seconds'
Start
Enter
Batt type
Stop
DEC
◀INC▶
DEC
◀INC▶
Batt type
Stop
Start
Enter
Start
Enter
Batt type
Stop
Start
Enter
Individual cell connection diagram (pin-assignment of 8-pin)
- 10 -

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Display
LiPo FAST CHG
2.0A 11.1V(3S)
+-+-
Display
'FAST' charging Lithium battery
'>3 seconds'
You can set up the charging current and the voltage
of the battery pack being charged. As you press
button the voltage confirmation will be displayed. And
then, if you confirm the voltage and current, press
button again to start charging.
This shows the present state of 'FAST' charging. To
stop charging arbitrary, press key once.
Current
voltage of
battery
charge
current supplied
capacity
elapsed
time
Batt type
Stop
DEC
◀
INC
▶
Start/
Enter
DEC
◀
INC
▶
The charging current is getting smaller as the process goes to the near end term of Lithium
battery charging. To finish charging process earlier, this program eliminate certain term of CV
process. Actually, the charging current will goes to 1/5 from the initial value to end the process
while the normal charging goes to 1/10 during CV term. The charging capacity may be a bit
smaller than normal charging but the process time will be reduced.
This is for charging or discharging Lithium battery not to be used for the time being. The program
will determine to charge or discharge the battery to the certain voltage depending on the voltage of
the battery at its initial stage. They are different from the type of the battery, 3.75V for LiIo, 3.85V
for LiPo and 3.3V for LiFe per cell. If the voltage of battery at its initial stage is over the voltage
level to storage, the program will start to discharge.
You can set up the current and the voltage of the
battery pack to be charged. The current will be used for
charge or discharge the battery to reach the 'storage'
level of voltage.
The screen shows the present situation during charge
process. To stop charging press key once.
Display
+-+-
Display
'>3 seconds'
charge
or
discharge
current
Batt type
Stop
DEC
◀
INC
▶
Start/
Enter
DEC
◀
INC
▶
Start
Enter
Batt type
Stop
'STORAGE' control Lithium battery
Li3S 2.0A 12.59V
FAS 022:43 00682
number
of
cells
Li3S 2.0A 12.59V
STO 022:43 00682
LiPo STORAGE
2.0A 11.1V(3S)
Current
voltage of
battery
supplied
capacity
elapsed
time
number
of
cells
Start
Enter
Batt type
Stop
- 11 -

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Display
Display
The value of discharge current on the left side of screen
may not exceed 1C for a maximum safety and the final
voltage on the right should not be under the voltage
level that is recommended by the battery manufacturer
to avoid deep discharging.
To start to discharge press key for more than 3
seconds.
This shows the present state of discharge. To stop
discharging press key once.
Discharging Lithium battery
LiPo DISCHARGE
1.0A 11.1V(3S)
Li3S 0.4A 12.59V
DSC 022:43 00682
+-+-
'>3 seconds'
Batt type
Stop
DEC
◀
INC
▶
Start/
Enter
DEC
◀
INC
▶
battery
voltage
discharge
current
discharged
capacity
elapsed
time
number
of
cells
Start
Enter
Batt type
Stop
* Voltage balancing and monitoring during the discharge
The processor monitors the voltage of individual cells during 'storage-mode' and 'discharge'
of Lithium battery pack. It tries to normalise the voltages to be equal. For this feature, the
individual plug of the battery pack should be connected to the individual port of the charger.
If the voltage of any one or more cells varies abnormally during the procedure, BC6
terminates the process forcibly with the error message. If this happens, the battery pack
contains the bad cell, or the bad connection of the cable or plug. You can easily know which
one cell is bad by pressing button at time of showing the error message.
Display
Display
INC▶
BATTERY VOL ERR
CELL LOW VOL
The processor found that the voltage of one of the
cell in the Lithium battery pack is too low.
In this case, the 4th cell is bad. If there happens
the connection-break of the cable or plug, the
voltage value may show zero.
INC
▶
- 12 -
4.14 4.16 4.09
2.18 0.00 0.00

+
-
+
-
+
-
+
-
+
-
+
-
BC6
NiMH/NiCd battery program
Display
NiMH CHARGE Aut
CUR LIMIT 5.0A
Display
NiMH 2.0A 7.42V
CHG 022:45 00890
These programs are for charging or discharging NiMH (Nickel-Metal-Hydride) or NiCd
(Nickel-Cadmium) battery commonly used for R/C model applications. To alter the value at the
display, press key to make it blink then change the value using or key. The value will
be stored by pressing key once.
To start the process, press button for more than 3 seconds.
This program simply charges the battery using the current
you set. In 'Aut' mode, you need to set the upper limit of
charge current to avoid from higher feeding current that
may damage the battery. Because some batteries of low
impedance and small capacity can lead to the higher
charge current by the processor at automatic charge
mode. But in 'Man' mode, it will charge the battery with the
charge current you set at the display. Each mode can be
switched by pressing and button simultaneously
when the current field is blinking.
The screen displays the current state of charging. To
stop the process, press key once.
The audible sound indicates you the end of process.
battery
voltage
charge
current
charged
capacity
elapsed
time
battery
type
Batt type
Stop
Charging NiCd/NiMH battery
DEC
◀
INC
▶
Start
Enter
DEC
◀
INC
▶
Start
Enter Start
Enter
+-
'> 3 seconds'
Start
Enter
Batt type
Stop
DEC
◀INC▶
Discharging NiCd/NiMH battery
Display
NiMH DISCHARGE
1.0A 11.5V
Display
Set discharge current on the left and final voltage on the
right. The discharge current ranges from 0.1 to 1.0A and
the final voltage ranges from 0.1 to 25.0V). To start the
process, press key for more than 3 seconds.
The screen displays the current state of discharge. You
can alter the discharge current by pressing key during
the process. Once you change the current value, store it
by pressing button again.
To stop discharging press key once. The audible
sound indicates you at the end of process.
NiMH 1.0A 7.42V
DSC 022:45 00890
Start
Enter
Start
Enter
Start
Enter Batt type
Stop
battery
voltage
discharge
current
discharged
capacity
elapsed
time
battery
type
+-+-
'> 3 seconds'
Start
Enter
Batt type
Stop
DEC
◀INC▶
DEC
◀INC▶
- 13 -

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Display
NiMH CYCLE
DCHG>CHG 3
Display
Charge-to-discharge & discharge-to-charge cycle NiMH/NiCd battery
Set the sequence on the left and the number of cycle on
the right. You can use this function for balancing,
refreshing and break-in the battery. To avoid rising
temperature of the battery, there will a brief cool-off
period that already fixed at 'User setting' after each
charge and discharge process. The cycling number
ranges from 1 to 5.
To stop the process, press key once.
You can change the discharge or charge current by
pressing key once during the process. The audible
sound indicates you the end of process.
Display
DCHG 1 1314mAh
CHG 1 1430mAh
At the end of the process, you can see charged or
discharged electric capacities of the battery at each
cyclic process.
By pressing or button, the screen shows the
result of each cycle in order.
NiMH 1.0A 7.42V
D>C 022:45 00890
+-+-
'> 3 seconds'
Start
Enter
Batt type
Stop
DEC
◀INC▶
DEC
◀INC▶
battery
voltage
discharge
or charge
current
discharged
or charged
capacity
elapsed
time
battery
type
Start
Enter
Batt type
Stop
DEC
◀
INC
▶
- 14 -

+
-
+
-
+
-
+
-
+
-
+
-
BC6

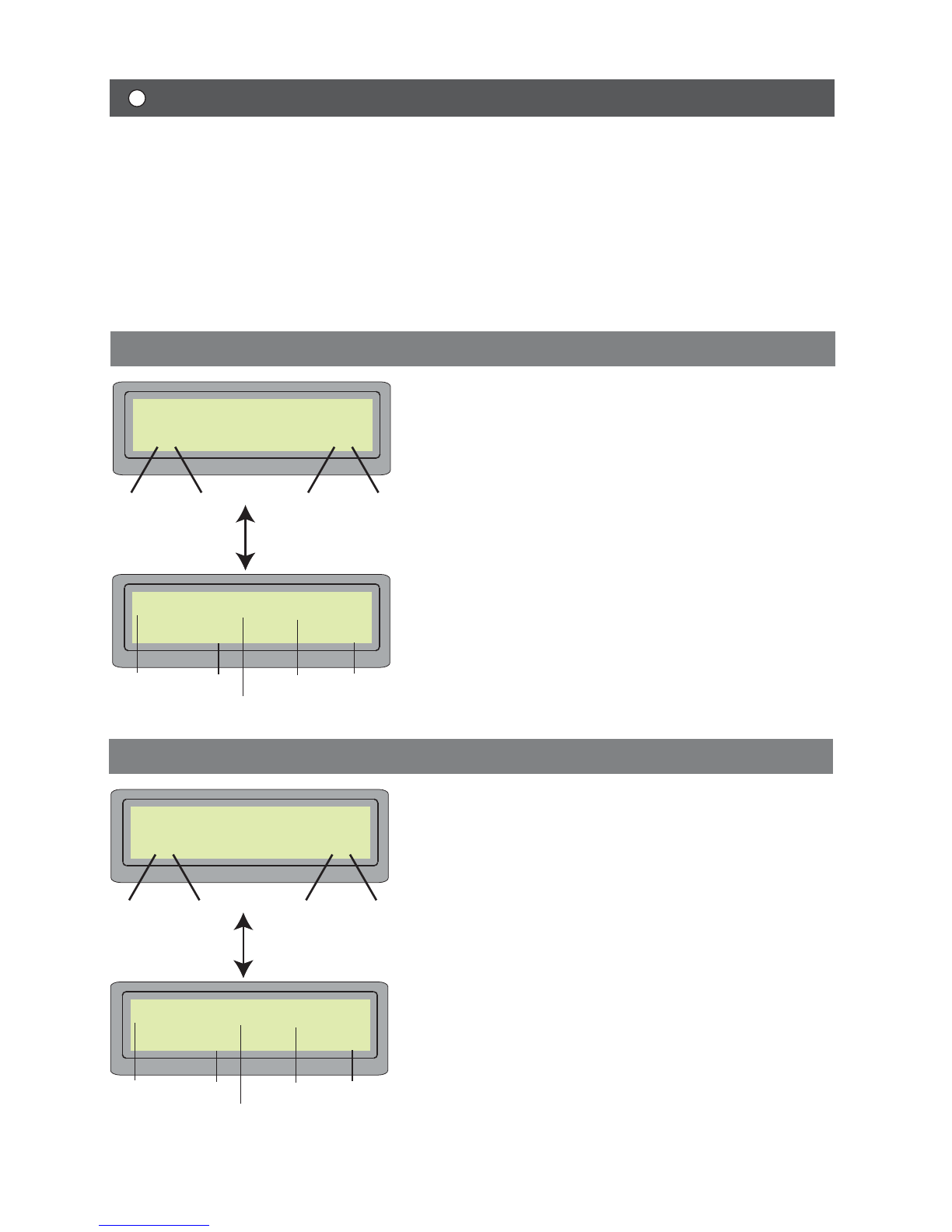

Pb (lead-sulphuric acid) battery program
Display
Pb CHARGE
4.0A 12.0V(6P)
Display
Pb-6 4.0A 12.59V
CHG 022:43 00682
This is programmed for charging Pb (lead-acid) battery with nominal voltage from 2 to 20V. Pb
batteries are totally different from NiCd or NiMH batteries. They can only deliver relatively lower
current compare to their capacity, and similar restrictions definitely apply to charge. So the optimal
charge current will be 1/10 of the capacity. Pb batteries must not be charged rapidly. Always follow
the instruction is supplied by the manufacturer of battery.
When you are willing to alter the parameter value in the program, press key to make it blink
then change the value with or key. The value will be stored by pressing key
once.
Set up the charge current on the left and the nominal
voltage of the battery on the right. The charge current
ranges from 0.1 to 5.0A and the voltage should be
matched with the battery being charged.
Start the charge process by pressing key for more
than 3 seconds.
The screen displays the state of charging process. To stop
charging forcibly, press key once.
The audible sound indicates you at the end of process.
Charging Pb battery
+-+-
'> 3 seconds'
Start
Enter
Batt type
Stop
DEC
◀INC▶
DEC
◀INC▶
battery
voltage
charge
current
charged
capacity
elapsed
time
battery
type
Start
Enter
Start
Enter
DEC
◀
INC
▶
Start
Enter
Batt type
Stop
Display
Pb DISCHARGE
1.0A 12.0V(6P)
Display
Pb-6 0.4A 12.59V
DSC 022:43 00682
Discharging Pb battery
+-+-
'> 3 seconds'
Start
Enter
Batt type
Stop
DEC
◀INC▶
DEC
◀INC▶
battery
voltage
discharge
current
discharged
capacity
elapsed
time
battery
type
Set discharge current on the left and final voltage on the
right. The discharge current ranges from 0.1 to 1.0A.
To start the process, press key for more than 3
seconds.
The screen displays the current state of discharge. You
can alter the discharge current by pressing key during
the process. Once you change the current value, store it
by pressing button again.
To stop discharging press key once. The audible
sound indicates you at the end of process.
Start
Enter
Start
Enter
Start
Enter Batt type
Stop
- 15 -

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Display
SAVE [01] NiMH
14.4V 3000mAh
Display
NiMH CHARGE At*
CUR LIMIT 5.0A

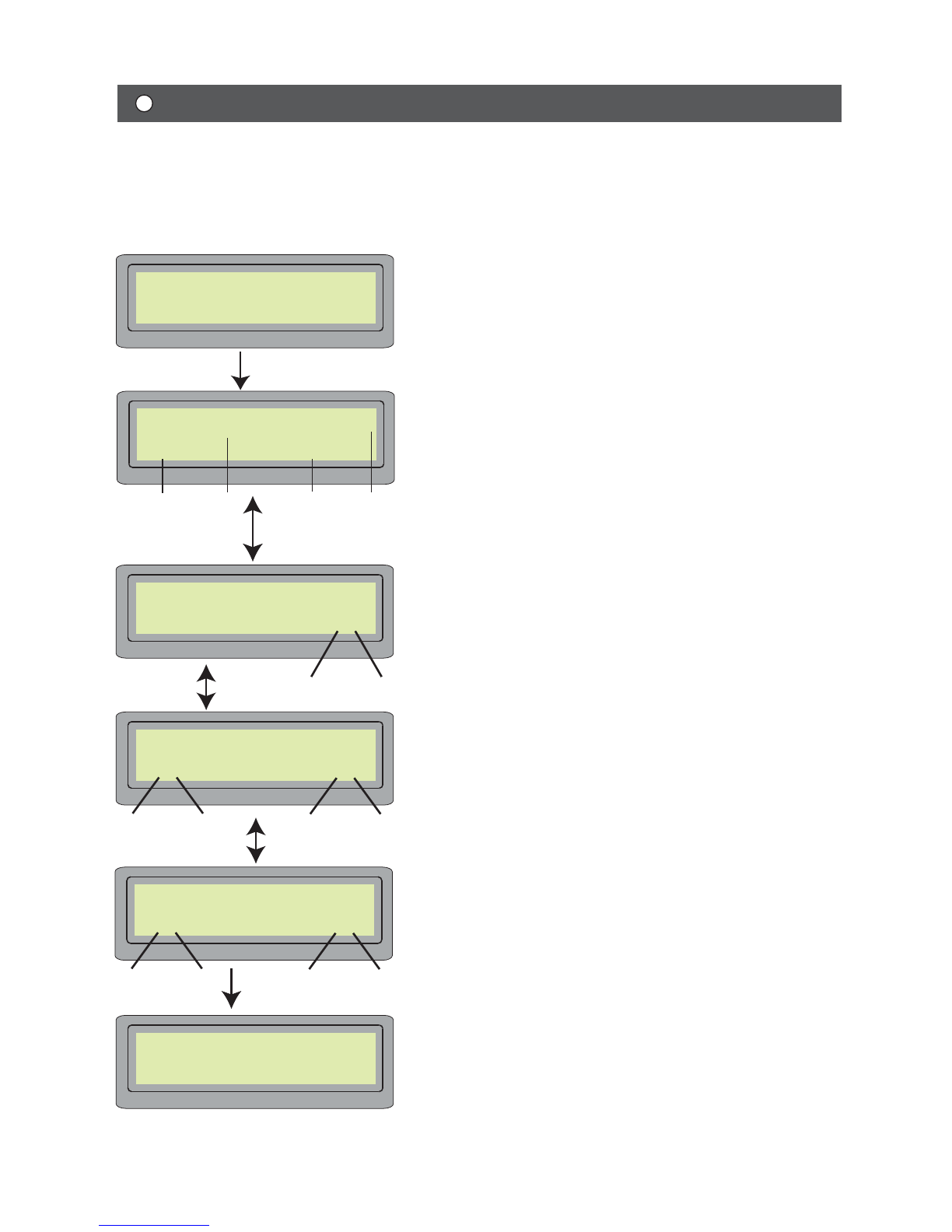

Save Data program
voltage data
number capacity
Display
Display
NiMH DISCHARGE *
1.0A 11.0V
Setting up discharge current and final voltage.
BC6 has a data storage and load program for your convenience. This feature can store up to 5
battery data by number that represent the individual specification of batteries you are using. They
can be called back for the process of charging or discharging without setting up the program again.
To set up the parameter value in the program, press key to make it blink then change the
value with or key.
The parameter value setting up in this screen does not
affect charge or discharge process. They only represent
the specification of the battery. The following screens will
automatically be displayed exactly matched with the
battery type you set up. The example shows the battery
pack of NiMH, 12 cells and 3000mAh of capacity.
Display
Save . . . Saving the data.
Setting up the sequence of charge and discharge,
and the cycling number.
'> 3 seconds'
PROGRAM SELECT
SAVE DATA
type of
battery
Start
Enter
DEC
◀
INC
▶
'> 3 seconds'
Start
Enter
Batt type
Stop
Start
Enter
Set up the charge current for manual charge mode, or the
current limit for automatic charge mode. Each mode can
be switched by pressing and button at the
same time when the current field is blinking.
DEC
◀
INC
▶
+-
DEC
◀INC▶
DEC
◀INC▶
+
-
DEC
◀INC▶
DEC
◀INC▶
+
-
DEC
◀INC▶
Display
NiMH CYCLE *
DCHG>CHG 3
+
-
DEC
◀INC▶
+
-
DEC
◀INC▶
Start
Enter
- 16 -

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Display
LOAD [01] NiMH
14.4V 3000mAh
Load Data program
Display
Load . . . Loading the data.
This program calls back the data that was stored at 'Save Data' program.
To load the data, press key once to blink the data number field and select the number using
Select the data number to be called back.
The data matched with the number will be displayed at
Display
PROGRAM SELECT
LOAD DATA
Start
Enter
'> 3 seconds'
Start
Enter
Start
Enter
DEC
◀
INC
▶
Start
Enter
- 17 -

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Display
End Voltage
12.6V(3S)
You can inquire various information on LCD screen during charging or discharging process. When
you press button the charger shows the establishment of user settings. And also you can
monitor the voltage of individual cell by pressing button when the individual connection cable
is linked to the Lithium battery being processed.
The final voltage will be reached at the end of process.
The external temperature only will be displayed when
using the thermal probe.
The present voltage of input power.
Various information during the process
DEC
◀
INC
▶
DEC
◀
Display
Capacity Cut-Off
ON 5000mAh
Display
Safety Timer
ON 200min
Display
Display
Ext. Temp 26C
Display
IN Power Voltage
12.56V
Using the individual connection cable to the battery, you
can check the individual voltages of each cell in the
battery pack. When connect the cable to the port on the
right side of the charger the program shows the voltage
of each cells for maximum 6 cells in sequence. To utilise
this feature, the battery pack must have output
connector that linked to each cells.
Display
4.14 4.16 4.09
0.00 0.00 0.00
DEC
◀
DEC
◀
DEC
◀
DEC
◀
- 18 -
The 3-pin port is assigned as an USB port.
USB/Temp Select
USB Enabled

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Display
REVERSE POLARITY
Display
CONNECTION BREAK
Display
SHORT ERR
Display
INPUT VOL ERR
Display
VOL SELECT ERR
Display
BREAK DOWN
Display
BATTERY CHECK
LOW VOLTAGE
Display
Display
BATTERY VOLTAGE
CELL LOW VOL
Warning and error messages
The output is connected to a battery with incorrect polarity.
This will be displayed in case of detecting an interruption of the
connection between battery and output or voluntarily disconnecting
the charge lead during the operation of charge or discharge on
output.
The voltage of one of the cell in the Lithium battery pack is too low.
Please check the voltage of the cell one by one.
The voltage of Lithium battery pack was selected incorrectly. Verify
the voltage of battery pack carefully.
The processor detects the voltage is lower than you set at Lithium
program. Please check the cell count of the battery pack.
BC6 incorporates a various functions of protective and monitoring the system to verify functions
and the state of its electronics. In any case of occurring error, the screen displays the cause of
error that is self-explanatory with audible sound.
The processor detects the voltage is higher than you set at Lithium
program. Please check the cell count of the battery pack.
Display
There are bad connection at the individual connector. Please check
the connector and cables carefully.
Display
Display
TEMP OVER ERR
Display
CONTROL FAILURE
There was a short-circuit at OUTPUT. Please check the charging
leads.
The voltage of input power drops below the limit.
There happens the malfunction at the charger circuit by any reason.
The charger should be repaired at the factory.
The voltage of one of the cell in the Lithium battery pack is too high.
Please check the voltage of the cell one by one.
The internal temperature of the unit goes too high. Cool down the
unit.
The processor can not continue to control the feeding current by
any reason. The unit needs to be repaired.
BATTERY CHECK
HIGH VOLTAGE
BATTERY VOLTAGE
CELL HIGH VOL
BATTERY VOL ERR
CELL CONNECT
- 19 -

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Glossary of terms
Amps(A): The unit of measure for charge or discharge electric current. The program of the charger
will show most of the current in amps(A) at its LCD screen.
Milli-amps(mA): The electric current, being amps(A) multiplied by 1000 and noted as 'mA'. So
2.0A is the same as 2000mA (2.0x1000). Or, to convert mA to amps, divide the mA number by
1000. So 200mA is the same as 0.2A. If a current value is below 1.0A, the LCD screen of the
charger will still show the current in amps, not milli-amps. For example, a current of 600mA will be
displayed as 0.6A, and a current of 100mA will actually be shown as 0.1A.
Capacity,milli-amp hours (mAh), and amp-hours (Ah): Charge energy stored by a battery is
called capacity, which is defined as how much current a battery can supply constantly over one
hour of time. Most hobby batteries are rated for capacity in 'mAh' or milliamp hours. A 650mAh
battery can deliver 650mA of current for one hour (650mAx1hr = 650mAh). The batteries of very
large capacity, such as lead-acid(Pb) batteries, are usually rated in 'Ah' or amp-hours. A '12V 60Ah'
car battery can deliver 60 amps of current for one hour (60Ax1hr = 60Ah).
Nominal voltage(V): The nominal voltage of the battery pack can be determined as follows;
-.NiCd or NiMH: multiply the total number of cells in the pack by 1.2. A 8-cell pack will have a
nominal voltage of 9.6 volts (8x1.2).
-.LiPo: multiply the total number of cells in the pack by 3.7. A 3-cell LiPo wired in series will have a
nominal voltage of 11.1 volts (3x3.7).
-.LiIo: multiply the total number of cells in the pack by 3.6. A 2-cell LiIo wired in series will have a
nominal voltage of 7.2 volts (2x3.6).
-.LiFe: multiply the total number of cells in the pack by 3.3. A 4-cell LiIo wired in series will have a
nominal voltage of 13.2 volts (4x3.3).
If the nominal voltage of the battery is not printed on the battery's label, consult your battery
manufacturer or supplier. Do not guess the rated voltage of battery.
'C'-rating: Capacity is also referred to as the 'C' rating. Some battery suppliers recommend charge
and discharge currents based on the battery 'C' rating. A battery's '1C' current is the same number
as the battery's rated capacity number, but noted in mA or amps. A 600mAh battery has a 1C
current value of 600mA, and a 3C current value of (3 x 600mA) 1800mA or 1.8A. The 1C current
value for a 3200mAh battery would be 3200mA (3.2A).
- 20 -
