Bantam e-STATION BC6HP User manual

+
-
+
-
+
-
+
-
+
-
+
-
BC6HP
Operating Manual
* We reserve the right to commit modifications.
* Copyright reserved
Microprocessor controlled high-performance rapid charger/discharger
with integrated balancer, 250watts of charging power
USB PC link and firmware upgrade, Temperature sensor
Charge current up to 10A, discharge current up to 7A, 1 to 6
series of LiIo/LiPo/LiFe, 1 to 18 cells of NiCd/NiMH, 2 to 24V
of Lead-acid (Pb)
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!

+
-
+
-
+
-
+
-
+
-
+
-
- 2 -
- Operating software
Every operating program in the unit is controlled with mutual links and
communications to prevent every possible error, so it introduces the maximum safety,
such as input voltage warning, reverse polarity protection and Lithium cell-count input
error warning. The entire firmware can be upgraded via USB from internet download at
our web page, when there needs to be changed.
- High-power and high-performance circuit
BC6HP employs the circuit that has maximum output power of 250Watts. As a result,
it can charge or discharge up to 18 cells of NiCd/NiMH and 6 series of Lithium batteries
with maximum current of 10A. Furthermore, the cooling system is so efficient that can
hold such a power without any trouble running the circuit or the operating program.
- Accept various types of Lithium battery
BC6HP can accept three types of Lithium batteries - LiIo, LiPo and LiFe. They have
different characteristics by their chemistry. You can select any one of them that you are
going to process before the job. For their specifications, refer 'Warnings and safety
notes' section.
- Lithium battery 'Fast' and 'Storage' mode
You can charge Lithium battery for special purposes. 'Fast' charge reduces the
charging time of Lithium battery and 'Storage' mode controls the final voltage of the
battery to be suit for long time storage.
- Maximum safety
Delta-peak sensitivity : The automatic charge termination program works on the
principle of the Delta-peak voltage detection. (NiCd/NiMH)
Auto-charge current limit : When charging NiCd or NiMH at 'AUTO' current mode, you
can set the upper limit of charge current to avoid from feeding high current to the
battery. This is very useful when charging the low impedance and small capacity NiMH
battery in 'AUTO' mode.
Capacity limit : The charging capacity always calculated by multiple of the charging
current and time. If the charging capacity exceeds the limit the process will be
terminated automatically when you set the maximum value.
Thank you for purchasing the e-STATION BC6HP charger. You get a rapid
charger/discharger with integrated balancing circuit, which is computerised with a high
performance microprocessor and specialised operating software. Please read this
operating manual completely and attentively as it contains a wide variety of specific
programming and safety information.
You need to keep this manual in a safe place, and be sure to pass it on to the new
owner if you ever dispose of BC6HP.
Special features
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!

+
-
+
-
+
-
+
-
+
-
+
-
Temperature
sensor port
Individual cell
connector port
DEC/INC
To select sub program
To alter the value
TYPE/STOP
To select main program
To stop the operation
Charging lead
connector
ENTER/START
To resume or start the operation
LCD screen
(16chr.x2 lines)
Input power cable
(DC11~18V)
Exterior of the unit
Temperature limit(*) : The temperature of the battery on charging will rise by its
internal chemical reaction. If you set the limit of temperature the process will be expired
forcibly when the limit has been reached.
Processing time limit : You can also restrain the maximum processing time to prevent
from any possible defect.
Input power monitor : To protect the car battery using as input power from being
damaged, its voltage always being monitored. If it drops below the lower limit the
process will be ended automatically.
- Data store/load
For users convenience, it can store maximum 10 data of different batteries. You can
establish the data contains program setting of the battery to charge or discharge.
These data can be called back at any time you need and the process can be executed
without program setting.
- PC based analysis using USB communication(**)
For technical expert, BC6HP offers PC based program can analysis the characteristic
of the battery by USB port. It shows a graph of voltage, current, capacity and
temperature curves. It also shows the individual voltage of each cell in the Lithium
battery pack.
* When using the optional thermal probe (part no. EAC110)
** When the software which can be downloaded at our web page, is installed at PC using with
separately purchased USB cable kit (part no. EAC400)
USB port
- 3 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
Cooling fan
!
!
!

+
-
+
-
+
-
+
-
+
-
+
-
Warnings and safety notes
Never leave the charge unsupervised when it is connected to its power supply. If any
malfunction is observed immediately terminate the process and refer to the operation
manual.
Keep away the unit from dust, damp, rain, heat direct sunshine and vibration. Do not
drop it.
The circuit of the unit is designed to be powered by 11 to 18V DC only.
This charger and the battery to charge or discharge should be set up
on a head-resistant, non-inflammable and non-conductive surface.
Never place them on a car seat, carpet or similar. Keep all the
inflammable volatile materials well away from operating area.
Be careful to touch the charger body when charging or discharging at
charger’s maximum power. It may be very hot and can cause a physical
damage on your finger or body.
Be sure to understand the information of the battery to be charged or discharged
accurately. If the program is set up incorrectly the battery can severely be damaged.
Especially Lithium battery can cause a fire or an explosion by over-charging.
NiCd/NiMH voltage level: 1.2V/cell
allowable fast charge current: 1C ~ 2C
discharge voltage cut off level: 0.85V/cell(NiCd), 1.0V/cell(NiMH)
LiIo voltage level: 3.6V/cell
max. charge voltage: 4.1V/cell
allowable fast charge current: 1C or less
min. discharge voltage cut off level: 2.5V/cell or higher
LiPo voltage level: 3.7V/cell
max. charge voltage: 4.2V/cell
allowable fast charge current: 1C or less
discharge voltage cut off level: 3.0V/cell or higher
LiFe voltage level: 3.3V/cell
max. charge voltage: 3.6V/cell
allowable fast charge current: 4C or less (e.g. A123M1)
discharge voltage cut off level: 2.0V/cell or higher
- 4 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!

+
-
+
-
+
-
+
-
+
-
+
-
Pb voltage level: 2.0V/cell
(Lead-acid) max. charge voltage: 2.46V/cell
allowable fast charge current: 0.4C or less
discharge voltage cut off level: 1.75V/cell or higher
Do not attempt to charge or discharge the following types of battery.
- Battery pack, which consists of different types of cell (including different
manufacturers).
- Battery, which is already fully charged or just slightly discharged.
- Non-rechargeable batteries (Explosion hazard).
- Batteries that require a different charge technique from NiCd, NiMH, LiIo, LiPo, LiFe
or Pb.
- Faulty or damaged battery.
- Battery fitted with an integral charge circuit or a protection circuit.
- Batteries installed in a device, or which are electrically linked to other components.
- Batteries that are not expressly stated by the manufacturer to be suitable for the
currents the charger delivers during the charge process.
To avoid short-circuits between the charge lead, always connect the charge cable to
the unit first and only then to the battery to be charged or discharged. Reverse the
sequence when disconnecting.
Do not connect more than one battery pack to the charge lead at any one time.
Please bear in mind of checking the following point before charge operation.
- Did you select the appropriate program, which are suitable for the type of battery?
- Did you set up adequate current for charging or discharging?
- Lithium battery pack can be composed with parallel and series circuits mixed. You
have to check the composition of the battery pack carefully before charging.
- Are all connections firm and safe, or is there an intermittent contact at any point in
the circuit?
- 5 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
Those warnings and safety notes are particularly important. Please
follow the instructions for a maximum safety; otherwise the charger and
the battery can be damaged violently. And also it can cause a fire to
injure a human body or to lose the property.
!
!

+
-
+
-
+
-
+
-
+
-
+
-
Program flow chart
LiPo battery LiXX
CHARGE
TYPE
STOP
TYPE
STOP
ENTER
START
DECDEC
INCINC LiXX
BALANCE LiXX
FAST CHG
INCINC DECDEC
LiXX
STORAGE
LiXX
DISCHARGE
NiMH
battery NiXX
CHARGE
ENTER
START NiXX
DISCHARGE NiXX
CYCLE
Pb battery Pb
CHARGE
ENTER
START Pb
DISCHARGE
USER SET
PROGRAM
ENTER
START LiPo/LiIo/LiFe
CHK Time NiMH D. Peak
sensitivity NiCd D. Peak
sensitivity
Temp Cut-off
CHG>DCHG
Waste Time
TYPE
STOP
TYPE
STOP Capacity
Cut-off
INCINC
▶▶
DECDEC
◀◀
NiMH/NiCd/Pb
Trickle charge
Key Beep
Buzzer
- 6 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
DECDEC
INCINC
DECDEC
INCINC
DECDEC
INCINC
DECDEC
INCINC
DECDEC
INCINC
DECDEC
INCINC
DECDEC
INCINC
DECDEC
INCINC
DECDEC
INCINC
DECDEC
INCINC
DECDEC
INCINC
INCINC DECDEC
INCINC DECDEC
Safety Timer
!
!
!
INCINC DECDEC
NiXX
Reflex charge
TYPE
STOP
TYPE
STOP
ENTER
START
TYPE
STOP
TYPE
STOP
ENTER
START
TYPE
STOP
TYPE
STOP
NiCd
battery
ENTER
START
TYPE
STOP
TYPE
STOP
LiFe battery
LiIo battery
D. Peak
Delay time
Back Light
Brightness DECDEC
INCINC
DECDEC
INCINC
Input Power
Low Cut-off

+
-
+
-
+
-
+
-
+
-
+
-
Initial parameters setup (User Program Setup)
BC6HP will be operated with the default value of the essential user settings when it is
connected to a 12V DC input power source for the first time. The screen displays the
following information in sequence and the user can change the value of parameter on
each screen.
When you are willing to alter the parameter value in the program, press ‘ENTER/START’
button to make it blinking, then change the value using ‘INC’ or ‘DEC’ button. The value
will be stored by pressing ‘ENTER/START’ button once.
BC6HP recognises the cell count of Lithium battery
automatically at the beginning of process to avoid from
erroneous setting by user. But deeply discharged battery
can be perceived incorrectly. To prevent the error, you
can set the time term to verify the cell count by the
processor. Normally, 10 minutes are enough to perceive
the cell count correctly. For the battery of larger capacity,
you may extend the time term. But if you set the time
term too long for the battery of smaller capacity, the
charge or discharge process can be finished within the
time term with the erroneous cell count. This may cause
the fatal result. If the processor recognizes the cell count
incorrectly at the beginning of charge or discharge
process, you may extend the time. Otherwise, you had
better use with the default value.
Display
LiPo/LiIo/LiFe
CHK Time 10min
Display
NiMH Sensitivity
D.Peak Default
INC
DEC
This shows the trigger voltage for automatic charge
termination of NiMH and NiCd battery. If the trigger
voltage is set higher, there is a danger of overcharging
the battery; if it is set lower, there is a possibility of
premature termination. Please refer the technical
specification of the battery.
(Disable, Delicate, Default, 5mV~20mV/cell)
Disable; The charger would not detect Delta-peak
voltage for termination. To terminate charging process,
the charger will check the parameters set up at other
safety parameters like max. capacity, safety timer or
safety temperature. If any one has been reached at its
limit, the charging process will be terminated. (for NiMH
only)
Delicate; The charger will detect a very small variation
at delta-peak voltage. Some NiMH batteries which
shows small voltage-drop at peak need to be use this
option.
-
+
DEC INC
INC
DEC
-
+
DEC INC
Display
NiCd Sensitivity
D.Peak Default
-
+
DEC INC
- 7 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!
INC
DEC

+
-
+
-
+
-
+
-
+
-
+
-
When you start a charge process, the integral safety
timer automatically starts running at the same time.
This is programmed to prevent overcharge the battery
if it proves to be faulty, or if the termination circuit
cannot detect the battery full. The value for the safety
timer should be generous enough to allow a full
charge of the battery.
This program sets the maximum charge capacity that
will be supplied to the battery during charge. If the
delta-peak voltage is not detected nor the safety timer
expired by any reason, this feature will automatically
stop the process at the selected capacity value.
Display
Waste time
CHG/DCHG 5min
-
+
DEC INC
-
+
DEC INC
The battery which is on the cyclic process of charge
and discharge can often become warm after charge or
discharge period. The program can insert a time delay
to occur after each charge and discharge process to
allow the battery adequate time to cool down before
being subjected to the next process. The value ranges
from 1 to 60 minutes.
Display
NiMH/NiCd/Pb
Trickle 100mA
INC
DEC
-
+
DEC INC
You can set the trickle charge mode on or off. If it is
on, the charger will automatically supply the trickle
charge current to achieve the full charge without
overheating the battery after fast charge has been
terminated.
Display
Safety timer
ON 120min
-
+
DEC INC
-
+
DEC INC
Display
Capacity Cut-Off
ON 5000mAh
-
+
DEC INC
-
+
DEC INC
INC
DEC
INC
DEC
INC
DEC
- 8 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
Display
Temp. Cut-Off
ON 80C
-
+
DEC INC
-
+
DEC INC
An optional feature using temperature probe
contacting the surface of battery, the temperature
cut-off can be on or off. If it is on, set the maximum
temperature at which the charger should allow
battery to reach during charge. Once a battery
reaches this temperature during operation, the
process will be terminated to protect the battery.
INC
DEC
This restrains the delta-peak voltage detection until
the time has reached. This prevents a premature
cut-off from the battery of high internal resistance.
The default value is one minute. (1 ~ 15 minutes)
Display
NiMH/NiCd D.Peak
Delay time 15min
-
+
DEC INC
INC
DEC
!
!
!
Default; If you do not know much about this function, or
for ordinary batteries, select this mode. 12mV/cell for
NiCd or 8mV/cell for NiMH will be used.

+
-
+
-
+
-
+
-
+
-
+
-
- 9 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
The beep sounds at every time pressing the buttons
to confirm your action. The beep or melody sounded
at various times during operation to alert different
mode changes. These audible sounds can be on or
off.
This program monitors the voltage of input battery.
If the voltage drops below the value you set the
operation forcibly terminated to protect the input
battery.
Display
Key Beep ON
Buzzer ON
INC
DEC
-
+
DEC INC
Display
Input power low
Cut-Off 10.0V
-
+
DEC INC
Display
Program Memory
Display
BC6HP can store the setting data of every program for your convenience. This
feature can store up to 10 battery data for each type of batteries by number that
represents the individual parameters.
They can be called back for the process of charging or discharging without setting
up the program again.
Select the data number using ‘INC’ or ‘DEC’
button. Each data had been stored by their last
setting. Then, press ‘START/ENTER’ button to
enter the program.
Or, press ‘TYPE/STOP’ button to go for other
program.
PROGRAM MEMORY
LiPo [0]
ENTER
START
Display
PROGRAM MEMORY
LiPo [0]
TYPE
STOP
TYPE
STOP
+-
DEC INC
LiPo[0] CHARGE
12.0A 11.1V(3S)
!
!
Battery connection to charger
All batteries are charged should be connected through the main
charge leads go to output port of charger. The balance
connection which goes to balance port is only required when
running ‘Balance’ program.
!
INC
DEC
Display
Back-light
100%
-
+
DEC INC
You can adjust the brightness of LCD screen at the
charger.

+
-
+
-
+
-
+
-
+
-
+
-
battery
voltage
charge
current
charged
capacity
charging
time
number
of
cells
Lithium battery (LiIo/LiPo/LiFe) program
These programs are only suitable for charging and discharging Lithium batteries
with a nominal voltage of 3.3V(LiFe), 3.6V(LiIo) and 3.7V(LiPo) per cell. The
final voltage of charge process is very important; it should be precisely matched
with the charged voltage of the battery. They are 4.2V for LiPo, 4.1V for LiIo, and
3.6V for LiFe. The charge current and nominal voltage as for cell count set on
the charge program must always be correct for the battery to be charged.
When you are willing to alter the parameter value in the program, press
‘ENTER/START’ button to make it blinking. Then change the value using ‘INC’ or
‘DEC’ button. The value will be stored by pressing ‘ENTER/START’ button once.
This shows the number of cells you set up and
the processor detects. 'R:' shows the number of
cells found by the charger and 'S:' is the number
of cells selected by you at the previous screen.
If both numbers are identical you can start
charging by press ‘ENTER/START’ button. If
not, press ‘TYPE/STOP’ button to go back to
previous screen. Then carefully check the
number of cells of the battery pack to charge
again.
The screen shows the present situation during
charge process. To stop charging forcibly press
‘TYPE/STOP’ button once.
Display
LiPo[0] CHARGE
10.0A 11.1V(3S)
+-+-
Display
R: 3SER S: 3SER
CONFIRM(ENTER)
Display
Li3S 10.0A 12.59V
CHG 022:43 00682
ENTER
START
TYPE
STOP
DEC INC
DEC INC
Charging Lithium battery
ENTER
START
- 10 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!
The left side of the first line shows the type of
battery and data number. The value on the left
side of second line sets a charge current and the
value on the right side sets the voltage of the
battery pack. ‘In ’AUTO’ , the charger will check
the cell-count of battery automatically.
After setting the current and voltage press
‘ENTER/START’ button for more than 3 seconds
to start the process.
(Charge current: 0.1~10.0A, Voltage: AUTO, 1~6
series)

4 cell
3 cell
2 cell
1 cell
5 cell
6 cell
Individual
bal. port
-
+
+
--
+
1S
-
+
2S
-
+
3S
LiPo 1S
LiPo 2S
LiPo 3S
LiPo 4S
LiPo 5S
+
+
-
+
-
+
-
+
-
+
-
Top View
LiPo 6S
+
-
4 cell
3 cell
2 cell
1 cell
5 cell
6 cell
Individual
bal. port
-
+
-
+
Top View
* 8-pin plug assignment
This is for balancing the voltages of Lithium batteries of the battery pack to be
charged. To do this, the battery pack being charged should have the individual
cell connector, and connect it to the individual port at the right side of charger
with a suitable connection cable that fits with your battery pack. And you
should connect the battery output plug to the output of charger either.
In this mode, the charger will monitor the voltages of each cell of the battery
pack and controls the charging current that is feeding to each cell to equalize
the voltage.
The value on the left side of second line sets a
charge current and the value on the right side of
second line sets the voltage of the battery pack.
After setting the current and voltage press
‘ENTER/START’ button for more than 3 seconds
to start the process.
(Charge current: 0.1~10.0A, Voltage: 2~6 series)
This shows the number of cells you set up and
the processor detects. 'R:' shows the number of
cells found by the charger and 'S:' is the number
of cells selected by you at the previous screen. If
both numbers are identical you can start
charging by press ‘ENTER/START’ button. If not,
press ‘TYPE/STOP’ button to go back to previous
screen. Then carefully check the number of cells
of the battery pack again.
The screen shows the present situation during
charge process. To stop charging press
‘TYPE/STOP’ button once.
Display
Display
Display
Li3S 1.2A 12.59V
BAL 022:43 00682
LiPo[0] BALANCE
2.0A 11.1V(3S)
R: 3SER S: 3SER
CONFIRM(ENTER)
battery
voltage
charge
current
charged
capacity
charging
time
number
of
cells
Charging Lithium battery at balance mode
+-+-
ENTER
START
TYPE
STOP
DEC INC
DEC INC
ENTER
START
Individual cell connection diagram
- 11 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!

+
-
+
-
+
-
+
-
+
-
+
-
Display
LiPo[0] FAST CHG
2.0A 11.1V(3S)
+-+-
Display
'FAST' charging Lithium battery
You can set up the charging current and the
voltage of the battery pack being charged. As
you press ‘ENTER/START’ button the voltage
confirmation will be displayed. And then, if you
confirm the voltage and current, press
‘ENTER/START’ button again to start charging.
This shows the present state of 'FAST'
charging. To stop charging arbitrary, press
‘TYPE/STOP’ button once.
Current
voltage of
battery
charge
current supplied
capacity
elapsed
time
TYPE
STOP
DEC INC ENTER
START
DEC INC
The charging current is getting smaller as the process goes to the near end
term of Lithium battery charging. To finish charging process earlier, this
program eliminate certain term of CV process. Actually, the charging current
will goes to 1/5 from the initial value to end the process while the normal
charging goes to 1/10 at end of CV term. The charging capacity may be a bit
smaller than normal charging but the process time will be reduced.
This is for charging or discharging Lithium battery not to be used for the time
being. The program will determine to charge or discharge the battery to the
certain voltage depending on the voltage of the battery at its initial stage. They
are different from the type of the battery, 3.7V for LiIo, 3.8V for LiPo and 3.3V for
LiFe per cell. If the voltage of battery at its initial stage is over the voltage level
to storage, the program will start to discharge first.
You can set up the current and the voltage of
the battery pack to be charged. The current will
be used for charge or discharge the battery to
reach the 'storage' level of voltage.
Display
+-+-
Display
charge
or
discharge
current
TYPE
STOP
DEC INC ENTER
START
DEC INC
'STORAGE' control Lithium battery
Li3S 2.0A 12.59V
FAS 022:43 00682
number
of
cells
Li3S 2.0A 12.59V
STO 022:43 00682
LiPo[0] STORAGE
2.0A 11.1V(3S)
Current
voltage of
battery
supplied
capacity
elapsed
time
number
of
cells
- 12 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!

+
-
+
-
+
-
+
-
+
-
+
-
Display
Display
The value of discharge current on the left side of
screen may not exceed 1C for a maximum safety.
The final voltage at the end of discharge is on the
right according to the cell count and type of battery.
For LiPo, it is 3.0V/cell.
To start to discharge press ‘ENTER/START’ button
for more than 3 seconds.
(Discharge current: 0.1~7.0A)
Discharging Lithium battery
LiPo[0] DISCHG
2.0A 9.0V(3S)
Li3S 2.0A 12.59V
DSC 022:43 00682
+-+-
TYPE
STOP
DEC INC ENTER
START
DEC INC
battery
voltage
discharge
current
discharged
capacity
elapsed
time
number
of
cells
* Voltage monitoring during the discharge
The charger monitors the voltage of individual cells during discharge mode of
Lithium battery pack. For this feature, the individual plug of the battery pack should
be connected to the individual port of the charger. If the voltage of any one or more
cells varies abnormally during discharge, BC6HP terminates the process forcibly with
the error message. If this happens, the battery pack contains a bad cell, or bad
connection of the cable or plug. You can easily know which one cell is not normal by
pressing ‘INC’ button at time of showing the error message.
Display
C1:3.50 C2:3.52V
C3:3.48 C4:1.82V
Display
C5:3.46 C6:3.50V
INC▶
Display
INC▶
BATTERY VOL ERR
CELL LOW VOL
The processor found that the voltage of one of
the cell in the Lithium battery pack is too low.
In this case, the 4th cell is bad. If there happens
the connection-break of the cable or plug, the
voltage value may show zero.
- 13 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!
* Discharge current limit by circuit power
For the voltage of battery is more than 3.6V, the actual amount of discharge current
may be limited automatically, not to exceed the charger's maximum rated discharging
power of 25 watts.

+
-
+
-
+
-
+
-
+
-
+
-
NiMH/NiCd battery program
Display
NiMH[0] CHARGE A
CUR LIMIT 5.0A
Display
NiMH 2.0A 7.42V
CHG 022:45 00890
These programs are for charging or discharging NiMH (Nickel-Metal-Hydride) or NiCd
(Nickel-Cadmium) battery commonly used for R/C model applications.
This program simply charges the battery using the
current you set. You can select charge current mode in
‘A’(automatic) or ‘M’(manual). In ‘Auto’ mode, you need
to set the upper limit of charge current to avoid from
higher feeding current that may damage the battery.
Because some batteries of low impedance and small
capacity can lead to the higher charge current by the
processor at automatic charge mode. But in 'Man'
mode, it will charge the battery with the charge current
you set at the display.
- Press ‘ENTER/START’ button to make ‘M’ or ‘A’
blinking.
- Change the current mode to ‘M’ or ‘A’ using ‘INC’ or
‘DEC’ button.
- Press ‘ENTER/START’ button to alter the charge
current.
- Change the current value using ‘INC’ or ‘DEC’ button.
- Press ‘ENTER/START’ button for more than 3
seconds to start charging.
battery
voltage
charge
current
charged
capacity
elapsed
time
battery
type
Charging NiCd/NiMH battery
+-
ENTER
START
TYPE
STOP
DEC INC
Discharging NiCd/NiMH battery
Display
NiMH[0] DISCHG
3.0A 11.5V
Display
Set discharge current on the left and final voltage on
the right. The discharge current ranges from 0.1 to
7.0A and the final voltage ranges from 0.1 to 25.0V).
To protect the battery from damage by deep
discharge, set the final cut-off voltage at safe range.
The minimum cut-off voltage is 0.85V/cell for NiCd and
1.0V/cell for NiMH. If you set the voltage as ‘AUTO’,
the charger will determine the final voltage depending
on the battery condition.
NiMH 2.0A 7.42V
DSC 022:45 00890
battery
voltage
discharge
current
discharged
capacity
elapsed
time
battery
type
+-+-
ENTER
START
TYPE
STOP
DEC INC
DEC INC
- 14 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!

+
-
+
-
+
-
+
-
+
-
+
-
Display
NiMH[0] CYCLE
DCHG>CHG 3
Display
Cycle (C>D, D>C) mode NiMH/NiCd battery
Set the sequence on the left and the number of
cycle on the right. You can use this function for
balancing, refreshing and break-in the battery. To
avoid rising temperature of the battery, there will a
brief cool-off period that already fixed at 'User
program setup' after each charge and discharge
process.
The cycle program uses the charge current,
discharge current and discharge cut-off voltage
which are set on previous programs-’charge’ and
‘discharge’.
The cycling number ranges from 1 to 5.
Display
DCHG 1 1314mAh
CHG 1 1430mAh
At the end of the process, you can see charged or
discharged electric capacities of the battery at each
cyclic process.
By pressing ‘INC’ or ‘DEC’ button, the screen shows
the charged or discharged capacity of each cycle in
order.
NiMH 2.0A 7.42V
D>C 022:45 00890
+-+-
ENTER
START
TYPE
STOP
DEC INC
DEC INC
battery
voltage
discharge
or charge
current
discharged
or charged
capacity
elapsed
time
battery
type
- 15 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!
Display
NiMH[0] REFLEX
3.0A 1200mAh
Display
Reflex charge NiMH/NiCd battery
The battery will be charged using the pulsed current
which is very brief and high-rate discharge pulses.
This will help to prevent from undesired side effect
like ‘memory effect’. When you select this mode, you
need to set the partial capacity which will be charged
with reflex mode. The charger will work with ‘Reflex’
mode only until the capacity has been charged, then
the charger will work at ‘Normal mode’.
- Set the charge current on the left and the partial
capacity on the right. The partial capacity should be
less than the total capacity of battery.
- Press and hold ‘ENTER/START’ button for more
than 3 seconds to start the process.
NiMH 3.0A 7.42V
REX 012:45 00890
+-+-
ENTER
START
TYPE
STOP
DEC INC
DEC INC
battery
voltage
charge
current
charged
capacity
elapsed
time
battery
type

+
-
+
-
+
-
+
-
+
-
+
-
Pb (lead-sulphuric acid) battery program
Display
Pb[0] CHARGE
4.0A 12.0V(6P)
Display
Pb-6 4.0A 12.59V
CHG 022:43 00682
This is programmed for charging and discharging Pb (lead-acid) battery of nominal
voltage from 2 to 24V. Pb batteries are totally different from NiCd or NiMH batteries.
They can only deliver relatively lower current compare to their capacity, and similar
restrictions definitely apply to charge. So the optimal charge current will be 1/10 of the
capacity. Pb batteries must not be charged rapidly. Always follow the instruction which
is supplied by the manufacturer of battery.
Set up the charge current on the left and the nominal
voltage of the battery on the right. The charge current
ranges from 0.1 to 10.0A and the voltage should be
matched with the battery being charged.
ENTER the charge process by pressing
‘ENTER/START’ button for more than 3 seconds.
The screen displays the state of charging process. To
stop charging forcibly, press ‘TYPE/STOP’ button
once.
Charging Pb battery
+-+-
ENTER
START
TYPE
STOP
DEC INC
DEC INC
battery
voltage
charge
current
charged
capacity
elapsed
time
battery
type
Display
Pb DISCHARGE
4.0A 12.0V(6P)
Display
Pb-6 4.0A 12.59V
DSC 022:43 00682
Discharging Pb battery
+-+-
ENTER
START
TYPE
STOP
DEC INC
DEC INC
battery
voltage
discharge
current
discharged
capacity
elapsed
time
battery
type
Set discharge current on the left and final voltage on
the right. The discharge current ranges from 0.1 to
7.0A.
The screen displays the current state of discharge.
To stop discharging press ‘TYPE/STOP’ button once.
The audible sound indicates you at the end of
process.
- 16 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!

+
-
+
-
+
-
+
-
+
-
+
-
Display
End Voltage
12.6V(3S)
You can inquire various information on LCD screen during charging or discharging
process. When you press ‘DEC’ button the charger shows the establishment of user
settings. And also you can monitor the voltage of individual cell by pressing ‘INC’ button
when the individual connection cable is linked to the Lithium battery being processed.
The final voltage will be reached at the end of
process.
The internal temperature of the charger and the
temperature of battery being charged.
(The external temperature only will be displayed
when using the thermal probe.)
The present voltage of input DC power.
Various information during the process
DEC
Display
Capacity Cut-Off
ON 5000mAh
Display
Safety Timer
ON 200min
Display
Temp Cut-Off
OFF 80C
Display
Ext. Temp 26C
Int. Temp 30C
Display
IN Power Voltage
12.56V

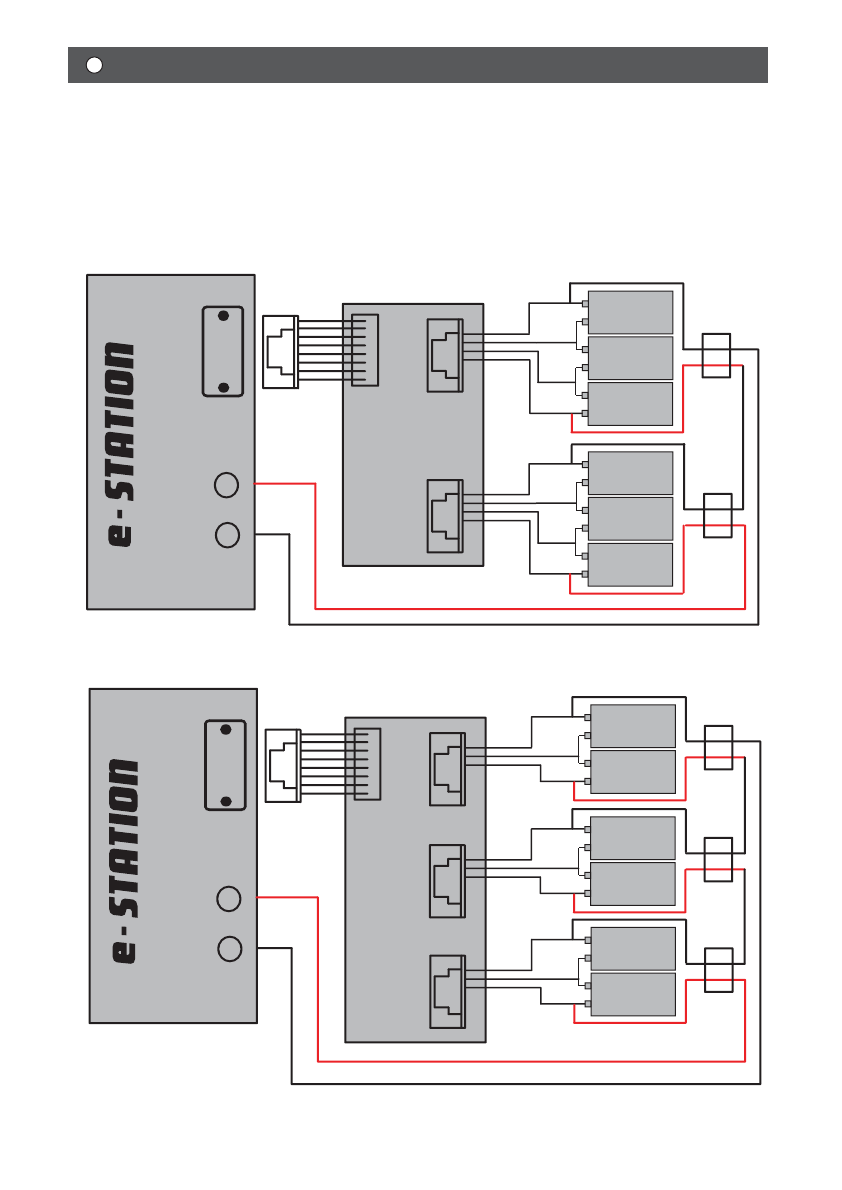

Using the individual connection cable to the battery,
you can check the individual voltages of each cell in
the battery pack. When connect the cable to the port
on the right side of the charger the program shows
them for maximum 6 cells in sequence. To utilise this
feature, the battery pack must have output
connector that linked to each cells.
Display
C1:4.12 C2:4.09V
C3:4.09 C4:4.10V
Display
C5:4.18 C6:4.15V
INC
DEC
DEC
DEC
DEC
- 17 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!
DEC
Display
NiMH Sensitivity
D.Peak Default

+
-
+
-
+
-
+
-
+
-
+
-
Display
REVERSE POLARITY
Display
CONNECTION BREAK
Display
SHORT ERR
Display
INPUT VOL ERR
Display
VOL SELECT ERR
Display
BREAK DOWN
Display
BATTERY CHECK
LOW VOLTAGE
Display
Display
BATTERY VOLTAGE
CELL LOW VOL
Warning and error messages
The output is connected to a battery with incorrect polarity.
This will be displayed in case of detecting an interruption of
the connection between battery and output or voluntarily
disconnecting the charge lead during the operation of
charge or discharge on output.
The voltage of one of the cell in the Lithium battery pack is
too low. Please check the voltage of the cell one by one.
The voltage of Lithium battery pack was selected incorrectly.
Verify the voltage of battery pack carefully.
The processor detects the voltage is lower than you set at
Lithium program. Please check the cell count of the battery.
BC6HP incorporates a various functions of protective and monitoring the system to
verify functions and the state of its electronics. In any case of occurring error, the
screen displays the cause of error that is self-explanatory with audible sound.
The processor detects the voltage is higher than you set at
Lithium program. Please check the cell count of the battery.
Display
There are bad connection at the individual connector.
Please check the connector and cables carefully.
Display
Display
TEMP OVER ERR
Display
CONTROL FAILURE
There was a short-circuit at OUTPUT. Please check the
charging leads.
The voltage of input power drops below the limit.
There happens the malfunction at the charger circuit by any
reason. The charger should be repaired at our factory.
The voltage of one of the cell in the Lithium battery pack is
too high. Please check the voltage of the cell one by one.
The internal temperature of the unit goes too high. Cool
down the unit.
The processor can not continue to control the feeding
current by any reason. The unit needs to be repaired.
BATTERY CHECK
HIGH VOLTAGE
BATTERY VOLTAGE
CELL HIGH VOL
BATTERY VOL ERR
CELL CONNECT
- 18 -
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!

+
-
+
-
+
-
+
-
+
-
+
-
- 19 -
Glossary of terms
Amps(A): The unit of measure for charge or discharge electric current. The program of
the charger will show most of the current in amps(A) at its LCD screen.
Milli-amps(mA): The electric current, being amps(A) multiplied by 1000 and noted as
'mA'. So 2.0A is the same as 2000mA (2.0x1000). Or, to convert mA to amps, divide the
mA number by 1000. So 200mA is the same as 0.2A. If a current value is below 1.0A,
the LCD screen of the charger will still show the current in amps, not milli-amps. For
example, a current of 600mA will be displayed as 0.6A, and a current of 100mA will
actually be shown as 0.1A.
Capacity,milli-amp hours (mAh), and amp-hours (Ah): Charge energy stored by a
battery is called capacity, which is defined as how much current a battery can supply
constantly over one hour of time. Most hobby batteries are rated for capacity in 'mAh' or
milliamp hours. A 650mAh battery can deliver 650mA of current for one hour
(650mAx1hr = 650mAh). The batteries of very large capacity, such as lead-acid(Pb)
batteries, are usually rated in 'Ah' or amp-hours. A '12V 60Ah' car battery can deliver 60
amps of current for one hour (60Ax1hr = 60Ah).
Nominal voltage(V): The nominal voltage of the battery pack can be determined as
follows;
-.NiCd or NiMH: multiply the total number of cells in the pack by 1.2. A 8-cell pack will
have a nominal voltage of 9.6 volts (8x1.2).
-.LiPo: multiply the total number of cells in the pack by 3.7. A 3-cell LiPo wired in series
will have a nominal voltage of 11.1 volts (3x3.7).
-.LiIo: multiply the total number of cells in the pack by 3.6. A 2-cell LiIo wired in series
will have a nominal voltage of 7.2 volts (2x3.6).
-.LiFe: multiply the total number of cells in the pack by 3.3. A 4-cell LiIo wired in series
will have a nominal voltage of 13.2 volts (4x3.3).
If the nominal voltage of the battery is not printed on the battery's label, consult your
battery manufacturer or supplier. Do not guess the rated voltage of battery.
'C'-rating: Capacity is also referred to as the 'C' rating. Some battery suppliers
recommend charge and discharge currents based on the battery 'C' rating. A battery's
'1C' current is the same number as the battery's rated capacity number, but noted in mA
or amps. A 600mAh battery has a 1C current value of 600mA, and a 3C current value of
(3 x 600mA) 1800mA or 1.8A. The 1C current value for a 3200mAh battery would be
3200mA (3.2A).
+
-
+
-
+
-
+
-
+
-
+
-
-
+
-
+
-
-
+
-
+
-
+
-
+
-
!
!
!

+
-
+
-
+
-
+
-
+
-
+
-
- 20 -
Balancing the multi Lithium battery packs
You can charge and balance several Lithium batteries at the same time, by using
optional ‘Multi-board adaptor’(*). Please note that the battery packs being charged
should have same capacity and cell-count.
* Part no. EAC143, EAC144, EAC148 and EAC149. Please read the instructions come
with the board for the maximum safety.
Li-Po 1S
Li-Po 2S
Li-Po 3S
+
-
+
-
+
-
4 cell
3 cell
2 cell
1 cell
5 cell
6 cell
Individual
bal. port
-
+
Li-Po 1S
Li-Po 2S
Li-Po 3S
+
-
+
-
+
-
+
-
-
+
+
-
BC6HP
OUTPUT
B1 3S
B2 3S
Multi-adaptor
Li-Po 1S
Li-Po 2S
+
-
+
-
4 cell
3 cell
2 cell
1 cell
5 cell
6 cell
Individual
bal. port
-
+
+
-
-
+
OUTPUT
B1 2S
Li-Po 1S
Li-Po 2S
+
-
+
-
+
-
Li-Po 1S
Li-Po 2S
+
-
+
-
+
-
Multi-adaptor
B2 2S
B3 2S
BC6HP
ex) 2 x 3S connection using serial charging
ex) 3 x 2S connection using serial charging
!
!
!
