Barco r9002357 User manual

OWNER'S MANUAL
R9002357
R9002358
VISION
708

BARCO PROJECTION SYSTEMS
Date :
200499
OWNER'S MANUAL
Art. No. :
R5976025A
R9002357
R9002358
VISION
708

Due to constant research, the information in this manual is subject to change without notice.
Produced by BARCO N , April 1999.
All rights reserved.
Trademarks are the rights of their respective owners.
BARCO nv/Projection Systems
Noordlaan 5
B-8520 Kuurne
Belgium
Tel : [phone]
Fax : [phone]
E-mail : [email protected]
Visite Barco at the web : http://www.barco.com
Printed in Belgium

Table of Contents
i-1
5976025A BARCO ISION 708 200499
TABLE OF CONTENTS
TABLE OF CONTENTS ..................................................................................................................................... I-1
SAFETY INSTR CTIONS ................................................................................................................................. 1-1
On safety .................................................................................................................................................... 1-1
On installation ............................................................................................................................................. 1-2
On servicing ................................................................................................................................................ 1-2
On cleaning ................................................................................................................................................. 1-2
On repacking ............................................................................................................................................... 1-2
On illumination ............................................................................................................................................ 1-2
LOCATION AND F NCTION OF CONTROLS .................................................................................................. 2-1

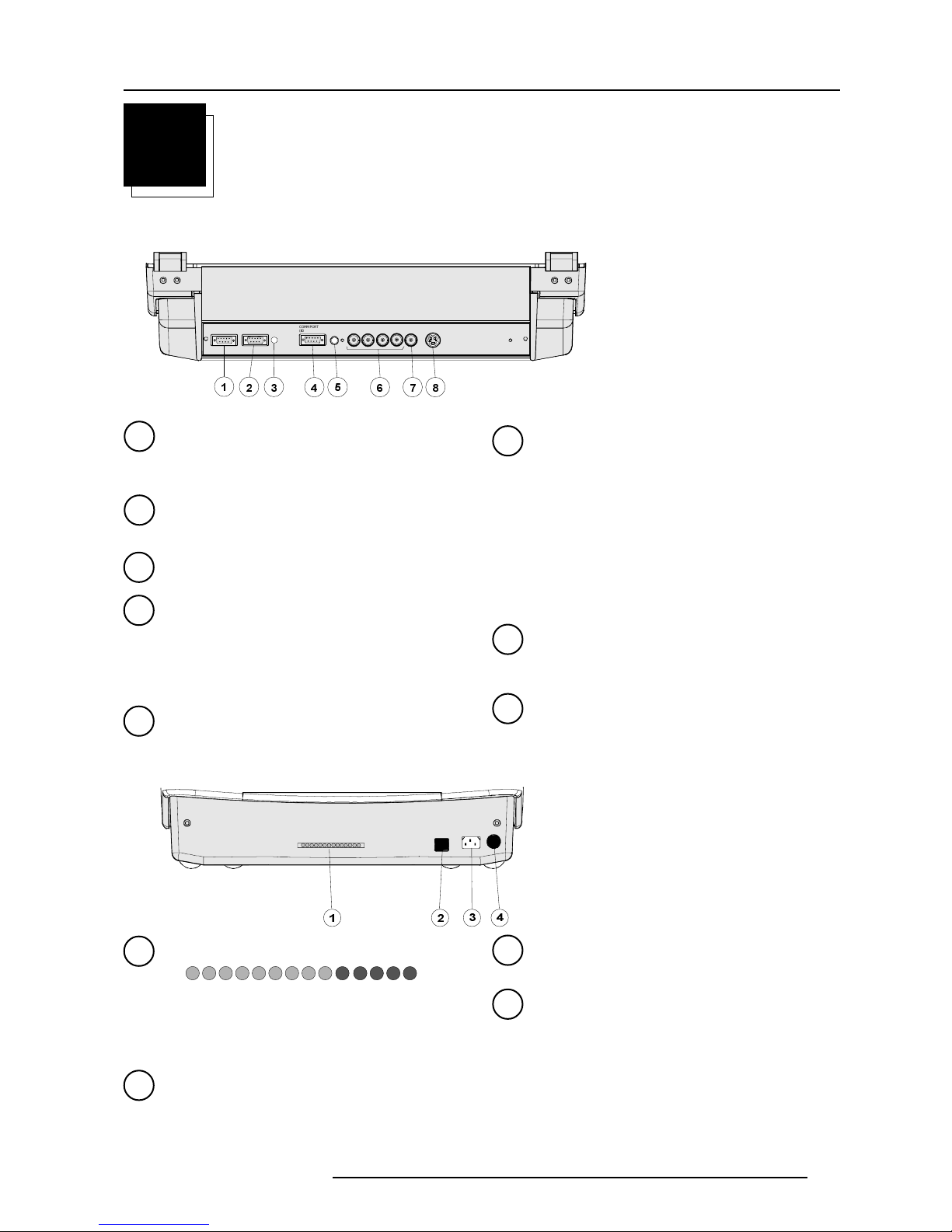

Rear Panel Terminology .............................................................................................................................. 2-1
Front Panel Terminology ............................................................................................................................. 2-1
Control panel terminology ............................................................................................................................ 2-2
a. The local keypad ..................................................................................................................................... 2-2
b. RCU control panel terminology................................................................................................................ 2-2
CONNECTIONS ................................................................................................................................................ 3-1
Switching on/off ........................................................................................................................................... 3-1
Signal input connection to the projector : .................................................................................................... 3-1
Power (mains) cord connection ................................................................................................................... 3-1

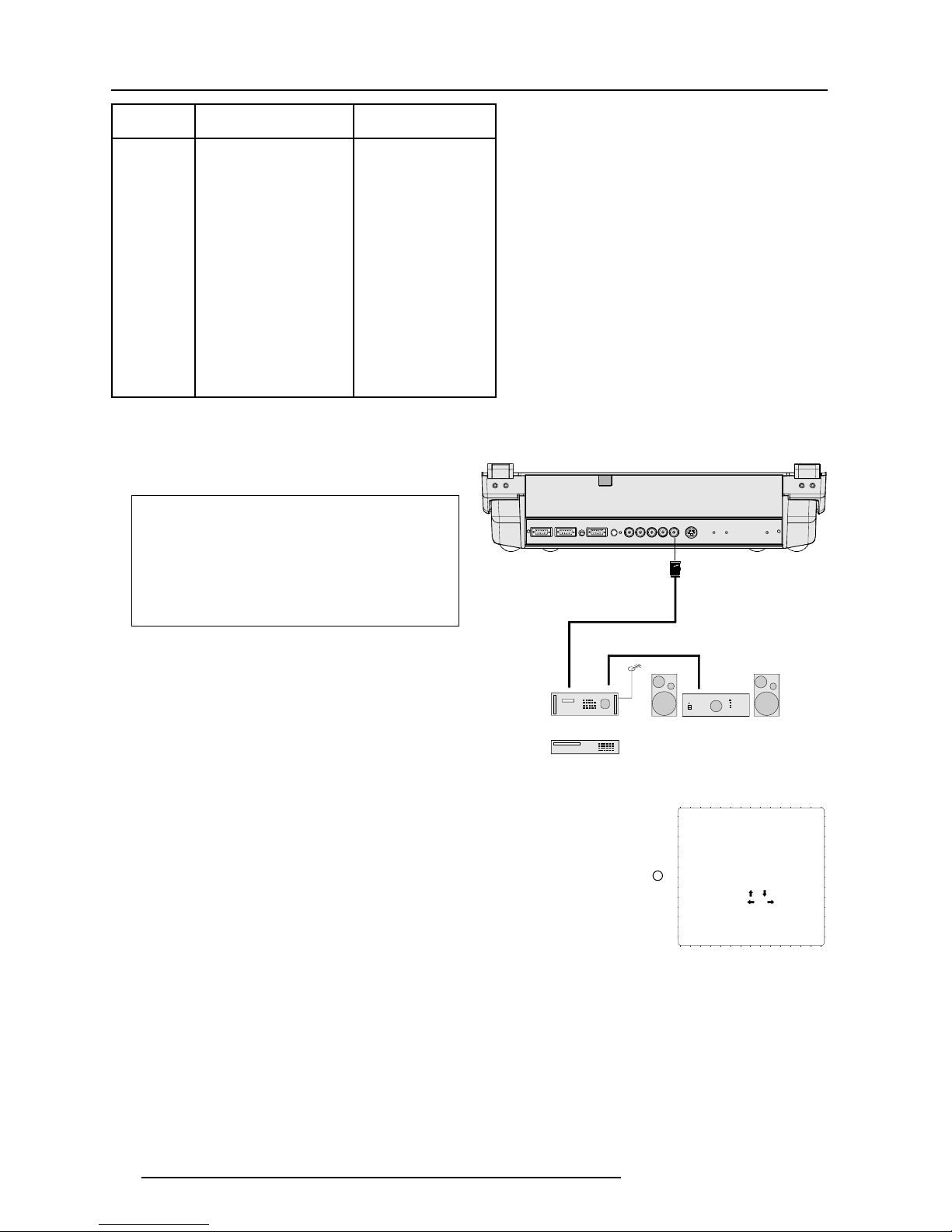

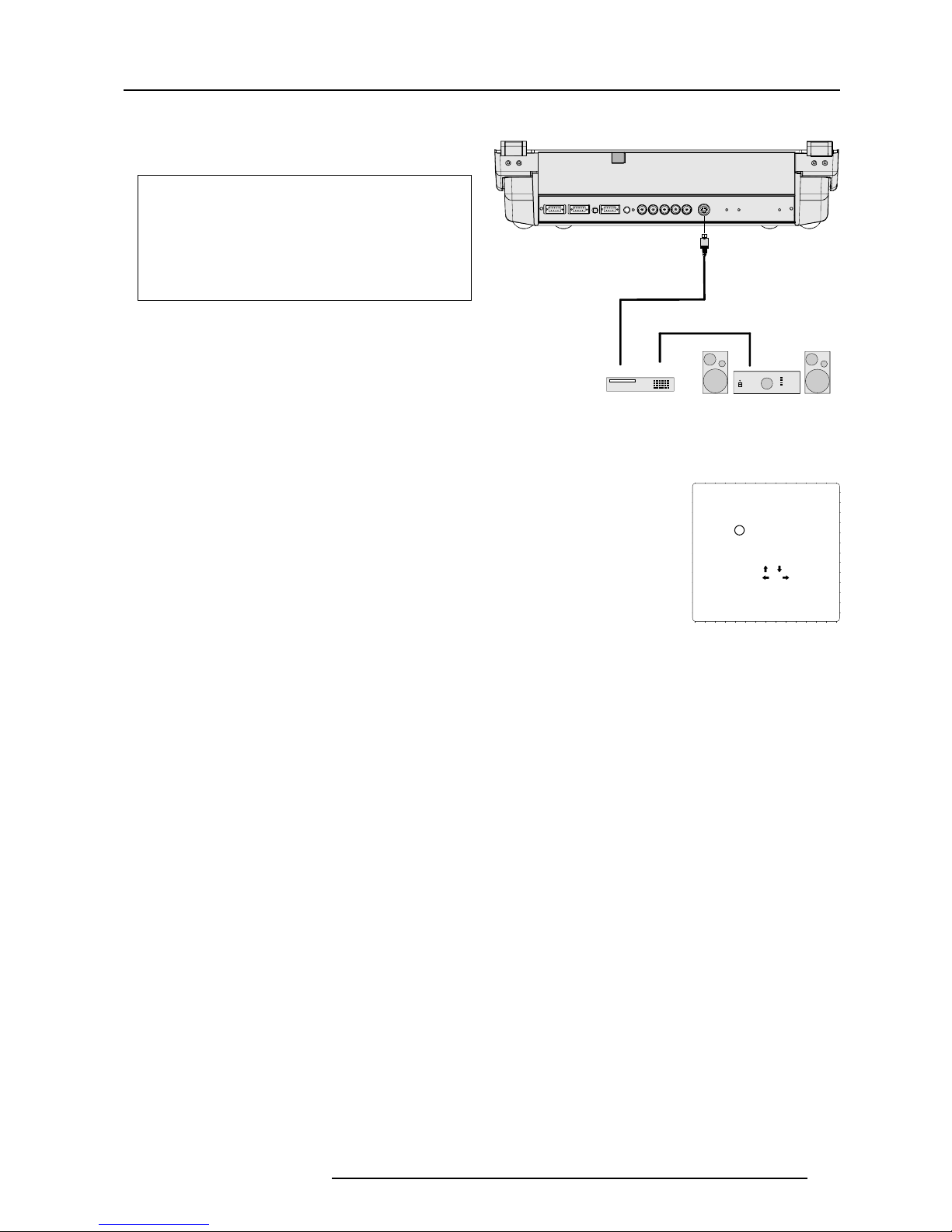

Connecting a Composite Video source. ...................................................................................................... 3-2
Connecting a S-Video source to port 2. ...................................................................................................... 3-3

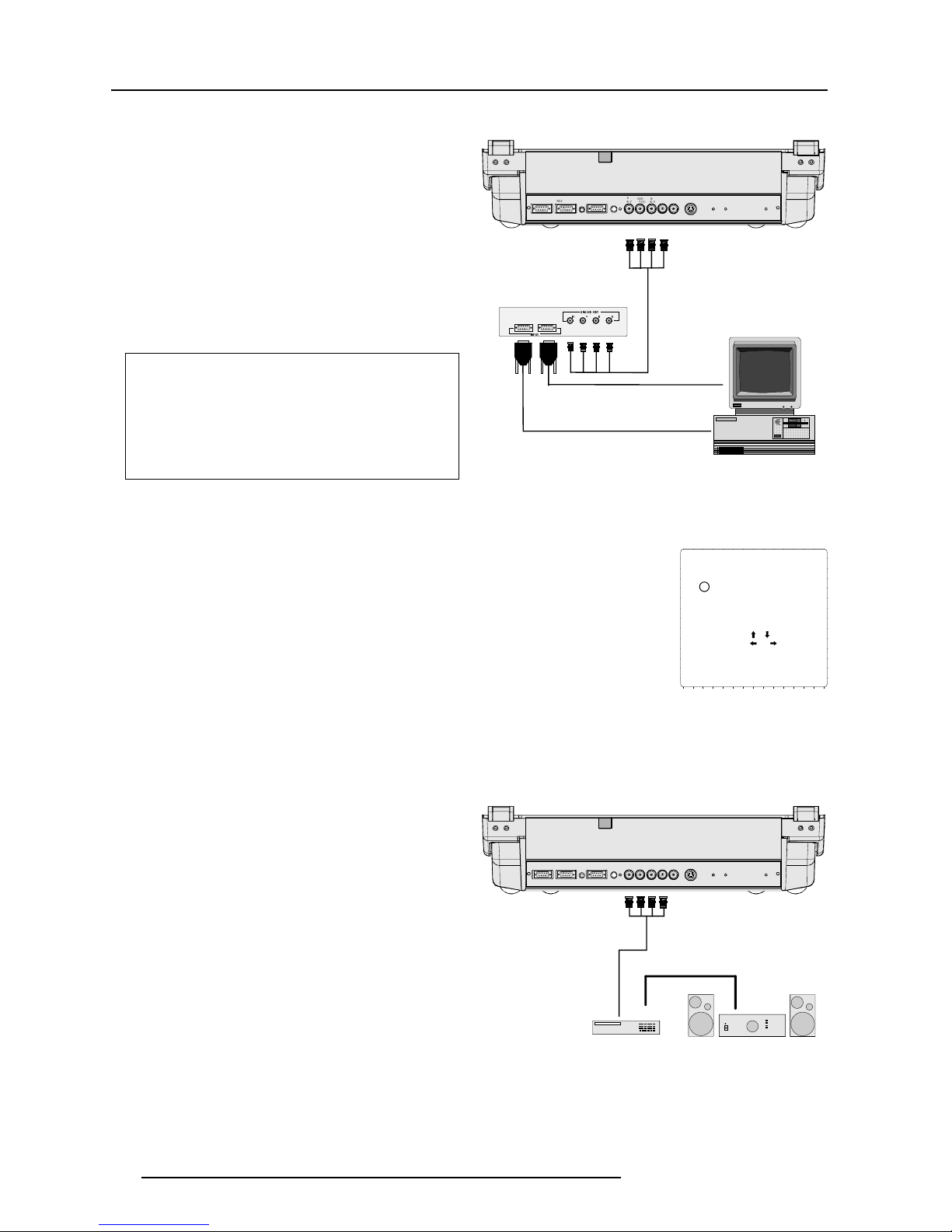

Connecting a RGB Analog source with composite sync. ............................................................................ 3-4
Connecting a RGB Analog source with Tri-level sync.................................................................................. 3-4
Connecting a Component source. ............................................................................................................... 3-5
Connecting a Component source with Tri-level sync. .................................................................................. 3-5
Connecting a computer, e.g. IBM PC (or compatible), Apple Macintosh to the RS232 input of the projector3-6
Peripheral equipment .................................................................................................................................. 3-6
Connecting a RCVDS 05 switcher to the projector. ..................................................................................... 3-6
Connecting a VS05 switcher to the projector. ............................................................................................. 3-6
Battery installation in the RCU. ................................................................................................................... 4-1
CONTROLLING ................................................................................................................................................ 4-1
How to use the RCU.................................................................................................................................... 4-2
Projector address ........................................................................................................................................ 4-3
Input selection ............................................................................................................................................. 4-3
Displaying a Projector Address. .................................................................................................................. 4-3
How to program an address into the RCU? ................................................................................................. 4-3
Picture controls ........................................................................................................................................... 4-4
The Pause key. ........................................................................................................................................... 4-5
The Freeze key. .......................................................................................................................................... 4-5
START P OF THE ADJ STMENT MODE ...................................................................................................... 5-1
Adjustment mode ........................................................................................................................................ 5-1
RANDOM ACCESS ADJ STMENT MODE ....................................................................................................... 6-1
Starting up the random access adjustment mode. ...................................................................................... 6-1
Overview 'random Access Adjustment' mode. ............................................................................................. 6-1
Selecting Setup Pattern .............................................................................................................................. 6-2
Internal Cross Hatch Pattern ....................................................................................................................... 6-2
Random access adjustment mode selection menu. .................................................................................... 6-3
i

Table of Contents
i-2 5976025A BARCO ISION 708 200499
Picture Tuning ............................................................................................................................................. 6-3
Color Balance .............................................................................................................................................. 6-3
Sync Fast/Slow Adjustment (only inputs 3,4,5,6) ....................................................................................... 6-3
Decoding ..................................................................................................................................................... 6-4
Chroma Delay ............................................................................................................................................. 6-4
Port 2 : Video or S-Video ............................................................................................................................ 6-4
Line Doubler ................................................................................................................................................ 6-4
Geometry Adjustments ............................................................................................................................... 6-5
Horizontal Phase Adjustment ...................................................................................................................... 6-5
Raster Shift Adjustment .............................................................................................................................. 6-6
Left-Right (east-west) Adjustments ............................................................................................................. 6-7
Seagull correction ....................................................................................................................................... 6-8
Top-Bottom (north-south) Adjustments ....................................................................................................... 6-8
Seagull correction ....................................................................................................................................... 6-9
Size Adjustment ........................................................................................................................................ 6-10
Vertical Linearity Adjustment .................................................................................................................... 6-10
Blanking Adjustments ............................................................................................................................... 6-11
Convergence Adjustment .......................................................................................................................... 6-12
SERVICE MODE ............................................................................................................................................... 7-1
Starting up the Service mode. ..................................................................................................................... 7-1
Overview flowchart 'Service' mode................................................................................................................ 7-1
Projector Set-up .......................................................................................................................................... 7-2
Identification ................................................................................................................................................ 7-2
Total Run Time ............................................................................................................................................ 7-2
Change password ........................................................................................................................................ 7-3
Change Language ....................................................................................................................................... 7-3
Change Projector Address .......................................................................................................................... 7-3
Change baudrate ......................................................................................................................................... 7-4
Power up mode ........................................................................................................................................... 7-4
BARCO_logo ............................................................................................................................................... 7-4
Memory management ................................................................................................................................. 7-5
Copy a block ............................................................................................................................................... 7-5
Deletion of blocks ........................................................................................................................................ 7-5
Deleting block by block ............................................................................................................................... 7-5
Deletion of all blocks ................................................................................................................................... 7-6
All settings to midposition ........................................................................................................................... 7-6
Undo all settings to midpos......................................................................................................................... 7-6
R & B convergence mid ............................................................................................................................... 7-7
Undo R & B convergence mid ..................................................................................................................... 7-7
Green convergence mid ............................................................................................................................... 7-7
Undo green convergence mid ...................................................................................................................... 7-7
Common Settings ....................................................................................................................................... 7-8
G2 Adjustment ............................................................................................................................................ 7-8
CRT run in cycle .......................................................................................................................................... 7-8
Projector warm up ....................................................................................................................................... 7-9
I2C Diagnostics ........................................................................................................................................... 7-9
Memory banks ............................................................................................................................................ 7-9
MESSAGES, WARNINGS AND FAILURES ..................................................................................................... 8-1
APPENDIX A : ADJUSTMENT BLOCKS AND SOURCE NUMBERS 90 - 99 .................................................... A-1

Safety Instructions
1-1
5976025A BARCO ISION 708 200499
WARNING
TO PREVENT FIRE OR ELECTRICAL SHOCK
HAZARD, DO NOT EXPOSE THIS EQ IPMENT TO
RAIN OR MOIST RE
FEDERAL COMMUNICATION COMMISSION (FCC STATEMENT)
This equipment has been tested and found to comply with the limits
of a class A digital device, pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial
environment. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is
likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Note :
The use of shielded cables is required to comply within the limits of
Part 15 of FCC rules and EN55022.
* All the safety and operating instructions should be read before using
this unit.
* The safety and operating instructions manual should be retained for
future reference.
* All warnings on the equipment and in the documentation manuals
should be adhered to.
* All instructions for operating and use of this equipment must be
followed precisely.
On safety
1. This product should be operated from an AC power source.
This projector may be connected to an IT-power system.
Operating AC power voltage of the projector:
1SAFETY INSTRUCTIONS
Notice on Safety
This equipment is built in accordance with the requirements of the
international safety standards EN60950, UL 1950 and CSA C22.2
No.950, which are the safety standards of information technology
equipment including electrical business equipment.
These safety standards impose important requirements on the use
of safety critical components, materials and isolation, in order to
protect the user or operator against risk of electric shock and energy
hazard, and having access to live parts.
Safety standards also impose limits to the internal and external
temperature rises, radiation levels, mechanical stability and strength,
enclosure construction and protection against the risk of fire.
Simulated single fault condition testing ensures the safety of the
equipment to the user even when the equipment's normal operation
fails.
INSTALLATION INSTRUCTIONS
Before operating this equipment please read this manual
thoroughly, and retain it for future reference.
Installation and preliminary adjustments should be
performed by qualified BARCO personnel or by author-
i ed BARCO service dealers.
OWNERS RECORD
The part number and serial number are located at the back side of the
projector. Record these numbers in the spaces provided below.
Refer to them whenever you call upon your BARCO dealer regarding
this product.
PART NUMBER
SER. NUMBER
DEALER
The lightning flash with an arrowhead within a
triangle is intended to tell the user that parts inside this
product may cause a risk of electrical shock to
persons.
The exclamation point within a triangle is intended to
tell the user that important operating and/or servicing
instructions are included in the technical documen-
tation for this equipment.
Consult your dealer to switch over from 230 ac to 120 ac or from
120 ac to 230 ac.
If you are not sure of the type of AC power available, consult your
dealer or local power company.
2. This product is equipped with a 3-wire grounding plug, a plug
having a third (grounding) pin. This plug will only fit into a grounding-
type power outlet. This is a safety feature. If you are unable to insert
the plug into the outlet, contact your electrician to replace your
obsolete outlet. Do not defeat the purpose of the grounding-type plug.
WARNING FOR THE CUSTOMERS: THIS APPARATUS MUST BE
GROUNDED (EARTHED) via the supplied 3 conductor AC power
cable.
(If the supplied power cable is not the correct one, consult your
dealer.)
BARCO ISION 708
Art.No. R9002357 (120V AC)
Art. No R9002358 (120V AC)

Safety Instructions
1-2 5976025A BARCO ISION 708 200499
B. Power cord with ANSI 73.11 plug:
The wires of the power cord are colored in
accordance with the following code.
Green/yellow:ground
White: neutral
Black: line (live)
3. Do not allow anything to rest on the power cord. Do not locate this
product where persons will walk on the cord.
To disconnect the cord, pull it out by the plug. Never pull the cord itself.
4. If an extension cord is used with this product, make sure that the
total of the ampere ratings on the products plugged into the extension
cord does not exceed the extension cord ampere rating. Also make
sure that the total of all products plugged into the wall outlet does not
exceed 15 amperes.
5. Never push objects of any kind into this product through cabinet
slots as they may touch dangerous voltage points or short out parts
that could result in a risk of fire or electrical shock.
Never spill liquid of any kind on the product. Should any liquid or solid
object fall into the cabinet, unplug the set and have it checked by
qualified service personnel before resuming operations.
6. Lightning - For added protection for this video product during a
lightning storm, or when it is left unattended and unused for long
periods of time, unplug it from the wall outlet. This will prevent damage
to the projector due to lightning and AC power-line surges.
On installation
On servicing
Do not attempt to service this product yourself, as opening or
removing covers may expose you to dangerous voltage potentials
and risk of electric shock!
Refer all servicing to qualified service personnel.
Unplug this product from the wall outlet and refer servicing
to qualified service personnel under the following condi-
tions
a. When the power cord or plug is damaged or frayed.
b. If liquid has been spilled into the equipment.
c.If the product has been exposed to rain or water.
d. If the product does not operate normally when the operating
instructions are followed.
Note : Adjust only those controls that are covered by the operating
instructions since improper adjustment of the other controls may
result in damage and will often require extensive work by a qualified
technician to restore the product to normal operation.
e. If the product has been dropped or the cabinet has been damaged.
f. If the product exhibits a distinct change in performance, indicating
a need for service.
Replacement parts - When replacement parts are required, be
sure the service technician has used original BARCO replacement
parts or authorized replacement parts which have the same char-
acteristics as the BARCO original part. Unauthorized substitutions
may result in degraded performance and reliability, fire, electric shock
or other hazards. Unauthorized substitutions may void warranty.
Safety check - Upon completion of any service or repairs to this
projector, ask the service technician to perform safety checks to
determine that the product is in proper operating condition.
On cleaning
Unplug this product from the wall outlet before cleaning. Do
not use liquid cleaners or aerosol cleaners. Use a damp cloth
for cleaning.
- To keep the cabinet looking brand-new, periodically clean it with a
soft cloth. Stubborn stains may be removed with a cloth lightly
dampened with mild detergent solution. Never use strong solvents,
such as thinner or benzine, or abrasive cleaners, since these will
damage the cabinet.
- To ensure the highest optical performance and resolution, the
projection lenses are specially treated with an anti-reflective
coating, therefore, avoid touching the lens. To remove dust on the
lens, use a soft dry cloth. Do not use a damp cloth, detergent
solution, or thinner.
On repacking
Save the original shipping carton and packing material; they will come
in handy if you ever have to ship your equipment. For maximum
protection, repack your set as it was originally packed at the factory.
On illumination
In order to obtain the best quality for the projected image, it is essential
that the ambient light which is allowed to fall on the screen be kept
to an absolute minimum.
When installing the projector and screen, care must be taken to avoid
exposure to ambient light directly on the screen. Avoid adverse
illumination on the screen from direct sunlight or fluorescent lighting
fixtures.
The use of controlled ambient lighting, such as incandescent spot light
or a dimmer, is recommended for proper room illumination. Where
possible, care should also be taken to ensure that the floors and walls
of the room in which the projector is to be installed are non-reflecting,
dark surfaces. Brighter surfaces will tend to reflect and diffuse the
ambient light and hence reduce the contrast of the projected image
on the screen.
CAUTION FIRE HAZARD
WARNING: DO NOT PLACE FLAMMABLE OR
COMBUSTIBLE MATERIALS NEAR PROJECTOR !
BARCO large screen projection products are designed and manufactured to
meet the most stringent safety regulations. This projector radiates heat on
its external surfaces and from ventilation ducts during normal operation,
which is oth normal and safe.
Exposing flamma le or com usti le materials into close proximity of this
projector could result in the spontaneous ignition of that material, resulting
in a fire. For this reason, it is a solutely necessary to leave an exclusion
zone around all external surfaces of the projector where y no flamma le or
com usti le materials are present. The exclusion zone must e not less
than 10 cm (4) for BARCO Retro Projectors and not less than 40 cm (16)
for all other BARCO projectors. Do not cover the projector with any material
while the projector is in operation.
Keep flamma le and com usti le materials away from the projector at all
times. Mount the projector in a well ventilated area away from sources of
ignition and out of direct sun light. Never expose the projector to rain or
excessive moisture. In the event of fire, use sand, CO2, or dry powder fire
extinguishers; never use water on an electrical fire.
Always have service performed on this projector y authorized BARCO
service personnel. Always insist on genuine BARCO replacement parts.
Never use non-BARCO replacement parts as they may degrade the safety
of this projector.
This product complies to standards set by Underwriters Laboratories, Inc., Canadian
Standards Association, and meets all applicable U.S. Canadian and European
government regulations or directives.
1. Do not place this equipment on an unstable cart, stand, or table.
The product may fall, causing serious damage to it.
2. Do not use this equipment near water.
3. Slots and openings in the cabinet and the back or bottom are
provided for ventilation; to ensure reliable operation of the product
and to protect it from overheating, these openings must not be blocked
or covered. The openings should never be blocked by placing the
product on a bed, sofa, rug, or other similar surface. This product
should never be placed near or over a radiator or heat register.
The projector should not be placed in a built-in installation or enclosure
unless proper ventilation is provided.
4. Do not block the projector cooling fans or free air movement under
and around the projector. Loose papers or other objects may not be
nearer to the projector than 4" on any side.

Location and Function of Controls
2-1
5976025A BARCO ISION 708 200499
2LOCATION AND FUNCTION OF CONTROLS
Rear Panel Terminology
RS232IN
Connection between the projector and an IBM PC (or
compatible) or MAC (RS422) for remote computer control
and data communication.
RS232OUT
Used to connect to the next projector, RS232IN plug
(communication link for PC or MAC to the next projector)
IR sensor
receiver for control signals transmitted from the RCU.
Communication port (800 peripherals)
* allows communication between the RC DS switcher and
the projector.
* allows connection of a remote IR receiver unit to the
projector.
IR Remote
remote input for wired remote control
3
4
2
1
5
RGB-S IN or (R-Y)Y(B-Y)-S IN (4x BNC connector):
RGB-S in : allows a character generator, microcomputer,
video camera, etc. having analog RGB output to be con-
nected to the projector.
Line inputs: - signals RED-GREEN-BLUE
- COMPOSITE sync. signal
(R-Y)Y(B-Y)-S IN (component in):allows to connect e.g. a
professional CR having component outputs to the projec-
tor.
Line inputs - signals RED-LUMA, LUMA, BLUE-LUMA
- COMPOSITE sync. signal
VIDEO IN (Composite video, 1x BNC connector): allows
a video tape recorder, video camera, color receiver/monitor,
etc. having video line output to be connected to the projector.
S-VIDEO IN: Separated Y/C (luma-chroma) signal inputs and
outputs for higher quality playback of Super HS signals (4-
pin S- IDEO connector).
7
6
8
Front Panel Terminology
1AUTODIAGNOSIS DISPLAY
LED indication for service purposes.
POWER (MAINS) SWITCH : press the switch to turn the
projector ON.
Depending on the software set-up of the projector, the
projector switches to standby or to operational
mode. If in standby, the standby led in the
autodiagnosisdisplay lights up.
-9V
HOLD DOWN HD
COINC
SF
HOLD DOWN EHT
STANDBY
-CONV
-17V
+17V
+HTHD
+CONV
+9V
+210V
+30V
2
3
4
POWER (MAINS) INPUT: Connect the supplied ac power
(mains) cord here and to wall the outlet.
IR SENSOR
receiver for control signals transmitted from the RCU.

 

   

COMMPORT
(800peripherals)
REMOTE
RG(S) BS
VIDEO S-VIDEO
R-Y Y(S) B-Y
RS232OUTRS232IN IR

Location and Function of Controls
2-2 5976025A BARCO ISION 708 200499
Control panel terminology
a. The local keypad
Gaining access
The local keypad is covered by a door on
which the projector logo is screened.
To open this door, push as indicated on
next drawing and turn it to the front side
of the projector.
b. RC control panel terminology
This remote control includes a battery powered infrared (IR) transmitter that allows the user to control the projector remotely.
This remote control is used for source selection, control, adaptation and set-up. It includes automatic storing of :
- picture controls (Brightness, Sharpness,....)
- picture geometry adjustments
- convergence adjustments
RCU
Local keypad
stand-by
sharpness
pause/park
tint
color
brightness
contrast
$'-867
67$1'%< (17(5
(;,7
$'-867
67$1'%< (17(5
(;,7

 

)
) ) )
)
$'- (;,7
(17(5
3$86(
3+$6(
7(;7
6+$531
7,17
&2/25
%5,*+71
&2175
75(%/( %$/$1&(
%$66 92/
























Location and Function of Controls
2-3
5976025A BARCO ISION 708 200499
Other functions of the remote control are:
- switching between standby and operational modes
- switching to "pause" (blanked picture, full power for immediate restarting)
- direct access to all connected sources
- variable adjustment speed : when pushing continuously on the arrow keys or the picture keys, the adjustment will be executed
in an accelerated fashion.
1 Function keys have no function for this projector
2 ADJ. : ADJUST key, to enter or exit the adjustment mode.
3Address key (recessed key), to enter the address of the projector (between 0 and 9). Press the recessed address key with
a pencil, followed by pressing one digit button between 0 and 9.
4 Selection key : no function for this projector
5 PAUSE : to stop projection for a short time, press 'PAUSE'. The image disappears but full power is retained for immediate
restarting.
6 STBY : stand-by button, to start projector when the power switch is switched on and to switch off the projector without
switching off the power switch.
7 Mute no function in this projector
8 Help on line help information (not yet available)
9 Digit buttons : direct input selection.
10 Audio controls : no function in this projector
11 Picture controls : use these buttons to obtain the desired picture analog level (see also 'Controlling').
12 PHASE : used to remove the instability of the image.
13 FREEZ : press to freeze the projected image.
14 TEXT : when adjusting one of the image, e.g. controls during a meeting, the displayed bar scale can be removed by pressing
'TEXT' key first. To re-display the bar scale on the screen, press 'TEXT' key again.
15 ENTER : to start up the adjustment mode or to confirm an adjustment or selection in the adjustment mode.
16 Cursor Keys (on RCU) or '+' and '-' keys (cursor keys) on the local keypad : to make menu selections when in the adjustment
mode or to zoom/focus when the direct access is actif.
Comparision between the cursor keys and the use of the '+' and '-' keys on the local keypad :
RCU = local keypad
cursor key up = '+' key up
cursor key down = '-' key down
cursor key right = '+' key right
cursor key left = '-' key left
Use the '+' and '-' keys (cursor keys) : to increase or decrease the analog level of the image controls when they are first
selected.
17 EXIT : to leave the adjustment mode or to scroll upwards when in the adjustment mode.
18 RC operating indication : lights up when a button on the remote control is pressed. (This is a visual indicator to check the
operation of the remote control)

Location and Function of Controls
2-4 5976025A BARCO ISION 708 200499

Connections
3-1
5976025A BARCO ISION 708 200499
3CONNECTIONS
Power (mains) cord connection
Use the supplied power cord to connect your projector to the
wall outlet. Plug the female power connector into the male
connector at the front of the projector.
The projector is switched ON and OFF using the power
(mains) switch ON/OFF.
Pressed : ON
Not pressed : OFF
The projector can start now in the 'operational mode' (image
displayed) or in the 'stand by mode', depending on the
software setup.
Stand by indication lamp :
no light up : projector in operational mode
red : projector is in stand by.
-9V
HOLD DOWN HD
COINC
SF
HOLD DOWN EHT
STANDBY
-CONV
-17V
+17V
+HTHD
+CONV
+9V
+210V
+30V
Leds on the front plate of the projector
Switching on/off
Signal input connection to the projector :
- Composite ideo (*)
- S- ideo (*)
- RGBS or RGsB (*)
- RGB3S or RG3sB
- (R-Y)Y(B-Y)S or (R-Y)Ys(B-Y) [component input] (**)
- (R-Y)Y(B-Y)3S or (R-Y)Y3s(B-Y) [component input] (**)
(*) If the line double feature is built in, this feature is available via a software on/off toggle.
(**) If the line double feature is built in, this feature is available for component video signals on standard frequency
via software on/off toggle.
COMM PORT
(800 peripherals)
REMOTE RG(S)B
S
VIDEO
S-VIDEO R-Y Y(S) B -Y
RS232 OUTRS232 IN
OFF ON
See installation instructions before
connecting to the supply VNOM 120/230 Volt
I MAX 5/2.5 AMP
FREQ 60/50 Hz
OFF ON
See instal lation i nstructions before
connecting t o the supply
V NOM 120/230 Volt
I MAX 5/2.5AMP
FREQ 60/50 Hz

Connections
3-2 5976025A BARCO ISION 708 200499
Source No Projector input Press digit button
1 Comp. Video 1
2 S-Video* 2
3 RGBS or RGsB** 3
3 RGB3S or RG3sB*** 4
3 (R-Y)Y(B-Y)S or
(R-Y)Ys(B-Y)**** 5
3 (R-Y)Y(B-Y)3S or
(R-Y)Y3s(B-Y)***** 6
Connecting a Composite Video source.
Composite video signals from a CR, OFF air signal decoder, etc..
If a line doubler is built in :
t e default position of t is line doubler is ON (active), t e
video input signal will be displayed as a non interlaced
image (= improved image stability).
To enable or to disable t is line doubler function, enter t e
adjustment mode and c ange t e position of t e ON/OFF
toggle switc (see Picture tuning in c apter 'Guided' adjust-
ment mode or 'Random access' adjustment mode).
Video input selection
a. with the RCU : press digit button 1 or
b. with the local keypad.
(for access to the local keypad, see 'Local keypad' in chapter
'Location and function of controls'.)
1 press ADJUST key, the General access menu is dis-
played on the screen.
2. use the cursor keys to highlight 1.
3. press ENTER to select the highlighted source.
* Input signal Y/C (luma/chroma)
** Input signal : R, G and B with composite sync on G or
separate composite sync
*** Input signal : R, G and B with Tri level sync on G or
separate Tri level sync.
**** Input signal : R-Y, Y and B-Y with composite sync on Y
or separate composite sync
***** Input signal : R-Y, Y and B-Y with Tri level sync on Y or
separate Tri level sync.
TV tuner, e.g. MARCO POLO
VCR
Audio amplifier
Composite
video
COMM PORT
(8 00 periph eral s) REMOTE RG(S)B SVIDEO S-VIDEO
R-Y Y(S) B-Y
RS232OUTRS232 IN
GENERAL ACCESS
Select with ,
or
then <ENTER>.
<EXIT> to return
SHARPNESS
TINT
COLOR
BRIGHTNESS
CONTRAST
5 6
3 4
1 2
Enter ADJUST

Connections
3-3
5976025A BARCO ISION 708 200499
Connecting a S-Video source to port 2.
Separate Y-luma/C-chroma signals for higher quality playback of
Super HS signals.
If a line doubler is built in :
t e default position of t is line doubler is ON (active), t e video
input signal will be displayed as a non interlaced image (=
improved image stability).
To enable or to disable t is line doubler function, enter t e
adjustment mode and c ange t e position of t e ON/OFF
toggle switc (see Picture tuning in c apter 'Guided' adjust-
ment mode or 'Random access' adjustment mode).
Input selection
a. with the RCU : press digit button 2 or
b. with the local keypad.
(for access to the local keypad, see Local keypad in chapter
Location and function of controls.)
- press ADJUST key, the General access menu is displayed on the
screen.
- use the control disk to highlight 2.
- press ENTER to select the highlighted source.
GENERAL ACCESS
Select with ,
or
then <ENTER>.
<EXIT> to return
SHARPNESS
TINT
COLOR
BRIGHTNESS
CONTRAST
5 6
3 4
1 2
Enter ADJUST
COMMPORT
(800peripherals) REMO TE SVIDEO S-VIDEO
VCR S-VHS Audio amplifier
Luma/Chroma
RG(S) B
R-Y Y(S) B-Y
RS232OUT
RS232IN

Connections
3-4 5976025A BARCO ISION 708 200499
Connecting a RGB Analog source with composite sync.
RGB analog input terminals with composite sync input or with
sync on green. The projector detects automatically where the
sync signal is located.
Always use an interface when a computer and local monitor
have to be connected to the projector. Examples of interfaces
which can be applied :
Universal analog interface R9826100
RGB 120 MHz Analog Interface R9826570 (230 )
Multifunctional Analog Interface Kit R9828120 (230 )
(MAGIK) R9828129 (120 )
GA interface R9828070 (230 )
R9828079 (120 )
MAC interface R9828050 (230 )
R9828059 (120 )
RGBS or RGsB input selection
a. Press digit button 3 on the RCU or
b. With the local keypad :
(to gain access to the local keypad, see 'Local keypad' in chapter
'Location and function of controls'.)
1. Press ADJUST key, the General access menu is displayed
on the screen.
2. Use the cursor keys to highlight 3.
3. Press ENTER to select the highlighted source.
Connecting a RGB Analog source with Tri-level sync.
RGB analog input terminals with Tri level sync input or with Tri-
level sync on green. The projector detects automatically where
the sync signal is located.
If a line doubler is built in :
t e default position of t is line doubler is ON (active), t e video
input signal will be displayed as a non interlaced image (=
improved image stability).
To enable or to disable t is line doubler function, enter t e
adjustment mode and c ange t e position of t e ON/OFF
toggle switc (see Picture tuning in c apter 'Guided' adjust-
ment mode or 'Random access' adjustment mode).
COMM PORT
(800 peripherals) REMOTE SVIDEO S-VIDEO
5
*
%6
$1$/2*287
,138 7
RG(S) B
R-Y Y(S) B-Y
RS232OUTRS232 IN
GENERAL ACCESS
Select with ,
or
then <ENTER>.
<EXIT>to return
SHARPNESS
TINT
COLOR
BRIGHTNESS
CONTRAST
5 6
3 4
1 2
Enter ADJUST
COMM PORT
(800 peripherals) REMOTE SVIDEO S-VIDEO
VCR HDTV player Audio amplifier
RG(S) B
R-Y Y(S) B-Y
RS232OUTRS232 IN

Connections
3-5
5976025A BARCO ISION 708 200499
RGB3S or RG3sB input selection
a. Press digit button 4 on the RCU or
b. With the local keypad :
(to gain access to the local keypad, see 'Local keypad' in chapter
'Location and function of controls'.)
1. Press ADJUST key, the General access menu is displayed
on the screen.
2. Use the cursor keys to highlight 4.
3. Press ENTER to select the highlighted source.
Connecting a Component source.
(R-Y)Y(B-Y) analog input terminals with sync input or with sync on
the luminance (Y) input. The projector detects automatically where
the sync signal is located.
Line doubling is possible for component video input sources
on standard line frequency.
If a line doubler is built in :
t e default position of t is line doubler is ON (active), t e
component video input signal will be displayed as a non
interlaced image (= improved image stability).
To enable or to disable t is line doubler function, enter t e
adjustment mode and c ange t e position of t e ON/OFF
toggle switc (see Picture tuning in c apter 'Guided' adjust-
ment mode or 'Random access' adjustment mode).
(R-Y)Y(B-Y)S or(R-Y)Ys(B-Y) input selection
a. Press digit button 5 on the RCU or
b. With the local keypad :
(to gain access to the local keypad, see 'Local keypad' in chapter
'Location and function of controls'.)
1. Press ADJUST key, the General access menu is displayed
on the screen.
2. Use the cursor keys to highlight 5.
3. Press ENTER to select the highlighted source.
Connecting a Component source with Tri-level sync.
(R-Y)Y(B-Y) analog input terminals with Tri-level sync input or with
Tri-level sync on the luminance input.
GENERAL ACCESS
Select with ,
or
then <ENTER>.
<EXIT>to return
SHARPNESS
TINT
COLOR
BRIGHTNESS
CONTRAST
5 6
3 4
1 2
Enter ADJUST
COMM P ORT
(800peripherals) REMOTE SVIDEO S-VIDEO
Professional VCR Audio amplifier
RG(S) B
R-Y Y(S) B-Y
RS232OUTRS232 IN
GENERAL ACCESS
Select with ,
or
then <ENTER>.
<EXIT>to return
SHARPNESS
TINT
COLOR
BRIGHTNESS
CONTRAST
5 6
3 4
1 2
Enter ADJUST
COMM PORT
(800 peripherals) REMOTE SVIDEO S-VIDEO
Professional VCR
withTri-level sync Audio amplifier
RG(S) B
R-Y Y(S) B-Y
RS232OUT
RS2 32 IN

Connections
3-6 5976025A BARCO ISION 708 200499
(R-Y)Y(B-Y)3S or (R-Y)Y3s(B-Y) input selection
a. Press digit button 6 on the RCU or
b. With the local keypad :
(to gain access to the local keypad, see 'Local keypad' in chapter
'Location and function of controls'.)
1. Press ADJUST key, the General access menu is displayed
on the screen.
2. Use the control disk to highlight 6.
3. Press ENTER to select the highlighted source.
Connecting a computer, e.g. IBM PC (or compatible), Apple Macintosh to the RS232 input of the projector
The projector can be equipped with a RS232 port that allows it to
communicate with a computer.
Applications: remote control and data communications.
a) remote control
- easy adjustment of the projector via IBM PC (or compatible) or
MAC connection.
- allow storage of multiple projector configurations and set ups.
- wide range of control possibilities.
- address range from 0 to 255.
b) data communications
- sending data to the projector or copying the data from the projector
to a hard memory device.
Connecting a RCVDS 05 switcher to the projector.
- Up to 10 inputs (20 inputs when video and S-video) with the RC DS
05 switcher and up to 90 inputs when 10 RC DS switchers are
linked via the expansion modules.
- Serial communication with the projector.
- Remote control buttons on the RC DS to control the projector
(source selection and analog settings)
- The selected source number will be displayed on a 2 digit display
and the selected input modules will be indicated with a LED on the
rear.
For more information about the use of the RC DS 05, consult the
Owner's Manual.
Connecting a VS05 switcher to the projector.
The S05 can switch up to 5 Composite ideo sources, 3 S- ideo
Sources and 1 RGB analog or component ideo source to the
projector. In addition, the audio signal proper to the source, can be
switched to an audio amplifier.
Order number : R9827890.
For more information about the use of the S05, consult the Owner's
Manual.
Peripheral equipment
GENERAL ACCESS
Select with ,
or
then <ENTER>.
<EXIT>to return
SHARPNESS
TINT
COLOR
BRIGHTNESS
CONTRAST
5 6
3 4
1 2
Enter ADJUST
56
FRQQHFWLRQ
COMM PORT
(800peripherals) REMOTE SVIDEO S- VI DEO
RG(S) B
R-Y Y(S) B-Y
RS23 2 OUT
RS232 IN

Controlling
4-1
5976025A BARCOVISION 708 200499
4CONTROLLING
Caution : Do not display a stationary image with full brightness
and contrast for longer than 20 min., otherwise you risk damage
to the CRT's.
Battery installation in the RC .
Two batteries are packed together with the RCU. Before using your RCU, install first these batteries.
1 Remove the battery cover on the backside by pushing the handle a little towards the bottom of the RCU.
2 Lift up the top side of the cover at the same time.
3 Insert the batteries as indicated in the RCU.
4 Put the battery cover on its place.
How to replace the batteries in the RCU ?
To replace the batteries :
1 Remove the battery cover on the backside by pushing the handle a little towards the bottom of the RCU.
2 Lift up the top side of the cover at the same time.
3 Push on the + side of the battery towards the - side
4 Lift up the battery at the same time.
5 Repeat for the second battery.
6 Insert the batteries as indicated in the RCU (battery type AA or LR6 or equivalent).
7 Put the battery cover on its place.
Note, only important if more t an one projector is installed in t e room :
1. t e default address is zero (0). If it is necessary to program t e projector address into t e RCU, see c apter 'Controlling'.
2. projector address as to be reprogrammed everytime t e battery is c anged, t e RCU will always switc to t e default address.

Controlling
4-2 5976025A BARCOVISION 708 200499
The projector can be controlled with
a. The RCU
b. The hardwired RCU (cable not included)
c. The local keypad.
Controlling the projector with the RCU and the hardwired RCU is
the same.
How to use the RC
a) Point the front of the RCU towards the reflective screen surface
b) Point the front of the RCU towards one of the IR sensors in the
projector.
When using the wireless remote control, make sure you are within the
effective operating distance (30m, 100ft in a straight line). The
remote control unit will not function properly if strong light strikes the
sensor window or if there are obstacles between the remote control
unit and the projector's IR sensor.
Ceilin
g
Screen
IRsensor
RCU
Front of projector Rear side of projector
RCU
450450450450
) ) ) ) )
$'- (;,7
(17(5
3$86(
3+$6(
7(;7
6+$531
7,17
&2/25
%5,*+71
&2175
75(%/( % $/$1&(
%$66 92/





) ) ) ) )
$'- (;,7
(17(5
3$86(
3+$6(
7(;7
6+$531
7,17
&2/25
%5,*+71
&2175
75(%/ ( %$/$1&(
%$66 92/





c) RCU used in a hardwired configuration.
Plug one end of the remote cable in the connector on the bottom of
the RCU and the second side in the connector in the rear panel of the
projector labelled 'REMOTE'.
COMMPORT
(800 p eriph erals) REMOTE RG(S)B SVIDEO S-VIDEO
R-Y Y(S) B-Y
RS232OUTRS232 IN

Controlling
4-3
5976025A BARCOVISION 708 200499
352-(&725
$''5(66

Projector address
a. Software set up of the projector address.
See 'Change Projector Address' in chapter 'Service mode'.
Every projector requires an individual address between 0 and 255 which is set in the Service mode. Only projectors with addresses between
0 and 9 can be controlled with the RCU.
b. How to control the projector.
The projector's address may be set to any value between 0 and 255. When the address is set, the projector can be controlled controlled now:
- the RCU for addresses between 0 and 9.
- Computer, e.g. IBM PC (or compatible), Apple MAC, etc. for addresses between 0 and 255.
Note : A projector will respond to an RCU set to an address of '0' regardless of what address is set in the projector itself.
c. Using the RCU.
The RCU is default programmed with address 0, 'zero address'. With that 'zero address' programmed into the RCU, every projector, without
exception will listen to the commands given by this RCU. If it is necessary to control a specific projector, than enter the projector address into
the RCU (only when that address is between 0 and 9). The projector with the corresponding address will listen to that specific RCU.
Displaying a Projector Address.
Press the ADDRESS key (recessed key on the RCU) with a pencil. The projector's address will be
displayed in a 'Text box'. This text box disappears after a few seconds.
To continue using the RCU with that specific address, it is necessary to enter the same address with
the digit buttons (address between 0 and 9) within 5 seconds after pushing the address key. For
example : if the Address key displays projector address 003, then press "3" digit button on the RCU
to set the RCU's address to match the projector's address. Do not press 003 digits. This will address
the remote control to '0' and control all projectors in the room.
If the address is not entered within 5 seconds, the RCU returns to its default address (zero address)
and control all projectors in the room.
How to program an address into the RC ?
Press the ADDRESS key (recessed key on the RCU) with a pencil and enter the address with the digit
buttons within 5 seconds after pushing the address key. That address can be any digit between 0
and 9.
Source No Projector input Press button
1 Comp. Video 1
2 S-Video 2
3 RGBS or RGsB 3
3 RGB3S or RG3sB 4
3 (R-Y)Y(B-Y)S or
(R-Y)Ys(B-Y) 5
3 (R-Y)Y(B-Y)3S or
(R-Y)Y3s(B-Y) 6
Input selection
Two possible ways of selecting an input :
a) With the digit buttons on the RCU, it is possible to select one of the
four input sources, ideo, S- ideo, RGsB or RGBS, RG3sB or
RGB3S, (R-Y)Ys(B-Y) or (R-Y)Y(B-Y)S, (R-Y)Y3s(B-Y) or (R-Y)Y(B-
Y)3S.
