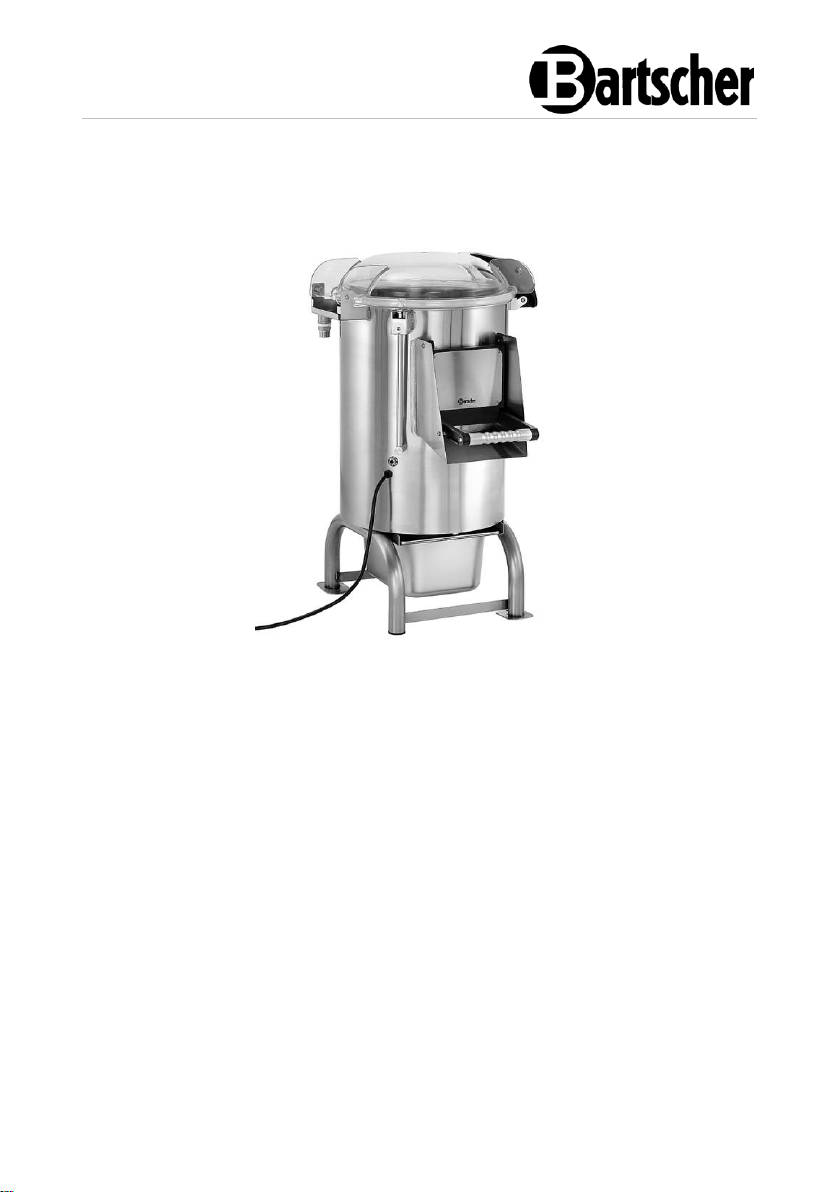

Bartscher 120198 User manual

10KG
120198

Bartscher GmbH
Franz-Kleine-Str. 28
D-33154 Salzkotten
Germany
Phone: [phone]
Fax: [phone]
Technical Support Hotline: [phone]
www.bartscher.com
Version: 1.0
Date of preparation: 2022-01-14
EN

120198 1 / 20
Original instruction manual
1Safety............................................................................................................2
1.1 Explanation of Signal Words....................................................................2
1.2 Safety instructions....................................................................................3
1.3 Intended Use ...........................................................................................5
1.4 Unintended Use.......................................................................................5
2General information.......................................................................................6
2.1 Liability and Warranty ..............................................................................6
2.2 Copyright Protection ................................................................................6
2.3 Declaration of Conformity ........................................................................6
3Transport, Packaging and Storage................................................................7
3.1 Delivery Check.........................................................................................7
3.2 Packaging................................................................................................7
3.3 Storage....................................................................................................7
4Technical Data...............................................................................................8
4.1 List of Components of the Appliance .......................................................8
4.2 Technical Specifications ........................................................................10
4.3 Functions of the Appliance.....................................................................11
5Installation and operation ............................................................................12
5.1 Installation..............................................................................................12
5.2 Operation...............................................................................................15
6Cleaning and Maintenance..........................................................................17
6.1 Safety Instructions for Cleaning.............................................................17
6.2 Cleaning.................................................................................................17
6.3 Maintenance ..........................................................................................18
7Disposal....................................................................................................... 18

Safety
2 / 20 120198
EN
Diese Bedienungsa nleitung beschreibt di eI nstallation, Bedienu ngu nd Wartung des G erätsu ndg ilt als wichtige Infor mationsquelle und N achschlagewer k.Die Ke nntnis aller enthaltene nSic herheitshin weise und Handlungs anweisungen schaf ft dieV oraussetzung f ürd as sichere und sachger echte Arbeiten mit d emG erät.D arüber hin aus müssen die für den Eins atzbereich des Geräts gelt enden örtlichen Unfall verhütungsvorsc hriften und allgemeine n Sicherheitsbesti mmungen eing ehalten werden. Diese Bedi enungsanleitung is t Bestandteil des Prod ukts und muss in unmitt elbarerN ähe des Geräts für das In¬stall ations-, Bedienungs- , Wartungs- und Reinigu ngspersonal jederzeit z ugänglich auf¬b ewahrt werden. Wenn das Ger ät an eine dritte Person
weitergegeben wird , muss die Bedienungsa nleitung mit ausgehä ndigt werden.
Read this instruction manual before using and keep it available
at all times!
This instruction manual contains information about installation, operation and
maintenance of the appliance and constitutes an important source of information
and reference guide. The knowledge of all operational and safety instructions
included in this manual is a prerequisite for safe and proper handling of the
appliance. Additionally, accident prevention, occupational health and safety, and
legal regulations in force in the area the appliance is used apply.
Before you start using the appliance, especially before turning it on, read this
instruction manual in order to avoid personal injuries and property damages.
Improper use may cause damage.
This instruction manual forms and integral part of the product and must be stored in
an immediate vicinity of the appliance and be available at all times. The instruction
manual should be transferred together with the appliance.
1 Safety
This appliance has been manufactured in accordance with technical standards
currently in force. However, the appliance may be a source of hazards if used
improperly or contrary to its intended purpose. All persons using the appliance must
consider information included in this instruction manual and observe safety
instructions.
1.1 Explanation of Signal Words
Important safety instructions and warning information are indicated in this
instruction manual with appropriate signal words. You must strictly follow the
instructions, to prevent accidents, personal injuries and property damages.
DANGER!
The signal word DANGER warns against hazards that lead to severe
injuries or death if the hazards are not avoided.

Safety
120198 3 / 20
EN
WARNING!
The signal word WARNING warns against hazards that may lead to
moderate or severe injuries or death if the hazards are not avoided.
CAUTION!
The signal word CAUTION warns against hazards that may lead to
light or moderate injuries if the hazards are not avoided.
,di e
IMPORTANT!
The signal word IMPORTANT indicates possible property damages,
which may occur if safety instructions are not observed.
NOTE!
The symbol NOTE indicates subsequent information and guidelines
for the user on usage of the appliance.
1.2 Safety instructions
Electrical Current
•Too high a mains voltage or incorrect installation may cause electric shock.
•The appliance may be connected only if data on the rating plate correspond with
the mains voltage.
•To avoid short-circuit, the appliance should be kept dry.
•If there are malfunctions during operation, disconnect the appliance from the
power supply.
•Do not touch the appliance’s plug with wet hands.
•Never take hold of the appliance if it has fallen into water. Immediately
disconnect the appliance from the power supply.
•Any repairs or housing opening may be carried out by professionals and
relevant workshops only.
•Do not transport the appliance, holding it by the power cord.
•Do not allow the power cord to come into contact with heat sources or sharp
edges.
•Do not bend, pinch nor knot the power cord.

Safety
4 / 20 120198
EN
•Always completely unwind the power cord.
•Never place the appliance or other objects on the power cord.
•Always take hold of the plug to disconnect the appliance from the power supply.
•Check the power cord regularly for damage. Do not use the appliance if the
power cord is damaged. If this cable is damaged, it must be replaced by
customer service or a qualified electrician in order to avoid dangers.
Operating Personnel
•The appliance may only be operated by qualified personnel and trained
specialist personnel.
•This appliance may not be operated by persons (including children) with limited
physical, sensory or mental capabilities, nor by persons with limited experience
and/or limited knowledge.
•Children should be supervised to ensure that they are not playing with or
switching on the appliance.
Supervised Usage only
•Only supervised appliance may be used.
•Always remain in an immediate vicinity of the appliance.
Improper Use
•Unintended or prohibited use may cause damage to the appliance.
•The appliance may only be used when its technical condition is flawless and
allows for safe operation.
•The appliance may only be used when all connections are executed according
to rules of law in force.
•The appliance may only be used when it is clean.
•Use only original spare parts. Never attempt to repair the appliance on your own.
•Do not introduce any changes in the appliance nor modify it.

Safety
120198 5 / 20
EN
1.3 Intended Use
As described below, every use of the appliance for a purpose differing and/or
diverging from its intended standard use, is prohibited and considered to be an
unintended use.
The following is an intended use:
–Peeling potatoes.
1.4 Unintended Use
An unintended use may lead to personal injuries or property damages caused by
hazardous voltage, fire or high temperature. The appliance may only be used to
perform tasks described in this instruction manual.
The following is an unintended use:
–Peeling other vegetables and fruit,
–Removing clam shells and fish scales.

General information
6 / 20 120198
EN
2 General information
2.1 Liability and Warranty
All information and instructions in this instruction manual account for legal
regulations in force, current level of technical engineering knowledge as well as our
expertise and experience, developed over the years. If special models or additional
options are ordered, or state-of-the-art technical solutions were implemented, the
actual scope of delivery of the appliance may, in some circumstances, differ from
descriptions and numerous drawings in this instruction manual.
The manufacturer is not liable for any damages nor faults stemming from:
–failure to observe instructions,
–unintended use,
–technical alterations introduced by the user,
–usage of unapproved spare parts.
We reserve the right to introduce technical modifications to the product, intended for
improvement of the appliance and its performance.
2.2 Copyright Protection
This instruction manual, and texts, drawings and images included in it, as well as its
other components are copyright protected. It is prohibited to reproduce this
instruction manual (including its excerpts), in any form and by any means, and to
use and/or transfer its content to third parties without manufacturer’s written
permission. Violation of the above results in obligation to pay compensation. We
reserve the right to claim further damages.
2.3 Declaration of Conformity
The appliance meets the currently applicable standards and guidelines of the
European Union. We confirm the above in the EC Declaration of Conformity. We
may provide relevant Declaration of Conformity upon request.

Transport, Packaging and Storage
120198 7 / 20
EN
3 Transport, Packaging and Storage
3.1 Delivery Check
Immediately upon reception, check the delivery for completeness and possible
shipping damage. In the case of visible transport damage refuse to accept the
appliance or accept it conditionally. Mark and note the scope of damage in shipping
documents/consignment list of the shipping company and lodge a complaint.
Concealed damage must be reported immediately upon its discovery, as
compensation claims may only be filed within applicable time limits.
If you find that parts or accessories missing, please contact our Customer Service
Department.
3.2 Packaging
Do not dispose of the appliance cardboard box. It may be used to store the
appliance when relocating or when shipping the appliance to our service point in the
case of any damages.
The packaging and its elements are made of recyclable materials. Particularly,
these are: plastic films and bags, cardboard box.
When disposing of the packaging, observe applicable domestic regulations.
Recyclable packaging materials should be recycled.
3.3 Storage
Leave the packaging closed until installation of the appliance; observe external
indications concerning method of placing and storage. Store the packaging in the
following conditions only:
–in closed rooms;
–in dry and dust-free surrounding;
–away from aggressive agents;
–in a location protected against sunlight;
–in a location protected against mechanical shocks.
In the case of extended storage (over three months), make sure you check the
condition of the packaging and the parts regularly. If needed, replace the packaging
with a new one.

Technical Data
8 / 20 120198
EN
4 Technical Data
4.1 List of Components of the Appliance
Fig. 1

Technical Data
120198 9 / 20
EN
Description for Fig. 1
1. Lid lock
2. Top lid
3. Grater disk, removable
4. Motor fixture
5. Water connection
6. Housing
7. Base
8. Collection container with sieve
9. Water drain
10.Feeder chute flap
11.Feeder chute
12.Lid micro-switch
13.Cord tube
14.Safety switch
15.Power cord
16.Feeder flap handle
17.Feeder chute
18.Emergency switch
19.Pulse operation key
20.ON/OFF indicator light (white)
21.Operation indicator light (green)
22.Timer
Control Elements Functions
18
Emergency switch
Pressing the emergency switch results in instantaneous stop of the
appliance. All other keys/switches are deactivated until the emergency
switch is reset by rotating it clockwise.
19
Pulse operation key
This key is used for ejecting potatoes when the peeling process is off and
the appliance stops.
ATTENTION!
Do not press the pulse operation key during the peeling process.
20
ON/OFF indicator light (white)
This indicator light is lit when the appliance is connected to the mains
electric supply.
21
Operation indicator light (green)
This indicator light is lit when the peeling process is stared through setting
the operation time with the use of the timer.
22
Timer
The timer is used for setting the required operation time (0–5 minutes) and
starting the peeling process.

Technical Data
10 / 20 120198
EN
4.2 Technical Specifications
Name:
Potato peeling machine 10KG
Art. No.:
120198
Material:
stainless steel
Capacity, in kg:
10
Max. output, in kg / hour:
130
Maximum rotational speed, in RPMs:
1200
Speed control, levels:
1
Time setting, from–to, in min.:
0 - 5
Water connection:
3/4"
Degree of protection:
IP23
Connected load:
0,75 kW | 230 V | 50 Hz
Dimensions (W x D x H), in mm:
670 x 540 x 860
Weight, in kg:
37,8
We reserve the right to implement technical modifications.
Version / Characteristics
•Timer
•Overload protection
•Emergency switch
•Indicator lights:
–ready for operation
–appliance in operation

Technical Data
120198 11 / 20
EN
Protective Devices
Microswitch: The microswitch is equipped with a magnetic mechanism. The
appliance switches off automatically, when the top lid or front flap are not closed or
are opened during operation.
Emergency switch: In an emergency situation (e.g., on the event of clogging,
strange vibrations or sounds, etc.), immediately operate the emergency switch. The
appliance stops. All keys/switches are deactivated into the emergency switch is
reset.
NOTE!
To reset the emergency switch, rotate it clockwise to its initial position.
Circuit breaker: This switch is used for protecting the circuit against damage
resulting in overtension caused by overloading or short-circuit. When the error is
detected, this switch interrupts flow of electric current.
NOTE!
To reset this switch, press it when you have already remedied the
problem.
4.3 Functions of the Appliance
The appliance operates as a grater. To this end, a round grater disk is installed in
the cylindrical housing, which is connected to the motor. During operation, potatoes
are set in a circular motion, thus they are peeled.
Using the grater disk you may set in motion 130 kg of potatoes per hour. Functions,
such as the timer and emergency switch, provide for smooth and safe operation.

Installation and operation
12 / 20 120198
EN
5 Installation and operation
5.1 Installation
CAUTION!
Incorrect installation, positioning, operation, maintenance or misuse of
the appliance may lead to personal injury or property damage.
Positioning and installation, as well as repairs may be performed by
authorised technical service only and in compliance with the applicable
national law.
NOTE!
The manufacturer disclaims all liability and provides no warranty for
damages, which may be attributed to non-observance of regulations or
incorrect installation.
Unpacking / Positioning
•Unpack the appliance, remove all external and internal packaging elements and
shipment safeguards.
CAUTION!
Choking hazard!
Prevent children from accessing package materials, for instance: plastic
bags and EPS.
•If the appliance is covered with a protective film, remove it. Remove the film
slowly, so no glue residues are left. Remove any glue residues with the use of a
suitable solvent.
•Be careful not to damage the rating plate and warning labels fixed on the
appliance.
•Never place the appliance in humid or wet environment.
•Place the appliance in a way making the connections easily accessible, so that
they may be quickly disconnected if such a need arises.
•The appliance should be placed on surfaces that are:
–even, with sufficient bearing capacity, resistant to water, dry and resistant
to high temperatures;

Installation and operation
120198 13 / 20
EN
–sufficiently large, and thus enabling usage of the appliance with no
problems;
–easily accessible;
–well ventilated.
•The appliance is delivered packed in a card-box on a plywood pallet, thus
providing for full transport safety.
•Remove the card-box following the instructions.
•Open the card-box and make sure that all parts are intact.
•Lift the appliance according to the instructions and set it down in the designated
installation location.
•Maintain sufficient clearance from table edges. The appliance might turn over
and fall down.
Power supply connection
•Verify if technical data of the appliance (see rating plate) correspond with the
local electric power grid specification.
•Connect the appliance to a single, properly grounded mains socket with
protective contact. Do not connect the appliance to a multi-socket.
•The power cord should be laid in a way preventing anyone from threading on it
or tripping against it.
•Check if the grounding system operates correctly.
•The appliance is equipped with a power cord with plug. Connect the appliance
to a single grounded wall socket with a disconnector.

Installation and operation
14 / 20 120198
EN
Connection to Water Supply and Sewage System
1. Connect the appliance to water supply
with the supplied hose (1.5 m) and 3/4"
connectors. Proceed the following way:
–connect the hose to the water
supply at the back of the
appliance;
–connect the other end of the
hose to the water supply.
Fig. 2
2. Use the clamp band to fix the suitable
drain hose to the collection container
drain.
3. Introduce the other end of the hose to
the drain system.
The drain hose and clamp bands are
not part of the delivery.
Fig. 3

Installation and operation
120198 15 / 20
EN
5.2 Operation
Before First Use
1. Before the first use it is required to clean the appliance thoroughly with the use
of warm water, soft cloth or sponge, and gentle detergent. Follow the
instructions in section 6 'Cleaning'.
2. Wipe the cleaned elements and surfaces with a cloth soaked in fresh water and
then dry them thoroughly.
Appliance Operation
Fig. 4
1. Open the transparent lid by pulling it upwards with the handle (1).
2. Install the grater disk.
3. Fill the container (peeling chamber) with potatoes.
4. Close the lid.
5. make sure the feeder chute flap (10) is locked.
6. Place a suitable container (e.g., a bucket, pot) under the chute.
7. Open the shut-off valve of the water supply system.
8. Plug the appliance into a suitable single socket.
The white ON/OFF indicator light lights up. (20).
9. Start the peeling process by setting the timer (22) to the required time in the
range of 0–5 minutes.

Installation and operation
16 / 20 120198
EN
The green operation indicator light (21) will be lit.
When the time elapses, the appliance stops automatically.
The green operation indicator light goes off.
10.Open the feeder chute flap (10) using the handle (16) to this purpose.
11.Then press the pulse operation key (19), so that the peeled potatoes are ejected
through the feeder chute (10) to the container underneath.
12.During this process keep the feeder chute flap (10) open and check if the peeled
potatoes are ejected; do not touch it.
WARNING!
Injury hazard posed by the sharp grater disk.
Never introduce hands into the feeder chute to help ejecting potatoes.
Should an accident occur, press the emergency switch immediately.
ATTENTION!
When clogged, the grater disk and discharge pipe may negatively
influence the appliance operation.
After each cycle, check the grater disk and discharge pipe for clogging, and
clean them if needed.
Collection Container with Sieve
The appliance is equipped with the collection container with sieve. Before operating
the appliance, always install it under the appliance. Peeling residues are collected
in this container, as well as water used during peeling process.
NOTE!
Empty the collection container with sieve regularly.

Cleaning and Maintenance
120198 17 / 20
EN
6 Cleaning and Maintenance
6.1 Safety Instructions for Cleaning
•Before cleaning, disconnect the appliance from the power supply.
•Leave the appliance to cool down completely.
•Make sure water does not enter the appliance. Do not immerse the appliance in
water or other liquids during cleaning. Do not clean the appliance with a
pressurized water jet.
•Do not use any sharp or pointed, nor metal implements (knife, fork, etc.). Sharp
or pointed implements may damage the appliance, and when in contact with live
parts, they may cause electric shock.
•For cleaning, do not use any scouring agents that contain solvents nor corrosive
cleaning agents. They may damage the surface.
6.2 Cleaning
WARNING!
Injury hazard posed by the sharp top surface of the grater disk.
When removing and cleaning the grater disk, exercise utmost caution. Wear
safety gloves, resistant to cutting.
NOTE!
The grater disk is not suitable for washing in a dishwasher.
1. At the end of a working day, clean the appliance thoroughly.
2. Open the top lid and remove the grater disk from the peeling chamber.
3. Clean the grater disk and the inside of the peeling chamber using warm water
and a suitable plastic dish-washing brush.
4. To end with, rinse with fresh water.
5. Leave the cleaned elements to dry in open air.
6. Clean the top lid (including the gasket), the outside of the appliance and feeder
chute thoroughly with a soft, damp cloth. Use a mild cleaning agent if required.
7. Wipe with a clean cloth.
8. Finally dry all cleaned parts and surfaces with soft cloth.
9. Empty the collection container with sieve and clean it with warm water, using a
cloth or a sponge. Dry the container with a soft, dry cloth.

Disposal
18 / 20 120198
EN
ATTENTION!
The appliance may be stored and operated only when it has dried
sufficiently after cleaning.
6.3 Maintenance
•Let the appliance to be inspected by professional technician at least once a year
or as required.
7 Disposal
Electrical Appliance
Electric appliances are marked with this symbol. Electrical
appliances must be disposed of and recycled in a correct
and environmentally friendly manner. You must not dispose
of electric appliances with household waste. Disconnect the
appliance from the power supply and remove power cord
from the appliance.
Electrical appliances should be returned to designated collection points.
